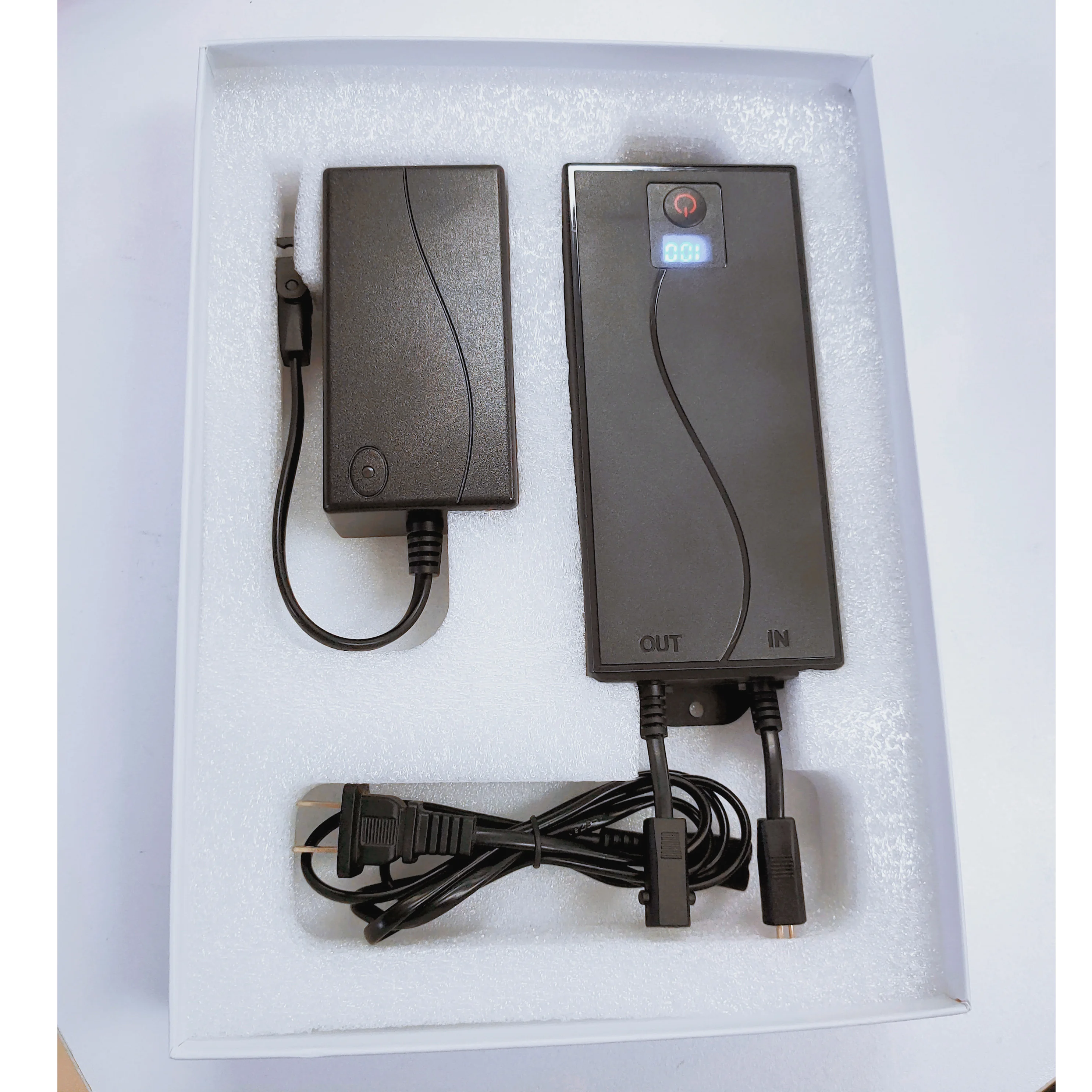

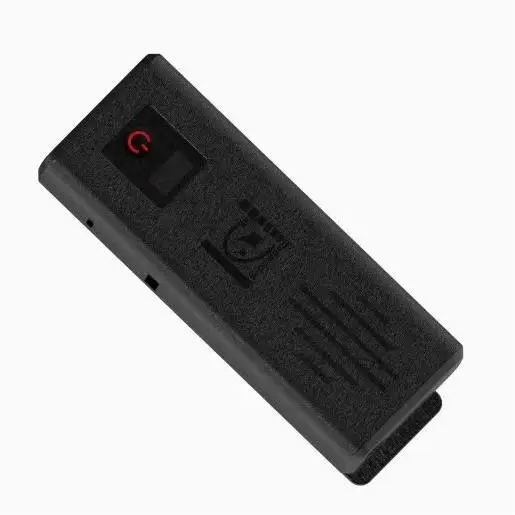

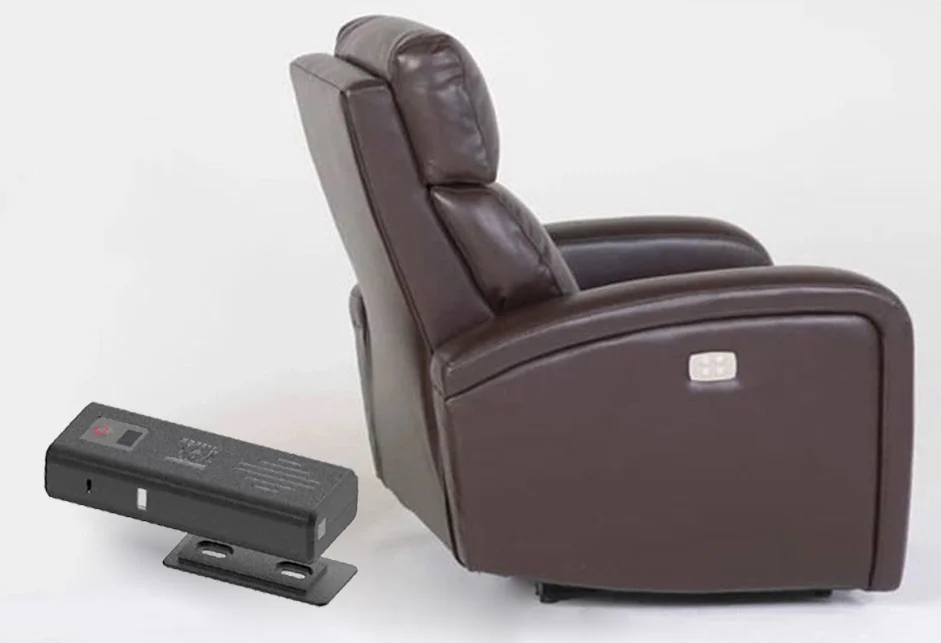

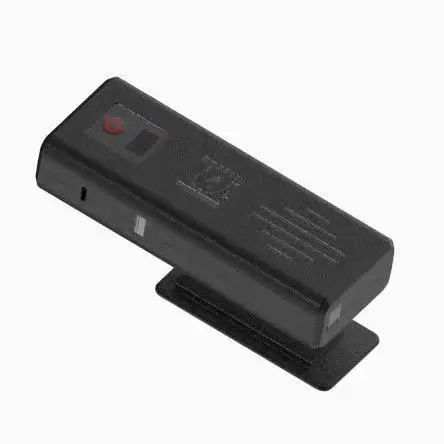

new design 25.9v 3a 18650 li ion 1000mah battery pack rechargeable wireless power furniture recliner battery pack

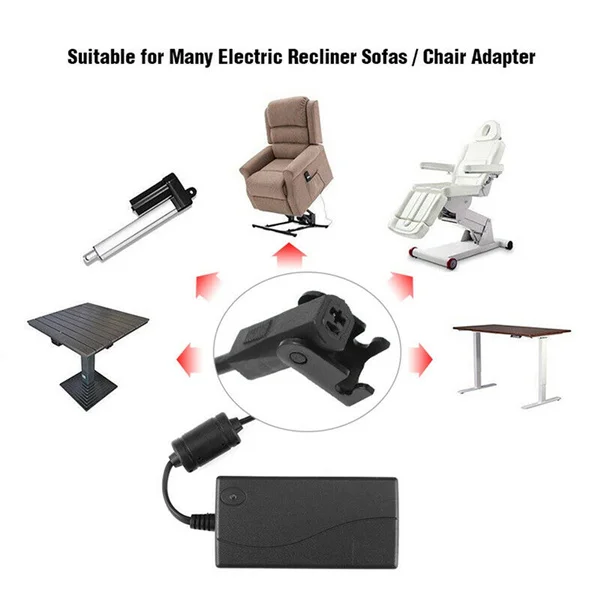

1.Applications Scenarios

(1)Single motor lift table

(2)Single electric adjustable sofa

(3)Other single motor products or applications with peak current<4A

(4)Mobile phone and other digital products or electronic device applications

2.Product function description

(By boosting the voltage of 4 18650 2500MAH batteries  realization)

The rated capacity of this product is1000mAH/ 29V, Output current is 29V1.5A and the operating environment temperature is-10℃~+40℃, Equipped with peak current output function, the peak current working time is as below:

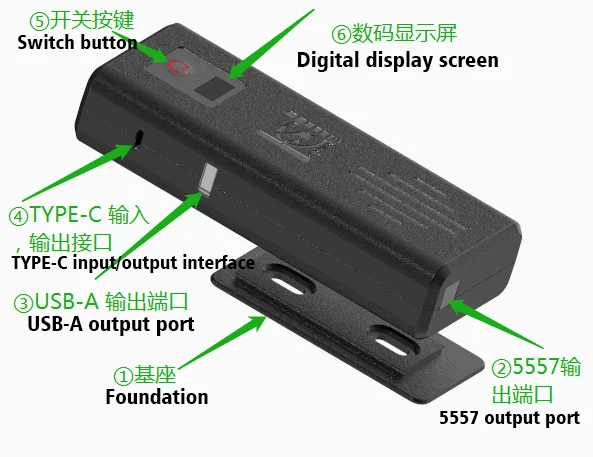

3.Function description of each part

(1) Base: Assembly parts for battery pack and customer products. After fixing the base with customer products using screws, insert the battery pack body into the base chute.

(2)  5557 output port of battery pack is connected with 5557 terminal. The output voltage is 29V±5%.

(3)  USB-A output port: Supports QC2.0/3.0 fast charge function 5V3A 9V2A 12V1.5A (18W MAX) output.

(4) TYPE-C is input/output port: support PD3.0 fast charging function 5V3A 9V2A 12V3A 15V3A 20V3A (60W MAX) input or output. It is a bidirectional input and output port, which can charge the battery pack input or external output.Supports 5V slow charging.

Support FCP/AFC/SCP/VOOC input/output fast charging protocol; This product adopts TYPE-C charging interface, which can use various mobile phone chargers to quickly charge this product; The charging time varies depending on the charger used by the user, and it can be fully charged in 1.5 Hz when charged at 60W

(5)        Output switch button:When the battery pack is activated, it is used to wake up the battery pack output function and power display. To prolong the battery pack standby time, when the battery pack is in no-load state for more than 5 minutes, the 5557 output port 29V will automatically shut down the output. And if you need to use it again, press this button once.

When the output of all ports of the battery pack is open without charging:

1. Press this button once, and the output port 5557 will be closed immediately;

2. Press this key twice quickly to close the TYPE-C/USB-A output port. Press the key again to open the TYPE-C/USB-A output port.

3. Press the key once to open or close the 5557 output port or open the TYPE-C/USB-A output port.

In charging state: press this button once, 5557 output port will be closed or opened; TYPE-C/USB-A charging and discharging are not controlled.

(6)        Digital viewing screen: digital 1-100% display battery pack power,as well as the "lightning" sign lights up for fast charging, and not light up for slow charging.

Support: TYPE-C charge/discharge +USB-A discharge, when charging and discharging at the same time, the input and output are 5V;

Support: TYPE-C charging +USB-A discharge +5557 port discharge, when charging and discharging at the same time, TYPE-C/USB-A input and output are 5V; Port 5557 is 29VDC.

4.Protect function

the product has multiple protection functions, as follows: when the 29V port is operating, TYPE-C, USB-A temporarily turns off the output.

5.Safety certification

The product certifications  as follows:

(1) North America(ETL,FCC)

UL2054,UL62368

(2) EU (CE,UKCE,ROHS,REACH)

BS EN/EN/IEC62133,BS EN/EN/IEC62368

(3) UN38.3

Including:MSDS,Air and sea freight appraisal certificate.

Company introduction

Shenzhen Rongweixin Technology Co., Ltd. is located in Songgang, Shenzhen. RWX was founded in July 2010,with more than 10,000 square meters. It has more than 500 employees and an annual output of more than 18 million products. Rongweixin it is a high-tech enterprise specializing in R&D, production and sales of various switching power supplies, power adapters, chargers, battery packs and transformers. Products are widely used in IT/AV products , household appliances, office equipment, LED Lighting and industrial equipment.RWX new introduced a new energy products, including 100 w, 200 w, 300 w, 500 w, 1000 w, 1500 w, 2000 w portable outdoor energy storage power station.

RWX has gathered a group of industry R&D technical elites and experienced management talents, with advanced and sophisticated experimental equipment, production equipment and testing instruments, and a very high degree of automation; the company strictly follows the ISO9001:2015 quality management system and ISO14001:2015 environmental management system Operation; through scientific management, complete experimental testing and a sound quality system, to provide high-quality products and services ! All of the products has CB, UL (CUL), CAS, FCC, TUV/GS, PSE, CE (BS), CCC, SAA, E-MARK, ERP, CEC, MEPS ,etc.

The products are sold well in China and Europe and the United States. , Japan, South Korea, Australia and other foreign markets. Shenzhen Rongweixin Technology Co., Ltd. warmly welcomes all the customers to inquire and negotiate business and establish a good win-win cooperation relationship!

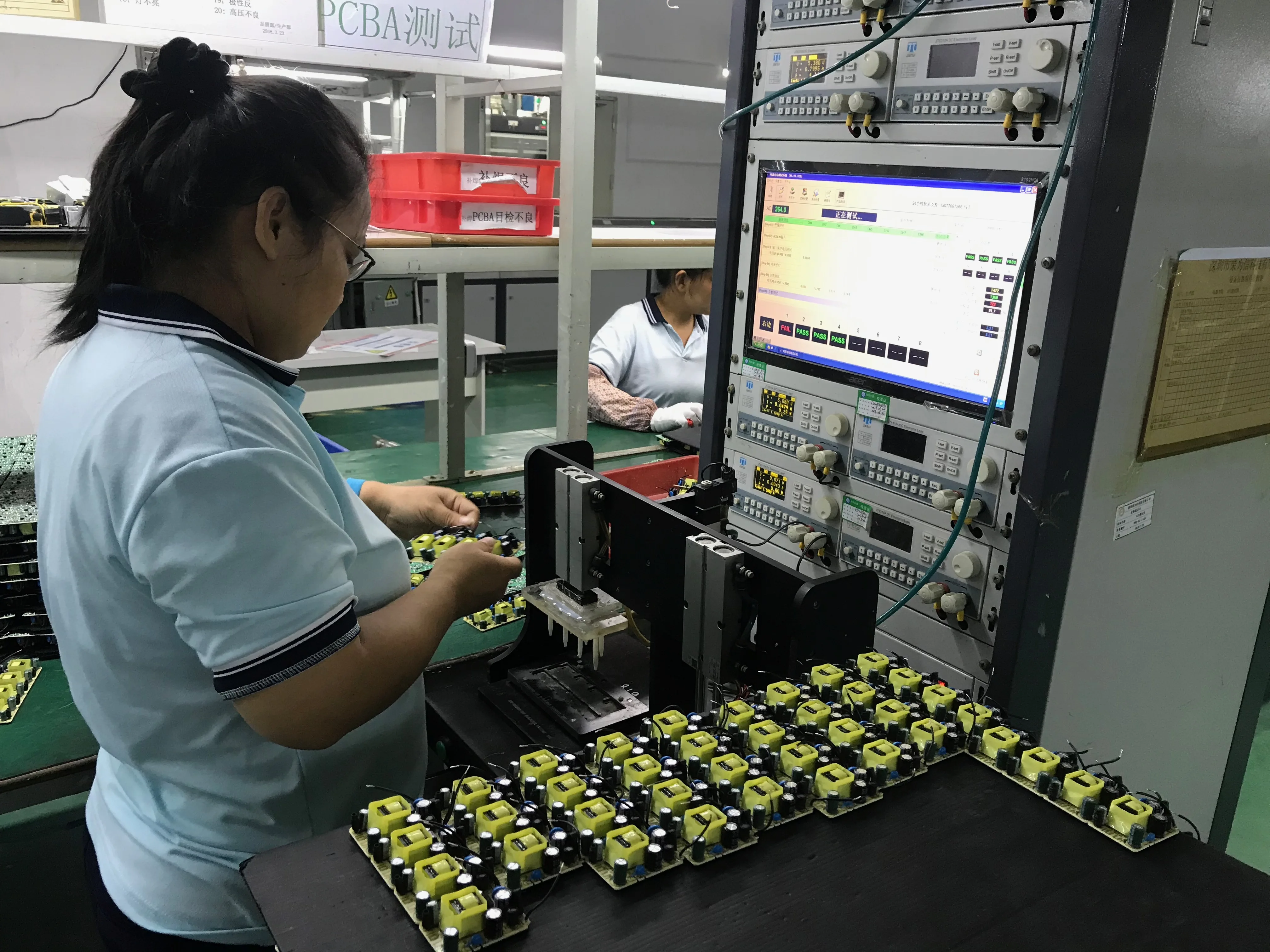

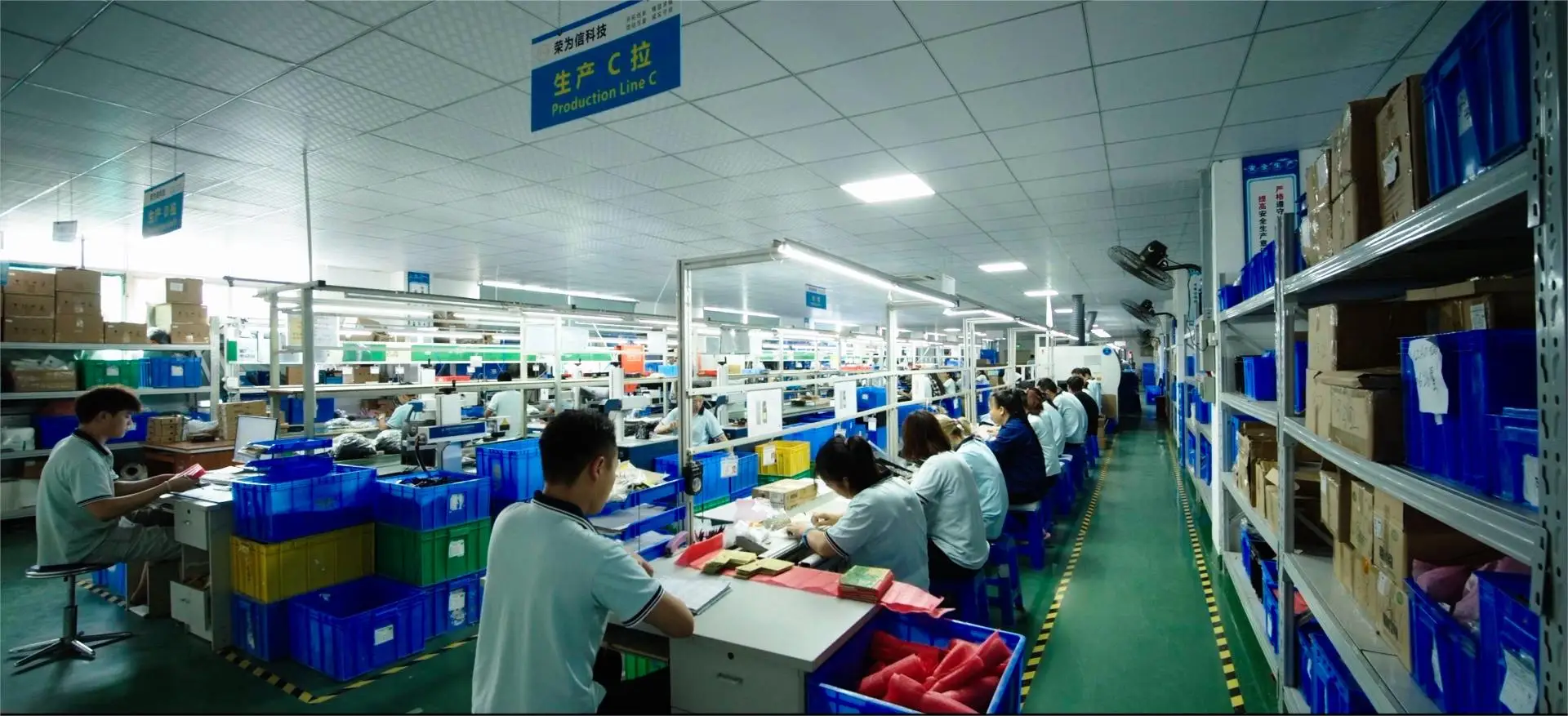

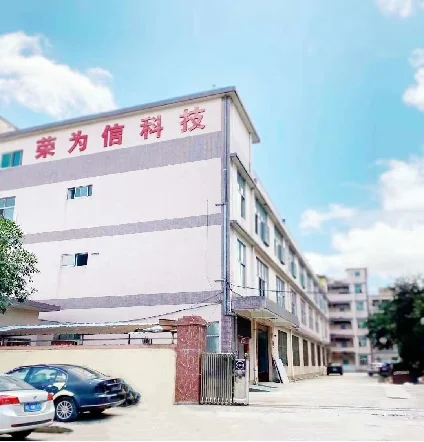

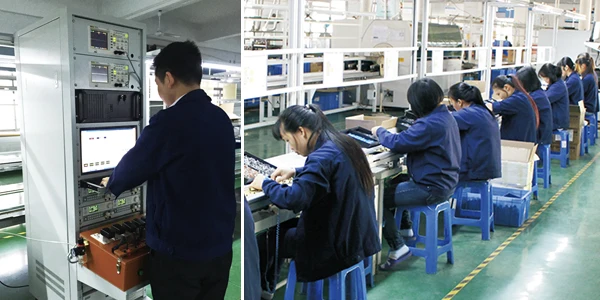

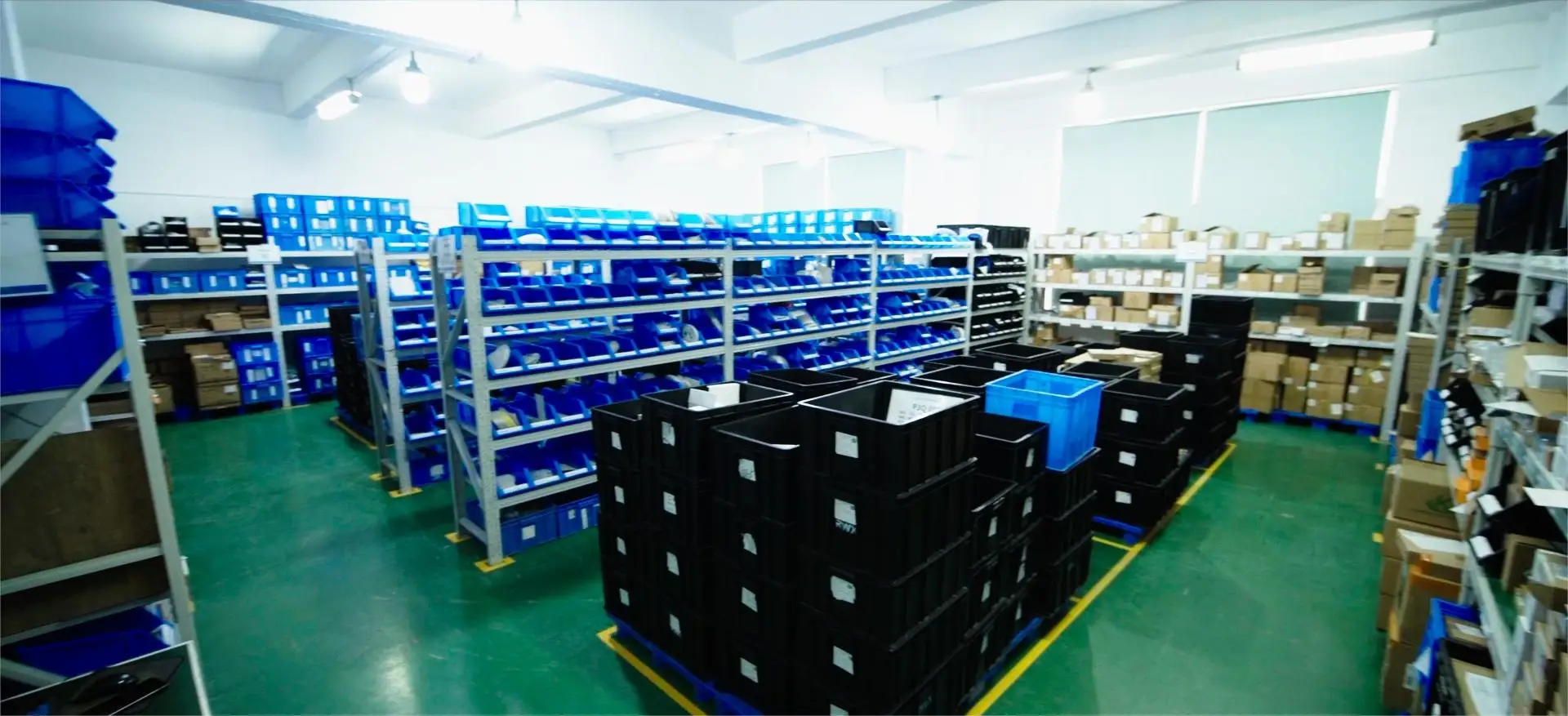

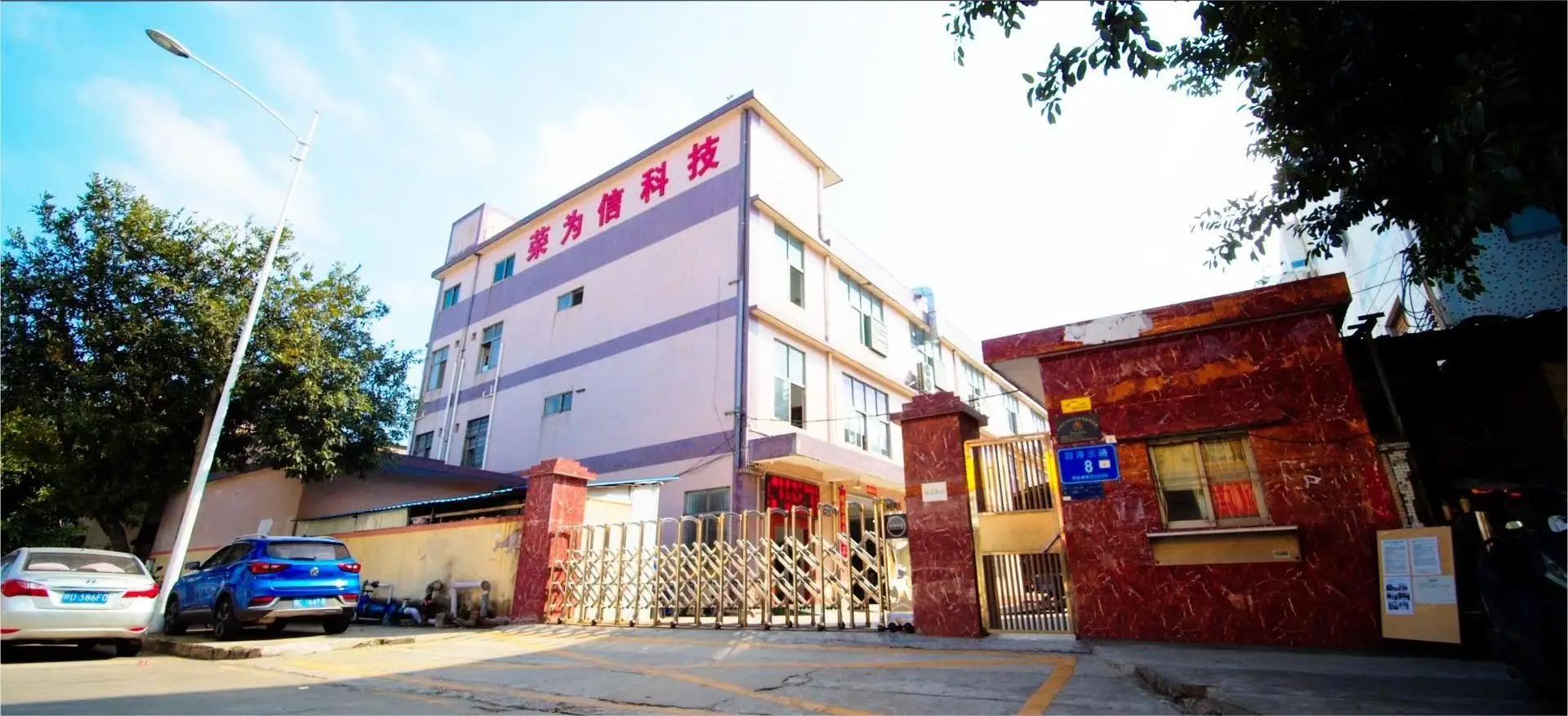

Our factory

Our team

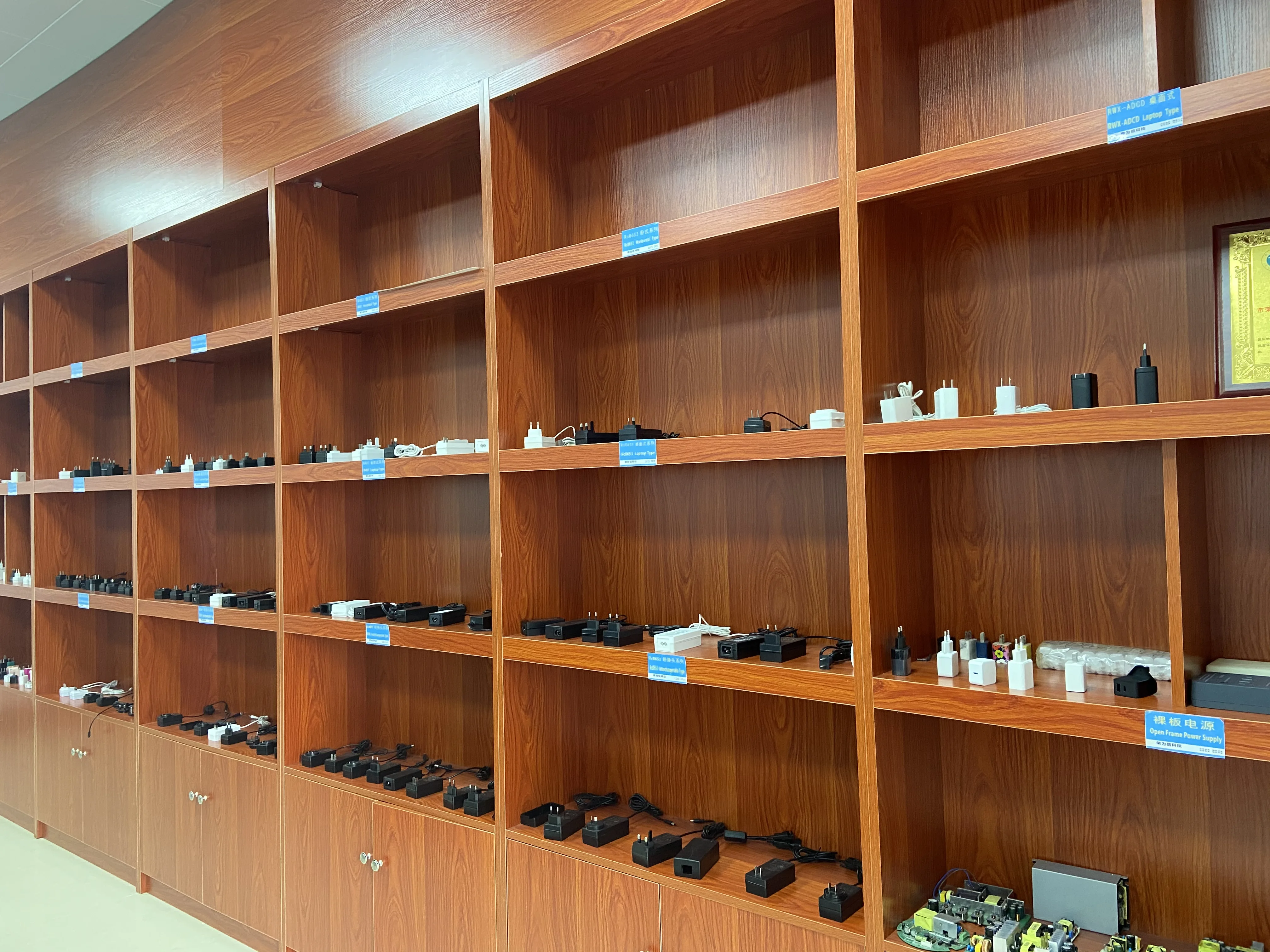

Exhibition

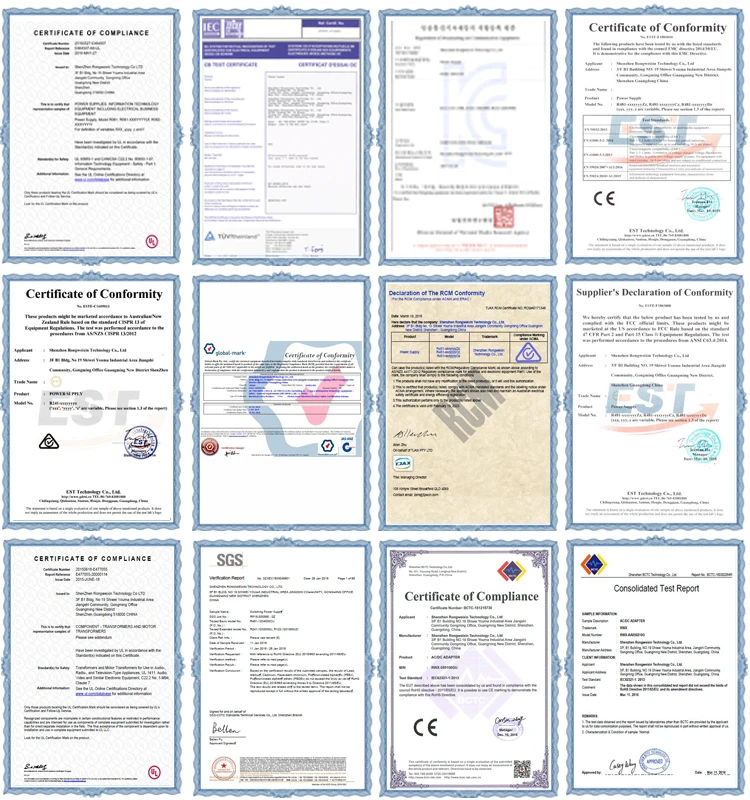

Certification
