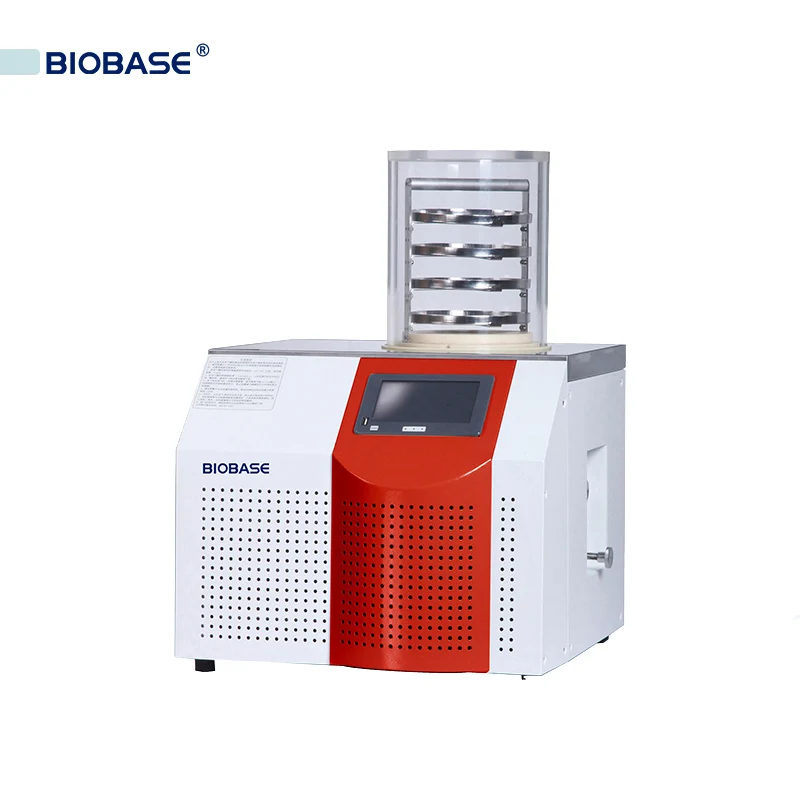

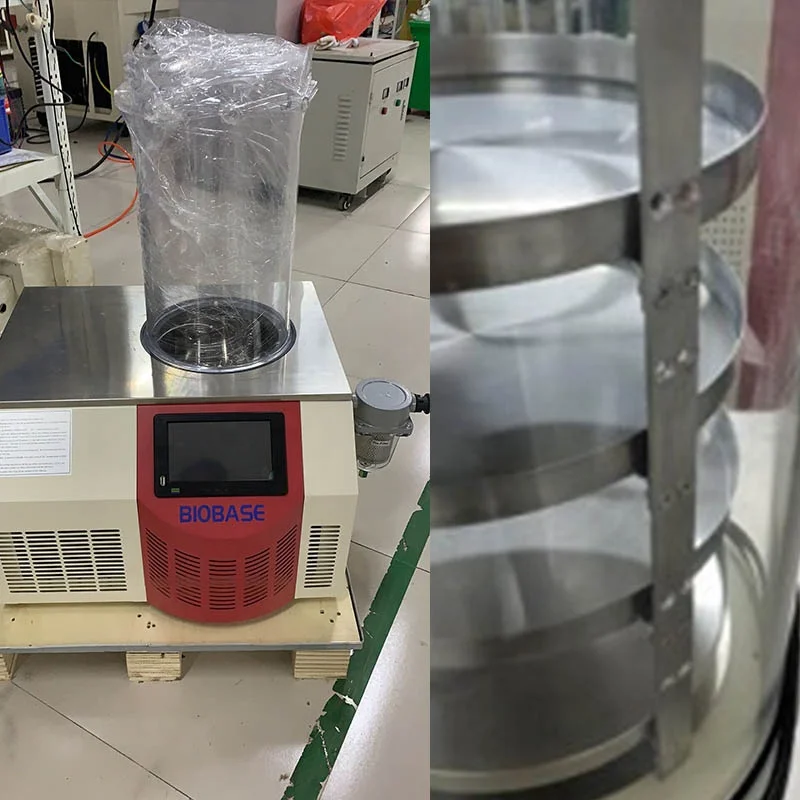

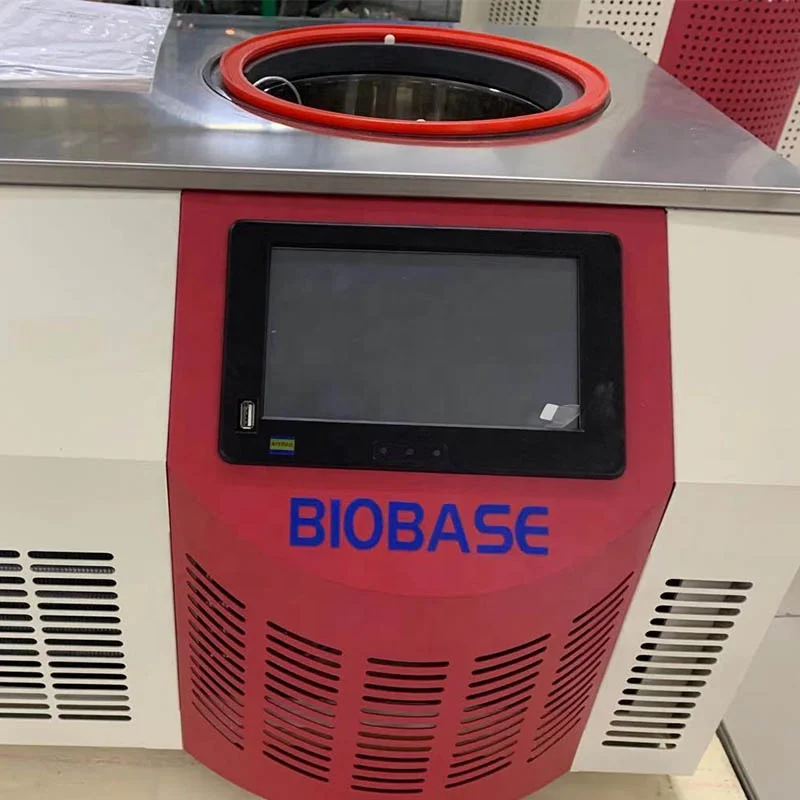

BIOBASE m Mini Freeze Dryer Laboratory Freeze Dryer Machine Chemical Equipment with factory price
- Category: >>>
- Supplier: Biobase Bioten Co. Ltd.
Share on (1600884768155):
Product Overview
Description
Products Description
The lab series freeze dryer is suitable for freeze drying test of laboratory biomedical samples. Widely used in drugs, biological products, chemical and food industries. On the heat-sensitive substances such as antibiotics, vaccines, blood products, hormones and other biological tissue enzymes, freeze-drying technology is applied.
Features:

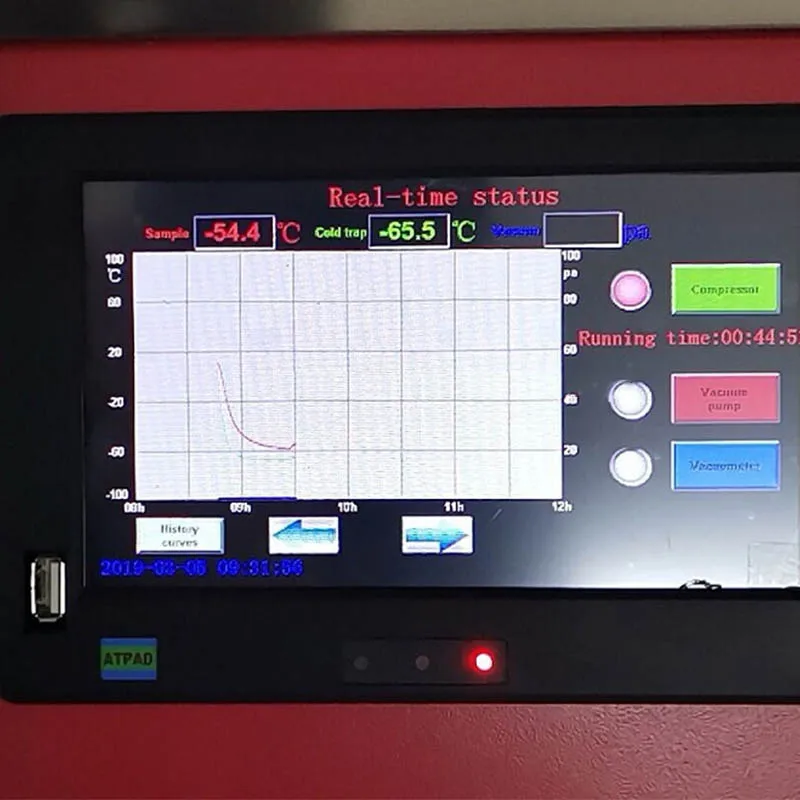

1. LCD touch screen.
2. With historical data inquiry function.
3. With USB interface to export the data.
4. Large capacity ice condenser trap and without coil inside.
5. With cascade refrigeration technology.
6. Pre-freezing shelf can be used as guide barrel to speed up the drying rate.
7. Ice condenser trap and operation panel are made by stainless steel.
8. Drying chamber is transparent which is visual and safe.
9. Shelves are stainless steel, which can be adjustable per the requirements.
1. LCD touch screen.
2. With historical data inquiry function.
3. With USB interface to export the data.
4. Large capacity ice condenser trap and without coil inside.
5. With cascade refrigeration technology.
6. Pre-freezing shelf can be used as guide barrel to speed up the drying rate.
7. Ice condenser trap and operation panel are made by stainless steel.
8. Drying chamber is transparent which is visual and safe.
9. Shelves are stainless steel, which can be adjustable per the requirements.
Technical Specification
Model | BK-FD10S | BK-FD10P | BK-FD10T | BK-FD10PT | |||||
Type | Standard chamber | Standard chamber with 8 port manifold | Stoppering chamber | Stoppering chamber with 8 port manifold | |||||
Freeze Drying Area | 0.12 m² | 0.09 m² | |||||||
Tray | 4/6(Optional)pcs | 3pcs | |||||||
Height Between Trays | 76/50mm | 70mm | |||||||
Cold Trap Temperature | -60℃ | ||||||||
Cold Trap Capacity | 6.9L | ||||||||
Cold Trap Size (Diameter*H) | Φ215*190mm | ||||||||
Vacuum Degree | <10Pa | ||||||||
Water Capture Capacity | 3kg/24h | ||||||||
Tray Size (D*H) | Φ200*20mm | ||||||||
Freeze Drying Time | 24h | ||||||||
Loading Capacity/Shelf (Liquid) | 0.3L | ||||||||
Total Loading Capacity (Liquid) | 1.2L | 0.9L | |||||||
Drying Chamber Size (Diameter*H) | Lower circle Φ260, Upper circle Φ240mm Height 450mm | ||||||||
Total Qty. Of Vial Φ22 | 260 | 195 | |||||||
Total Qty. Of Vial Φ16 | 480 | 360 | |||||||
Total Qty. Of Vial Φ12 | 920 | 690 | |||||||
Refrigerant | R600a+R290+R23 | ||||||||
Cooling System | Air cooling | ||||||||
Power Consumption | 0.9KW | ||||||||
Power Supply | AC220V, 50/60Hz (single phase); 110V, 60Hz (single phase) | ||||||||

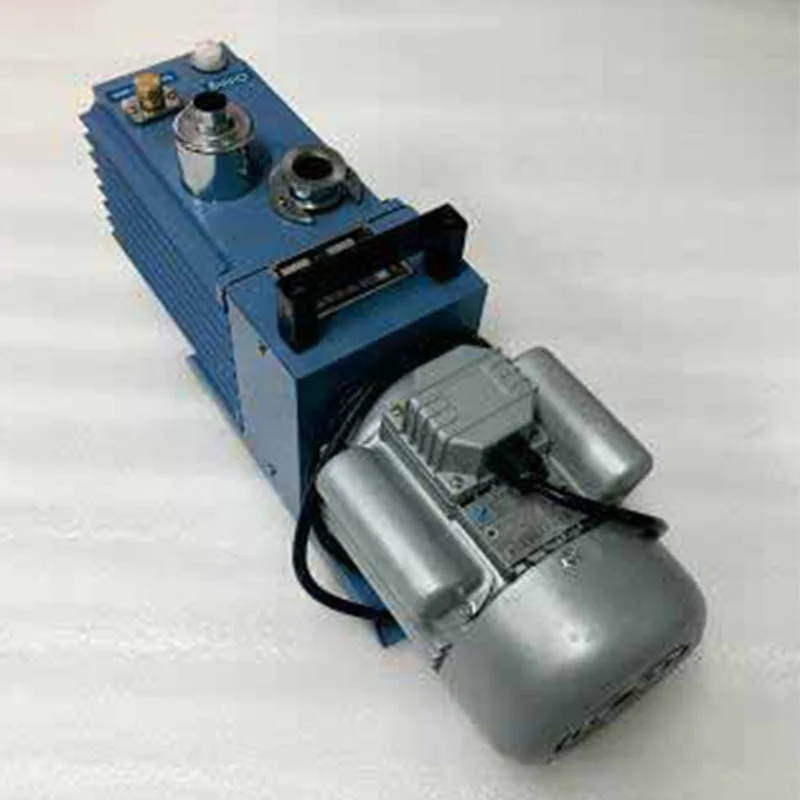

Standard Accessory | Vacuum pump 2L/S, 8m³/h, Material tray, Material rack, PC cover(for all models), Conical-mouth flask 500ml*8pcs (only for model BK-FD10P/PT) | ||||||||
Optional Function & Accessory | Electric defrost function, Nitrogen gas filling valve, Oil mist filter(for all models) 800ml wide-mouth flask(for BK-FD10P/PT) | ||||||||
External Size (W*D*H) | 600*560*374/820mm | 600*560*374/880mm | |||||||
Package Size(W*D*H)mm/ Gross Weight | Main Body | 670*700*560 (80kg) | |||||||
Drying Chamber | 620*400*400 (15kg) | ||||||||
Vacuum Pump | 570*360*240 (22kg) | ||||||||

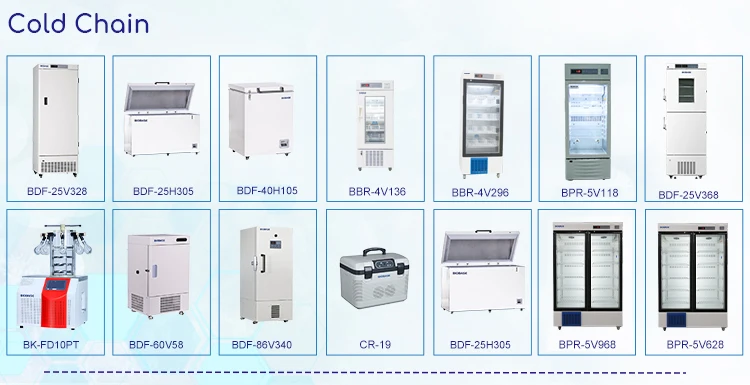

Recommend Products

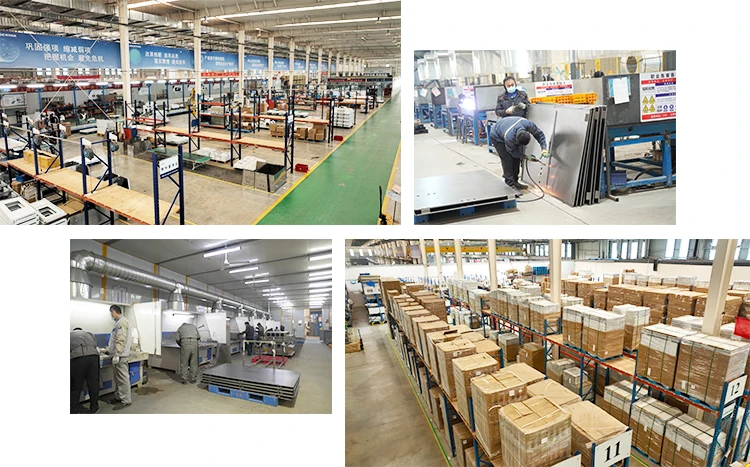

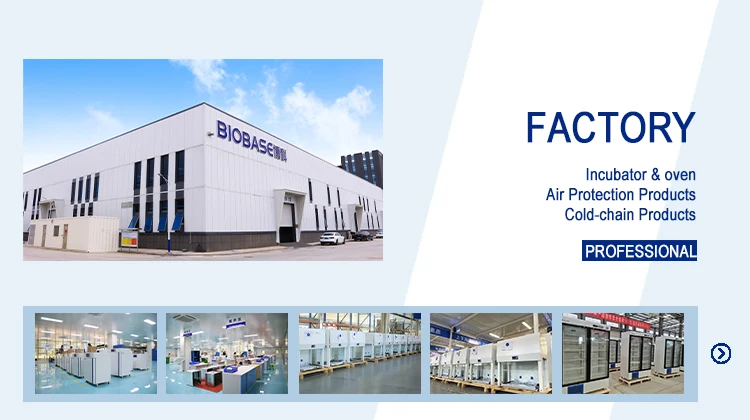

Company Profile
Established in 1999, Leading professional manufacturer of laboratory and medicalproducts with high quality and competitive price.
Service
BIOBASE has three branches overseas, namely the United States, Dubai, and India branch. If you are a customer from these three
countries, you can buy our products in your country.
countries, you can buy our products in your country.
We have a strong after-sales team. If you have any questions, you can contact me at any time, and I will ask our professional engineers to help you solve the problem.
Our company will participate in international exhibitions and answer customer questions on the spot.
At the same time, due to the good quality of our products, we have won praise from many customers

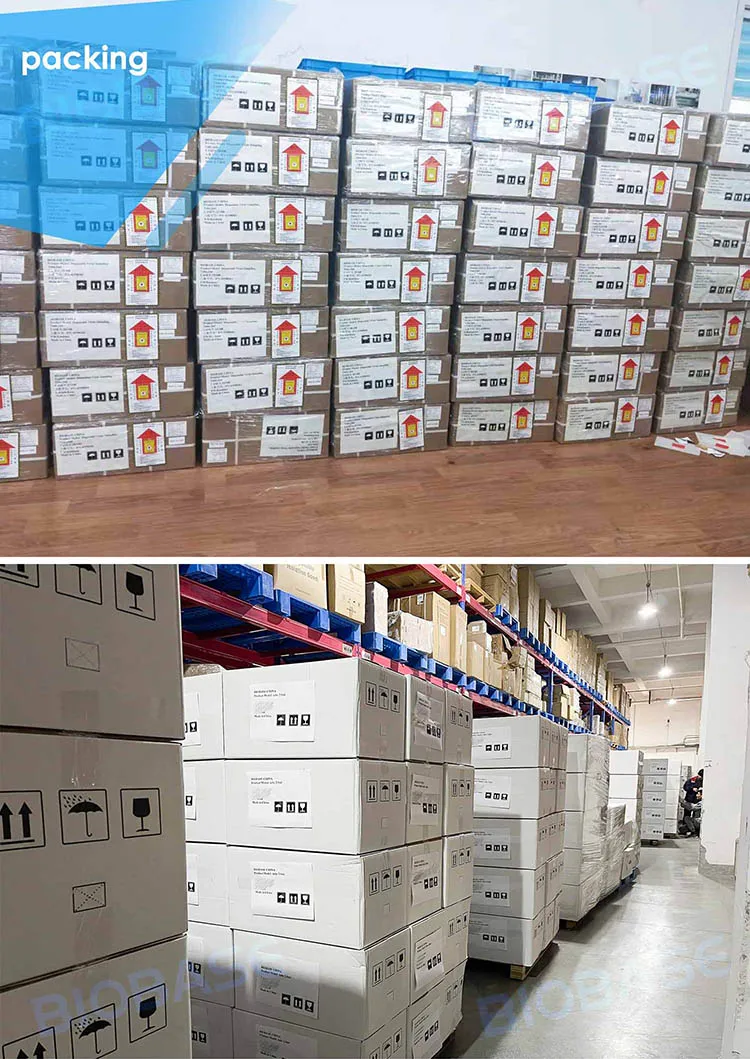

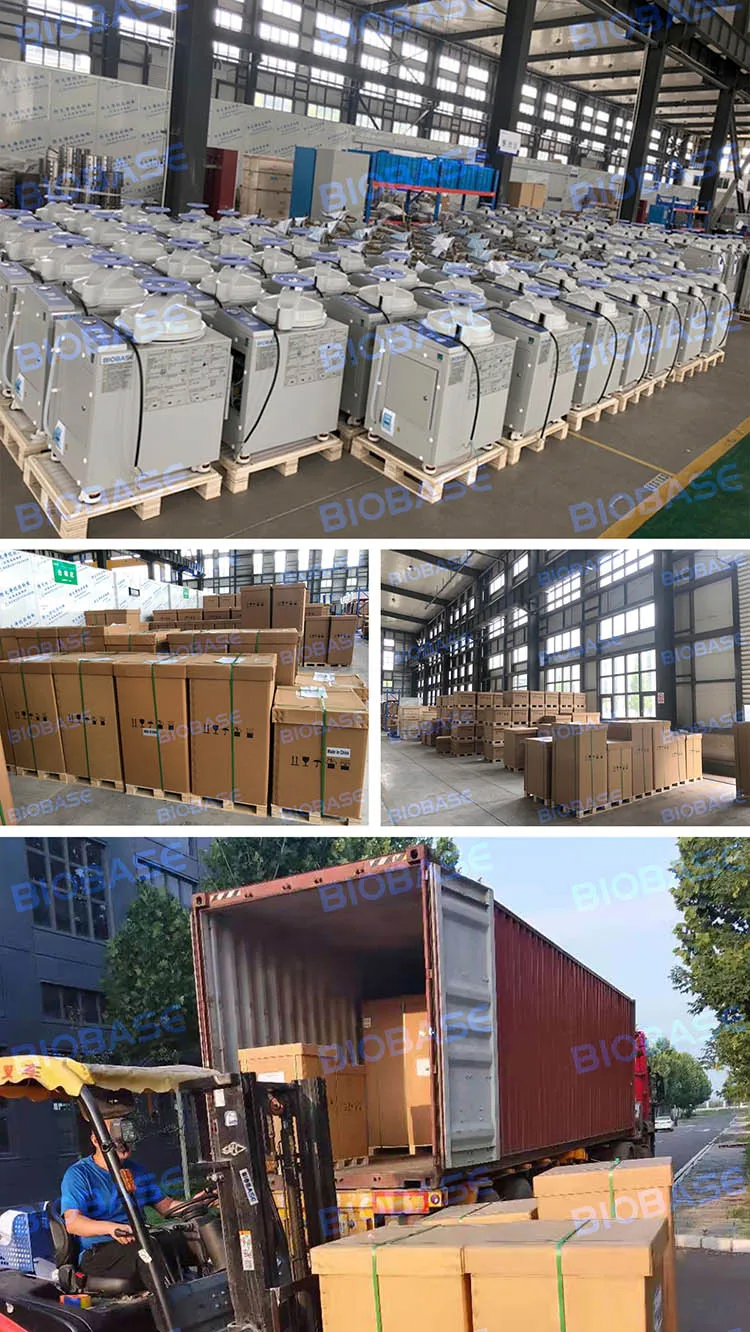

Packaging & Shipping
