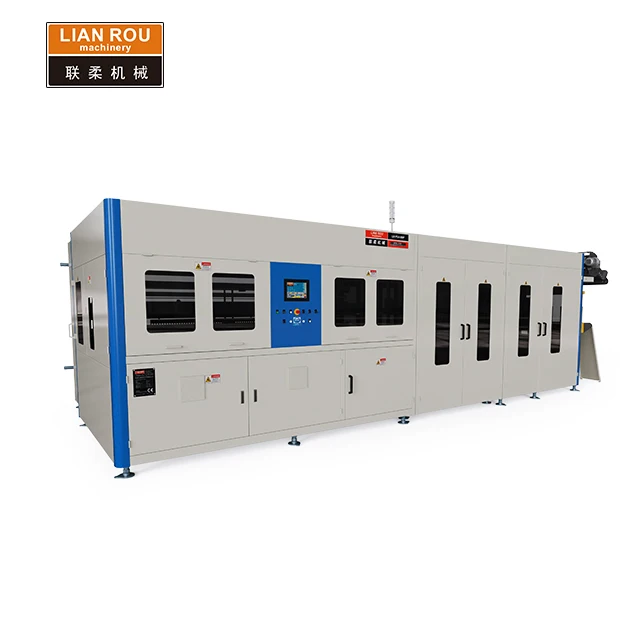

Lianrou, в наличии, Фабричный производитель матрасов с карманами, пружинная сборочная машина
- Category: >>>
- Supplier: Guangzhou Lianrou Machinery And Equipment Co. Ltd.
Share on (1600884955893):
Product Overview
Description
Product Description
Specification

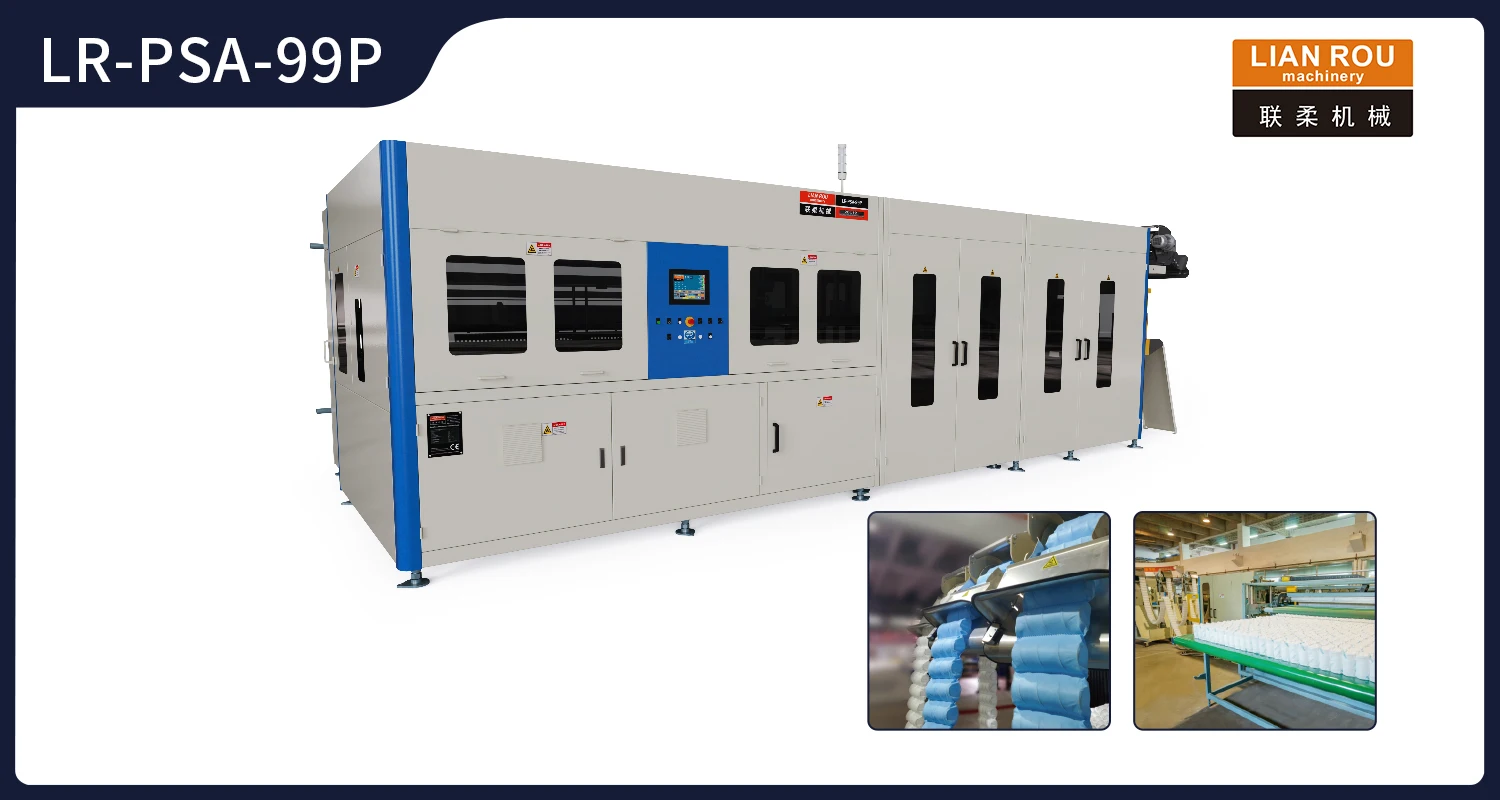

Model | LR-PSA-99P |
Production Capacity | 700 springs/minute |
Hot melt glue application system | Nordson(the USA) or Robatech (Switzerland) |
Capacity of glue tank | 30kg |
Gluing method | Spot spray/Continuous gluing mode / General economic mode |
Possibility of assembling zoned tape | Possible |
Possibility of assembling zoning mattress | Possible |
Air Consumption | 0.15m³/min |
Air pressure | 0.6-0.7mpa |
Power consumption in total | 15kw |
Voltage | 3AC 380V |
Frequency | 50/60HZ |
Input current | 25A |
Cable section | 3*10mm²+2*6mm² |
Working temperature | +5℃ to + 35 ℃ |
Weight | Approx.4800kgs |
Consumption Material Data: | ||
Non-woven fabric | ||
Fabric density | 55-80g/m² | |
Fabric width | 450-2200mm | |
Inner dia. of fabric roll | Min. 60mm | |
Outer dia. of fabric roll | Max. 600mm | |
Hot Melt Glue | ||
Shape | Pellet or pieces | |
Viscosity | 125℃---6100cps | |
150℃---2300cps | ||
175℃---1100cps | ||
Softening point | 85±5℃ | |
Working Range (mm) | ||
Spring Waist Diameter | 37-75mm | |
Pocket Spring Height | 55-250mm | |
Working Range (mm) | ||
Spring Waist Diameter | 37-75mm | |
Pocket Spring Height | 55-250mm | |
Packing & Delivery
High speed / stable / easy operation
1.700 springs/min
2.Conforming to CE standard
3.Thermostat of electric
cabinet optional
1.700 springs/min
2.Conforming to CE standard
3.Thermostat of electric
cabinet optional
Company Profile

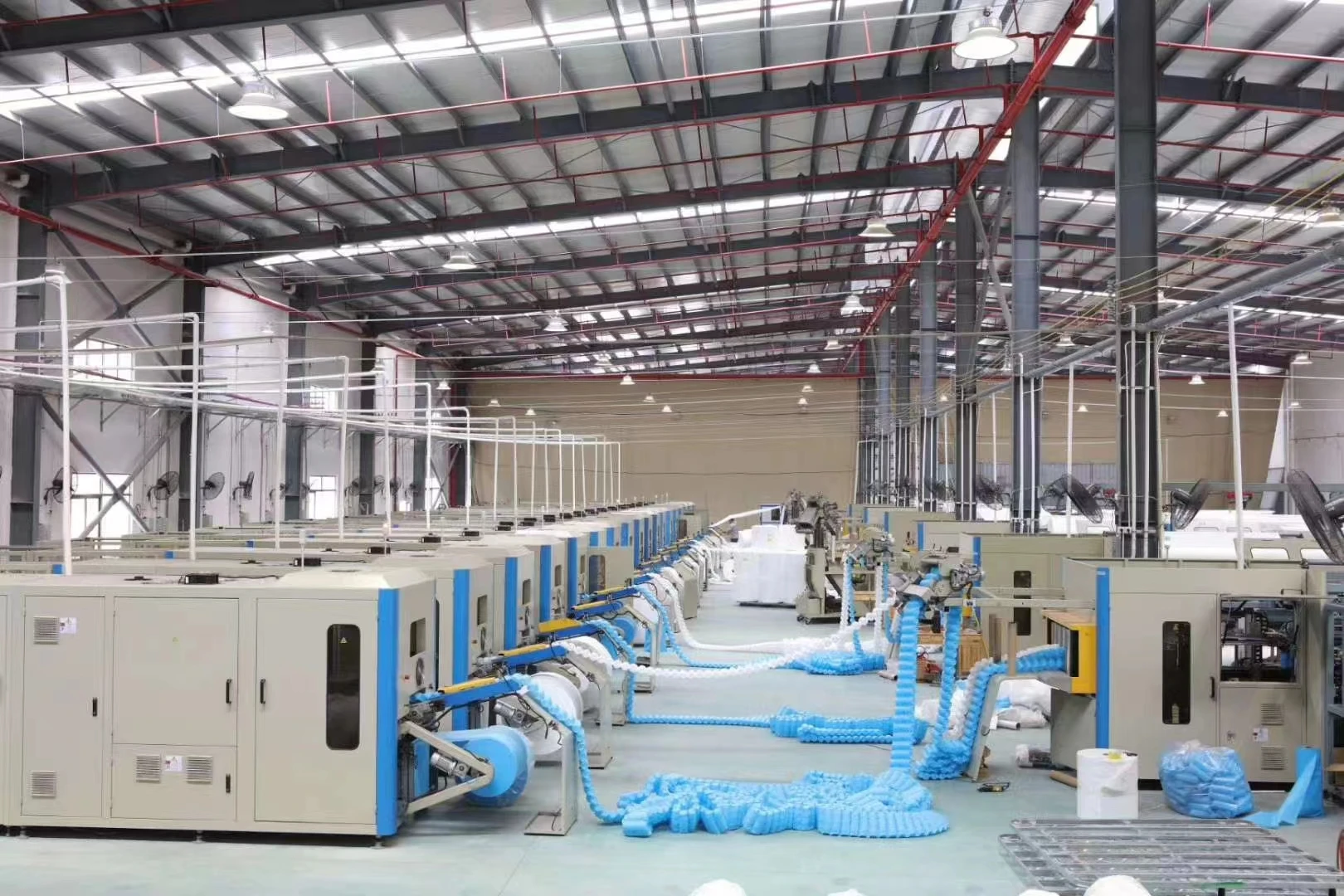

Guangzhou Lianrou Machinery and Equipment Co.,Ltd, as the first manufacturer of pocket spring production machines in China, has always keep in mind a brief of Technological Innovation, Quality First and Top Class Service, and has continually researched and developed a series of upholstered furniture manufacturing equipments,Pocket Spring Machine,Pocket Spring Assembly Machine,Automatic Mattress Packing Machine,Mattress Roll-packing Machine,Foam-roll Compressing Machine,ect.
FAQ
1. Can you make your products with our colors?
Our products have fixed colors and specifications, if you can meet our MOQ, you can customize the color of the product.
2. How to ensure the quality of your machines?
(1) We have perfect quality standards and strict quality inspection procedures, and each process strictly abides by the standards.
(2) Strictly inspect, test and test run the finished machine according to the factory standard before leaving the factory to
ensure the quality of the machine
(3) The machine has a quality assurance policy, which is guaranteed for 1 year.
Our products have fixed colors and specifications, if you can meet our MOQ, you can customize the color of the product.
2. How to ensure the quality of your machines?
(1) We have perfect quality standards and strict quality inspection procedures, and each process strictly abides by the standards.
(2) Strictly inspect, test and test run the finished machine according to the factory standard before leaving the factory to
ensure the quality of the machine
(3) The machine has a quality assurance policy, which is guaranteed for 1 year.
