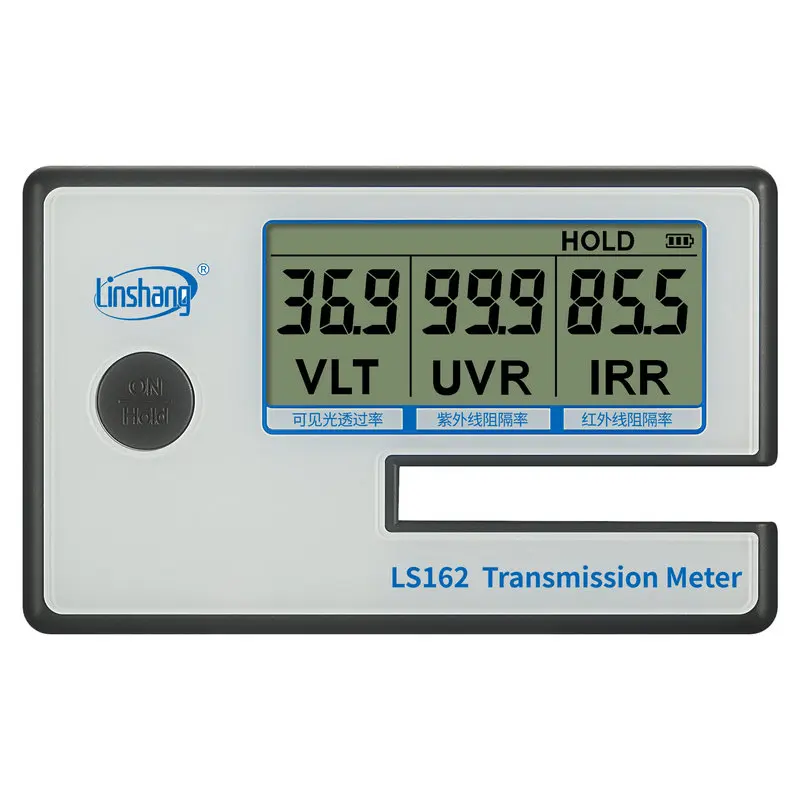

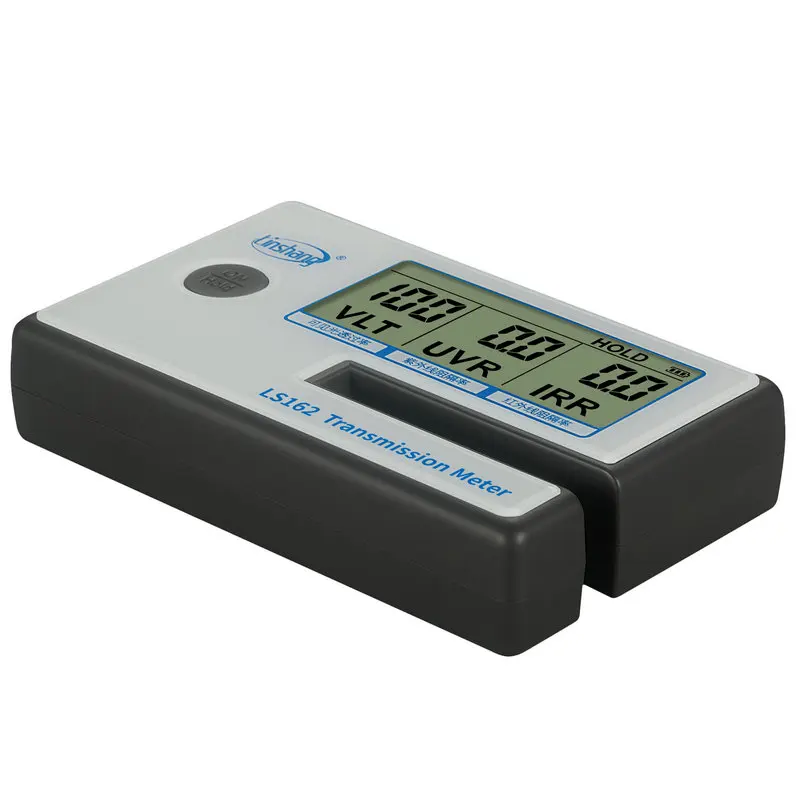

LS162 Transmission Meter

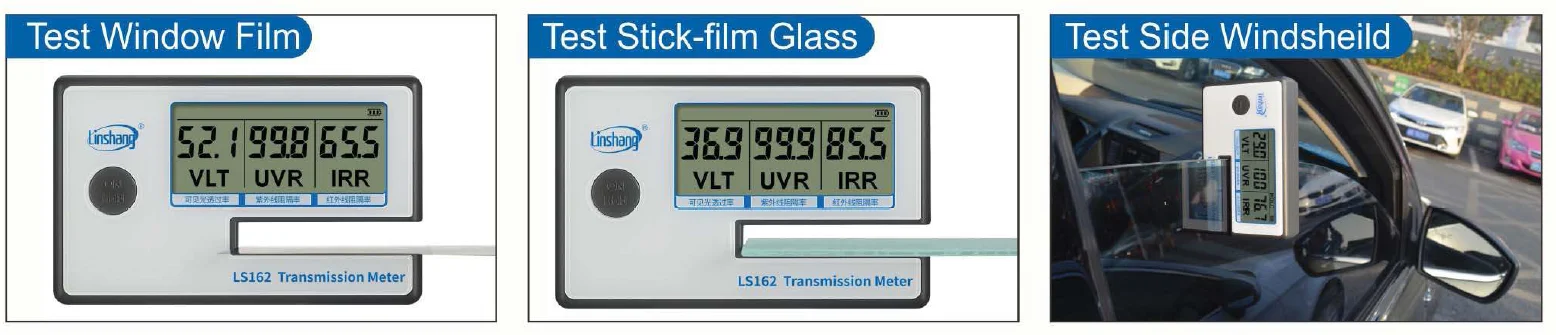

LS162 transmission meter is a compact and small transmission meter that can simultaneously test three parameters of light transmittance, ultraviolet rejection rate and infrared rejection rate. It is suitable for the display, exhibition, production,
quality inspection, inspection and other occasions. The window film transmission meter can test the material optical properties such as automotive explosion-proof films, architectural films and laminated glass. The instrument has been widely used in solar film manufacturers, automotive film distribution, automotive film retail sales system.

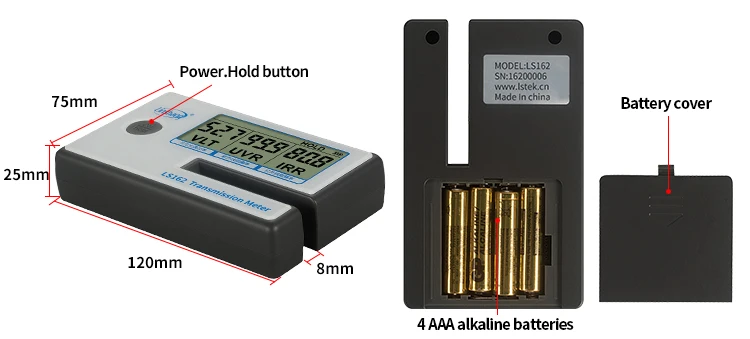

Size


120mm * 25mm * 75mm (L*W*H)


Test slot


<8mm


Weight


About 165 g (batteries excluded)


Resolution


0.1%


Accuracy


±2% (Colorless and transparent material)


UV


Peak wavelength: 365nm


Visible light


380nm-760nm, in line with CIE photopic luminosity function


Infrared


Peak wavelength: 940nm

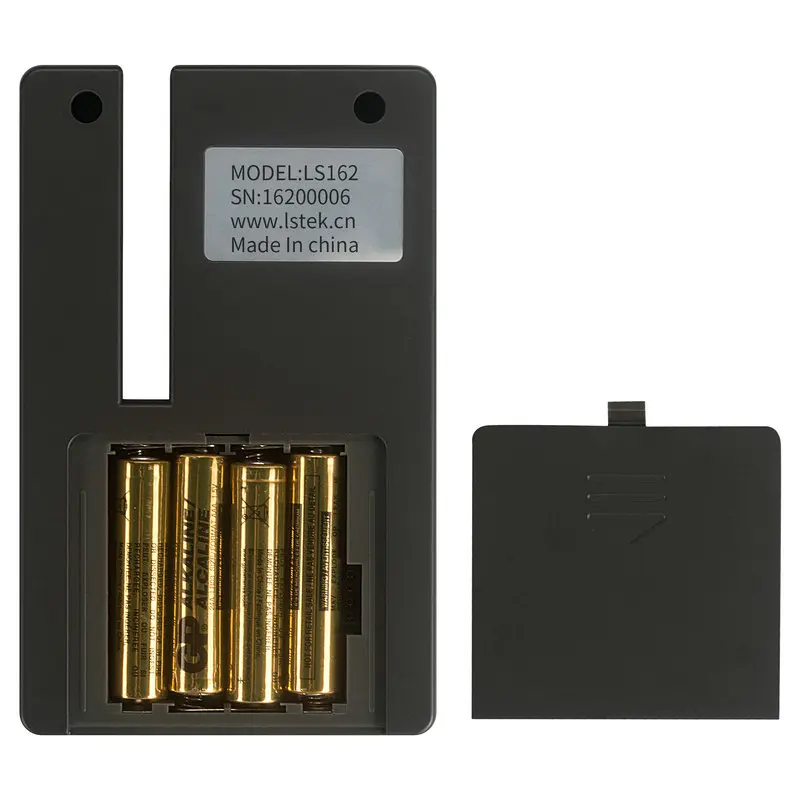

Power Supply


4*AAA alkaline batteries








_01





Features

Features

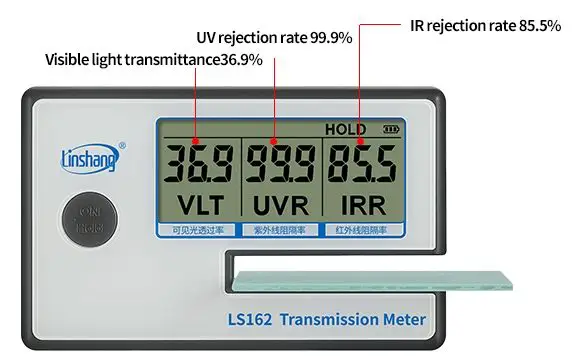

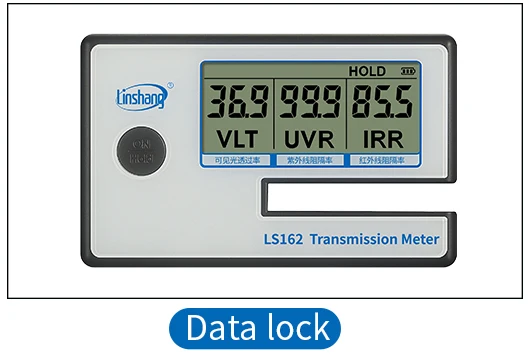

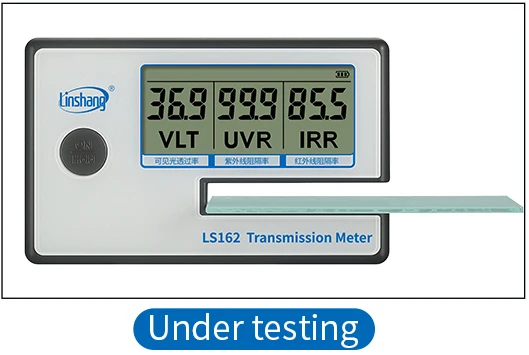

1. The window film transmission meter has simple operation and the measurement is fast. Just put the measured object into the test slot then the visible light transmittance, ultraviolet and infrared rejection rate will be immediately displayed on the interface.

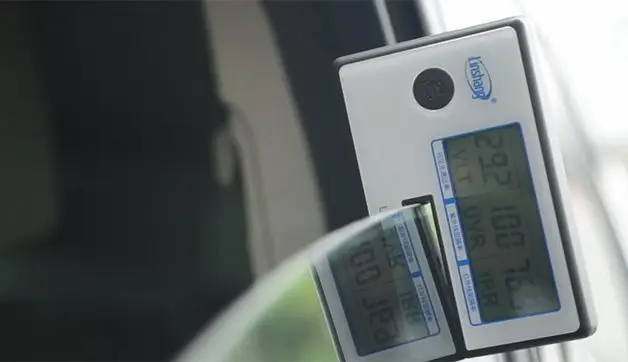

2. The instrument has small size and it is very convenient to carry out; the test card slot is 8mm wide, which can directly test the car windshield.
