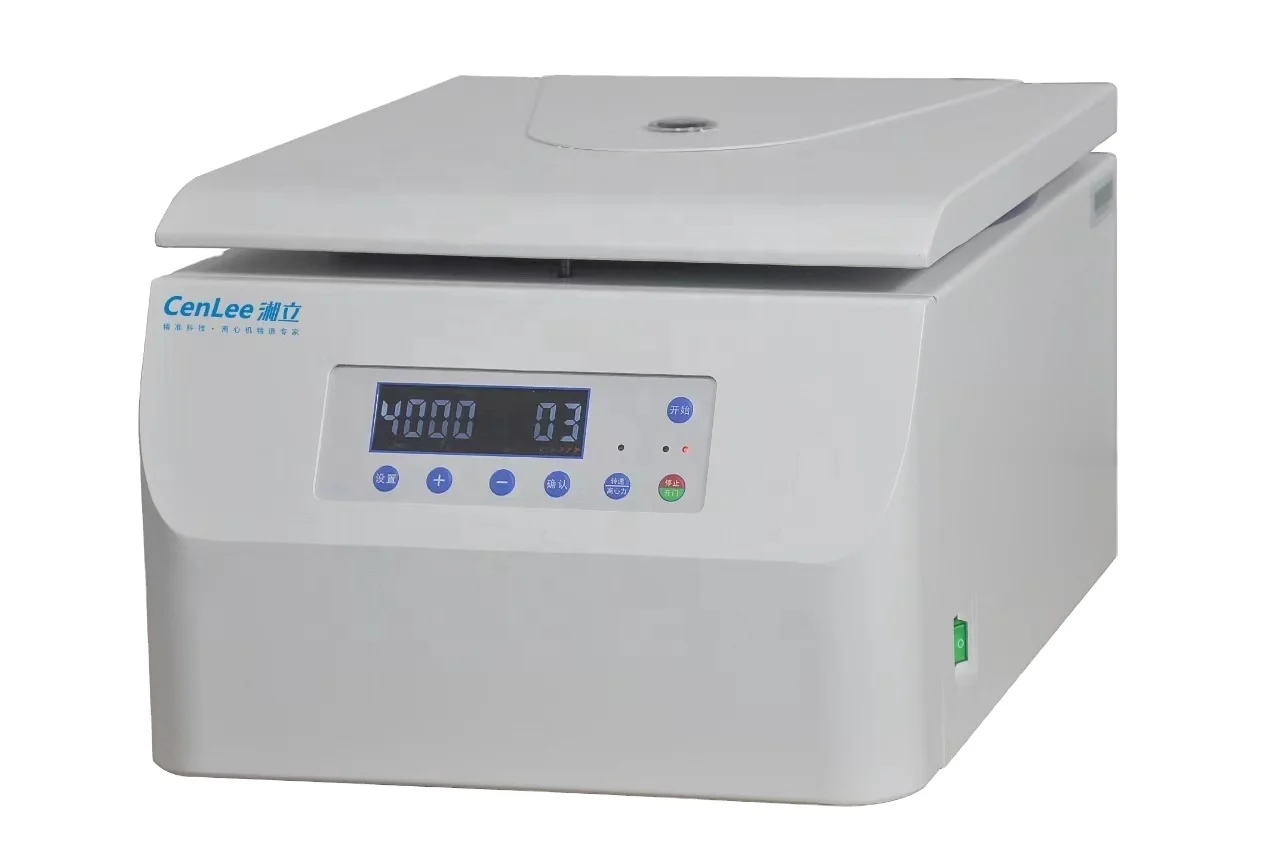

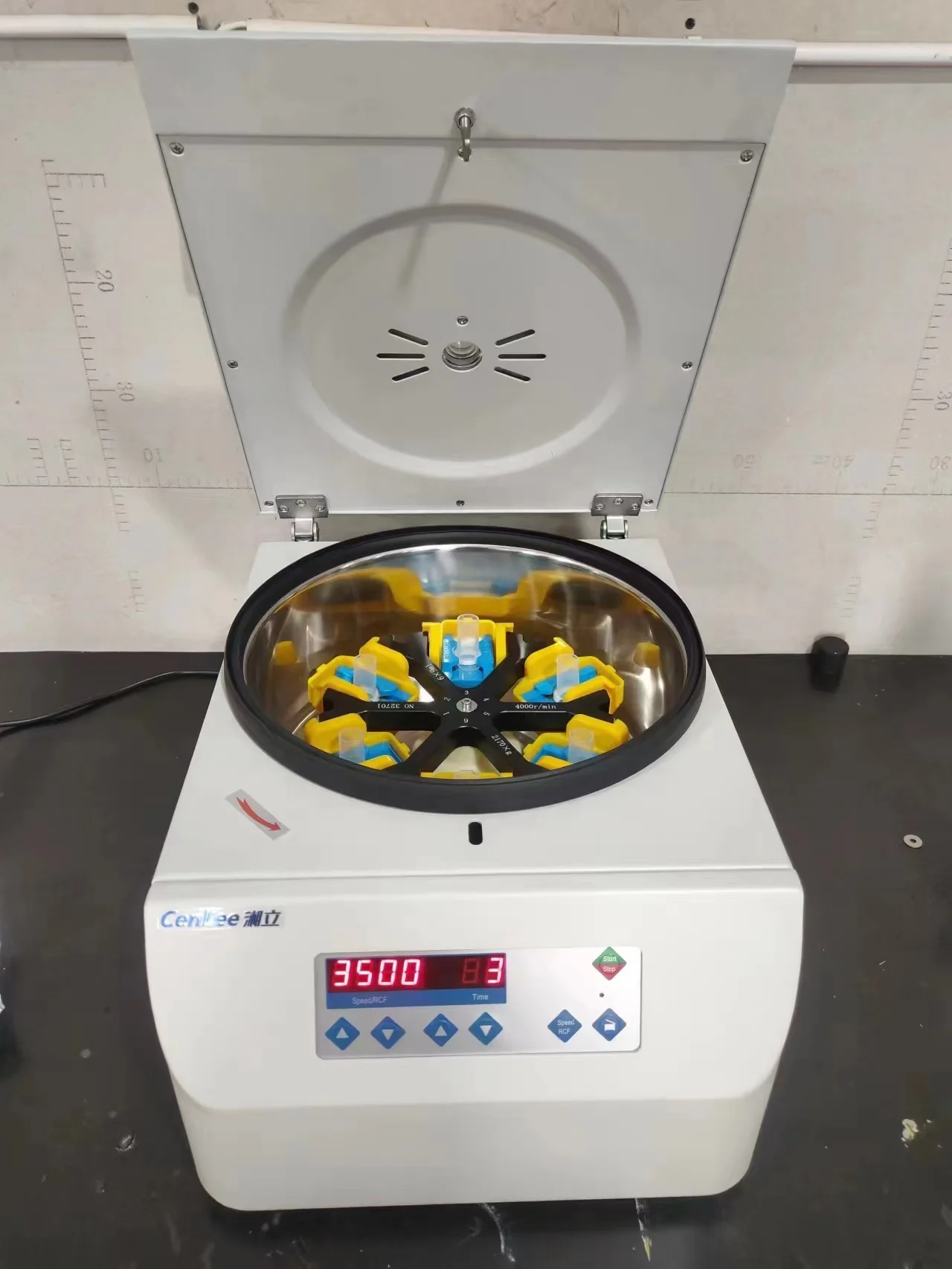

 CYJ-6 Low noise Low speed Cell smear CytoSpin Clinical centrifuge


Cytocentrifugation (also known as "cytospin") provides the best method for both concentrating cells in body fluid samples and maintaining cellular morphology. The cytospin process works by wicking fluid into a filter while fluid samples are spun into a central column and deposited in a mono-layer onto a defined area of a slide.





Features


1. Microcomputer control, DC brushless motor drive.


2. Parameters can be changed at any time during operation without stopping the machine.


3. Automatic calculation and setting of RCF value, dedicated RCF key.


4. Fault self-diagnosis system, if over speed, speed loss and other faults are detected during operation, it will decelerate and stop immediately to improve the safety performance of the instrument.


5. Air-cooled structure to effectively reduce temperature rise during centrifugation

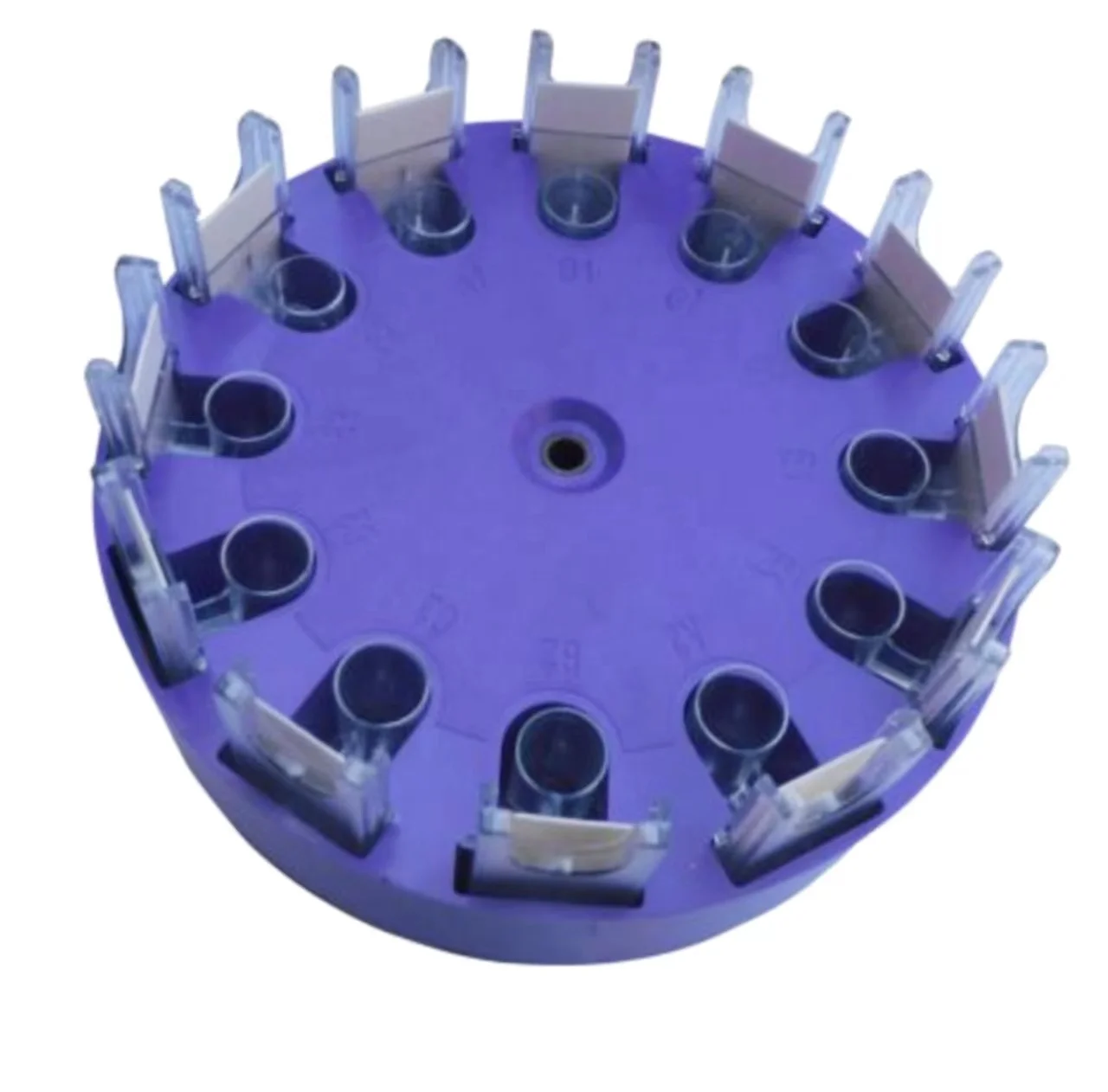

6. Equipped with a variety of smear spindles, smear tests can be performed for various humor to achieve the best smear effect





Technical parameter










































Model



CYJ-6



Power supply



AC 220V 50Hz 3A



Maximum speed



3000r/min



Machine noise



≤65dB(A)



Maximum RCF



730×g



Power



260W



Maximum capacity



12×0.1~0.5 ml



Chamber diameter



Φ280



Speed Accuracy



±20r/min



Dimensions



355×490×280(mm)



Timing range



0-99min



Net Weight



22kg






pleural fluid.pngcoelomic fluid.png
