300W High Power High Quality 700 2700MHz RF Directional Coupler Microwave Directional Couplers
- Category: >>>
- Supplier: Hangzhou Shengtong Technology Co. Ltd.
Share on (1600885483305):
Product Overview
Description
Specification
●Low Insertion Loss ●High power handing
●Small size, Low weight ●N-Female connecters
●Small size, Low weight ●N-Female connecters
Frequency Range | 700- 3800MHz |
Coupling (dB) | 5/6/7/8/10/13/15/20/30/40 |
Insertion Loss (dB) | ≤2.1 |
In-band Ripple (dB) | ±1/1.5 |
VSWR | <1.25 |
Directivity | ≥20 dB |
PIM (IM3) | -153 dBc @ 2 x 43 dBm |
Power Handling | 300W |
Impedance | 50Ω |
Connector Type | N, DIN, 4.3-10, Customized |
Applied Environment | IP65, Outdoor or Indoor |
Relative Humidity | 5 to 95% |
Operating Temperature | -25 to +70℃ |
Material | Cavity: Aluminum; Connector: Copper |
Processing | Silver plated cavity and inner conductor |

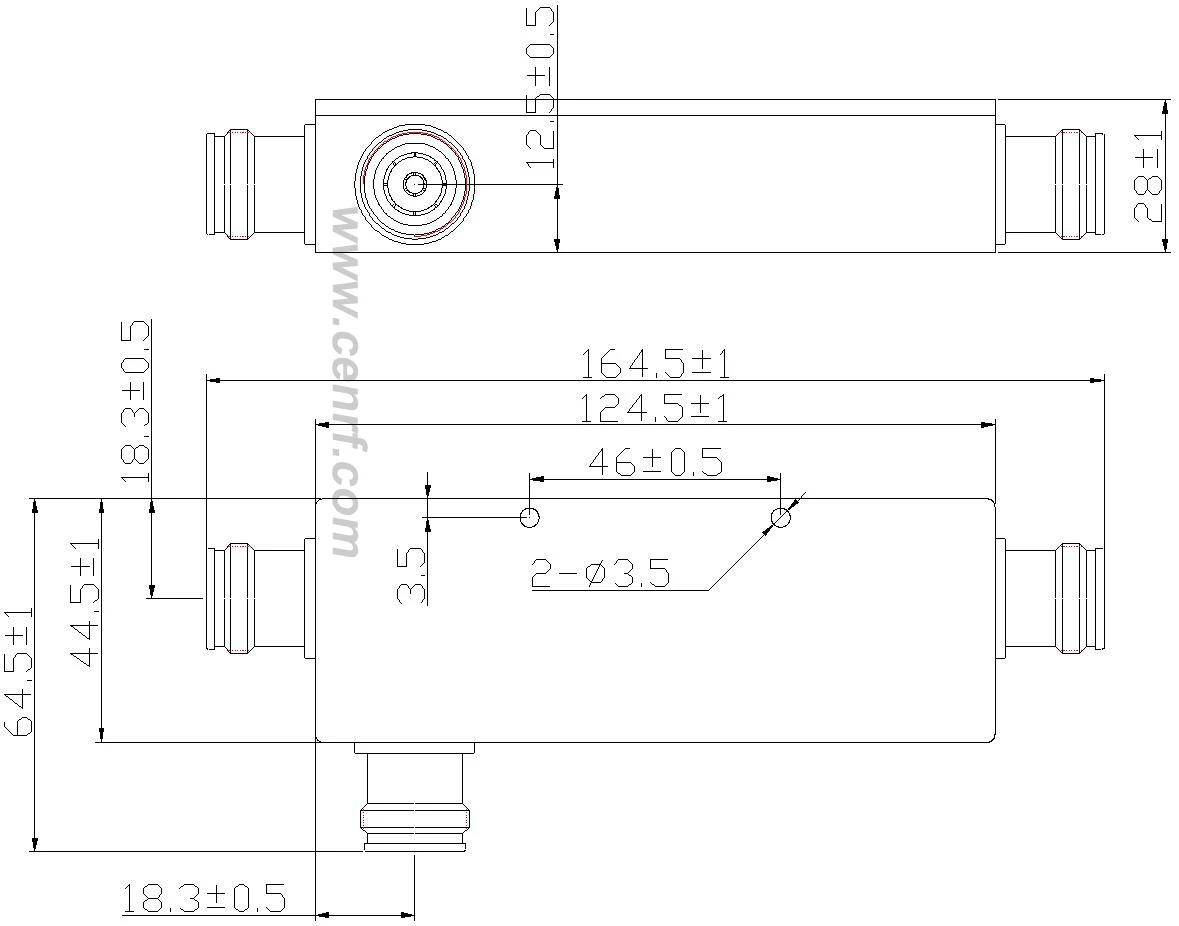

Dimension | 124 x 43 x 20 mm |
Weight | 0.35 Kg |

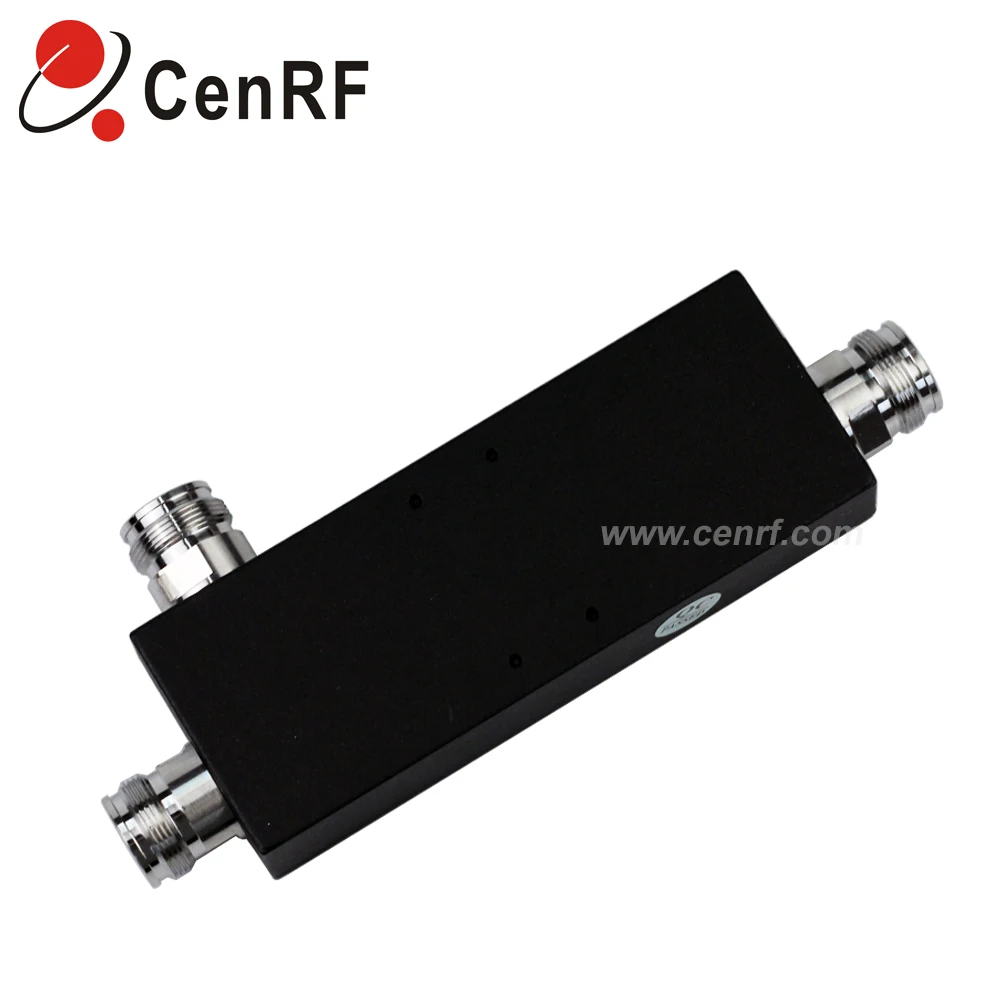

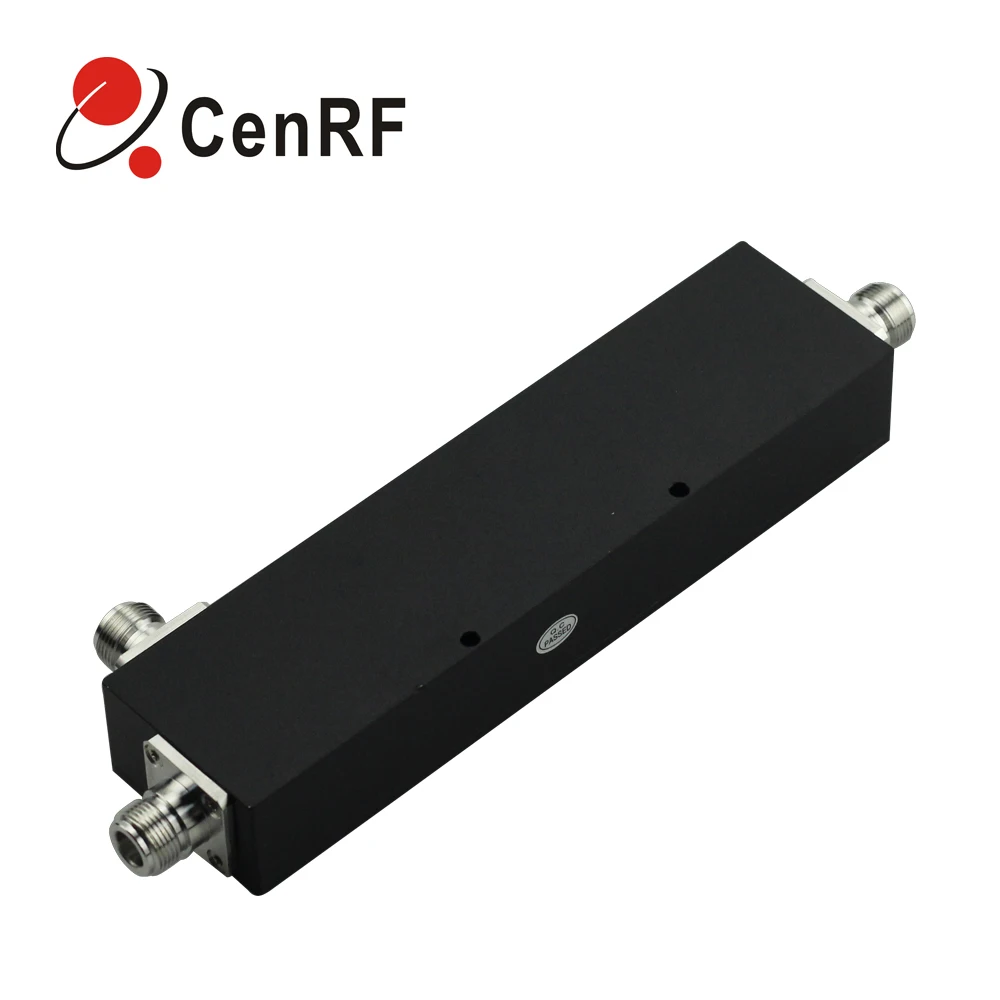

Product Show

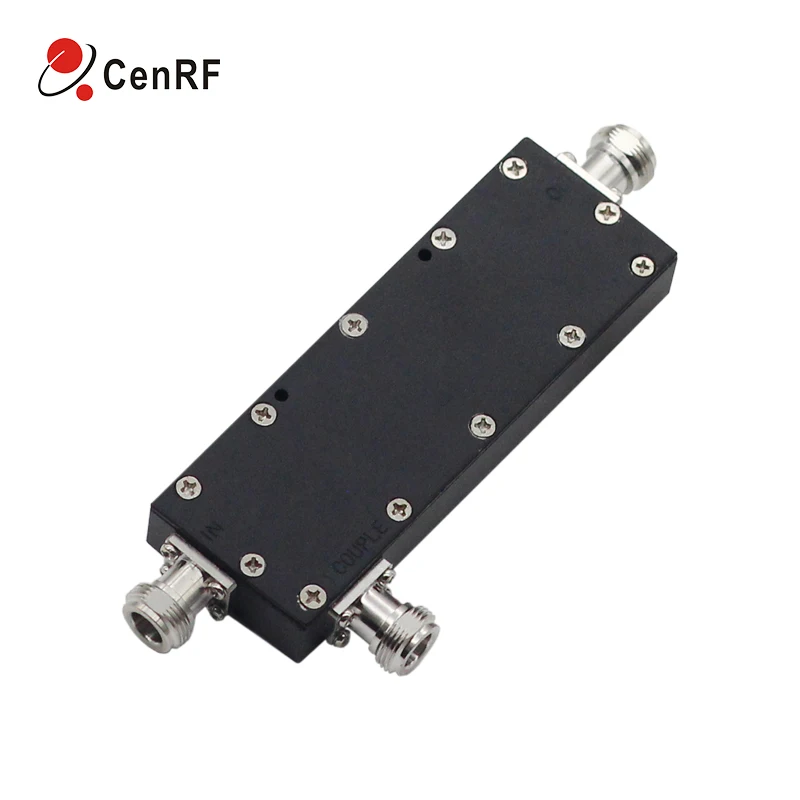

700- 3800MHz N-Female Directional Coupler
The 700-3800MHz RF directional coupler is a high-performance component used in radio communication systems to split or combine
radio frequency signals. This coupler is designed for excellent performance at a frequency range of 700 to 3800 MHz, making it ideal for a wide range of applications in cellular, wireless communication, and broadcast systems.
radio frequency signals. This coupler is designed for excellent performance at a frequency range of 700 to 3800 MHz, making it ideal for a wide range of applications in cellular, wireless communication, and broadcast systems.
Features:
* High coupling accuracy and isolation
* Low insertion loss
* Compact and lightweight design
* Well-matched impedance to improve signal integrity
* Low insertion loss
* Compact and lightweight design
* Well-matched impedance to improve signal integrity

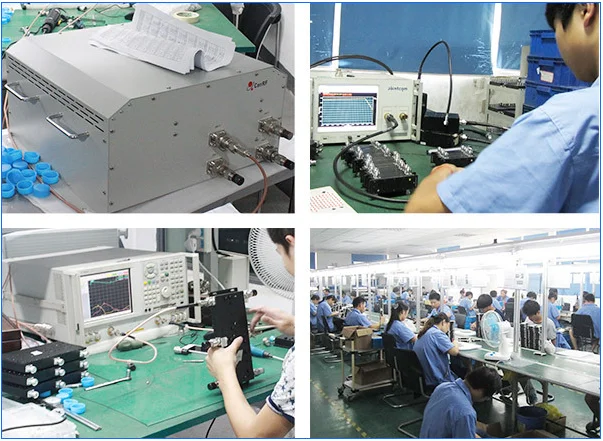

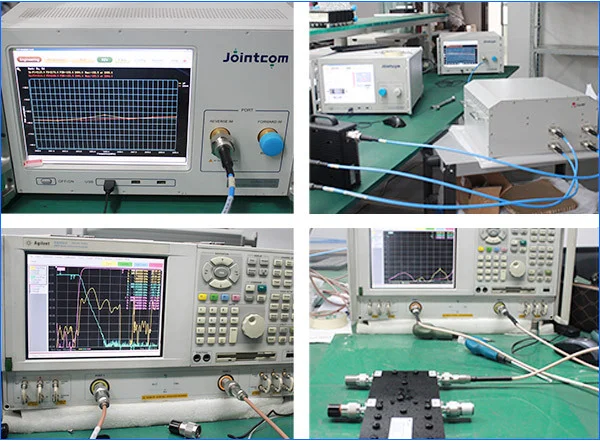

Text Equipments
Company Profile
Hangzhou Shengtong Technology Co,. Ltd
Hangzhou Shengtong Technology Co.,ltd , Is A Certified ISO9001-2015 Company Located In Hangzhou Were Founded In 1999.
There Is Well Educated Management Team And Also Experienced Engineers Major In Microwave Technology. It Is Specialize In The Products Including, Comprehensive Mobile Enhancement Solutions, All Kinds Of Repeater, Rf Components, Antenna,Subassembly To Help To Optimize Operators’ Mobile Networks

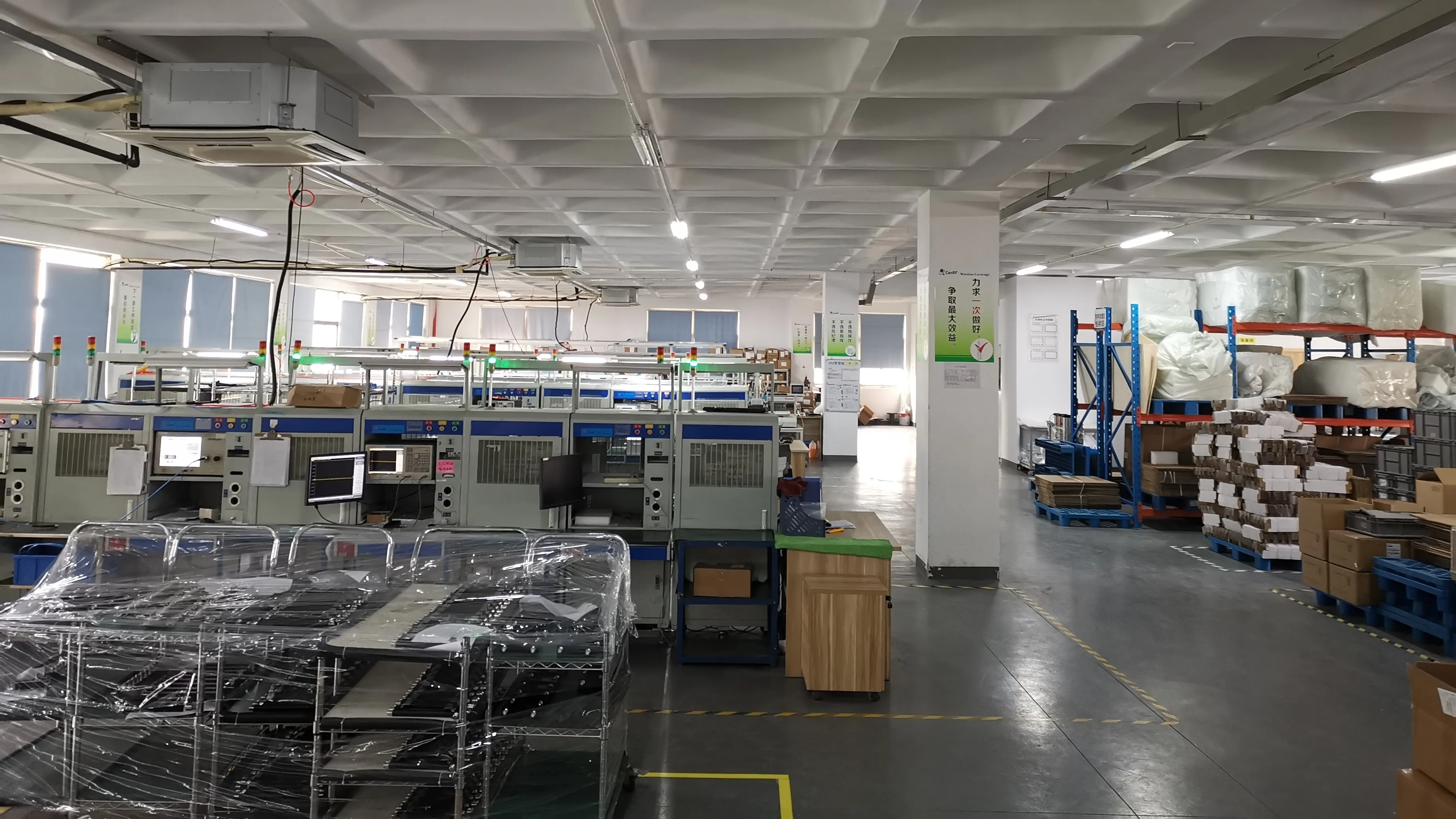

Workshop
Pageage
FAQ
Q:What're the main products of CenRF?
A: CenRF specializes in manufacturing all types of communication products. Our main products are repeaters, antennas, power splitters, couplers, combiners, cables, and connectors.
A: CenRF specializes in manufacturing all types of communication products. Our main products are repeaters, antennas, power splitters, couplers, combiners, cables, and connectors.
Q: Can your company provide Technical Support?
A: Yes. We have experienced technical experts who are willing to help you deal with technical problems.
A: Yes. We have experienced technical experts who are willing to help you deal with technical problems.
Q: Do you test the equipment before your delivery?
A:Yes. We do test every component after installation to ensure we've delivered the signal solution you needed.
A:Yes. We do test every component after installation to ensure we've delivered the signal solution you needed.
Q: Do you have OEM&ODM service?
A: Yes, we can support our customers specialled products and we are able to put your logo on the products.
A: Yes, we can support our customers specialled products and we are able to put your logo on the products.
Q: Can your company provide CO or Form E certificate?
A: Yes, we can provide it if you need.
A: Yes, we can provide it if you need.
Q：Can your company provide solutions?
A：Yes. Our team of IBS experts will help find the most cost-effective solution for your application.
A：Yes. Our team of IBS experts will help find the most cost-effective solution for your application.
