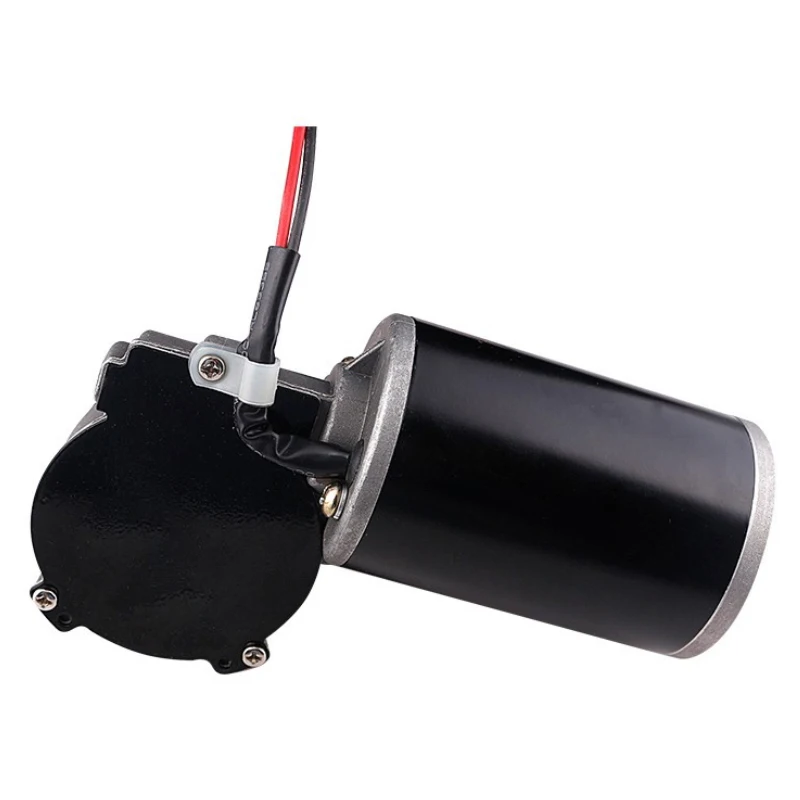

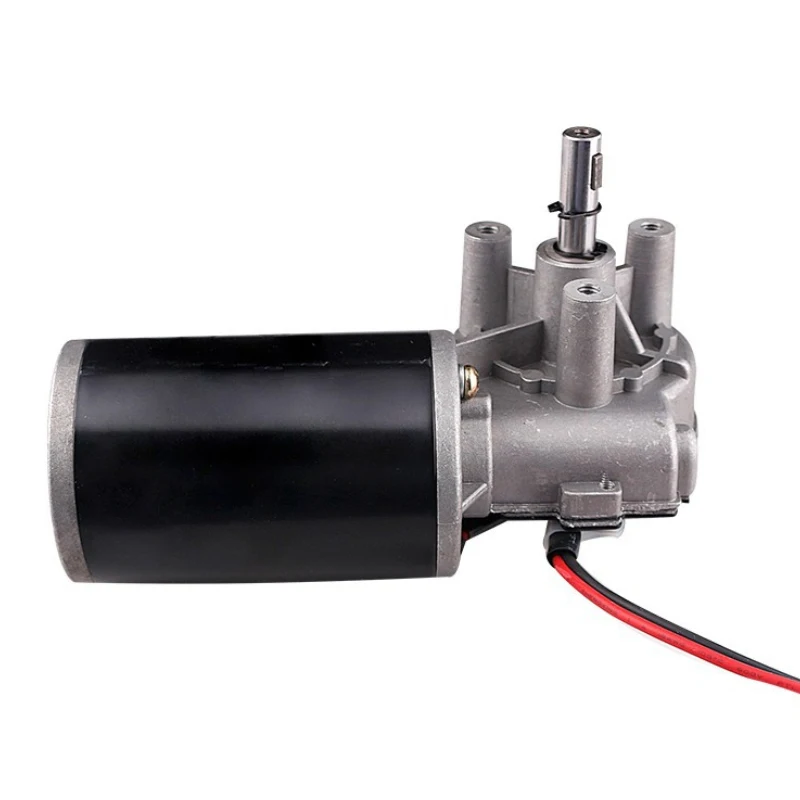

low rpm geared dc motor 12v 24 volt 50nm 50w 80w 100w reducer gear box motor
low rpm geared dc motor 12v 24 volt 50nm 50w 80w 100w reducer gear box motor
low rpm geared dc motor 12v 24 volt 50nm 50w 80w 100w reducer gear box motor
low rpm geared dc motor 12v 24 volt 50nm 50w 80w 100w reducer gear box motor
low rpm geared dc motor 12v 24 volt 50nm 50w 80w 100w reducer gear box motor
low rpm geared dc motor 12v 24 volt 50nm 50w 80w 100w reducer gear box motor
low rpm geared dc motor 12v 24 volt 50nm 50w 80w 100w reducer gear box motor

low rpm geared dc motor 12v 24 volt 50nm 50w 80w 100w reducer gear box motor

Share on (1600885766707):


Price:$24.00 - $26.40

Quantity:


Product Overview

Description







Product Description


Volage: 24VDC
Power: 80W
Torque: 8N.M
Speed:100rpm


Type
Voltage
Power
No load
Load
Rear Ratio
Motor length
VDC
W
Speed (rpm)
Current (A)
Speed (rpm)
Current (A)
Torque (N.m)

mm
63R-2445-180
24
45
180±5
≤1.2
150±5
≤4.0
≥3.5
1:20
85
63R-22080-30
220
80
30±3
≤0.2
25±2
≤0.5
≥7.0
1:60
85
63R-2480-50
24
80
50±5
≤1.2
45±5
≤4.5
≥6.0
1:60
85
63R-2480-100
24
80
100
≤1.8
80±5
≤7.5
≥8
1:60
85
63R-1260-60
12
60
60±5
≤1.5
50±5
≤6.0
≥8
1:60
85
63R-3680-40
36
80
40±5
≤1.0
32±3
≤4.0
≥6
1:60
85
63R-2480-250
24
80
250
≤1.8
200±20
≤6.0
≥5
1:15
85
63R-2480-320
24
80
320
≤1.8
250±25
≤6.0
≥6
1:15
85
63R-22080-400
220
80
400
≤0.4
320±40
≤0.8
≥6
1:15
85
63R-1280-160
12
80
160
≤1.6
140±10
≤7.0
≥3
1:24
85
63R-2480-160
24
80
160
≤1.2
140±10
≤5.0
≥4
1:24
85
63R-2415-15
24
15
15±2
≤0.5
12±2
≤2.0
≥4
1:75
85
63R-2480-30
24
80
33±3
≤0.8
25±3
≤4.8
≥8
1:68
85
63R-2410-6
24
10
6±1
≤0.3
4±1
≤1.5
≥2
1:75
85
63R-4880-30
48
80
33±3
≤0.5
25±3
≤3.0
≥8
1:68
85
63R-11080-60
110
80
60±5
≤0.3
52±5
≤1.0
≥8
1:60
85







This is a brand new electric gear motor that has extremely high torque to handle many heavy-load applications,
which can change shaft rotation direction while the wiring positive and negative be changed.It's also have addition two characteristics:

(1)With self-locking, the output shaft can't rotation when switch off, that is self-locking.

(2) Gearbox output shaft and motor shaft are come to be a rectangle, it's widely used in various of occasions that require special install size.

Usage: door and windows, car, boat, coffee roaster, electric awning, bbq, home appliance,elect.












Our Company

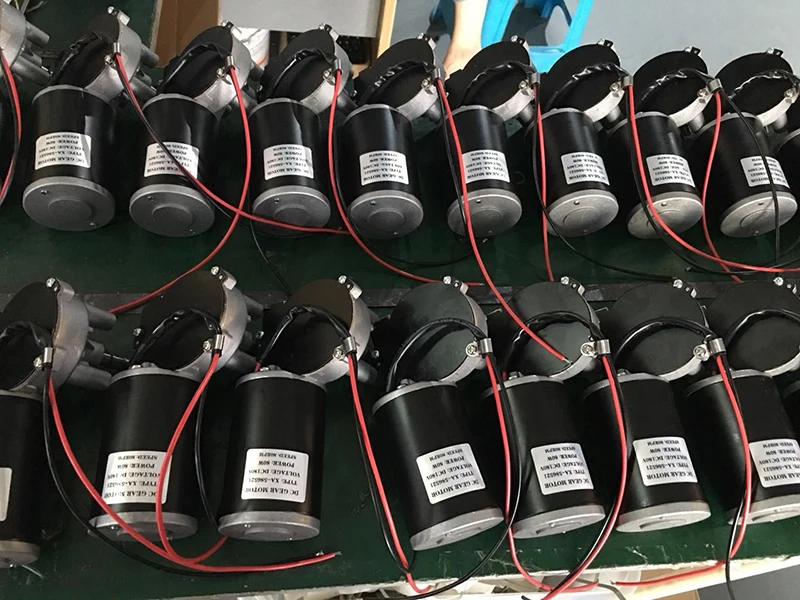

Workshop Show




Application




Exhibition




Recommend Products




FAQ


Q1: What kind motors you can provide?
A1: For now, we mainly provide Permanent Magnet Brush DC motors, Brushless DC Motor, DC Gear Motor, Micro DC Motor, AC Gear Motor, Planetary Gear Motor, with diameter range in 42~110mm. NEMA dc motor. NEMA DC Motor. Stainless Steel motor


Q2: Is there a MOQ for your motors?
A2: No. we can accept 1 pcs for sample making for your testing,and the price for sample making will have 30% to 50% difference based on different style.


Q3: Could you send me a price list?
A3: For all of our motors, they are customized based on different requirements like power, voltage, gear ratio, rated torque and shaft diameter etc. The price also varies according to different order qty. So it’s really difficult for us to provide a price list. If you can share your detailed specification and order qty, we’ll see what offer we can provide.


Q4: Are you motors reversible?
A4: Yes, nearly all dc and ac motor are reversible. We have technical people who can teach how to get the function by different wire connection.


Q5:How about your delivery time?
A5: For micro brush dc gear motor, the sample delivery time is 2-5 days, bulk delivery time is about 15-20 days, depends on the order qty. For brushless dc motor, the sample deliver time is about 10-15 days; bulk time is 15-20 days.Please take the sales confirmation for final reference.
