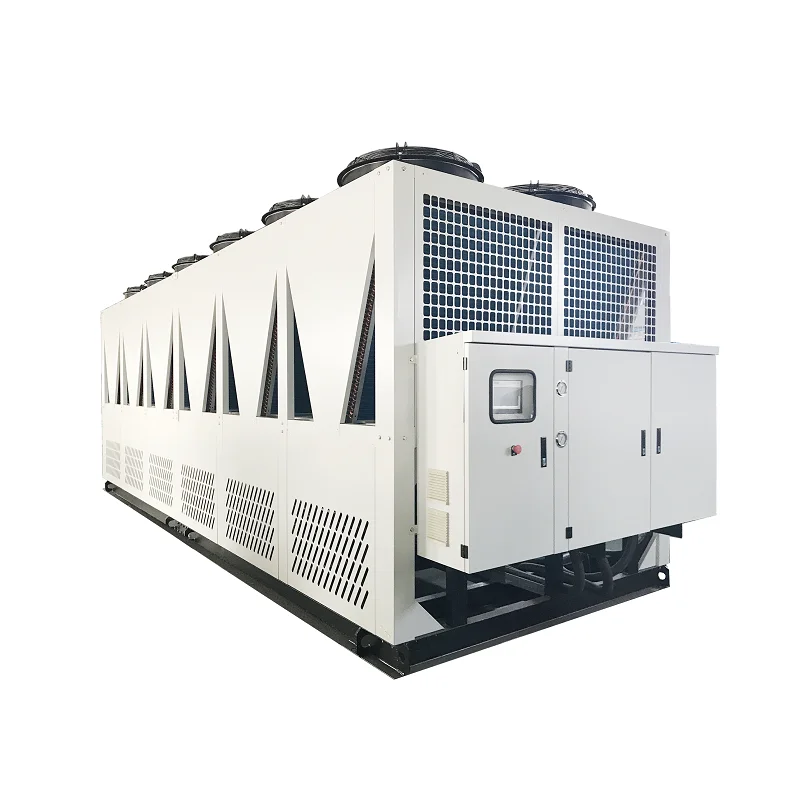

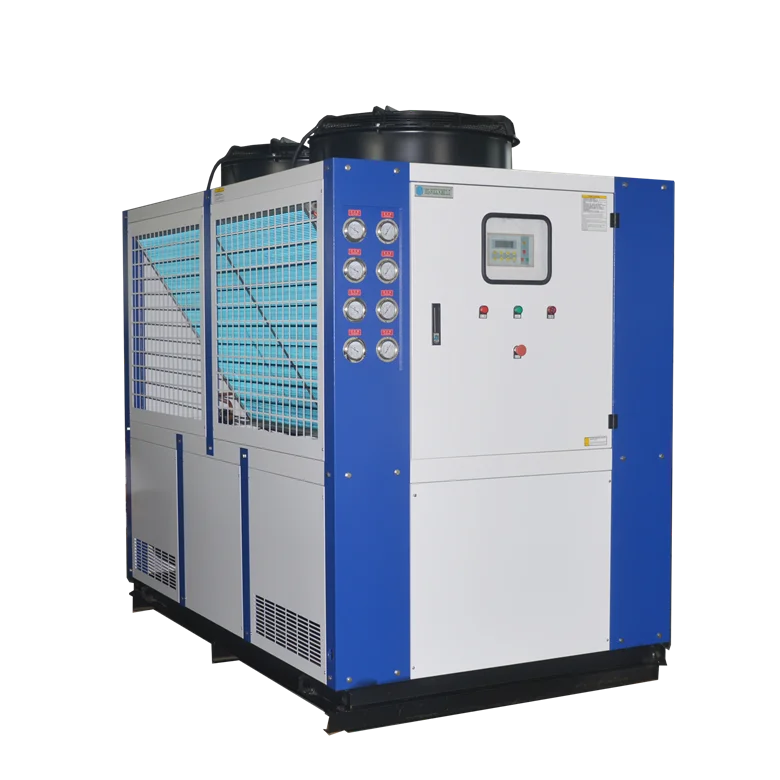

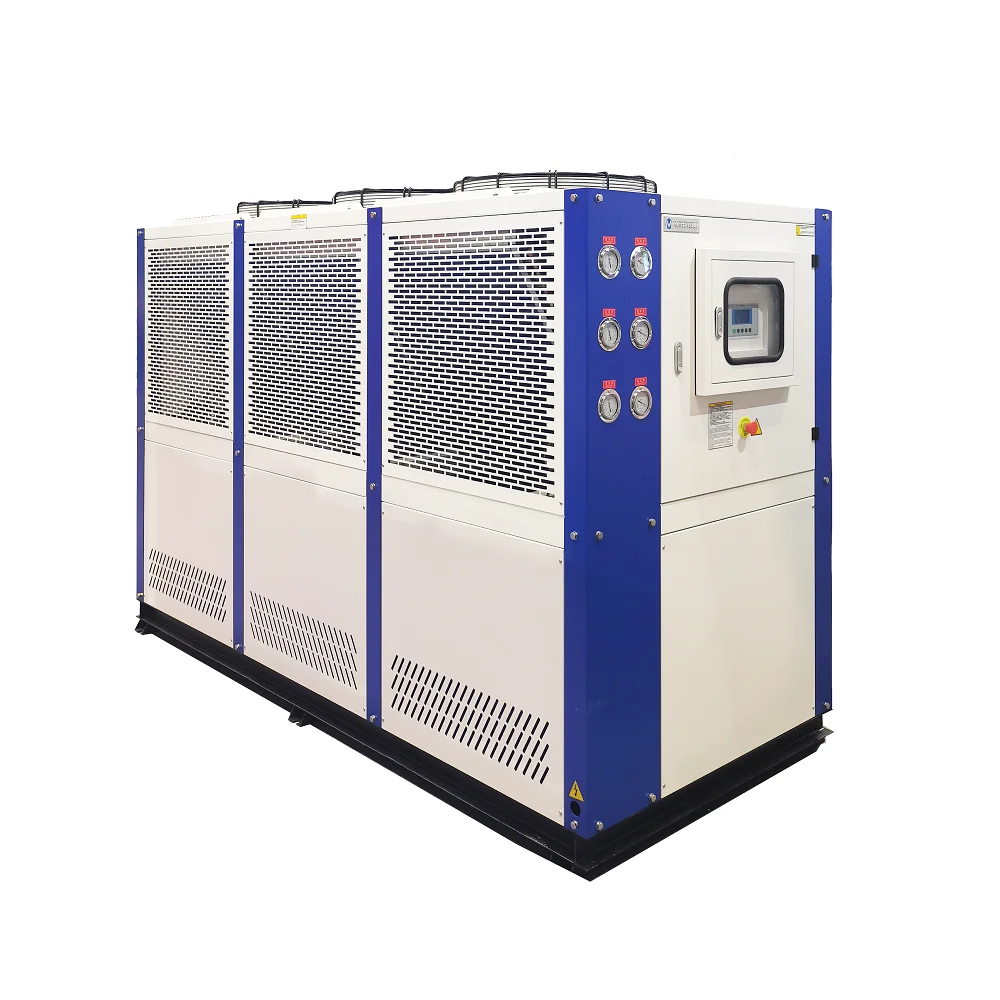

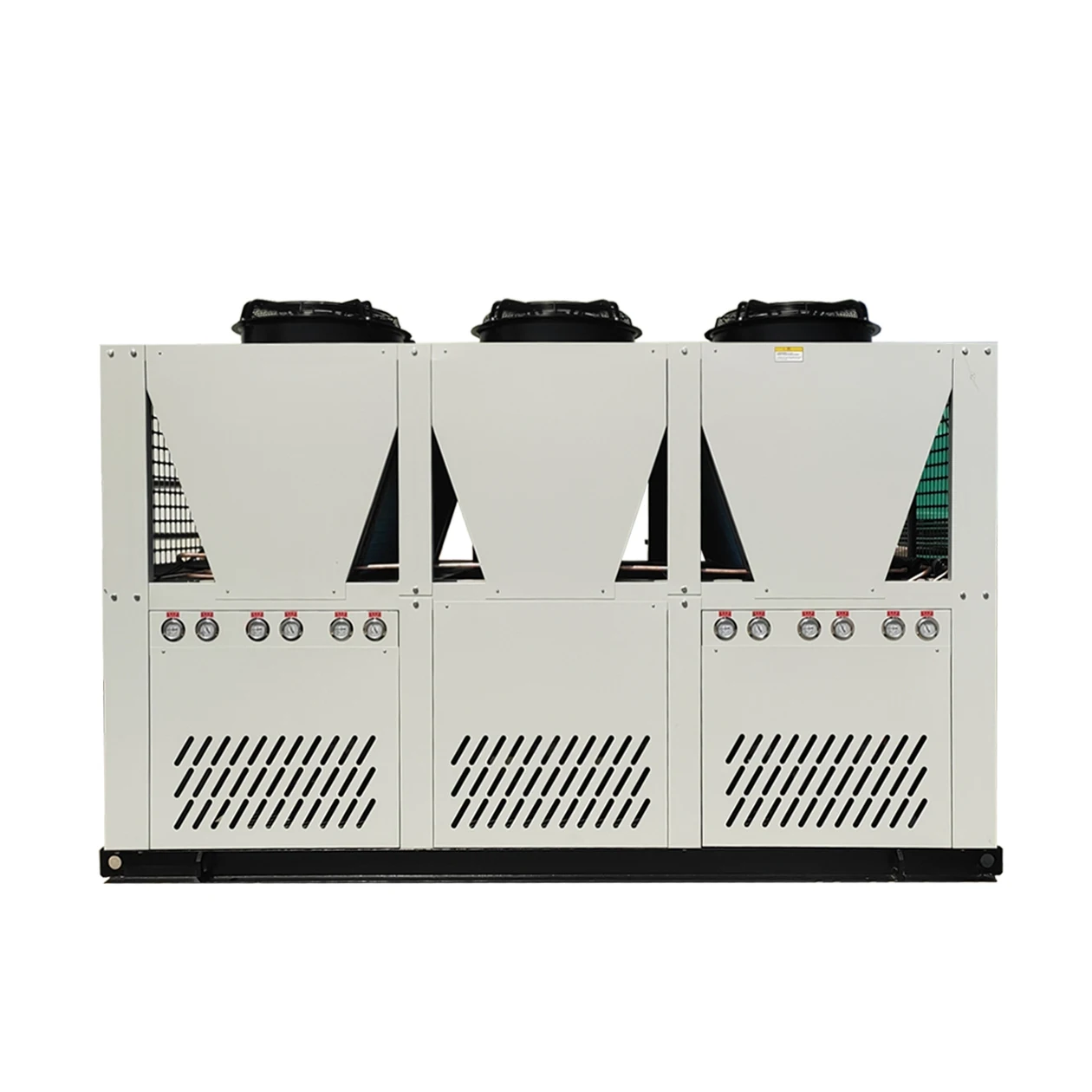

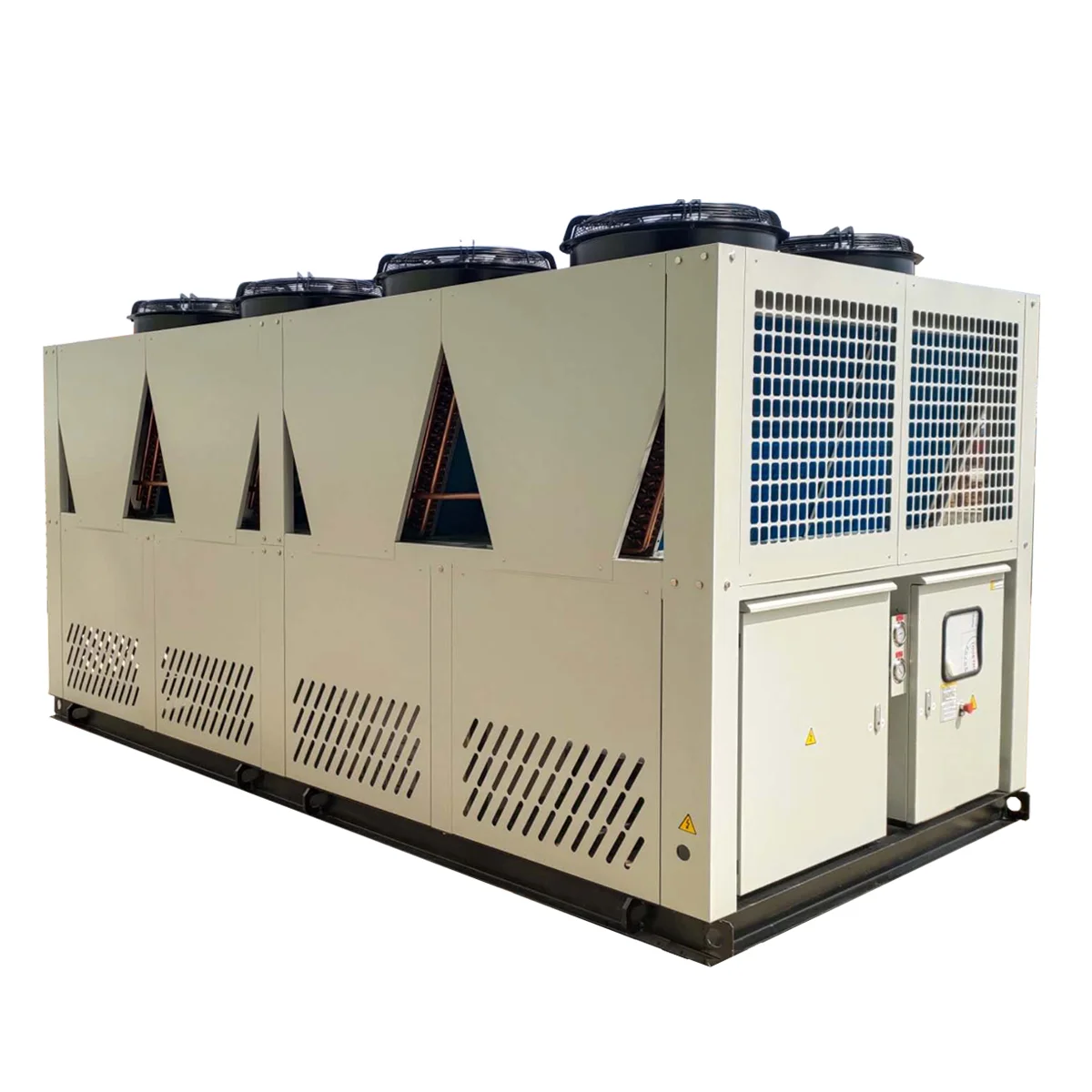

30hp Low Temperature water chilling equipment air cooler scroll glycol chiller price
- Category: >>>
- Supplier: Jinan Mgreenbelt Machinery Co. Ltd.
Share on (1600885857363):
Product Overview
Description
Products Description
1. Cooling range: 5 °C ~ 35 °C.-15C/-10C/-5C/0C
Power supply: 3PH/220V, 380-415V, 440V-460V/50Hz or 60Hz;
2. Water tank made of SUS304 stainless steel.
3. P.I.D temperature control, temperature control is accurate and reliable.
4. Using an independent anti-freezing temperature controller to prevent freezing.
5. Compressors and pumps are equipped with overload devices.
6. Low and high voltage switch control, flexible and adjustable, well protects the compressor.
7. Hydrophilic chip condensers to have better heat exchange effect.
8. Shell and tube evaporators with large heat exchange capacity and stable heat exchange effect.
9. Refrigerant: R22, environmentally friendly refrigerant R407C/R134a/R410a/R404A is also optional.
2. Water tank made of SUS304 stainless steel.
3. P.I.D temperature control, temperature control is accurate and reliable.
4. Using an independent anti-freezing temperature controller to prevent freezing.
5. Compressors and pumps are equipped with overload devices.
6. Low and high voltage switch control, flexible and adjustable, well protects the compressor.
7. Hydrophilic chip condensers to have better heat exchange effect.
8. Shell and tube evaporators with large heat exchange capacity and stable heat exchange effect.
9. Refrigerant: R22, environmentally friendly refrigerant R407C/R134a/R410a/R404A is also optional.
Product Details
Model | MG-5C | MG-10C(D) | MG-15C(D) | MG-20C(D) | MG-25C(D) | MG-30C(D) | MG-40C(D) | ||||||||||
5HP | 10HP | 15HP | 20HP | 25HP | 30HP | 40HP | |||||||||||
Cooling capacity | +7℃ | Kcal/h | 11266 | 24510 | 35948 | 47558 | 54352 | 71896 | 94256 | ||||||||
KW | 13.1 | 28.5 | 41.8 | 55.3 | 63.2 | 83.6 | 109.6 | ||||||||||
TR | 3.72 | 8.1 | 11.89 | 15.72 | 17.97 | 23.77 | 31.16 | ||||||||||
+12℃ | Kcal/h | 13972 | 27945 | 41960 | 55890 | 62769 | 83835 | 111780 | |||||||||
KW | 16.25 | 32.5 | 48.8 | 65.0 | 73.0 | 97.5 | 130.0 | ||||||||||
TR | 4.62 | 9.24 | 13.88 | 18.48 | 20.76 | 27.72 | 36.96 | ||||||||||
Input power | kW | 5.61 | 10.83 | 16.31 | 21.27 | 24.35 | 32.33 | 41.66 | |||||||||
Outlet water temperature | 5°C -35°C | ||||||||||||||||
Power supply | 3PHASE-220/380V/415v/460v-50HZ | ||||||||||||||||
Refrigerant | Type | R22/R407C/R410A | |||||||||||||||
Control type | Thermostatic expansion valve | ||||||||||||||||
Compressor | Type | Hermetic Scroll Type | |||||||||||||||
Power(kw) | 4.54 | 4.54*2 | 4.54*3 | 9.05*2 | 10.6*2 | 9.05*3 | 9.05*4 | ||||||||||
Evaporator | Type | Stainless Steel Tank with Coil | |||||||||||||||
Water flow(m³/h) | 2.25 | 4.89 | 7.17 | 9.48 | 10.83 | 14.33 | 18.79 | ||||||||||
Capacity(Lts) | 70 | 200 | 270 | 350 | 350 | 450 | 580 | ||||||||||
Fitting pipe(mm) | DN25 | DN32 | DN40 | DN40 | DN40 | DN65 | DN65 | ||||||||||
Condenser | Type | Finned Copper tube +low noise air fans | |||||||||||||||
Air volume(m³/h) | 5000 | 10000 | 15000 | 20000 | 25000 | 30000 | 40000 | ||||||||||
Water pump | Power(kw) | 0.75 | 0.75 | 1.5 | 1.5 | 1.5 | 2.2 | 3 | |||||||||
Lift(m ) | 20 | 20 | 20 | 20 | 20 | 20 | 20 | ||||||||||
Dimension | L(mm) | 1300 | 1560 | 1800 | 2100 | 2100 | 2500 | 2350 | |||||||||
W(mm) | 650 | 850 | 1000 | 1000 | 1000 | 1200 | 1460 | ||||||||||
H(mm) | 1200 | 1500 | 1600 | 1700 | 1700 | 1800 | 2000 | ||||||||||
Weight | KG | 200 | 450 | 750 | 850 | 900 | 1150 | 1350 | |||||||||
Model | MG-50C | MG-60C | MG-75C | MG-80C | MG-100C | MG-120C | MG-160C | ||||||||||
50HP | 60HP | 75HP | 80HP | 100HP | 120HP | 150HP | |||||||||||
Cooling capacity | +7℃ outlet | Kcal/h | 108856 | 130267 | 163285 | 173689 | 217713 | 270851 | 361135 | ||||||||
KW | 126.6 | 151.5 | 189.9 | 202 | 253.2 | 315 | 420 | ||||||||||
RT / tons | 36.0 | 43.1 | 54.0 | 57.4 | 72.0 | 89.6 | 119.4 | ||||||||||
+12℃ outlet | Kcal/h | 129149 | 156062 | 193723 | 208083 | 258298 | 322442 | 429923 | |||||||||
KW | 150.2 | 181.5 | 225.3 | 242.0 | 300.4 | 375.0 | 500.0 | ||||||||||
RT / tons | 42.7 | 51.6 | 64.1 | 68.8 | 85.4 | 106.6 | 142.2 | ||||||||||
Input power | kW | 42.5 | 53.4 | 65.8 | 71.8 | 85.6 | 111.5 | 150.6 | |||||||||
Outlet water temperature | 0°C -35°C | ||||||||||||||||
Power supply | 3PHASE-220/380V/415v/460v-50HZ or 60hz | ||||||||||||||||
Refrigerant | Type | R410A | |||||||||||||||
Control type | Thermostatic expansion valve | ||||||||||||||||
Compressor | Type | Hermetic Scroll Type | |||||||||||||||
Power(kw) | 19.5*2 | 16*3 | 19.5*3 | 16*4 | 19.5*4 | 32.8*3 | 32.8*4 | ||||||||||
Evaporator | Type | Shell and tube | |||||||||||||||
Water flow(m³/h) | 25.7 | 31.2 | 38.6 | 41.5 | 51.4 | 64.2 | 85.7 | ||||||||||
Inlet/oulet size | 3" | 3" | 3" | 4" | 4" | 4" | 5" | ||||||||||
Condenser | Type | Finned Copper tube +low noise air fans | |||||||||||||||
Air volume(m³/h) | 50000 | 60000 | 80000 | 96000 | 116000 | 125000 | 168000 | ||||||||||
Motor | kW | 0.8*4 | 0.8*6 | 1.5*4 | 0.8*8 | 0.8*8 | 1.5*8 | 1.5*12 | |||||||||
Dimension | L(mm) | 2300 | 3300 | 2400 | 3870 | 4120 | 5500 | 5850 | |||||||||
W(mm) | 1900 | 1750 | 2170 | 2010 | 2100 | 2200 | 2170 | ||||||||||
H(mm) | 1900 | 2130 | 2300 | 2000 | 2100 | 2100 | 2150 | ||||||||||
Weight | KG | 1500 | 2000 | 2500 | 2650 | 3000 | 3600 | 4200 | |||||||||

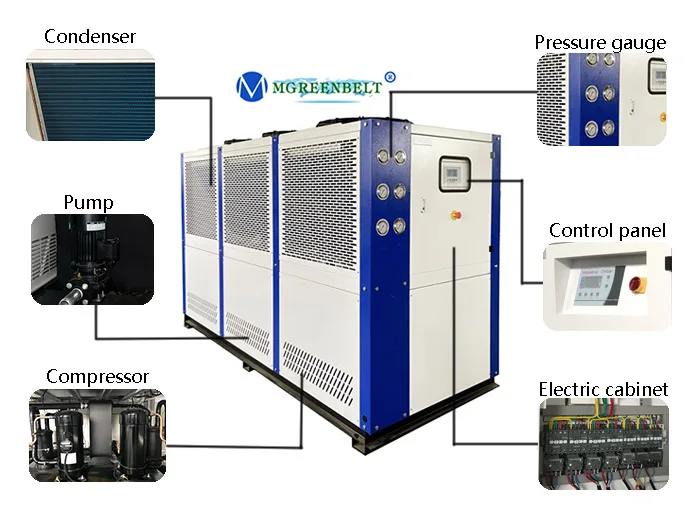

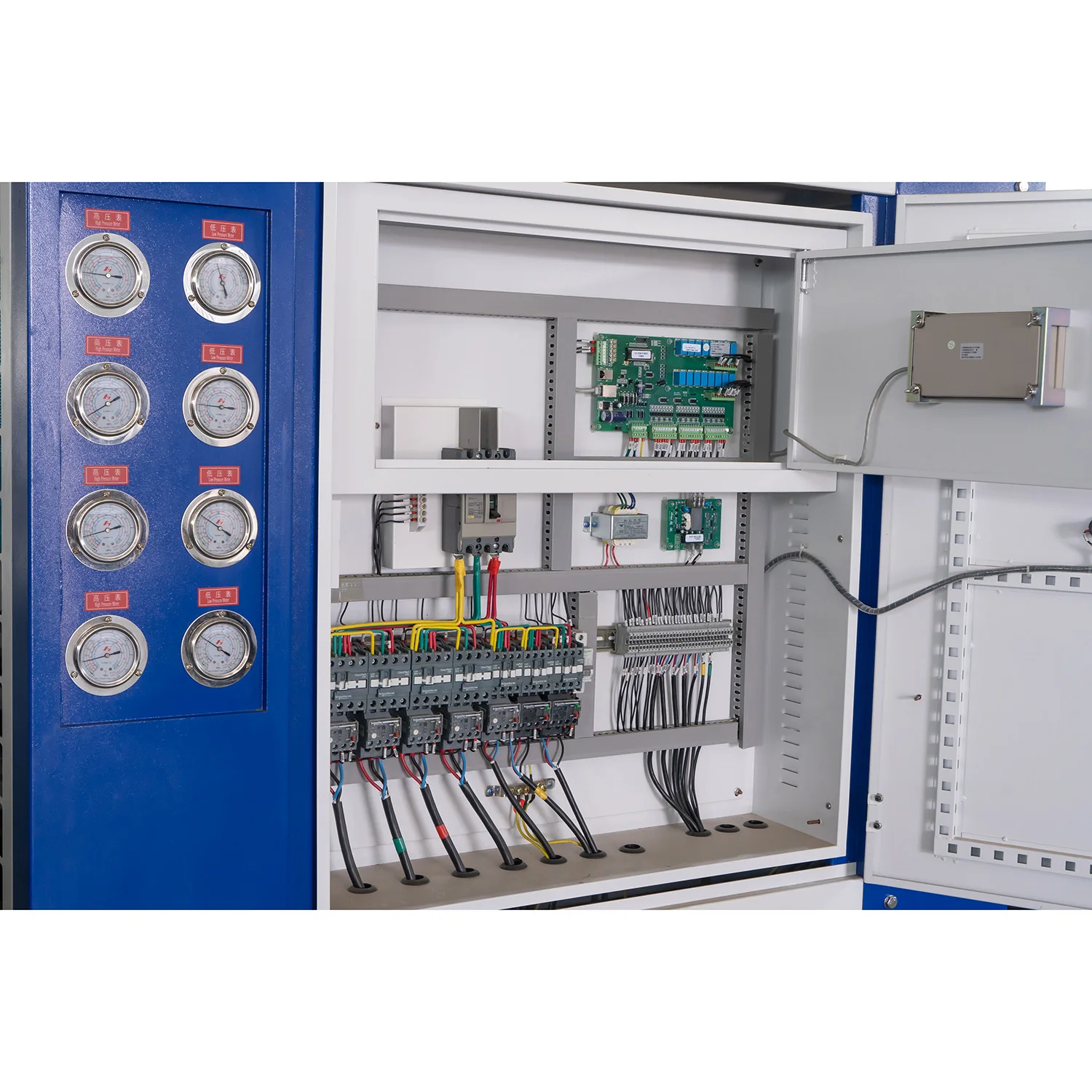

Adopt micro-computer controller:
auto display the temperature, protect, fault code and compressor, working situation, each parts para is shown to the control panel, easy operation.
French Schneider electric accessories.
Well designed and reasonable pipelines-ensures power supply and saves energy.
Multipath protection device: Current-overload protector, high-and-low pressure switches, electronic time delayer, fault display system-safe and durable.

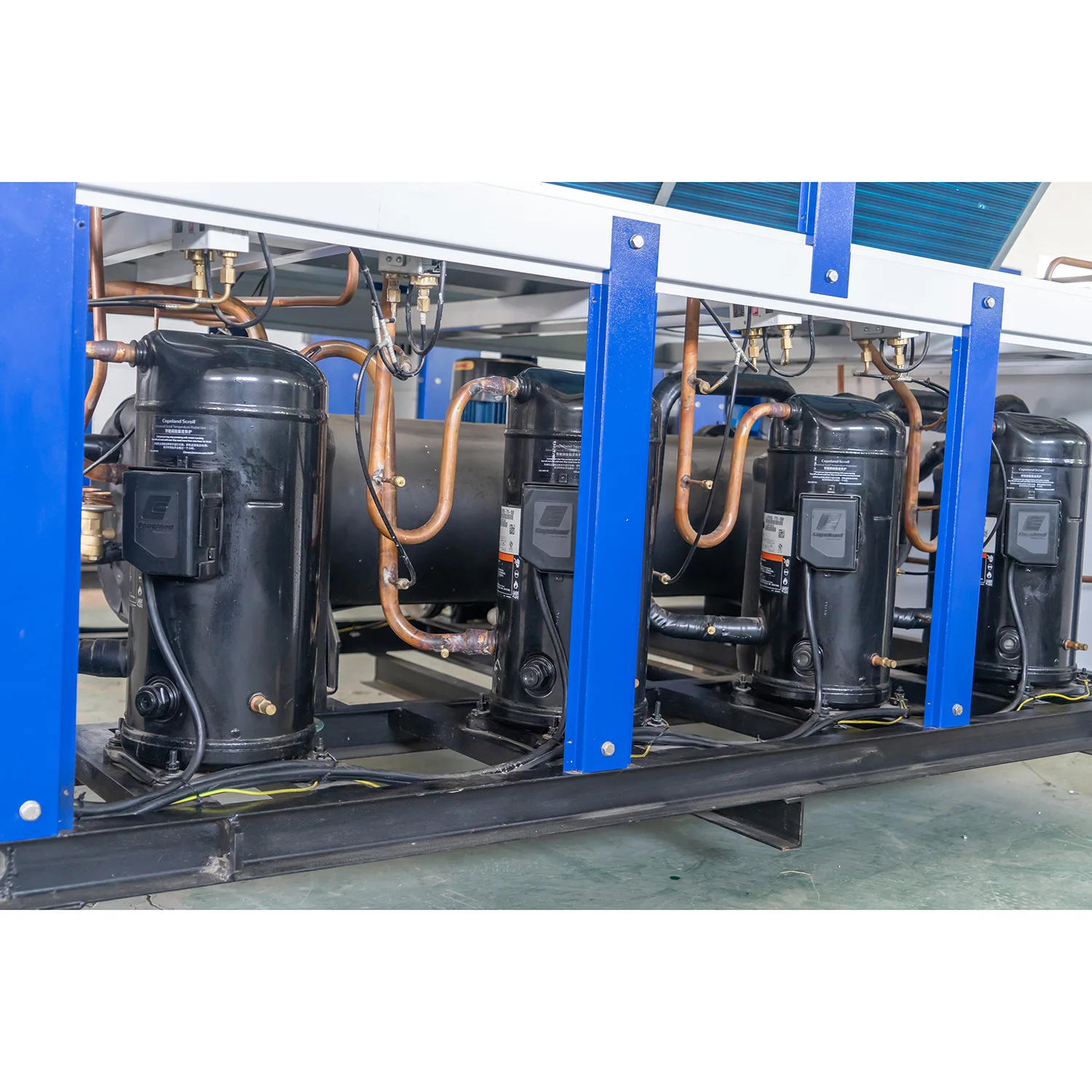

world famous brand compressors from Panasonic, Copland, Danfoss etc, new and original (not re-condition) compressors; low noise and super cooling. Available three
compressor --economical and efficient.
High effective Evaporator:
Optional Shell and tube evaporators with large heat exchange capacity and stable heat exchange effect..
High efficiency, 30% higher than normal condenser; aluminum finned copper tube- separate circuit, excellent cooling, quiet with low electric consumption.
Built-in Stainless steel 304 Circulation water pump, super high efficiency and low noise.
Item | Brand |
Compressor | Panasonic |
Evaporator | MGREENBELT |
Condenser | MGREENBELT |
Expansion Valve | EMERSON/DANFOSS |
Controller | PUNP |
Electric parts | SCHNEIDER |
Filter Dryer | EMERSON/DNAFOSS |
Water pump | CNP |

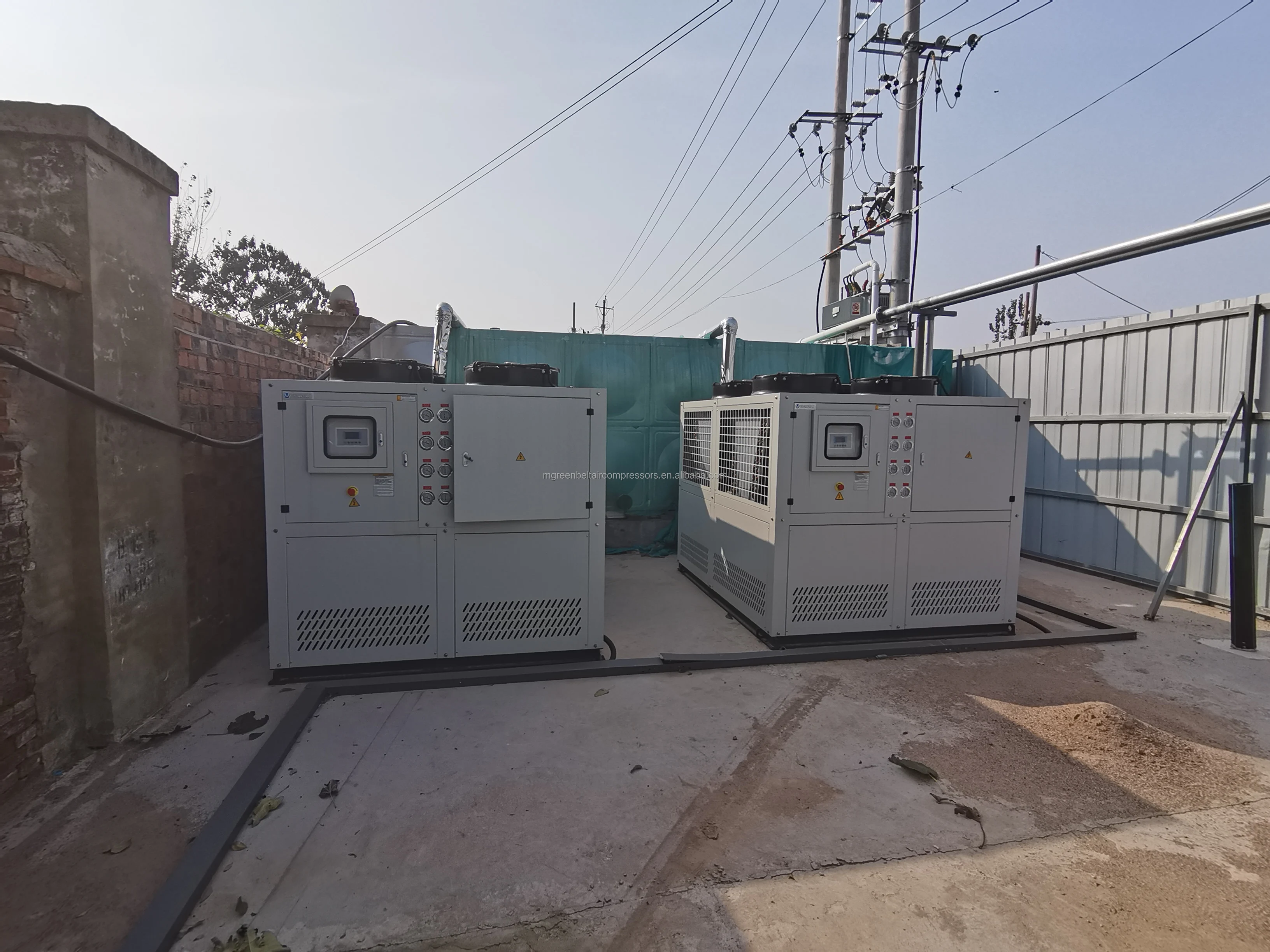

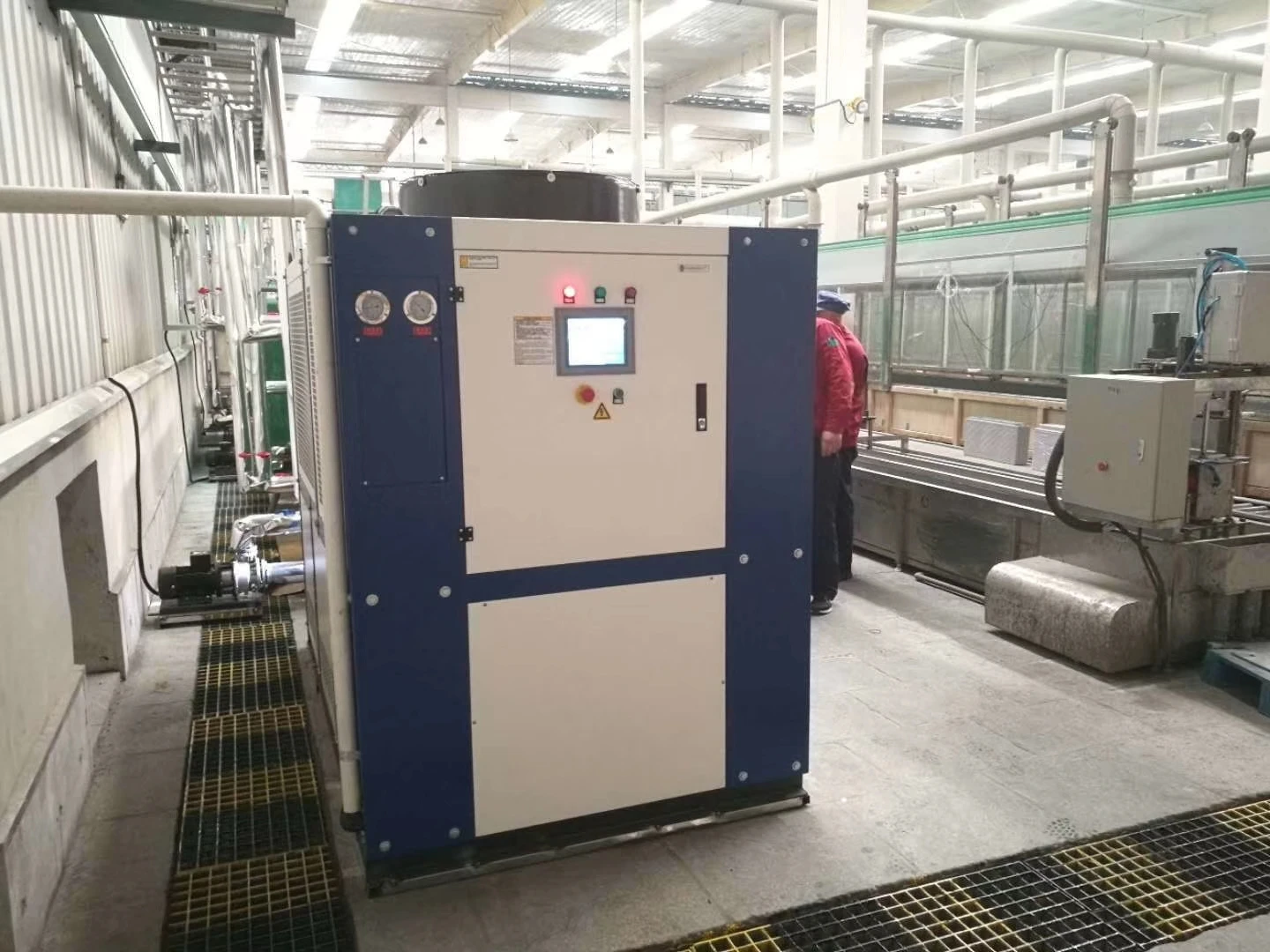

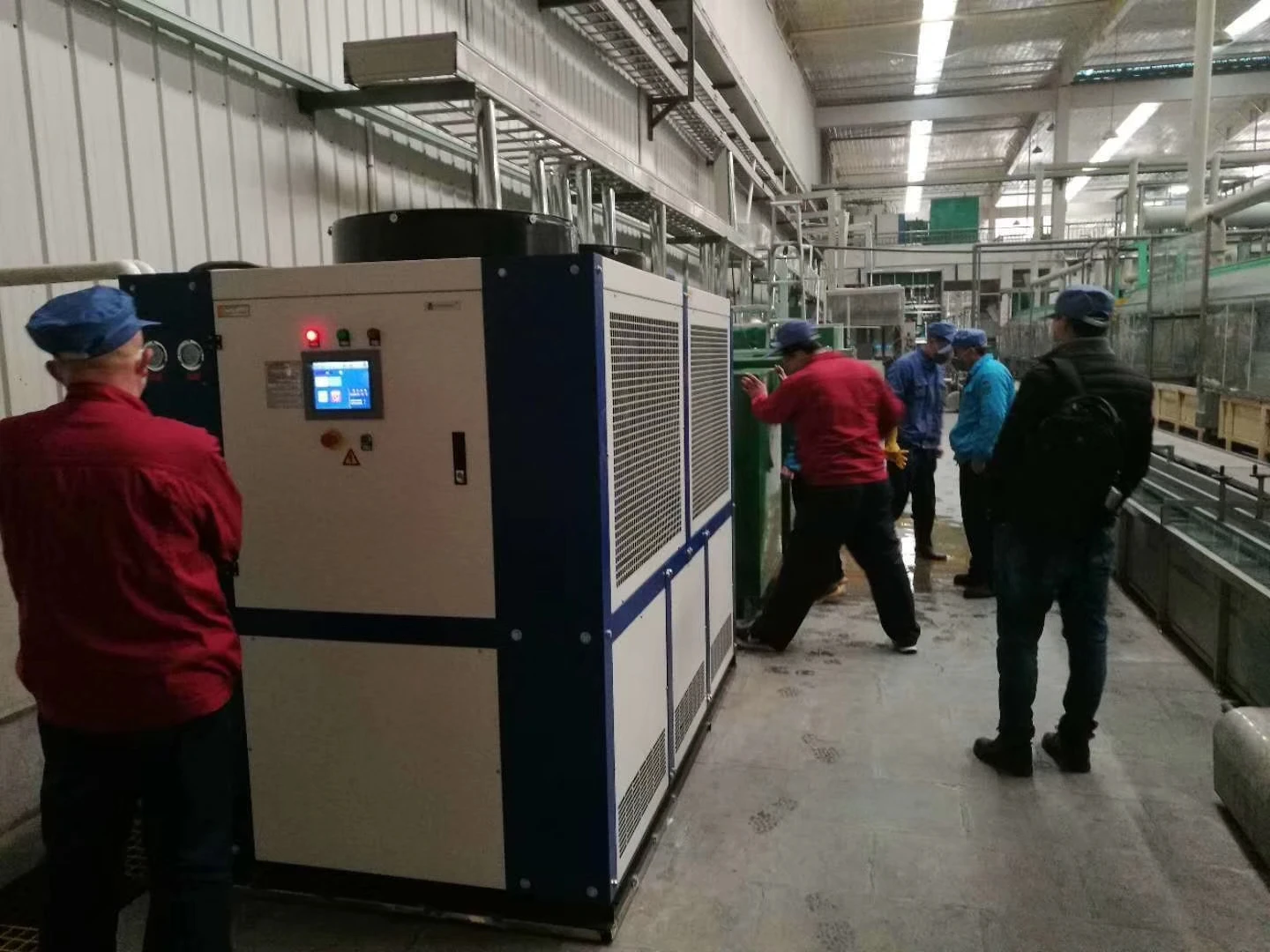

Customer site
Application of Chiller used in many different industries:
Food and Beverages – Microbreweries, confectionary, bakeries, distilleries, wineries, bottling, corbonation, vegetable, meat and fish processing, etc.
Pharma and chemical – Jacketed vessels cooling, condenser cooling, PUF mixers, Laboratories applications, x ray spectrometers, paint cooling, packing machine, anodizing, plating, liquid nitrogen plant, etc
Pharma and chemical – Jacketed vessels cooling, condenser cooling, PUF mixers, Laboratories applications, x ray spectrometers, paint cooling, packing machine, anodizing, plating, liquid nitrogen plant, etc
Other industries- plastic industry, electronics industry, electroplating industry, machinery industry, construction industry,
laser industry, ultrasonic/ultrasound industry, numerical control processing industry, ship manufacturing industry, steel and iron
manufacturing industry, discharge industry, shoe making industry, leather dry cleaning industry etc.
laser industry, ultrasonic/ultrasound industry, numerical control processing industry, ship manufacturing industry, steel and iron
manufacturing industry, discharge industry, shoe making industry, leather dry cleaning industry etc.

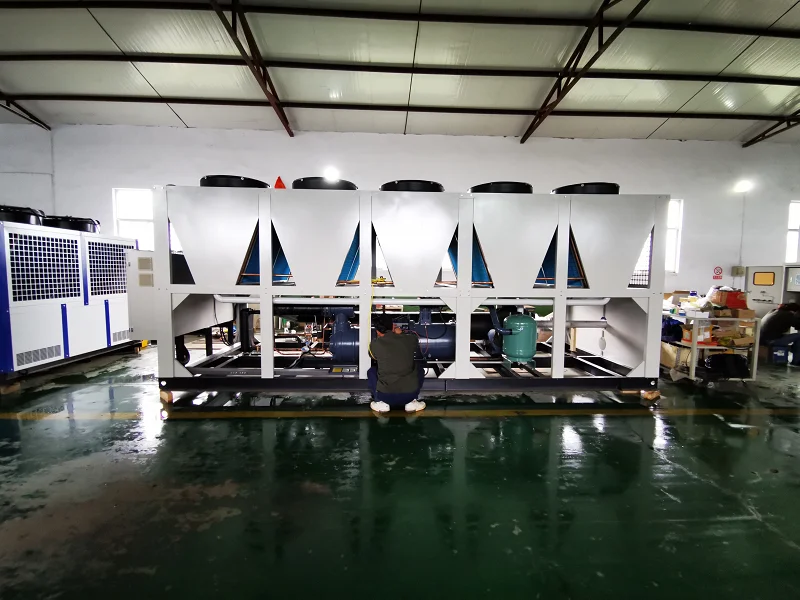

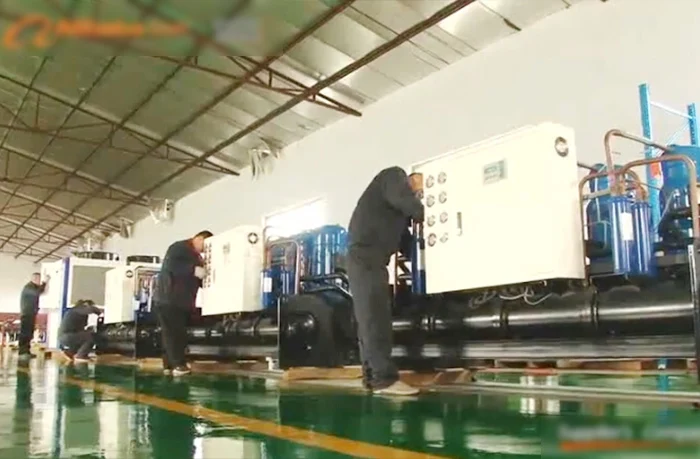

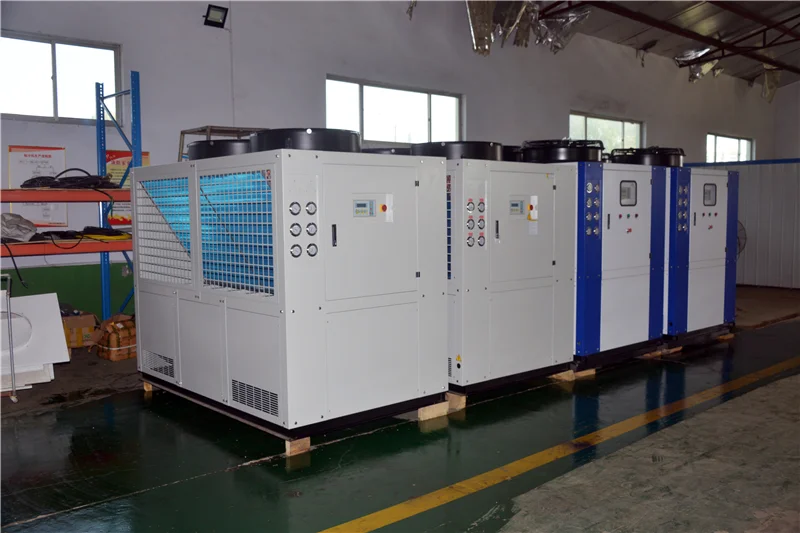

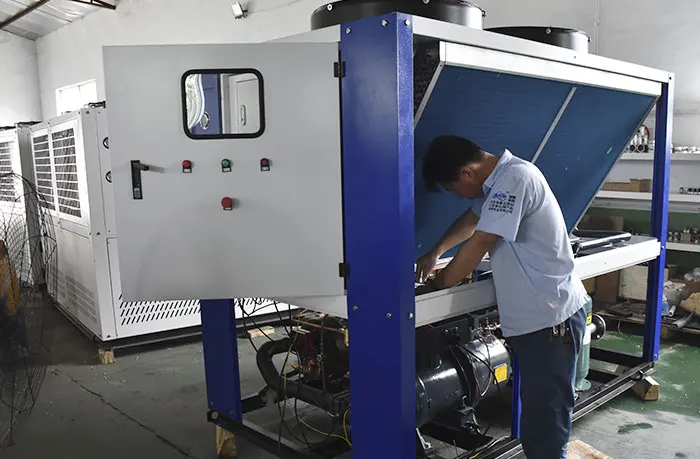

Factory production
Product Packaging
PACKAGE:
LCL SHIPMENT: Use plastic foam protect ,then ply wooden case package.
FCL: If the equipment enough package with 20"or 40" container ,will use plastic foam package and wooden pallet.
SHIPPING TERMS:
1. We can arrange the shipping by sea, by air ,by truck and train based on your requirements, but kindly remind the refrigerant gas can't allowed by air ,so you must filling them when machine arrive if you choose the air ship.
2. EXW,FCA,FOB,CFR,CIF,DAP/DDU,DDP ALL can be accepted.
3. Any port of CHINA we can sent ,if you have other goods will packaged in one container ,we would like to arrange that for you.
LCL SHIPMENT: Use plastic foam protect ,then ply wooden case package.
FCL: If the equipment enough package with 20"or 40" container ,will use plastic foam package and wooden pallet.
SHIPPING TERMS:
1. We can arrange the shipping by sea, by air ,by truck and train based on your requirements, but kindly remind the refrigerant gas can't allowed by air ,so you must filling them when machine arrive if you choose the air ship.
2. EXW,FCA,FOB,CFR,CIF,DAP/DDU,DDP ALL can be accepted.
3. Any port of CHINA we can sent ,if you have other goods will packaged in one container ,we would like to arrange that for you.

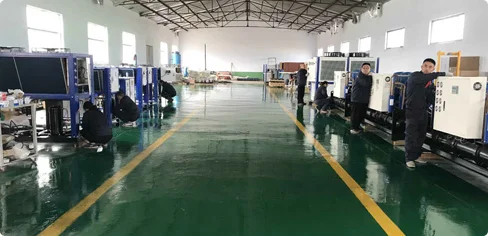

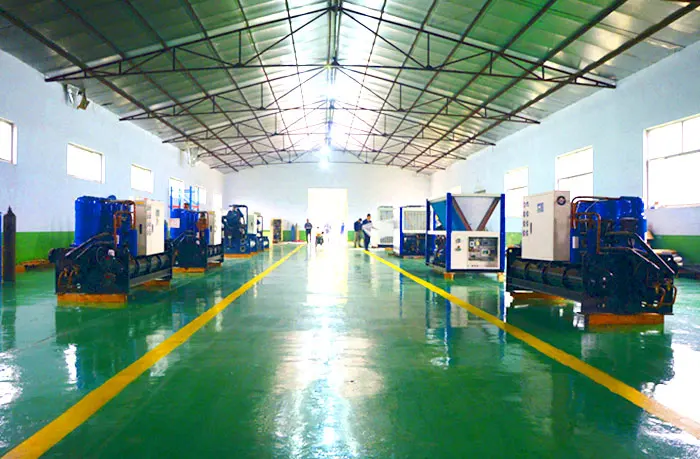

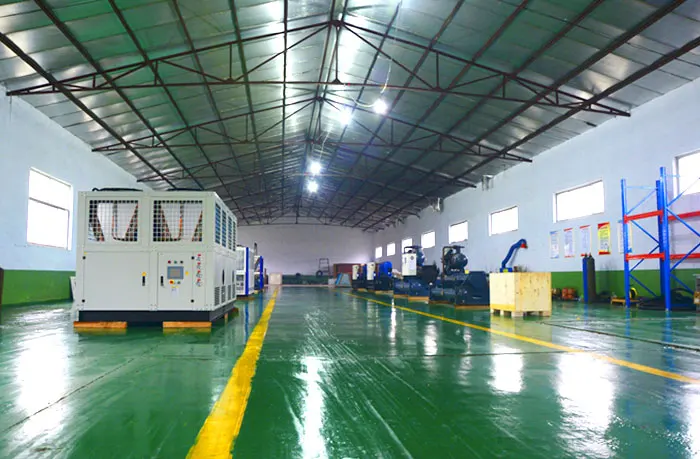

Work Shop
Company Information
MGREENBELT company
Professional Industrial Refrigeration Equipment Solution Provider.
Mgreenbelt is a professional refrigeration equipment manufacturer, producing air cooled chiller, water cooled chiller, glycol chiller for various industrial applications; we was established since 2003, with 34,000 squre meter workshop, all of our product with CE certificate, can supply the SASO, SGS, COC and etc documents.
Certification
1. Chiller with CE
2. Export to Asia, Europe, Africa, North America, and Australia, etc.
3. Provide C/O, FORM E, FTA ,and other China- specific countries depends on requirement.
Our service
* 24 Hours working phone call/Email/Wechat/Whatsapp/Trade manager online to support.
* Manufactured by mgreenbelt chiller plant, Components are new and branded, Completely pre-packaged
* Proven reliability for over 15 years, Designed and engineered by experienced technicians: Professional technical team and sales person give you regarding troubleshooting procedures via Internet and Phone any time when needed.
* Warranty by mgreenbelt: 12 Months warranty and life time technical maintenance offered.
* Replacement parts and spare parts available from stock: All extra parts for the machine can be purchased with agent price from Mgreenbelt
* Manufactured by mgreenbelt chiller plant, Components are new and branded, Completely pre-packaged
* Proven reliability for over 15 years, Designed and engineered by experienced technicians: Professional technical team and sales person give you regarding troubleshooting procedures via Internet and Phone any time when needed.
* Warranty by mgreenbelt: 12 Months warranty and life time technical maintenance offered.
* Replacement parts and spare parts available from stock: All extra parts for the machine can be purchased with agent price from Mgreenbelt
Experienced aftermarket support,and Free and Professional Training at our Factory under the relaxed condition.
