Bluesun 5kw 10kw inverter solar 48v battery voltage off grid hybrid solar single phase sine wave inverter for sale
- Category: >>>
- Supplier: Bluesun Outdoor Energy Co. Ltd.Bluesun Ltd.
Share on (1600886189530):
Product Overview
Description
Product Description

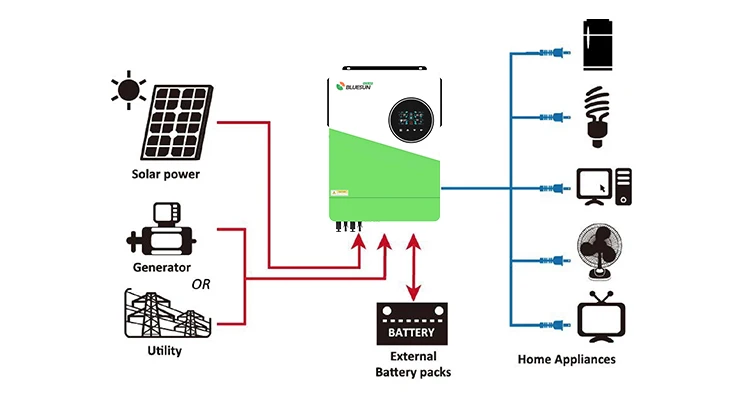

This is a multi-function inverter/charger, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.

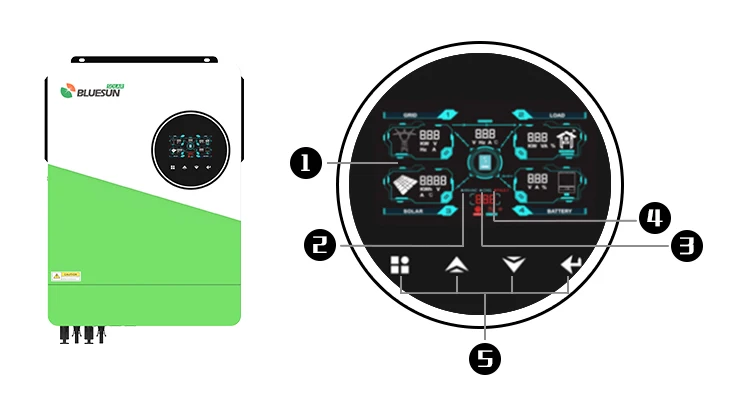

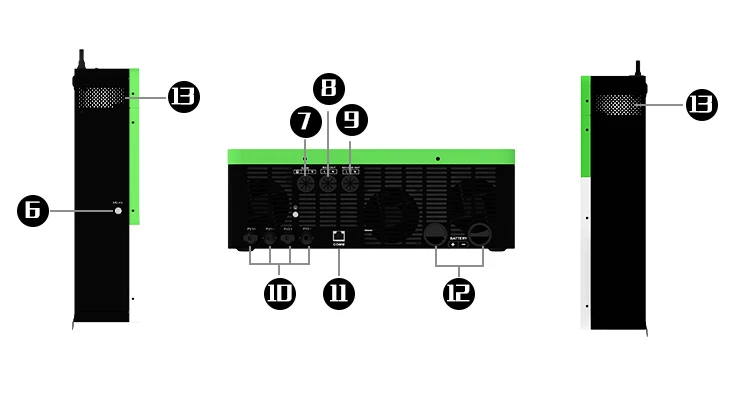

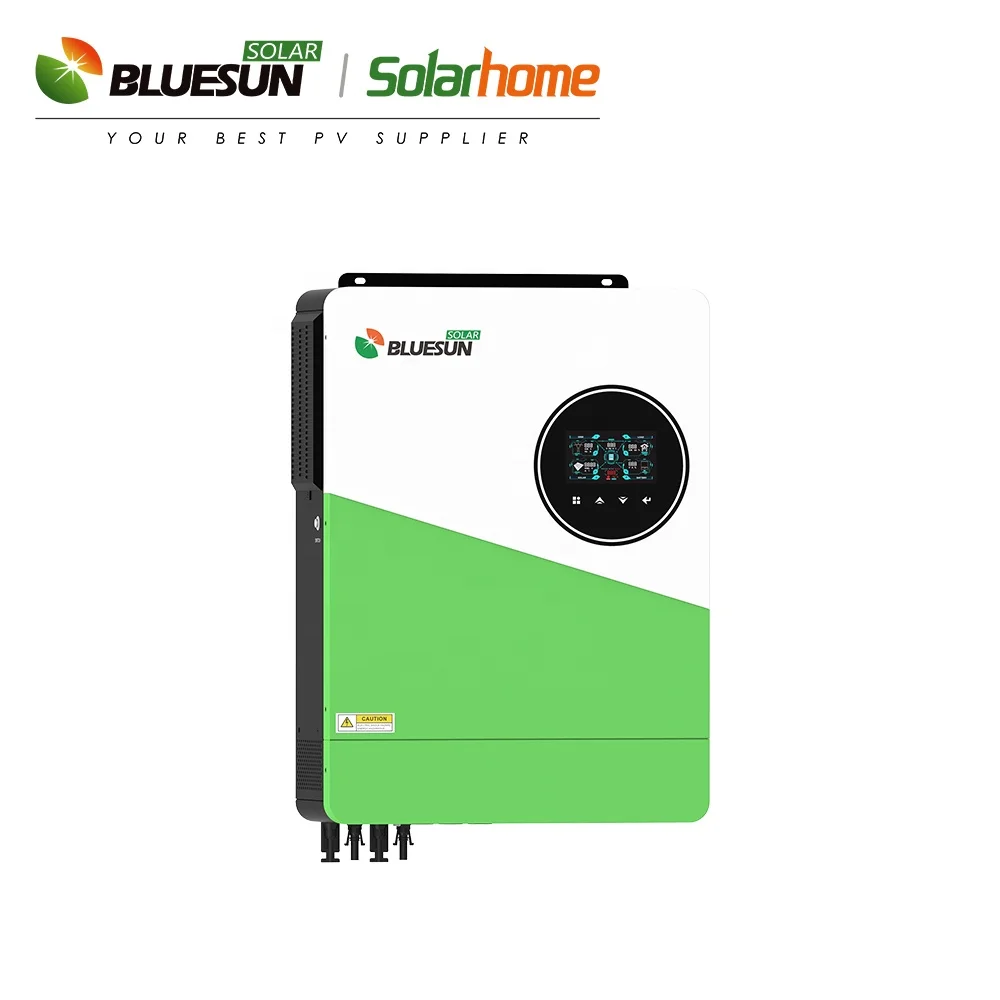

Product Overview

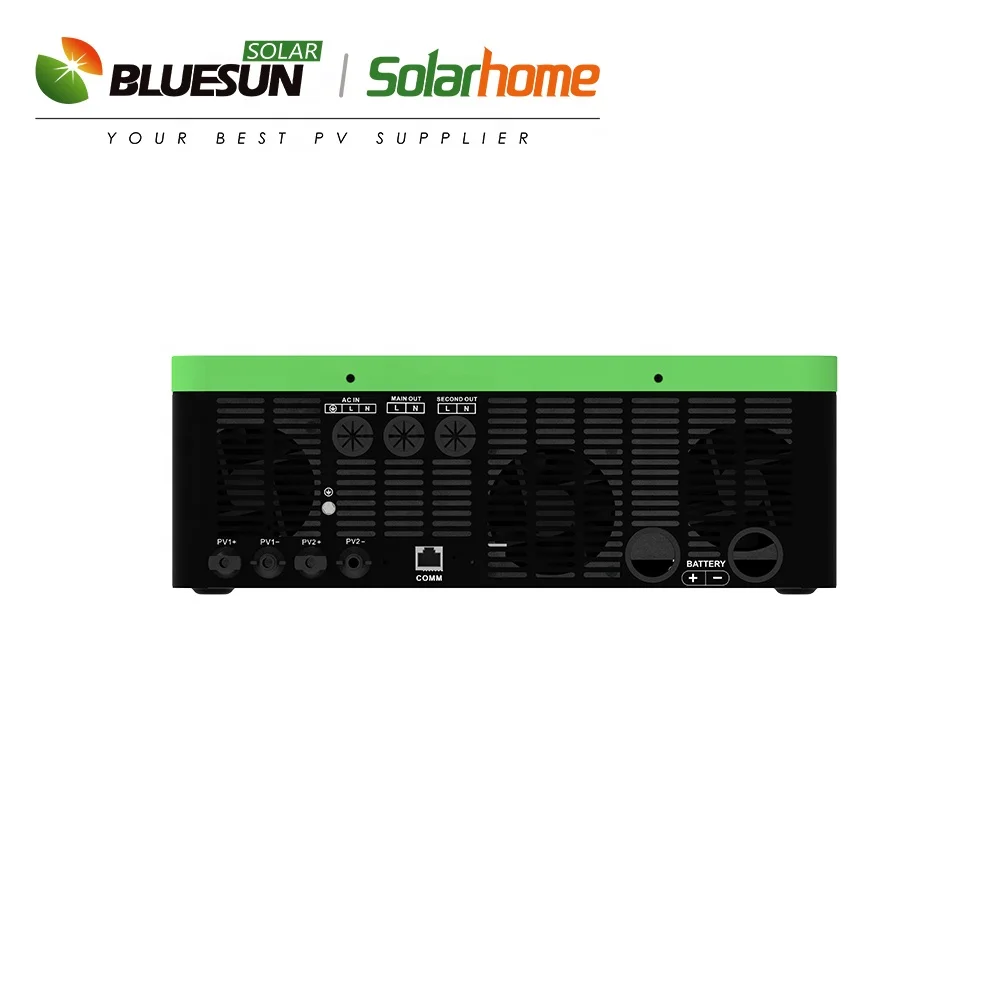

1 | LCD display | 8 | Main output |
2 | Status indicator | 9 | Second output |
3 | Charging indicator | 10 | PV1 and PV2 input |
4 | Fault indicator | 11 | RS-232/WIFI/Remove LCD communication port |
5 | Touch Function buttons | 12 | Battery input |
6 | Power on/off switch | 13 | Anti dust kit |
7 | AC input |
Technical Specification
Features
* Pure sine wave solar inverter(on/off grid) * Inverter running without battery* Output power factor 1.0
* High PV input voltage
* range(90~500VDC) WIFI&GPRS available for IOS and Android
* Built-in anti-dusk kit for harsh enviroment
* Built-in 180A(for 10.2KW)MPPT solar charge
* Smart battery charge design to optimize battery life
* One-click restoration to factory settings
* Dual output
* Built-in lithium battery automatic activation
* Touch buttom
* High PV input voltage
* range(90~500VDC) WIFI&GPRS available for IOS and Android
* Built-in anti-dusk kit for harsh enviroment
* Built-in 180A(for 10.2KW)MPPT solar charge
* Smart battery charge design to optimize battery life
* One-click restoration to factory settings
* Dual output
* Built-in lithium battery automatic activation
* Touch buttom
MODEL | BSM-10200LV-48 |
Phase | 1-phase |
Maximum PV Input Power | 10200W |
Maximum Solar Charging Current | 160A |
OFF-GRID OPERATION | |
AC INPUT | |
AC Start-up Voltage/Auto Restart Voltage | 120-140VAC / 180VAC |
Acceptable Input Voltage Range | 90-280VAC or 170-280VAC |
Maximum AC Input Current | 50A |
Nominal Operating Frequency | 50/60Hz |
Surge Power | 20400W |
PV INPUT(DC) | |
Maximum DC Voltage | 500VDC |
MPPT Voltage Range | 90VDC~450VDC |
Number of MPPT Trackers/Maximum Input Current | 2/18A |
BATTERY MODE OUTPUT(AC) | |
Nominal Output Voltage | 48VDC |
Output Wavefrom | Pure sinewave |
Efciency(DC to AC) | 94% |
BATTERY & CHARGER | |
Nominal DC Voltage | 48VDC |
Maximum Solar Charging Current | 160A |
Maximum AC Charging Current | 140A |
PHYSICAL | |
Dimension,D X W X H | 530*420*160 |
Net Weight(kgs) | 14.8 |
INTERFACE | 16.3 |
Commnuication Prot | RS232/WIFI/GPRS/LITHIUM BATTERY |
Packing&Delivery
In Well Carton Box with Pallet Pack
Bluesun Will Design and Advise Your Final Pack Measurements on Your Order.
Bluesun Will Design and Advise Your Final Pack Measurements on Your Order.

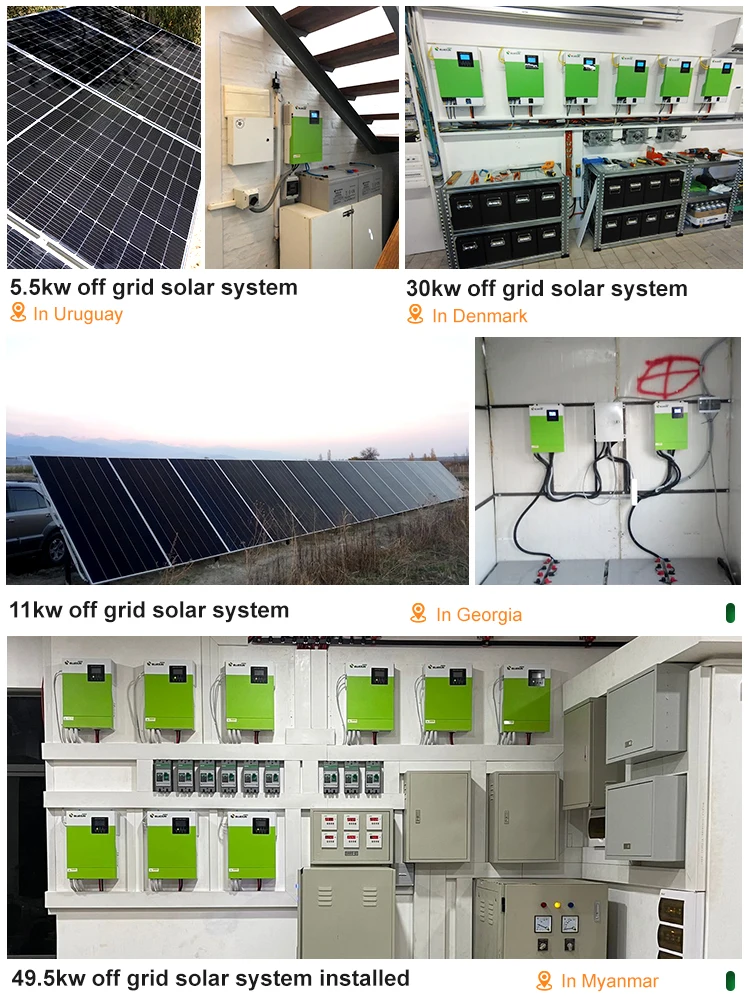

Project
