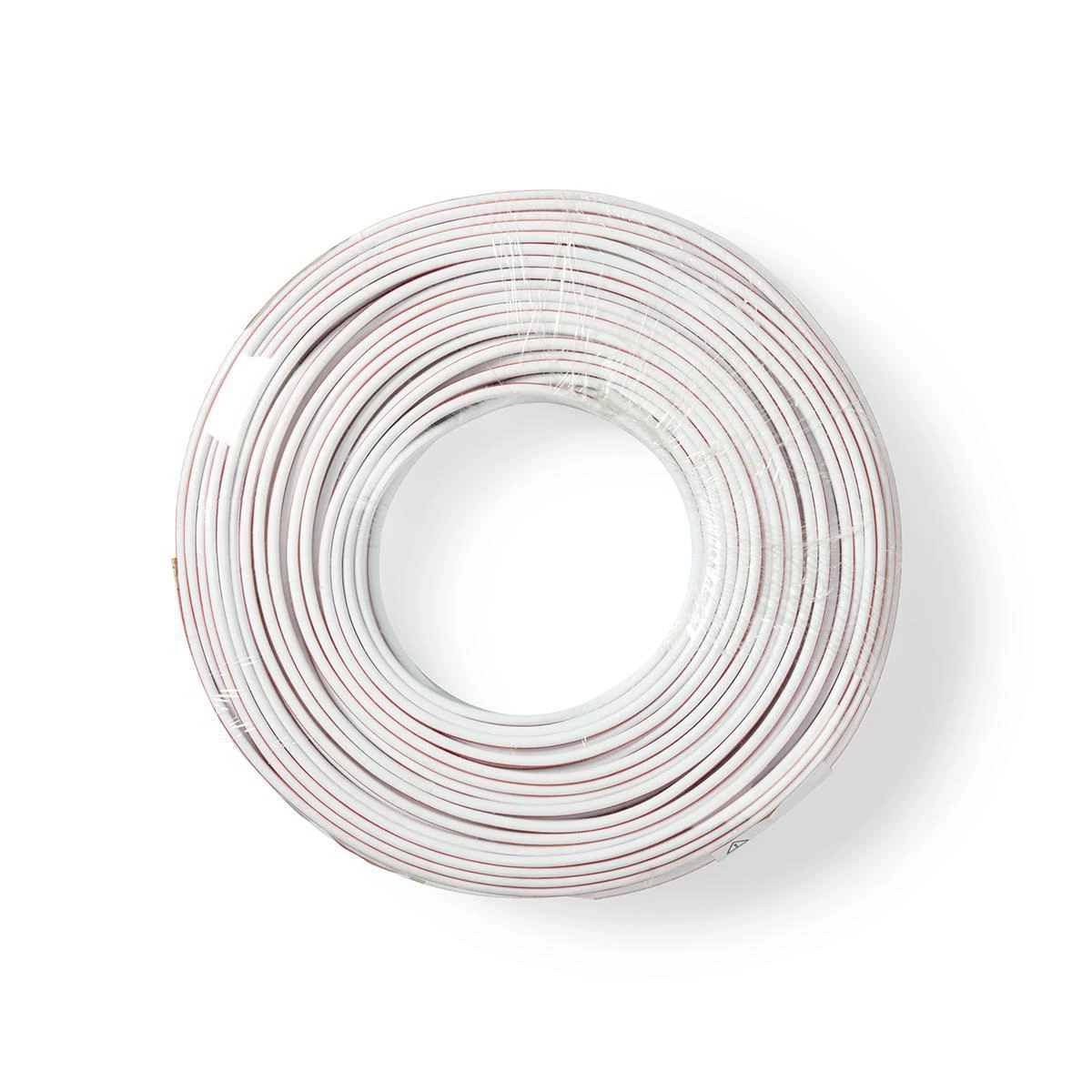

Figure 8 Parallel Webbed Cable Wire for Audio and Electronic Wiring White
- Category: >>>
- Supplier: Shenzhen Lanp Cable Co. Ltd.
Share on (1600887989286):
Product Overview
Description
Product Description
Specification
Description

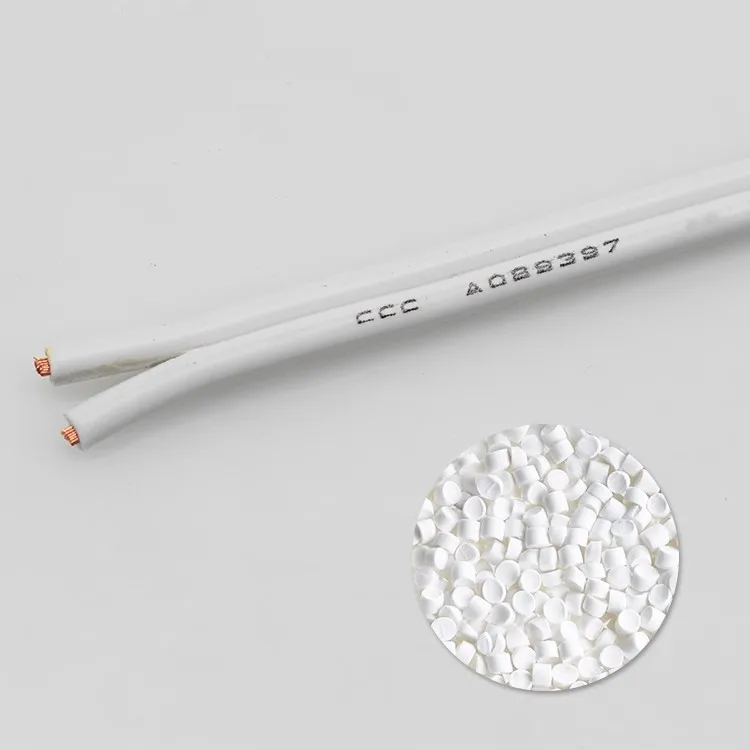

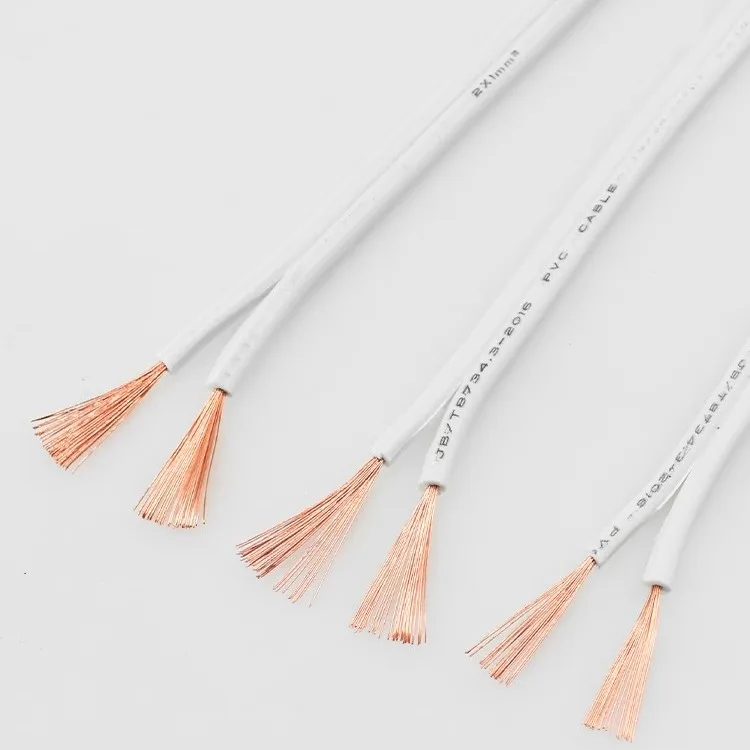

• Conductor: pure copper, CCA, TCCA, 30% copper., ect

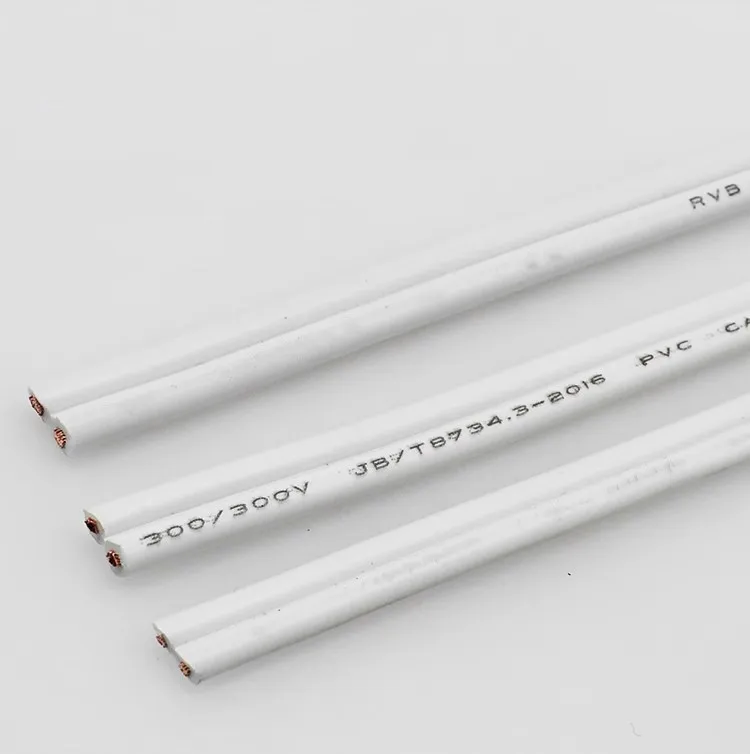

• Rated temperature: 70°C • Rated voltage: 300/300V
• Reference standard: GB/T5023
• Model: 60227IEC42 (RVB)
• Jacket: PVC or color-coded flame retardant PVC insulation
APPLICATION
Use in domestic premises and offices, for ordinary duty applications and household appliances, including in damp premises; (e.g. car audio, LED, home stereo HiFi, vacuum cleaners, washing machines, spin dryers, and refrigerators).
Model (Size) | Specification Description | Outer Dia. (mm) | Jacket/sheath | Color |
0.35mm² | 2CX20/0.15mm | O. D: 2.0×4.0 | PVC | White |
0.50mm² | 2CX28/0.15mm | O. D: 2.2×4.4 | PVC | White |
0.75mm² | 2CX42/0.15mm | O. D: 2.4×4.8 | PVC | White |
1.0mm² | 2CX57/0.15mm | O. D: 3.0×6.0 | PVC | White |
1.5mm² | 2CX85/0.15mm | O. D: 3.6×7.2 | PVC | White |
2.5mm² | 2CX140/0.15mm | O. D: 4.2×8.4 | PVC | White |
4.0mm² | 2CX224/0.15mm | O. D: 5.0×10.0 | PVC | White |
6.0mm² | 2CX336/0.15mm | O. D: 5.5×11 | PVC | White |
AWG( size) | Specification Description | Outer Dia. (mm) | Jacket/sheath | Color |
24AWG | 2CX18/0.12mm | O. D: 1.8×3.6 | PVC | White |
22AWG | 2CX18/0.15mm | O. D: 2.0×4.0 | PVC | White |
20AWG | 2CX29/0.15mm | O. D: 2.2×4.4 | PVC | White |
18AWG | 2CX46/0.15mm | O. D: 2.5×5.0 | PVC | White |
16AWG | 2CX74/0.15mm | O. D: 3.0×6.0 | PVC | White |
14AWG | 2CX118/0.15mm | O. D: 3.5×7.0 | PVC | White |
12AWG | 2CX187/0.15mm | O. D: 4.5×9.0 | PVC | White |
10AWG | 2CX297/0.15mm | O. D: 5.5×11.0 | PVC | White |
Packing & Delivery

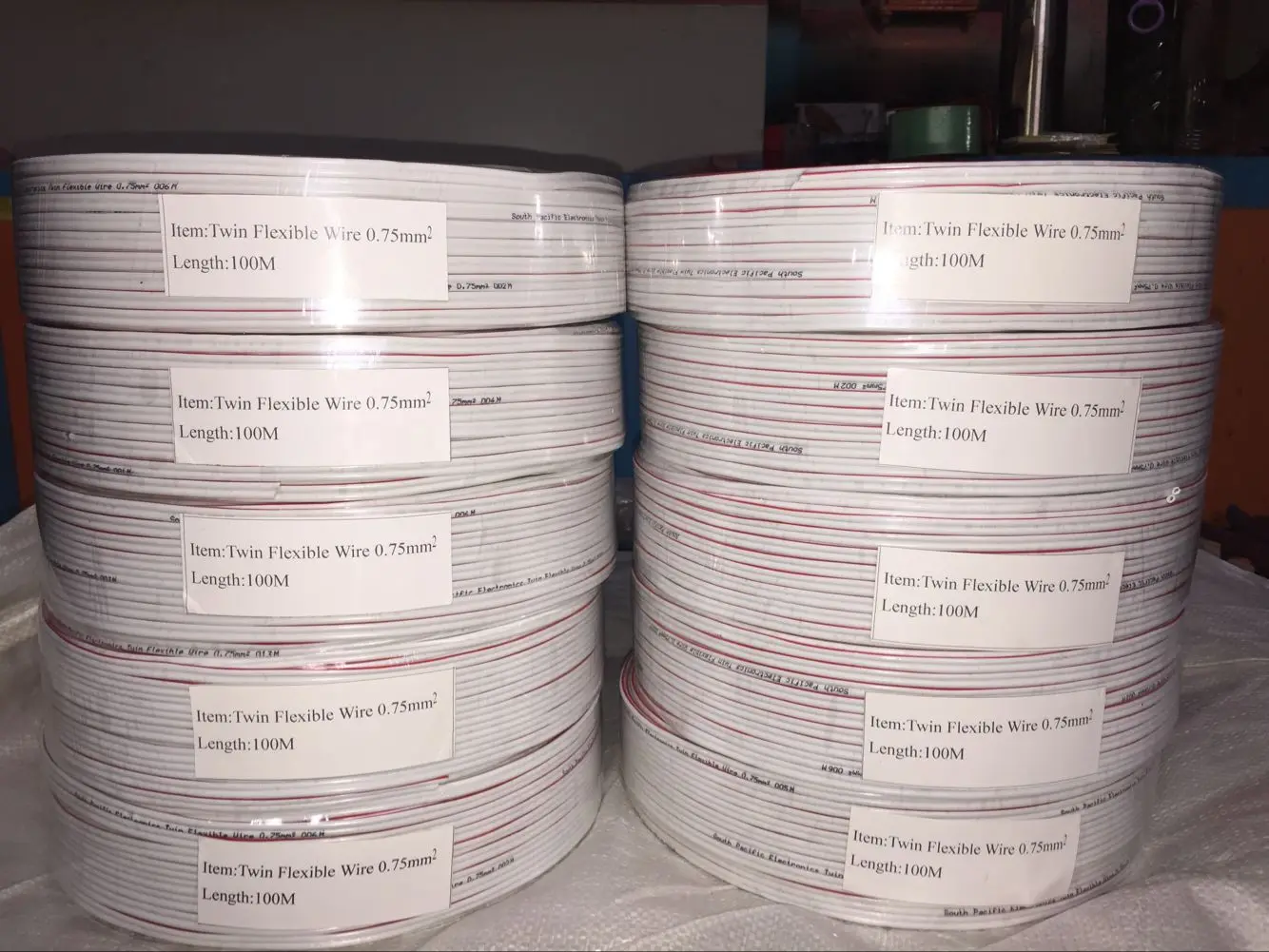

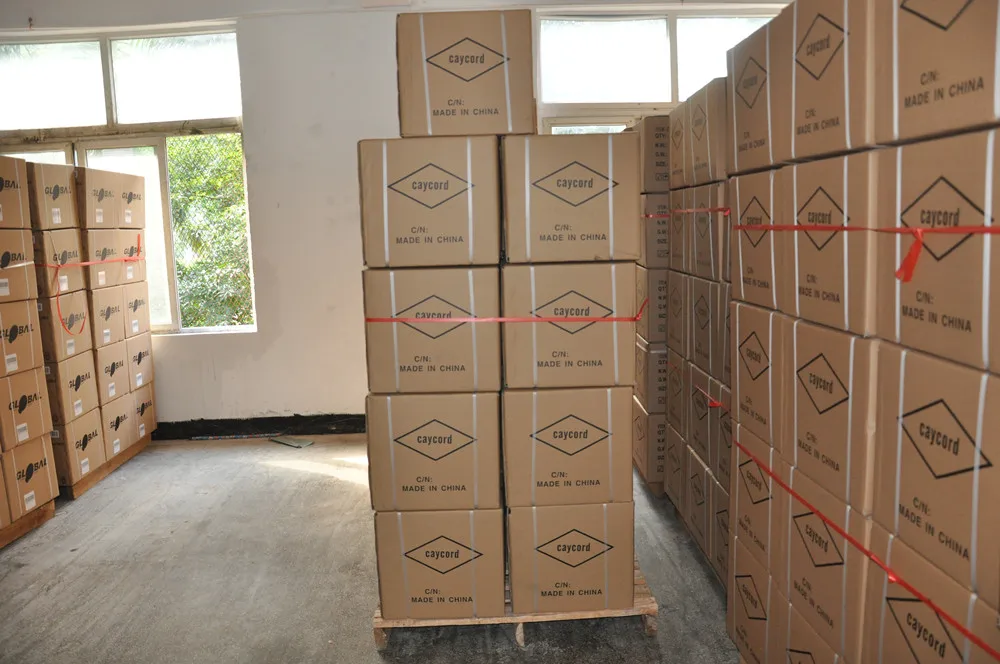

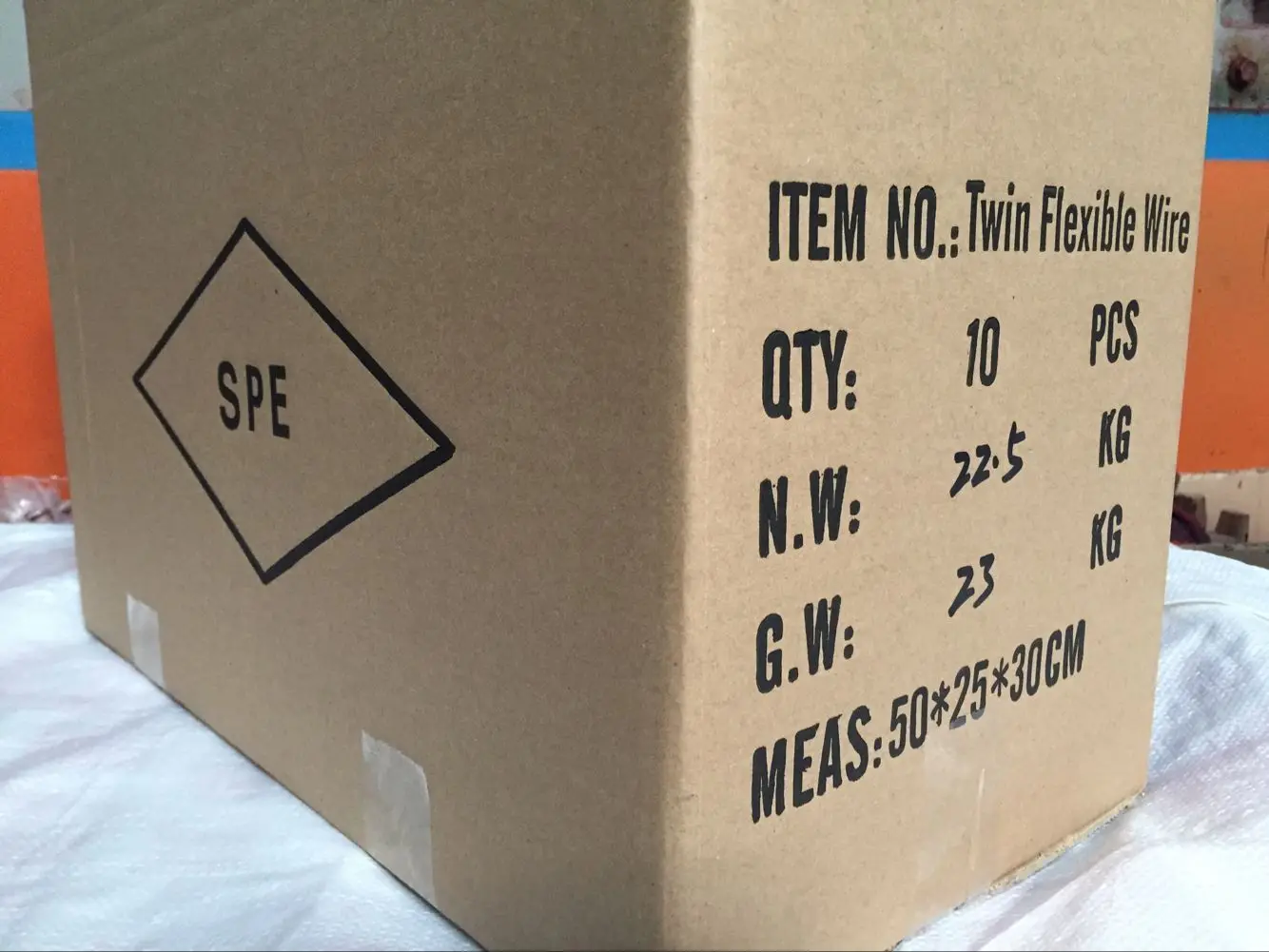

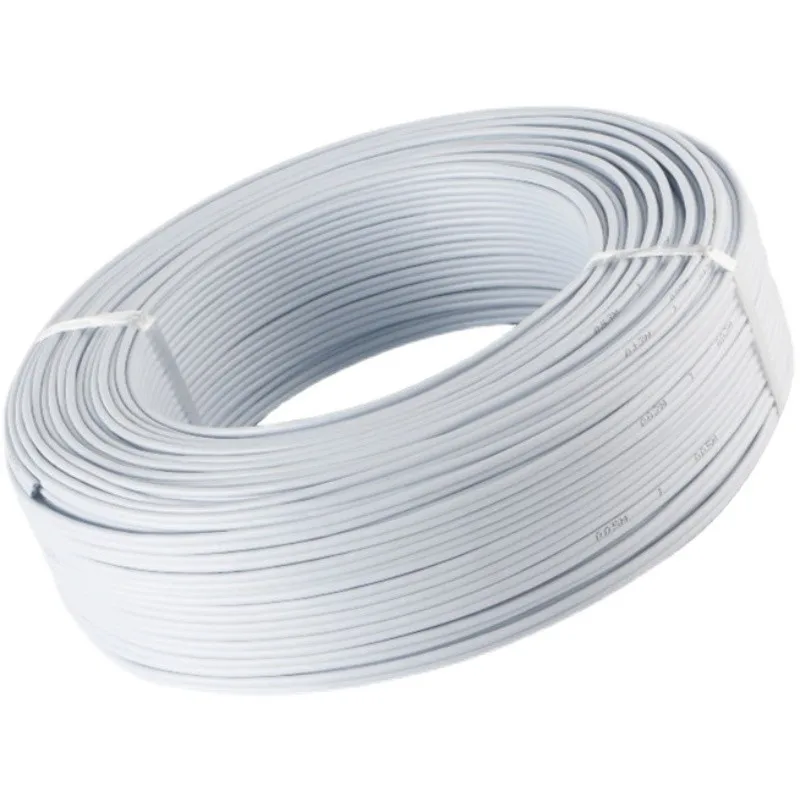

Normal packing: inner with 100m in ring, outer with carton
Please advise if want to OEM service
Delivery: by sea
Company Profile
Shenzhen Lanp Cable Co., Ltd. established in 2003 , is one of the leading communications cables manufacturers. Our products include lan cable cat3, cat5, cat5e, cat6, patch cords, house wire, building wire, power cable, speaker cable, coaxial cable, fire alarm cable, security cable and others.
Our total manufacturing area covers 8000 square meters, with equipment such as high speed cross product lines, high speed cross supervisor data return online system (Zumbach), and cat6 twisters system machine. Our testing equipment includes Fluke test machine and PNA Network Analyzer machine. Our products strictly adhere to ISO9001 international standards, which also cover our research and development, services, and management. We have more than 300 employees, among whom 10% are staffed with technical personnel. We have customers in over 16 countries and regions such as America, Europe, Southeast Asia, and Africa. Both OEM and ODM services are available.
We will continue being a people-oriented, faithful supplier offering quality products and excellent service. For more information, please visit our website or contact us directly with your questions or inquiries.
Certifications
Exhibition
FAQ
1. Who are we?We are a direct manufacturer based in Guang Dong, China, start from 2013,sell to Africa, Mid East, South America, South Asia,
Eastern Asia.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
LAN cable, patch cords, electric cable, power cable, telephone multipair cable, coaxial cable, security cable, fire alarm cable,
speaker cable and so on.
4. Why should you buy from us not from other suppliers?
Product Quality is Our Company Core . Have more than 10years produce cable factroy experience .Hope customer win big market .
Let's be to good partner .
5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,Express Delivery；
Accepted Payment Currency:USD,HKD,CNY,CHF;
Accepted Payment Type: T/T,L/C,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Portuguese,Russian
6. Our advantages
* We make and export cables for network, electrical, security alarm, speaker, telecom industry,ect.
* We make branded with your company logo.
* We design your box or package for free.
* We can control quality to meet your requirements.
Eastern Asia.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
LAN cable, patch cords, electric cable, power cable, telephone multipair cable, coaxial cable, security cable, fire alarm cable,
speaker cable and so on.
4. Why should you buy from us not from other suppliers?
Product Quality is Our Company Core . Have more than 10years produce cable factroy experience .Hope customer win big market .
Let's be to good partner .
5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,Express Delivery；
Accepted Payment Currency:USD,HKD,CNY,CHF;
Accepted Payment Type: T/T,L/C,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Portuguese,Russian
6. Our advantages
* We make and export cables for network, electrical, security alarm, speaker, telecom industry,ect.
* We make branded with your company logo.
* We design your box or package for free.
* We can control quality to meet your requirements.
