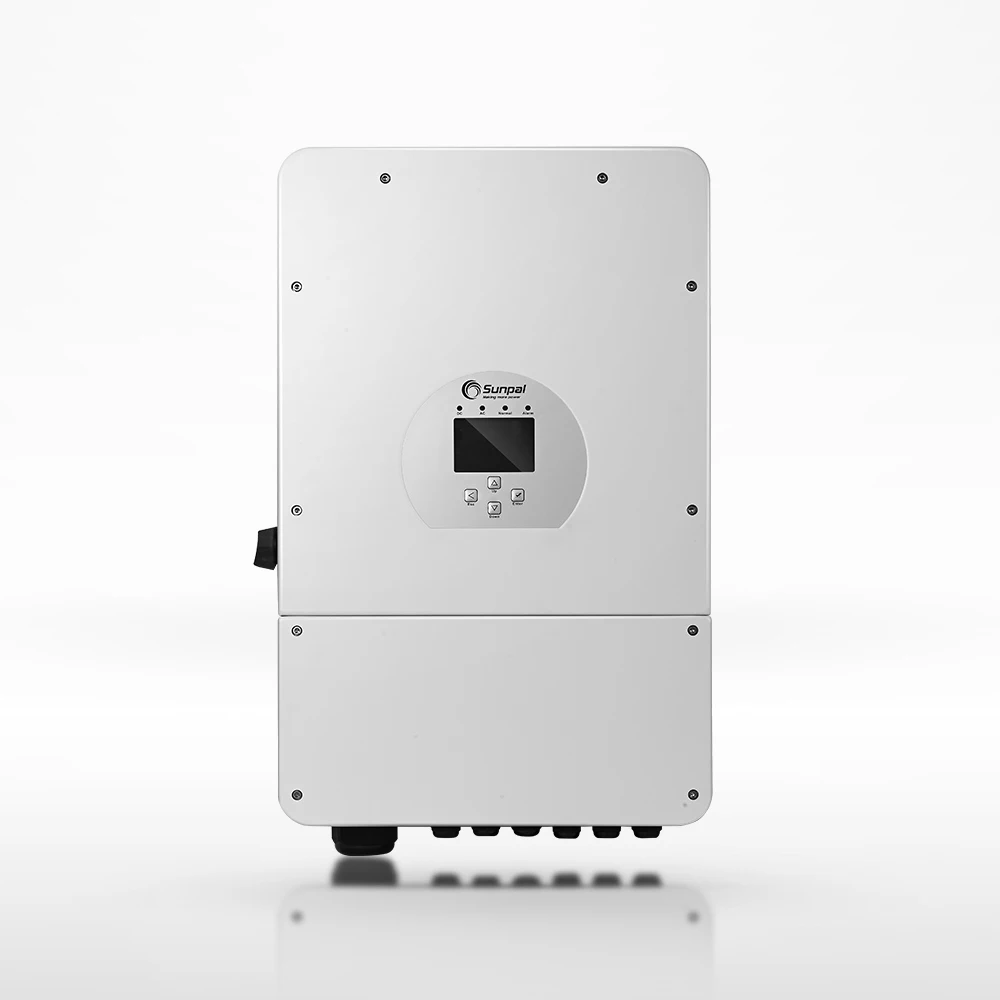

Sunpal R KLNA 120/240V Split Phase 6Kw 8KW 10KW 12KW Hybrid Solar Inverter For 6 Time Periods For Battery Charging
- Category: >>>
- Supplier: Sunpal Energy Co. Ltd.
Share on (1600888241122):
Product Overview
Description
Products Description
Hybrid Inverter Block Diagram
Smart Monitoring System
Technical Datasheet
Model | R5KLNA | R6KLNA | R7KLNA | R8KLNA | ||||
ON GRID AC OUTPUT | ||||||||
Rate AC Output Power | 5KVA | 6KVA | 7KVA | 8KVA | ||||
AC Output Voltage | 120/240Vac (split phase), 208Vac (2/3 phase), 230Vac (single phase) | |||||||
AC Output Frenquecny | 50/60Hz | |||||||
Grid Type | Split phase, 2/3 phase, Single Phase | |||||||
Max Output Current | 24A | 28.8A | 36.5A | 38.3A | ||||
AC reverse charging | Yes | |||||||
PF | 0.8leading…0.8lagging | |||||||
BACK-UP AC OUTPUT | ||||||||
Rated Backup output power | 5KVA | 6KVA | 7.6KVA | 8KVA | ||||
Max Backup output power | 6.25kVA 60S. 7.5KVA 1S | 7.5kVA 60S. 9KVA 1S | 9.5kVA 60S. 11.4KVA 1S | 10kVA 60S. 12KVA 1S | ||||
Backup AC output Voltage | 120/240Vac(split phase), 208Vac(2/3 phase), 230Vac(single phase) | |||||||
AC Frenquency | 50/60Hz | |||||||
PV INPUT | ||||||||
PV input power | 7.5kW | 9kW | 12kW | 12kW | ||||
MPPT number | 4 | |||||||
PV voltage range | 350V/85V-500V | |||||||
MPPT voltage range | 120V-500V | |||||||
Single MPPT input current | 12A | 12A | 12A | 12A | ||||
BATTERY | ||||||||
Max charging /discharging current | 120A / 120A | 135A / 135A | 190A / 190A | 190A / 190A | ||||
Battery Voltage range | 48V | |||||||
Battery Type | Lithium-ion,Lead-acid | |||||||
PROTECTION | ||||||||
Ground protection | Yes | |||||||
AFCI protection | Yes | |||||||
Islanding protection | Yes | |||||||
DC disconnect detection | Yes | |||||||
Battery Reverse protection | Yes | |||||||
Battery charge and discharge protection | Yes | |||||||
Insulation testing | Yes | |||||||
Input overvoltage & under-voltage protections | Yes | |||||||
Output overvoltage & under-voltage protections | Yes | |||||||
AC & DC over-current protection | Yes | |||||||
AC short-circuit current protection | Yes | |||||||
Overheating protection | Yes | |||||||
GENERAL DATA | ||||||||
Operation Temperature range | -25 ~ +60°C | |||||||
Environment humidity | 0-95% | |||||||
IP rank | IP65/NEMA 3R | |||||||
Weight | 32kg | |||||||
Dimension (W × H × D) | 430 × 710 × 210mm | |||||||
Cooling | Fan Cooling | |||||||
Noise (dB) | <25dB | <29dB | <29dB | |||||
Display | LCD | |||||||
Communication / Safty / EMC / On Grid | Modbus, RS485, WIFI, 4G / EN61000-6-1, EN61000-6-3, FCC 15 class B EC62109-1, IEC62109-2 / IEEE1547, RULE21, VDE 0126, AS4777, NRS2017, G98, G99 | |||||||

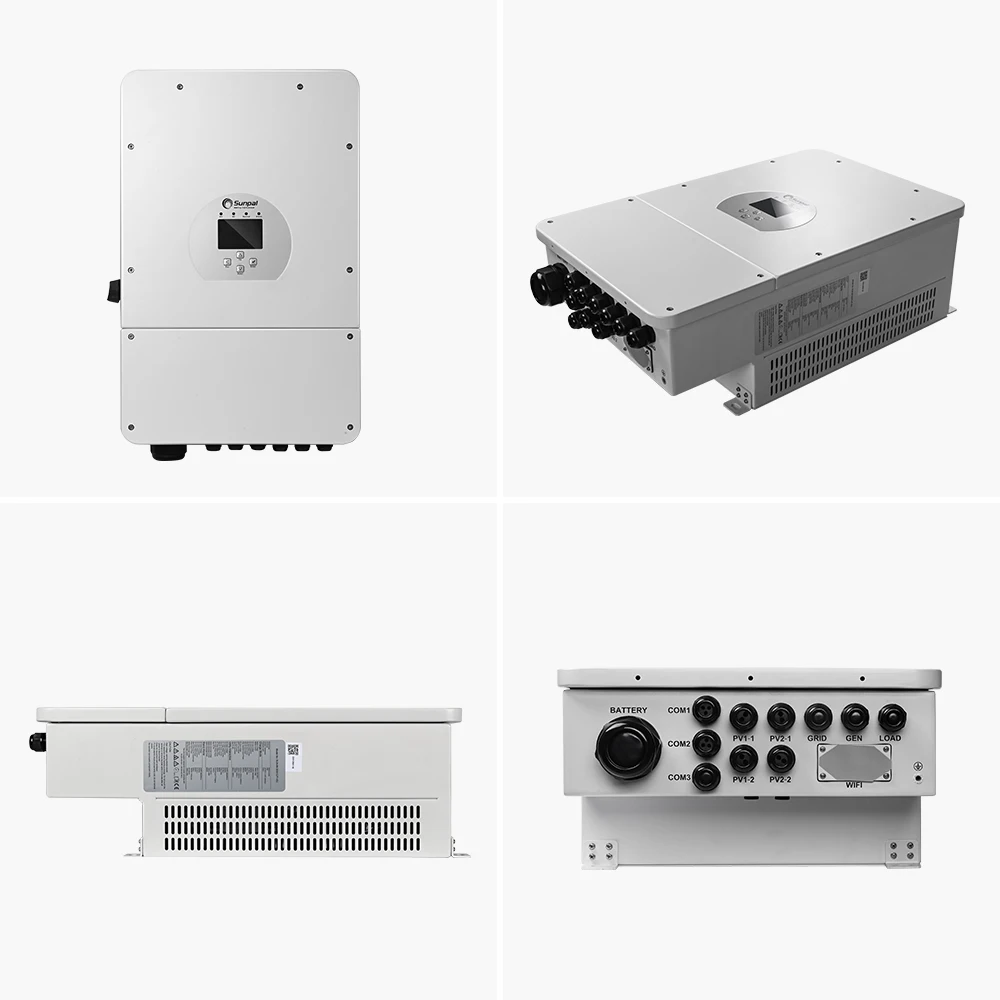

Details Images & Packing
Professional Packing
Company Profile

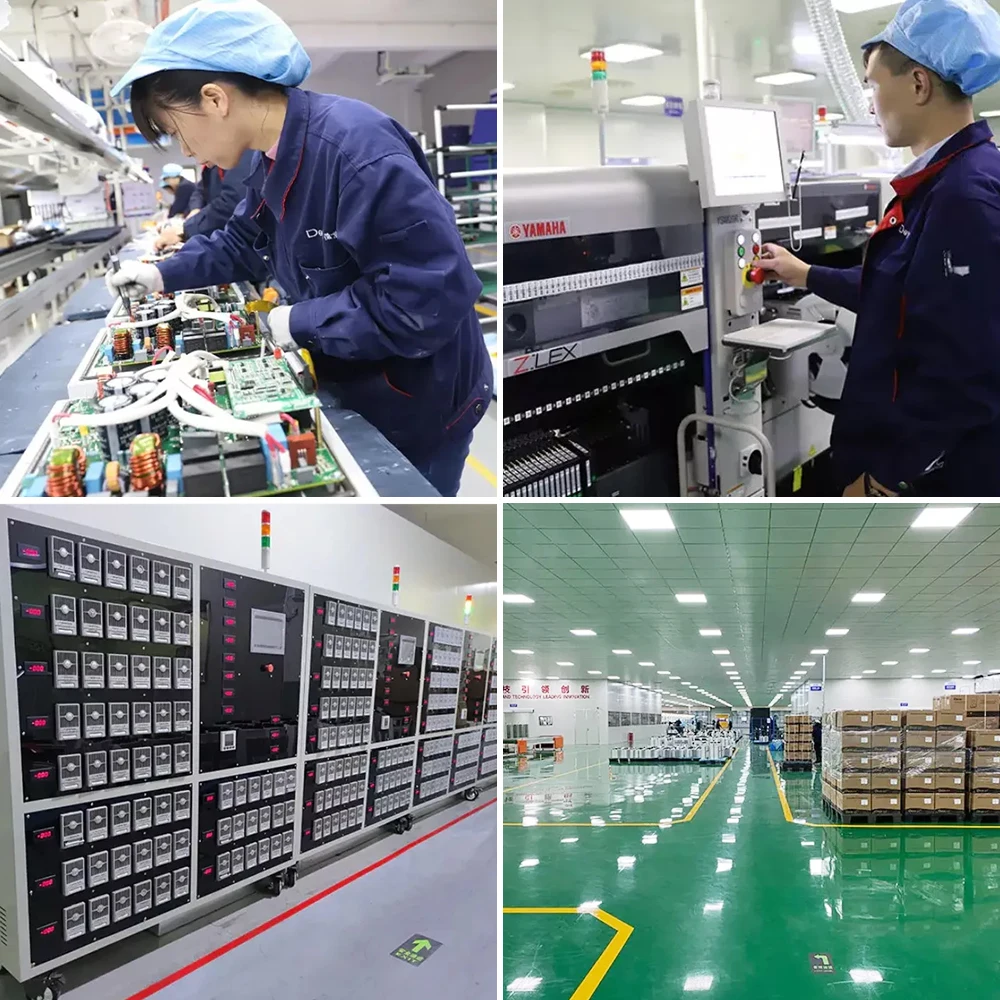

Our Factory

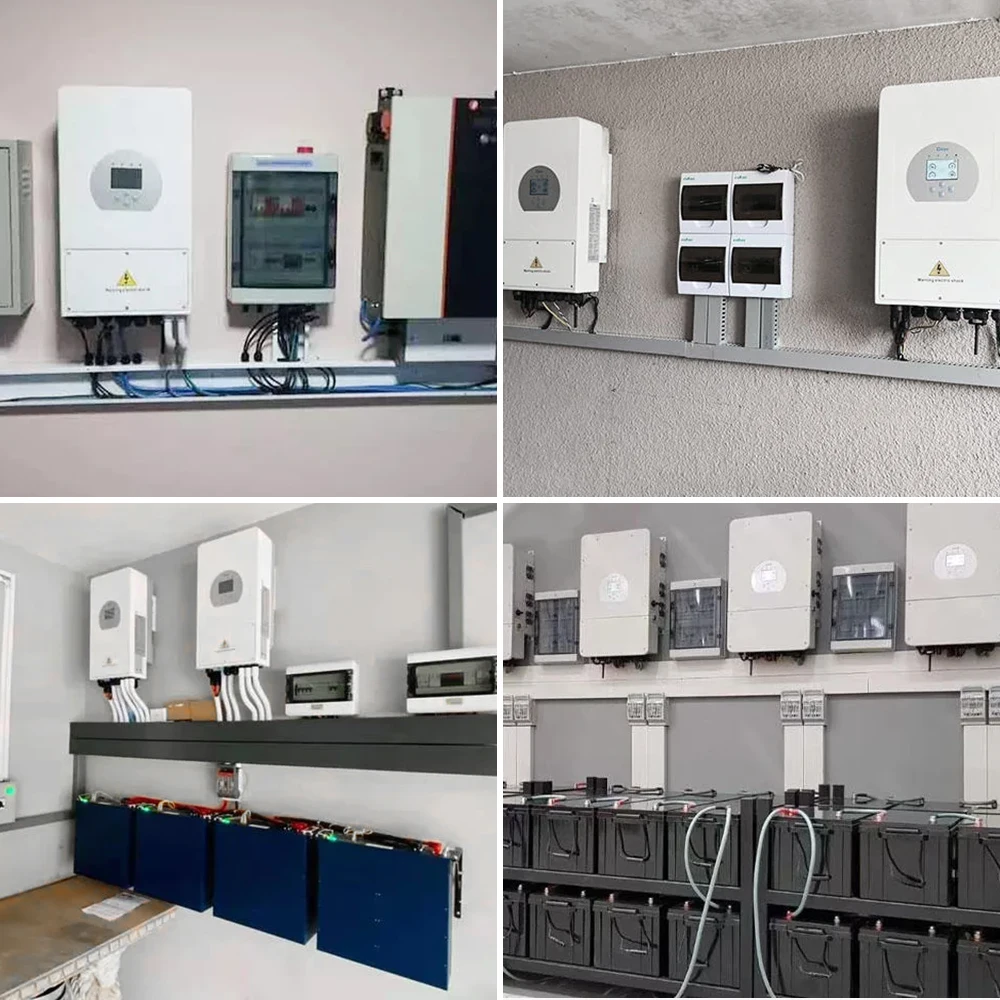

Sunpal Project Case
