LV BIAN 630 kva 3000 kva 2500 kva 13.2kv 480v distribution transformer 3 phase pad mounted transform electric
- Category: >>>
- Supplier: LV BIAN Transformer (Chongqing) Co. LTD
Share on (1600888366229):
Product Overview
Description
Specification
item | value |
Place of Origin | China |
Jiangsu | |
Brand Name | LV BIAN |
Model Number | pad mounted transform |
Usage | Power |
Phase | Three |
Coil Structure | TOROIDAL |
Coil Number | AUTOTRANSFORMER |
Coil Number | 2 |
Rated Primary Voltage | 13.2 |
Rated Secondary Voltage | 0.48 |
Certification | ISO9001 |
Rated capacity | 30-3000kva |
Cooling Method | ONAN |
Warranty | 24 Months |
Product Show

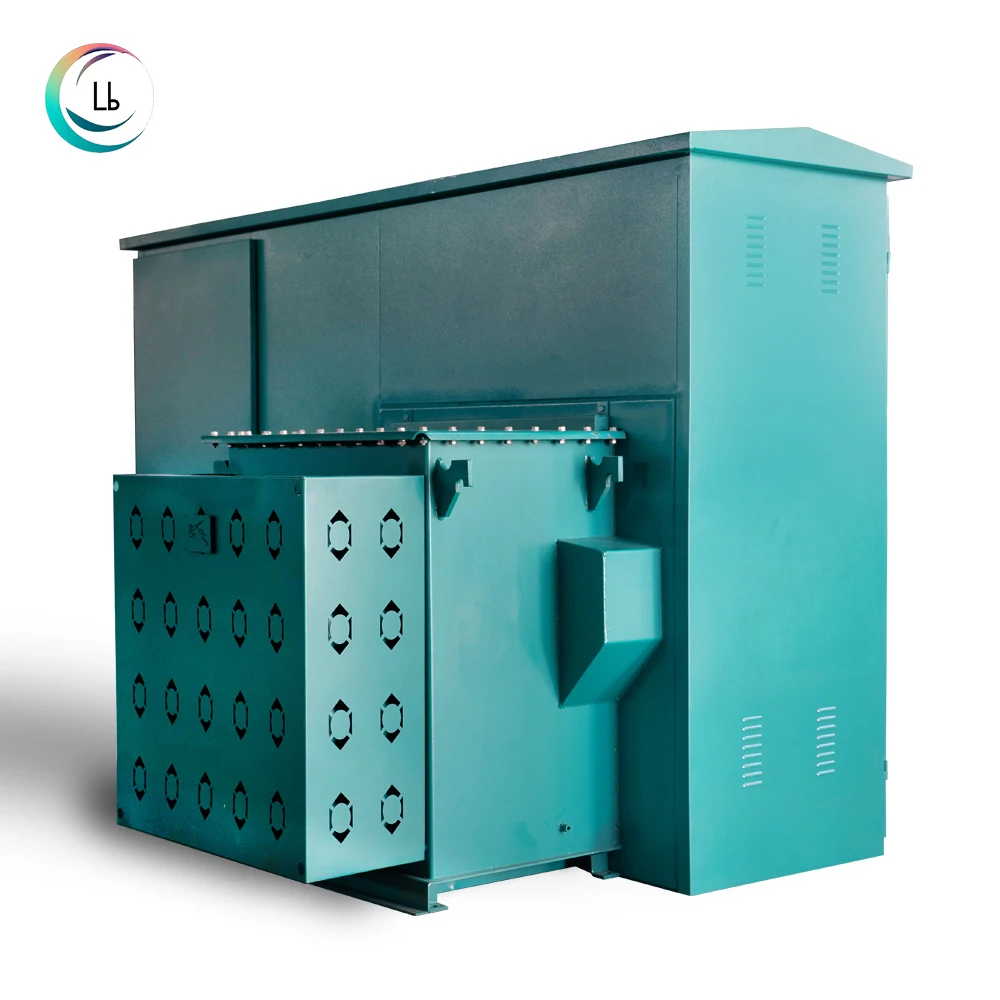

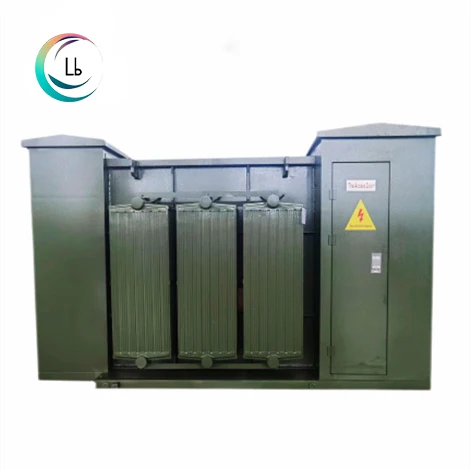

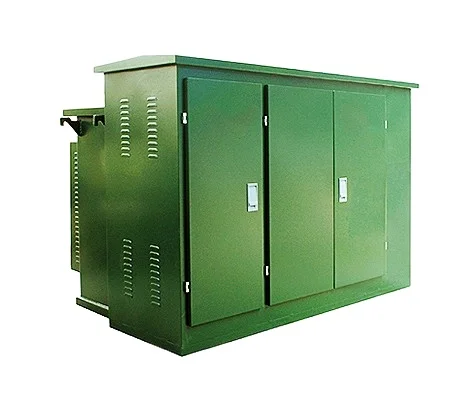

ZGS11-H(Z) Combined transformer
ZGS11 series combined transformer is a new type of power distribution equipment. It has small volume and reasonable structure. Combined transformer is especially applicable to the load center city grid, so it can reduce the consumption and improve the quality of power supply.
What's more, this series of products have been widely used in communities across the country, public places and industrial mining enterprise and other distribution sites.
Product features
1. | Fully sealed and insulated structure can guarantee the security of person. |
2. | It is not only used for ring network but also terminal. |
3. | Low loss,low noise, superior performance. |
4. | Low temperature,overload ability. |
5. | Transformer adopts special structure and its outstanding advantages is high quality. |

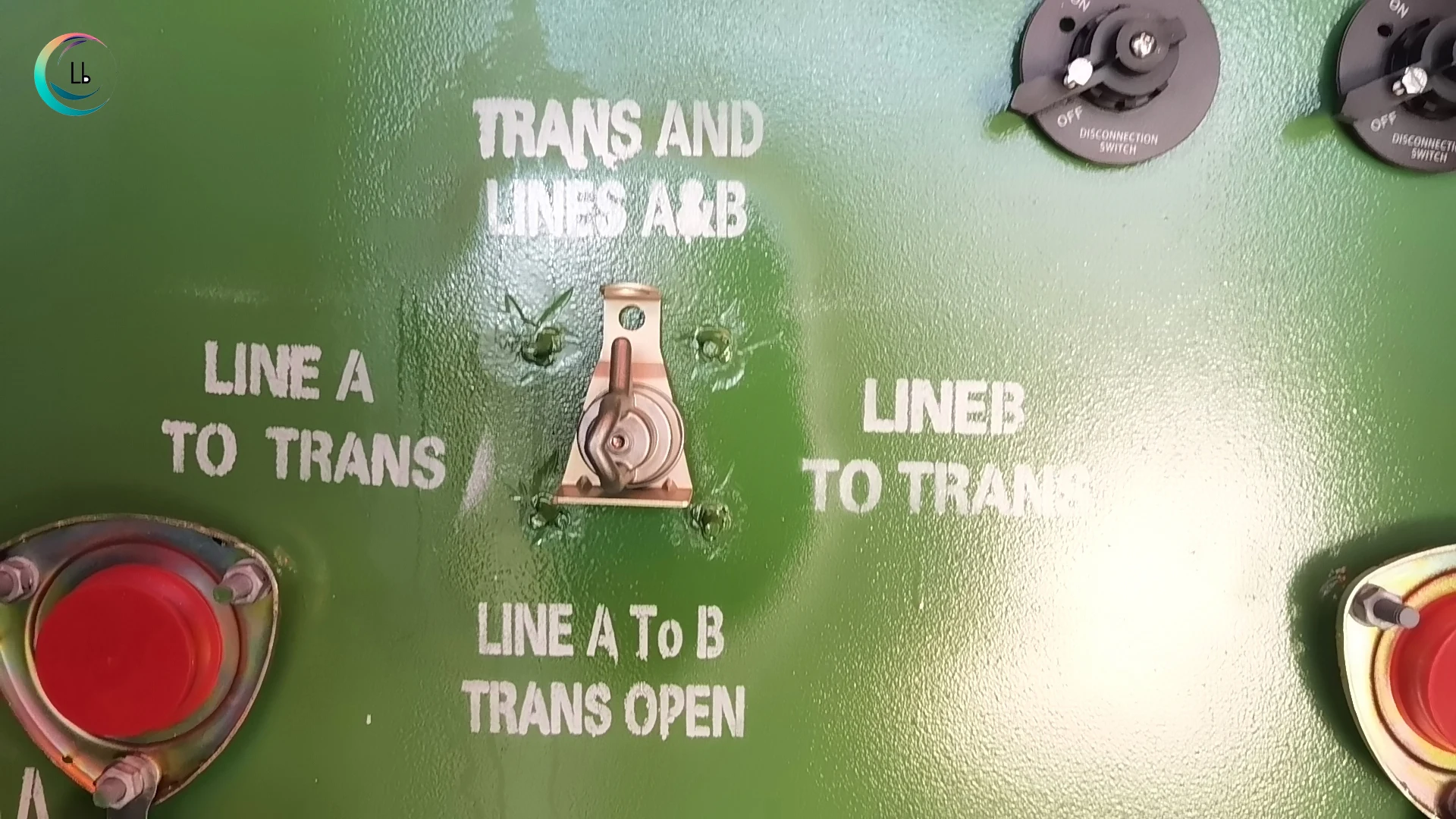

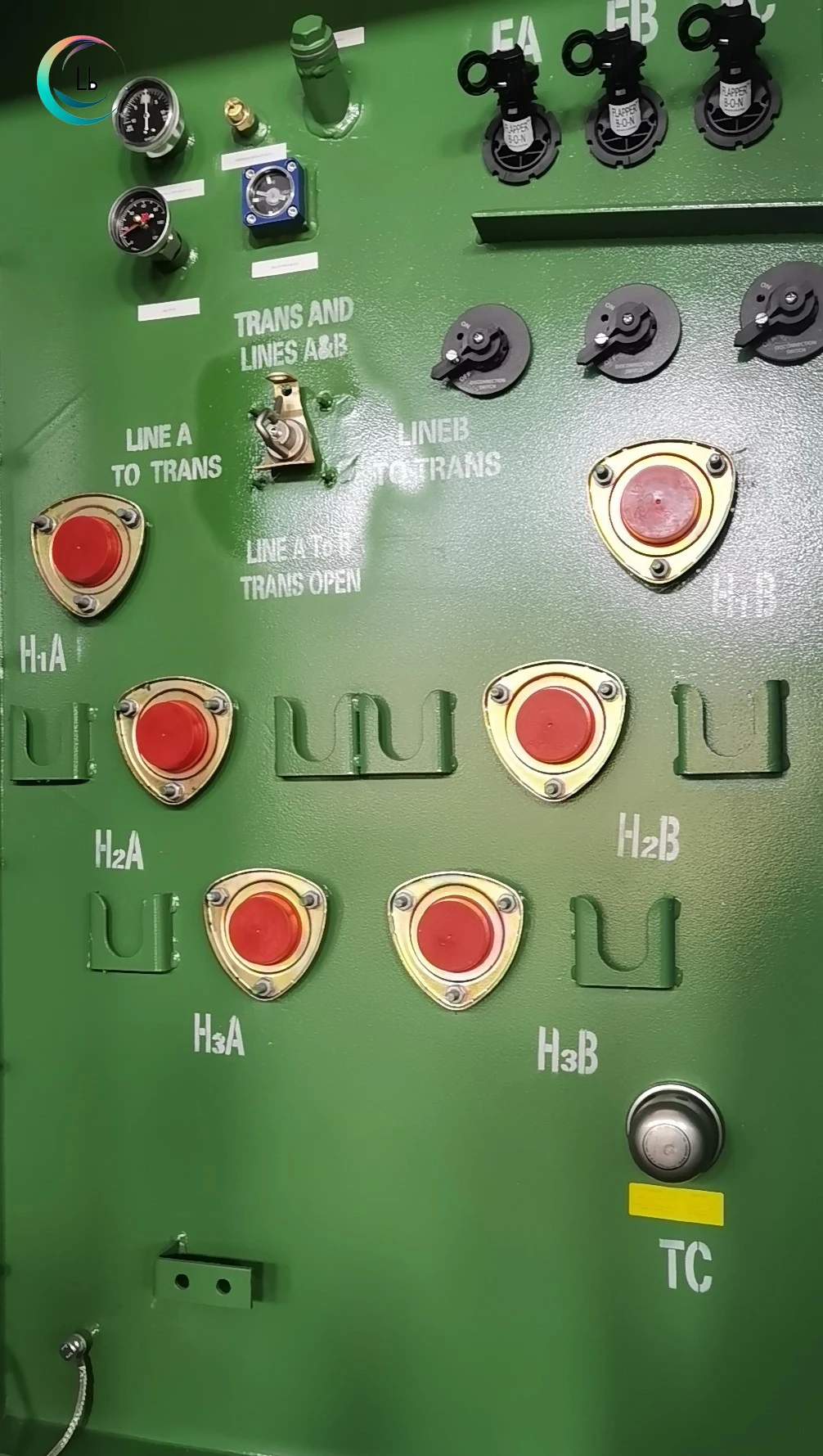

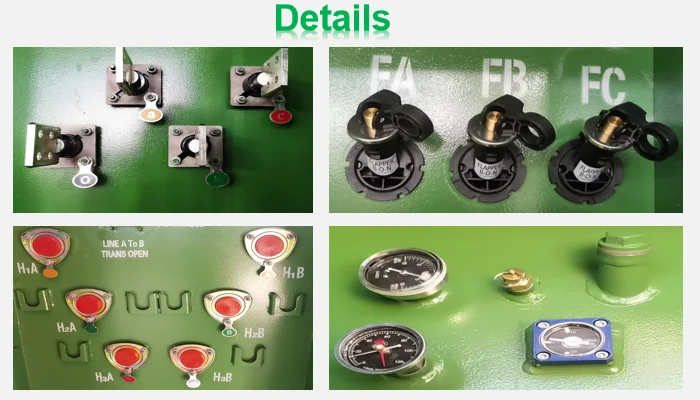

Product details
Main products
Company Profile

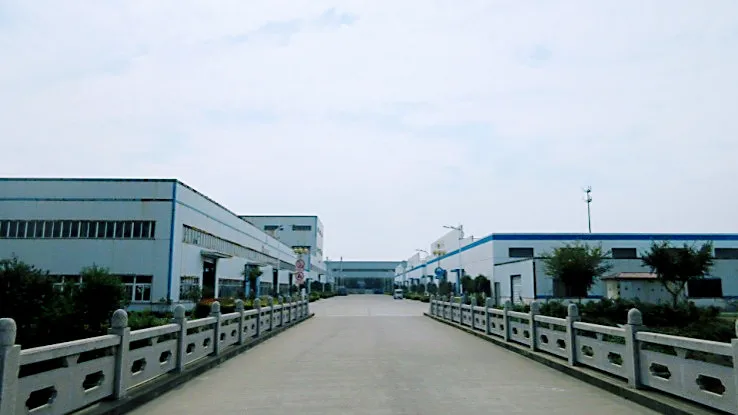

lvbian Transformer (Chongqing) Co., LTD., the factory is located in Hai 'an City, Jiangsu Province, adjacent to Shanghai. There are more than 50 engineers, more than 500 employees, covers an area of 12 million square meters, annual sales of more than 200 million US dollars.
lvbian has a strong production capacity, advanced production technology, pecializing in the production of dry transformers, oil-immersed transformers, autotransformers, isolation transformers, substations, switchgear, distribution box, transformer winding enameled wire. Products are widely used in Africa, the Middle East,
South America, Central Asia, Southeast Asia and other regions.
The company has passed ISO9001, ISO14001 quality system certification, has CE, CCC, KEMA, UL certification, and has TEST REPORT, SGS report.

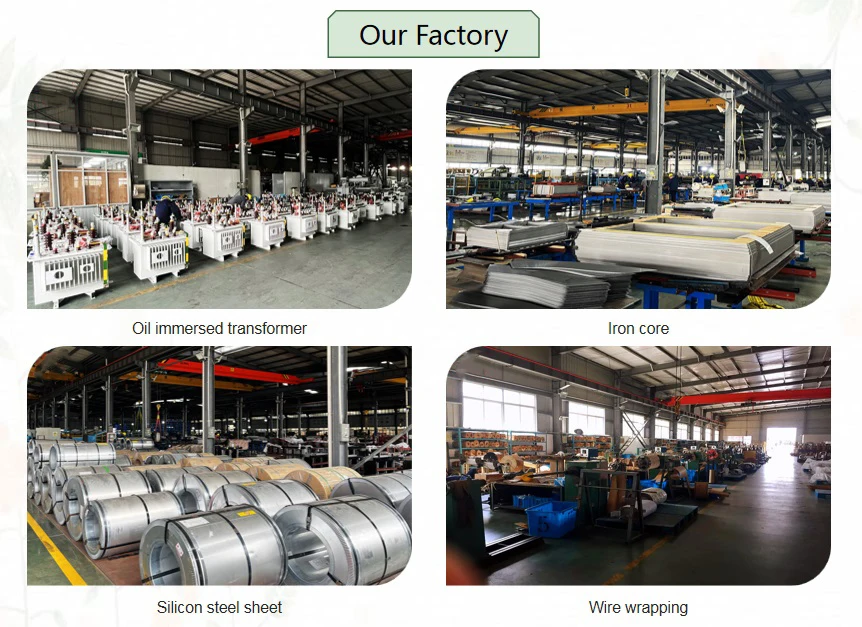

Company style
Product parameter list
Rated Capacity(KVA) | No-load Loss | Load loss | No-load current | Impendance voltage | Dimension (LxWxH) (mm | Total Weight (kg) |
100 | 200 | 1500 | 0.65 | 4.0 | 1180x1355x1735 | 729 |
150 | 280 | 2200 | 0.60 | 1830x1375x1735 | 989 | |
200 | 340 | 2600 | 0.50 | 1830x1375x1735 | 1195 | |
250 | 400 | 3050 | 0.50 | 1830x1405x1735 | 1355 | |
315 | 480 | 3650 | 0.45 | 1830x1425x1735 | 1415 | |
400 | 570 | 4300 | 0.45 | 1830x1435x1805 | 1675 | |
500 | 680 | 5150 | 0.40 | 1830x1445x1860 | 1905 | |
630 | 810 | 6200 | 0.40 | 4.5 | 1830x1445x1860 | 2165 |
800 | 980 | 7500 | 0.35 | 1830x1490x1860 | 2755 | |
1000 | 1150 | 10300 | 0.35 | 1830x1675x2005 | 3235 | |
1250 | 1360 | 12000 | 0.30 | 2100x1845x2035 | 4905 | |
1600 | 1640 | 14500 | 0.30 | 2100x1885x2135 | 5835 |
Our advantages
Why Choose Us
1.We have more than 10 years to produce different kinds of transformers.
2.Our factory continue to insist to customers oriented and seek development of technology and science
3.Our products have high quality and the deep love of our customers
4.Our products have passed the ISO9001:2000 quality system certification .
5.We have a strong supply chain and after-sale service.
Packing&Delivery
FAQ
1.Who are we?
Our company, is a professional production of transformers, substations, high voltage, low voltage switchgear large-scale enterprises.
2.How can we guarantee quality?
Always send a sample of products before mass producing; Always make a final Inspection before shipping.
3.What can you buy from us?
110kV-220kV Oil-immersed Power Transformer,Dry-type Transformer,Unpacked H Grade Dry Transformer,Oil-immersed Distribution Transformer, Pad-mounted Transformer,Enameled Wire,Composite Wire,Transposed Wire,Paper Covered Wire,Film Wrapped Wire.
4.Why should you buy from us not from other suppliers?
As an enterprise specializing in transformer production for 10 years, we have high quality, fast delivery, guarantee after-sales service and factory price. What's more, we have ISO9001-2008, OHSAS 18001:2007, ISO4001:2004L certificates and IEC, ANSI, KEMA, GOST standard.
5.What services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW Accepted Payment Currency:USD,CNY; Accepted Payment Type: T/T,L/C; Language Spoken:English,Chinese.
