LVBIAN 11kV electrical distribution substation compact transformer,pad mounted transformer 3 phase distribution transformer

Specification

item	value
Place of Origin	China
	Jiangsu
Model Number	pad mounted transformer
Usage	Power
Phase	Three
Coil Structure	TOROIDAL
Coil Number	AUTOTRANSFORMER
Coil Number	Two
Rated capacity	100-1000KVA
Rated voltage	11 KV
Frequency	50Hz/60Hz
Standard	IEC60076
Certification	ISO9001:2008
Cooling	ONAN

Product Show

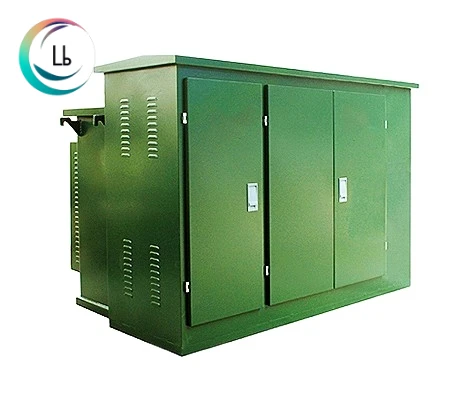

ZGS11-H(Z) Combined transformer

ZGS11 series combined transformer is a new type of power distribution equipment. It has small volume and reasonable structure. Combined transformer is especially applicable to the load center city grid, so it can reduce the consumption and improve the quality of power supply.

What's more, this series of products have been widely used in communities across the country, public places and industrial mining enterprise and other distribution sites.

Product features

1.	Fully  sealed and insulated structure  can guarantee the security of person.
2.	It  is not only  used for ring network but also terminal.
3.	Low loss,low noise, superior performance.
4.	Low temperature,overload ability.
5.	Transformer adopts special structure and its outstanding advantages is high quality.

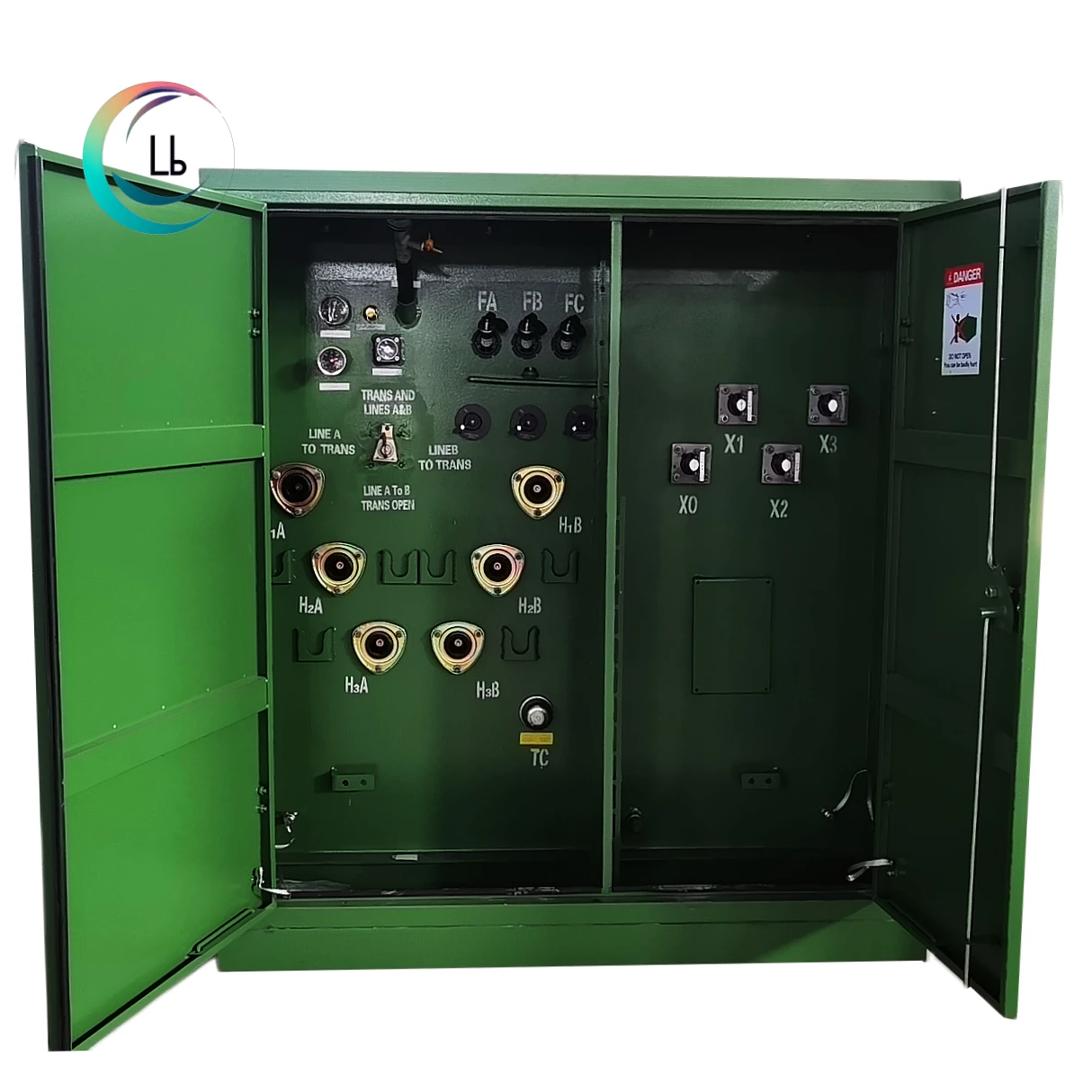

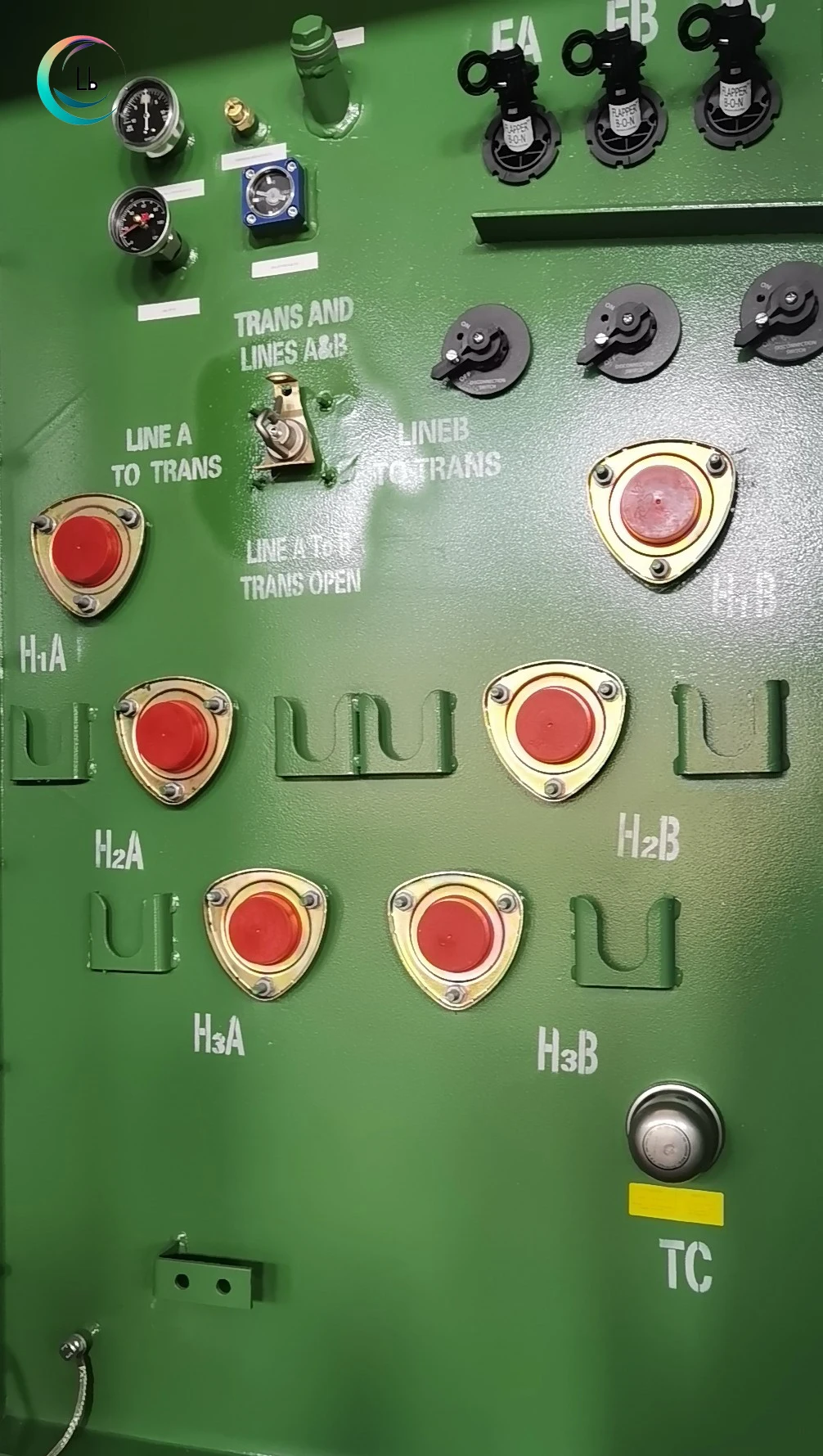

Product details



Main products



Company Profile



lvbian Transformer (Chongqing) Co., LTD., the factory is located in Hai 'an City, Jiangsu Province, adjacent to Shanghai. There are more than 50 engineers, more than 500 employees, covers an area of 12 million square meters, annual sales of more than 200 million US dollars.



lvbian has a strong production capacity, advanced production technology, pecializing in the production of dry transformers, oil-immersed transformers, autotransformers, isolation transformers, substations, switchgear, distribution box, transformer winding enameled wire. Products are widely used in Africa, the Middle East,South America, Central Asia, Southeast Asia and other regions.



The company has passed ISO9001, ISO14001 quality system certification, has CE, CCC, KEMA, UL certification, and has TEST REPORT, SGS report.

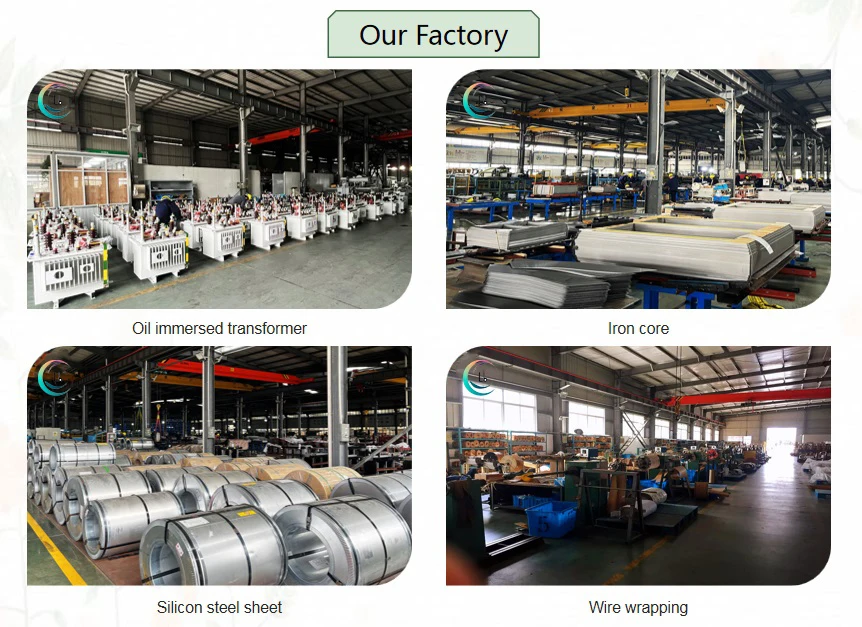

Company style







Product parameter list

Rated Capacity(kVA)	No-load Loss(kW)	Load Loss(kW)	No-load Current(%)	Impendance Voltage(%)	Dimension (LxWxH) (mm)	Total Weight (kg)
100	200	1500	0.65	4.0	1180x1355x1735	729
150	280	2200	0.60			1830x1375x1735	989
200	340	2600	0.50			1830x1375x1735	1195
250	400	3050	0.50			1830x1405x1735	1355
315	480	3650	0.45			1830x1425x1735	1415
400	570	4300	0.45			1830x1435x1805	1675
500	680	5150	0.40			1830x1445x1860	1905
630	810	6200	0.40	4.5	1830x1445x1860	2165
800	980	7500	0.35			1830x1490x1860	2755
1000	1150	10300	0.35			1830x1675x2005	3235
1250	1360	12000	0.30			2100x1845x2035	4905
1600	1640	14500	0.30			2100x1885x2135	5835

Our advantages

Why Choose Us



1.We have more than 10 years to produce different kinds of transformers.

2.Our factory continue to insist to customers oriented and seek development of technology and science

3.Our products have high quality and the deep love of our customers

4.Our products have passed the ISO9001:2000 quality system certification .

5.We have a strong supply chain and after-sale service.

Packing&Delivery

FAQ





1.Who are we?
Our company, is a professional production of transformers, substations, high voltage, low voltage switchgear large-scale enterprises.
2.How can we guarantee quality?
Always send  a sample of products before mass producing; Always make a final Inspection before shipping.
3.What can you buy from us?
110kV-220kV Oil-immersed Power Transformer,Dry-type Transformer,Unpacked H Grade Dry Transformer,Oil-immersed Distribution Transformer, Pad-mounted Transformer,Enameled Wire,Composite Wire,Transposed Wire,Paper Covered Wire,Film Wrapped Wire.
4.Why should you buy from us not from other suppliers?
As an enterprise specializing in transformer production for 10 years, we have high quality, fast delivery, guarantee after-sales service and factory price. What's more, we have ISO9001-2008, OHSAS 18001:2007, ISO4001:2004L certificates and IEC, ANSI, KEMA, GOST standard.
5.What services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW Accepted Payment Currency:USD,CNY; Accepted Payment Type: T/T,L/C; Language Spoken:English,Chinese.
