JA solar panel solar 540w 545W 550W 555W MBB Mono PERC photovoltaic panels home use solar panels
JA solar panel solar 540w 545W 550W 555W MBB Mono PERC photovoltaic panels home use solar panels
JA solar panel solar 540w 545W 550W 555W MBB Mono PERC photovoltaic panels home use solar panels
JA solar panel solar 540w 545W 550W 555W MBB Mono PERC photovoltaic panels home use solar panels
JA solar panel solar 540w 545W 550W 555W MBB Mono PERC photovoltaic panels home use solar panels
JA solar panel solar 540w 545W 550W 555W MBB Mono PERC photovoltaic panels home use solar panels
JA solar panel solar 540w 545W 550W 555W MBB Mono PERC photovoltaic panels home use solar panels

JA solar panel solar 540w 545W 550W 555W MBB Mono PERC photovoltaic panels home use solar panels

Share on (1600889660733):


Price:$0.10 - $0.12

Quantity:


Product Overview

Description

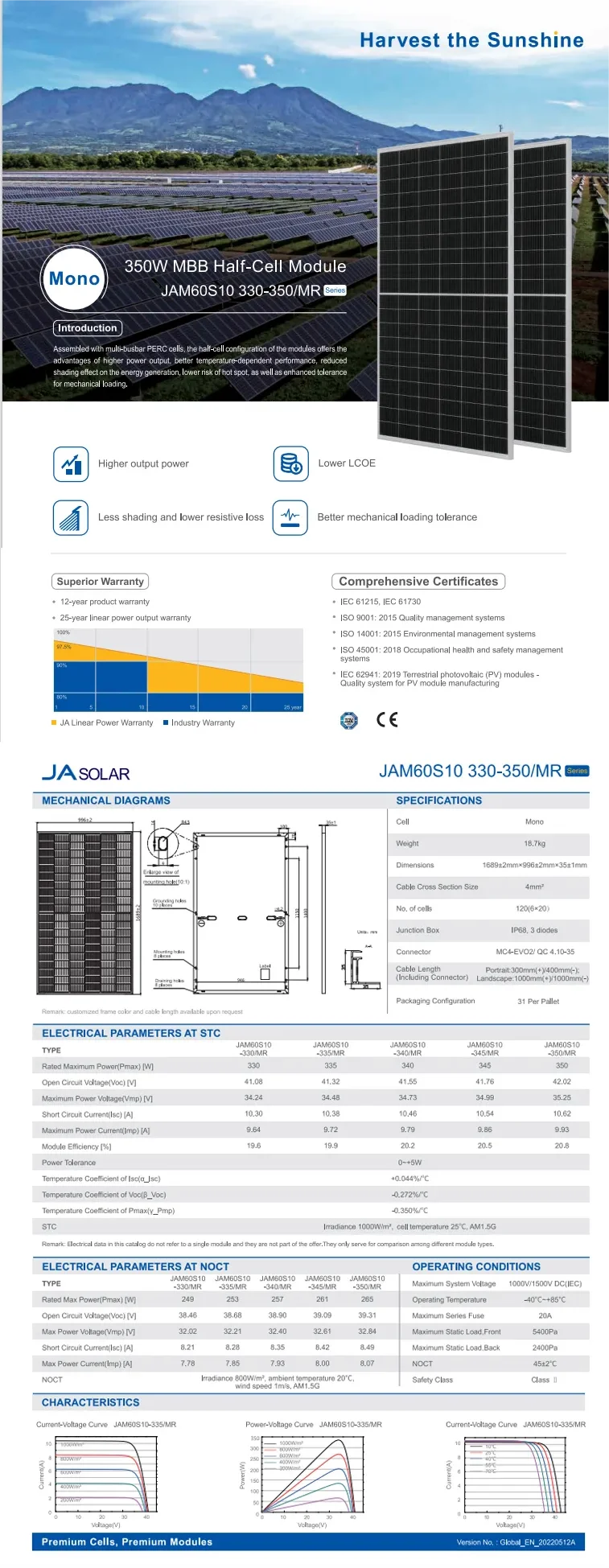

Product Description






Specification


item
value
Brand Name
JA
Model Number
JAM60S10
Place of Origin
China
Cell size
156.75mm*156.75mm
Type
PERC, Half Cell, ALL Black
Panel Dimensions
1689mm*996mm*35
Panel Efficiency
20.8%
Certificate
CE ISO9001 ISO14001 ISO45001
Warranty
12 YEARS product warranty
Cell
Mono
Front Glass/Back Glass
2.0mm/2.0mm
Packaging Configuration
31 Per Pallet
Cable Length
Portrait:300mm(+ )/400mm(-)
Connector
MC4-EVO2/ QC 4.10-35
Junction Box
IP68, 3 diodes
No.of cells
120 (6*20)
cable cross section size
4mm³
Weight
18.7kg
Dimension:
1689 * 996*35


TYPE
JAM60S10-330/MR
JAM60S10-335/MR
JAM60S10-340/MR
JAM60S10-345/MR
JAM60S10-350/MR
Rated Maximum Power(Pmax) [W]
330
335
340
345
350
Open Circuit Voltage(Voc) M]
41.08
41.32
41.55
41.76
42.02
Maximum Power Voltage(Vmp) M]
34.24
34.48
34.73
34.99
35.25
Short Circuit Current(lsc) [A]
10.3
10.38
10.46
10.54
10.62
Maximum Power Current(Imp) [A]
9.64
9.72
9.79
9.86
9.93
Module Effciency [%]
19.6
19.9
20.2
20.5
20.8
Power Tolerance
0~+5W
Temperature Cofficient of lsc(a_ Isc)
(+0.044%/°C
Temperature Cofficient of Voc(B_ Voc)
(-0.272%/°C
Temperature Cofficient of Voc(B_ Voc)
(-0.350%/9C
STC
Irradiance 1000W/m2, cell temperature 25°C, AM1.5G


TYPE
JAM60S10-330/MR
JAM60S10-335/MR
JAM60S10-340/MR
JAM60S10-345/MR
JAM60S10-350/MR
Rated Max Power(Pmax) [W]
249
253
257
261
265
Open Circuit Voltage(Voc) [V]
38.46
38.68
38.9
39.09
39.31
Max Power Voltage(Vmp) [M]
32.02
32.21
32.4
32.61
32.84
Short Circuit Curent(sc) [A]
8.21
8.28
8.35
8.42
8.49
Max Power Current(|mp) [A]
7.78
7.85
7.93
8
8.07
NOCT
Irradiance 800W/m2, ambient temperature 20°C,wind speed 1m/s, AM1.5G

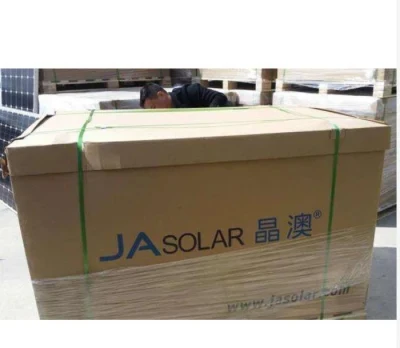

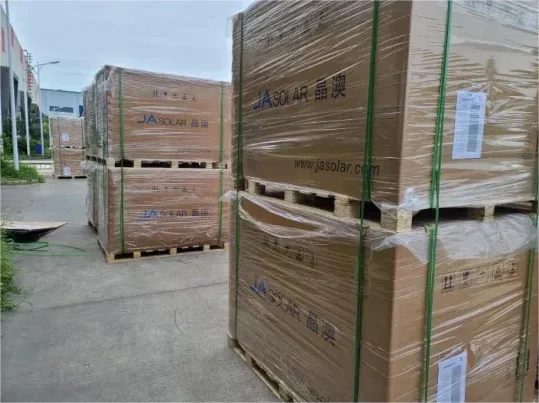

Packing & Delivery








BOX

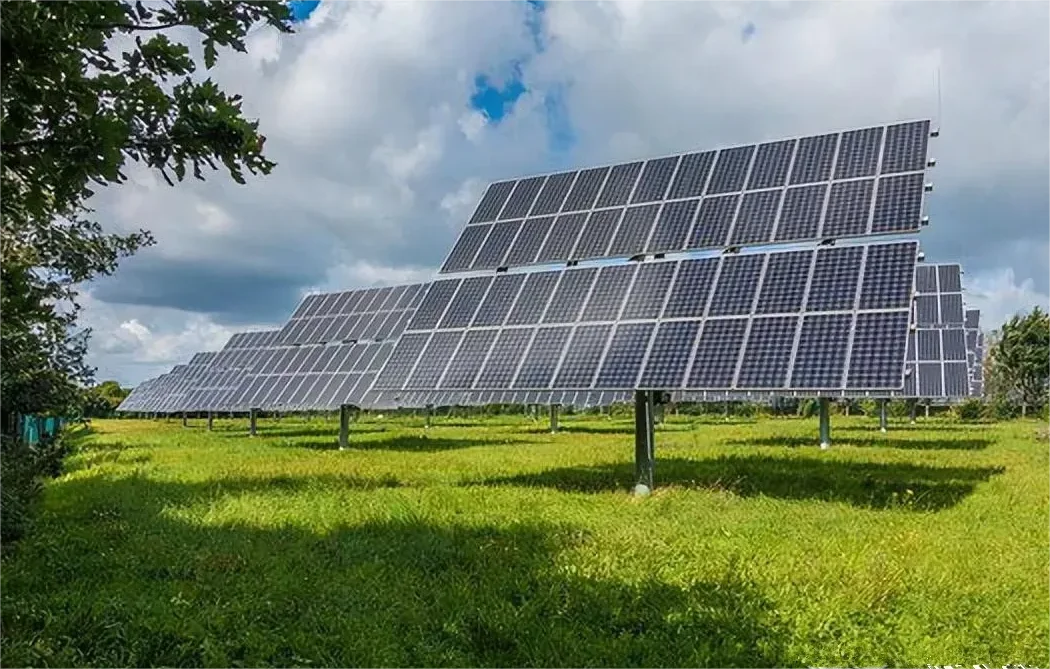

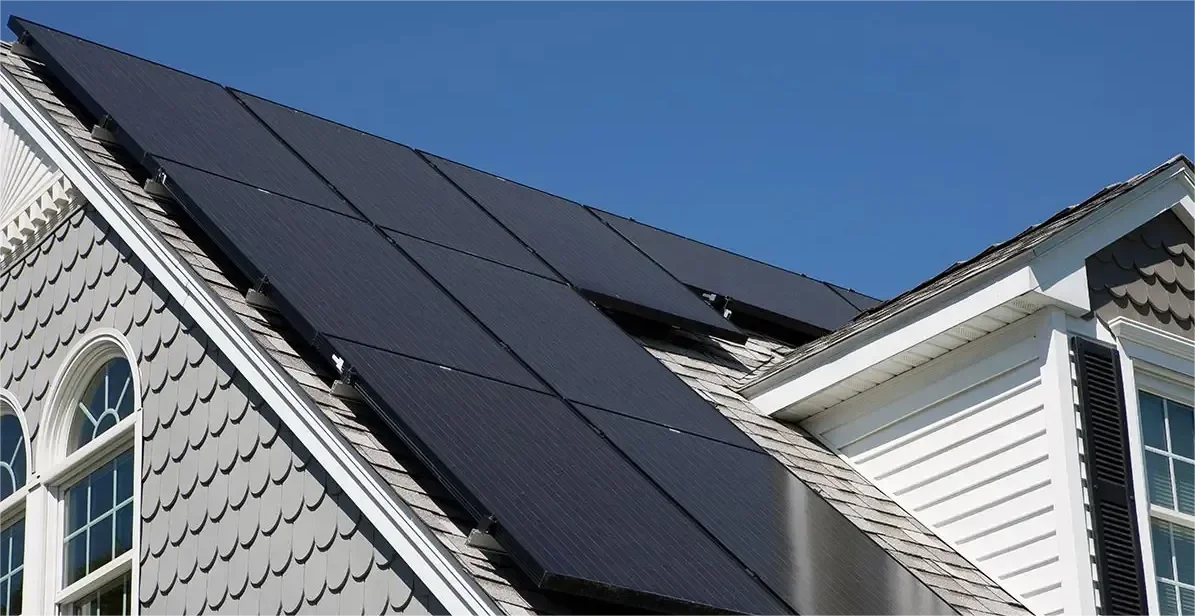

Project Cases






Company Profile




Anhui Wingo Technology Co., Ltd. is a company integrating R&D, production and sales. It's located in Hefei, the capital city of Anhui province, China. There are about 150 employees, including 20 R&D personnel.The company's main business scope is the production of electric bicycles, which can realize OEM production for customers and also meet the customized needs of them.We are an authorized agent of some well-known brands.Anhui Wingo Technology Co,. Ltd. has always pursued the corporate culture and business philosophy of " integrity, win-win, efficiency, and gratitude", and will consistently provide global customers with the best products and best services, and become the most trusted cross-board service company for customers.


FAQ


1. who are we?
We are based in Anhui, China, start from 2020,sell to Northern Europe(30.00%),North America(10.00%),South America(10.00%),Southeast Asia(10.00%),Western Europe(10.00%),Southern Europe(8.00%),Eastern Europe(5.00%),Mid East(5.00%),Central America(5.00%),Africa(2.00%),Oceania(2.00%),Eastern Asia(2.00%),South Asia(1.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
solar panels,solar inverter,solar panel system,combine box,solar system related products

4. why should you buy from us not from other suppliers?
Brand agent, stable product supply chain and transportation logistics partner, rich export experience

5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,FCA,DDP；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,Credit Card,Western Union;
Language Spoken:null
