Harmonic drive motor robot joint actuator module motor with absolute encoder
Product Description

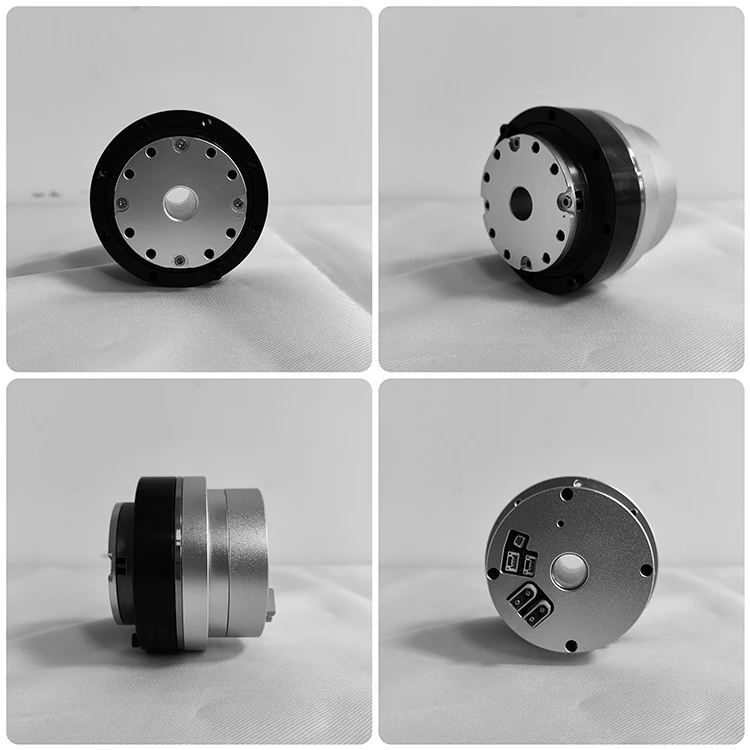

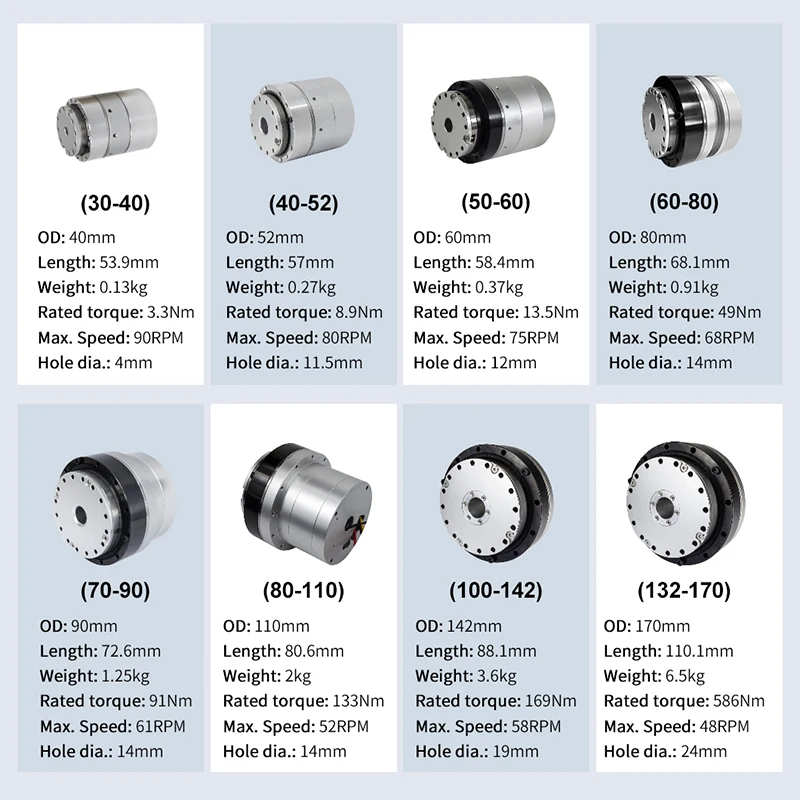

The outer diameter of this series of joint modules ranges from 40mm to 170mm, with exquisite design and compact structure. The small size includes FOC control board, high-precision multi-turn absolute encoder, frameless torque motor, precision harmonic reducer and other main components , saving customers the labor and time cost of selecting, designing, purchasing, and assembling hundreds of mechanical and electronic components.
Product Features

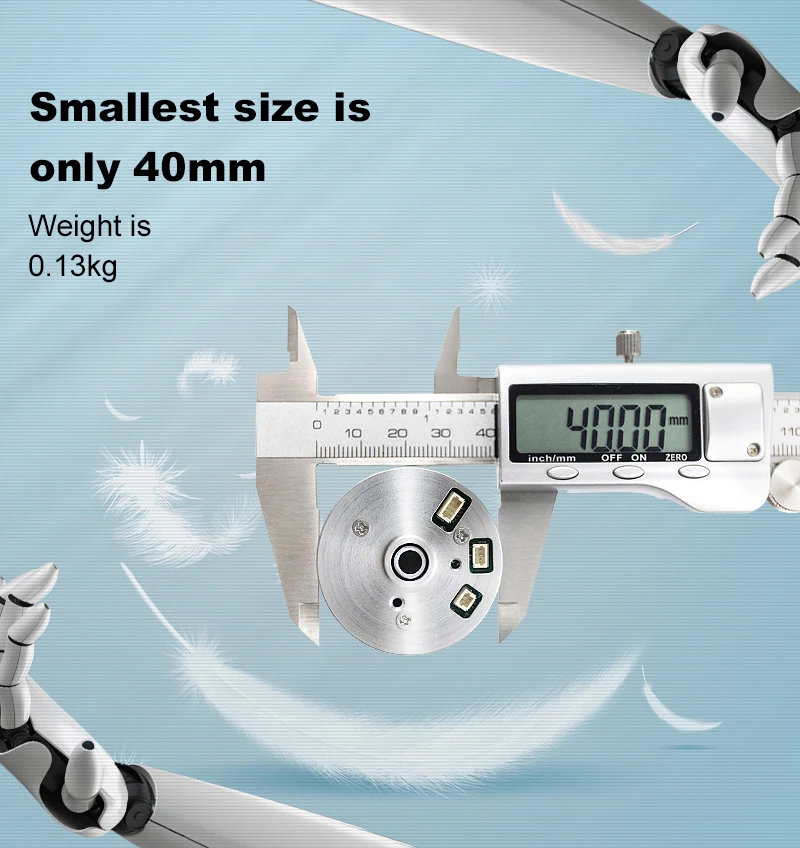

The smallest size is only 40mm, and the weight is 0.13kg

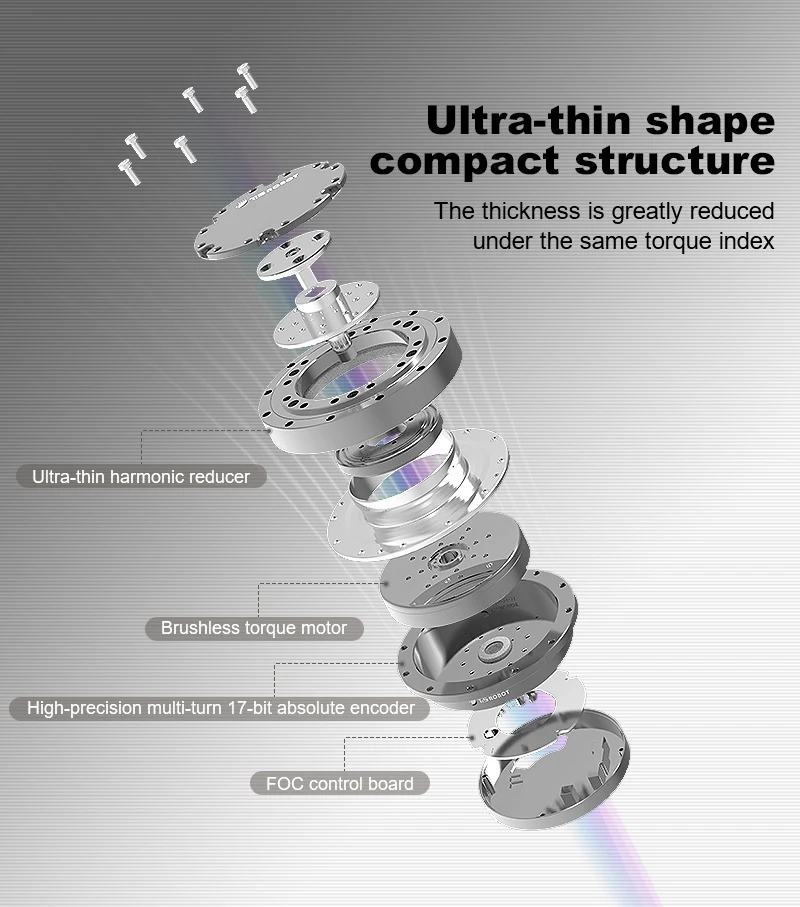

The compact size of this product includes FOC control board, high-precision multi-turn absolute encoder, frameless torque motor, precision harmonic reducer and other main components

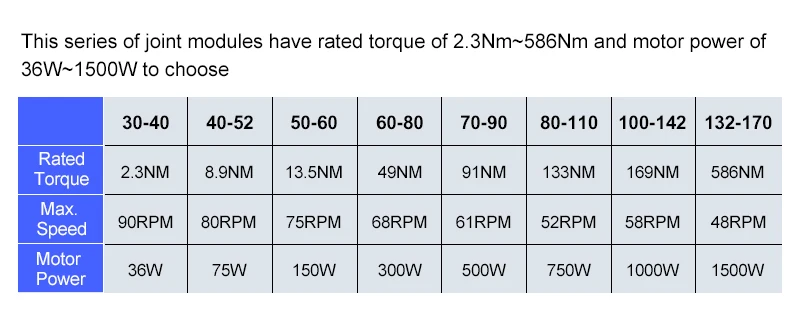

This series of joint modules have rated torque of 2.3Nm~586Nm and motor power of 36W~1500W for customers to choose

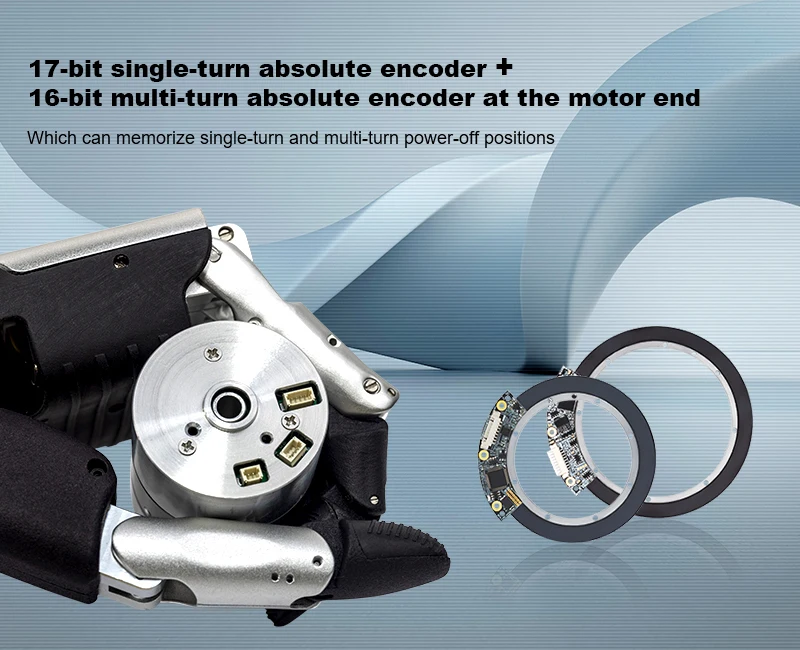

17-bit single-turn absolute encoder + 16-bit multi-turn absolute encoder at the motor end, which can memorize single-turn and multi-turn power-off positions

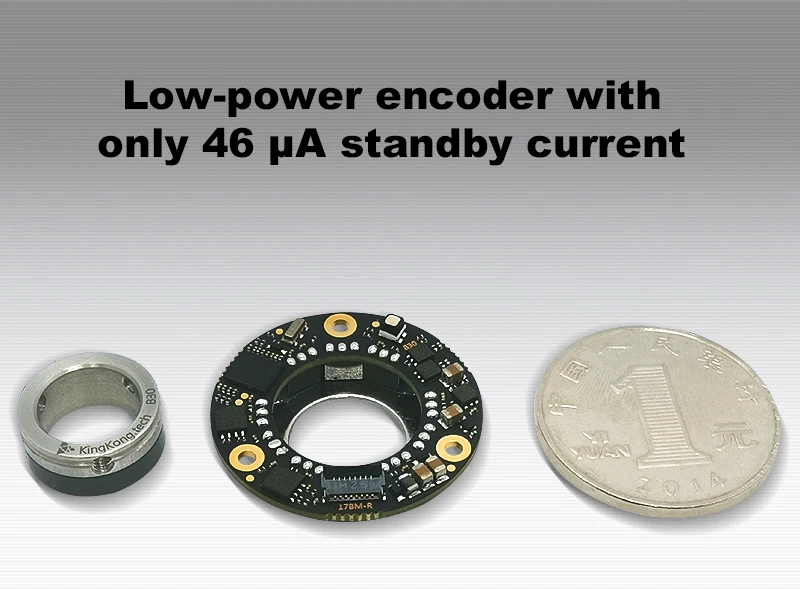

Low-power encoder with only 46 μA standby current
Product Parameter
Model | TD-50-70-PRO-XX | TD-50-70-PRO-XXB |
Ratio | 50/80/100 | 50/80/100 |
Start-stop peak Torque (N.m) | 23/29/34 | 23/29/34 |
Instantaneous maximum Torque (N.m) | 43/59/71 | 43/59/71 |
Rated Torque (N.m) | 8.6/13.5/13.5 | 8.6/13.5/13.5 |
OutpuT Peak Speed (RPM) | 100/62/50 | 100/62/50 |
Rated speed (RPM) | 75/46/37 | 75/46/37 |
Motor power (W) | 150 | 150 |
Supply voltage (V) | 24-48 | 24-48 |
Rated current (A) | 3.6 | 3.6 |
Peak current(A) | 10.8 | 10.8 |
Encoder Resoluton (Bit) | 17 | 17 |
Backlash (arcsec) | 20/20/10 | 20/20/10 |
communication bus | CAN | CAN |
Length(mm) | 58.7 | 83.7 |
Through hole(mm) | 12 | 10 |
Weight(kg) | 0.58 | 0.8 |
Application
This kind of robot joint modules can be used in robots, humanoid robots, and exoskeletons, helping us to quickly build robot arms and greatly shorten the development cycle.
