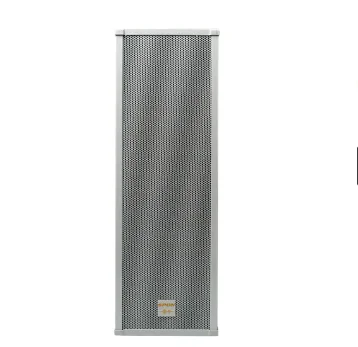

XC 9603A IP Outdoor Column Loudspeaker IP AUDIO SPEAKER (OUTDOOR 30W/60W/120W) loud outdoor speakers
- Category: Broadcast\u00A0Intercom\u00A0Systems >>>
- Supplier: Spon Communications Co. Ltd.
Share on (1600890000744):
Product Overview
Description
Product Description
Description
● Wall-mounted design.
● Integrated with network audio decoding, digital amplifier and column loudspeaker.
● Built-in stereophonic Class-D power amplifier (30W/60W/120W).
● Adopting waterproof structure, with IPX5 protection grade.
● Supporting offline bell ringing function, integrated with high-capacity flash disk and clock chip, being able to import timed
task from the server software and automatically implement the broadcasting task when the speaker is offline.
● Built-in loop detector to remotely monitor the operating condition of the speaker, easy maintenance.
● Built-in ambient noise sensor, ensuring the volume of the speaker will be automatically adjusted according to the ambient noise
level, to realize continuous crystal clear voice intelligibility.
● Supporting remote volume adjustment of the speaker on the server software.
● Supporting configuration and online firmware upgrade via user-friendly web page.
● Compatible with standard SIP (Session Initiation Protocol), can be registered to VoIP telephone system (mainstream IP PBX such
as Cisco, Asterisk, Yealink, etc.) independently.
● Equipped with standard RJ45 interface, accessible to the system wherever Ethernet is available, supporting cross-segment and
cross-router.
● Integrated with network audio decoding, digital amplifier and column loudspeaker.
● Built-in stereophonic Class-D power amplifier (30W/60W/120W).
● Adopting waterproof structure, with IPX5 protection grade.
● Supporting offline bell ringing function, integrated with high-capacity flash disk and clock chip, being able to import timed
task from the server software and automatically implement the broadcasting task when the speaker is offline.
● Built-in loop detector to remotely monitor the operating condition of the speaker, easy maintenance.
● Built-in ambient noise sensor, ensuring the volume of the speaker will be automatically adjusted according to the ambient noise
level, to realize continuous crystal clear voice intelligibility.
● Supporting remote volume adjustment of the speaker on the server software.
● Supporting configuration and online firmware upgrade via user-friendly web page.
● Compatible with standard SIP (Session Initiation Protocol), can be registered to VoIP telephone system (mainstream IP PBX such
as Cisco, Asterisk, Yealink, etc.) independently.
● Equipped with standard RJ45 interface, accessible to the system wherever Ethernet is available, supporting cross-segment and
cross-router.
Specification
Model No.: | XC-9603A03 | XC-9603A06 | XC-9603A12 | ||
Power Supply: | AC 220V 50Hz | ||||
Power Consumption: | ≤40W | ≤75W | ≤150W | ||
Rated Power Output: | 30W | 60W | 120W | ||
Network Protocol: | SIP 2.0 (RFC 3261), FTP, HTTP, TCP/IP, UDP, ARP, ICMP, IGMP | ||||
Audio Codec: | MP3, PCM/L16, ADPCM | ||||
Maximum SPL: | 105dB±3dB | 108dB±3dB | 111dB±3dB | ||
S/N (Signal-to-Noise) Ratio: | ≥80dB | ||||
Frequency Response: | 200Hz-18kHz | ||||
Interface: | 1×RJ45 Ethernet Port, 1×Power Input | ||||
IP Rating: | IP65 | ||||
Dimensions: | 440×227×125mm | 710×227×125mm | 1110×227×125mm | ||
Weight: | 5.1kg | 8.4kg | 13.6kg | ||
Standard Accessories: | 1×Waterproof Connector, 2×Mounting Bracket, 1×Installation Manual | ||||
Optional Accessories: | Fixed Power Cord (US/EU/UK/AU) | ||||
Wiring Diagram
Dimensional Drawing
