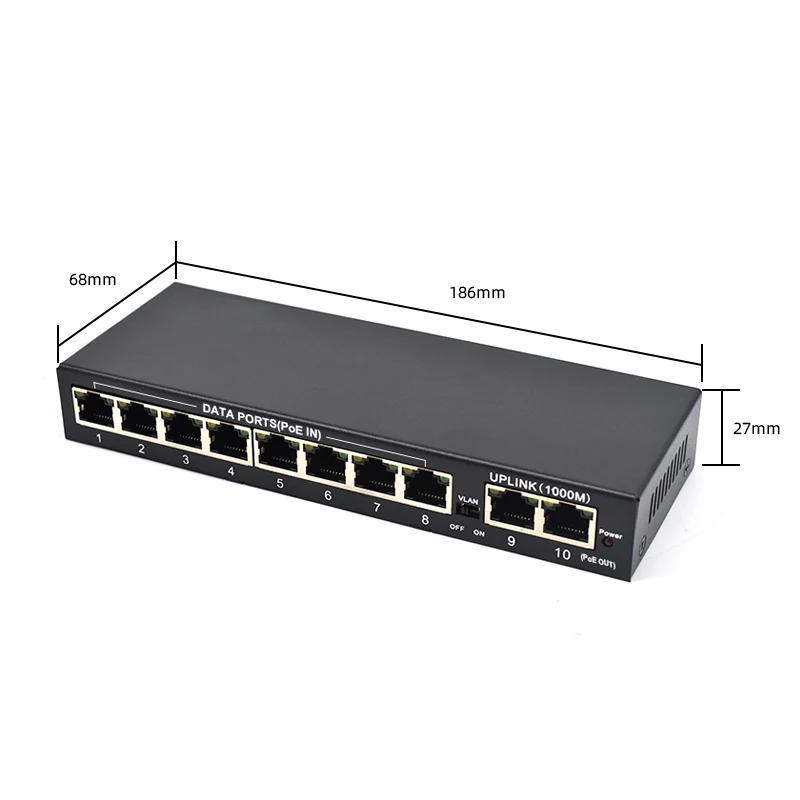

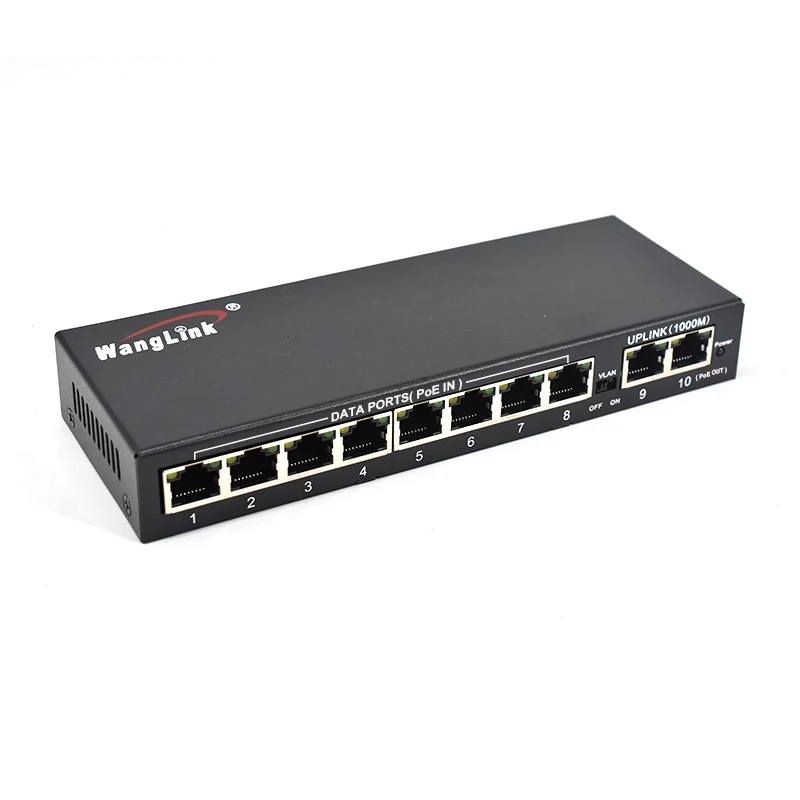

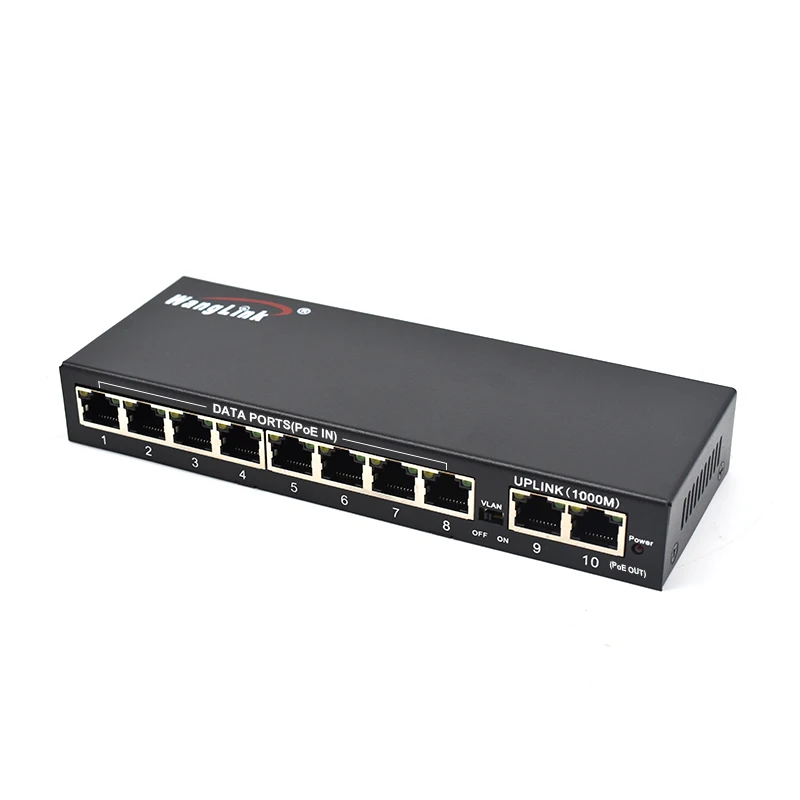

Wanglink 10 Port Reverse POE Switch 8 10/100Mbps RPOE Port 2 GE Uplink Port RPOE Switch Support 24V 48V with VLAN
- Category: >>>
- Supplier: Shenzhen Wangguang Technology Co. Ltd.
Share on (1600890062433):
Product Overview
Description
Recommend Products
Products Description
10 Port Reverse PoE Switch with 8-Port PoE provides the seamless network connection. It integrates 2 Gigabit Uplink ports and 8 Fast Ethernet network capabilities. Port 1-8 for PoE In, Port 9-10 for PoE Out, Support 24-48V Passive PoE compliant PSD and PD, 2 Gigabit RJ45 can do Uplink Port.
Products Feature
1. Port1-8 for PoE In, Port 9-10 for PoE Out, 2 Gigabit Uplink ports
2. Support 24-48V Passive PoE compliant PSD and PD
3. used for FTTx for power up ONU in building
4. Support Port VLAN

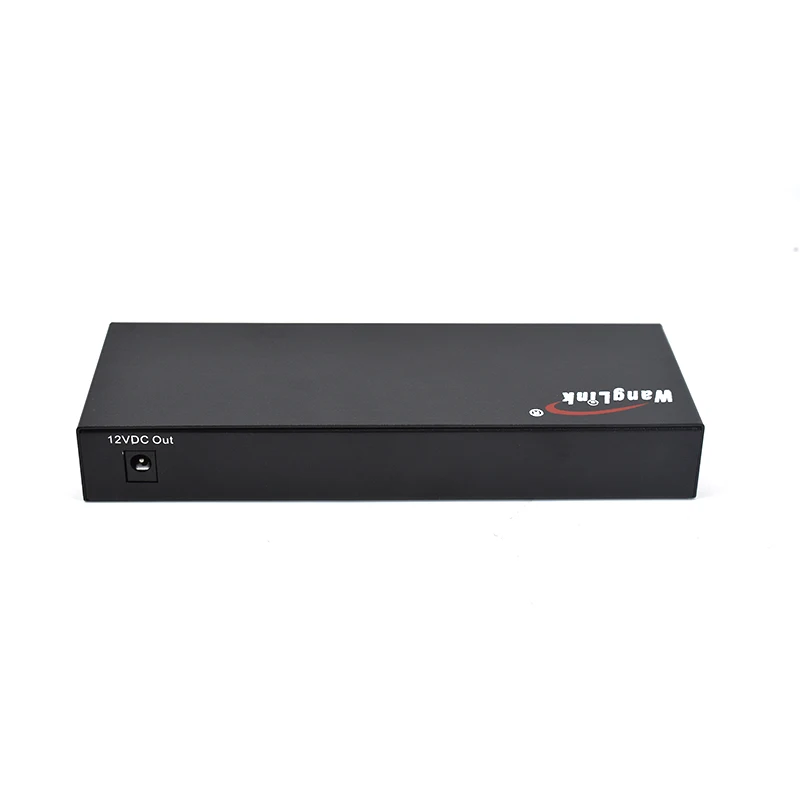

5. DC output 12V
3. used for FTTx for power up ONU in building
4. Support Port VLAN
5. DC output 12V
How to work

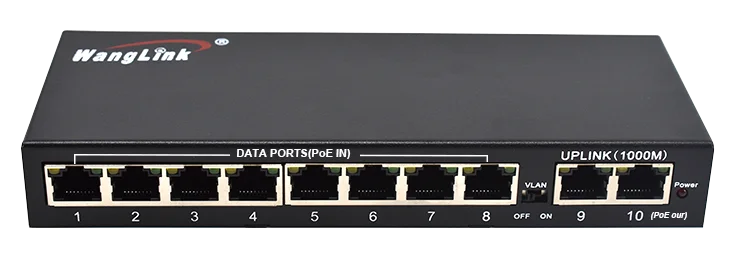

It integrates 2*Gigabit Uplink ports and 8*10/100Mbps Ethernet network capabilities. Port 1-8 for PoE In, Port 9-10 for PoE Out, Support 24-48V Passive PoE compliant PSD and PD, 2 Gigabit RJ45 can do Uplink Port. 8 Auto-Negotiation RJ45 ports (port-1 to port-8) of the switch support Power over Ethernet (PoE) IN function. These PoE ports (port-1 to port-8) can automatically detect and accept power with those 24-48V Passive PoE compliant PSE. Then this switch can continue to power up next switch or wireless AP/CPE via PoE output port 9-10th
Easy to use
10 Port reverse poe switch is easy to install and use. It requires no configuration and installation. With outstanding performance and quality, the 10 port reverse poe switch is a great selection for expanding your FTTB(fiber to the building) or FTTW(fiber to the wireless) network.
Specification
POE Port | POE in Ports:Port 1-8, POE out Port: Port 9-10 |
POE Pin | 45+ 78- |
POE voltage | 24v-48v |
Interface | 8 10/100Mbps RJ45 Ports 2 10/100/1000M RJ45 ports |
Distance | 100 meters |
Standards and Protocols | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p |
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)EIA/TIA-568 100Ω STP (maximum 100m) | |
Fan Quantity | Fanless |
Switching Capacity | 5.6Gbps |
MAC Address Table | 4KV |
Packaging and Shipping
Why Choose Us
Company Profile
FAQ
What is your main products？
We focus on FTTX product, main products is poe switch, media converter, ONU, SFP and its accessories.
Can I get sample for free?
Yes, we have limited free sample rules(full payment the first and bulk order give back). For details, please feel free to contact with your service manager.
Can you print my logo on the product?
Yes, sure. We accept the OEM/ ODM order, you can print your logo on the product face, packing box, carton even on the software manage page and so on.
What is the delivery time?
Instock products - 24h
OEM products lower than 1000pcs - 5 days about.
Over 10,000pcs, 15days about.
What is the Payment Terms that you accepted?
With the world change, we also adjusting our payment terms. For bulk order, we accept the deposit in advance and full in the final.
How About The After-sales Services?
24 Hours Online service, remote technical support, face to face meeting or send our technical expert if need.
What about the warranty?
For most of our product, we provide 1 year warranty(non-human damage).
and lifetime limited warranty.
What will my goods delivery from?
We have two factories. The one is in China, and the other is in India. We default send it from China, but if you have requirement, we can send it from India.
