Product Overview
Description
Product Description
120m HDMI Extender Over Cat6
This hdmi extender is mainly used for devices that extend the transmission of HDMI audio and video signals and is usually used when the HDMI cable limit length cannot meet the transmission distance. It is designed to transmit HDMI audio and video signals in high definition up to 120m via a single network cable of Cat6.

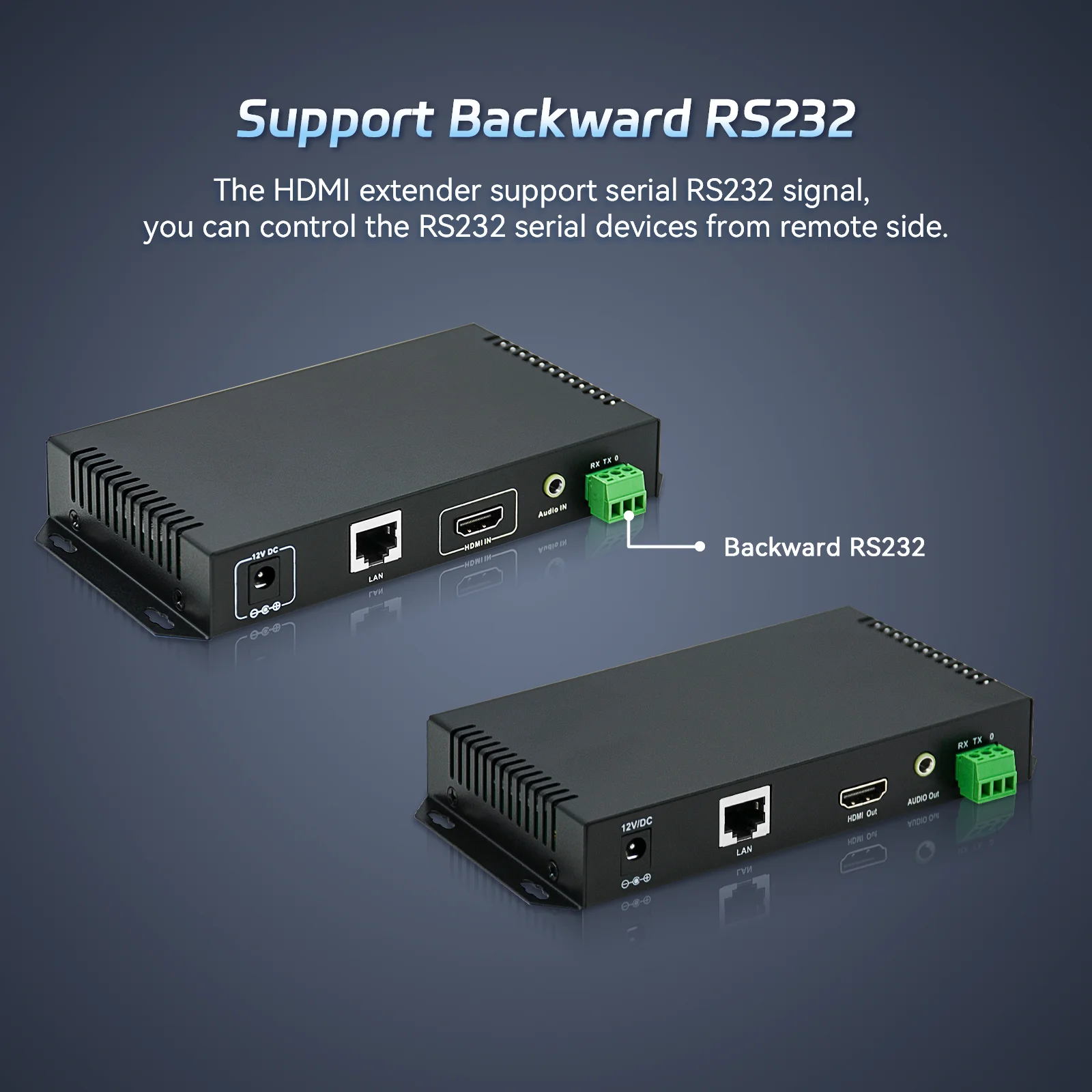

Support TCP/IP network protocol, it can realize a transmitter to multiple receivers transmission through the switch, long distance transmission while supporting local HDMI output, support transmission RS232, can control the display at the playback end; support audio plus and minus embedded. It ensures signal stability while reducing costs for users. The extender's built-in EDID greatly enhances the device's compatibility. The device has a long transmission distance, low cost of use, easy installation, good compatibility, is a stable and efficient transmission method, widely used in high-definition conference system, high-definition film and television shooting, high-definition teaching system, high-definition digital advertising and other audio and video transmission.

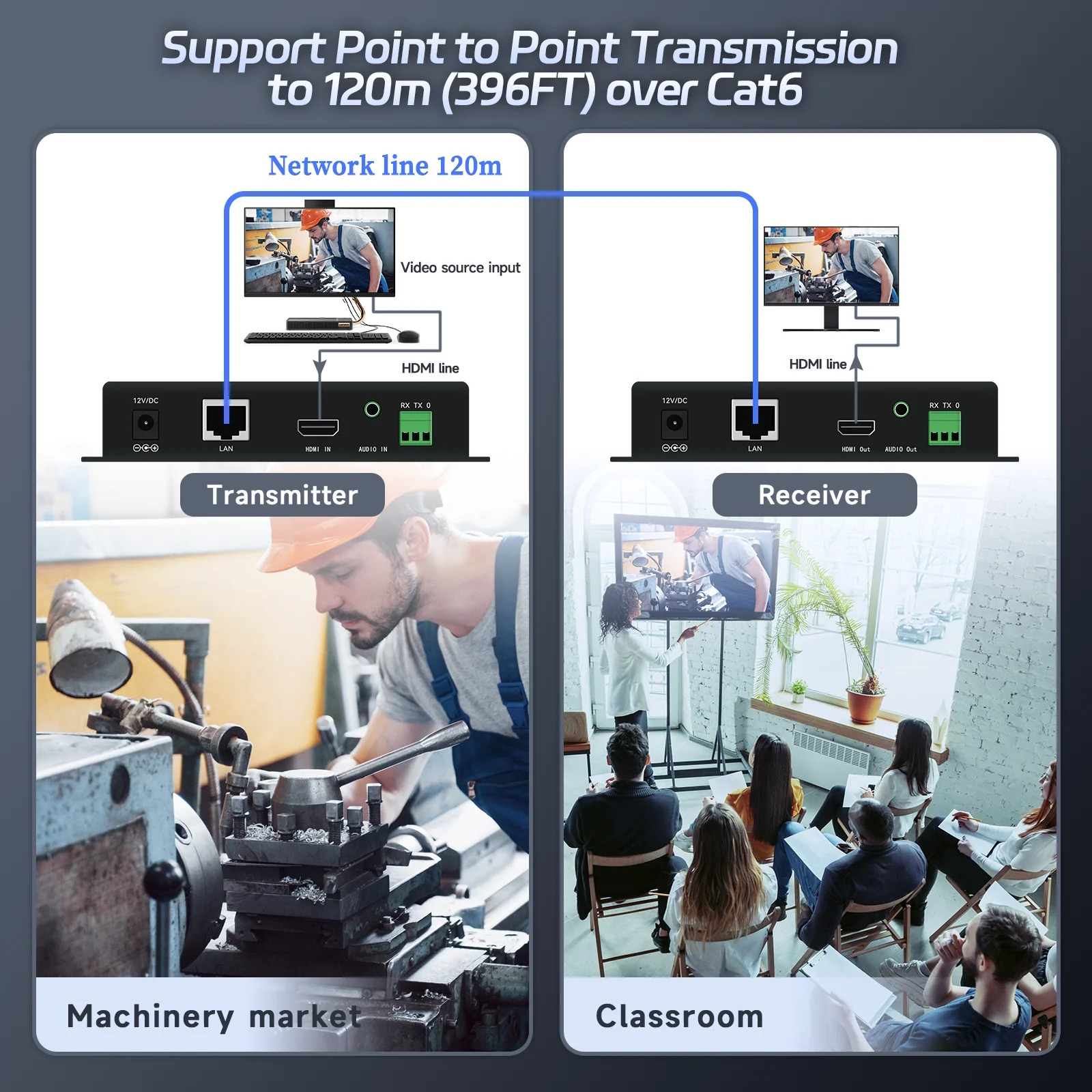

* up to 120m Over UTP Cat6 cable

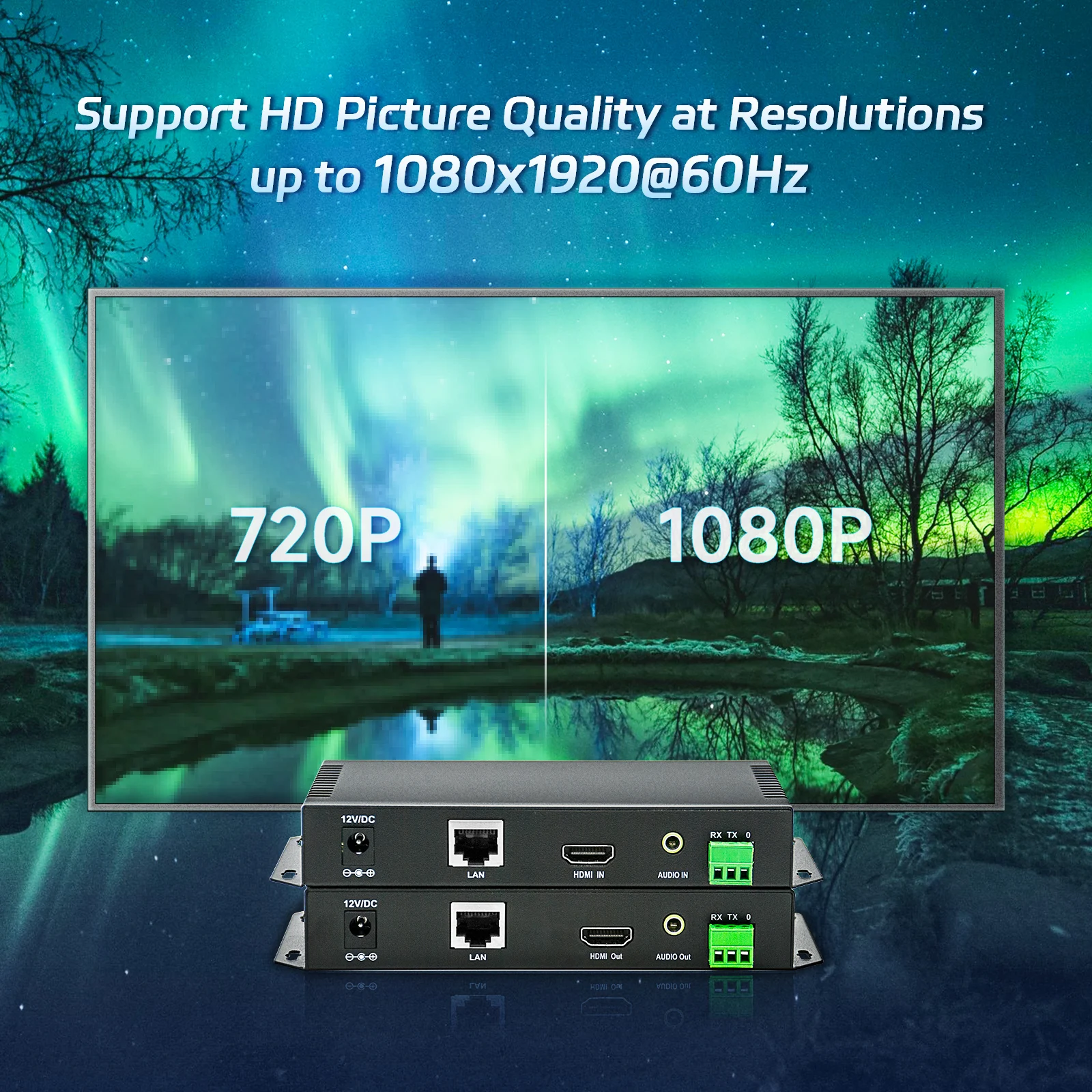

* Video resolution up to 1920*1080@60Hz

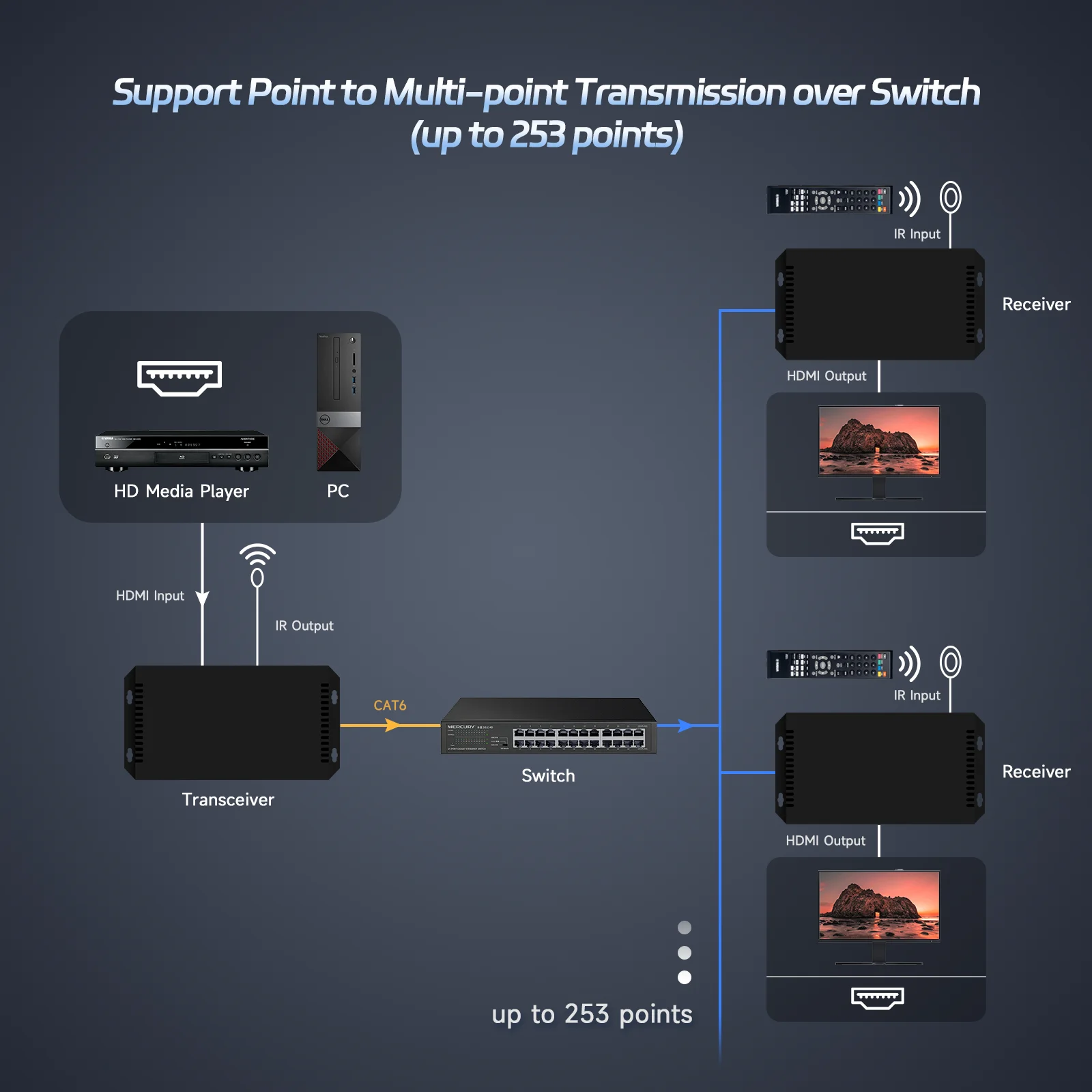

* Supports 1-to-many receiver transmissions (up to 253 points) via Ethernet switch

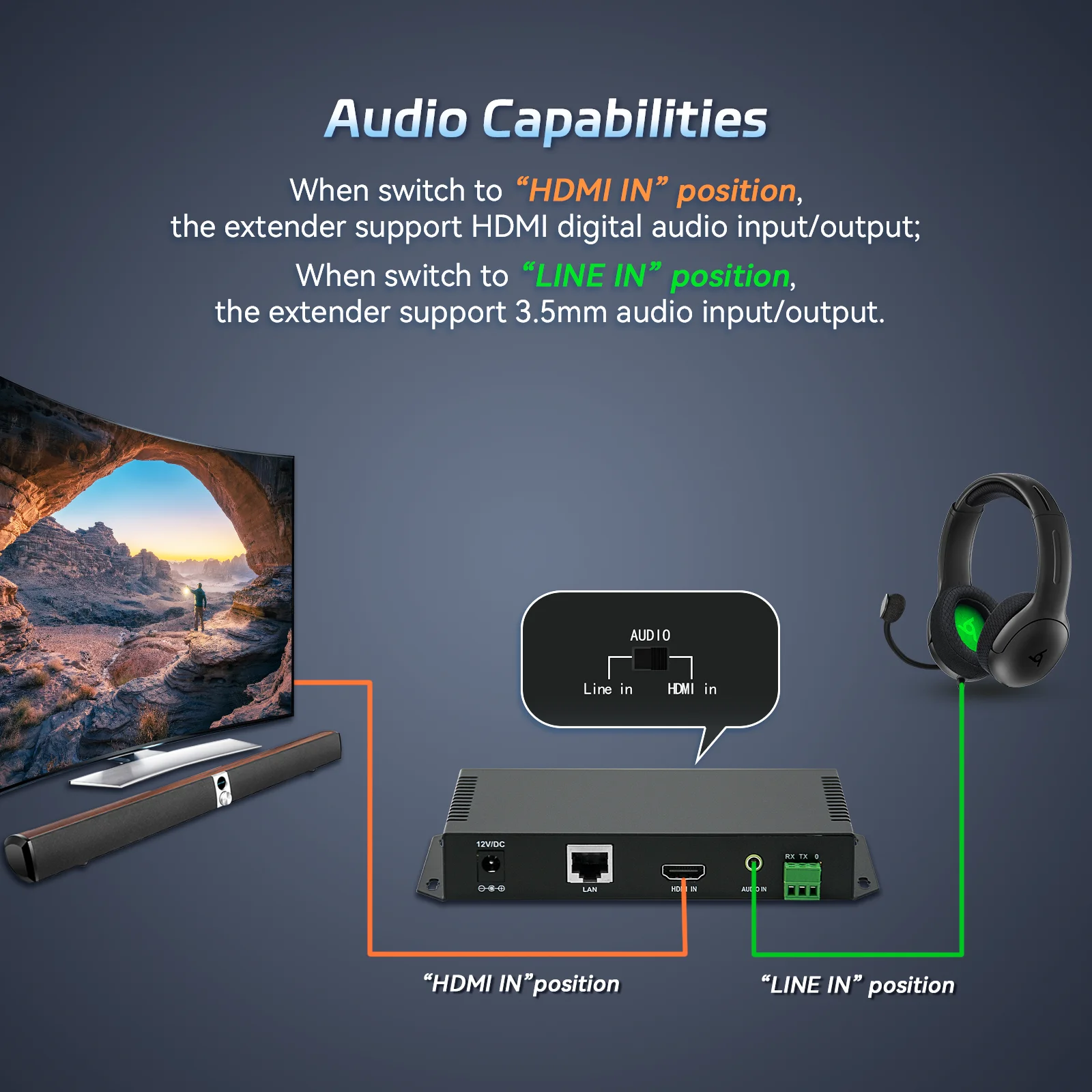

* Support for audio embedding and de-embedding; analog 3.5 audio transmission possible
* HDMI 1.3 and HDCP 1.2 standards
* High compatibility with automatic matching of signal sources and display devices
* Built-in automatic adjustment system for smooth, clear and stable images
* Built-in ESD electrostatic protection circuitry for easy installation and plug-and-play
* Pure Ethernet, simple wiring
* Application areas: 1:n solutions (shops, restaurants, classrooms, monitors, speakers, energy saving, virtual desktops, digital cameras, TCP/IP networks)
* Support for common 100 or 1000 megabit Ethernet switches
* Video resolution up to 1920*1080@60Hz
* Supports 1-to-many receiver transmissions (up to 253 points) via Ethernet switch
* Support for audio embedding and de-embedding; analog 3.5 audio transmission possible
* HDMI 1.3 and HDCP 1.2 standards
* High compatibility with automatic matching of signal sources and display devices
* Built-in automatic adjustment system for smooth, clear and stable images
* Built-in ESD electrostatic protection circuitry for easy installation and plug-and-play
* Pure Ethernet, simple wiring
* Application areas: 1:n solutions (shops, restaurants, classrooms, monitors, speakers, energy saving, virtual desktops, digital cameras, TCP/IP networks)
* Support for common 100 or 1000 megabit Ethernet switches
Application Diagram
Related Products
Specification
Name | 1080P60 HDMI Extender over Cat 5e/6 | ||
Model | ZY-HDMI-BJ1 | ||
Video | Interface Standard | HDMI 1.3 &HDCP1.2 | |
Pixel bandwidth | 165MHz | ||
Resolutions | 1920X1080@60Hz and backwards compatible | ||
Video interface | HDMI-A | ||
HDMI interface resistance | 100Ω | ||
Recommended length of HDMI cable | Less than 5m at 1920X1080@60Hz | ||
Audio | Interface | 3.5mm aduio input | |
Signal type | Digital Audio / Analogue Audio | ||
Audio transmission direction | Forward transmission | ||
Cable | Interface | RJ45/568B | |
Distance | Cat5e-100m; Cat6-120m | ||
Other | Temperature | -20° C ~ +60° C | |
Humidity | < 90 % | ||
Power Consumption | 5W/Unit | ||
Power supply | DC 12V1A | ||
Dimensions(L*W*H) | 162*89*25mm | ||
Weight | 0.3KG/unit | ||
