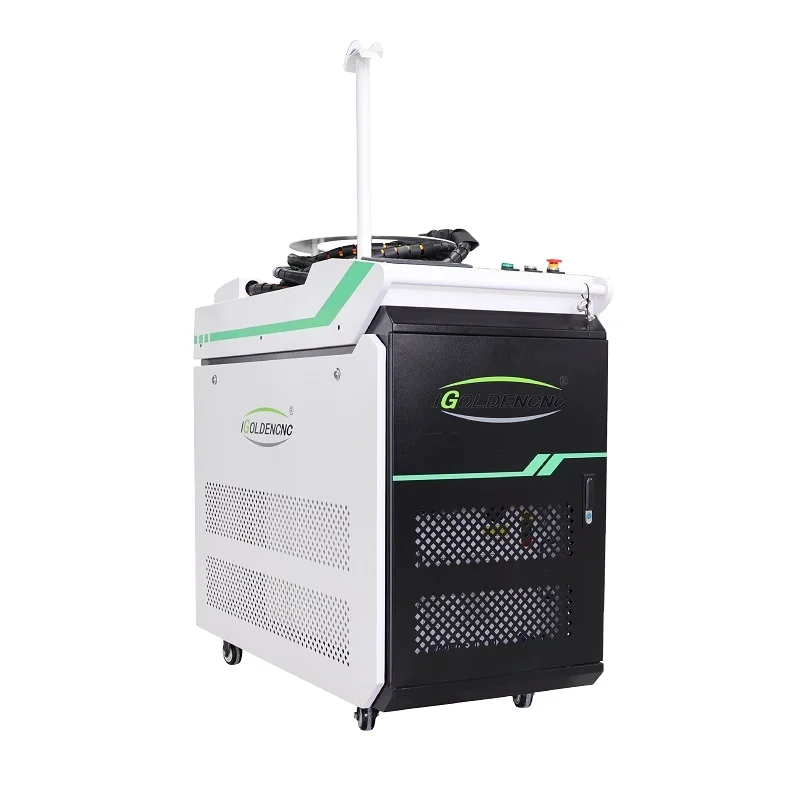

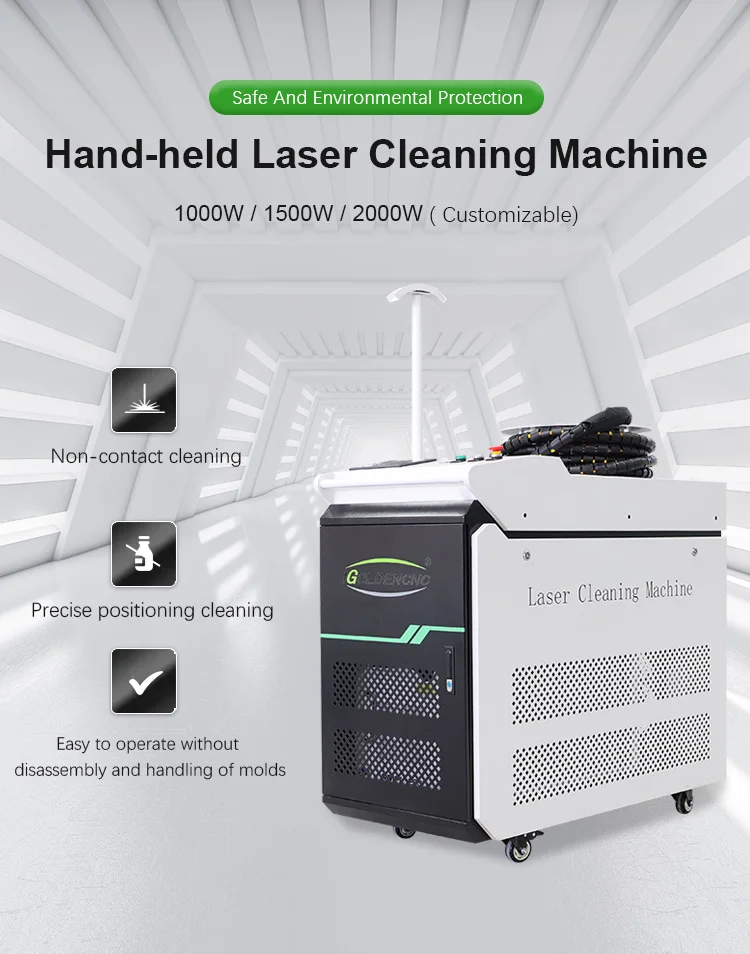

Portable fiber laser rust cleaning mold cleaning laser paint cleaning machine 1000w
Equipment introduction：
Laser cleaning machine is a new generation of high-tech products for surface treatment.It is green and environmentally friendly.
In recent years, laser cleaning machines have been widely used in automotive, mold, aerospace, 3C electronics, medical equipment, rail transit, steel manufacturing and other industries. The laser cleaning machine can clean rust, oil, paint, oxide layer, welds, etc. It is easy to operate and can remove resin oil stains, stains, dirt, glue, rust, decorating, and paint on the surface of objects.
The Features：
1. Non-contact cleaning method, does not damage the substrate of the parts;
2. Precise cleaning, selective cleaning of precise location and precise size can be achieved;
3. Does not require any chemical cleaning solution, no consumables, safe and environmentally friendly;
4. The operation is simple, just power it on, and it can be held in hand with the robot to achieve automatic cleaning;
5. High cleaning efficiency, saving time and labor costs;
6. The laser cleaning system is stable, requires almost no maintenance, and saves costs.
PRODUCT SPECIFICATIONS
Model | iGCL-HC |
Out Method | (CW) Continuous Wave |
Operation method | Handheld/Automated |
Able to withstand laser average power | ≤2000W |
Operating mode | 7 types: straight line, rectangle, sine, double helix, circle, ring，free mode |
Ranging function | The setting range is 0-1000mm |
Light passing rate | ≥98% |
Laser power adjustment | 10%-100% continuous gradient adjustable |
Washing head weight | ＜1.2Kg（Without QBH） |
Scan width | 0-300mm |
Scanning frequency | Not less than 300Hz |
Maximum scanning line speed | Max. 20m/s |
Screen | Cabinet standard 7 inches + cleaning head standard 2.8 inches |
Cable length | 10 m (can customizable 20 m) |
Sample
Product Details

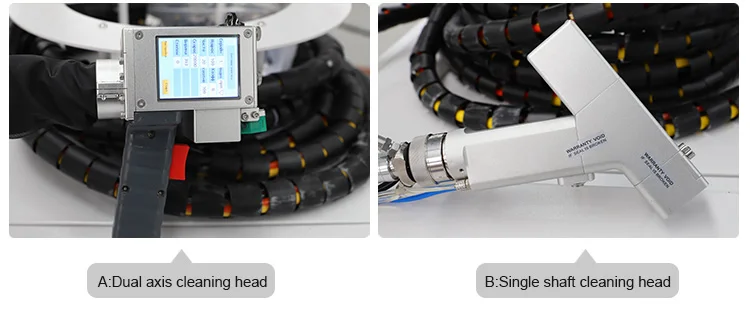

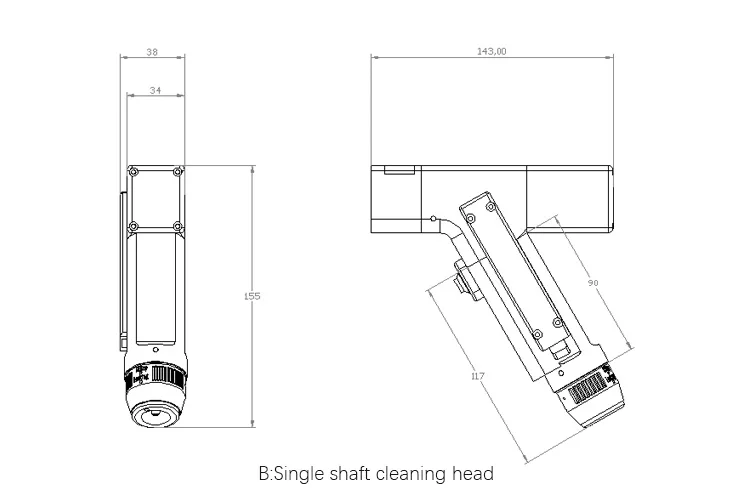

Double-headed design, more convenient and efficient
The two cleaning heads have different cleaning modes, which can be freely selected according to needs.Green and environmentally friendly, no consumables are required;this not only means that laser cleaning is effective, but the cleaning process is environmentally friendly. In addition, it does not use chemical cleaning agents, thus avoiding the damage caused by chemical corrosion to the material.

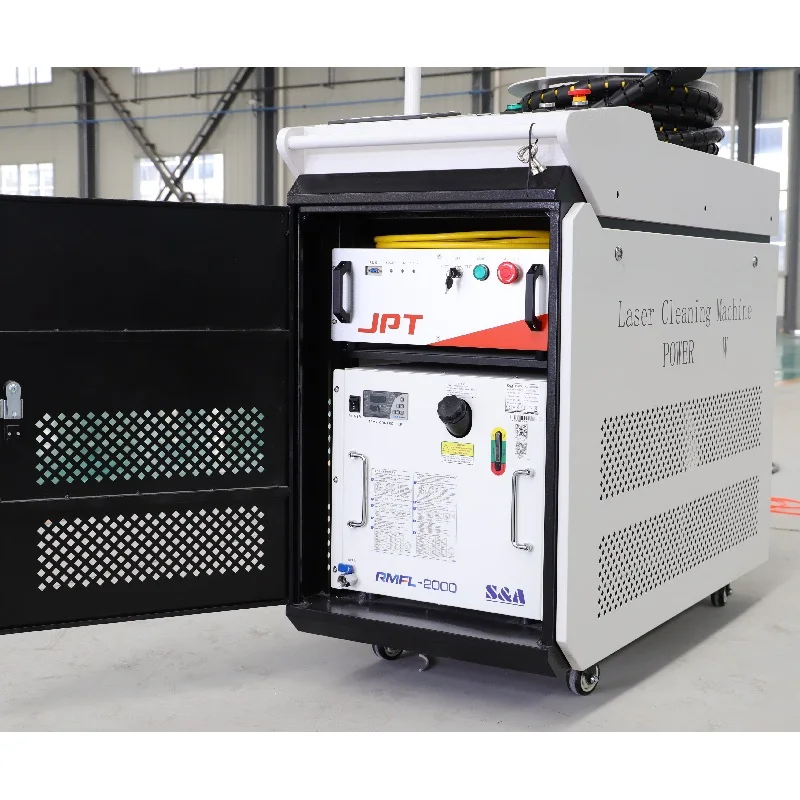

Laser source and Chill
Laser source:
The laser source adopts water-cooled heat dissipation and rack-mounted chassis design. It has many advantages such as high electro-optical conversion efficiency, low energy consumption, compact structure, adjustment-free maintenance, and easy integration for customers. It is industrial laser cleaning and other ideal light source for application.
HANLI Chill:
1. The cooling capacity is up to 1400W, and environmentally friendly refrigerants can be used;
2. Small size, long life and durable easy to operate;
3. The temperature control accuracy can reach ±0.3℃；
4. The intelligent thermostat has two temperature control modes, which are suitable for different use occasions; it has a variety of setting and fault display functions;
5. With multiple alarm protection functions.
2. Small size, long life and durable easy to operate;
3. The temperature control accuracy can reach ±0.3℃；
4. The intelligent thermostat has two temperature control modes, which are suitable for different use occasions; it has a variety of setting and fault display functions;
5. With multiple alarm protection functions.
