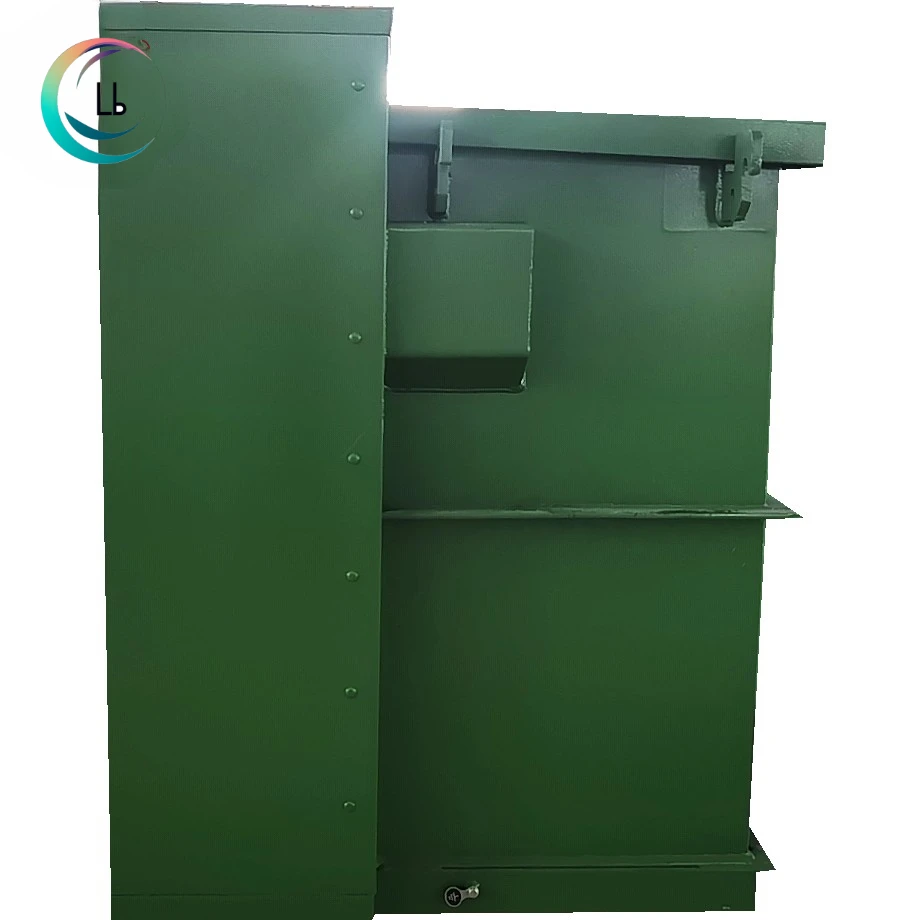

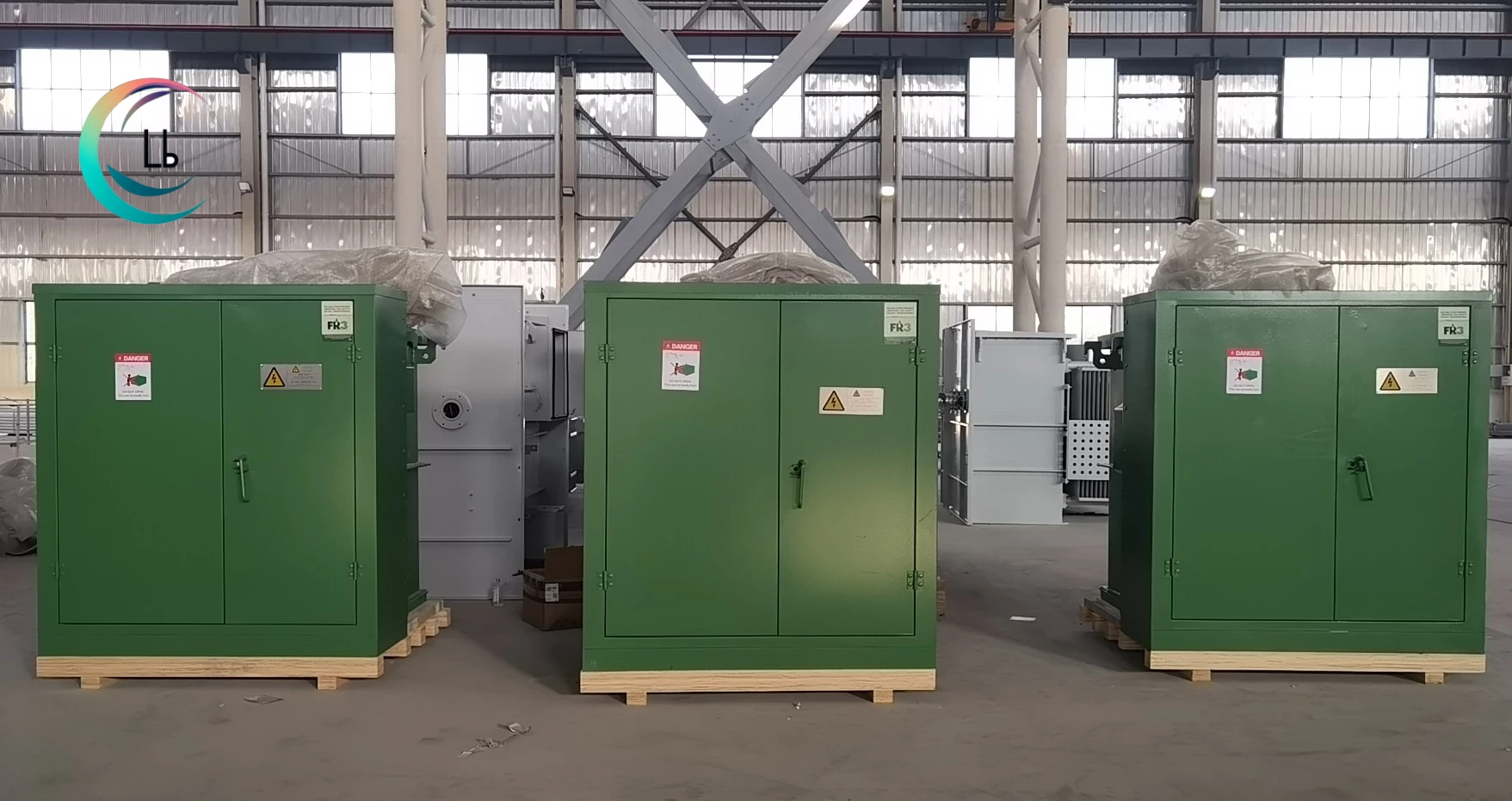

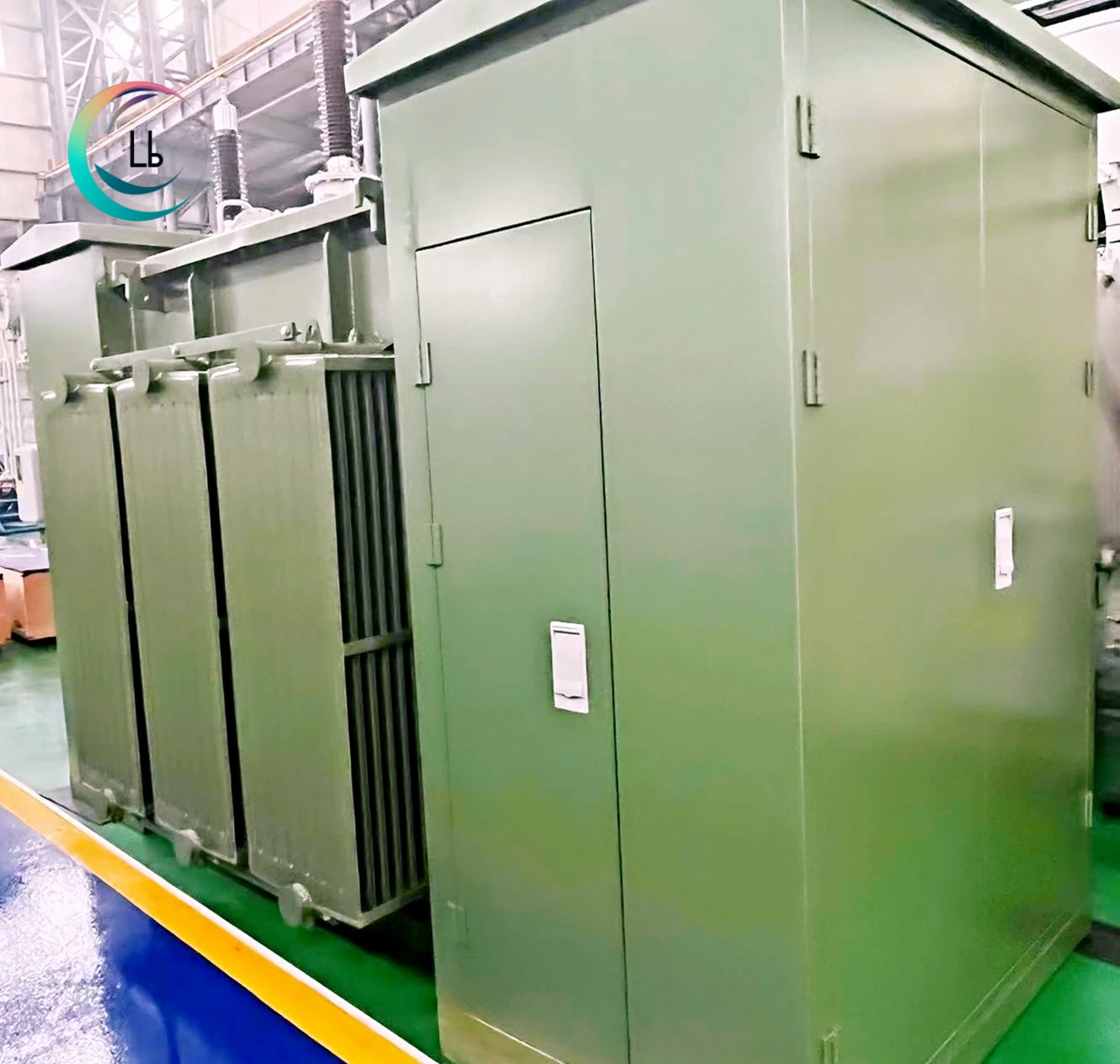

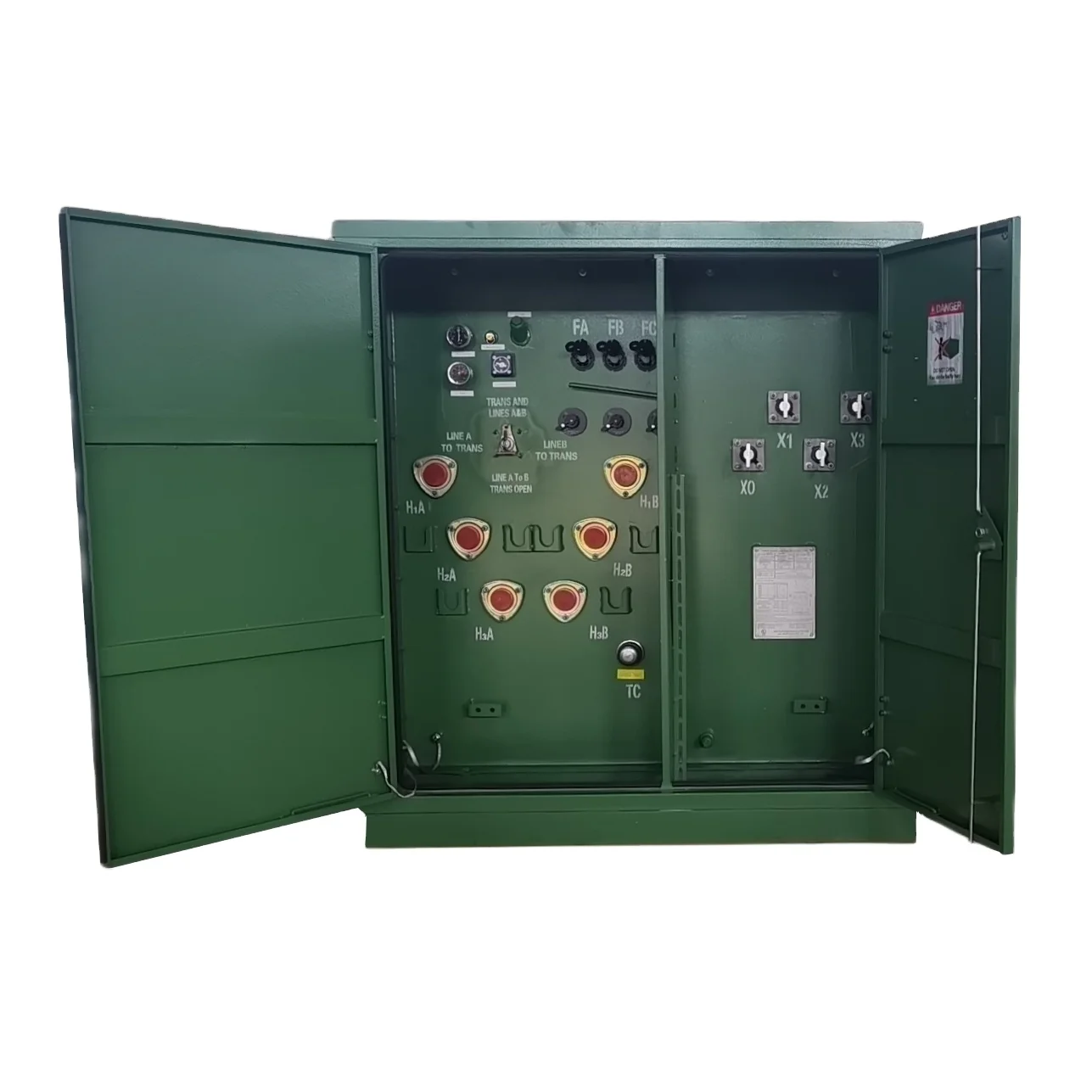

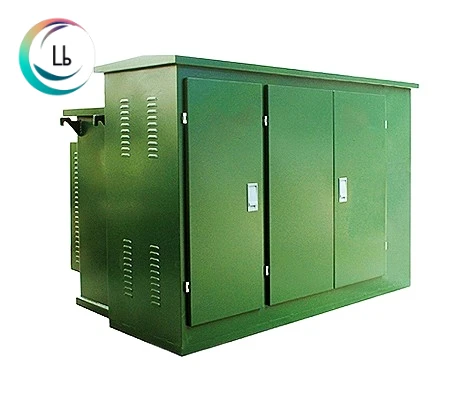

1000kva 1250kva 1600kva 2000kva 34.5kv Pad Mounted Transformer ANSI/IEEE standards
- Category: >>>
- Supplier: LV BIAN Transformer (Chongqing) Co. LTD
Share on (1600890309331):
Product Overview
Description
Product parameter list
Rated Capacity(kVA) | No-load Loss(kW) | Load Loss(kW) | No-load Current(%) | Impendance Voltage(%) | Dimension (LxWxH) (mm) | Total Weight (kg) |
100 | 200 | 1500 | 0.65 | 4.0 | 1180x1355x1735 | 729 |
150 | 280 | 2200 | 0.60 | 1830x1375x1735 | 989 | |
200 | 340 | 2600 | 0.50 | 1830x1375x1735 | 1195 | |
250 | 400 | 3050 | 0.50 | 1830x1405x1735 | 1355 | |
315 | 480 | 3650 | 0.45 | 1830x1425x1735 | 1415 | |
400 | 570 | 4300 | 0.45 | 1830x1435x1805 | 1675 | |
500 | 680 | 5150 | 0.40 | 1830x1445x1860 | 1905 | |
630 | 810 | 6200 | 0.40 | 4.5 | 1830x1445x1860 | 2165 |
800 | 980 | 7500 | 0.35 | 1830x1490x1860 | 2755 | |
1000 | 1150 | 10300 | 0.35 | 1830x1675x2005 | 3235 | |
1250 | 1360 | 12000 | 0.30 | 2100x1845x2035 | 4905 | |
1600 | 1640 | 14500 | 0.30 | 2100x1885x2135 | 5835 |

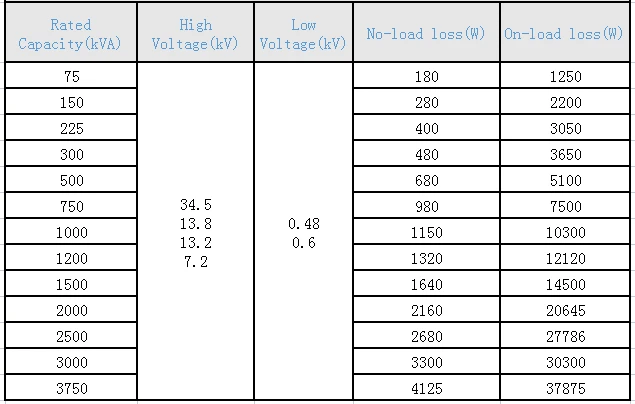

Product Parameters

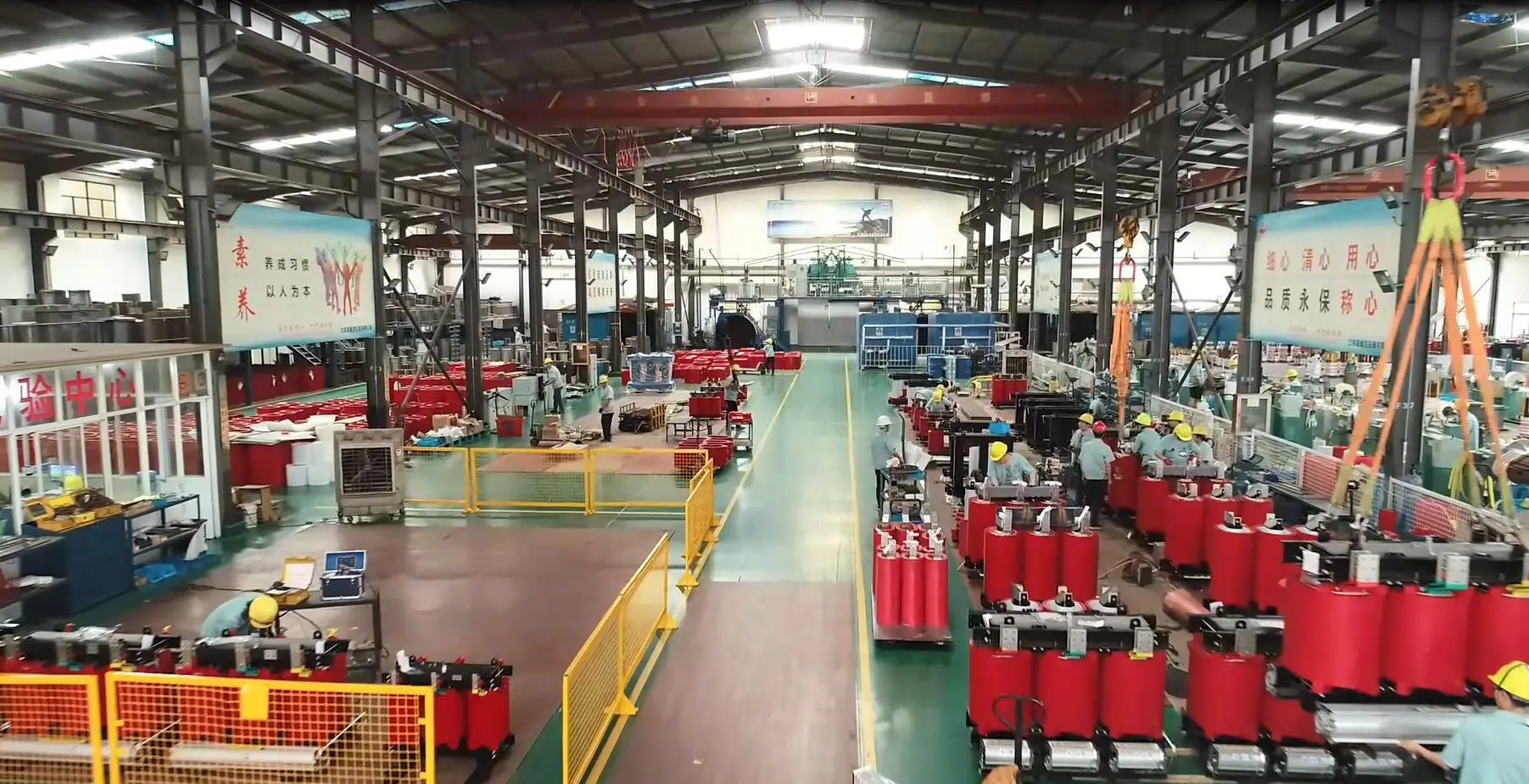

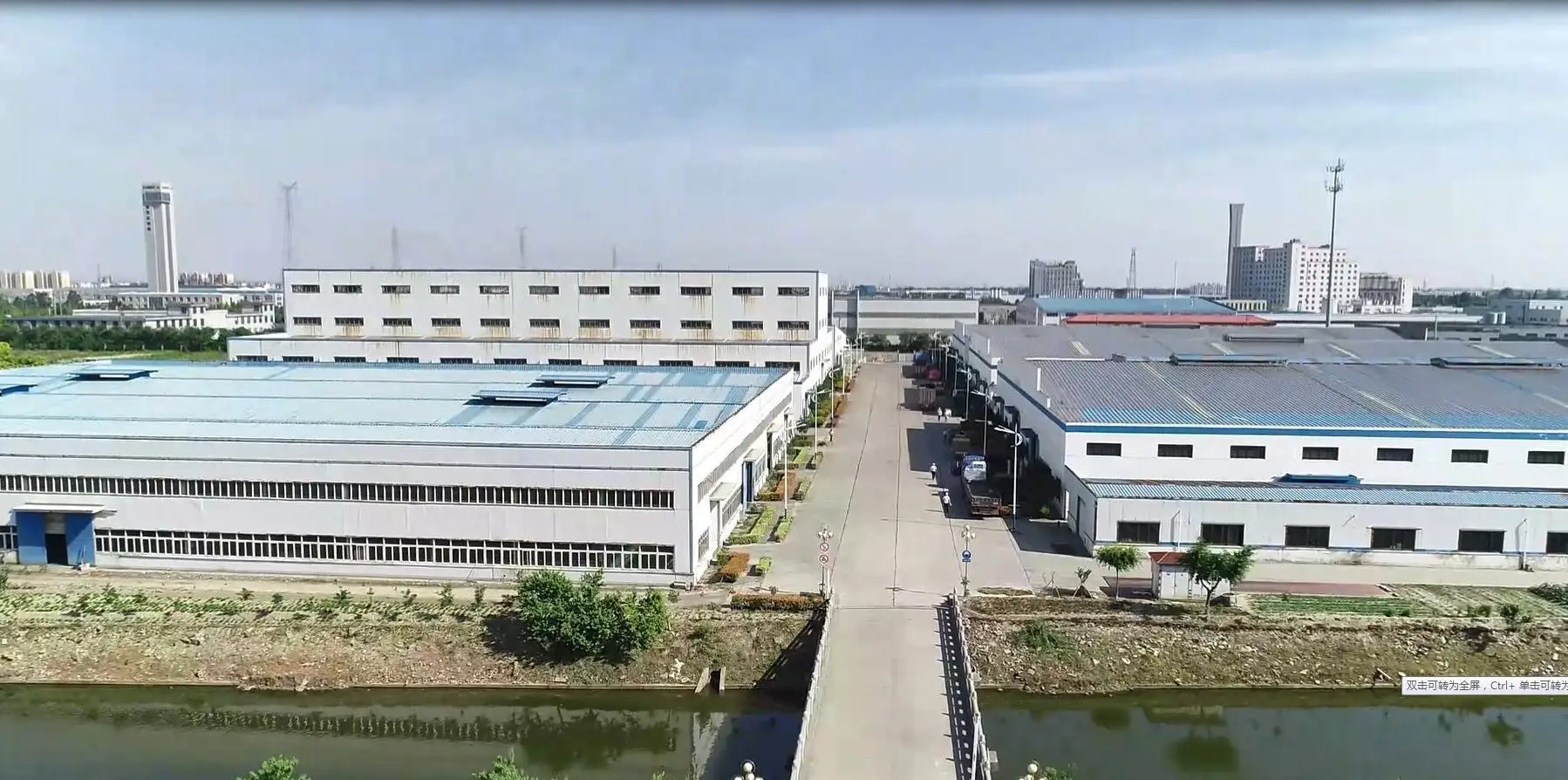

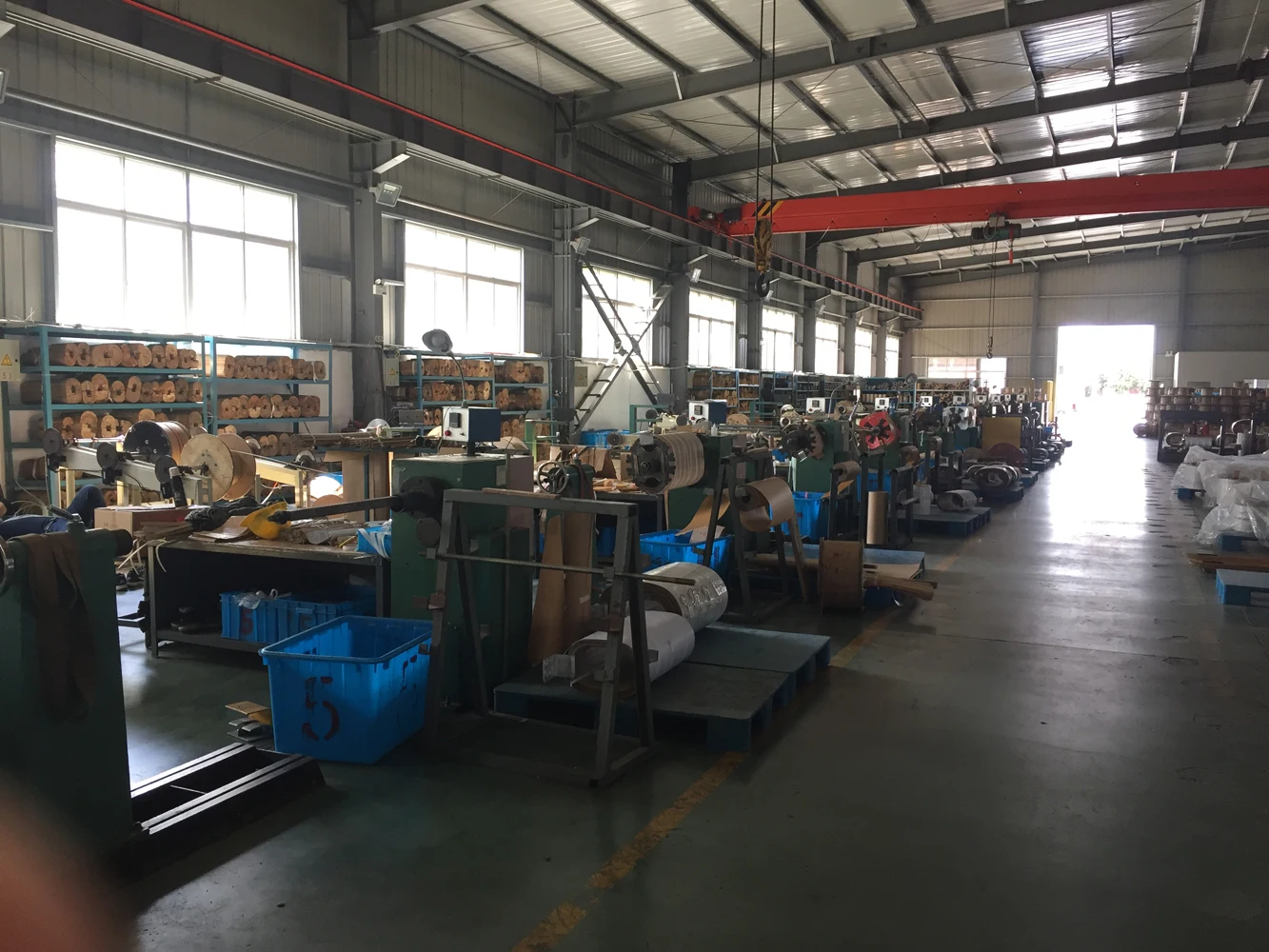

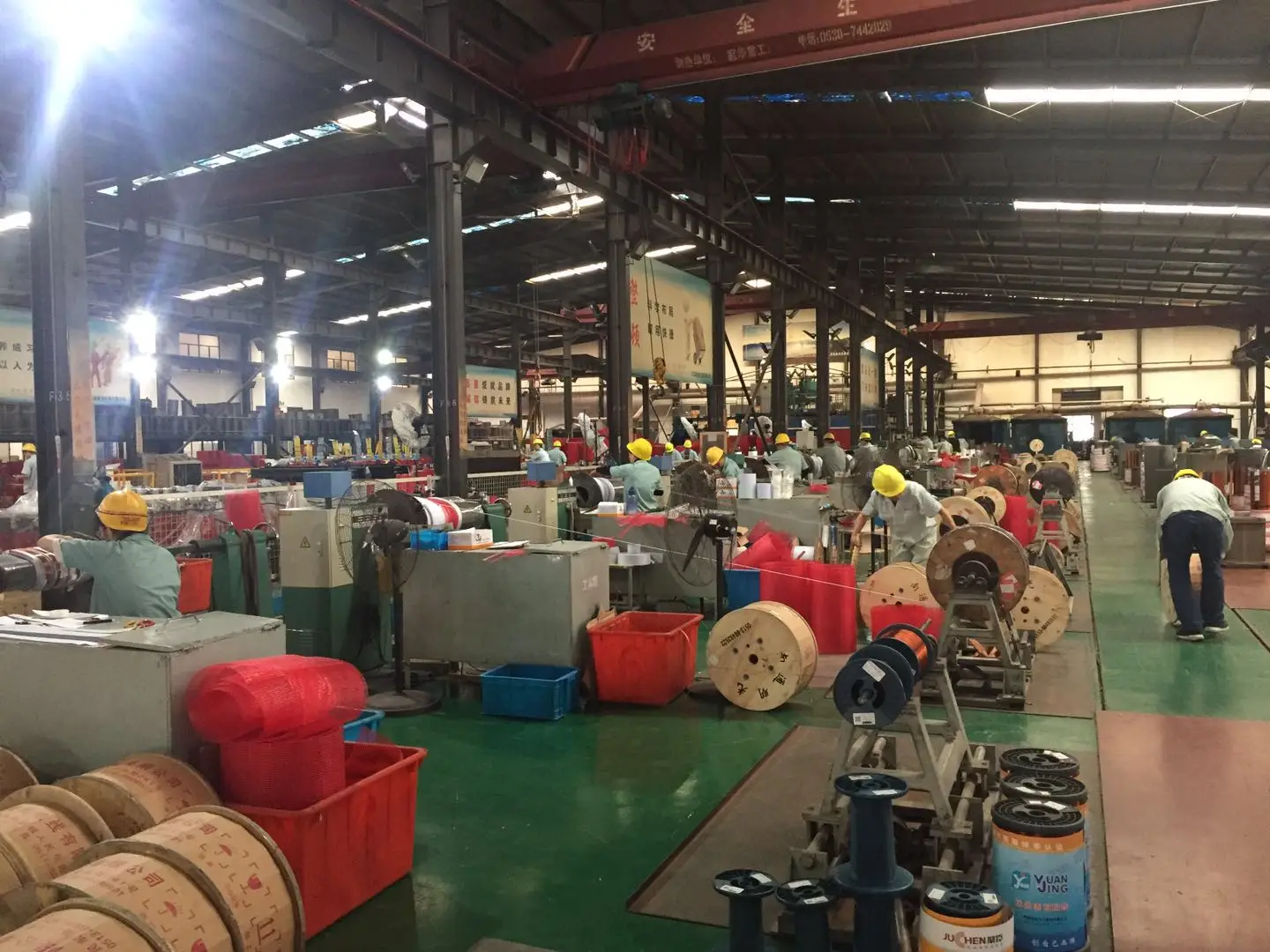

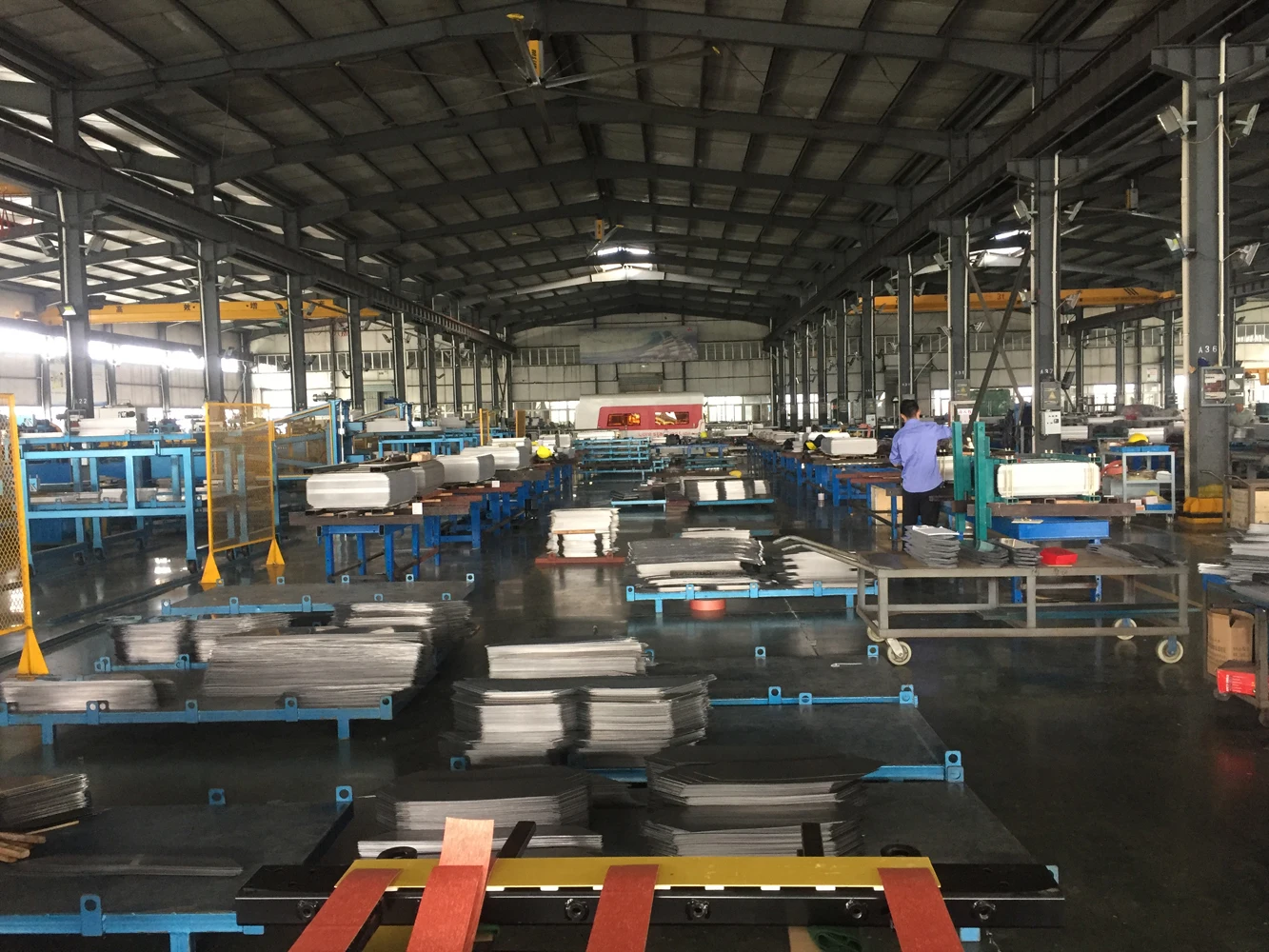

lvbian Transformer (Chongqing) Co., LTD., the factory is located in Hai 'an City, Jiangsu Province, adjacent to Shanghai. There are more than 50 engineers, more than 500 employees, covers an area of 12 million square meters, annual sales of more than 200 million US dollars.

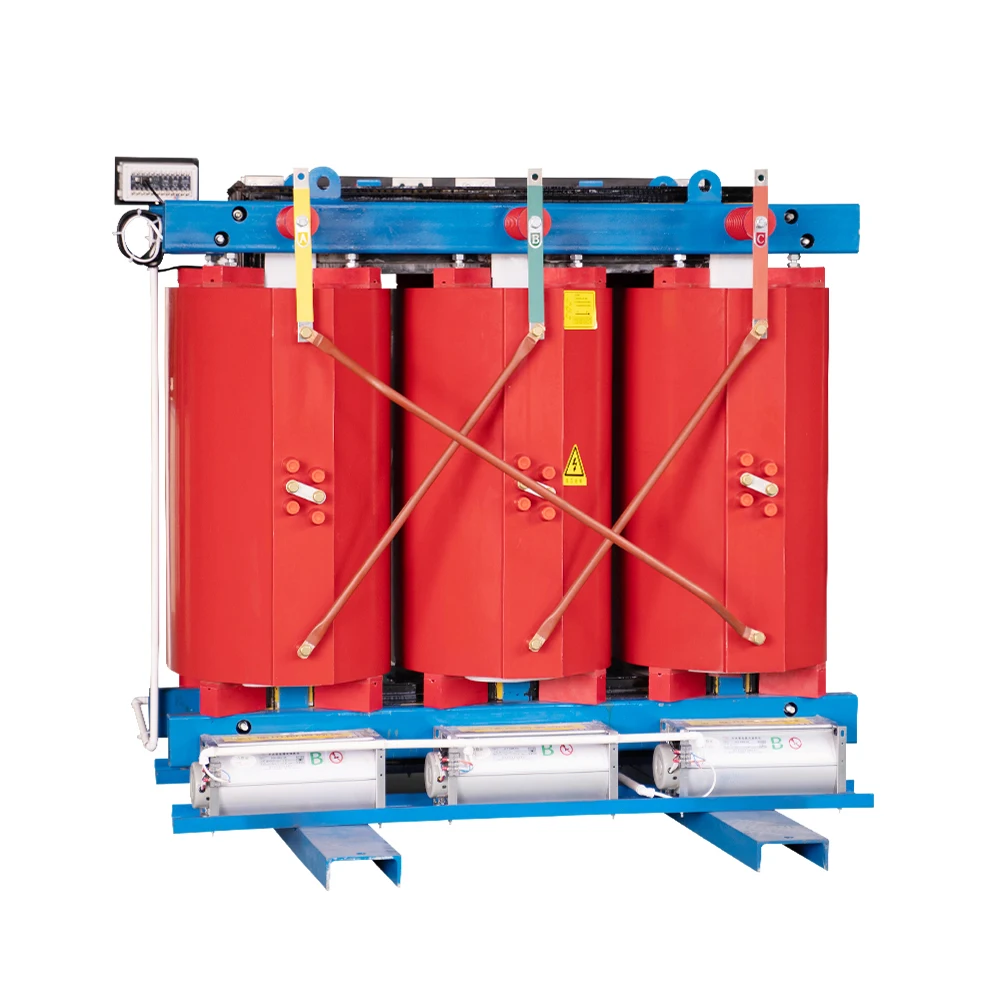

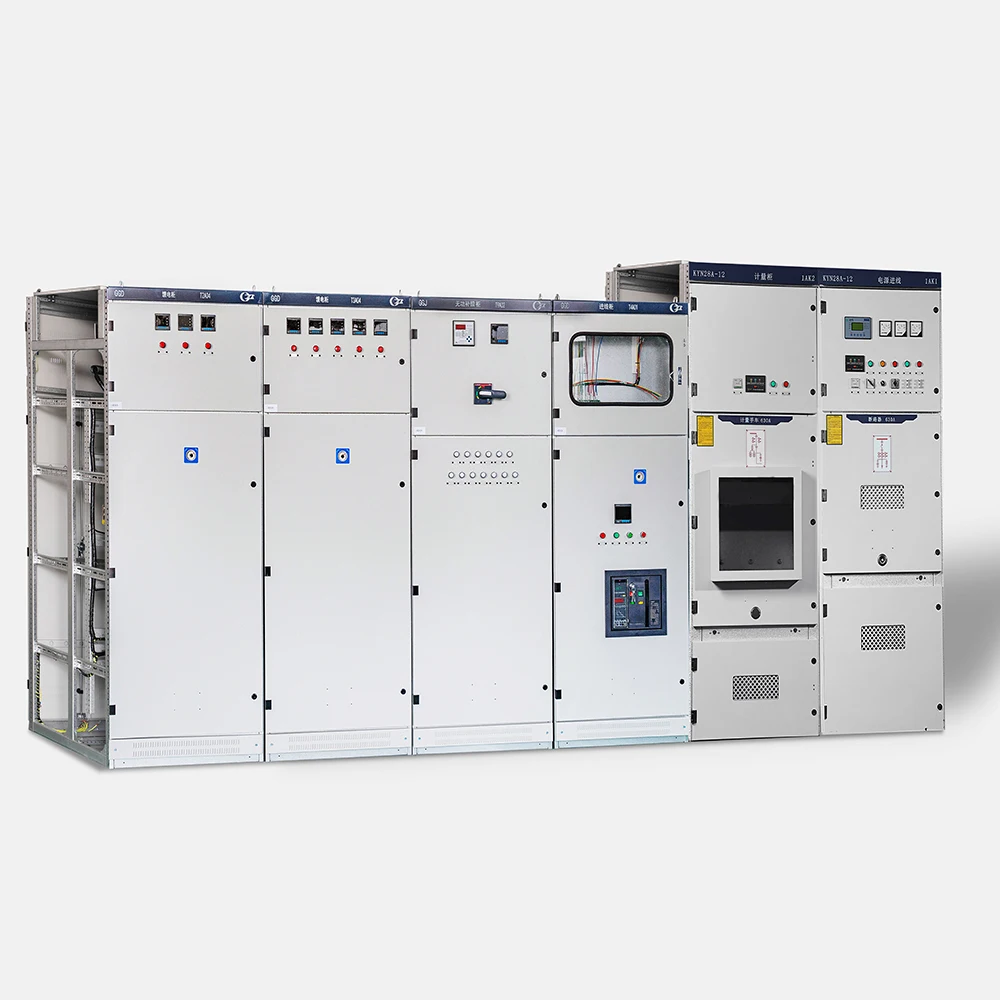

lvbian has a strong production capacity, advanced production technology, pecializing in the production of dry transformers, oil-immersed transformers, autotransformers, isolation transformers, substations, switchgear, distribution box, transformer winding enameled wire. Products are widely used in Africa, the Middle East,South America, Central Asia, Southeast Asia and other regions.
The company has passed ISO9001, ISO14001 quality system certification, has CE, CCC, KEMA, UL certification, and has TEST REPORT, SGS report.

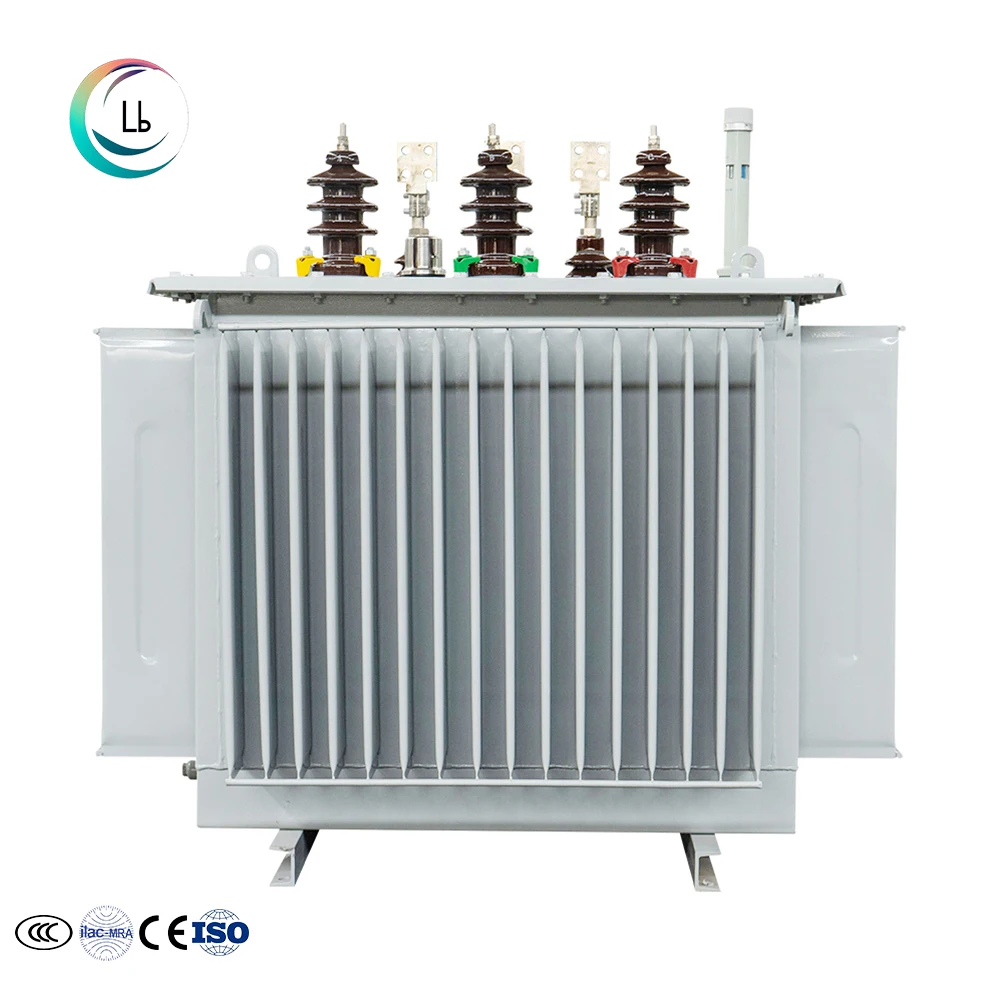

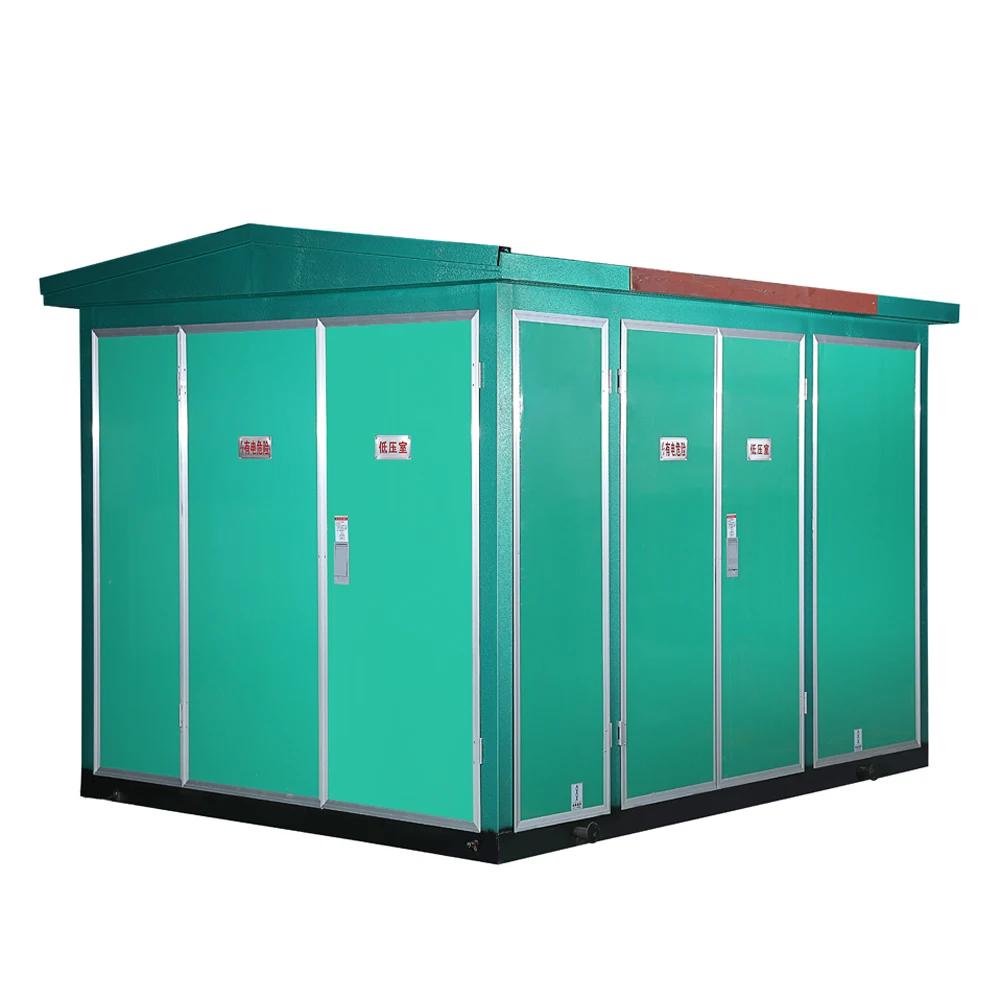

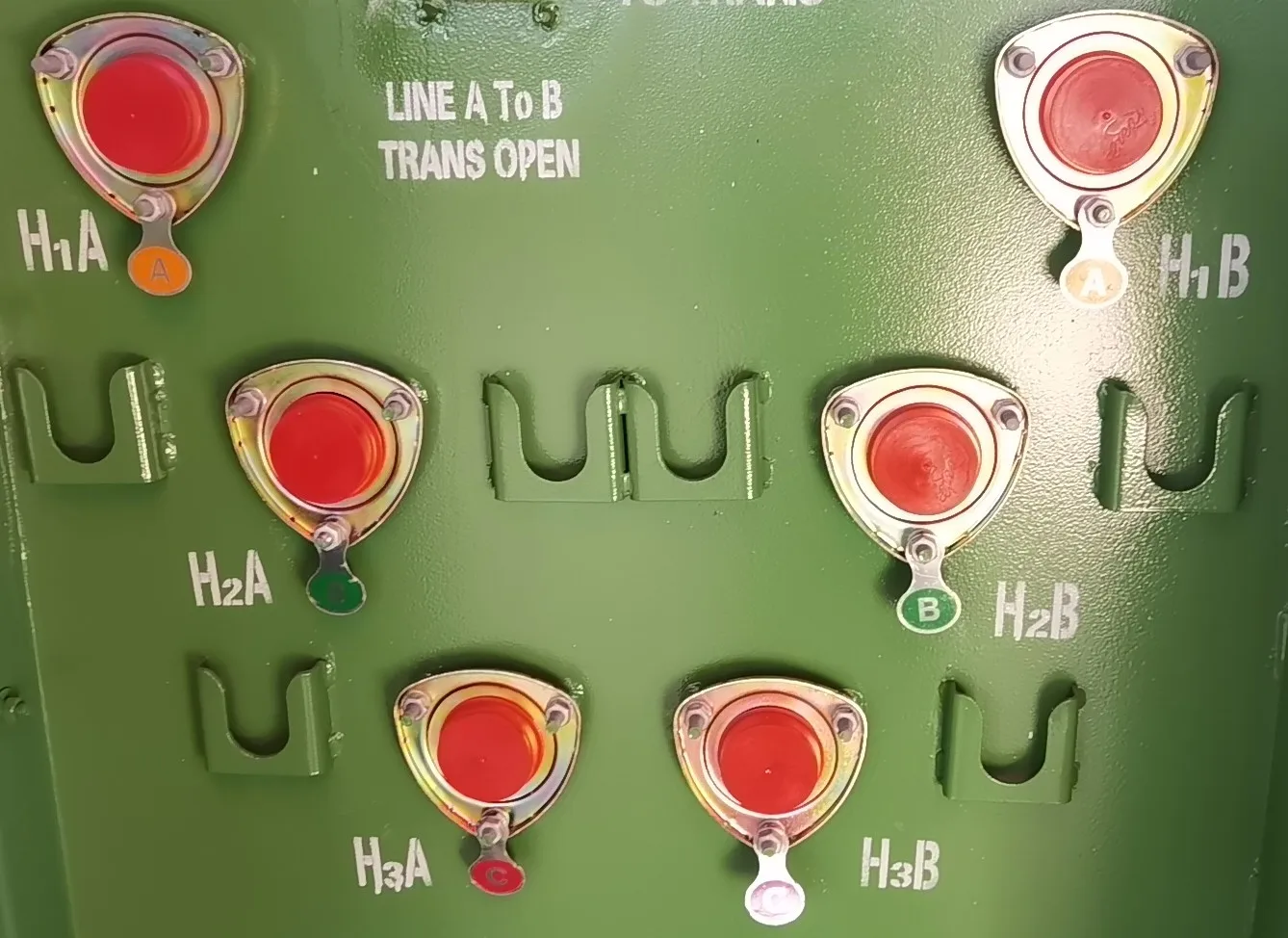

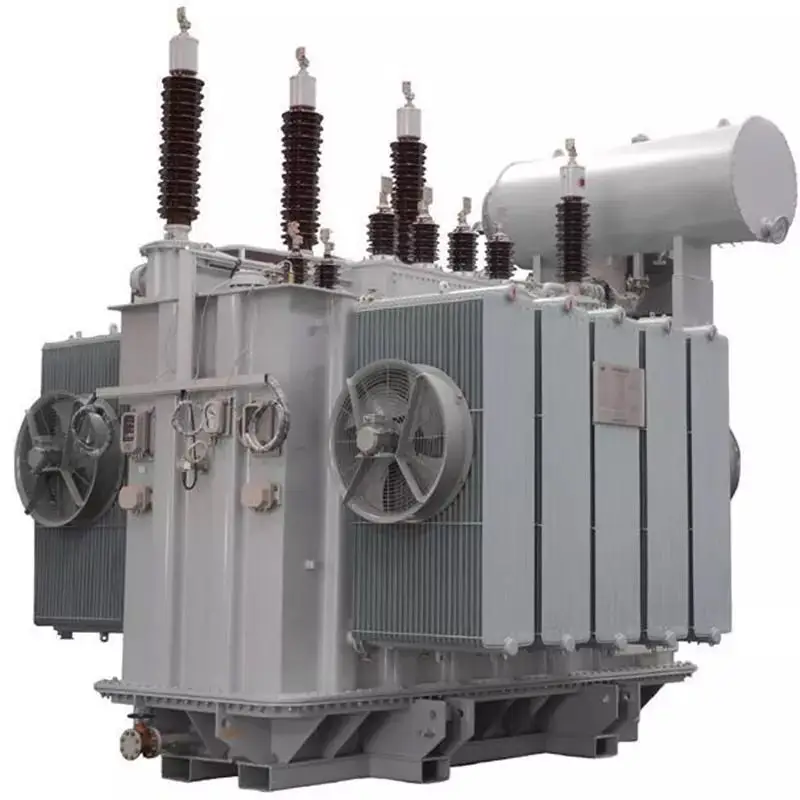

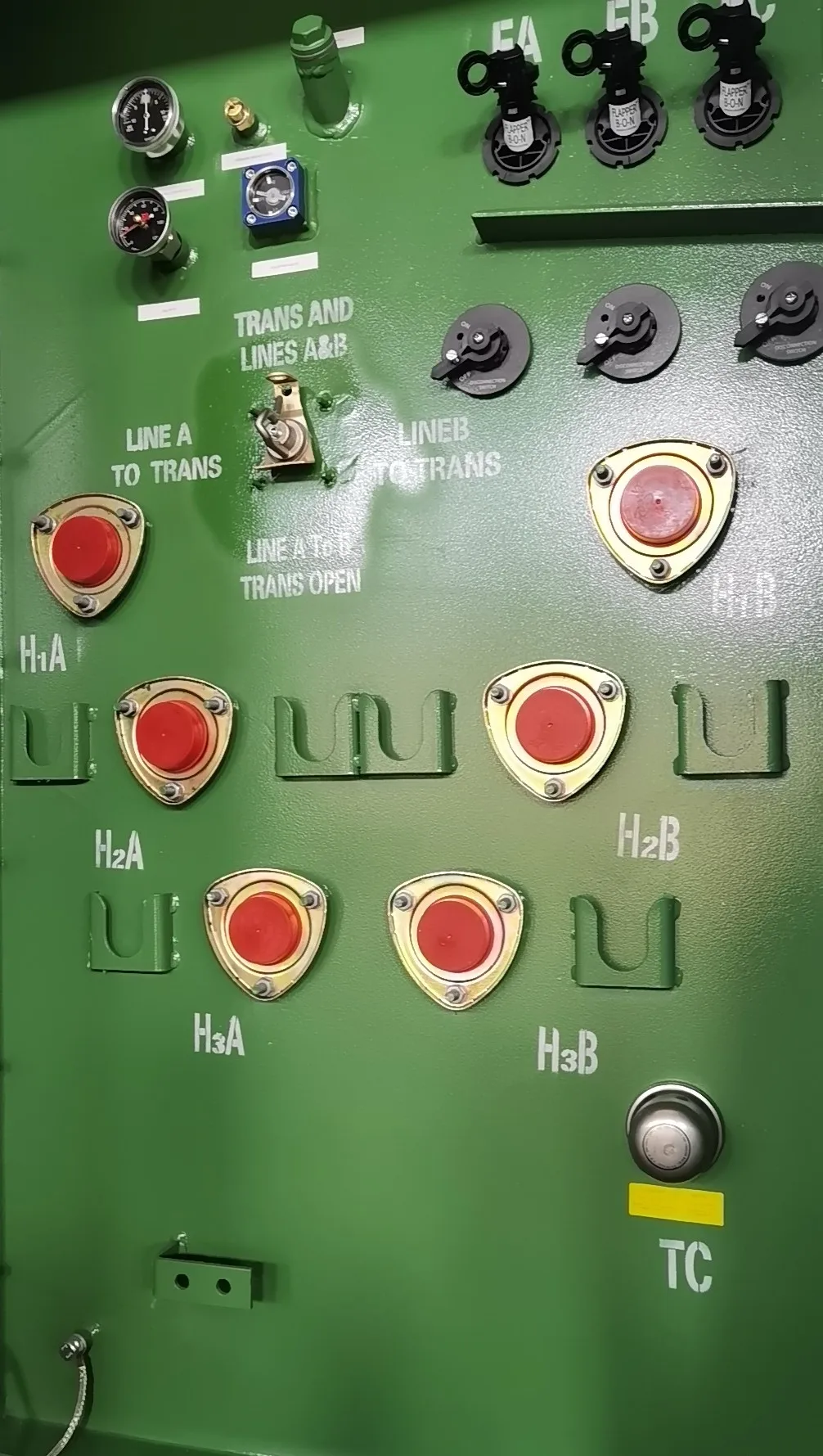

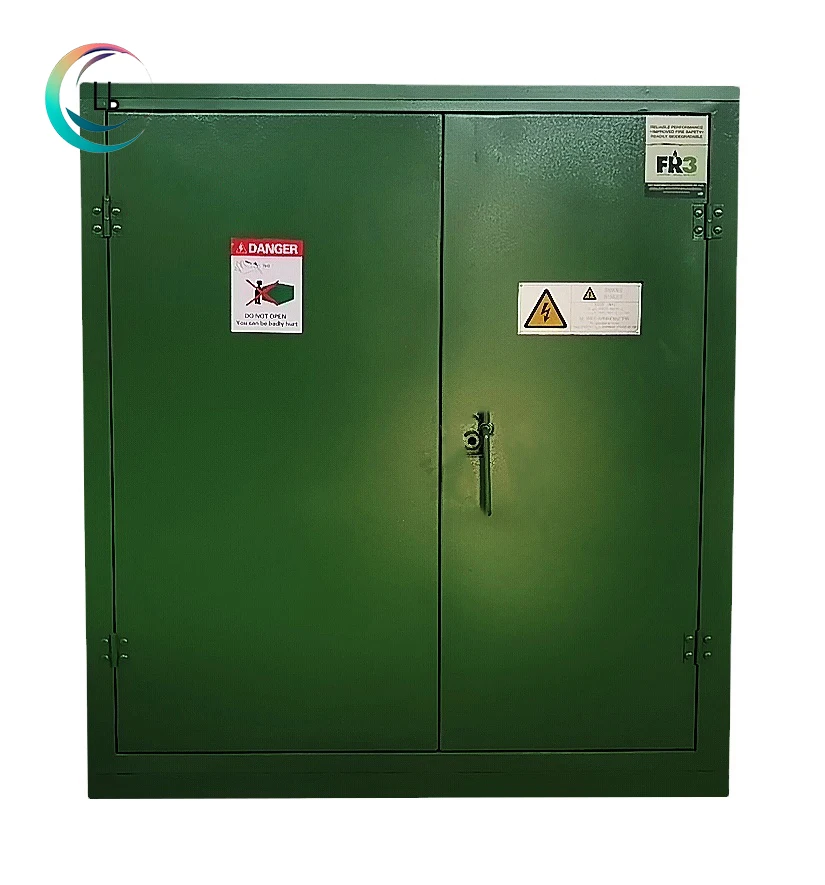

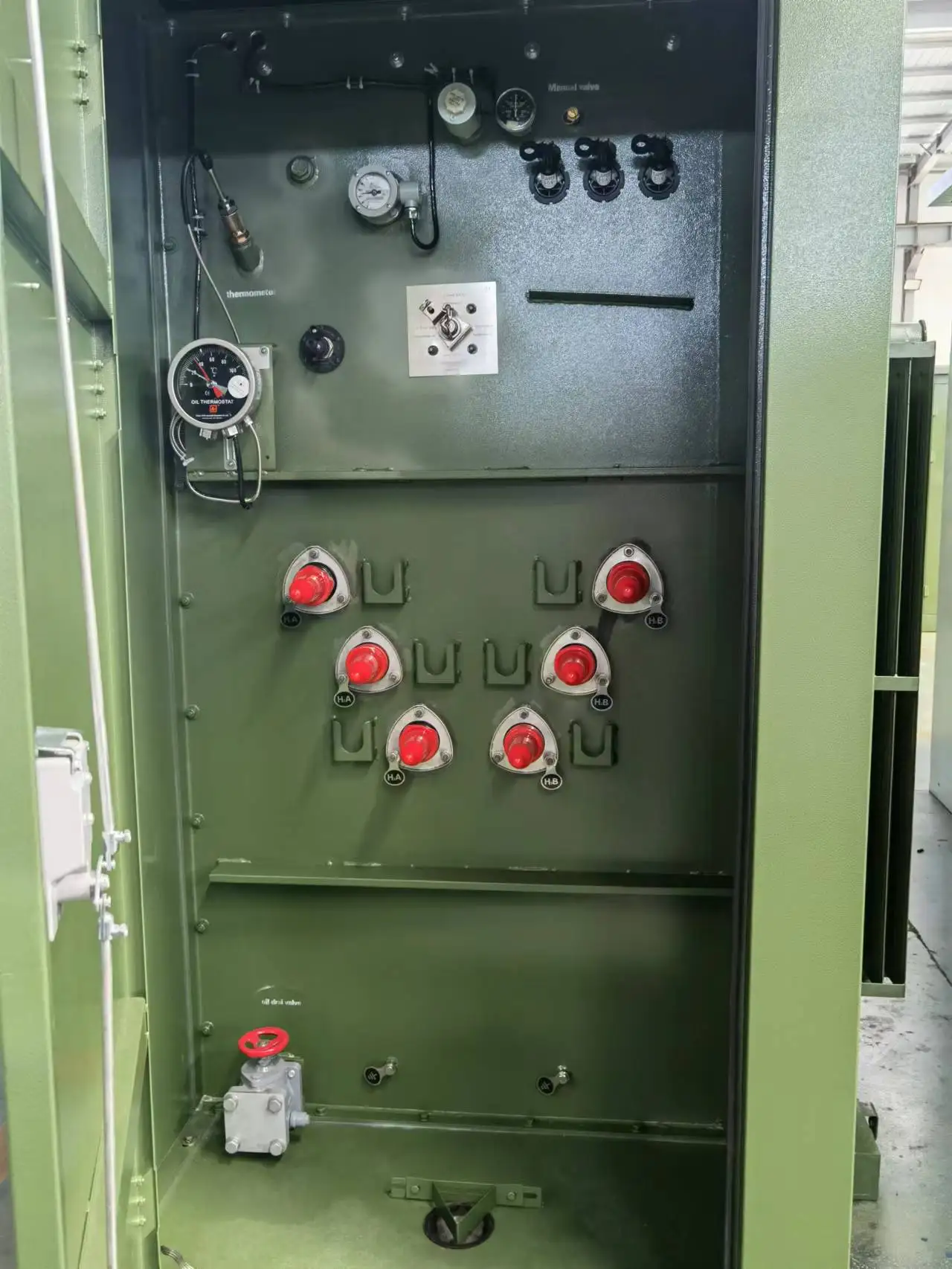

PRODUCT DISPLAY
Item | Unit | Parameter | ||||
HV | LV | Transformer | ||||
Rated Voltage | KV | 12 | 0.4 | 12/0.4 | ||
Rated Current | A | 125 | 2000 | |||
Rated Frequency | Hz | 50/60 | ||||
Rated Capacity | KVA | ≤1250 | ||||
Rated Short-time Power Frequency Withstand Voltage | KV | 42 | 2.5 | 35 | ||
Rated Lightning Impulse Withstand Voltage | KV | 75 | 8 | 75 | ||
Rated Short Circuit Drop-out Current | KA | 31.5 | ||||
Rated Short Circuit Closing Current | KA | 80 | ||||
Rated Peak Withstand Current(Ground loop) | KA | 31.5 | ||||
2S Rated Short-time Withstand Current(Ground loop) | KA | 12.5 | ||||
Protection Degree | IP54 | |||||
GERTIFICATE
EXHIBITION
TARGEIT MARKET

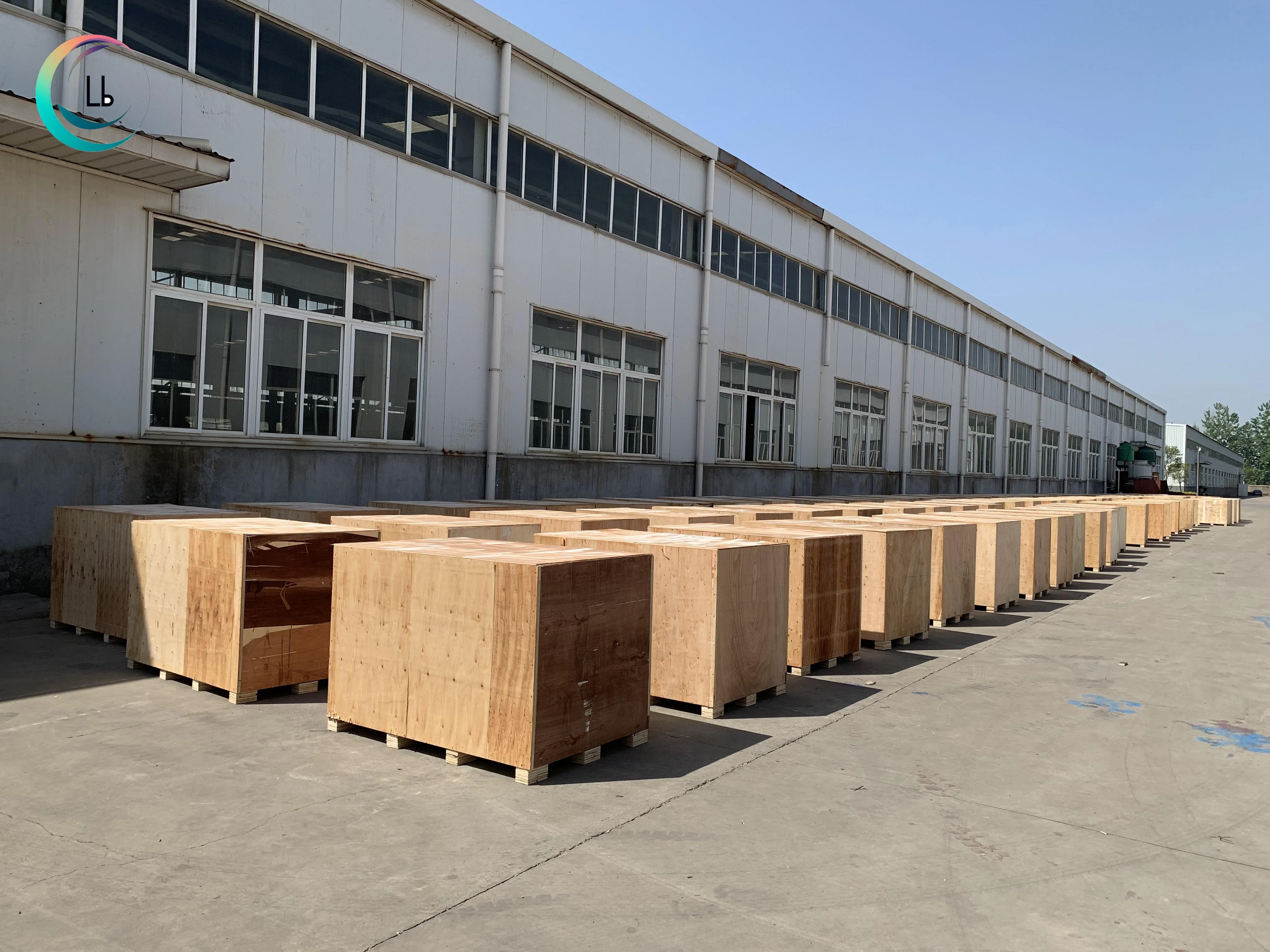

Packing&Delivery
FAQ
1.Who are we?
Our company, is a professional production of transformers, substations, high voltage, low voltage switchgear large-scale enterprises.
2.How can we guarantee quality?
Always send a sample of products before mass producing;
Always make a final Inspection before shipping.
3.What can you buy from us?
110kV-220kV Oil-immersed Power Transformer, Dry-type Transformer,Unpacked H Grade Dry Transformer,Oil-immersed Distribution Transformer, Pad-mounted Transformer,Enameled Wire,Composite Wire,Transposed Wire,Paper Covered Wire,Film Wrapped Wire.
4.Why should you buy from us not from other suppliers?
As an enterprise specializing in transformer production for 10 years, we have high quality, fast delivery, guarantee after-sales service and factory price. What's more, we have ISO9001-2008, OHSAS 18001:2007, ISO4001:2004L certificates and IEC, ANSI, KEMA, GOST standard.
5.What services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese.
