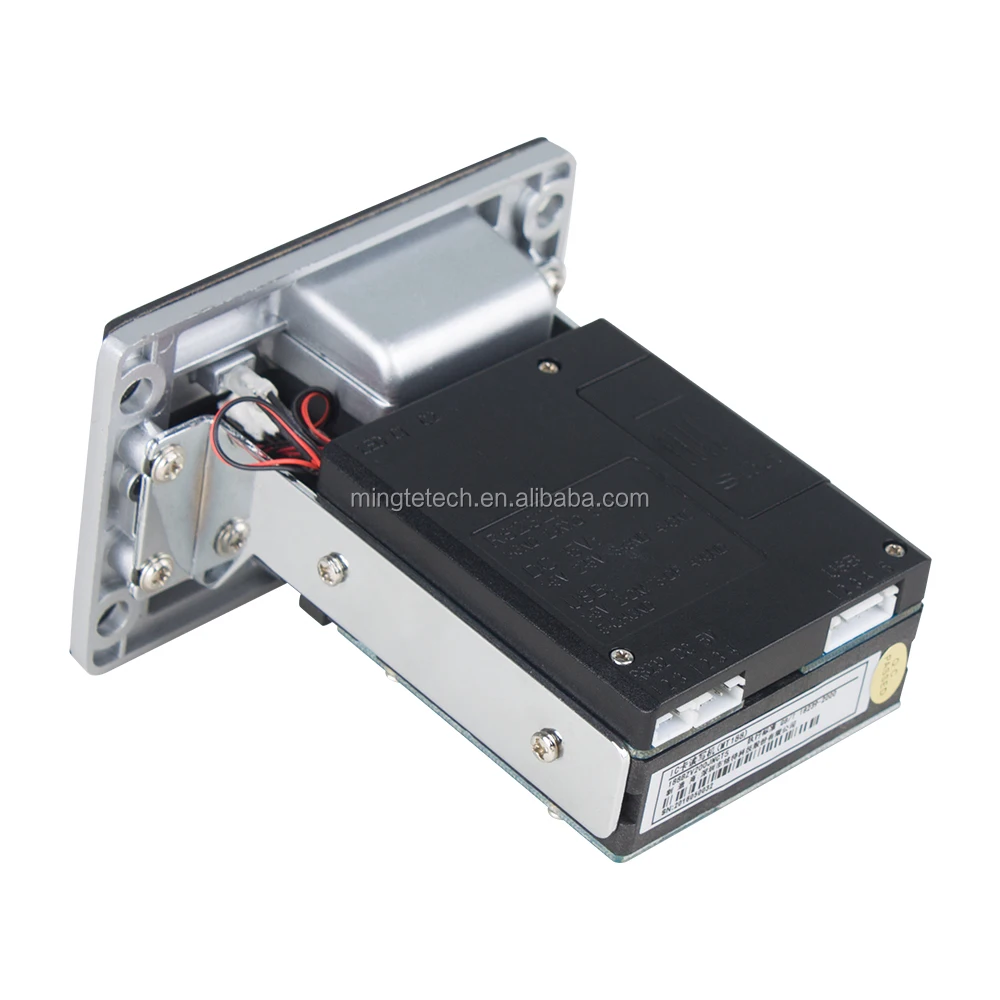

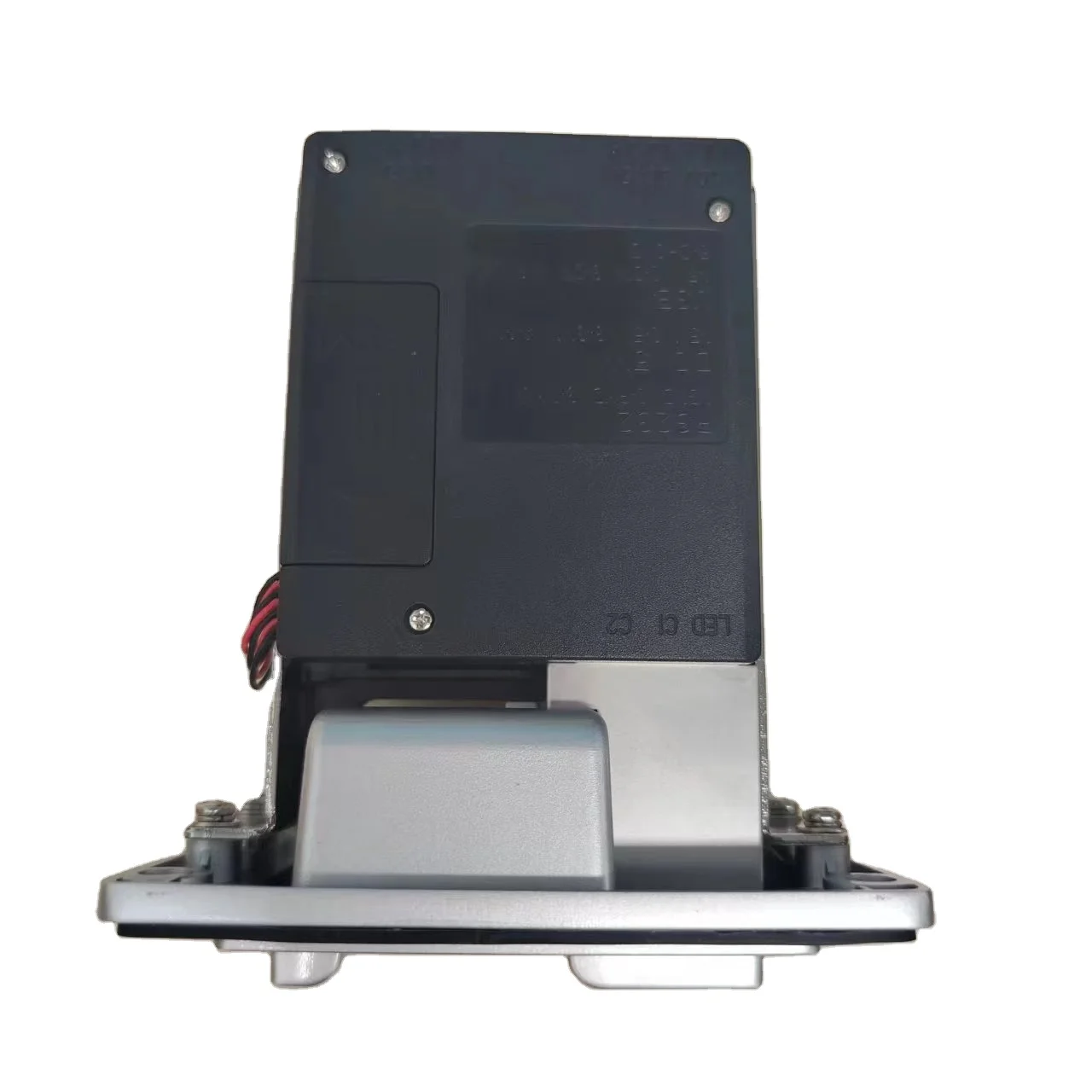

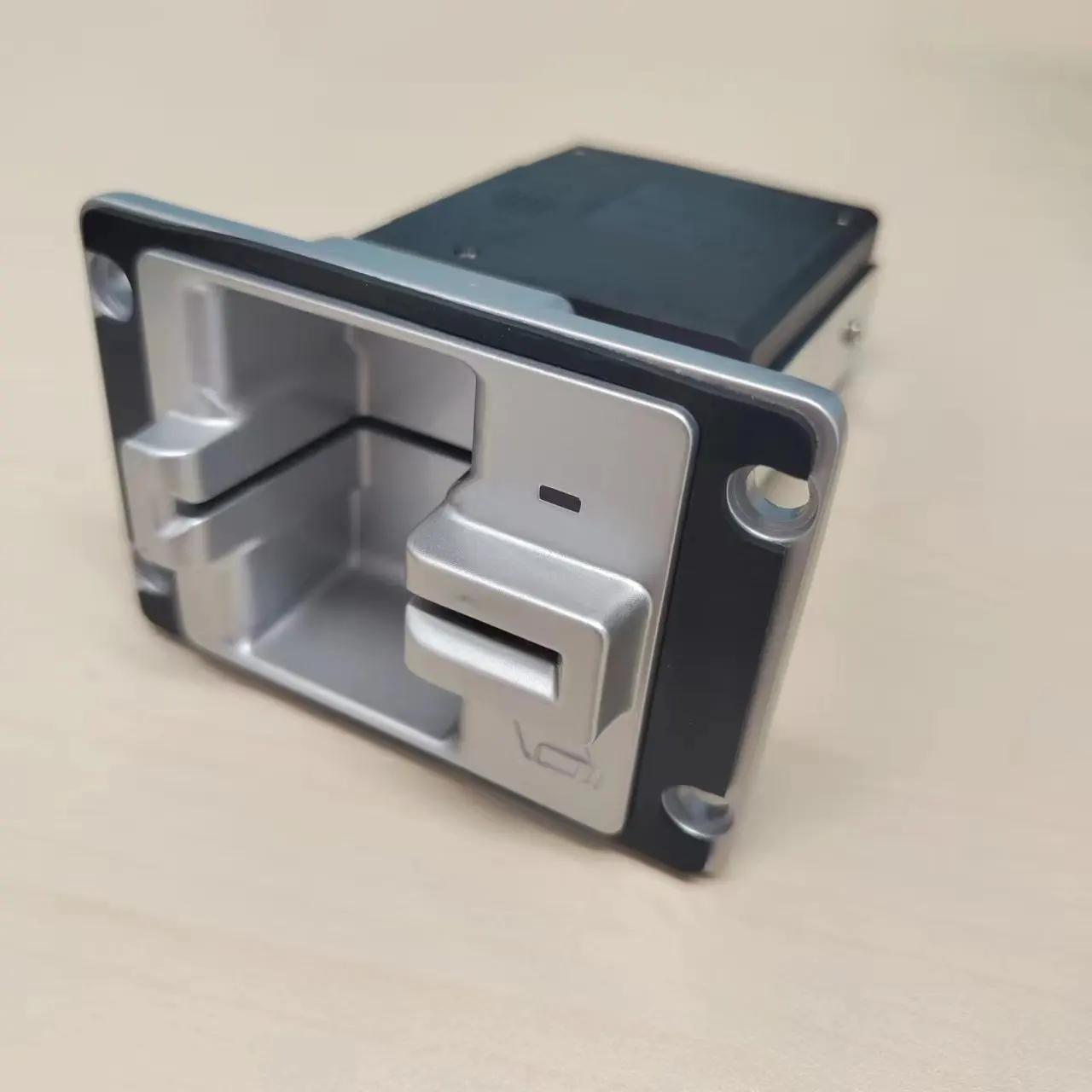

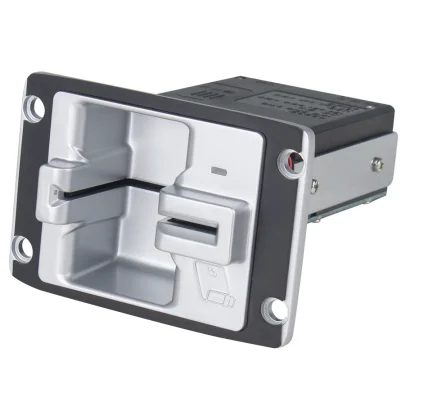

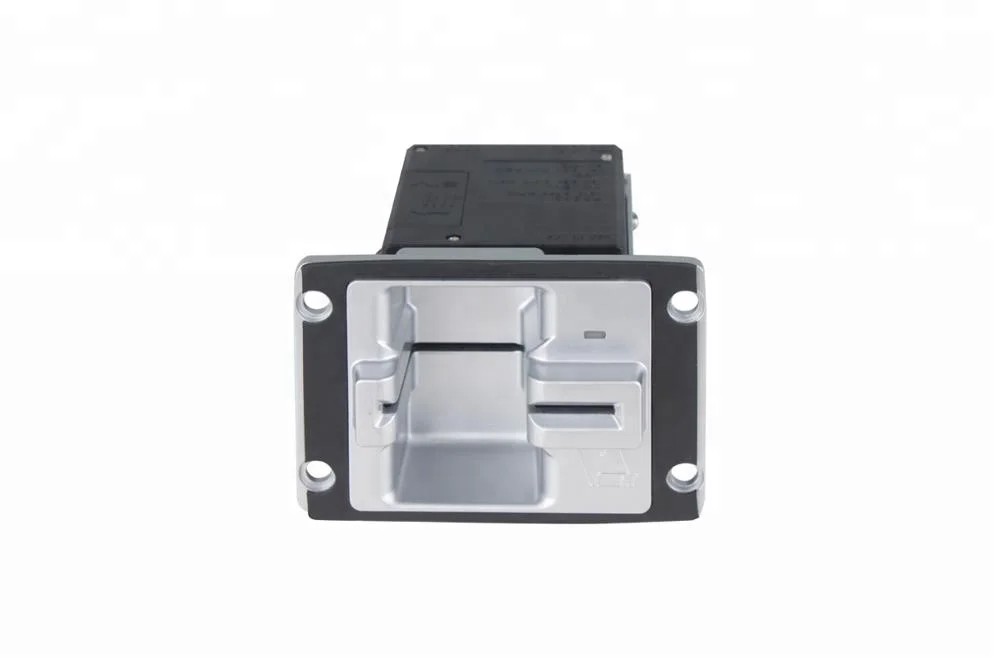

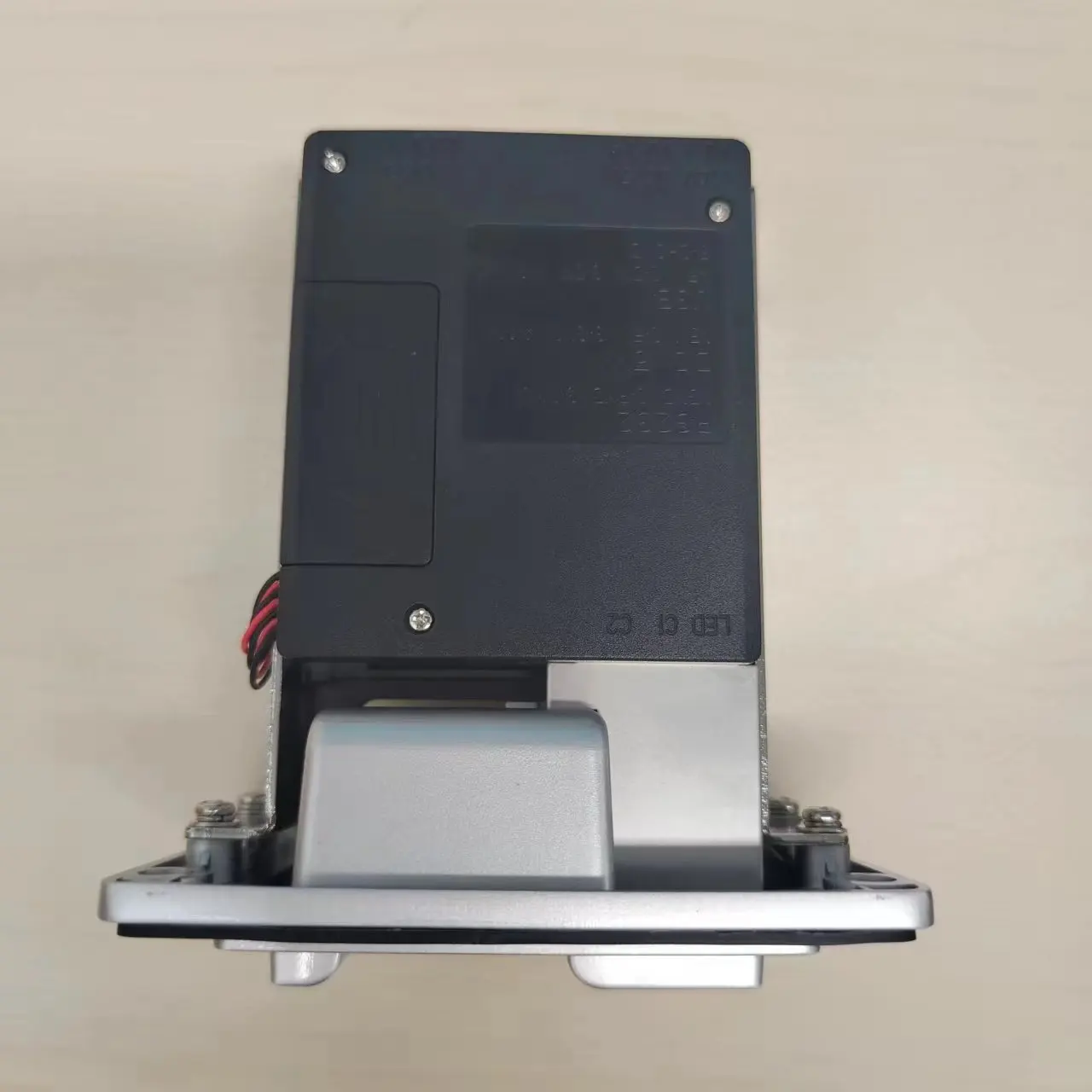

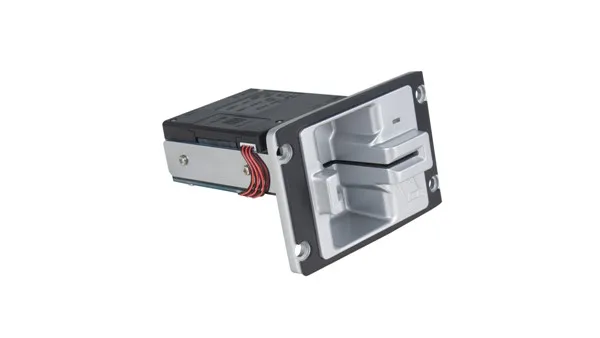

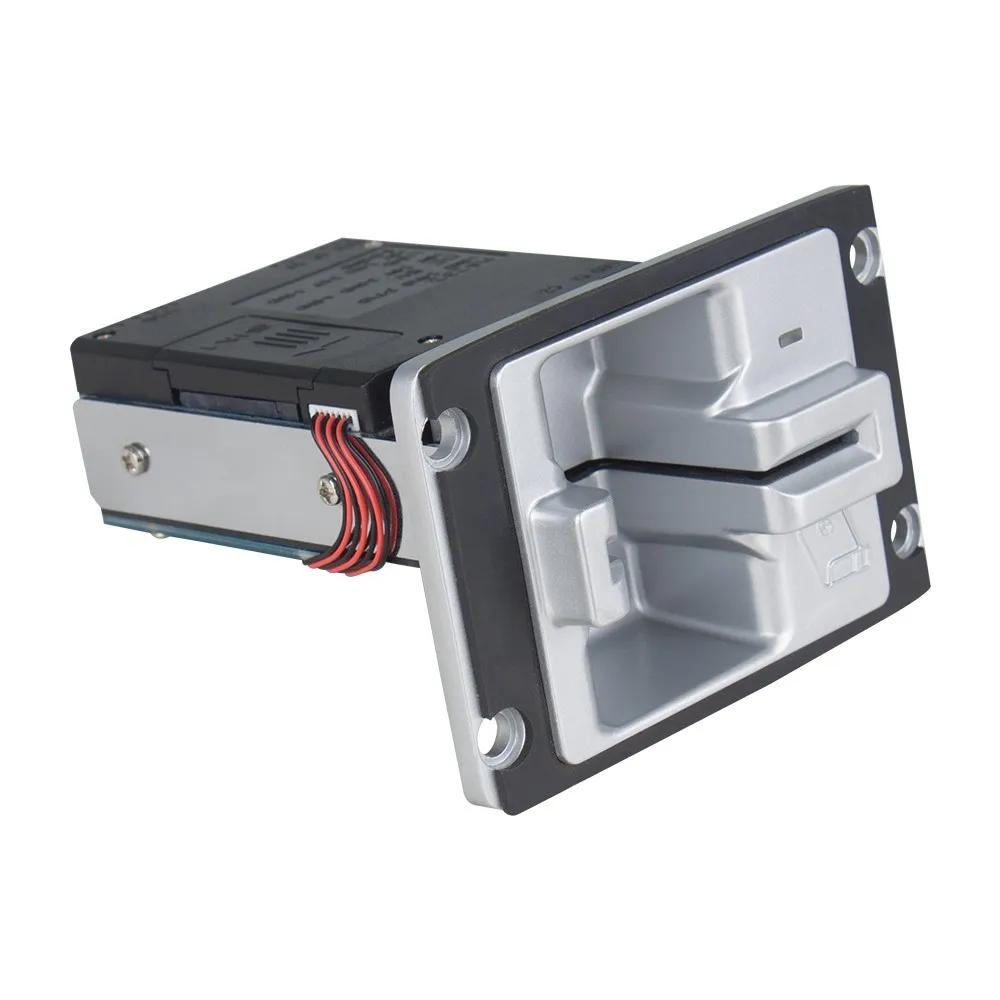

Manual Insert Type Mini Kiosk Vending Machine Magnetic IC RFID Smart Chip ID Card Reader MT188
- Category: >>>
- Supplier: Shenzhen Mingte Tech Co. Ltd.
Share on (1600890368648):
Product Overview
Description
Overview
The manual full insertion card reader MT188 can read IS0 7810/7811 magnetic strip card, read & write ISO7816 smart card and ISO14443 Type A & B contactless IC cards, and be used in various fields, including Kiosk Terminals, Fuel Dispensers, CNG Dispensers, Parking Systems, Ticketing Machines, and Vending Machines etc.
Products Description
Features
* Compact & light, high reliability & durability
* Support magnetic card (ISO7810 & ISO7811)
* Support contact IC card (ISO7816)
* Support contactless IC card (ISO14443)--optional
* Support PSAM & ESAM card (ISO7816)
* Supplied with 1 SIM card slot (PSAM)
* Clog-proof, dust-proof, good environmental adaptability
* Various interface (customized)
* With multi bezel (optional)
* Support magnetic card (ISO7810 & ISO7811)
* Support contact IC card (ISO7816)
* Support contactless IC card (ISO14443)--optional
* Support PSAM & ESAM card (ISO7816)
* Supplied with 1 SIM card slot (PSAM)
* Clog-proof, dust-proof, good environmental adaptability
* Various interface (customized)
* With multi bezel (optional)
* EMV Level 1 and PBOC approved
Specifications | |||||||
Card Type | Magnetic cards Contact IC cards Contactless IC cards | ||||||
Magnetic Card | ISO7810/7811 | Track 1 | R | ||||
Printing Resolution | 384/432 dpi(8 dots/mm) | Track 2 | R | ||||
Printing Speed | >120mm/sec | Track 3 | |||||
IC Card | ISO7816 | R/W | |||||
PSAM/ESAM | |||||||
EMV | Level 1 Approved | ||||||
Contactless IC Card(optional) | ISO14443 TYPE A&B&MIFARE | R&W | |||||
Card Reading Direction | Options for Reading by Card Inserting or Ejection | ||||||
Card Inserting Direction | Magnetic Strip on Right Side, Dual-Side Reading | ||||||
Hi-co & Low-co Card Reading | Support | ||||||
Lifetime | ＞500000 Cycles | ||||||
Interface | RS-232/USB | ||||||
Power Supply | DC5v±5% | ||||||
Current | Static Current: ≤50mA(5V) Max Current:≤150mA(5V) | ||||||
Working Temperature | -20-+55℃ | ||||||
Weight | Approx 353g | ||||||

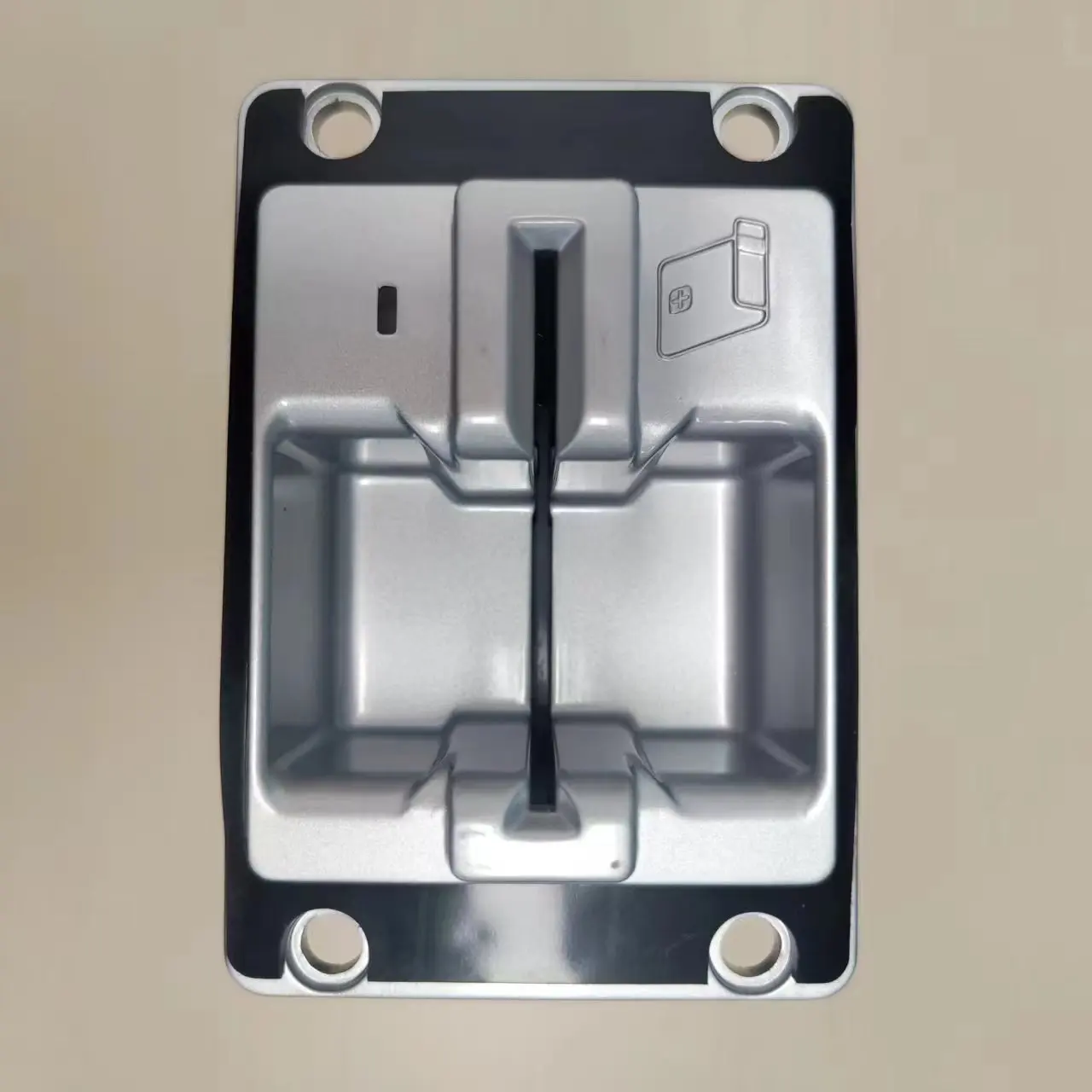

Remark | With Shutter & Multi Bezel | ||||||
Applications
Cables

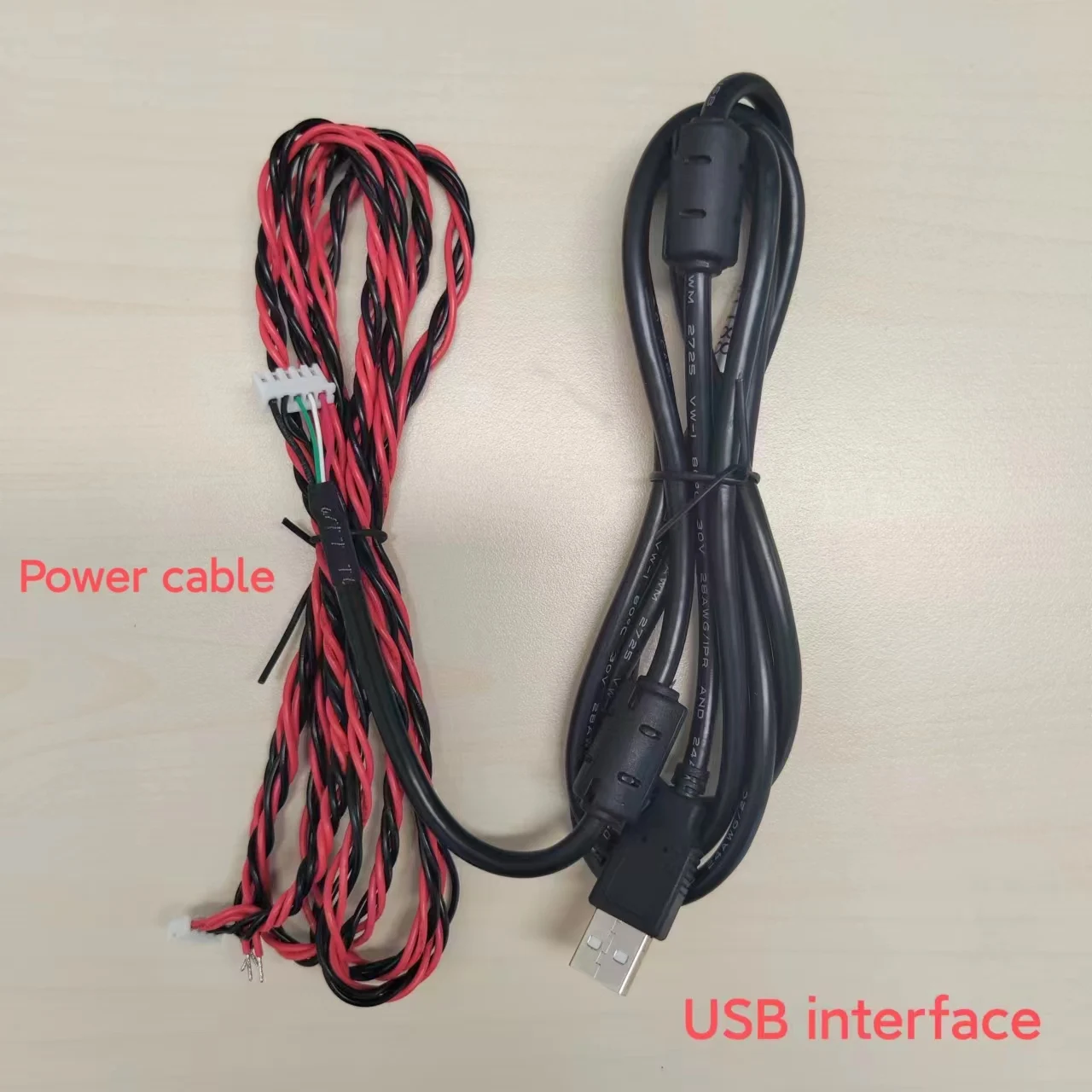

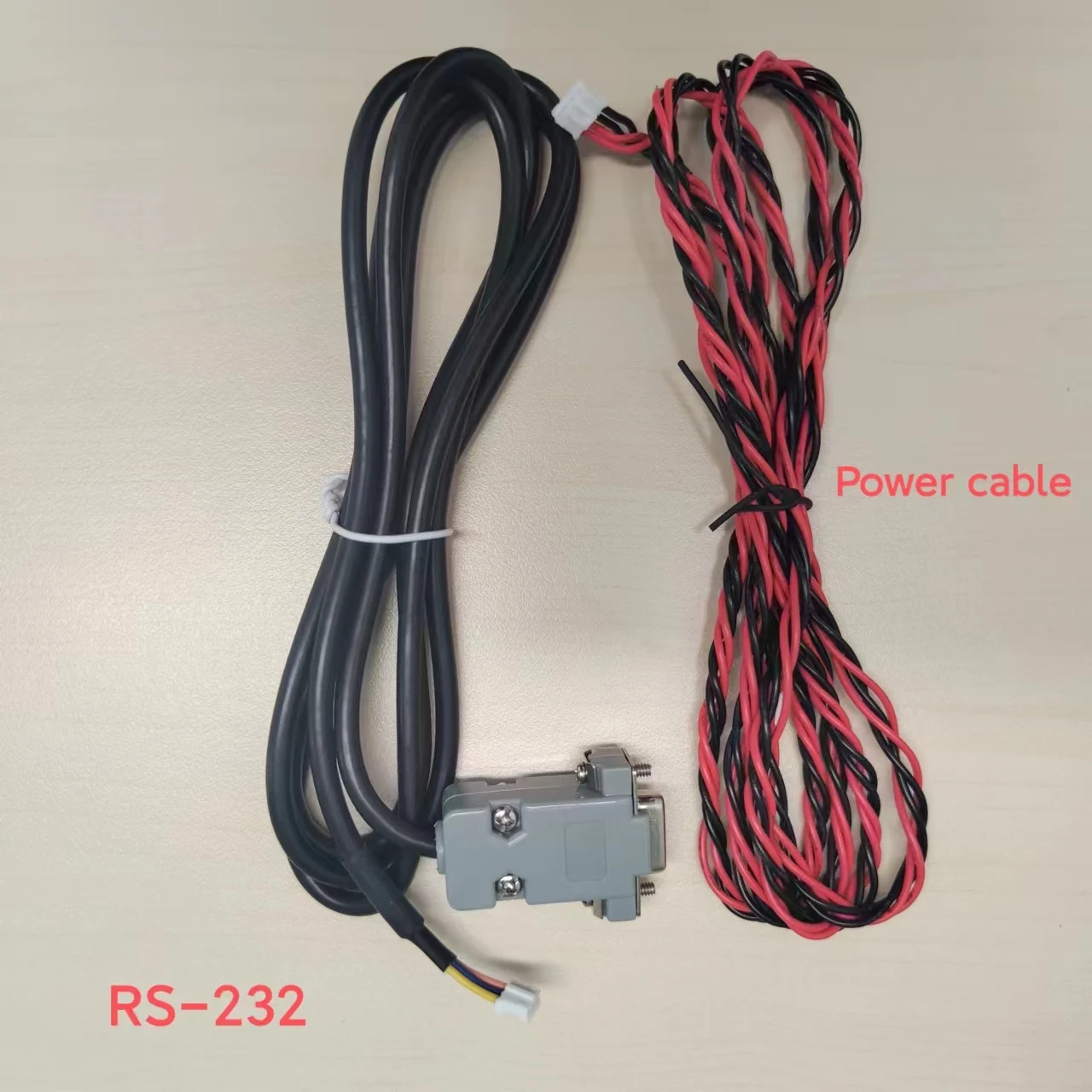

Power cable: 1.5m
Communication cables(optional): RS-232/USB interface 1.5m

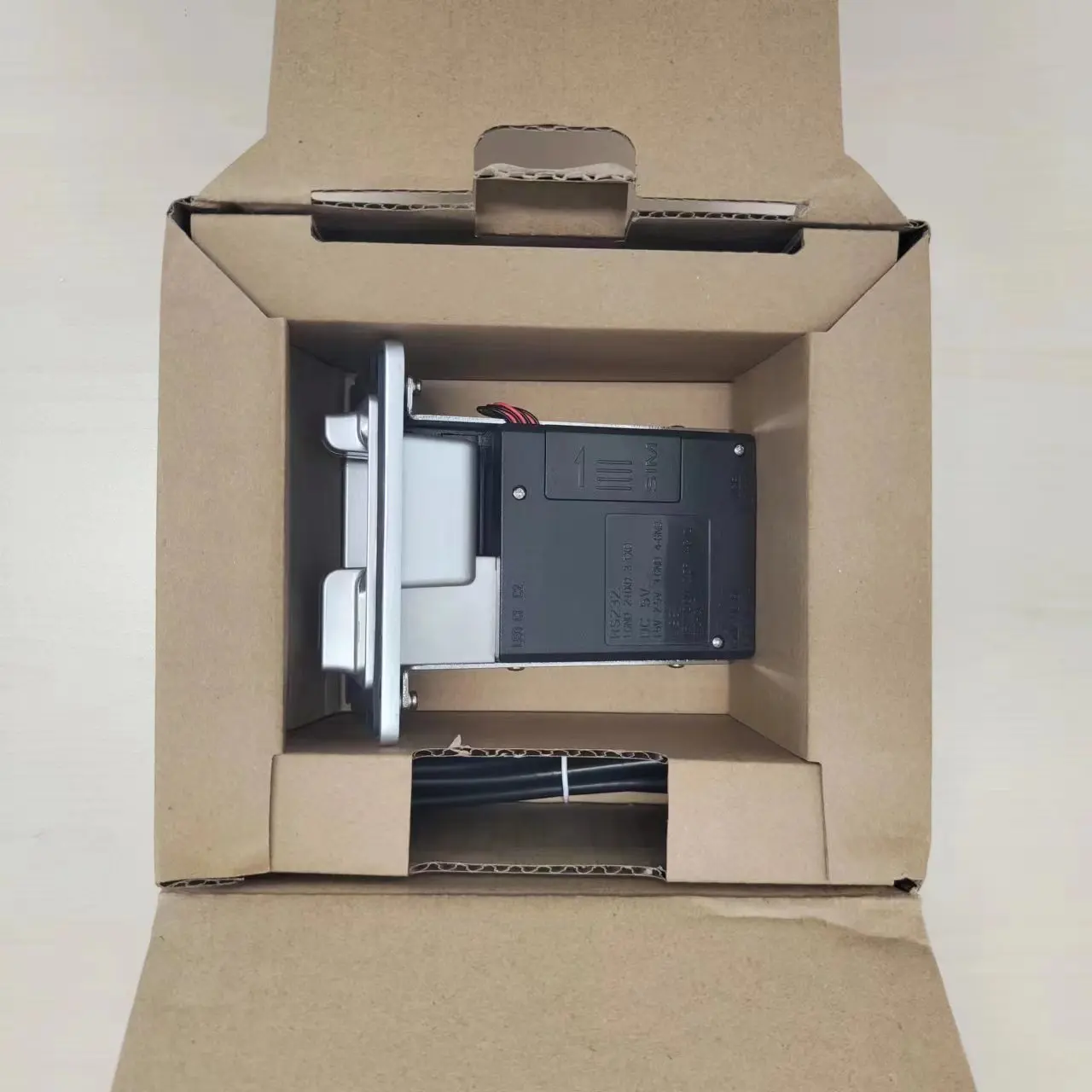

Packaging
Single package size: 16*18*8.5cm
Single item gross weight: 0.6kg
Carton package, 24 units in one carton
Carton package, 24 units in one carton
Application sites
* Kiosk Terminals
* Fuel Dispensers
* CNG Dispensers
* Parking management systems* Automatic card vending machines
* Ticket vending machines
* Highway card dispenser systems
* Fuel Dispensers
* CNG Dispensers
* Parking management systems* Automatic card vending machines
* Ticket vending machines
* Highway card dispenser systems
Product Services
Our Services
1.MINGTE provide high-quality products to customers (Every product will pass three times strict test before delivery)
2.MINGTE provide communication Protocol,SDK for customers to develop
3.MINGTE provide technical support to customers when they met problems in develop processing
4.MINGTE provide OEM products to customers
5.MINGTE provide a high efficiency team and pleasure purchase process to customers
2.MINGTE provide communication Protocol,SDK for customers to develop
3.MINGTE provide technical support to customers when they met problems in develop processing
4.MINGTE provide OEM products to customers
5.MINGTE provide a high efficiency team and pleasure purchase process to customers
Company Profile
Shenzhen Mingte Tech Co., LTD., founded in January 2005, and located in Fangda Plaza, Nanshan District, Shenzhen. As a wholly-owned subsidiary of the State-owned enterprise Kunming Yunnei Power Co., Ltd., Mingte now has 400 employees.
Mingte is a national high-tech and software enterprise integrating research and development, manufacturing, sales and service at national level. Mingte mainly devoted to providing customized payment solutions for industry customers, such as payment systems, self-service terminals, parking systems, refueling and gas, electric vehicles and other energy industries.
Mingte is a national high-tech and software enterprise integrating research and development, manufacturing, sales and service at national level. Mingte mainly devoted to providing customized payment solutions for industry customers, such as payment systems, self-service terminals, parking systems, refueling and gas, electric vehicles and other energy industries.
Our Factory
FAQ
Q1: What is the MOQ? Can we buy a sample for testing first?
A1: Certainly we accept sample orders, the MOQ is 1.
Q2: The delivery time?
A2: Sample orders:within 3 working days once payment received.
Bulk orders: it depends on our inventory, please consult in advance.
Q3: What’s the type of shipping?
A3: We cooperate with DHL, UPS, Fedex, EMS and so on, you can also choose your own forwarder.
Q4: How long is the warranty?
A4: Every product including all components supplied by MINGTE are warranted for 1 year based on our service center.
A1: Certainly we accept sample orders, the MOQ is 1.
Q2: The delivery time?
A2: Sample orders:within 3 working days once payment received.
Bulk orders: it depends on our inventory, please consult in advance.
Q3: What’s the type of shipping?
A3: We cooperate with DHL, UPS, Fedex, EMS and so on, you can also choose your own forwarder.
Q4: How long is the warranty?
A4: Every product including all components supplied by MINGTE are warranted for 1 year based on our service center.
