Window Outdoor Glass Transparent Led Film Display
- Category: >>>
- Supplier: Henan Guangzhiyuan Photoelectric Technology Co. Ltd.Henan Ltd.
Share on (1600890495956):
Product Overview
Description

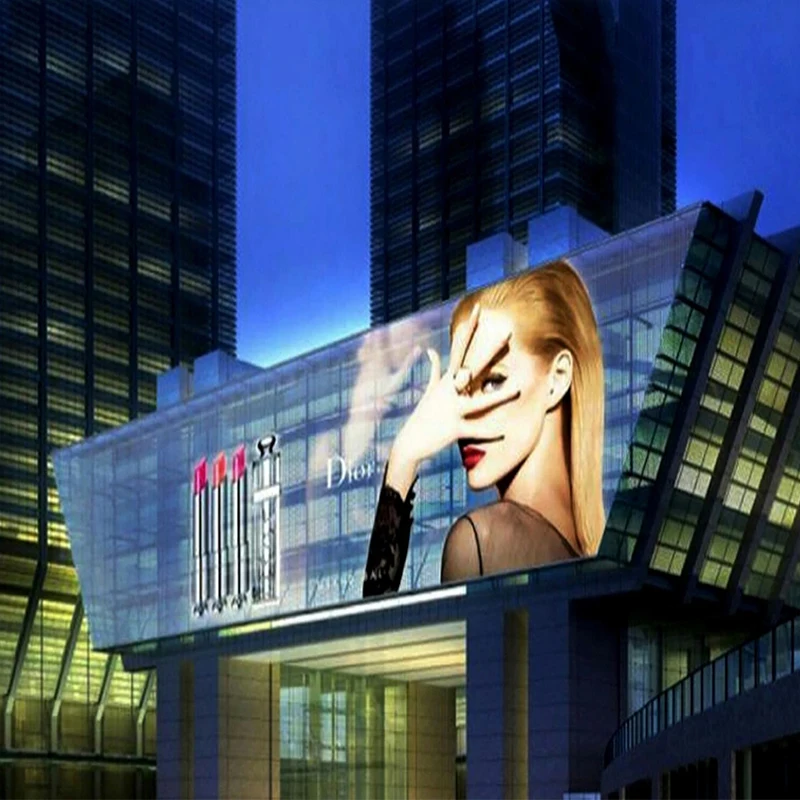

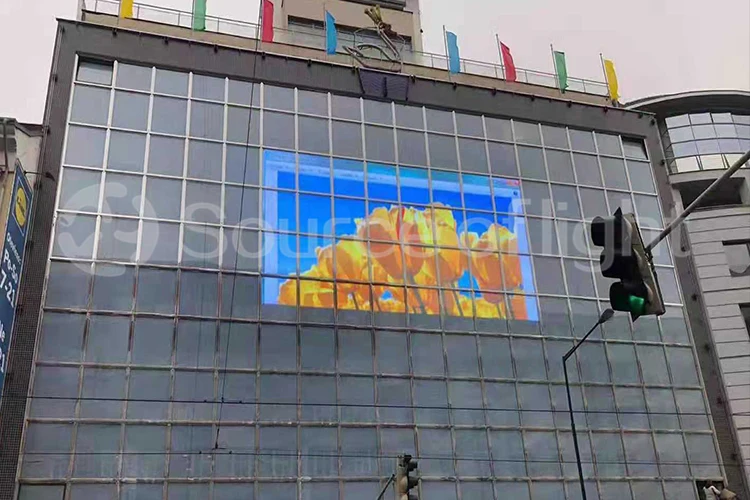

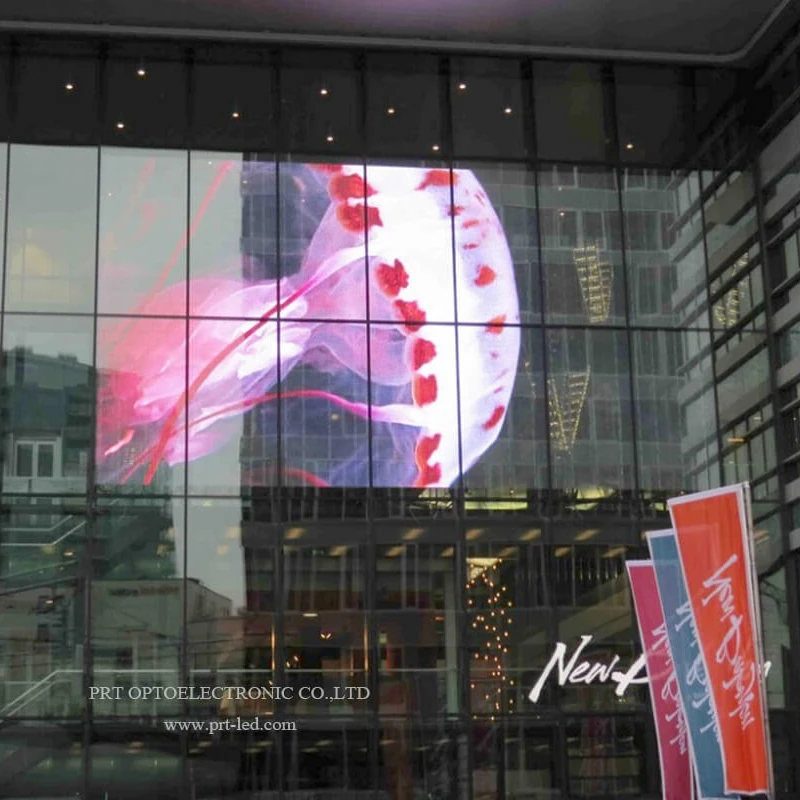

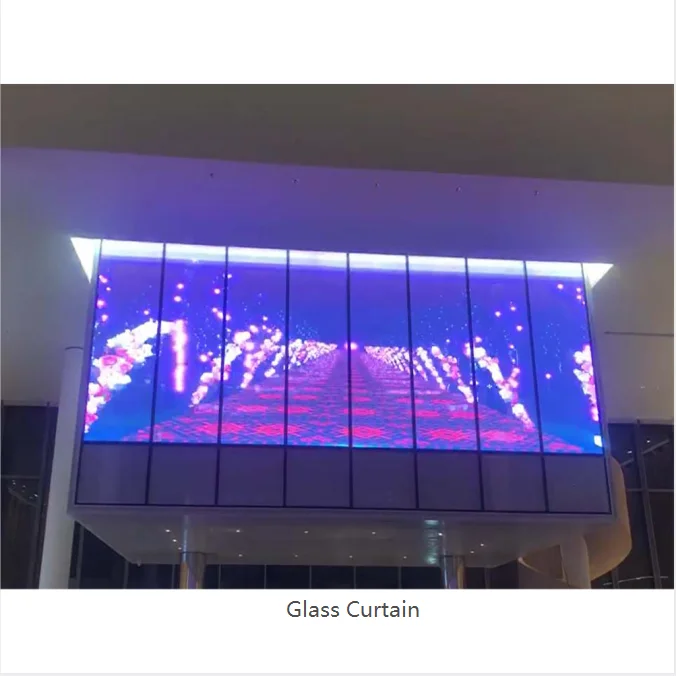

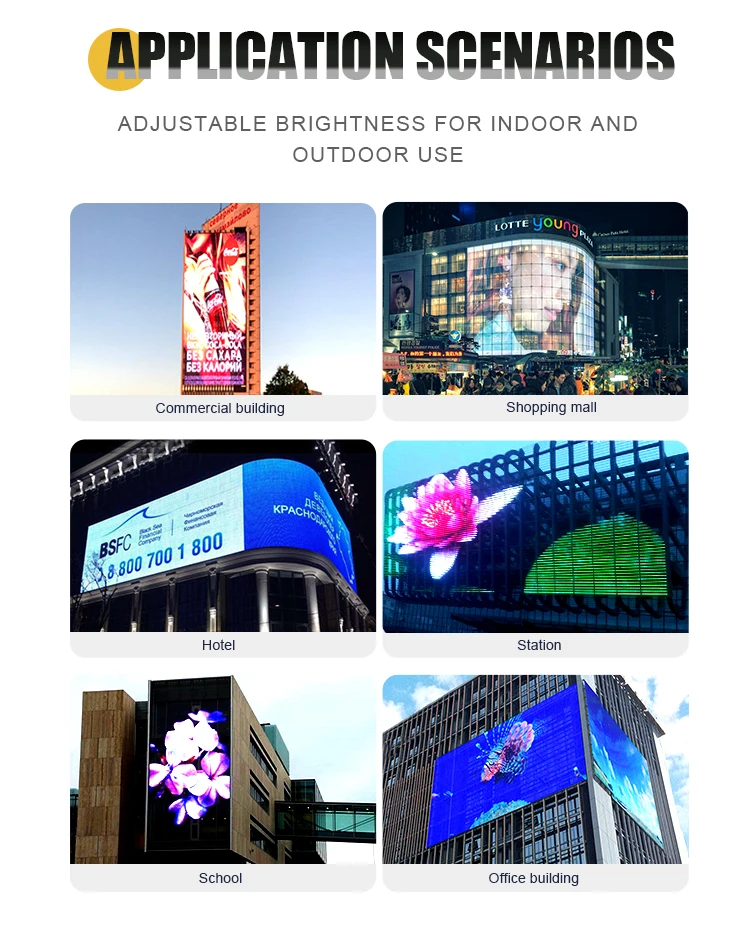

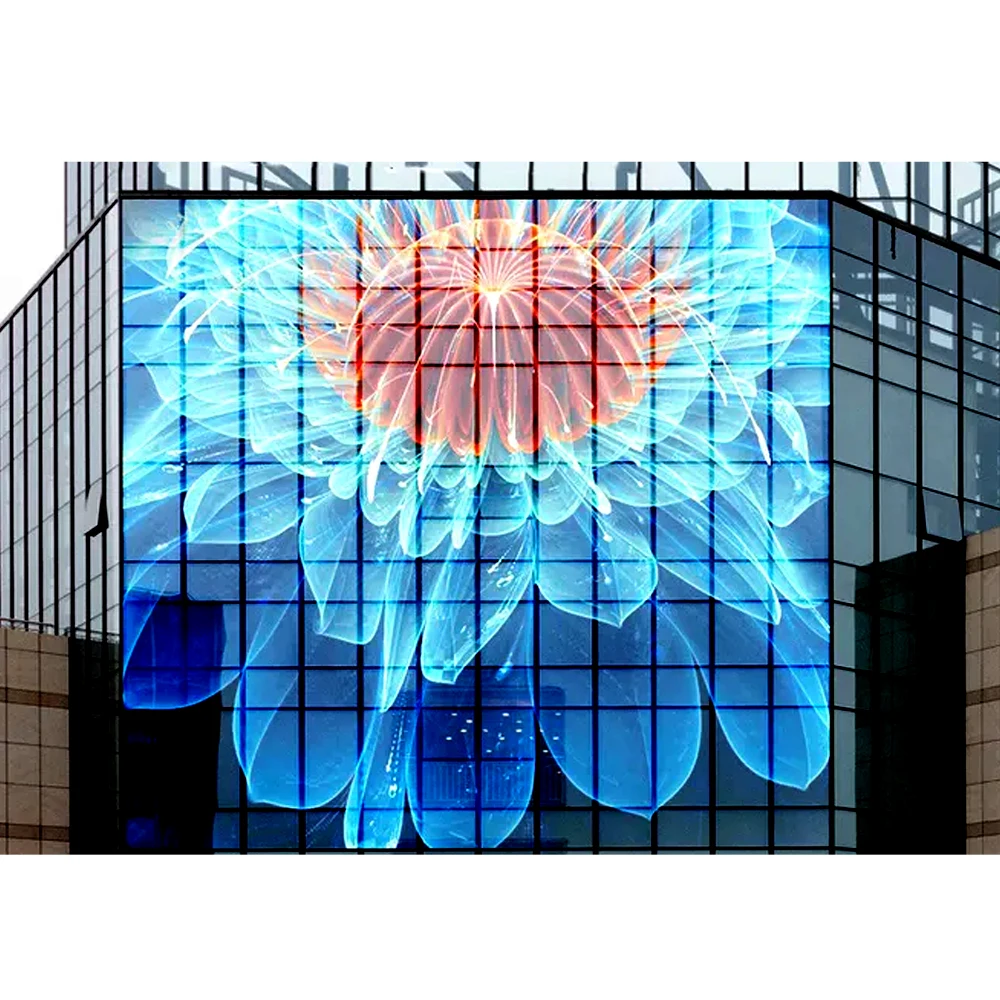

Application
Products Description

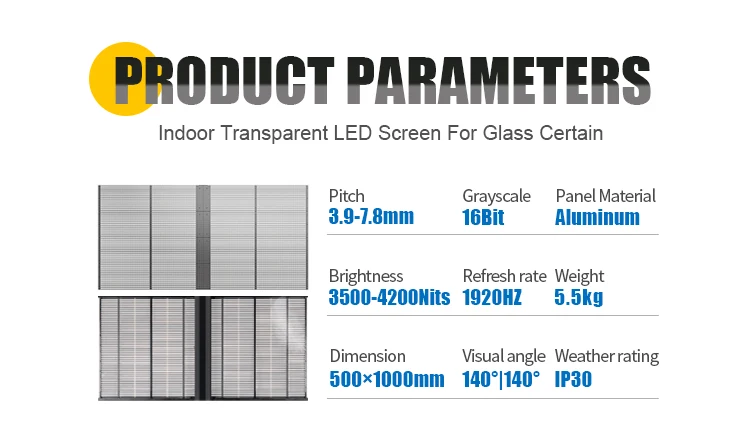

Transparent led display（indoor） | ||||||
Pixel Pitch | 3.91-7.81mm | 7.81-7.81mm | 10.42-10.42 mm | |||
LED Type | SMD1921 | SMD1921 | SMD2727 | |||
Module Size | 500mm*125mm | 500mm*125mm | 500mm*125mm | |||
Pixel Density | 32768 pixels/㎡ | 16384 pixels/㎡ | 9216 pixels/㎡ | |||
Refresh rate | ≥1920HZ | |||||
Gray Levele | 16 Bit | |||||
Brightnesse | ≥3000cd/㎡ | ≥2000cd/㎡ | ≥5000cd/㎡ | |||
Driving Methode | 1/8 | 1/8 | 1/2 | |||
Viewing Angle | H:110°;V:110° | |||||
Cabinet Resolution | 256*64 Dots | 128*64 Dots | 96*96 Dots | |||
Material | Die-casting | |||||

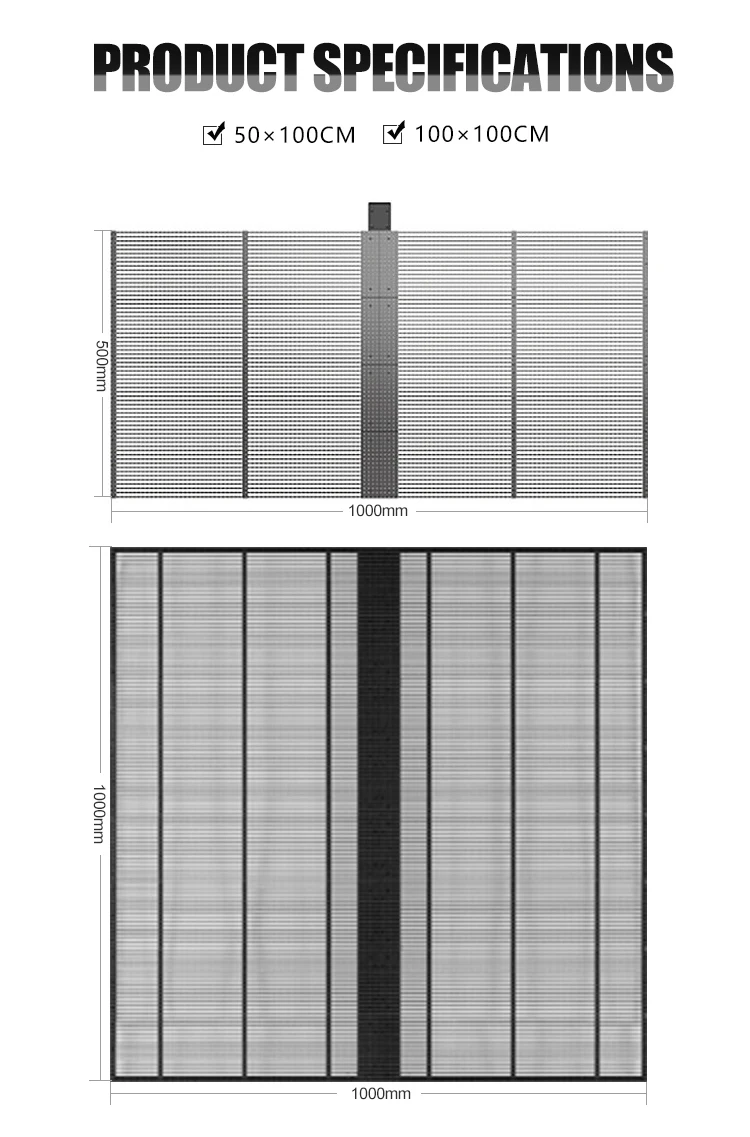

Cabinet Size | 1000mm*500mm | 1000mm*500mm | 1000mm*500mm | |||

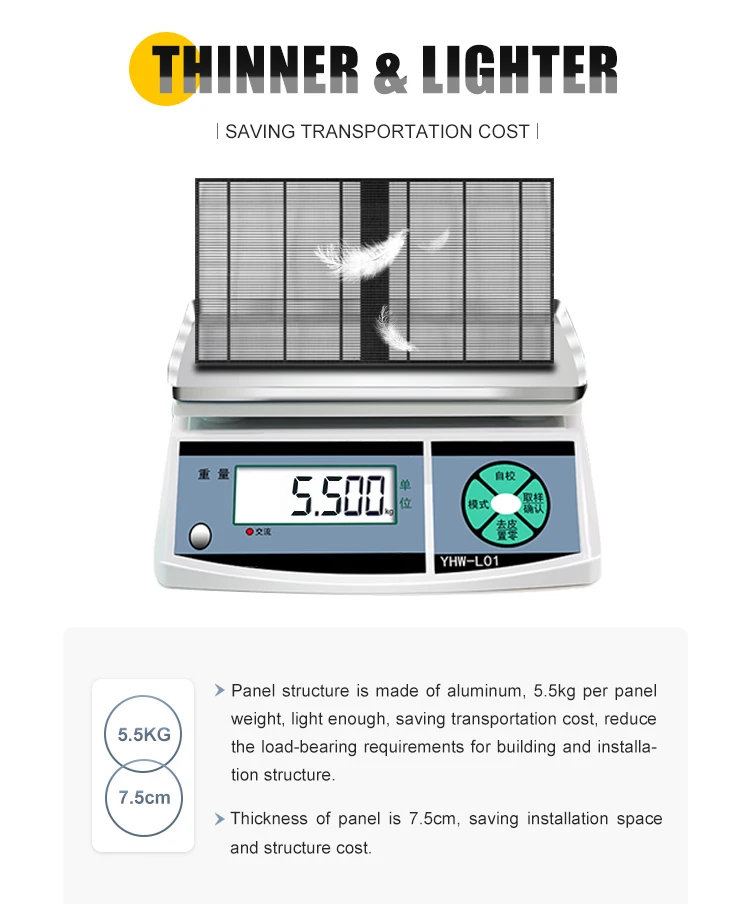

Cabinet Weight | 7 Kg | 7 Kg | 7 Kg | |||
IP Ratinge | IP43 | |||||
Avg.Power Consumption | 400W/Cabinet | 300W/Cabinet | 400W/Cabinet | |||

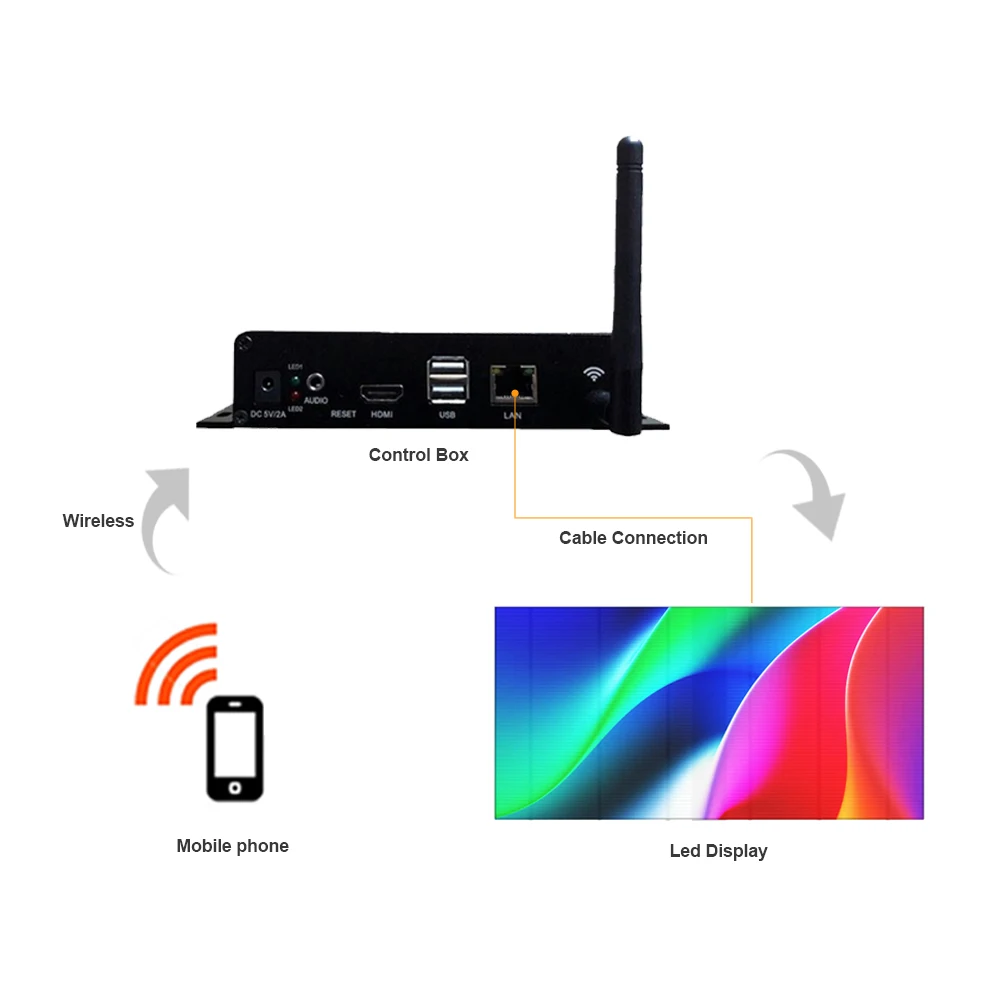

Control System | LINSN&NOVASTAR&MOONCELL | |||||
Operation System | Windows 98/me/2000 NT/XP/Win7 | |||||
Temperature-Operating | -20℃~60℃ | |||||
Humidity-Operating | 10%~90% RH | |||||
Input Voltage | 110 ~ 220 VAC;50 ~ 60 HZ | |||||
Defect Rate | ≤0.0001 | |||||
Life span | 35,000 Hrs./100,000 Hrs. | |||||

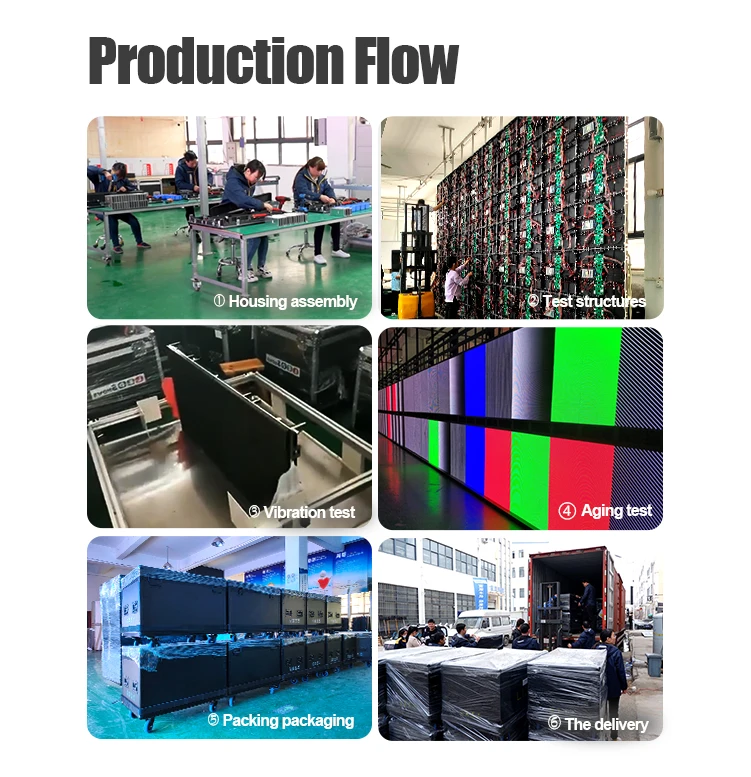

Production and Shipment
Why Choose Us

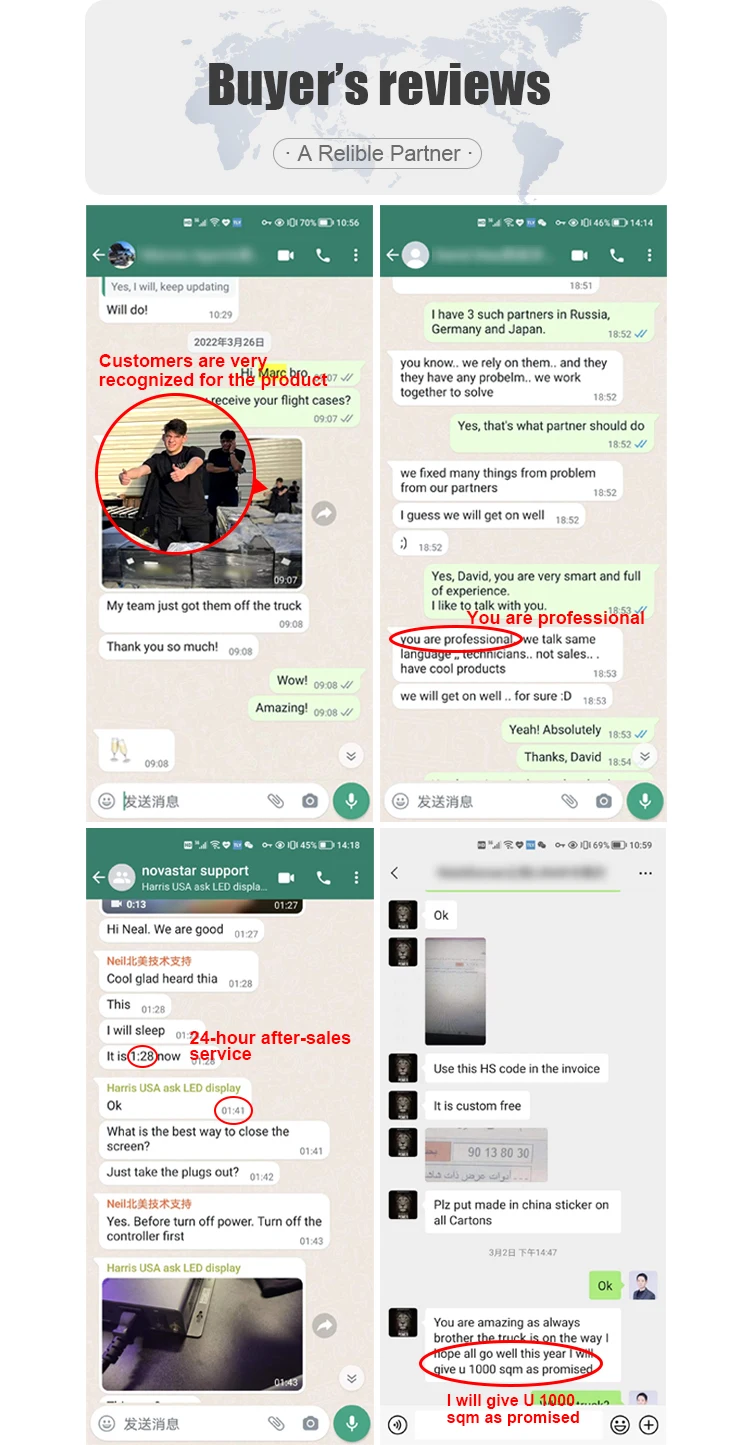

Customer Reviews

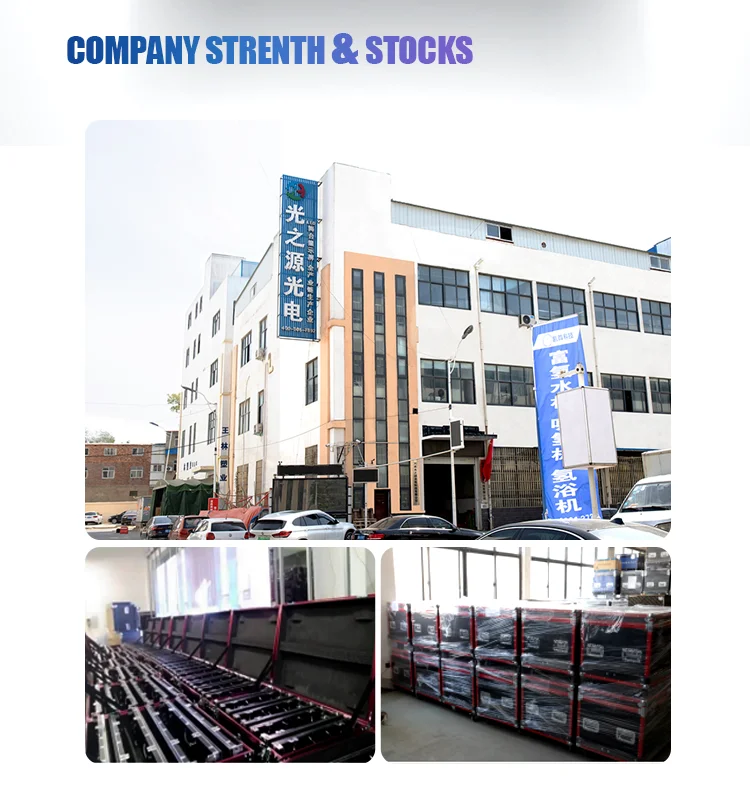

Company Profile
