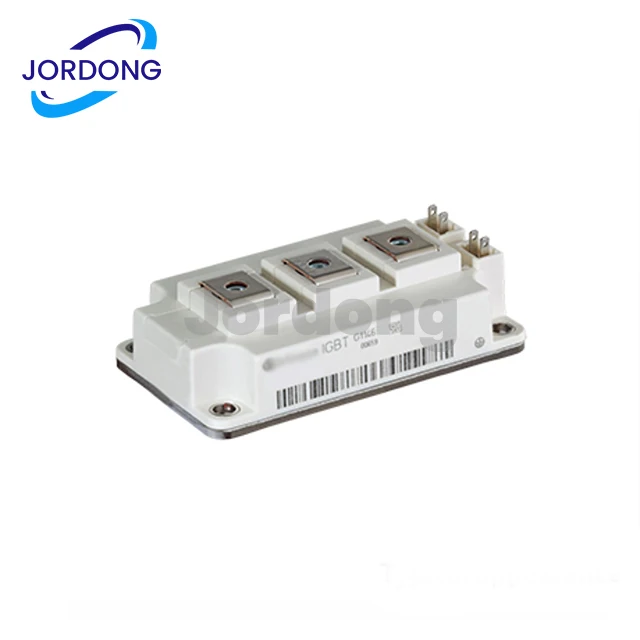

JORDONG IGBT3 T3 AG-62MM-1 Industrial Drive Transportation IGBT Modules FF400R12KT3
Product Category | IGBT Modules |
Product | IGBT Silicon Modules |
Configuration | Dual |
Maximum Collector-Emitter Voltage VCEO | 1.2 kV |
Collector-emitter saturation voltage | 1.7 V |
Continuous collector current at 25 C | 580 A |
Gate-emitter drain current | 400 nA |
Pd-power dissipation | 2000 W |
Package / Case | 62 mm |
Minimum operating temperature | - 40 C |
Maximum operating temperature | + 125 C |
Package | Tray |
Height | 30.9 mm |
Length | 106.4 mm |
Maximum gate/emitter voltage | 20 V |
Mounting Style | Chassis Mount |
Product Type | IGBT Modules |
Series | IGBT3 - T3 |
Subcategory | IGBTs |
Technology | Si |
Width | 61.4 mm |
Part Number Alias | SP000100791 FF400R12KT3HOSA1 |
Unit weight | 337 g |
The FF400R12KT3 is a high-power and high-performance IGBT module designed for various high voltage and high current applications. It offers exceptional power handling capabilities and efficient energy conversion. Here are some key features and applications of the FF400R12KT3:
Key Features:
High power density with low thermal resistance: The FF400R12KT3 module is capable of delivering high power output while maintaining low thermal resistance, ensuring efficient heat dissipation and system reliability.
Low on-state voltage drop: It exhibits a low on-state voltage drop, minimizing power losses and improving overall system efficiency.
Fast switching speed: The module is equipped with fast switching capabilities, enabling rapid and precise control of power flow in high-frequency applications.
High blocking voltage: The FF400R12KT3 can withstand high blocking voltages, making it suitable for high-voltage applications where reliable insulation is required.
Key Features:
High power density with low thermal resistance: The FF400R12KT3 module is capable of delivering high power output while maintaining low thermal resistance, ensuring efficient heat dissipation and system reliability.
Low on-state voltage drop: It exhibits a low on-state voltage drop, minimizing power losses and improving overall system efficiency.
Fast switching speed: The module is equipped with fast switching capabilities, enabling rapid and precise control of power flow in high-frequency applications.
High blocking voltage: The FF400R12KT3 can withstand high blocking voltages, making it suitable for high-voltage applications where reliable insulation is required.
