Product Overview
Description
Products Description
Heyuan Direct Selling Smart Digital Three Phase Multifunction Din Rail Electricity Energy Meter

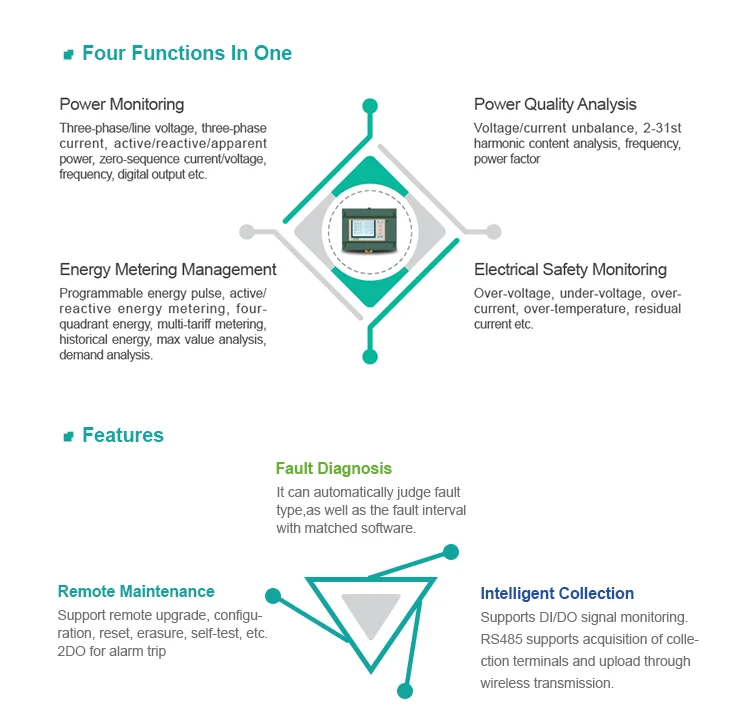

HYFW Three-phase Multi-functional Smart Power Meter is used for measuring, monitoring, and controlling the power distribution system. HYFW Three-phase Multi-functional Smart Power Meters have great extended functions, which connect measuring, analyzing, and controlling together, and make the work become easier. It is widely used in energy distribution sites, energy management systems and intelligent on-line monitoring systems of different industries.
Technical Parameters
Basic Electric Parameters:
three-phase voltage, three-line voltage, three-phase current, zero-sequence current, active power, reactive power, apparent power, demand, multi-tariff, Bidirectional energy recording(active energy, reactive energy).
Electrical Safety:
off-limit alarm (under voltage, over voltage, over current, over temperature)(4 channels of temperature detection with RJ45
interface), 1 channel of leakage detection.
interface), 1 channel of leakage detection.
Power Quality Analysis:
voltage unbalance, current unbalance, voltage deviation, frequency deviation, voltage qualification rate.
Others:
2.0 inch 320*240 color LCD screen
2 DI 2 DO(Connection capacity AC220V/5A or DC30V/5A)
2 DI 2 DO(Connection capacity AC220V/5A or DC30V/5A)
SOE event record(128)
Energy pulse
Energy pulse
Technical Parameters | ||||
Accuracy Class | Voltage:0.2, Current:0.2, Frequency:0.05Hz, Power factor:0.5 | |||
Active power:0.5, Reactive power:0.5, Appearent power:0.5 | ||||
Active energy: 0.5/1, Reactive energy: 2 | ||||
Input | Rated Value | Voltage: 100/400V; Current: 100mA/5A | ||
Overload | Voltage: Sustained Overload: 1.2 times of the rated value Momentary Overload: 2 times of the rated value Current: Sustained Overload: 1.2 times of the rated value Momentary Overload: 2 times of the rated value | |||
Frequency | 45-60Hz | |||
Functional Module | Pulse output | 1 | ||
Interface | 1* RS485; Modbus RTU communication protocol; Baud rate: 1200-19200bps(default:9600) | |||
DI | 2 | |||
DO | 2 (AC250/5A, DC30V/5A) | |||
Power Supply | Working Range | AC: 85-265V; DC: 85-300V | ||
Consumption | < 3W | |||
Working Condition | Temperature | Operating: -20℃~+70℃ Storage: -40℃~+80℃ | ||
Humidity | Relative Humidity: <93% (place without corrosive gas) | |||
Altitude | <4000m | |||
Dimension | 117×91×58.5mm | |||
Installation | Din Rail 35mm installation | |||

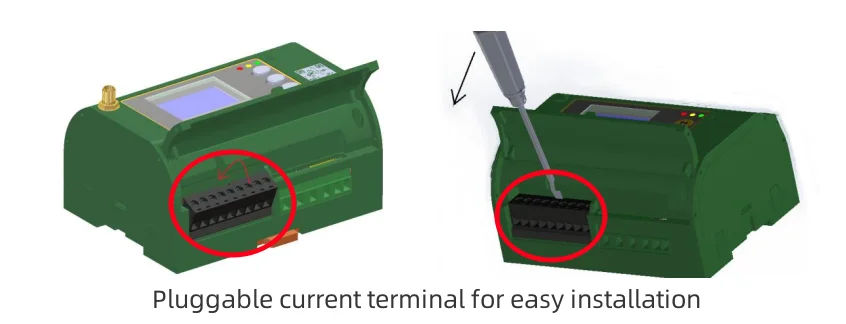

Product Detail Show

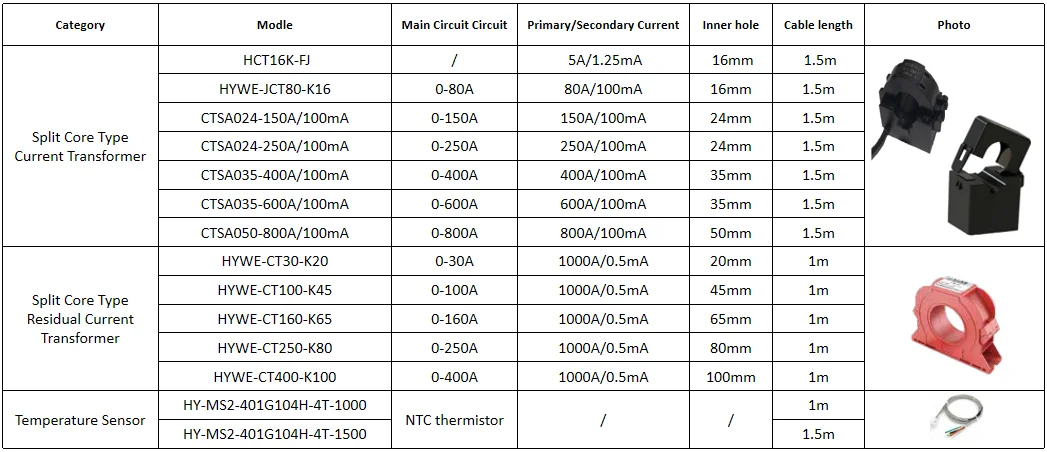

Accessory

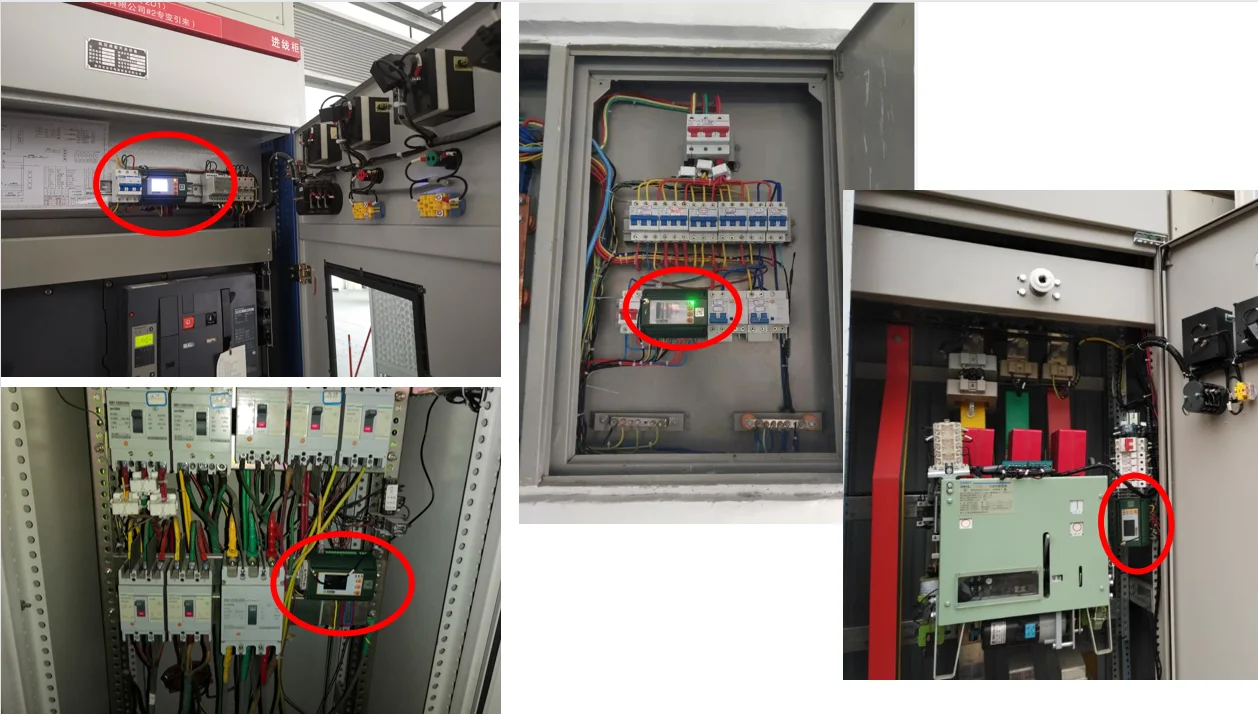

Application Sites
Company Profile
FAQ
1. How can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment;
2.What can you buy from us?
2.What can you buy from us?
Smart energy meters, wireless data transmission terminals, smart gateways,wireless sensors, energy management software;
3.Why should you buy from us not from other suppliers?
3.Why should you buy from us not from other suppliers?
Quality is our Culture. 24*7*365 Service on line.
With us,your Money will be safe as in your own pocket.
Free samples could be provided.
Trade assurance order accept.
Having a 10 person superb technical team.
Fast delivery & best after sell service.
Free samples could be provided.
Trade assurance order accept.
Having a 10 person superb technical team.
Fast delivery & best after sell service.
4. What services can we provide?
Accepted Delivery Terms:
FOB,CFR,CIF,EXW,FCA,DDP,DDU,Express Delivery；
FOB,CFR,CIF,EXW,FCA,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,D/P,D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Japanese
