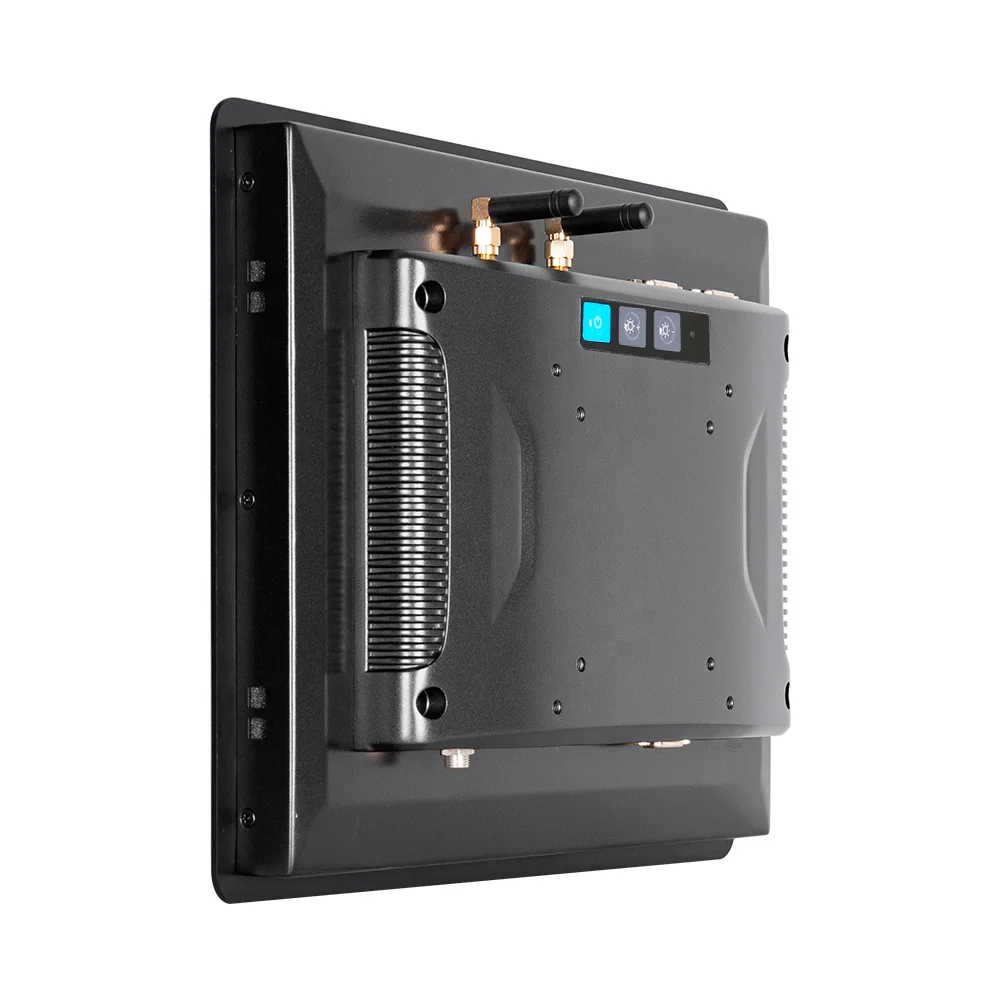

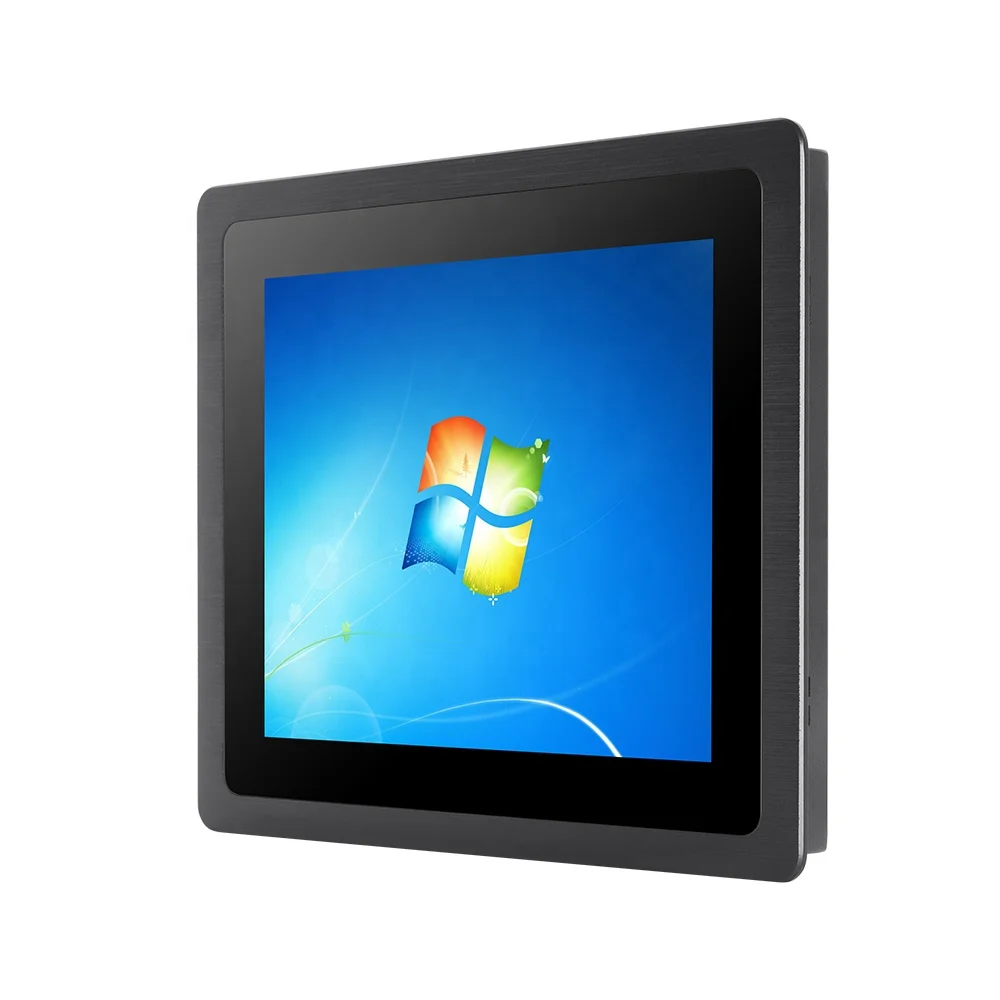

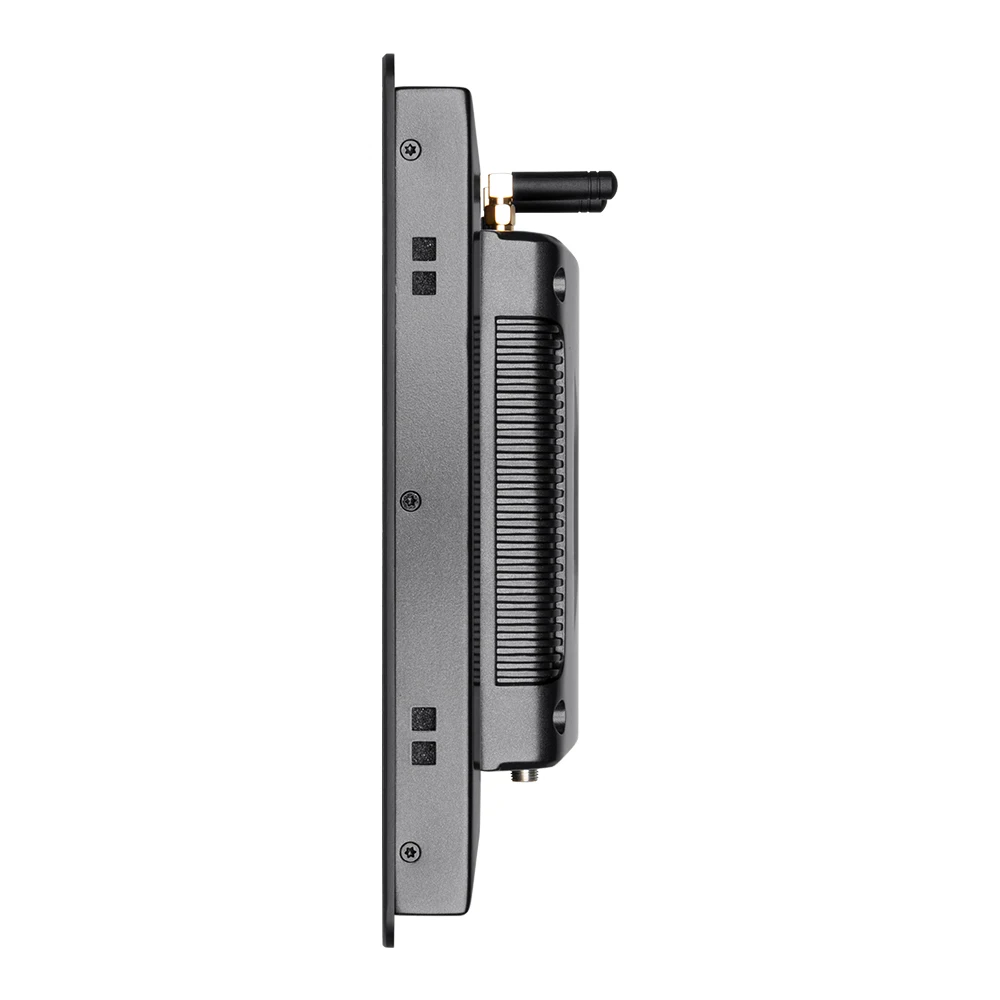

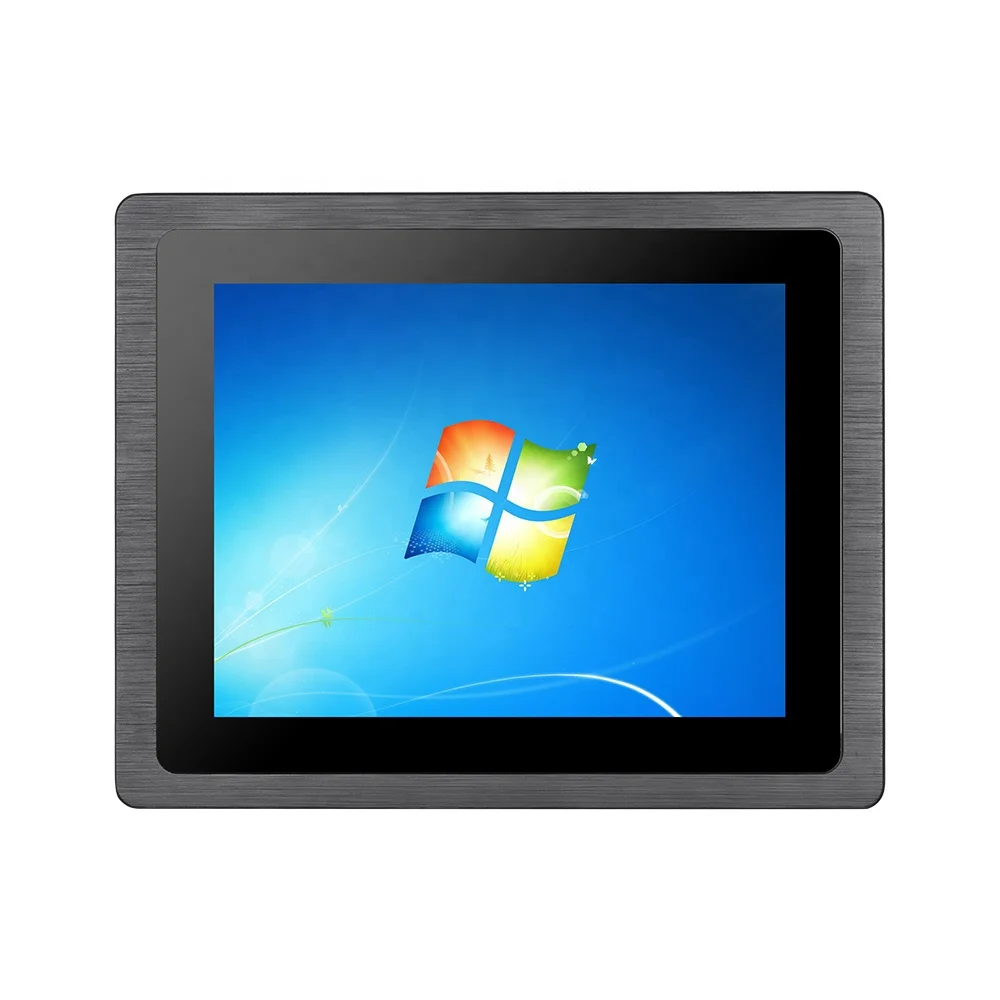

10.4 inch Display Touch IP65 Waterproof Tablet White I3 I5 I7 CPU 6th Gen Win7 Win10 Linux CNC Embedded Industrial Panel Pc
- Category: >>>
- Supplier: Shenzhen Le Hua Display Electronic Technology Co. Ltd.
Share on (1600890689751):
Product Overview
Description
Product Description
Configuration Optional | Configuration | Memory+Storage | |
RK3568 (Android12.0/ Linux5.10 OS) | EMMC: 8GB/16GB/32GB/64GB | ||
RK3288 (Android 7.1/10.0/12.0/Linux4.4/Ubuntu18.04/Debian10.0) | 4G+128G | ||
A64 (Android 6.0 OS) | 4G+128G | ||
RK3399 (Android 7.1/9.0/11/Ubuntu18.04/Debian10.0/linux4.4) | 8G+128G | ||
RK3588 (Android12.0 OS) | 4G+128G | ||
J4125 (Win10/11) | Memory: 4GB/8GB/16GB SSD: 64GB/128GB/256GB/500GB/512GB SSD,1TB HDD | ||
J1900(Win7/10) | 4G+128G | ||
i3 6100U/8145U/10110U (Win7/10/11) | 8G+128G | ||
i5 6200U/7200U/8265U/10210U (Win7/10/11) | 4G+128G | ||
i7 6500U/7500U/8565U/10510U (Win7/10/11) | 4G+128G | ||

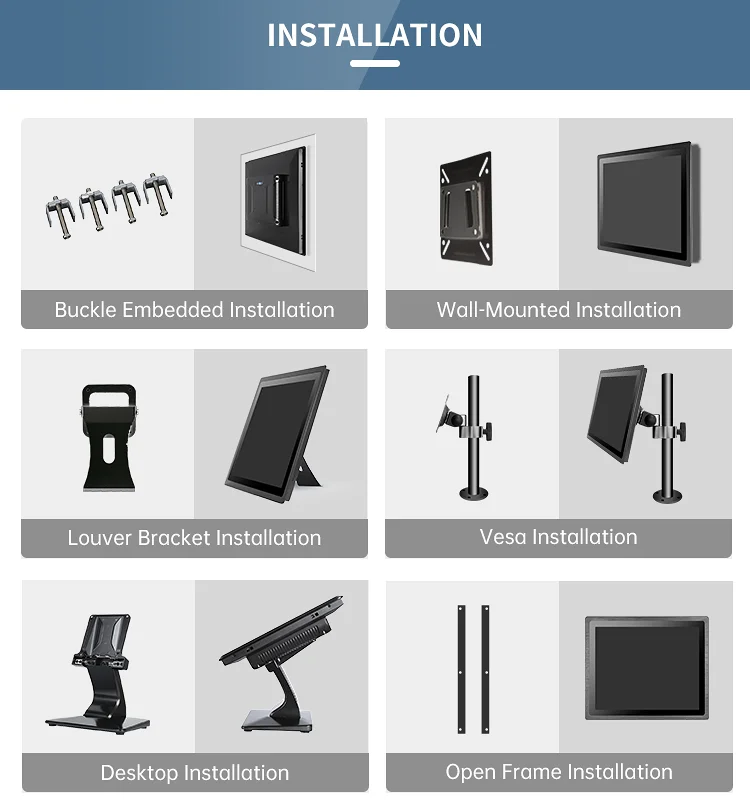

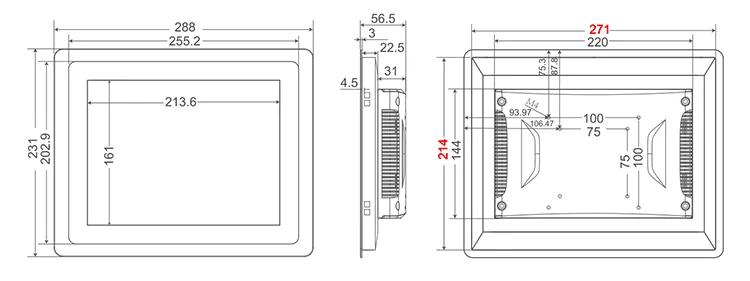

Installation Methods
Industrial touch screen monitor can be used in industrial automation equipment control, military, communications, electric power, big data, Internet, self-service terminal equipment, artificial intelligence and other fields. Such as factory equipment control, ATM, POS, indoor or outdoor Kiosks, transportation, advertisement machine, gaming, medical, agricultural equipment, marine, online training, tractors, wrecker tow truck, welding machine etc.
Specification

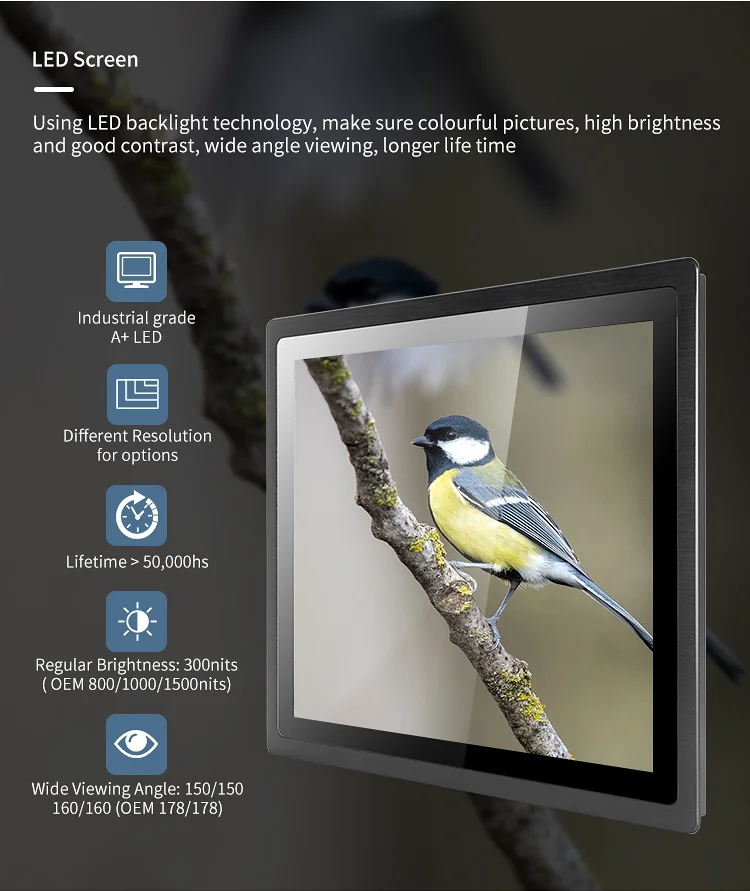

Size | 10. 4 " | |
Resolution | 1024×768 | |
Perspective | 75/75/70/75 (L/R/U/D) | |
Colour | Chroma: 16.7M | |
Brightness (standard value) | Brightness: 300 cd/m2 | |
Contrast | 800 :1 | |
Response time | 6.5 ms | |
Display area | 154.214 × 85.92 mm | |
Pixel pitch (mm) | 0.192×0.192 (H×V) | |

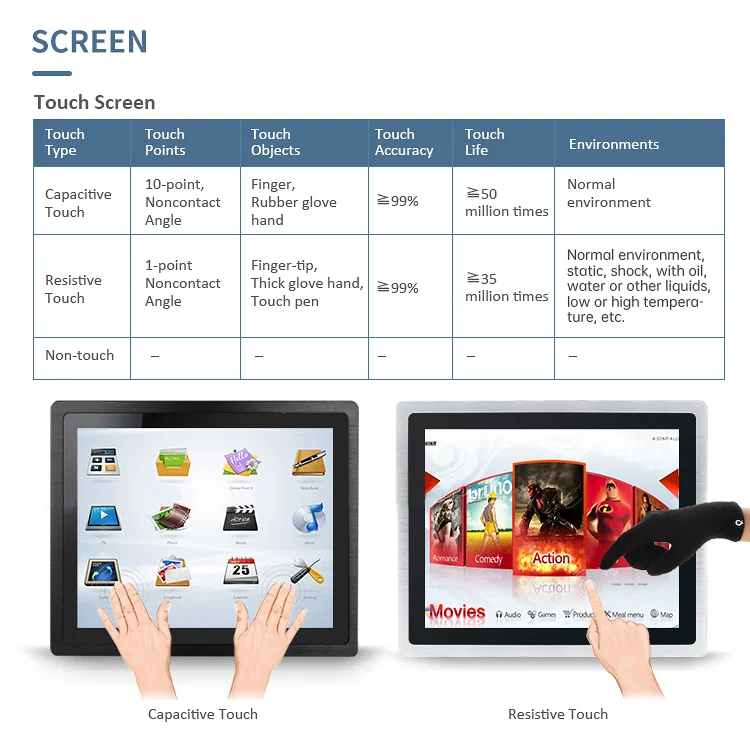

Touch screen type | Capacitive touch screen | |
Resolution | 500DPI | |
Input | Handwriting or capacitive pen | |
Surface hardness | 7H | |
Calibration | stand by | |
CPU | Intel Celeron J1900 Quad Core 1.99G ( Max Turbo Frequency 2.4G) | |
RAM | DDR3 1333/1600M default 2G ( maximum support 8G ) | |
Storage, hard disk | SSD default 32 (64/128/256/512G (optional) | |
Chipset | Intel HD Graphics | |
Operating system | windows7/8/10,linux | |
Graphics card | HD Graphic display integrated core, support for dynamic memory allocation (DVMT), supports VGA, HDMI, LVDS. Built-pin dual channel 24bit LVDS, branched support dual display. | |
3G module | PCI-E standard interface , support China Mobile, China Unicom, Telecom (optional) | |
4G module | PCI-E standard interface , support China Mobile, China Unicom, Telecom (optional) | |
WiFi | Dual frequency | |
Bluetooth | BT4.0 | |
GPS | Optional | |
MIC | Optional | |
RTC real time clock | stand by | |
Timer switch | stand by | |

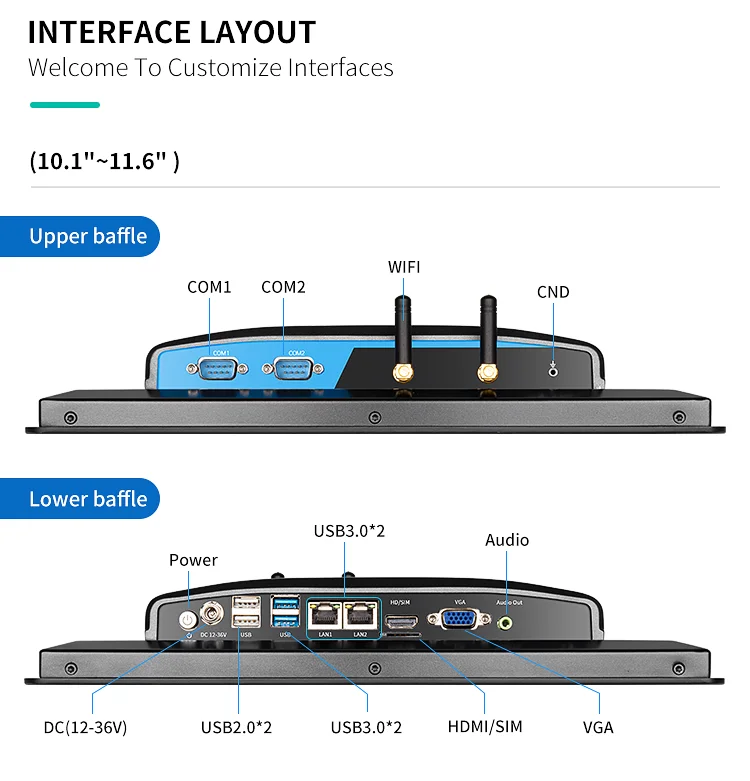

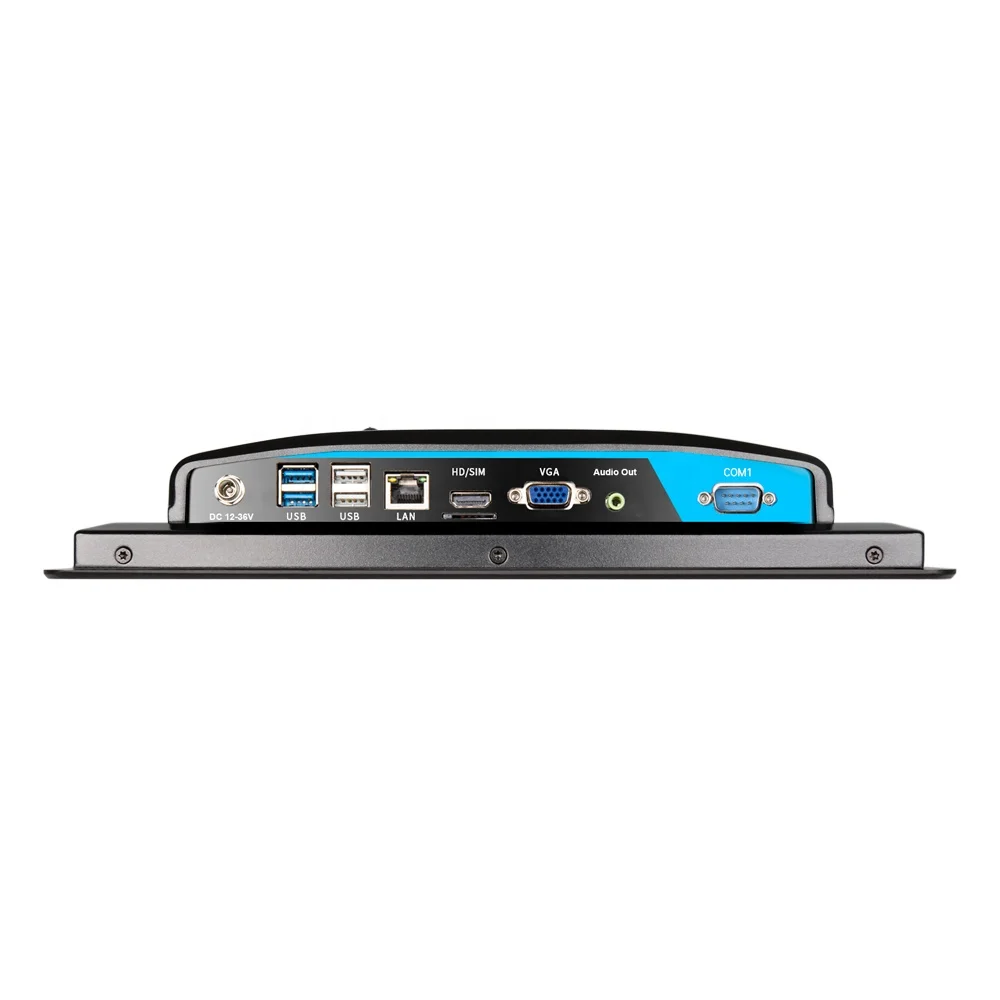

Interface | DC port | 1*DC 2.5 |
HDMI | 1, HDMI data output, maximum support 1080P | |
USB2.0 | 2 | |
USB3.0 | / | |
RJ45 Ethernet | 1*Realtec8111F 1000M default single network, double network can be changed | |
SD/TF | Optional | |
Headphone holder | 3.5mm standard interface | |
SMI card | SIM card interface standard interface supports various formats (depending on 3G module) | |
RS232 | 2 *RS232 | |
RS485 | 1 (choose one from 422) | |
RS422 | 1 (choose one from 485) | |
GPIO | / | |
Operating temperature | -10°C to 60°C | |
Storage temperature | - 20°C to 70°C | |
Hhumidity | Humidity: 95% Non-Condensing | |
Mean time between failures (MTBF) | 7*24H | |
Power consumption (maximum) | 35W | |
Power input | AC 100-240V 50/60Hz passed CCC certification, CE certification | |
Power Output | DC12V / 5A |

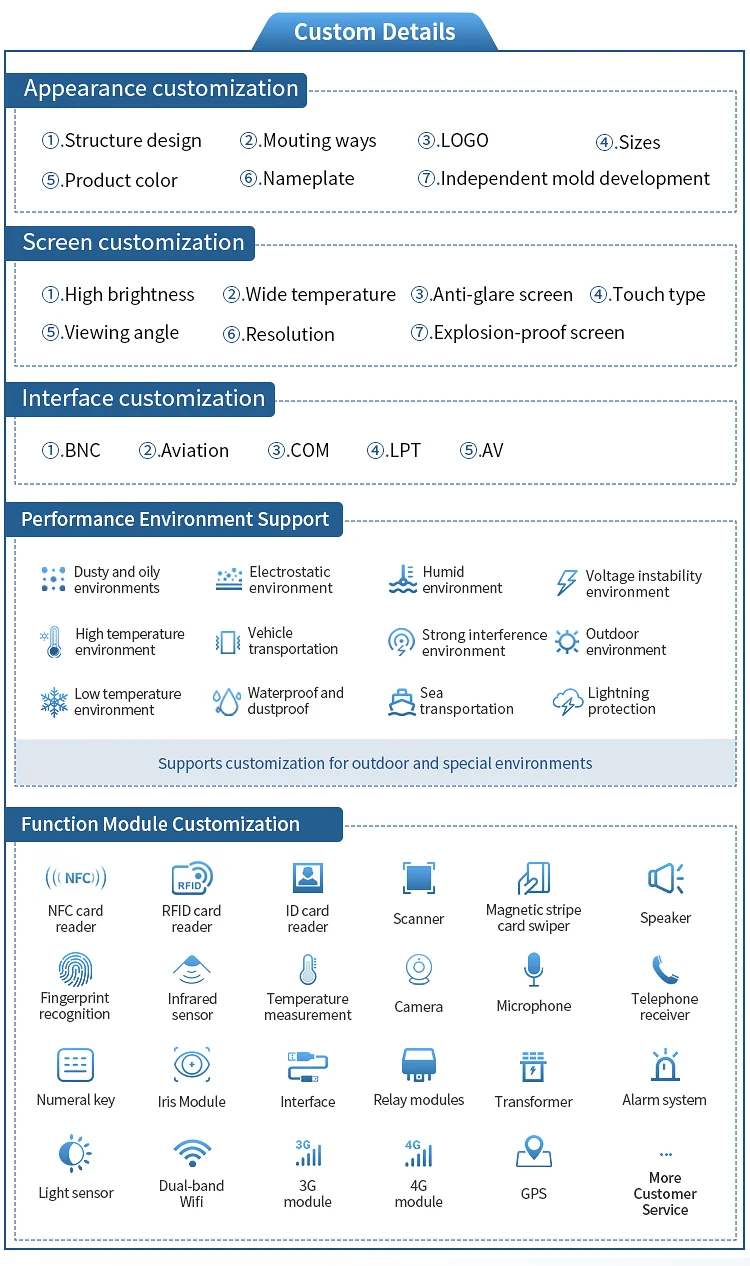

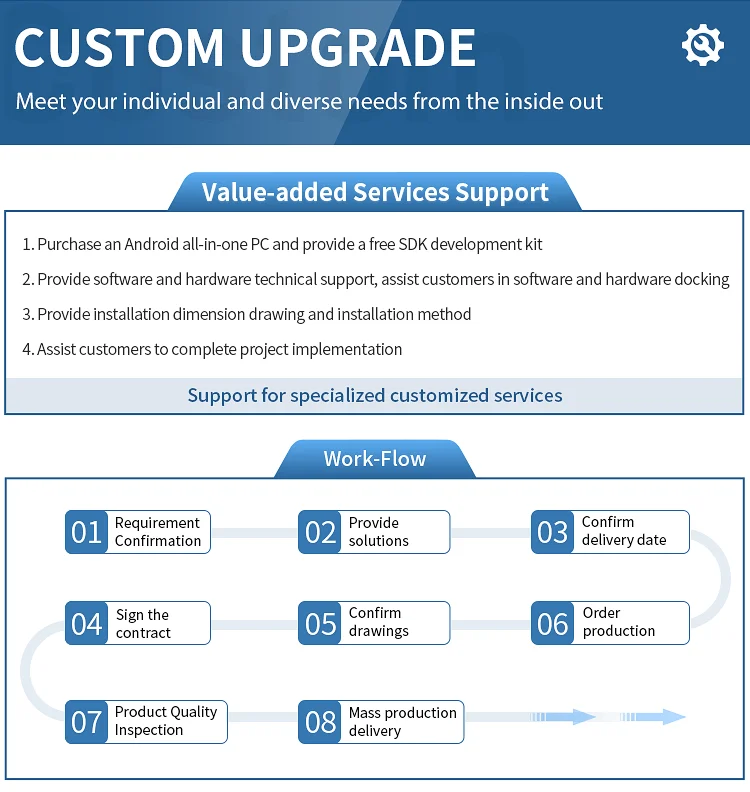

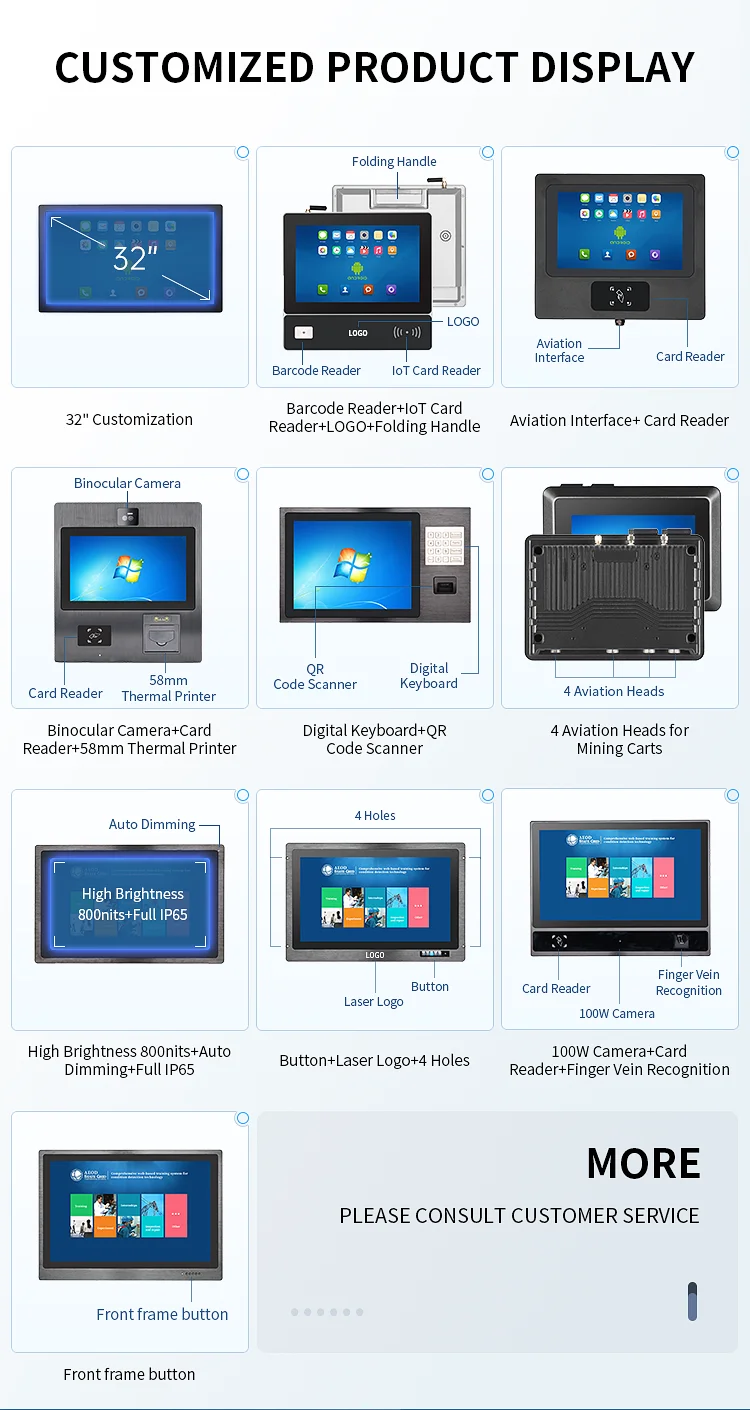

Customized Services
Company Profile
Shenzhen Le Hua Display Electronic Technology Co., Ltd. is a professional company engaged in independent R&D, manufacture, sale of industrial Touch Monitor,Industrial Android Panel PC, industrial Windows all in one Panel PC, industrial mini PC, and Industrial Android Board. Our company was established in 2013, our workshop covers 9000 square meters. We can offer product design, system integration, software test, ODM/OEM service, and a complete product line.
Le Hua enforces the strictest quality control to ensure complete customer satisfaction. Our manufacturing process meets ISO9001 quality assurance standards and we hold other safety certifications including CE, FCC, RoHS, and IP65. We strive to offer superior quality and reliability supports in the most cost-effective way that meets the customer’s requirements.
Le Hua enforces the strictest quality control to ensure complete customer satisfaction. Our manufacturing process meets ISO9001 quality assurance standards and we hold other safety certifications including CE, FCC, RoHS, and IP65. We strive to offer superior quality and reliability supports in the most cost-effective way that meets the customer’s requirements.
Packing & Delivery
Packing: Carton with pearl bag and cushion inside,pallet and wooden crate available for mass order.
Shipping: Shipping by express,by sea,by air,by railway.
Shipping: Shipping by express,by sea,by air,by railway.
FAQ
Q1: Are we a factory or trading company ?
A1: Yes, we are a factory and have our own R&D team, self-development boards and own
design
design

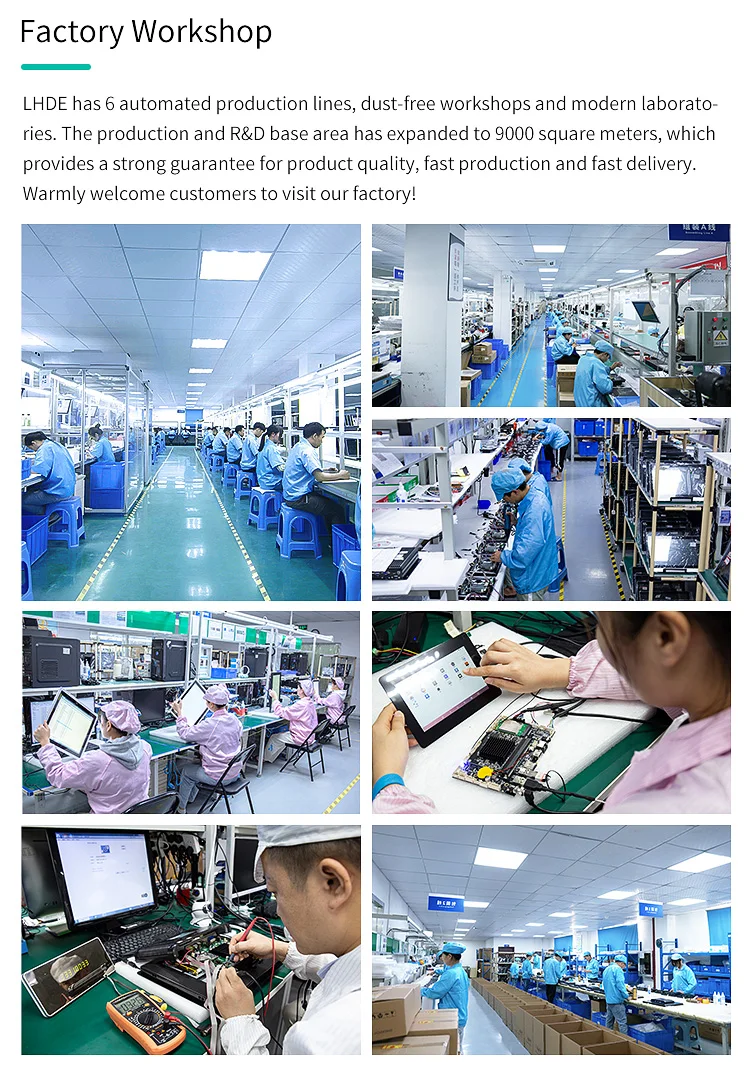

Own Factory: 9000m²
Workforce:300+ employees
Capacity: 50000 pcs/month
6 production lines
6 quality lines with IQC, FQC, OQC
R&D team: 90+ Structural Design Engineers, Software Development Engineer, Hardware Development Engineer, System Development Engineer etc.
A2: Yes, samples are always available for checking quality and can be dispatched to you in a short time.
Q3: What's the time of delivery?
A3: Depends on order quantity and our production schedule. 3-7 working days for sample order of standard model.12-20 working days for custom sample order & mass production after payment receipt.
Q4: What paying methods do you accept?
A4: AlibabaTrade Assurance, T/T, Paypal, Western Union, etc.
Q5: Whether your industrial monitor support the OEM/ ODM?
A5: Yes, our industrial monitor support the customization with size, function, appearance, resolution, high brightness, etc.
Q6: Where is your industrial monitor apply?
A6: Restaurant, Advertisement,Gaming,Medical Equipment, Kiosk, ATM, Industrial autamation, Supermarket chain stores etc.
Q7: What is the main size for your industrial monitor?

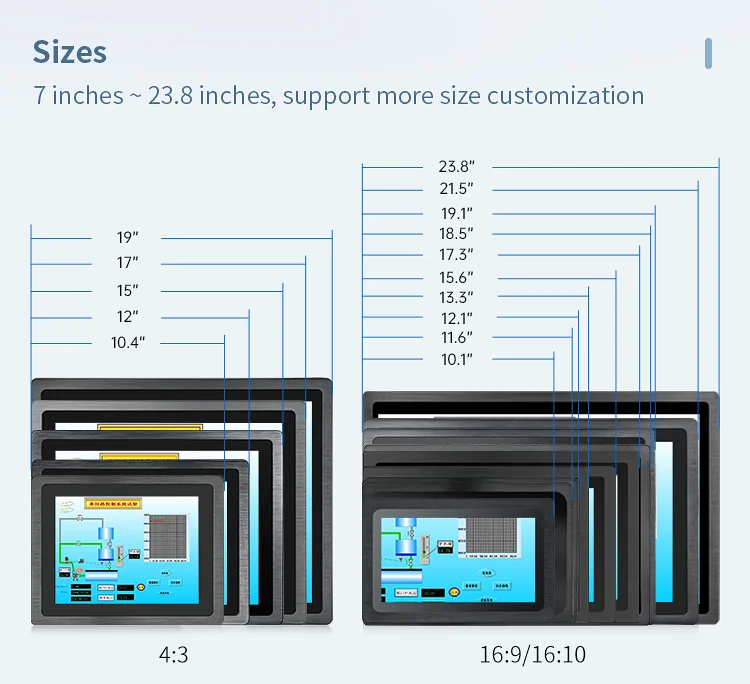

A7: 7'', 8'', 10.1'', 10.4'', 11.6'', 12'', 12.1'', 13.3", 15'', 15.6'', 17'', 17.3'', 18.5", 19'', 19.1'', 21.5'', 23.8''.
Q8: Can we printing our logo on the housing? What is MOQ?
A8: We can do the silk-printing LOGO on the case with free charge.The MOQ is 2 pieces.

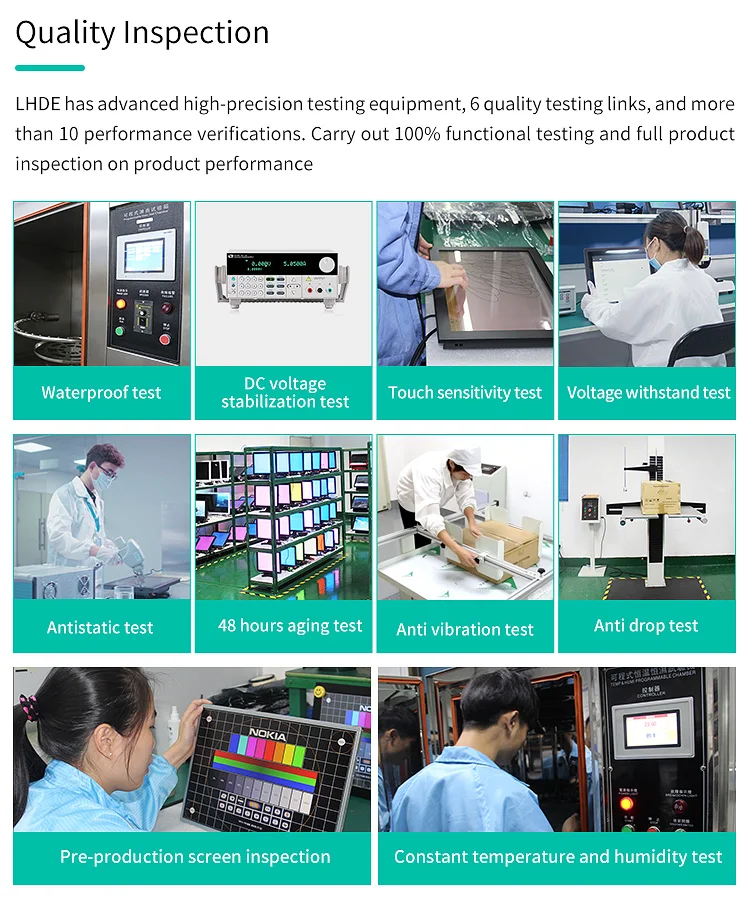

Q9: What kind of inspection you can provide?
A9: LeHua has multiple tests from material purchasing to finished products by different departments, like QA, QC, sales representative, to guarantee all signage players are in perfect condition before shipment. We also accept the inspection by the third party you appointed.
Q10: What is your guarantee period?
A10: We provide 3 years warranty service,free repair for the first year, you can pay to extend the warranty. In the second and third year,we only provide the quality assurance service.
