Heyuan HYFW Smart High Quality 3 Phase Din Rail Power Meter with RS485 MODBUS RTU
- Category: >>>
- Supplier: Heyuan Intelligence Technology Co. Ltd.
Share on (1600890719645):
Product Overview
Description
Products Description
Heyuan HYFW Smart High Quality 3 Phase Din Rail Power Meter with RS485 MODBUS RTU

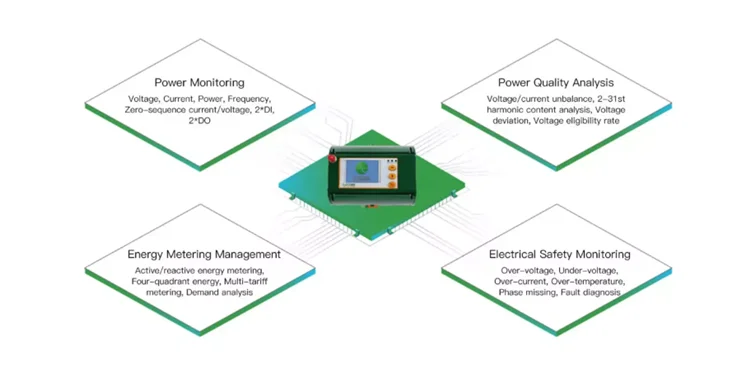

HYFW Three-phase Multi-functional Smart Power Meter is used for measuring, monitoring, and controlling the power distribution system. HYFW Three-phase Multi-functional Smart Power Meters have great extended functions, which connect measuring, analyzing, and controlling together, and make the work become easier. It is widely used in energy distribution sites, energy management systems and intelligent on-line monitoring systems of different industries.

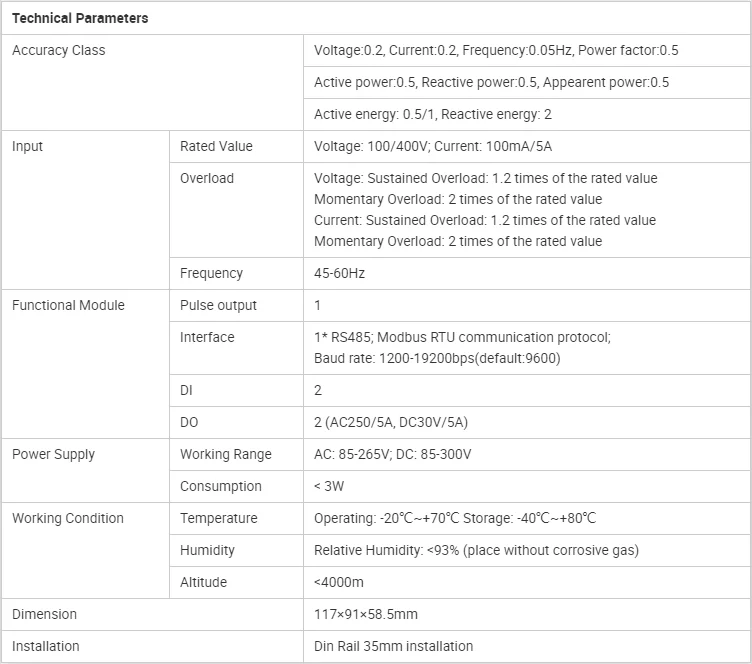

Technical Parameters
Basic Electric Parameters:
three-phase voltage, three-line voltage, three-phase current, zero-sequence current, active power, reactive power, apparent power, demand, multi-tariff, Bidirectional energy recording(active energy, reactive energy).
Electrical Safety:
off-limit alarm (under voltage, over voltage, over current, over temperature)(4 channels of temperature detection with RJ45 interface), 1 channel of leakage detection.
Power Quality Analysis:
voltage unbalance, current unbalance, voltage deviation, frequency deviation, voltage qualification rate.
Others:
2.0 inch 320*240 color LCD screen
2 DI 2 DO(Connection capacity AC220V/5A or DC30V/5A)
2 DI 2 DO(Connection capacity AC220V/5A or DC30V/5A)
SOE event record(128)
Energy pulse
Energy pulse
Product Detail Show

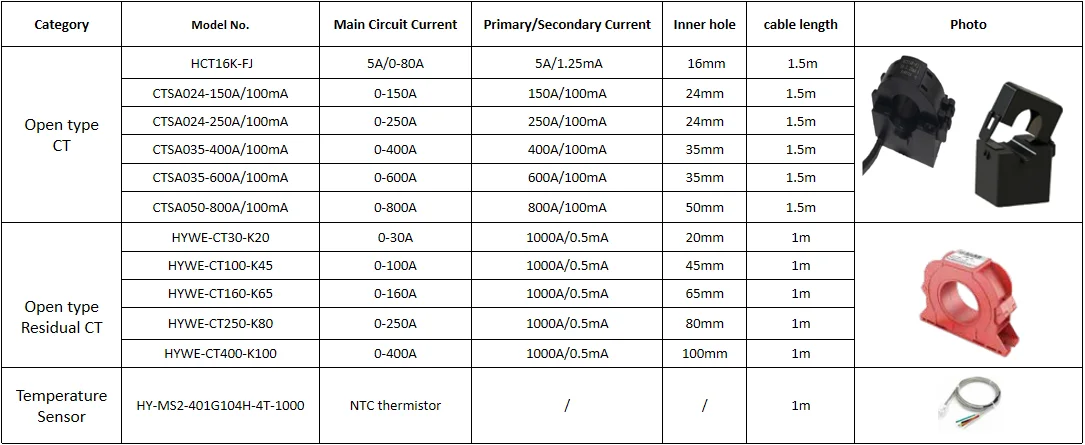

Accessory

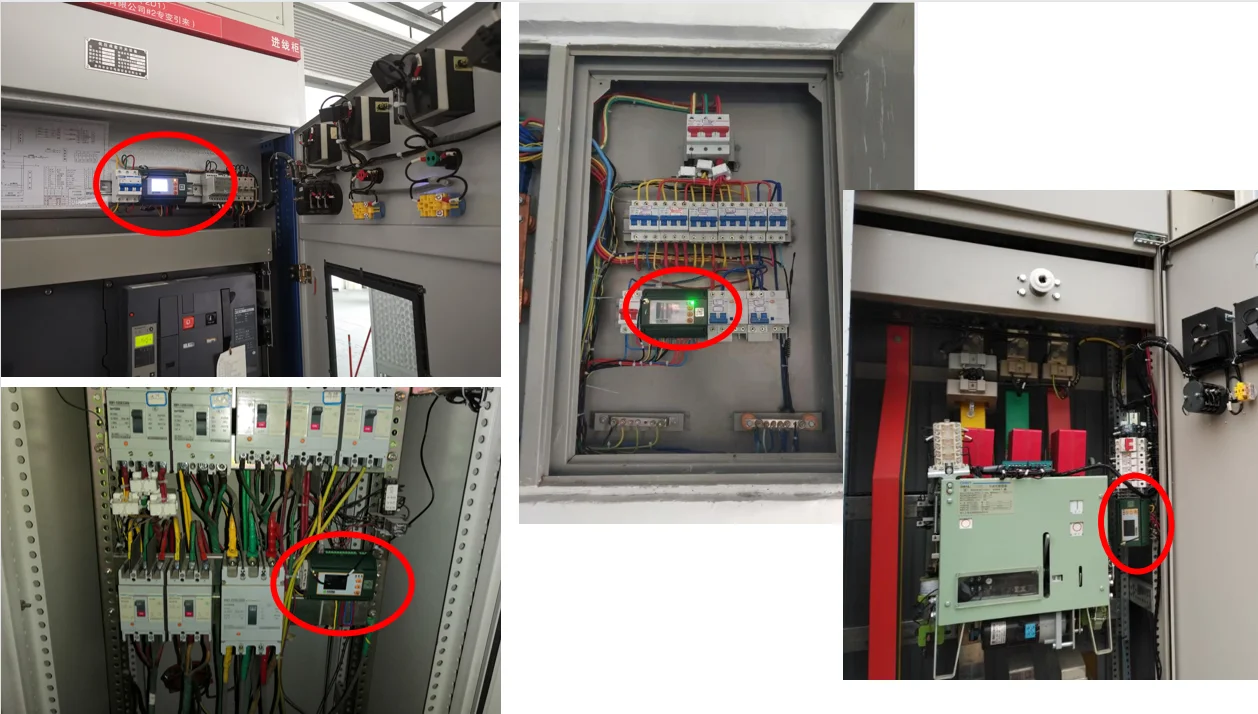

Application Sites
