EX3G i series 4.3 Inch HMI & PLC integrated Industry Controller
- Category: >>>
- Supplier: Shenzhen Coolmay Technology Co. Ltd.
Share on (1600890733680):
Product Overview
Description

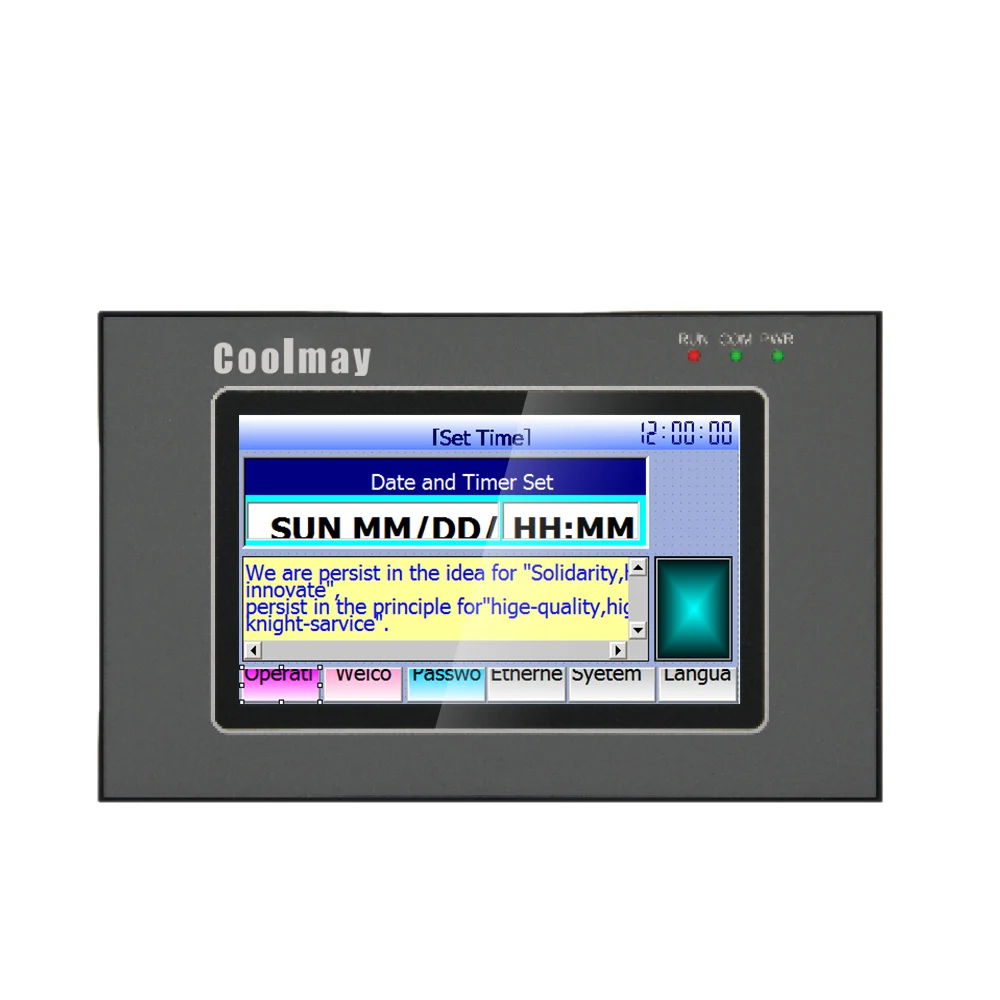

Programmable Controller With 4.3 inch HMI Display Monitor EX3G-43i
Specification
Model | EX3G-43i |

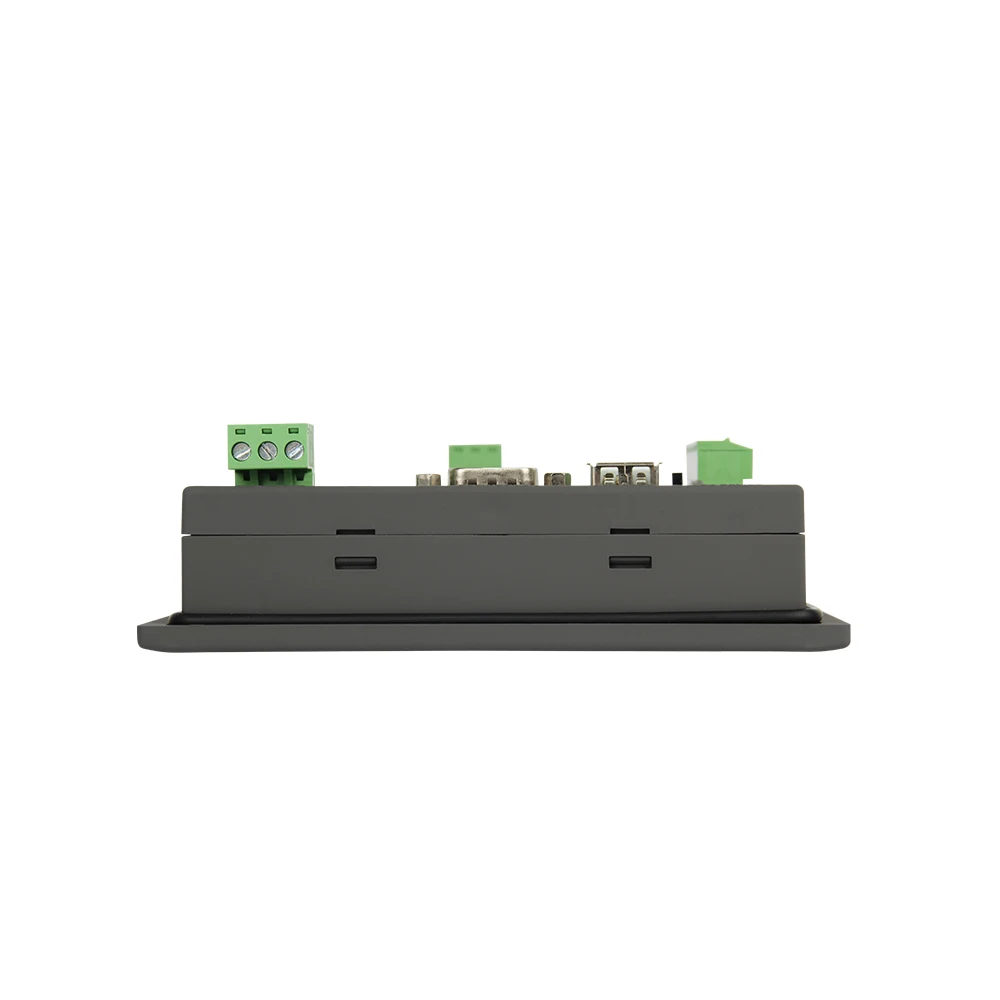

Dimension | 134*102*32mm |
Cutout size | 120*94mm |
Power Consumption | 4-6W |
Features | Support interrupt, linear arc interpolation, PID auto-tuning. 32K program capacity, 32K retentive register |
HMI | HMI |
Display | 60K colors resistive touch screen; H/KH series can be portrait display 60K colors resistive touch screen |
Type | 4.3” TFT |
Display size | 97*56mm |
Resolution (pixels) | 480*272 |
RAM | 64MB |
ROM | NOR Flash 16MB(Disk C of system area)+SD NAND 128MB(Disk D) |
CPU | 32bit CPU 408MHz |
COM port | 1 Type-C (HMI download port); 1 USB 2.0 port |
Software | CoolMayHMI HMI programming software |
PLC | PLC |

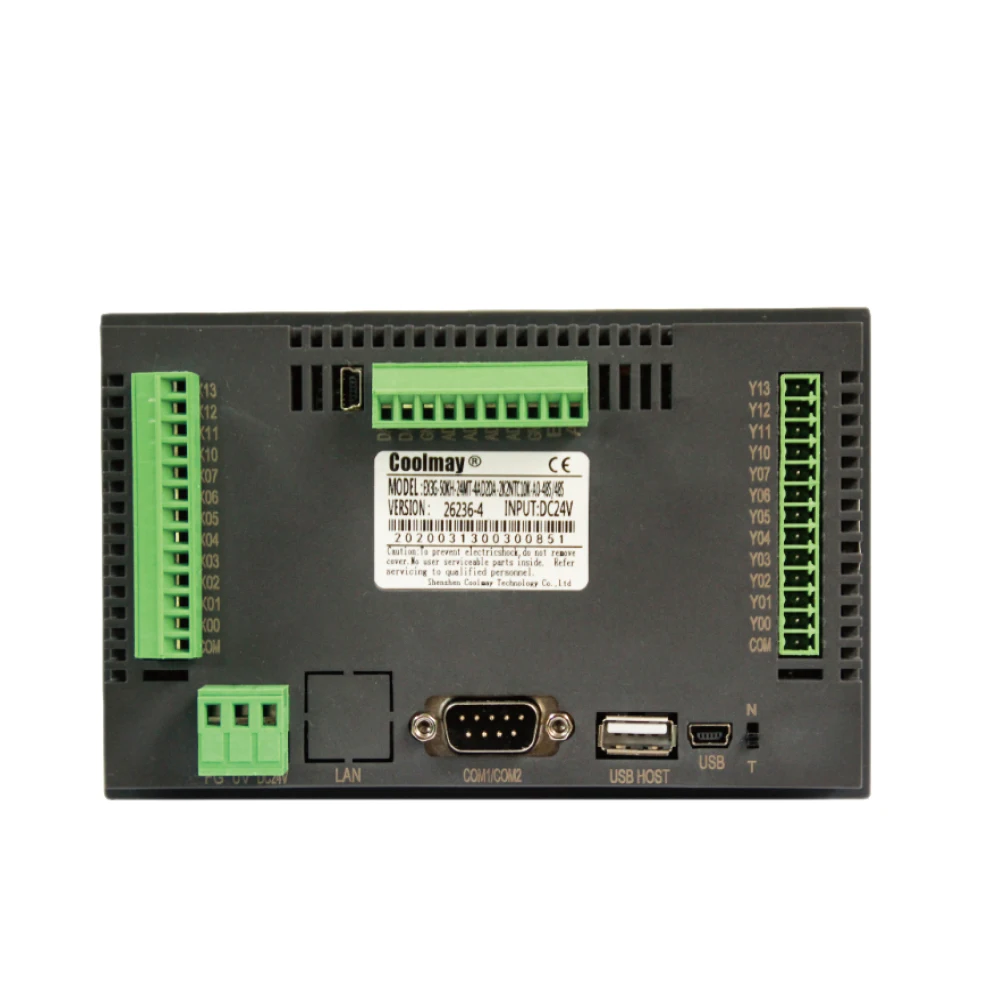

I/O level | - Input: Passive NPN, public terminal isolated - Transistor output (MT): Low level NPN, COM connect to negative; - Relay output (MR): Normally open dry contact |
DO type and load | - MOS tube: 2A/point, 4A/4 point COM, 5A/12 point COM; - MR: 2A/point, 5A/12 point COM. |
High-speed counting | 6 channels single-phase 60KHz, or 2 channels AB (Z) phase 30KHz + 1 channel AB phase 5KHz |
High-speed pulse (only for MT models) | 8 channels, Y0-Y3 is 100KHz, Y4-Y7 is 10KHz High-speed counting + high-speed pulse < 480KHz |
COM port | 1x Type-C programming port; 1x RS232 |
Software | Compatible with GX Developer8.86 and GX WORKS 2 |
Using Effects
1.Garment making equipment, screw machine (can be shipped with program), tapping machine, ultrasonic cleaning machine, master batch machine, master batch machine;
2.Testing machine, laminating machine, hot pressing machine, battery equipment / spot welding machine, UV lamp curing, ultrasonic cleaning equipment, loading and unloading, SMT peripheral equipment, terminal machine, injection molding machine (vertical injection molding machine);
3.Environmental protection equipment, LED lamps, defoaming machine, labeling machine, laser marking machine, test fixture, reflow soldering / shoe machine equipment, SKD stepping / testing equipment / laminating, power distribution cabinet, testing test.
2.Testing machine, laminating machine, hot pressing machine, battery equipment / spot welding machine, UV lamp curing, ultrasonic cleaning equipment, loading and unloading, SMT peripheral equipment, terminal machine, injection molding machine (vertical injection molding machine);
3.Environmental protection equipment, LED lamps, defoaming machine, labeling machine, laser marking machine, test fixture, reflow soldering / shoe machine equipment, SKD stepping / testing equipment / laminating, power distribution cabinet, testing test.
