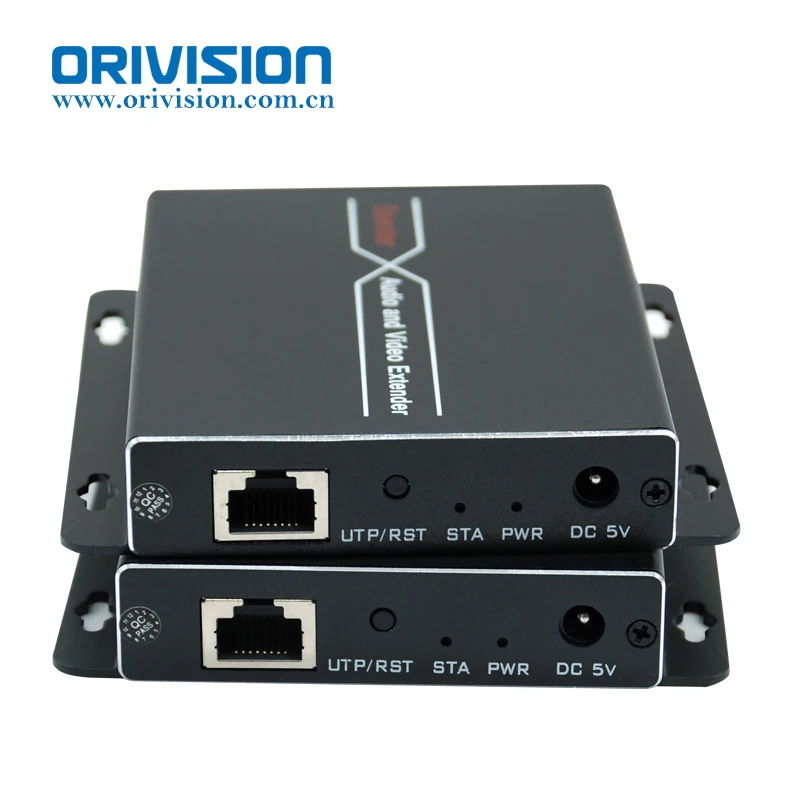

ORIVISION HDMI Extender 120m Over Ethernet RJ45 1080P60Hz HDMI Transmitter and Receiver With IR
- Category: >>>
- Supplier: Nantong Zydz Electronic Co. Ltd.
Share on (1600890797540):
Product Overview
Description
Overview
This HDMI Extender includes a transmitter unit (TX) and a receiver unit(RX), working as a pair. It allows for transmission and extension full HD 1080p@60Hz HDMI signal via CAT5e/6 UTP network cable, the transmission distance is up to 120meters; Support IR pass back transmission, have a local HDMI output . This product is perfect for AV transmission in applications of HD conference system, HD video shooting, HD multimedia education system, HD digital advertising and signage etc.
The device has a long transmission distance, low use cost, convenient installation and good compatibility, and it is a stable and efficient transmission method.

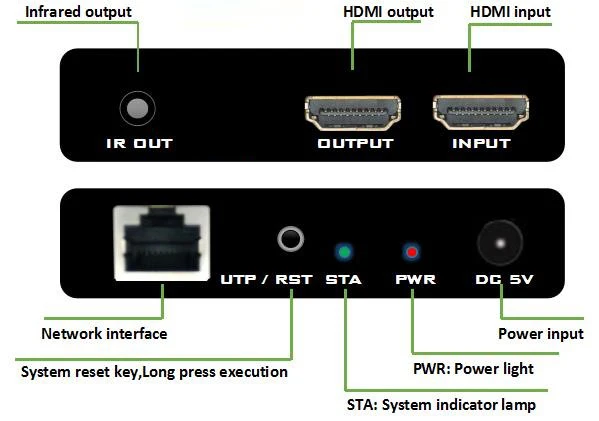

Transmitter

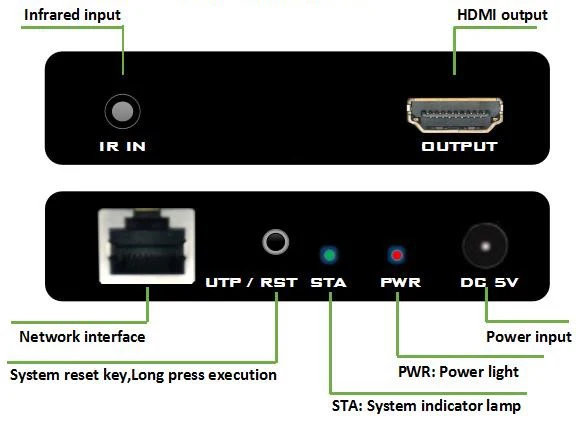

Receiver
Full HD 1080P@60Hz Support TCP/IP 120m long distance Local Loopout
Slim aluminum shell IR passback Multipoint communication Built-in ESD protection

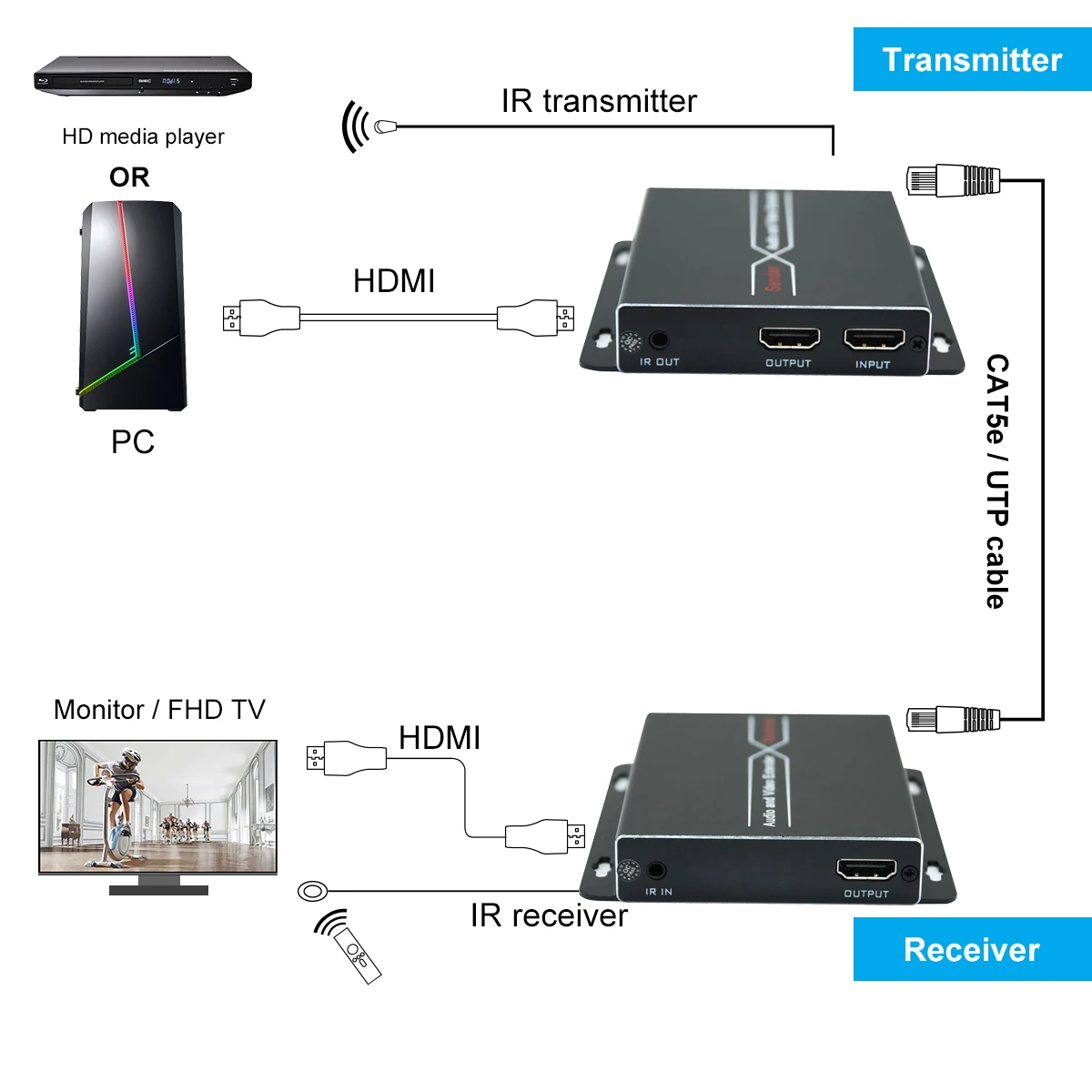

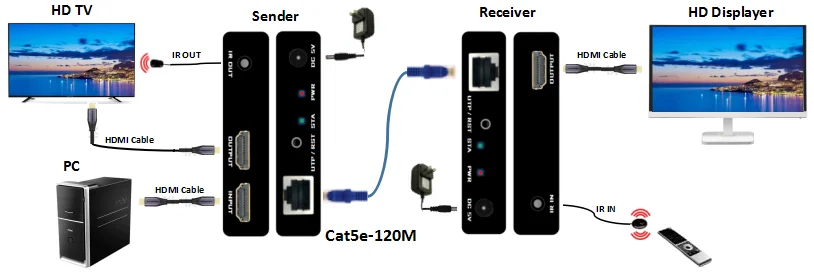

Application Diagram
Related Products
Specification
Parameter | Description | ||
Video | Standards | HDMI 1.3; HDCP 1.2 | |
Maximum pixel clock | 165MHz | ||
Maximum data rate | 6.75Gbps | ||
Resolution | Max: 1920X1080@60Hz (backward-compatible） | ||
Connector | HDMI-A | ||
Impedance | 100Ω | ||
IR | Interface | 3.5mm earphone seat | |
Signal direction | Unidirectional | ||
Signal type | Digital | ||
IR frequency | 38kHz | ||
Ethernet | Interface | RJ45（568B） | |
Transmission distance | UTP CAT5e/---120m | ||
Other | Power supply | The power adapter: DC 5V | |
Power dissipation | MAX 4W | ||
Temperature | Operating: -5℃ ~ +70℃ | ||
Humidity | Operating: 5% ~ 90% | ||
Dimension | 100*97.5*17mm | ||
The warranty | 1 year free warranty | ||
Why Choose Us
ORIVISION is a professional IP/Optical/Cable-based video transmission and live video streaming hardware manufacturer. We focus on H.265 & H.264 HDMI/SDI/VGA IP streaming hardware encoders and decoder HDMI/VGA/SDI/DVI signal transmitters with IP/network/cables/optical fiber and so on.
We have mastered the unique technologies in low-bitratew bandwidth transmission, wired/wireless transmission SRT/RTMP/RTMPS/RTSP/RTP/UDP/ONVIF technology, HD decoding multi-format conversion, and streaming media service management. The live video streaming hardwares are widely used in the military industry, transportation, emergency management, education recording, communications, new media live broadcast, medical teaching, and other industries.
FAQ
1. Provide remote technical support service
Our engineers can provide professional technical support services to customers through remote software, such as Teamviewer,Skype,whatsapp etc.
2. 3 years warranty
We provide new free spare parts in 3 years because of the product quality problems, except for man-made damage.
3. Provide factory repair service
If the customer has a problem with the equipment, he can send it back to the factory for repair. Maintenance is free, but there will be a material charge.
4. About Import tax
I hope you know that import duty is paid on imported goods in most countries. Our all quote and price don't include your import tax. As to specific rates, please consult your local customs office. I appreciate your understanding!
5. About delivery time
Our the fast delivery time will be within 3 days after payment. But we promise to arrange the delivery
within 7 days after receiving the payment, In case of special circumstances.If you want to know more about the delivery time, pls contact us.
6. About the shipping way
Customers can choose their own logistics company when placing orders. Or contact us to specify our desired logistics company. Such us FedEx/ UPS/EMS/ ARAMEX/DHL etc. If you need to know the specific shipping time, please contact us.
Our engineers can provide professional technical support services to customers through remote software, such as Teamviewer,Skype,whatsapp etc.
2. 3 years warranty
We provide new free spare parts in 3 years because of the product quality problems, except for man-made damage.
3. Provide factory repair service
If the customer has a problem with the equipment, he can send it back to the factory for repair. Maintenance is free, but there will be a material charge.
4. About Import tax
I hope you know that import duty is paid on imported goods in most countries. Our all quote and price don't include your import tax. As to specific rates, please consult your local customs office. I appreciate your understanding!
5. About delivery time
Our the fast delivery time will be within 3 days after payment. But we promise to arrange the delivery
within 7 days after receiving the payment, In case of special circumstances.If you want to know more about the delivery time, pls contact us.
6. About the shipping way
Customers can choose their own logistics company when placing orders. Or contact us to specify our desired logistics company. Such us FedEx/ UPS/EMS/ ARAMEX/DHL etc. If you need to know the specific shipping time, please contact us.
