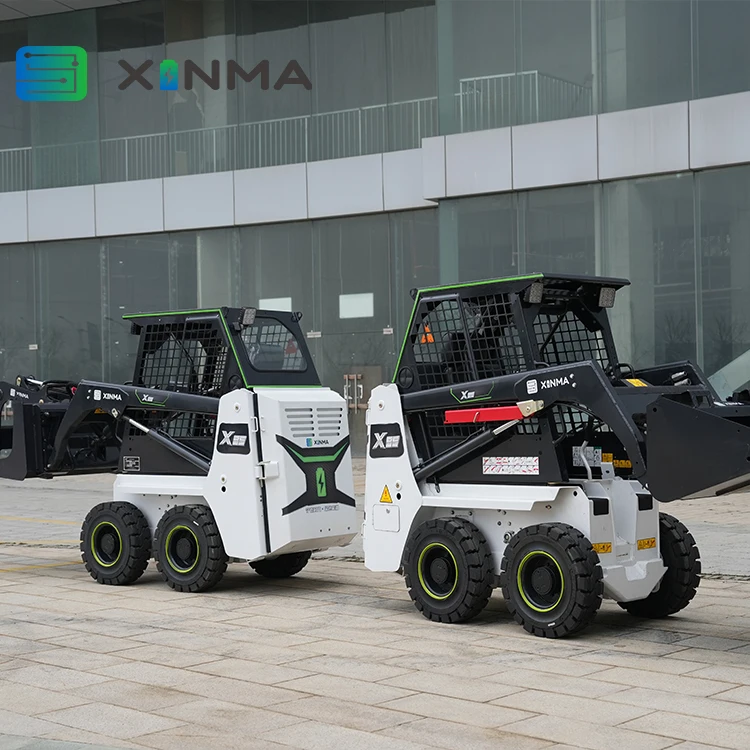

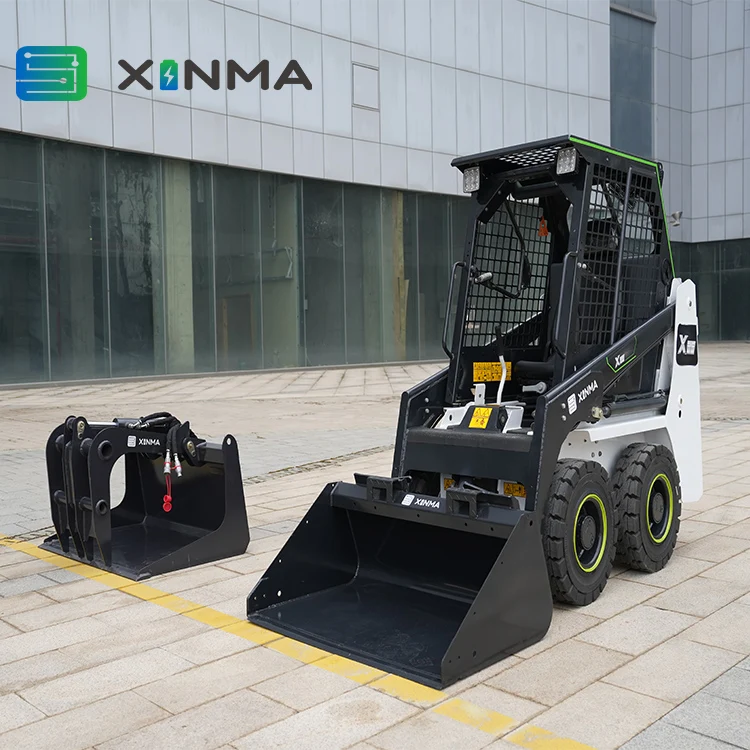

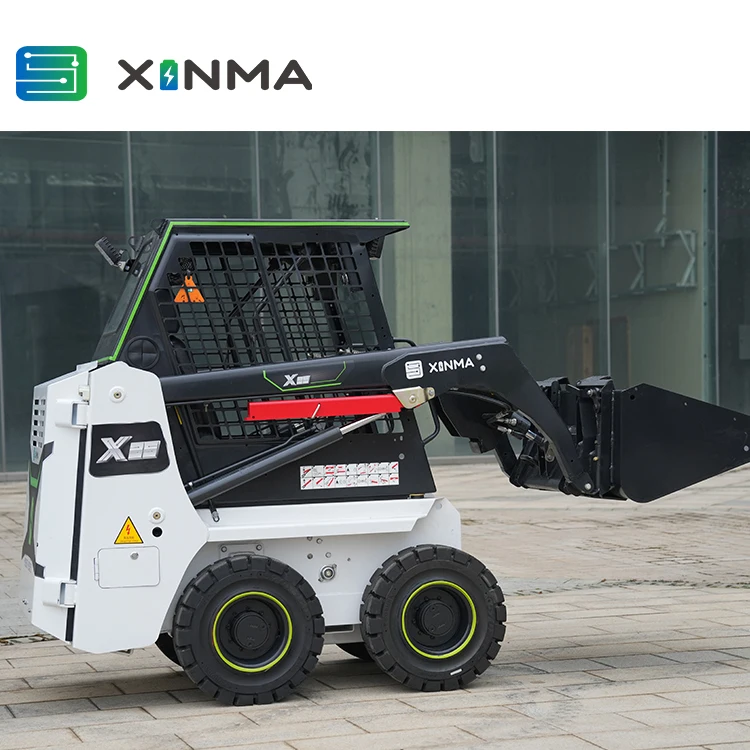

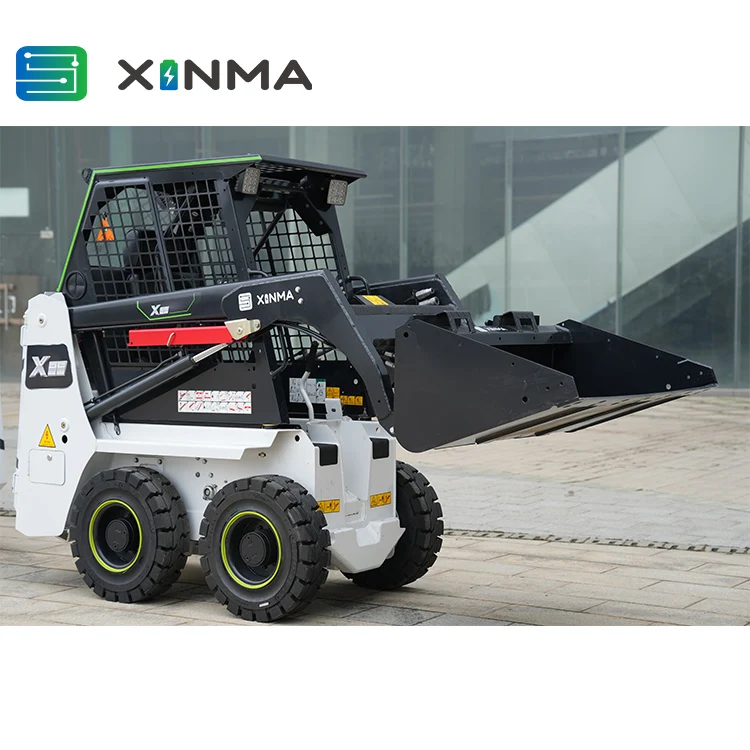

Cheap Price Compact Mini 0.36 ton Capacity Electric Skid Steer Loader for Hotel Building
- Category: >>>
- Supplier: Jiangsu Supeng Machinery Technology Co. Ltd.
Share on (1600890814589):
Product Overview
Description
Rated loading capacity： | 350kg |
Tipping loading capacity： | 680kg |
breakout force-arm lift： | 8kN |
breakout force-bucket tilt： | 9kN |
Max. driving speed： | 11km/h |
Energy capacity： | low gear 7~8h,Medium gear6~7h,high gear4~5h |
A Overall operating height:3245mm
B Height of cab:1815mm
C Departure angle at max. height:25*
D Ground clearance: 141mm
E Wheelbase: 722mm
F Overall length (without bucket) : 1952mmG Overall length (with bucket): 2670mm
G Overall length (with bucket): 2670mm
H Max. angle of flat ground: 22°
Unloading height: 1850mm
J Height to bucket hinge pin: 2410mm
K Loading distance at Max. unloading
height : 545mm
L Dumping angle at max. height: 34°
M Tipping angle of bucket at full height: 97°
N Standard bucket width: 1126mm
O Turning radius: 1650mm
P Wheelbase: 756mm
Q Overal width(without bucket): 959mm
B Height of cab:1815mm
C Departure angle at max. height:25*
D Ground clearance: 141mm
E Wheelbase: 722mm
F Overall length (without bucket) : 1952mmG Overall length (with bucket): 2670mm
G Overall length (with bucket): 2670mm
H Max. angle of flat ground: 22°
Unloading height: 1850mm
J Height to bucket hinge pin: 2410mm
K Loading distance at Max. unloading
height : 545mm
L Dumping angle at max. height: 34°
M Tipping angle of bucket at full height: 97°
N Standard bucket width: 1126mm
O Turning radius: 1650mm
P Wheelbase: 756mm
Q Overal width(without bucket): 959mm
01

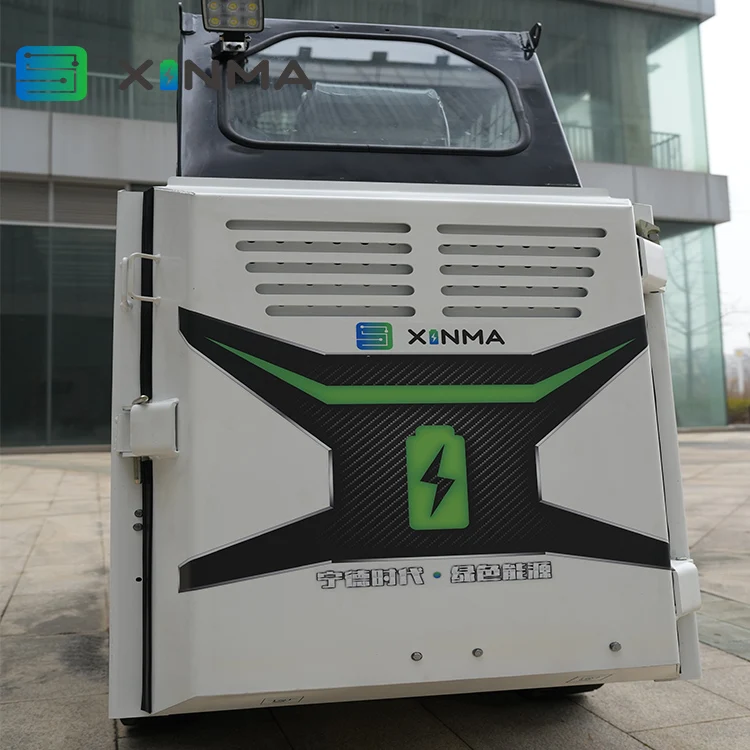

CATL BATTERY
Save 90% of fuel cost; 2000 hours 0 maintenance; Ultra-low failure rate; 5000 working shifts; 30000 working hours; 16 years of working
02

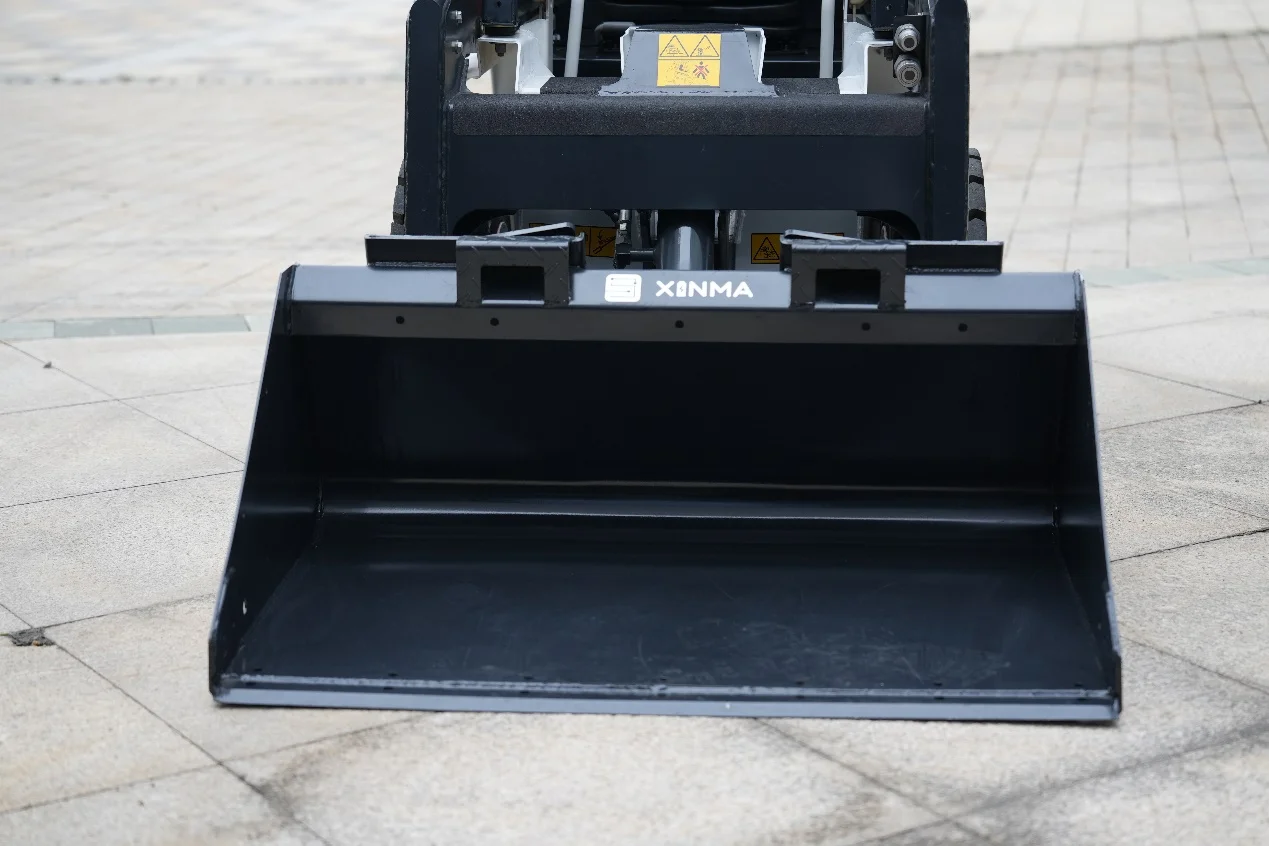

Bucket
The bucket provides a larger capacity and greater inclination Angle, so that the material is not easy to overflow from the front of the bucket, is a good helper for your work
03
Independent system
Independent system Independent regulation of hydraulic flow, minimum energy consumption, maximum effect
04
Permanent magnet synchronous motor
The most stable motor, Small size, light weight, small loss, high efficiency Strong overload resistance
05
Quick replacement
Quick replacementQuick replacement device allows you to change accessories more easily
06
ECO mode
The simple operated control panel paired with the ECO only mode allows you to easily drive the loader,
Jiangsu Supeng Machinery Technology Co., Ltd. is an operator mainly providing road maintenance, garden construction, forest fire prevention and disaster relief, professional snow clearing, port shipyard clearance and other diversified construction machinery solutions. The company mainly engaged in: pure electric skid loader products and accessories. The company sets the whole machine sales, parts sales, after-sales service, to provide you with a comprehensive solution. The company's mission is "to provide comprehensive solutions for small equipment customers", and its corporate vision is "the only choice for customers in pure electric skid loader".
Q:Are you trading company or manufacturer ?
A:We are trading company.
Q:How long is your delivery time?
A:Generally it is 5-10 days if the goods are in stock
Q:What is your terms of payment ?
A:100% in advance By T/T
Q:What about shipping?
A:We use 20-foot cabinets by sea.
Q:Are you able to help me to locate it?
A:We are not able to put every product we can do on this site. Telling us your requirement, we can send you the right products information and related products.
