Mintti Wearable Single Channel ECG Monitor Holter for Dynamic Cardiac Monitoring
- Category: >>>
- Supplier: Jiangxi Yeeroo Industrial Co. Ltd.
Share on (1600890819645):
Product Overview
Description

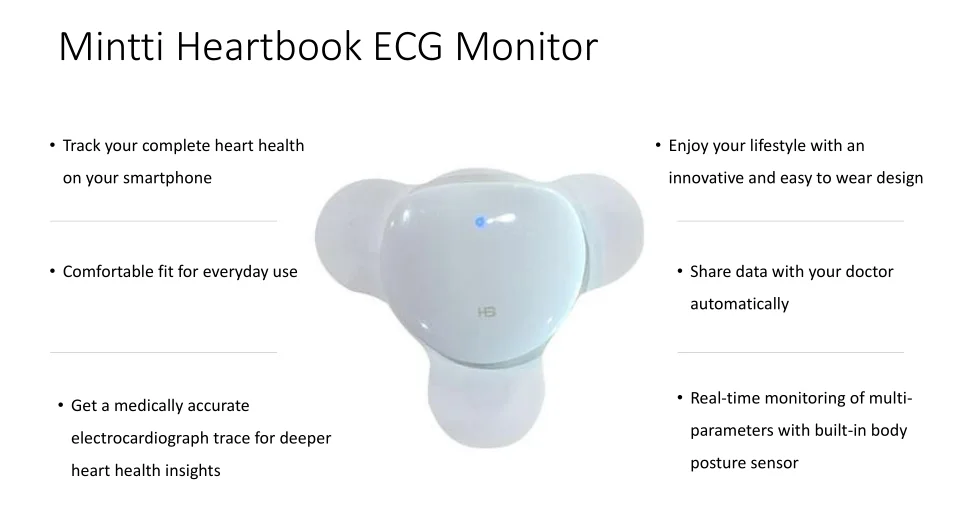

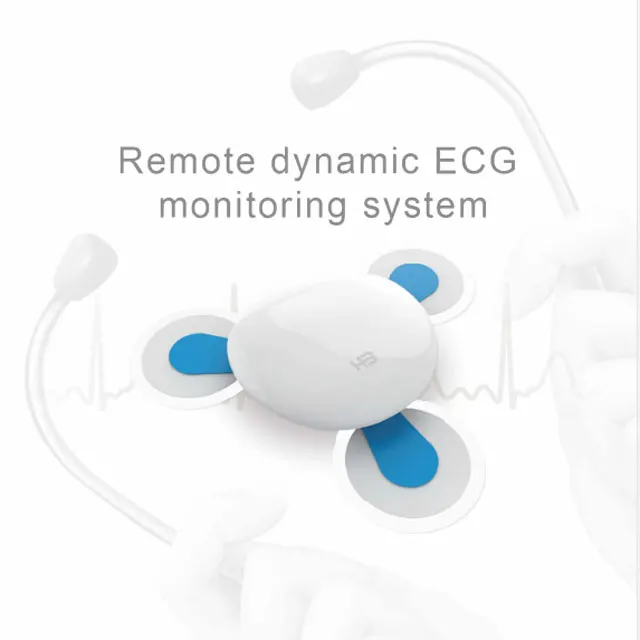

Mintti HeartBook MCT-1
---Multi-parameter Cardiac Telemetry System
Product Description
As an intelligent medical-grade wearable ECG monitor, Mintti Heartbook can be used in after-surgery tracking (health management) for cardiac patients and continuous monitoring for the elderly, extreme sports enthusiasts, people under high pressure, or the sub-healthy people as well.
Features & Functions
Lightweight and Antibacterial

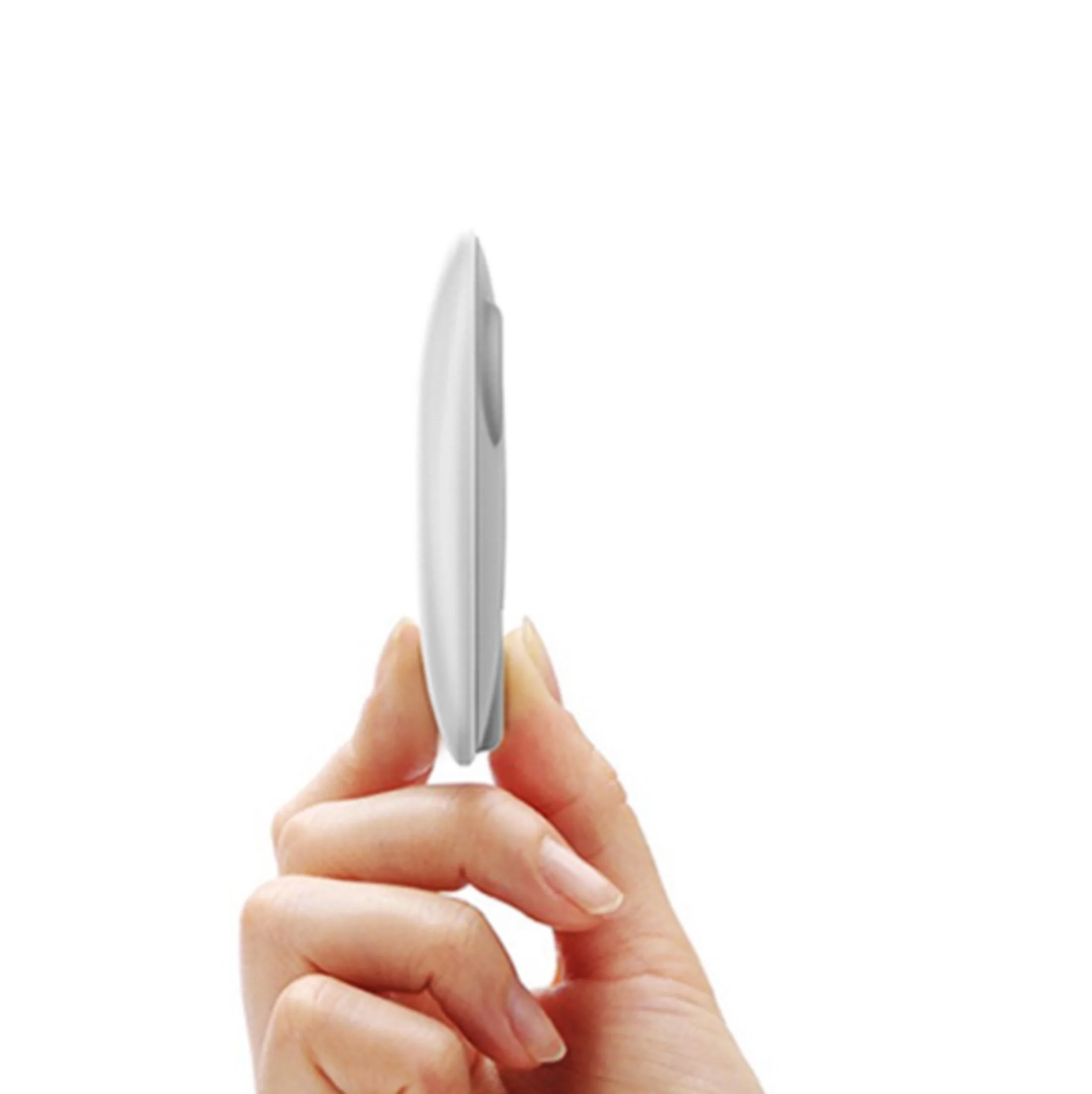

Mintti Heartbook is lightweight and ultra-thin, comfortable with unique antibacterial plastic material for medical use.
Customizable Algorithm for Online Diagnosis
Online doctor consultation builds up the patient’s exclusive cardiovascular disease diagnosis.
Thorough Review of Heart Health
Mintti Heartbook makes a continuous ECG record and also monitors respiratory rate, activity tracking, heart rate, heart rate
variability which provides a thorough review of your health condition.
With a Multi-parameter cardiac telemetry system, Mintti Heartbook can have a real-time alert on APB, VPB, long interval, tachycardia and bradycardia.
With complete waveform annotations, accurate parameters extraction, smart abnormality lock-up, and rapid diseases information entry, Mintti Heartbook provides convenient and instant diagnosis for users by simple operation.
By using doctor’s limited time to complete the analysis in a timely manner, Mintti Heartbook can save averagely 23 hours to get access to medical reports,compared with hospital routine Dynamic ECG Recorder (Holter).
Heart monitoring solution, anytime, anywhere

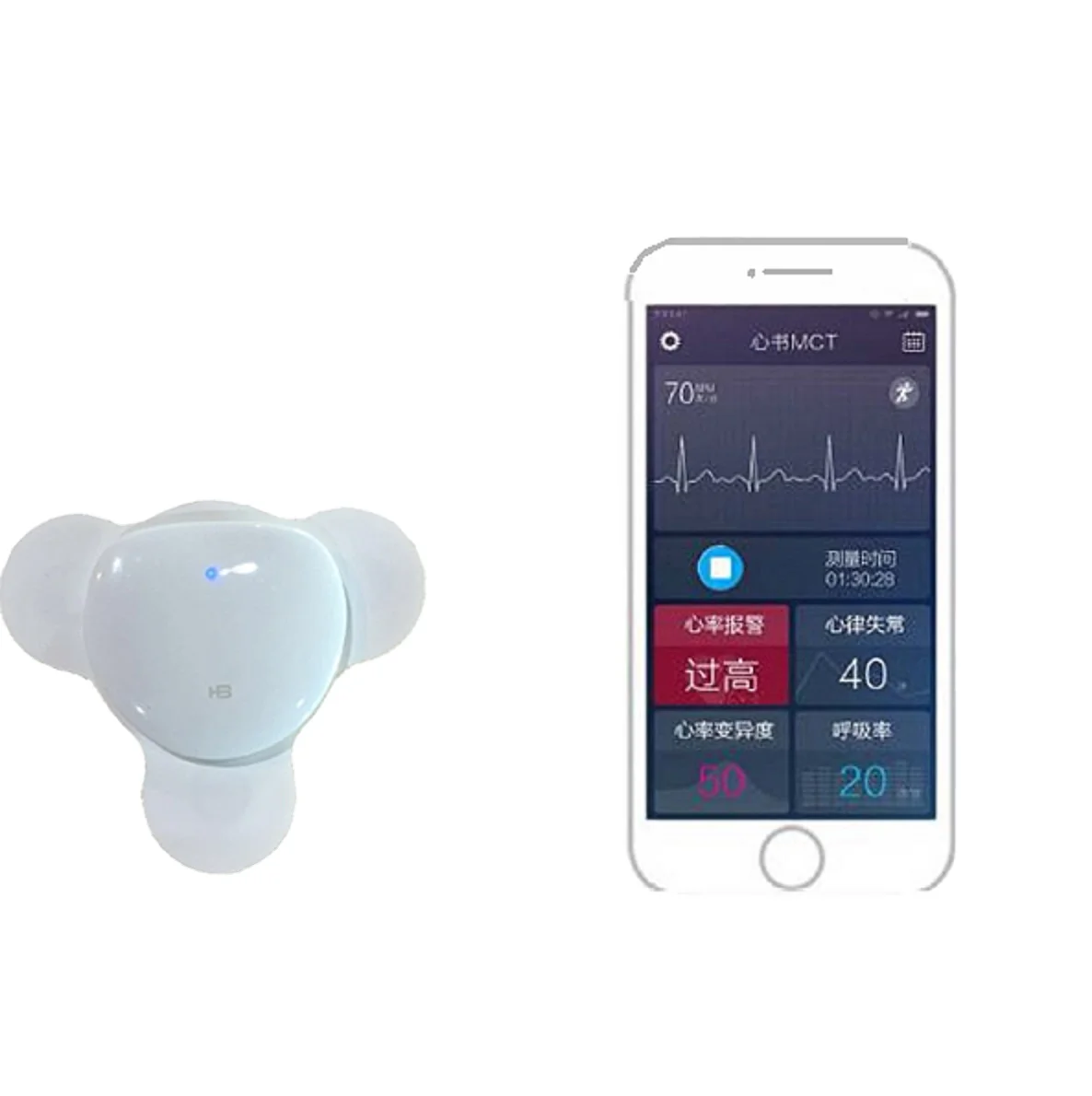

APP for monitoring user
Accurate ECG signals acquisition and intelligent parameters analysis.
Real-time report upload and Pros online services.
How to Operate
Step 1: Download and install the “HeartBook” APP.
Step 2: Long press the power button of the device to switch on.
Step 3: Connect the device via Bluetooth of the smartphone.
Step 4: Place three ECG electrodes on the device.
Step 5: Start measuring on the measurement interface.
Step 6: Get the HeartBook report.
Step 7: Share the PDF report.
Note: Please refer to User Manual for details.

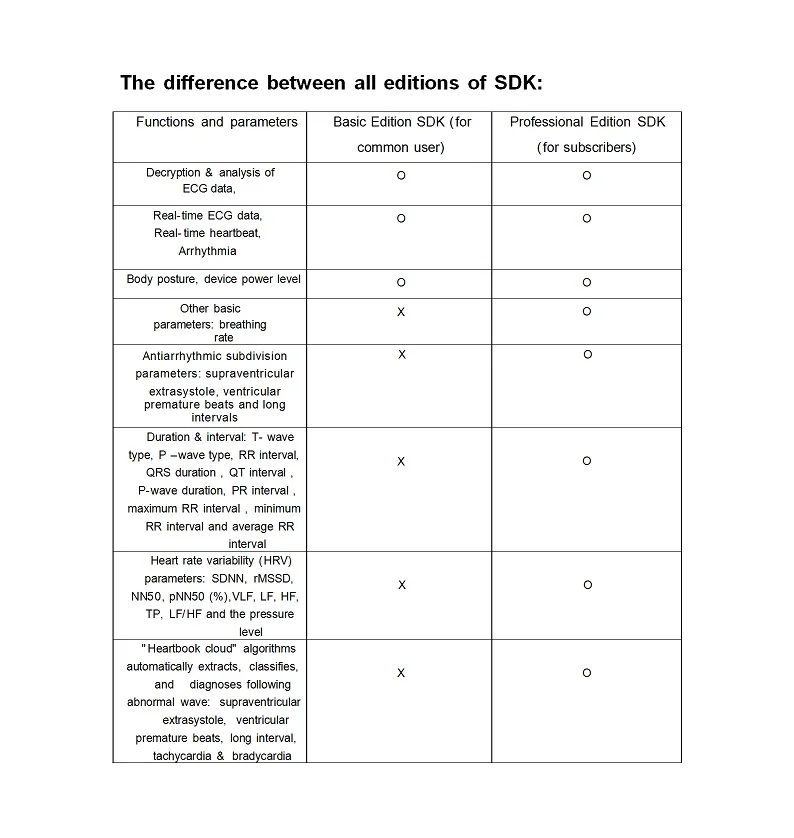

We have prepared different versions of SDK for you to choose from, pls feel free to contact us!
Specification
Product Name | Mintti Heartbook Dynamic ECG Monitor |
Product Size | 54mm(Length)*61mm(Width)*9.0mm(Height) |
Product Weight | 20g |
Bluetooth | 5.0 Enabled |
Phone Versions | Android 5.0 and above, IOS 9.0 and above |
Battery Capacity | ≥170mAh |
Indicator Light Status | Flashing, Steady Internal |
Power Supply | DC 3.7V |
Sample Rate | 500Hz |
Standby Time | ≥60days |
Continuous Monitoring Time | ≥35h |
Charging Voltage | DC 5.0V-0.2A |
Operating Current | ≤20mA |
Data Transmission | Bluetooth BLE 5.0 |
Channel Number | Single channel |

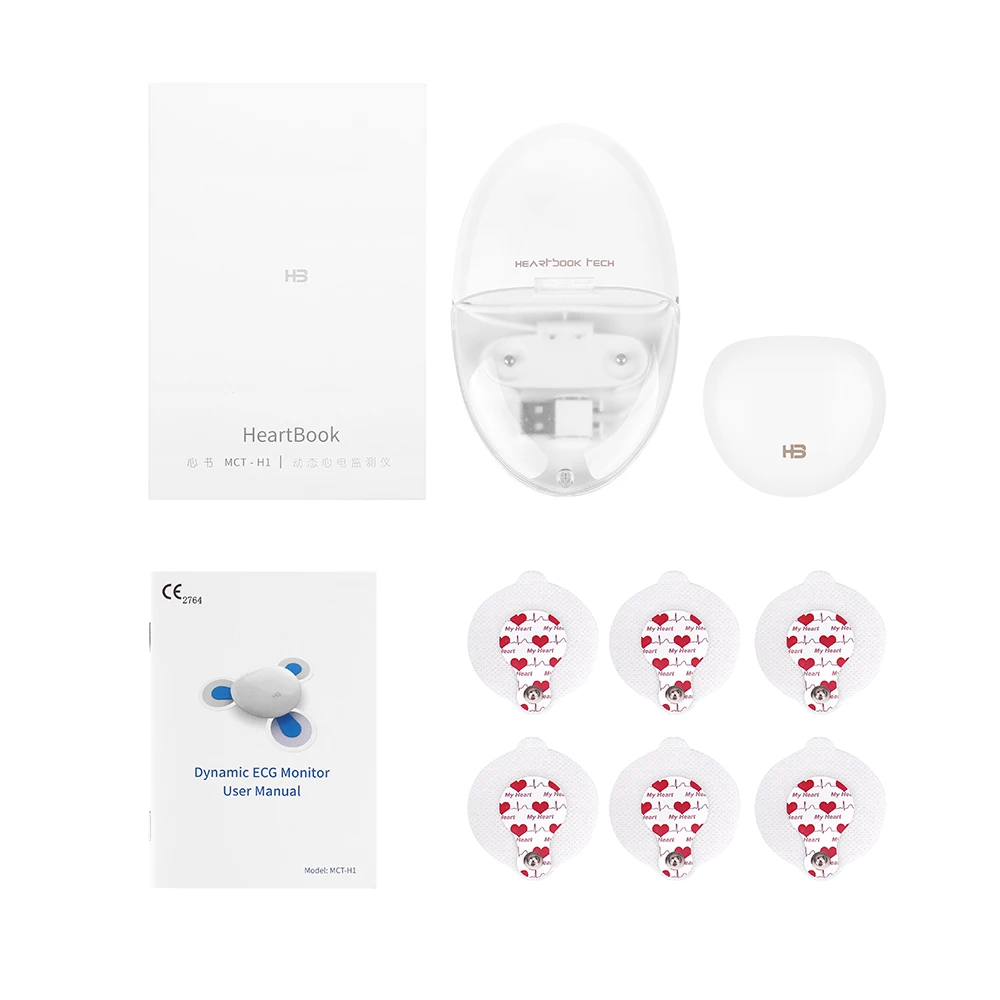

Product Accessories | ECG electrodes and chest belt |

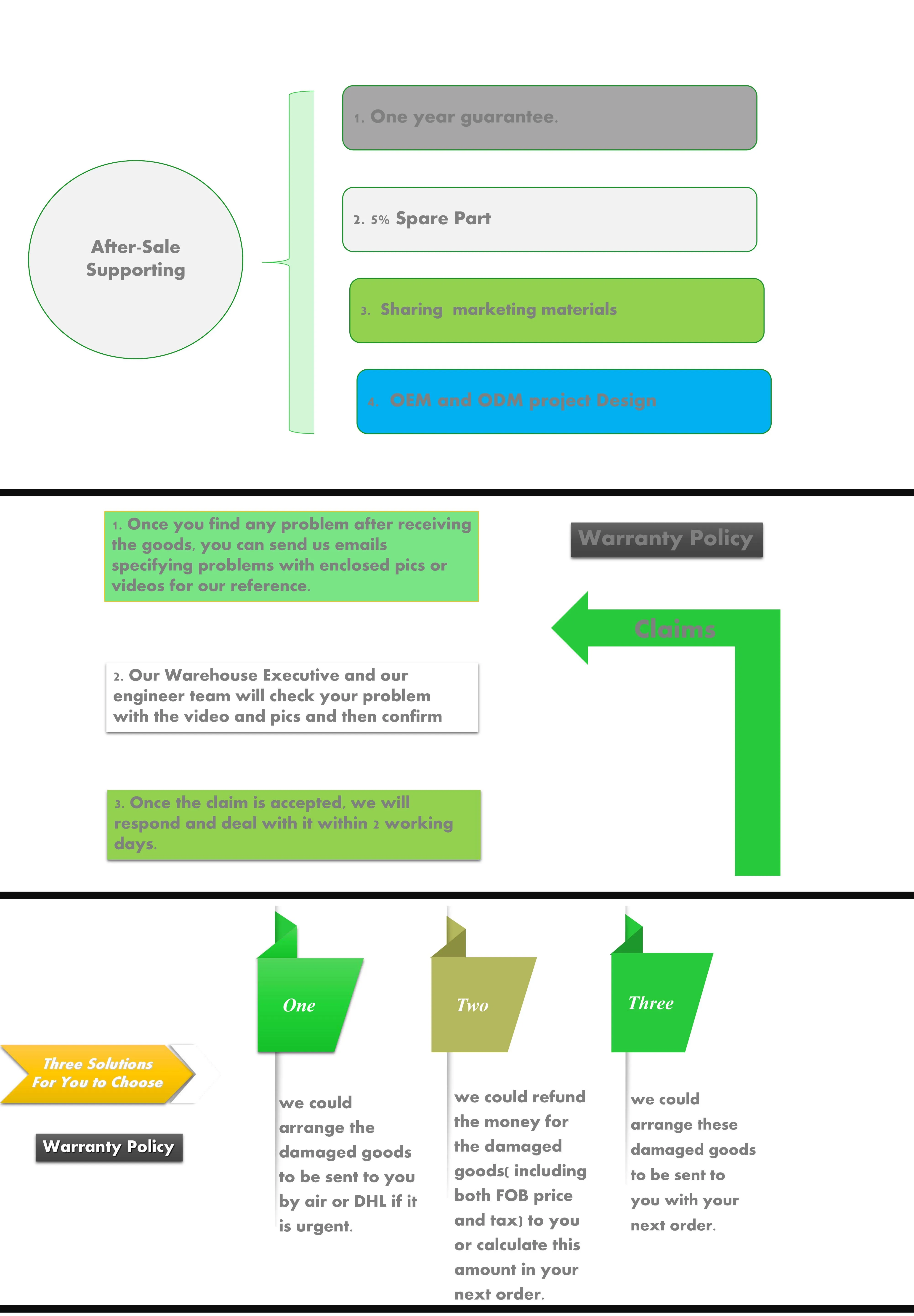

After-Sale & Warranty Police

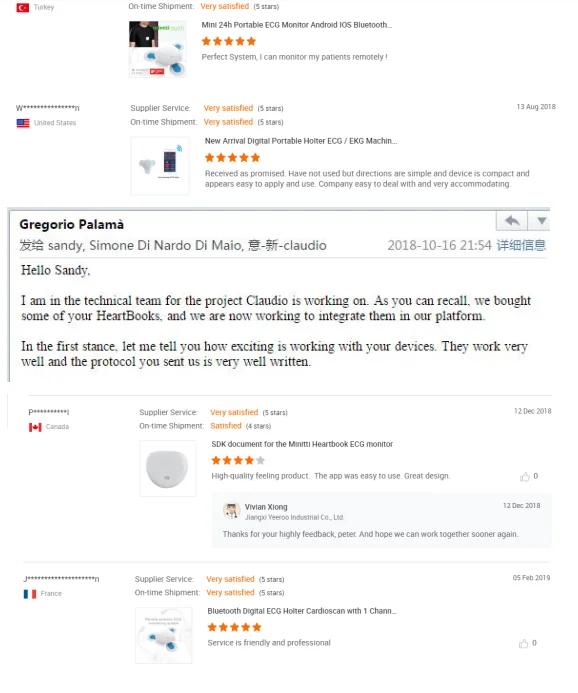

What do Mintti Customers Say?
Company Introduction
Our Factory
Advanced PCB Technology
Advanced PCB Technology
FAQ
1. Q: Who should use Mintti Heartbook?
A: It is intended for use by physicians, healthcare professionals, patients, or by health conscious individuals to detect and
monitor arrhythmia or abnormal heart rate or rhythm, or as a response to treatment of cardiac disorders.
2. Q: Can Mintti Heartbook be used with a pacemaker?
A: If you have a pacemaker or other implanted device, we recommend you consult with your doctor before using Mintti Heartbook.
3. Q: Is Mintti Heartbook water resistant?
A: Yes, Mintti Heartbook is water resistant. But Mintti Heartbook is not intended for use during activities where the device willbe completely submerged in water.
4. Q: Is Mintti Heartbook able to check HRV?
A: Yes, Mintti Heartbook can check HRV.
5. Q: How does device begin measuring? Is it as soon as the device is placed on body or is there a command to send?
A: A command to start measuring by software.
6. Q: How can I have command to read MAC address?
A: The mac address can be obtained by scanning the host BLE.
7. Q: What is real-time emergency alert by Mintti Heartbook?
A: With a built-in body posture sensor, Mintti Heartbook can send SMS alerts to the owner or guardian’s devices when a tumble occurs. And it can send real-time alerts on APB, VPB, long interval, tachycardia and bradycardia.
8. Q: What’s the best record duration?
A: Mintti Heartbook is an all-weather ECG device enabling long-term heart rate recording. Generally, the longer you use the
device, the more accurate ECG recording you will get. A continuous measurement no less than 60 minutes every day and at least once a week a measurement more than 10 hours throughout the day are recommended.
A: It is intended for use by physicians, healthcare professionals, patients, or by health conscious individuals to detect and
monitor arrhythmia or abnormal heart rate or rhythm, or as a response to treatment of cardiac disorders.
2. Q: Can Mintti Heartbook be used with a pacemaker?
A: If you have a pacemaker or other implanted device, we recommend you consult with your doctor before using Mintti Heartbook.
3. Q: Is Mintti Heartbook water resistant?
A: Yes, Mintti Heartbook is water resistant. But Mintti Heartbook is not intended for use during activities where the device willbe completely submerged in water.
4. Q: Is Mintti Heartbook able to check HRV?
A: Yes, Mintti Heartbook can check HRV.
5. Q: How does device begin measuring? Is it as soon as the device is placed on body or is there a command to send?
A: A command to start measuring by software.
6. Q: How can I have command to read MAC address?
A: The mac address can be obtained by scanning the host BLE.
7. Q: What is real-time emergency alert by Mintti Heartbook?
A: With a built-in body posture sensor, Mintti Heartbook can send SMS alerts to the owner or guardian’s devices when a tumble occurs. And it can send real-time alerts on APB, VPB, long interval, tachycardia and bradycardia.
8. Q: What’s the best record duration?
A: Mintti Heartbook is an all-weather ECG device enabling long-term heart rate recording. Generally, the longer you use the
device, the more accurate ECG recording you will get. A continuous measurement no less than 60 minutes every day and at least once a week a measurement more than 10 hours throughout the day are recommended.
9. Q: What are the meanings of the three indicators on the charging box?
A: After Short press,Red light goes on is the device off now; Blue light goes on is the device on now; No response is the device in low battery.
After Long Press,Red light goes off after 3 seconds of steady light is the switch on; Blue light flashes after 3 seconds then goes off is the device switch off.
Without pressing, Blue light on is the Bluetooth has been connected, Red light flashes is Charging, Green light on is charging completed.
A: After Short press,Red light goes on is the device off now; Blue light goes on is the device on now; No response is the device in low battery.
After Long Press,Red light goes off after 3 seconds of steady light is the switch on; Blue light flashes after 3 seconds then goes off is the device switch off.
Without pressing, Blue light on is the Bluetooth has been connected, Red light flashes is Charging, Green light on is charging completed.
