  • BGT Integrated Air temp humidity pressure precipitation wind speed direction solar smart Compact all in one weather sensor
BGT Integrated Air temp humidity pressure precipitation wind speed direction solar smart Compact all in one weather sensor
BGT Integrated Air temp humidity pressure precipitation wind speed direction solar smart Compact all-in-one weather sensor
BGT Integrated Air temp humidity pressure precipitation wind speed direction solar smart Compact all-in-one weather sensor

BGT Integrated Air temp humidity pressure precipitation wind speed direction solar smart Compact all in one weather sensor

Share on (1600890821188):


Price:

Quantity:


Product Overview

Description



Products Description


customized elements Temperature humidity air pressure wind speed wind direction rainfall integrated weather station
The integrated weather station produced by our company adopts high-performance dual core 32-bit processor and integrates multi-channel signal acquisition channels, which can realize all-weather on-site monitoring of environmental temperature, environmental humidity, wind direction, wind speed, rainfall, air pressure, solar radiation, soil temperature, soil humidity, visibility, Co, CO2, SO2 and other meteorological elements, which is widely used in meteorology, environmental protection, architecture, etc Airport, transportation, agriculture and forestry, planting, emergency, hydrology, military, warehousing, scientific research and many other fields. Compared with other manufacturers of the same type of products, the integrated weather station has the characteristics of various types of sensors, comprehensive data volume, high acquisition accuracy, fast calculation speed, stable and reliable performance. Moreover, it is small in size, light in weight, easy to carry and install, which truly realizes the intelligent weather station integrating various meteorological elements.




Quick selection


Item No.
Elements
BGT-W817Z pro
BGT-W815 pro
BGT-W817B pro
BGT-W818V pro
BGT-W818B pro
BGT-W818C pro
BGT-W820 pro
PM2.5
√
√
√
√
√
PM10
√
√
√
√
√
CO
√
√
SO2
√
√
NO2
√
√
O3
√
√
Temperature
√
√
√
√
√
√
√
Humidity
√
√
√
√
√
√
√
Pressure
√
√
√
√
√
√
Speed
√
√
√
√
√
√
Direction
√
√
√
√
√
√
Rainfall
√
√
√
illuminance
√
TVOC

√
Radiation
√
√( thermo-electric)
Noise
√
UV

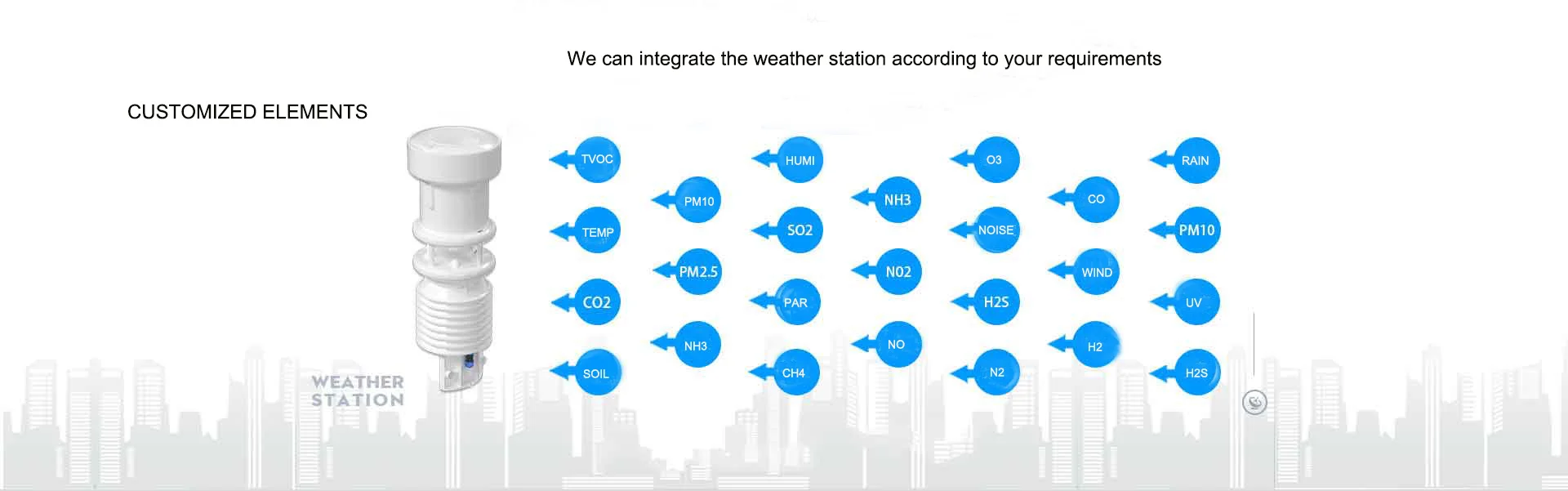

Customized elements according to customers requirements.





1. Alphasense & Kyocera module inside
2. Flexible customization with more than 60 parameters
3. Industrial grade Anti-UV ABS radiation shield
4. Maintenance-free high performance monitoring
5. Compact design for harsh environment


Features


*Adapt to adapt complex weather conditions
*High accuracy, fast response
*Good appearance
*Highly integrated, easy installation
*Solid state,Free maintenance
*ASA engineering plastic cover


Technical Parameter


Elements
Range
Resolution
Accuracy
Configuration
Temperatire
-40-123.8℃
0.1℃
±0.3℃
Customized
Humidity
0-100%RH
0.10%
±2%(≦80%)±5%（>80%）
Customized
Dew point temperature
-40-50℃
0.1℃
Calculated value (complimentary)
Customized
Maximum temperature of the day
-40-123.8℃
0.1℃
Calculated value (complimentary)
Customized
Minimum temperature of the day
-40-123.8℃
0.1℃
Calculated value (complimentary)
Customized
Ultrasonic direction
0-360°
1°
±2°
Customized
Ultrasonic speed
0-60m/s
0.1m/s
±2%(≦20m/s) ±2%+0.03V m/s（>20m/s）
Customized
2 min average wind speed
0-60m/s
0.1m/s
Calculated value (complimentary)
Customized
10 min average wind speed
0-60m/s
0.1m/s
Calculated value (complimentary)
Customized
electronic compass
0-359.9°
0.1°magnetic variation
±4°
Customized
Pressure
300-1100hpa
0.1hpa
±0.12hpa
Customized
Rainfall
0-999.9mm
0.2mm\\0.5mm
≦0.2mm
Customized
Total radiation(Photoelectric)
0-2000W
1W/㎡
≦5%
Customized
Total radiation daily accumulation
0-99.99
0.01
Calculated value (complimentary)
Customized
Total radiation monthly accumulation
0-9999
1
Calculated value (complimentary)
Customized
Total radiation annual accumulation
0-9999
1
Calculated value (complimentary)
Customized
UV
0-500w
1W/㎡
≦5%
Customized
CO2
0-2000ppm
1ppm
±20ppm
Customized
Noise
30-130dB
0.1dB
±5dB
Customized
PM2.5
0-500ug/m³
0.01ug\\m3
±10%
Customized
PM10
0-1000ug/m³
0.01ug\\m3
±10%
Customized
illuminance
0-200000 Lux
±7%
Customized
sunshine duration
0-24h
0.1h
±0.1h
Customized
Soil temperature
-50-80℃
0.1℃
±0.1℃
Customized
Soil moisture
0-100%RH
0.1%
±2%
Customized
Soil EC
0-15mS/cm
0.01
±0.5%
Customized
Soil PH
1-14PH
0.1
±2%
Customized
Evaporation
0-200mm
0.1mm
±1.5%
Customized
PAR
0-500W
1W/㎡
≦5%
Customized
CO
0-10ppm
0.001ppm
±3% FS
Customized
SO2
0-1ppm
0.001ppm
±3% FS
Customized
O3
0-1ppm
0.001ppm
±3% FS
Customized
NO2
0-1ppm
0.001ppm
±3% FS
Customized
VOCvolatile matter
0-20ppm
0.001ppm
±3% FS
Customized
H2S
0-10ppm
0.001ppm
±3% FS
Customized
NH3
0-10ppm
0.001ppm
±3% FS
Customized
CH2O
0-1ppm
0.001ppm
±3% FS
Customized
CI2
0-10ppm
0.001ppm
±3% FS
Customized
C2H4O
0-100ppm
0.001ppm
±3% FS
Customized
H₂O₂
0-100ppm
0.001ppm
±3% FS
Customized
H2
0-1000ppm
1ppm
±3% FS
Customized
HCl
0-20ppm
0.01ppm
±3% FS
Customized
HCN
0-20ppm
0.01ppm
±3% FS
Customized
PH3
0-20ppm
0.01ppm
±3% FS
Customized
O2
0-30%VOL
0.01%VOL
±3% FS
Customized
N2
0-100%VOL
0.01%VOL
±3% FS
Customized
NO
0-1ppm
0.001ppm
±3% FS
Customized
ClO₂
0-50ppm
0.01ppm
±3% FS
Customized
CH4S
0-10ppm
0.01ppm
±3% FS
Customized
C₂H₄
0-100ppm
0.01ppm
±3% FS
Customized
Br2
0-10ppm
0.01ppm
±3% FS
Customized
THT
0-50ppm
0.01ppm
±3% FS
Customized
F2
0-1ppm
0.01ppm
±3% FS
Customized
HF
0-10ppm
0.01ppm
±3% FS
Customized
HBr
0-20ppm
0.02ppm
±3% FS
Customized
COCl2
0-1ppm
0.001ppm
±3% FS
Customized
CH4
0-5000ppm
1ppm
±3% FS
Customized


Application


*Electric power safety monitoring
*Meteorological monitoring system
*Solar and wind generation
*Marine vessels & small airports & helipads
* Environment monitoring
*Bridge & Tunnel
*Agriculture








Customer Testimonials






Company Profile




Our Factory




Production Process




Certificates




Payment Methods




Transportation




FAQ




Q1: Are you trading company or manufacturer?
A: BGT Technology (Beijing) Co., Ltd. is a trading company 100% holding by Beijing Guoxinhuayuan Technology Co., Ltd. Beijing
Guoxinhuayuan Technology Co., Ltd is manufacturer for emergency solutions and producs.
Q2. Can I have a free sample for testing ?
A: Sample order is acceptable, but need you to pay for the product cost and freight .
Q3. What about the lead time?
A: Sample needs 4-5 working days after receiving your payment, mass production needs extra 4-5 working days.
Q4: Is it OK to print my logo on the products? A: Yes, we support OEM/ODM service.
Q5: Do you offer guarantee for the products? A:Yes, we offer 1 year warranty to our products.
Q6: Can I visit your company?
A: Yes, warmly welcome to visit our company.
Q7. Do you have certifications?
A: Yes, we have ISO9001, ISO 14001, OHSAS18001, CE, etc.
Q8: How is the quality of your goods?
A: We make a commitment to offer products with good apperance and nice quality to customers. If there is some questions for the
product, we have after-sale team to serve you. And we offer 1 year warranty
