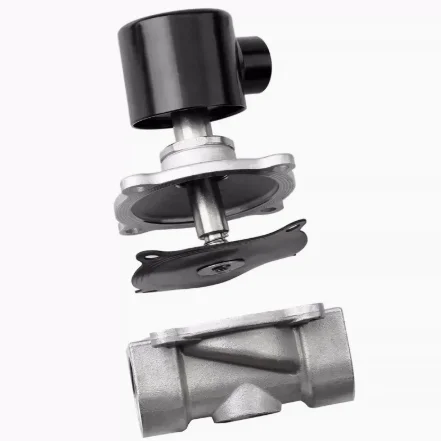

24V/220V triclamp solenoid valve

Product Overview

Description

 stainless steel solenoid valve





Fluid		Air/Water/Oil
Action Mode		Pilot-operated Type
Type		Normal Close
Port Diameter(mm^2)		10	16	20	25	35	40	50
CV Value		4.8	4.8	7.6	12	24	29	48
Port Size		G3/8	G1/2	G3/4	G1	G1 1/4	G1 1/2	G2
Fluid Viscosity		Under 20CS
Working Pressure		Water/Oil: 0-0.5MPa Air: 0-0.7MPa
Proof Pressure		1.0MPa
Temperature		-5-85℃
Working Voltage Range		±10%
Voltage		AC220V/DC24V/DC12V
Material	Body	Stainless Steel 304
	Seal	NBR
Coil Power		20VA				50VA
