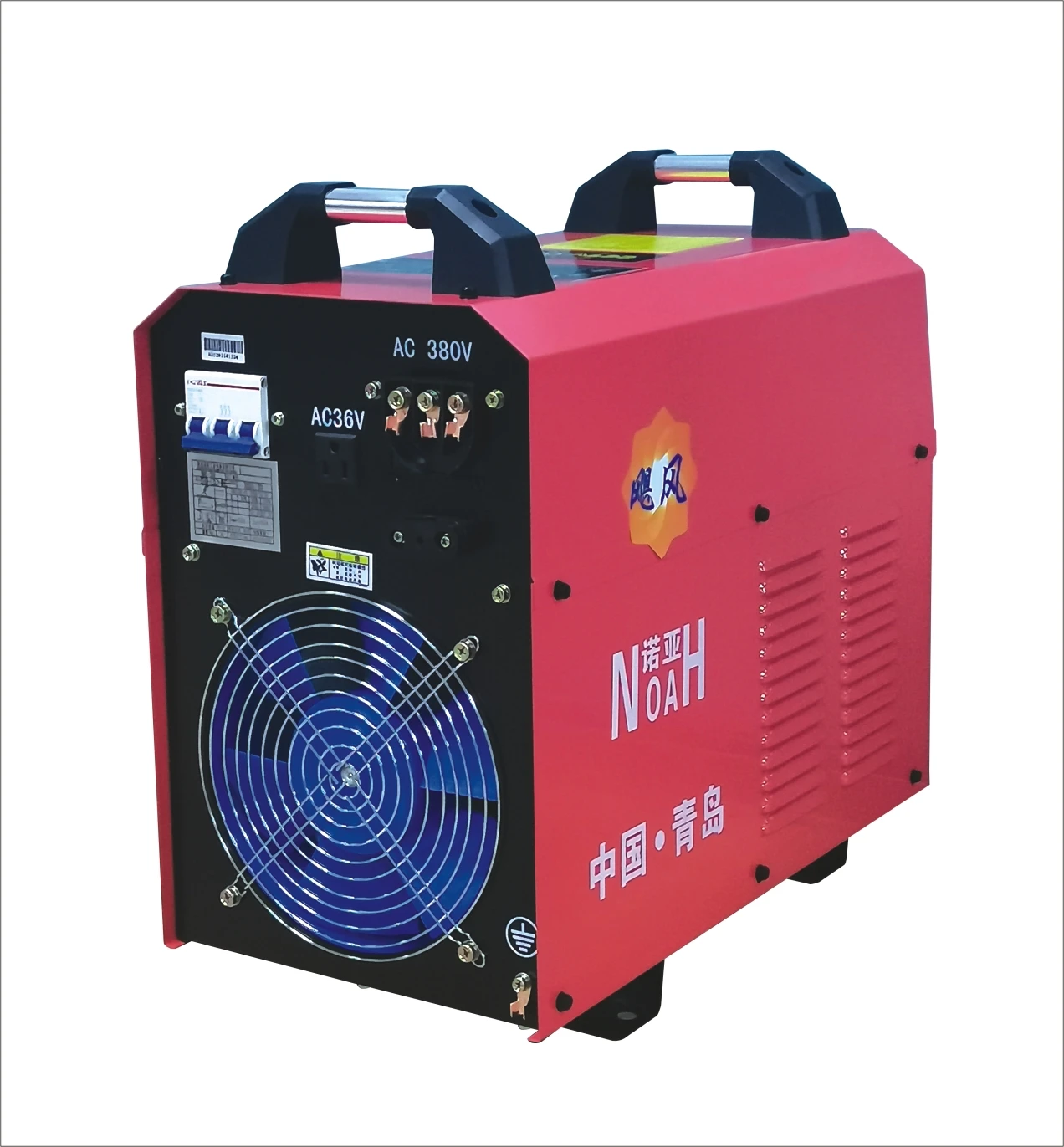

High Quality 2023 New 4 In 1 Welders 380V 350A Multifunction MIG NBC 350I Welding Machine
- Category: >>>
- Supplier: Qingdao Welderneed Machinery Co. Ltd.
Share on (1600890860485):
Product Overview
Description
OEM / OBM / ODM supported
customize for you
Regardless of color or logo;
Regardless of current or voltage;
No matter the button or the chip;
Regardless of accessories or packaging!
just for you .
Make Partner Win
Products Description

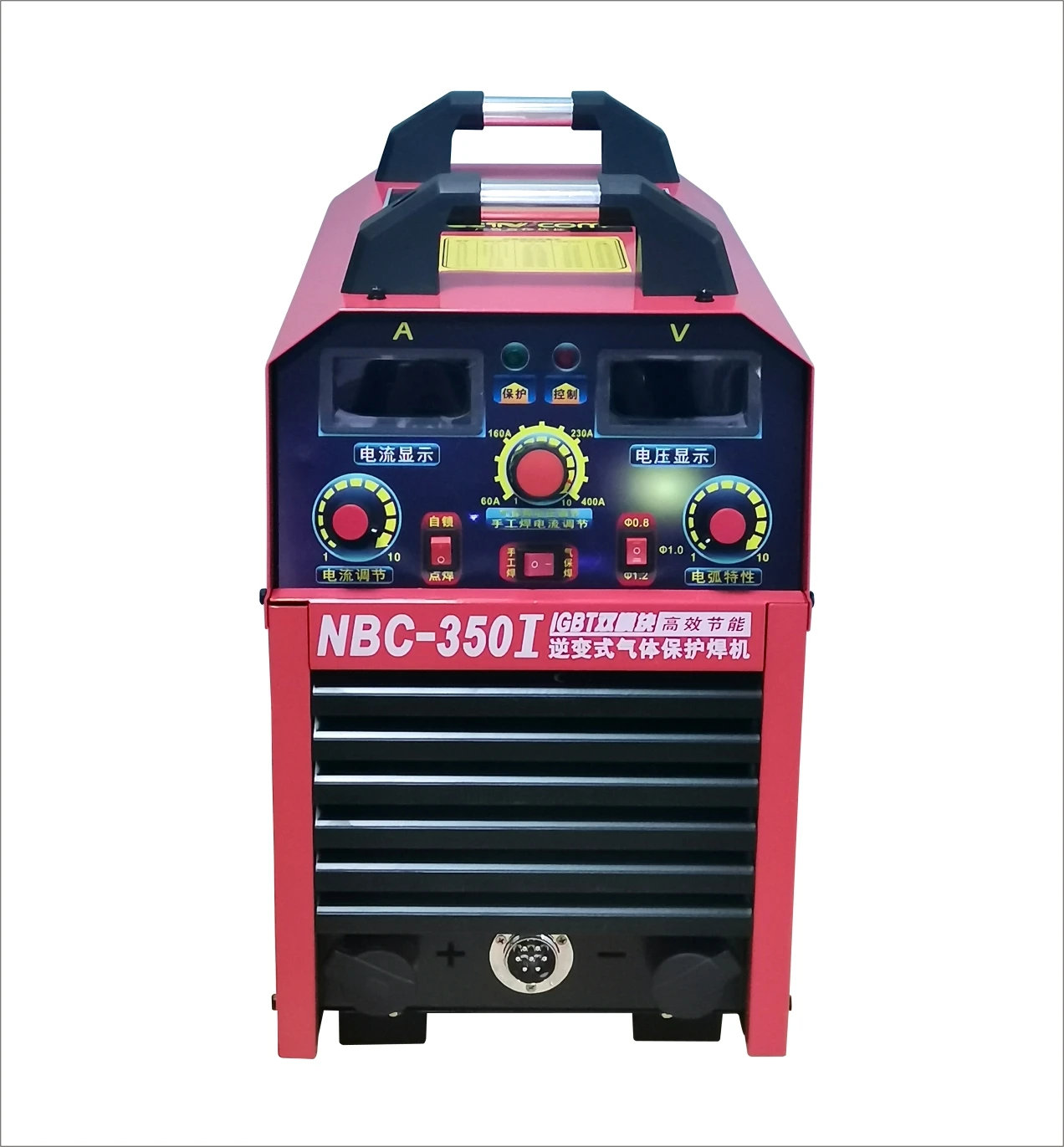

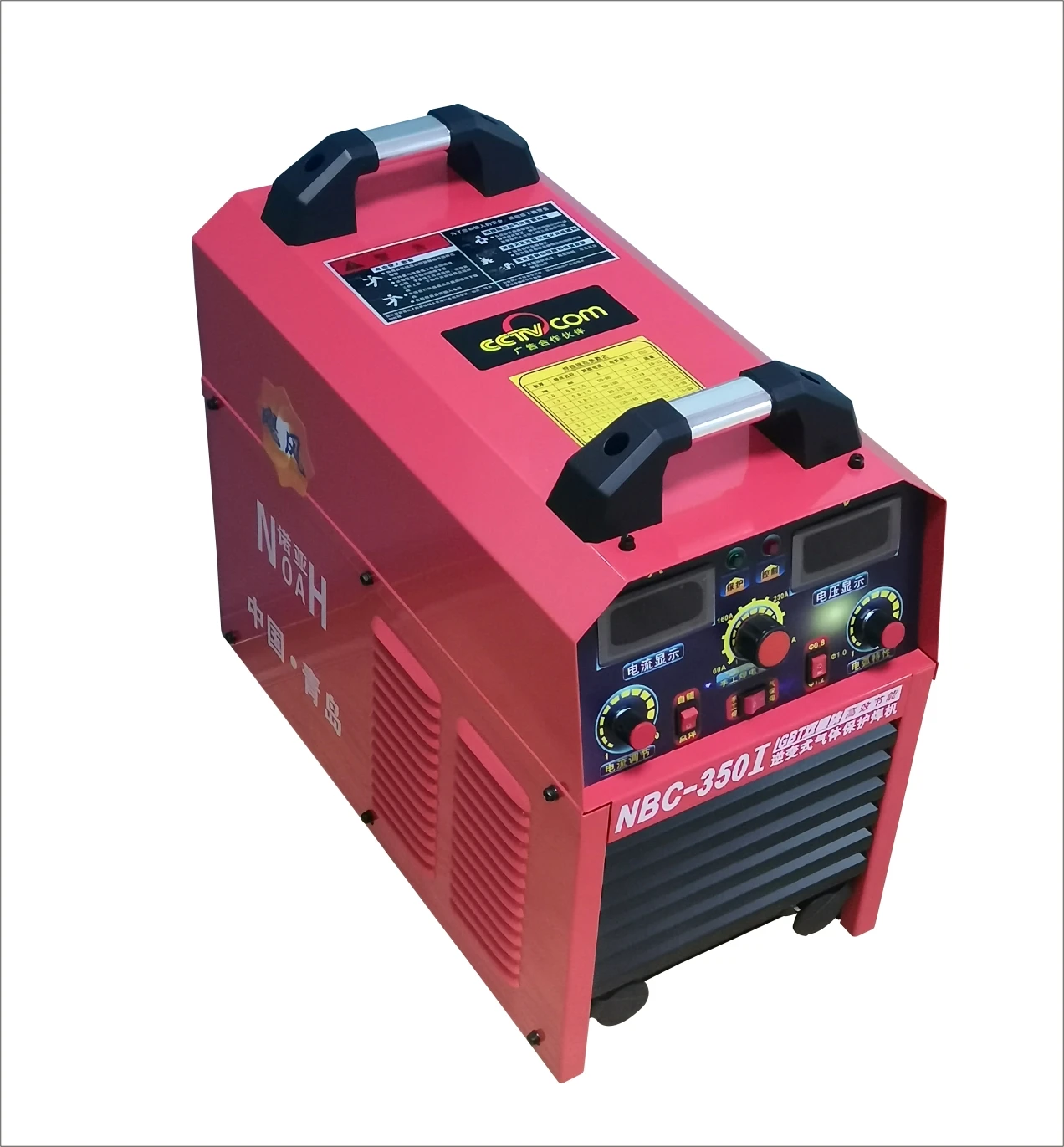

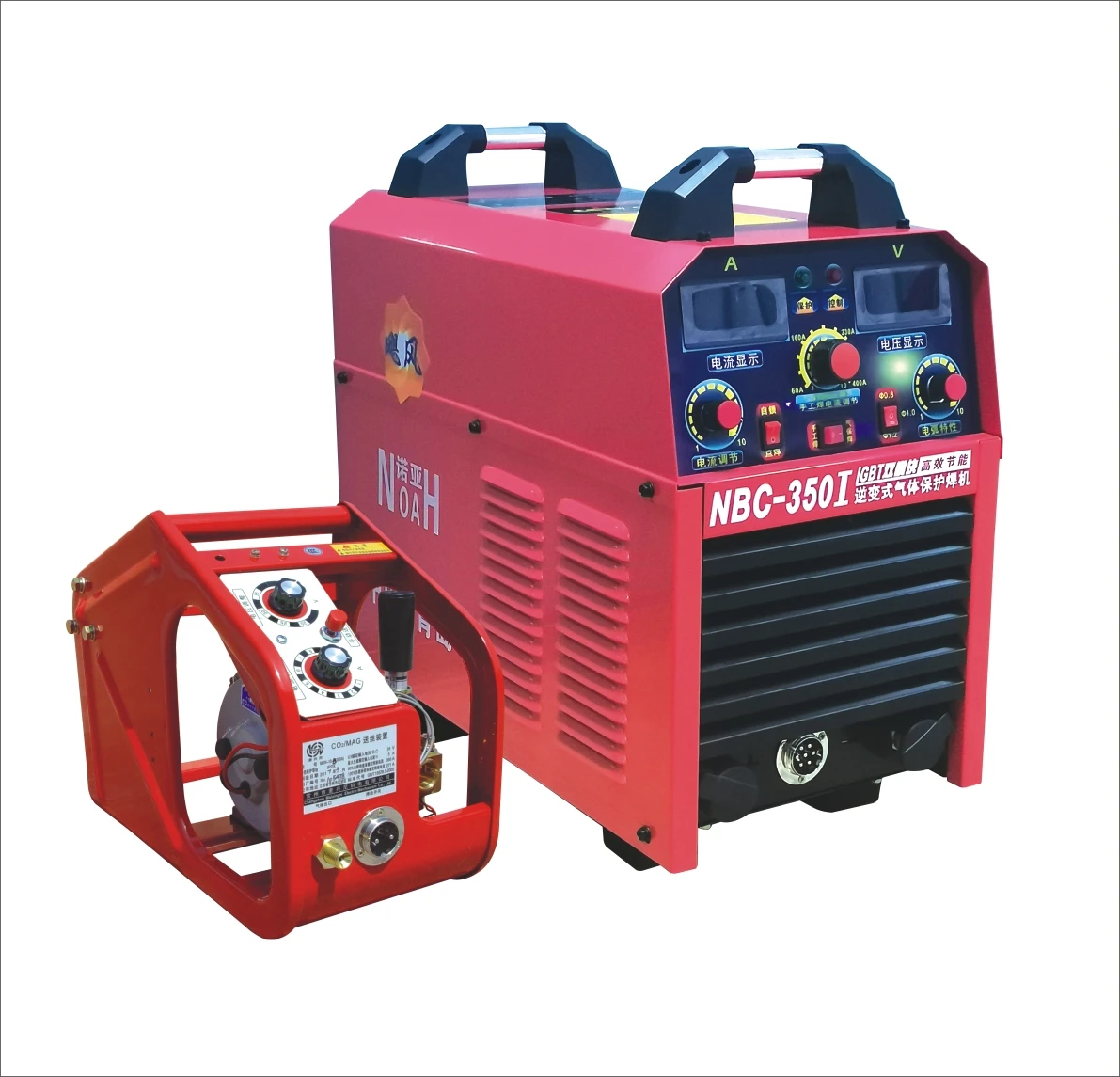

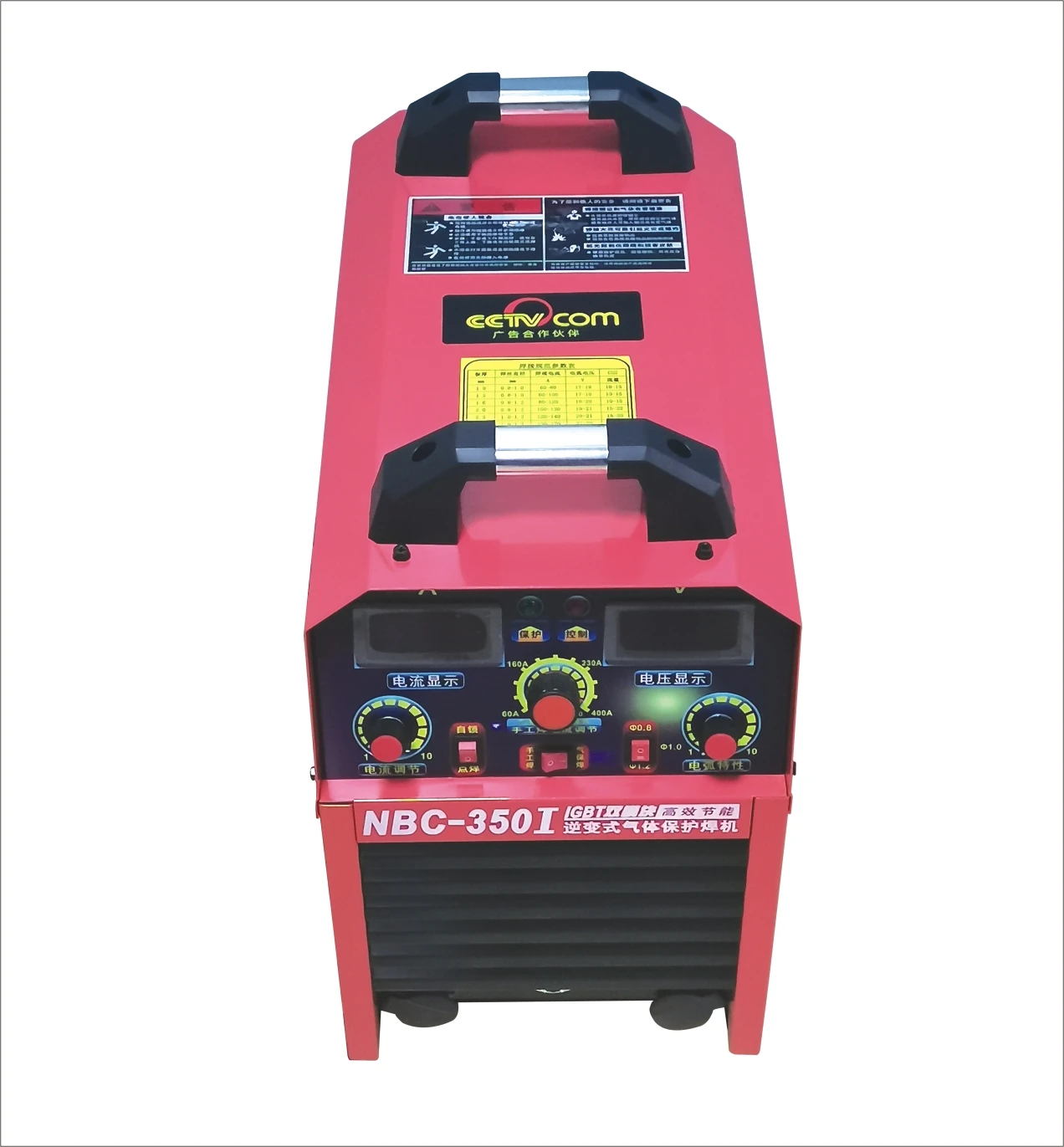

NBC-350I 380V 350AMP Welding Machine
Powerful / ALL IN 1 Welding Machine
Product Paramenters
Input voltage | Входное напряжение | 3P/380V,50Hz |
Input Current | Входной ток | 22.8A |
Rated input capacity | Номинальная входная мощность | 15KVA |
No-load voltage | Напряжение холостого хода | 65V |
Current adjustment range | Диапазон регулировки тока | 0-350A |
actual output current | фактический выходной ток | 350A |
Inversion frequency | частота инверсии | 20KHz |
efficiency | КПД | 90% |
power factor | коэффициент мощности | 82% |
Protection class | Класс защиты | IP21 |
Insulation class | Класс изоляции | F |
Rated Duty Cycle @40°C: | Номинальный рабочий цикл @40°C: | 50% |
Applicable welding wire | Применяемая сварочная проволока | 0.8/1.0/1.2 |
Welding plate thickness | Толщина сварочной пластины | 9mm |
Weldable materials | Свариваемые материалы | Carbon steel, Stainless steel, Copper, and their alloys |
Net weight (Kg) | Вес нетто (кг) | 22.5 |
Gross Weight（kg） | Вес брутто (кг) | 42.4 |
Package size (mm) | Размер упаковки (мм) | 610*380*550 |
Accessories | Аксессуары | Wire feeder *1 Control line 5 meters *1 Ground wire *1 Welding torch *1 Carbon dioxide flow meter *1 |

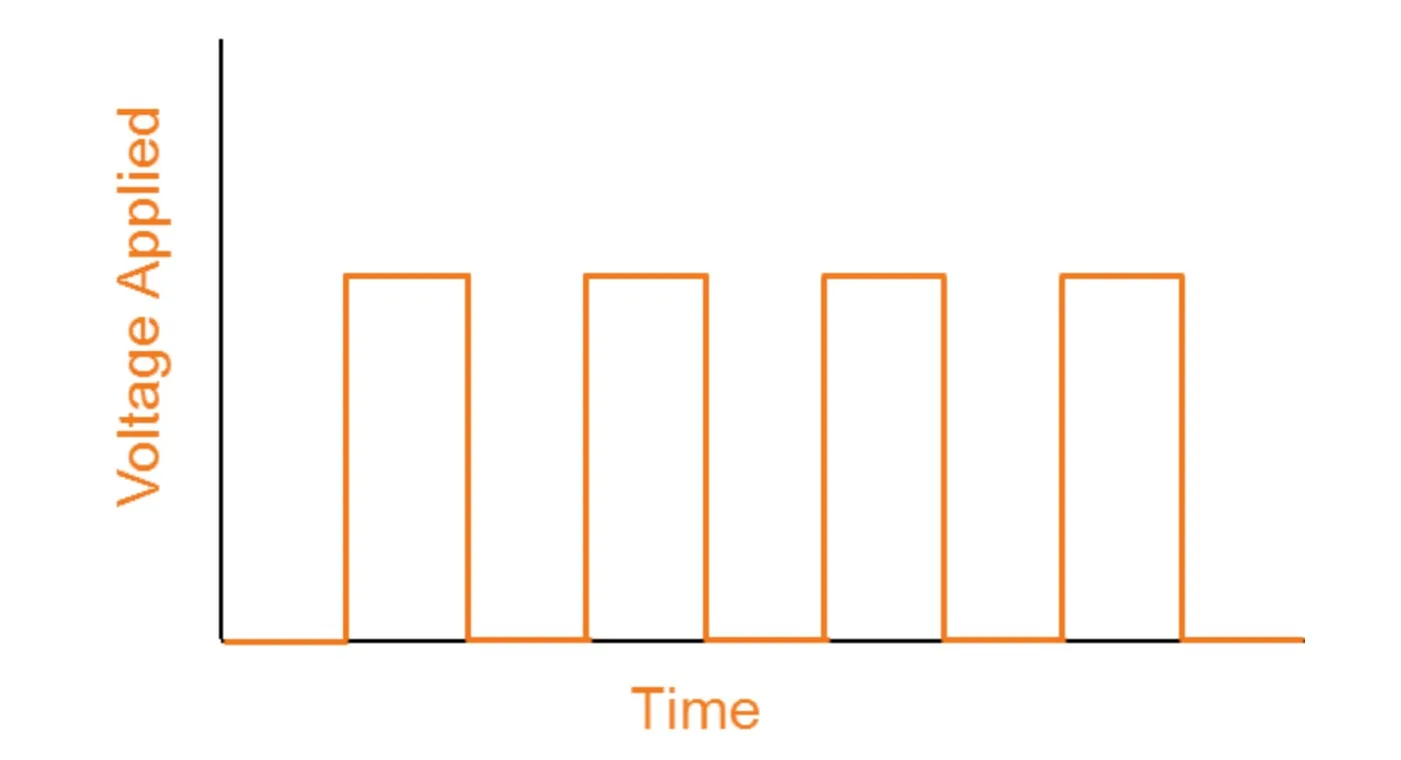

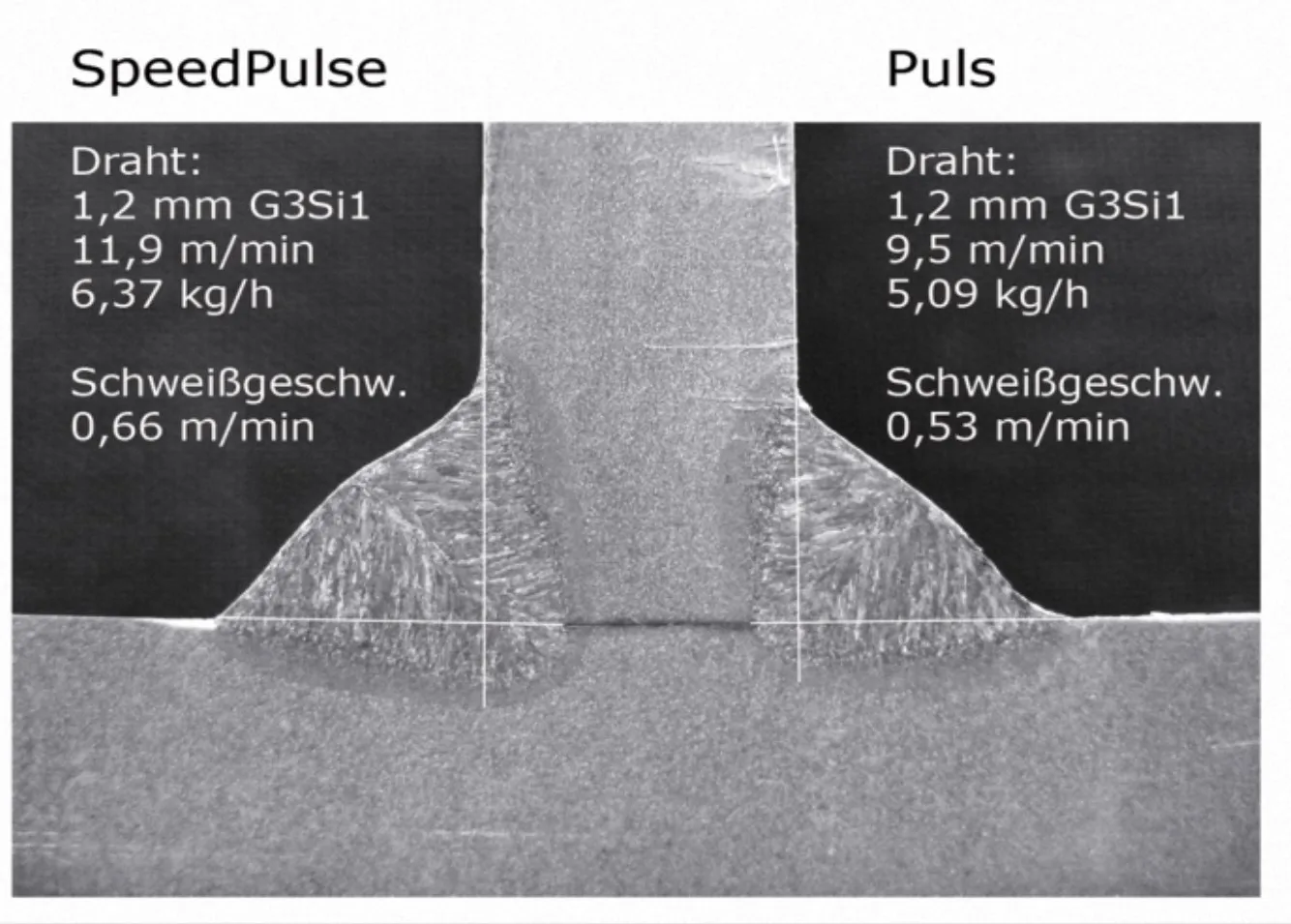

HSP - High Speed Pulse
①Specifically designed for demanding workshop use,the deposition rate can increase 25~48 % for various materials, whether used in manufacturing thick materials or sheet metal.②The High-Speed Pulse(HSP) process enables you to save time, money, and energy compared to traditional pulse welding. This process is ready to raise pulse welding to a whole new level!

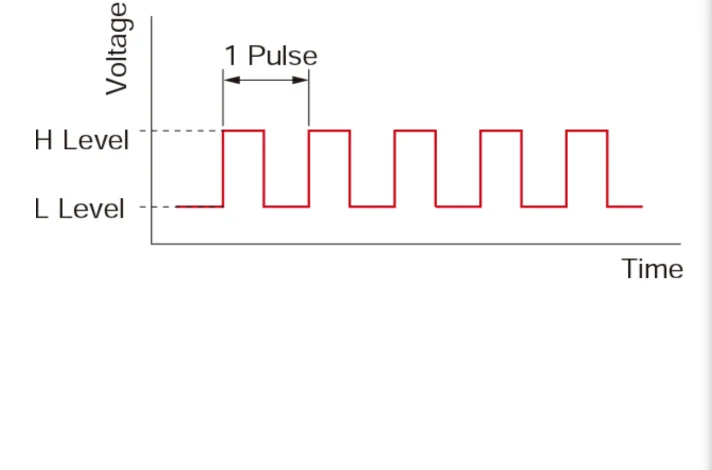

③In general, One pulse melt one droplet, but we increase the submission of these droplets by TOPWELL’ s New High-Speed pulse process.The transition will be faster, narrower HAZ zone and deeper penetration!
③In general, One pulse melt one droplet, but we increase the submission of these droplets by TOPWELL’ s New High-Speed pulse process.The transition will be faster, narrower HAZ zone and deeper penetration!

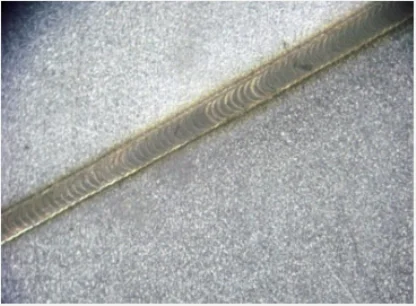

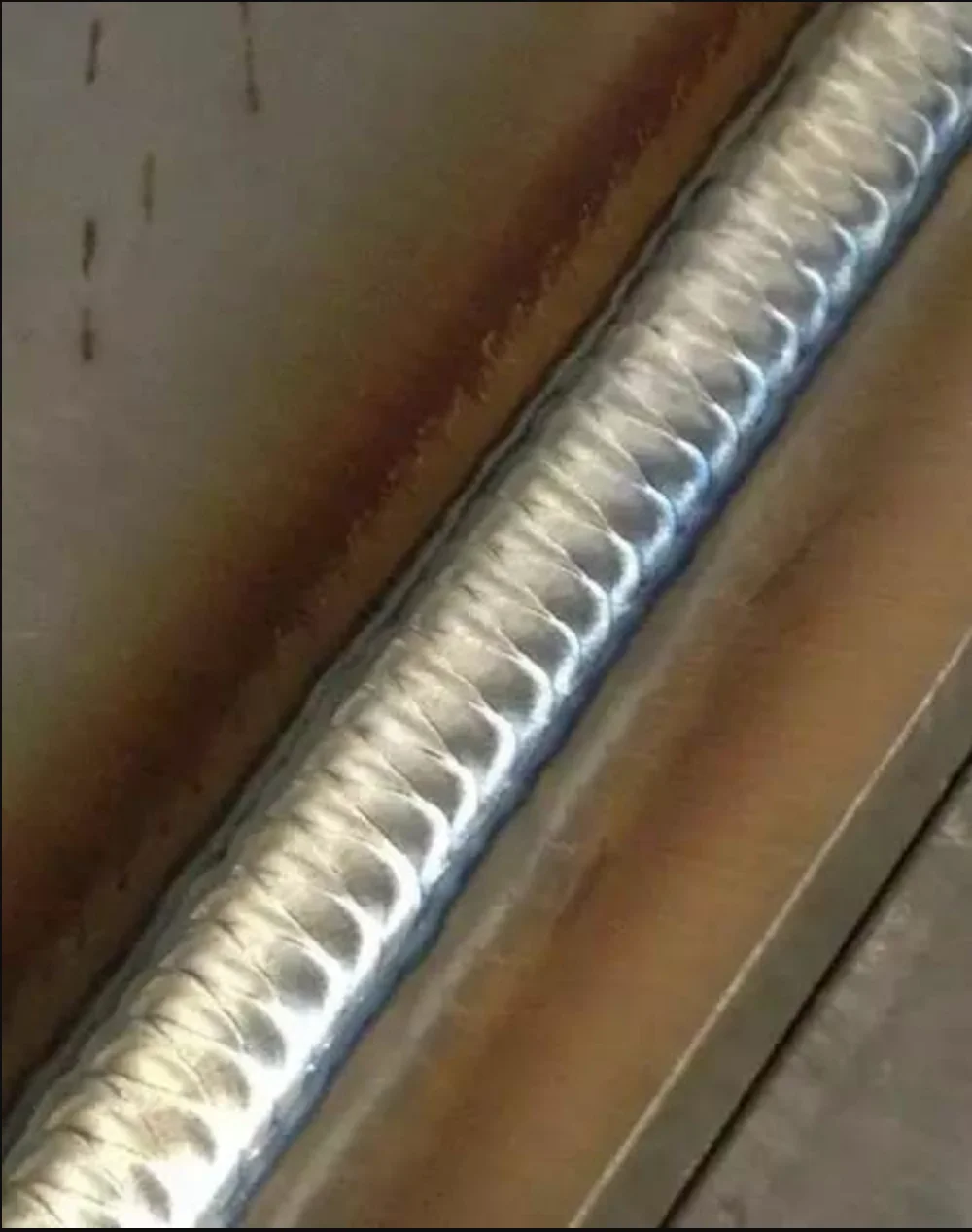

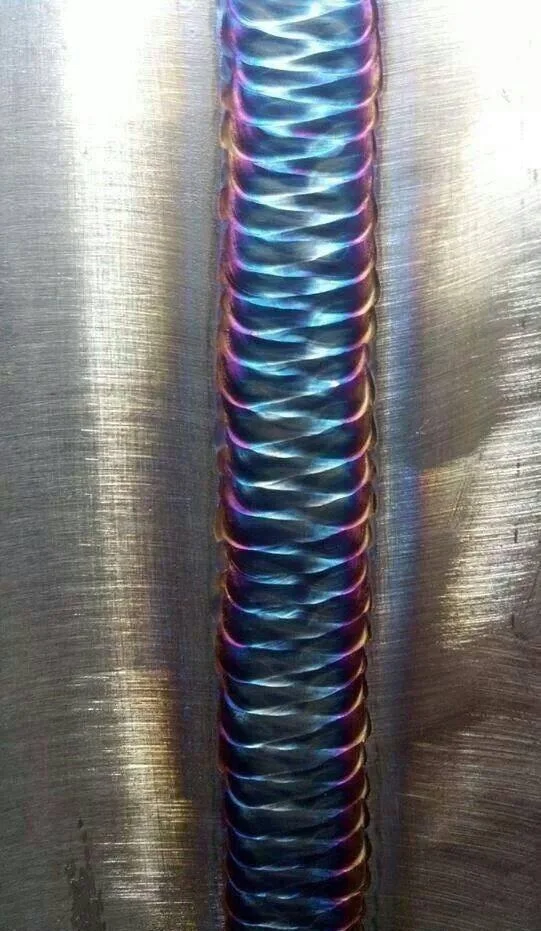

Get better welding seam
Less heat input, less spatters, less rework

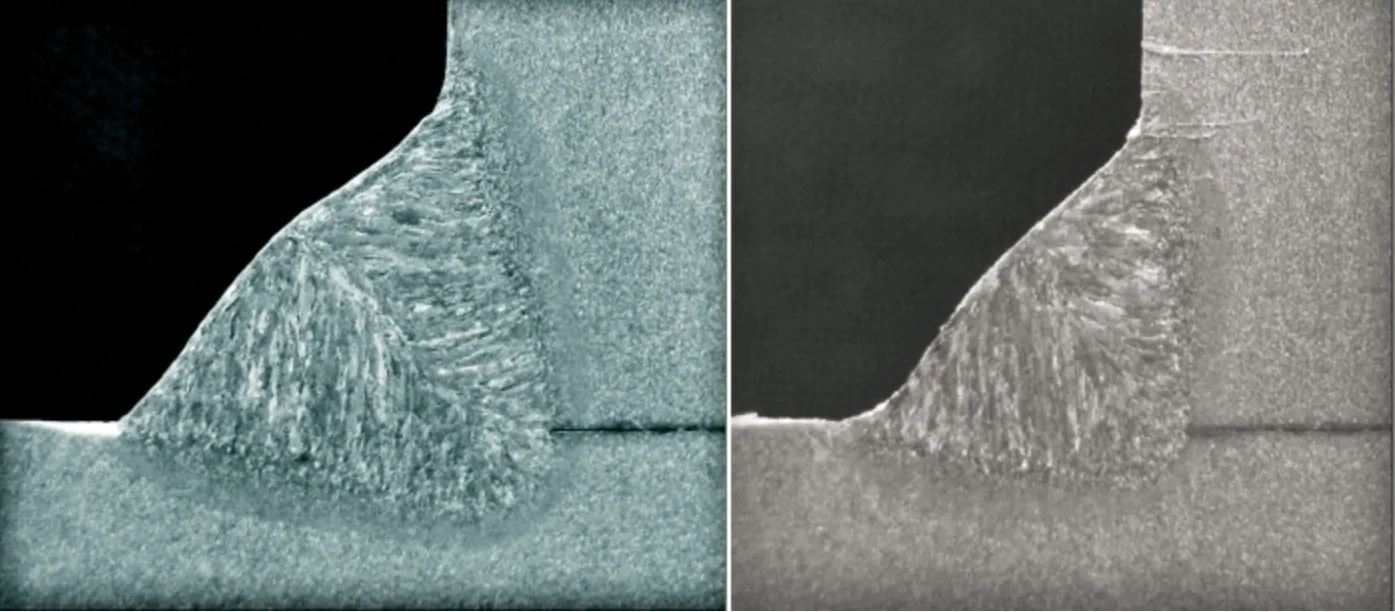

Get higher welding strength
Deeper penetration, no undercut defects, higher strength.
HPC-Vertical-up Welding Process
The secret is the combination of two processes: one is the high energy phase to heat up the material quickly. Topwell's control
technology ensures a perfect transition to the rapidly reduced energy phase. It ensures reliable penetration, precisely sized weld
filling and a near- optimal throat thickness.Vertical-up welding with Topwell's HPC process is significantly much faster and
simpler than classical "X-Mas tree".
technology ensures a perfect transition to the rapidly reduced energy phase. It ensures reliable penetration, precisely sized weld
filling and a near- optimal throat thickness.Vertical-up welding with Topwell's HPC process is significantly much faster and
simpler than classical "X-Mas tree".
HDP - High-speed Double Pulse

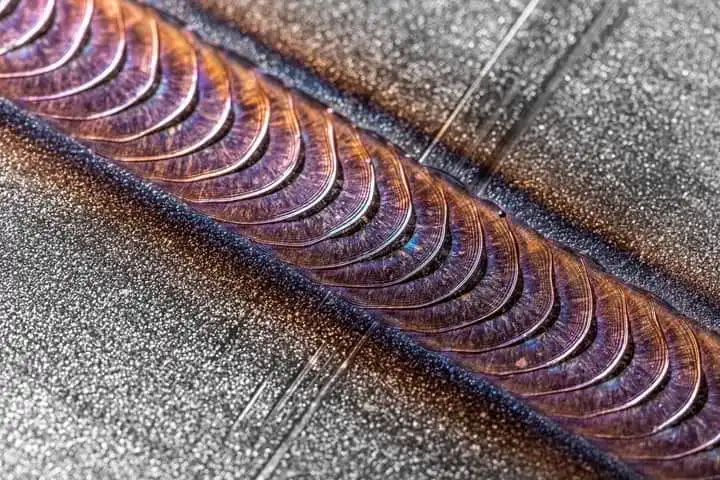

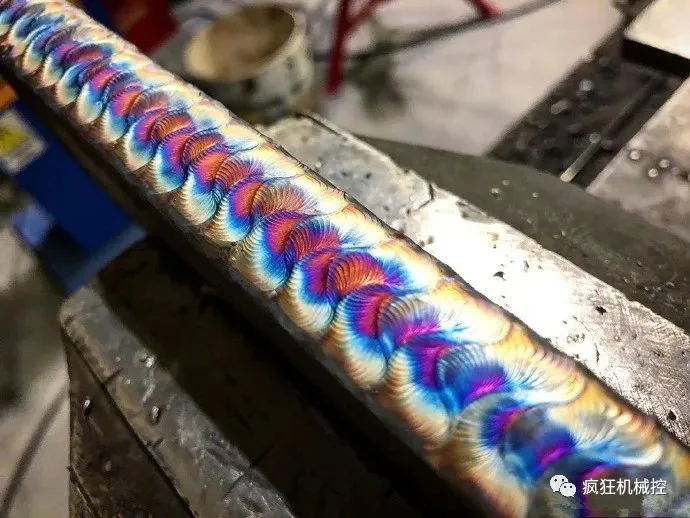

HDP is the High-Speed Double Pulse. The high and low pulse phases of the double pulse work with the High Speed Pulse process, the deposition rate is increased by up to 30%, the welding productivity is significantly improved than a standard double pulse. The professional welding curve for excellent control of heating and cooling phases, ensures precise energy input, low spatter, low distortion and a beautiful TIG-like welding appearance. HDP is particularly suitable for medium to thick-walled welding, especially for Aluminum and Steel applications.
HSA - High Speed Spray Arc
The perfect combination of a highly concentrated and extremely stable arc with high density. HSA delivers deeper penetration, narrower heating zone, allows smaller opening angles for multi-layer welding, significantly improves the welding speed up to 30% faster than conventional MIG-MAG welding. It makes welding more efficient and more economical.
ULS - Ultra Low Spatters
The ULS process is a modified short-arc transfer arc, it controls the volatility during the change of state between short and arc to control the amount and size of the spatter generated. Even in CO2 and MAG welding, it can minimize the spatters, which means less rework, fewer rejects, less cleaning required and savings on wearing parts.
HSS - High Speed Spot Technology
HSS is the high speed spot welding, which is perfectly combining the welding process, arc physics, high dynamic power response and powerful motor control technology, short in arc ignition time and arc ending time, a welding spool can be formed swiftly. A spot welding cycle is quickly completed, cycle over and over, by adjusting the time gap with the robot to get the fish scale you wish, weld seam is clear and beautiful.
Product packaging
Accessories | Аксессуары | Wire feeder *1 Control line 5 meters *1 Ground wire *1 Welding torch *1 Carbon dioxide flow meter *1 |
Attention please:
According to user suggestions, the machine does not have a host power plug by default. Machines with an air witch do not have a power cord.
