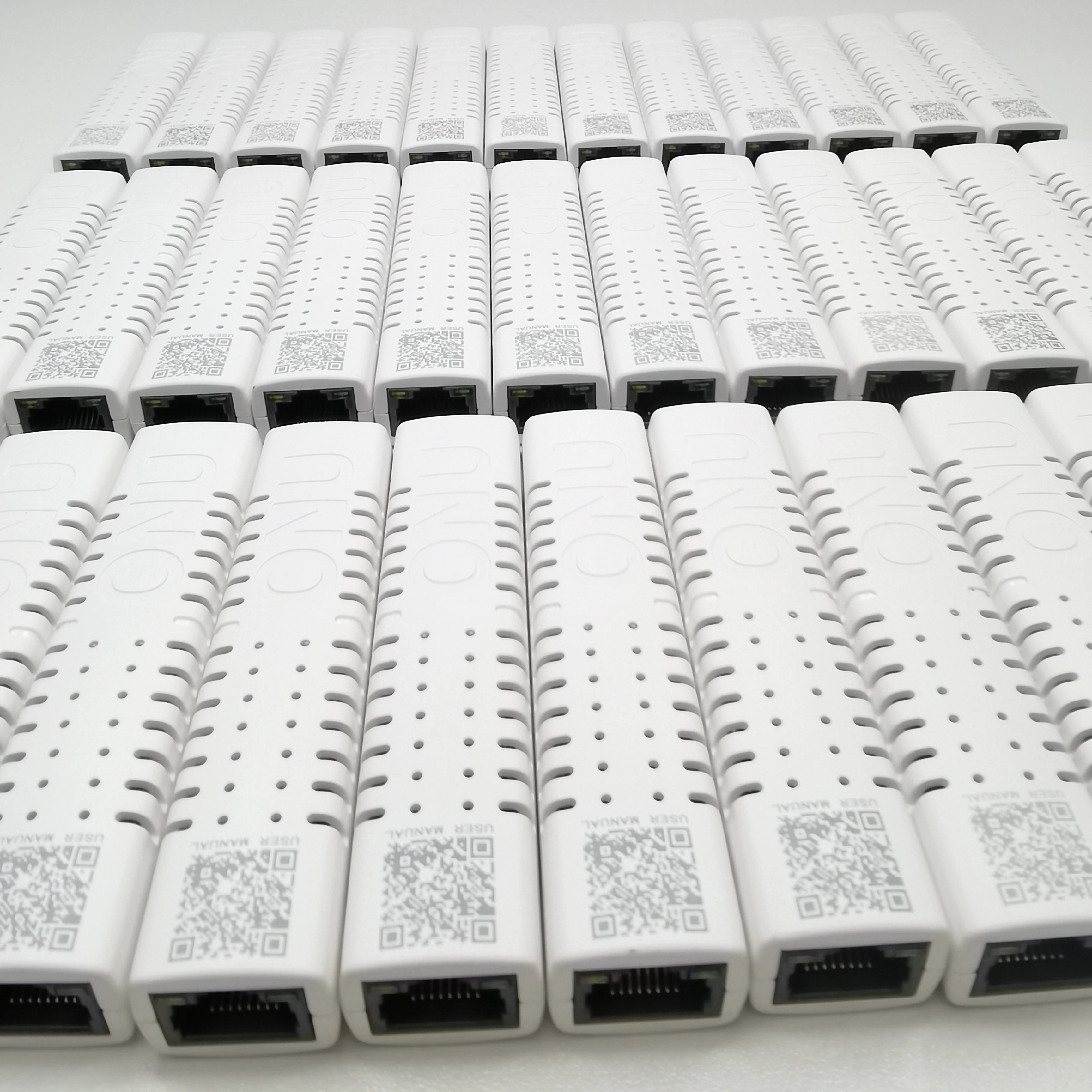

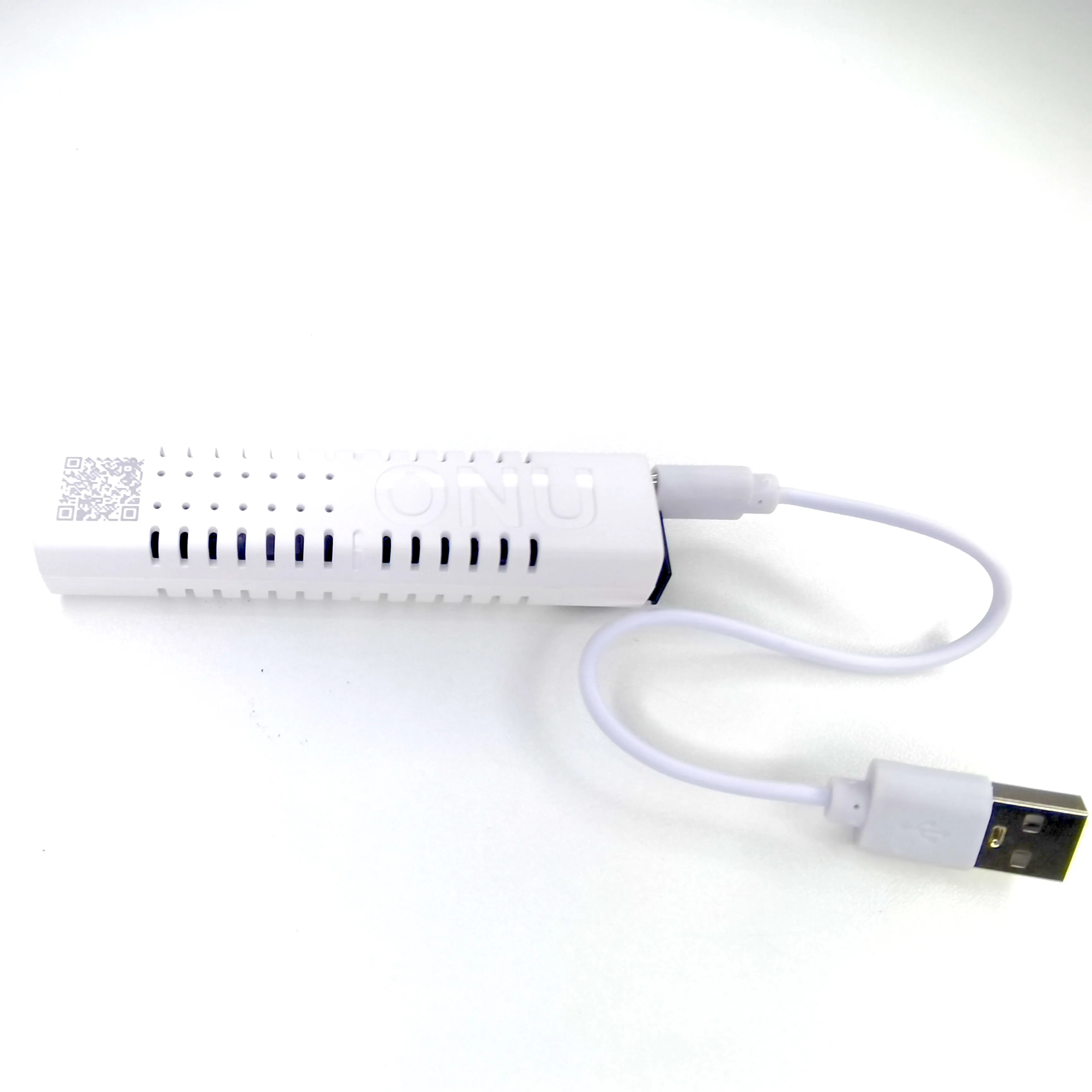

Mini ONU 1GE Port Switch XPON ONT for FTTH Small size Micro ONU fiber optic production machine
- Category: >>>
- Supplier: Shenzhen 3C-Link Opto Co. Ltd.
Share on (1600890861787):
Product Overview
Description
Product description
3C-XM100DG
3C-XM100DG series single-user ONU is designed for ONU in different FTTH solutions, The carrier-class FTTH application provides date service access.
3C-XM100DG series adopts high-performance and low-consumption chips, and supports CTC V2.0 interconnection and interworking standard of China Telecom. With the help of View NMS, it can provide subscribers with abundant services, and totally meet the needs of carrier-class FTTH devices.
3C-XM100DG series is designed by ZTE chipset
Small size, suitable for installation in various occasions
Features
1. Support ONU auto-discovery/Link detection/remote upgrade of software
2. Router mode supports PPPoE / DHCP / static IP
3. Support port-based rate limitation and bandwidth control
4. In compliant with ITU-T G.984 Standard Up to 20KM transmission Distance
5. Support data encryption, group broadcasting, port VLAN separation, etc.
6. Support Dynamic Bandwidth Allocation (DBA)
7. Support IPv4 & IPv6

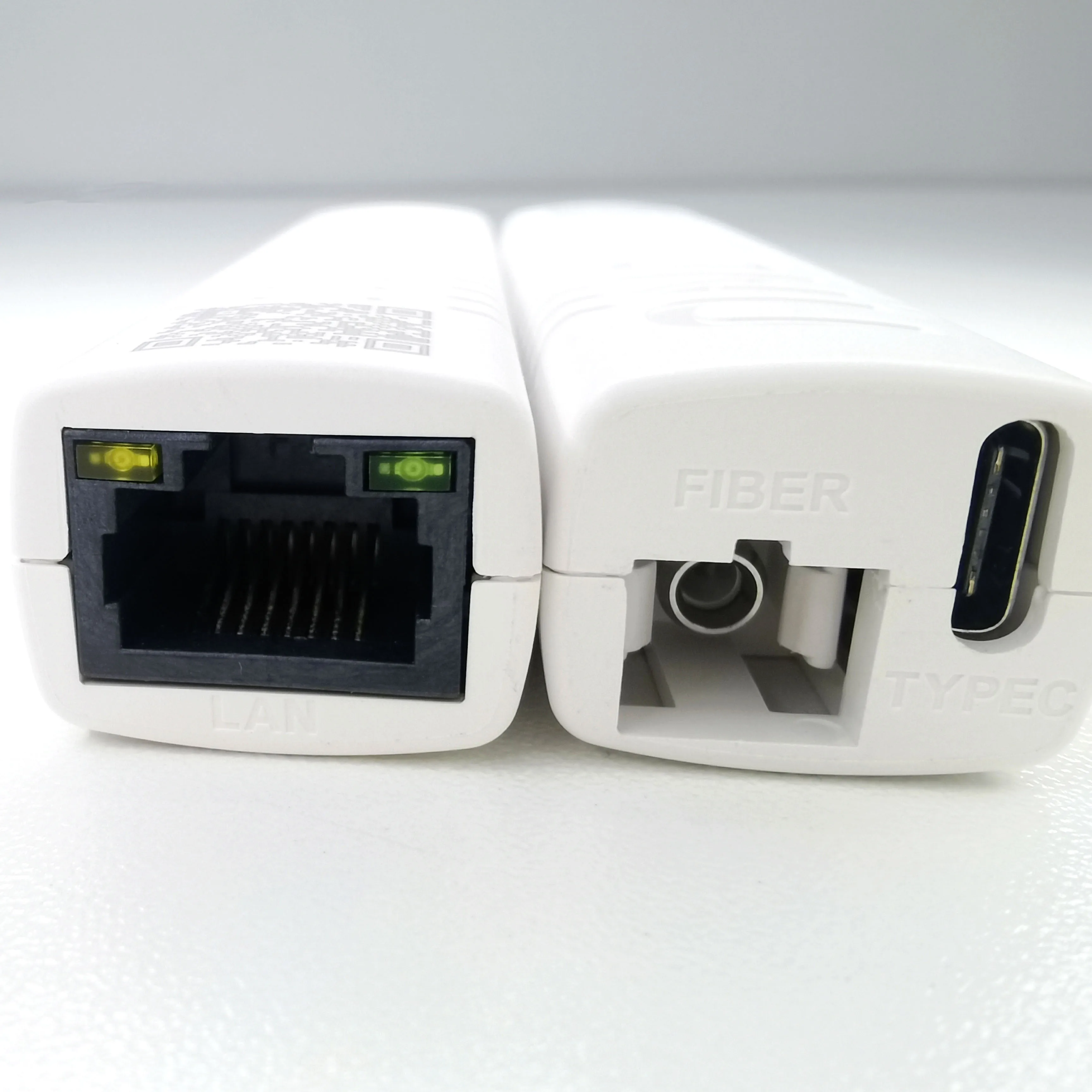

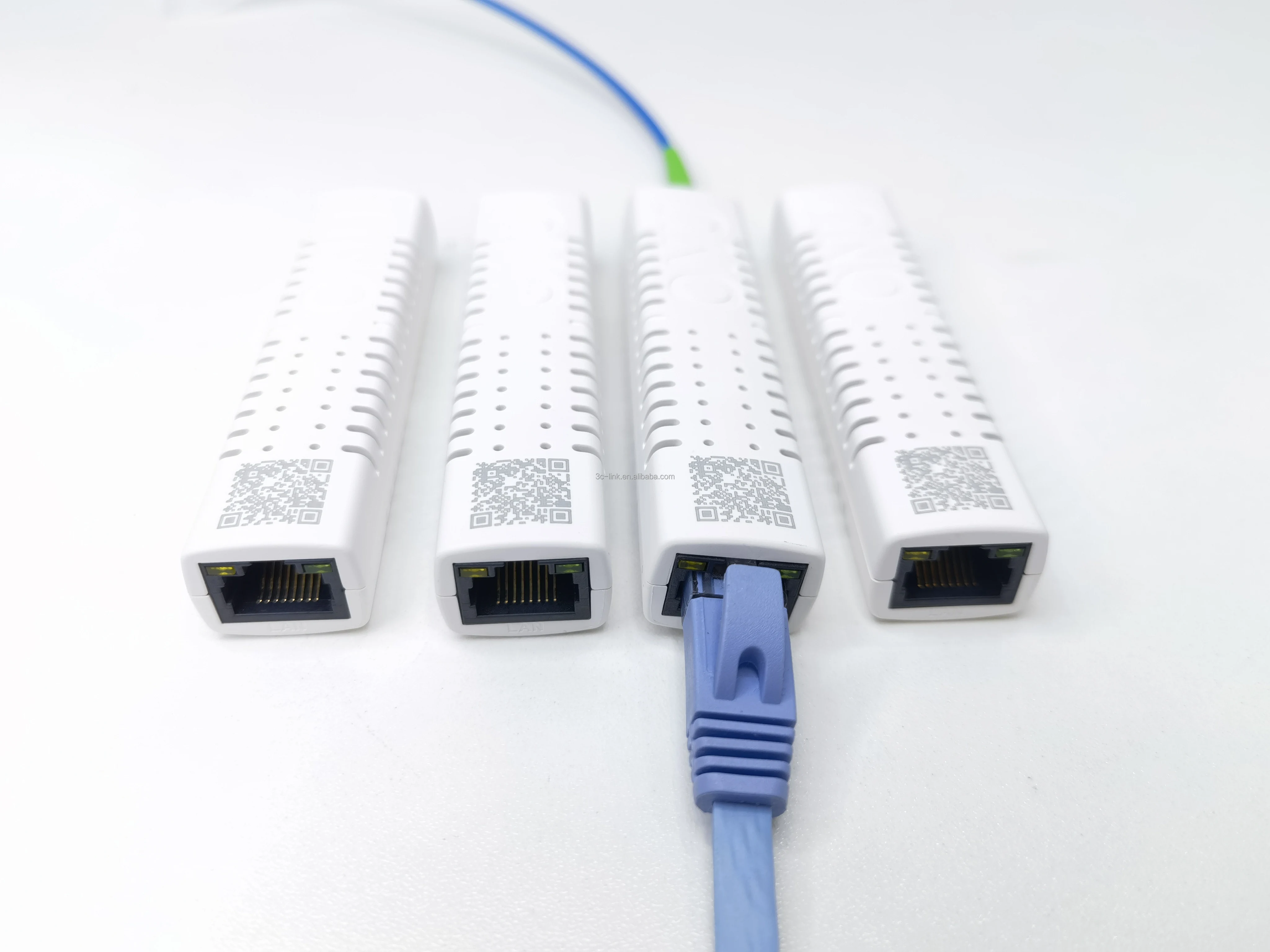

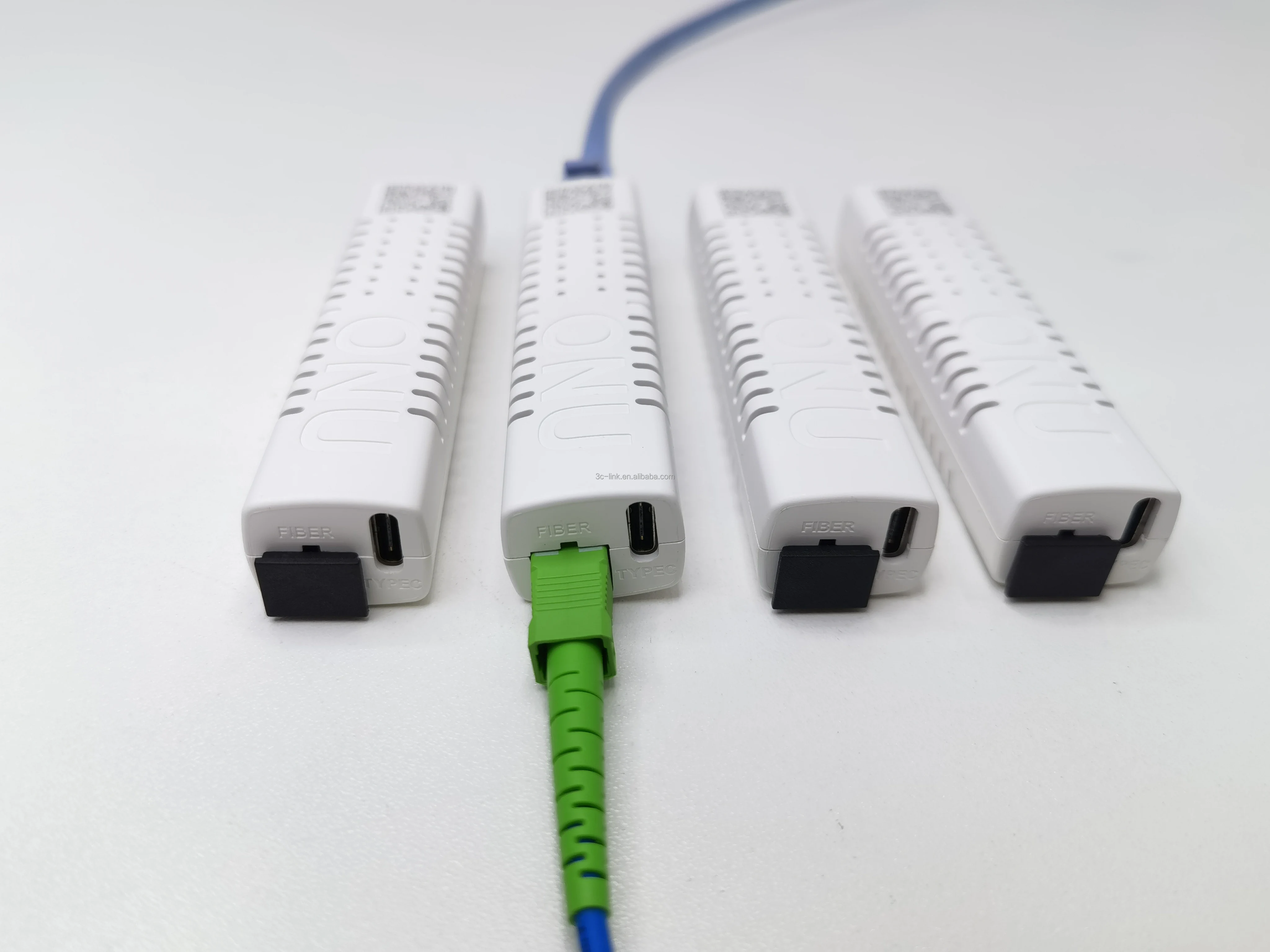

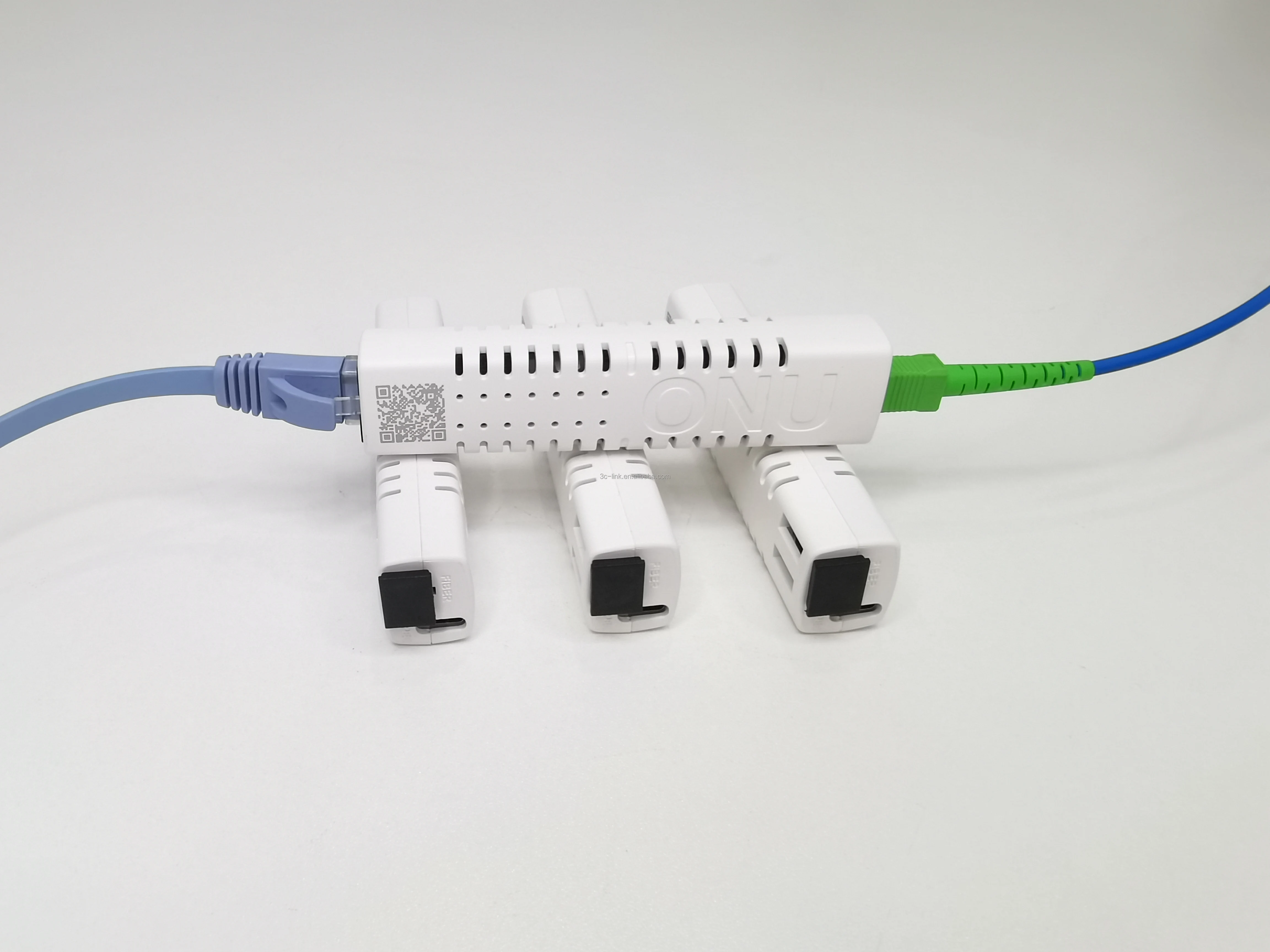

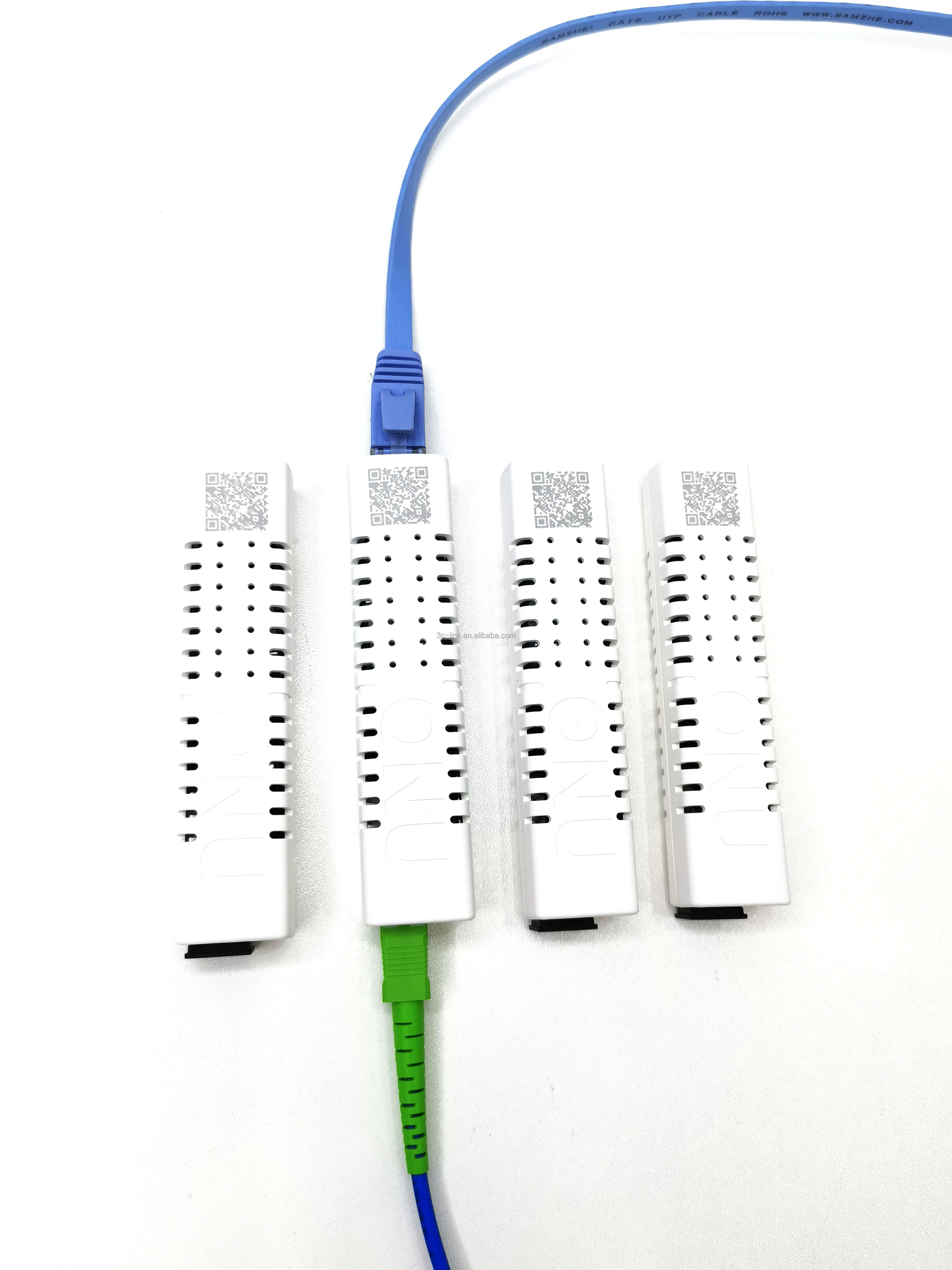

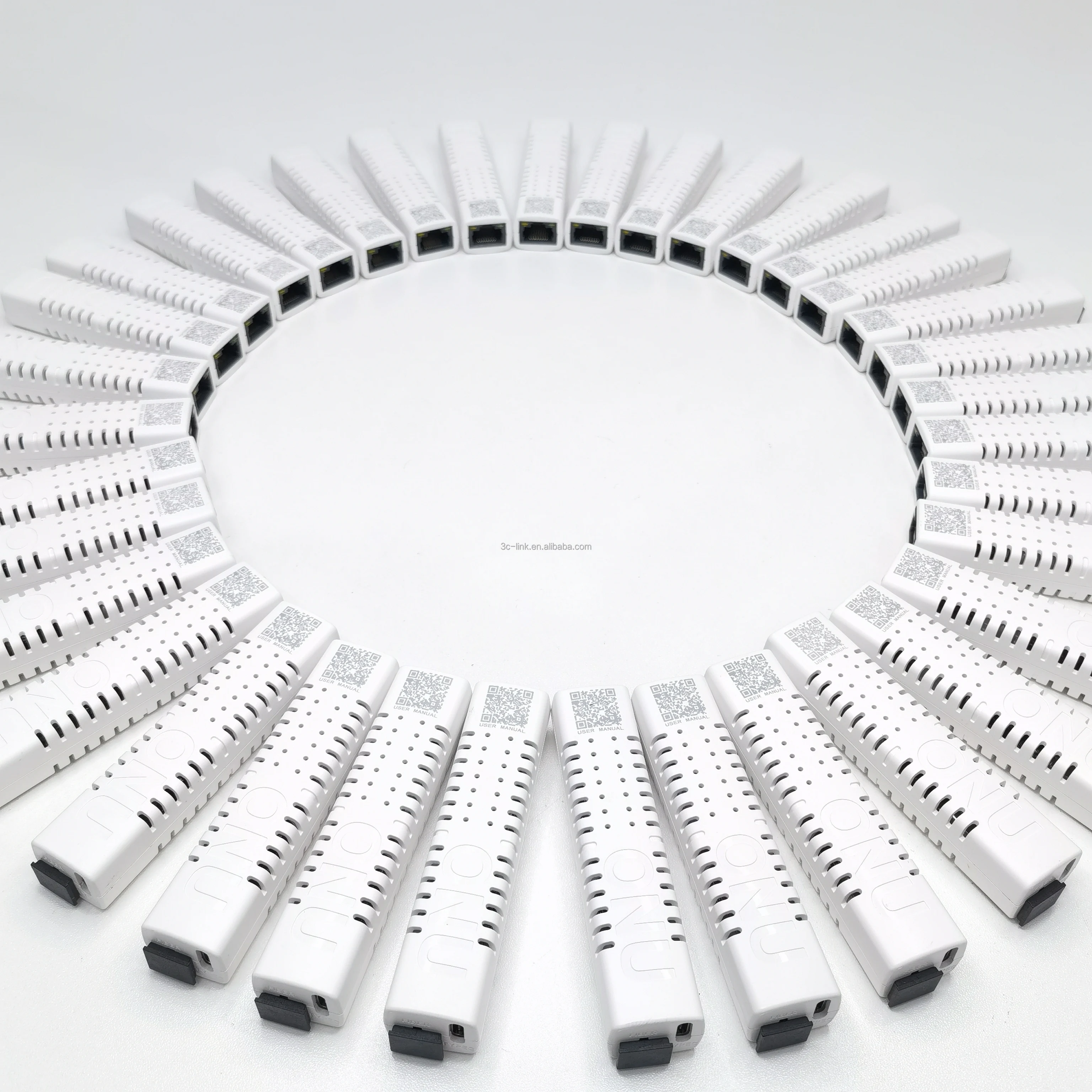

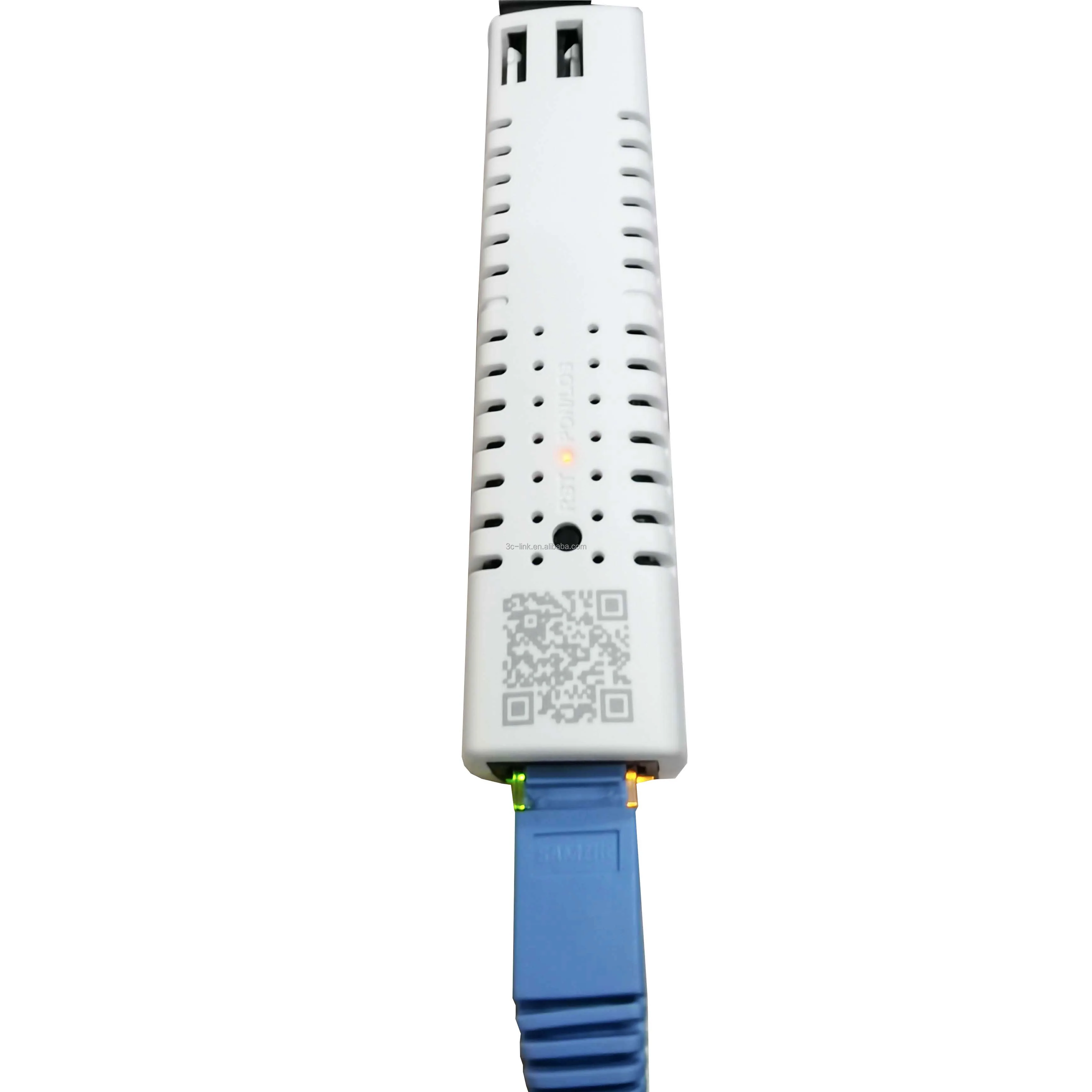

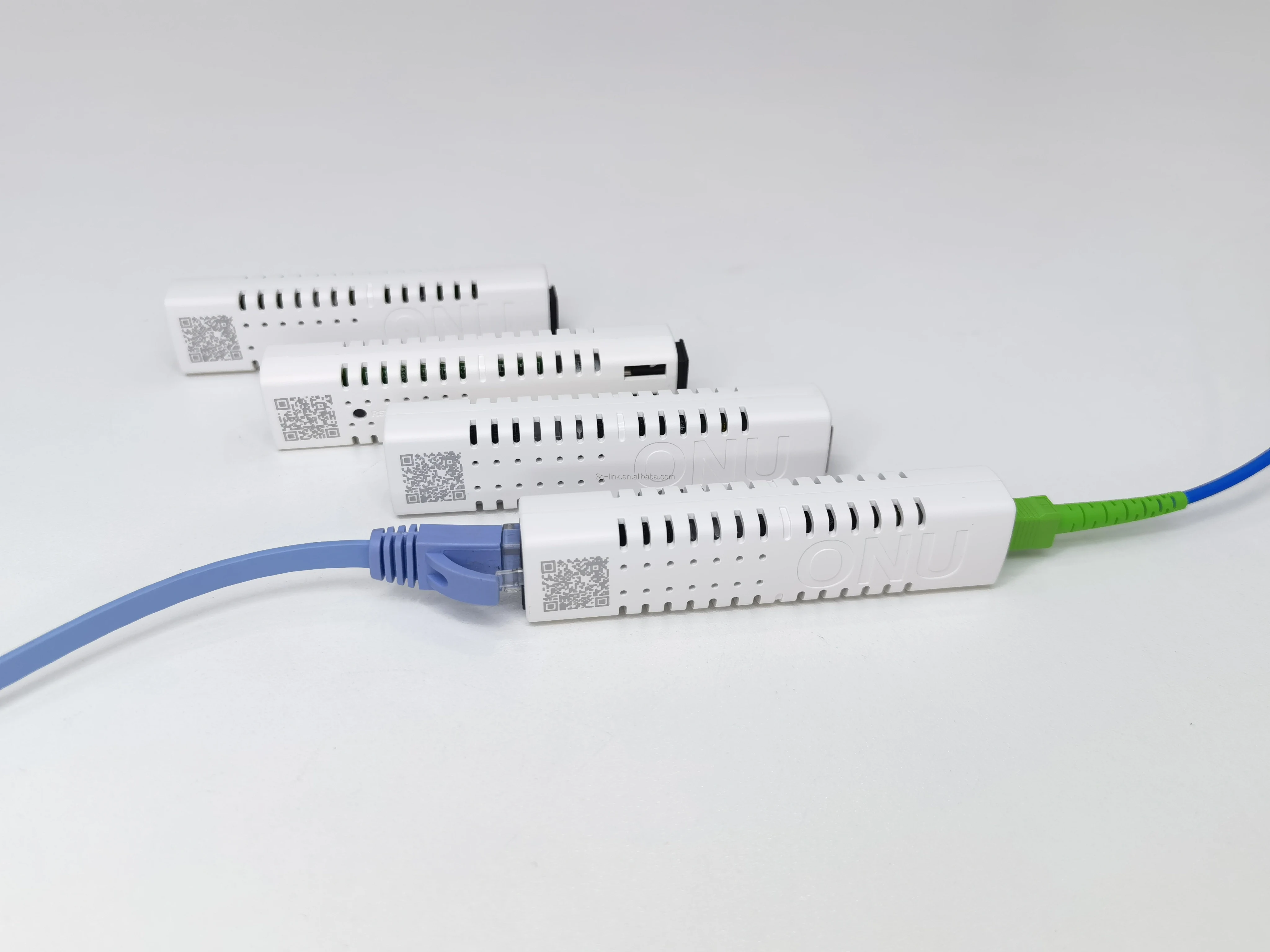

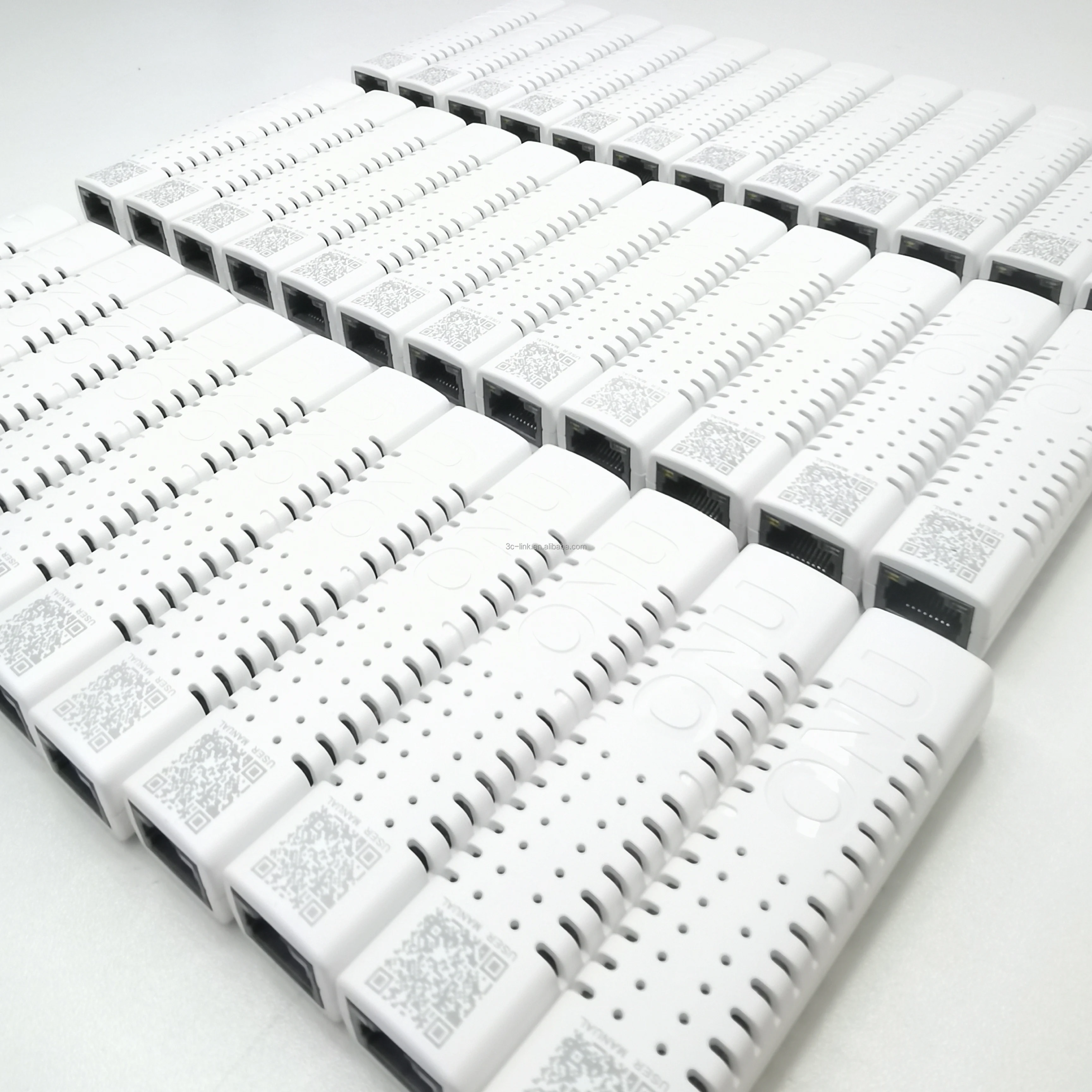

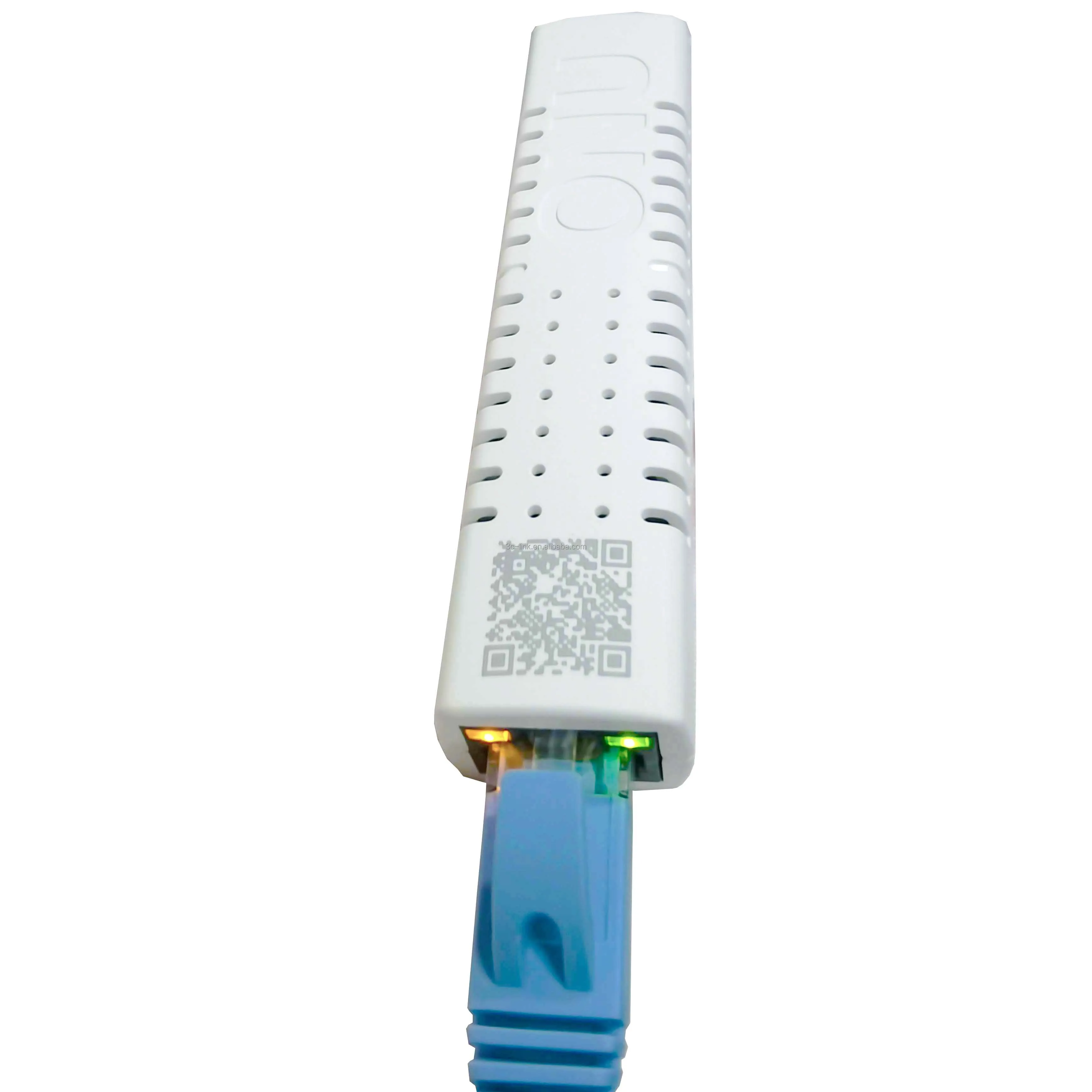

Details Images
Specification
Item | Parameter | ||
Interface | PON Interface | 1 XPON optical interface Meet Class B+ standard Upstream 1.244Gbps, downstream 2.488Gbps SC-UPC single-mode fiber split ratio:1:128 Transmission distance 20KM 1*10/100/1000M auto-negotiation | |
User Ethernet Interface | Full/half duplex mode RJ45 connector 100m distance | ||

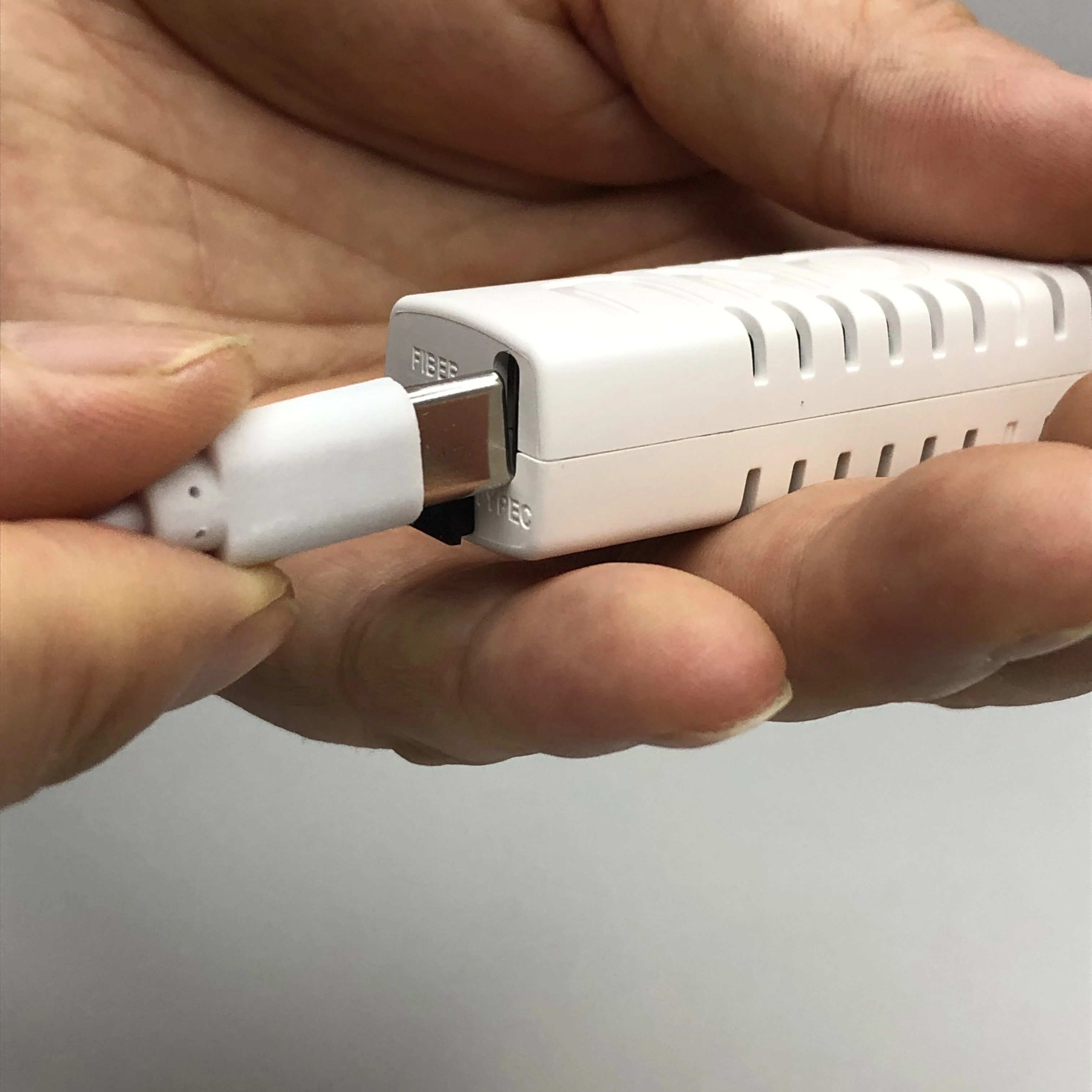

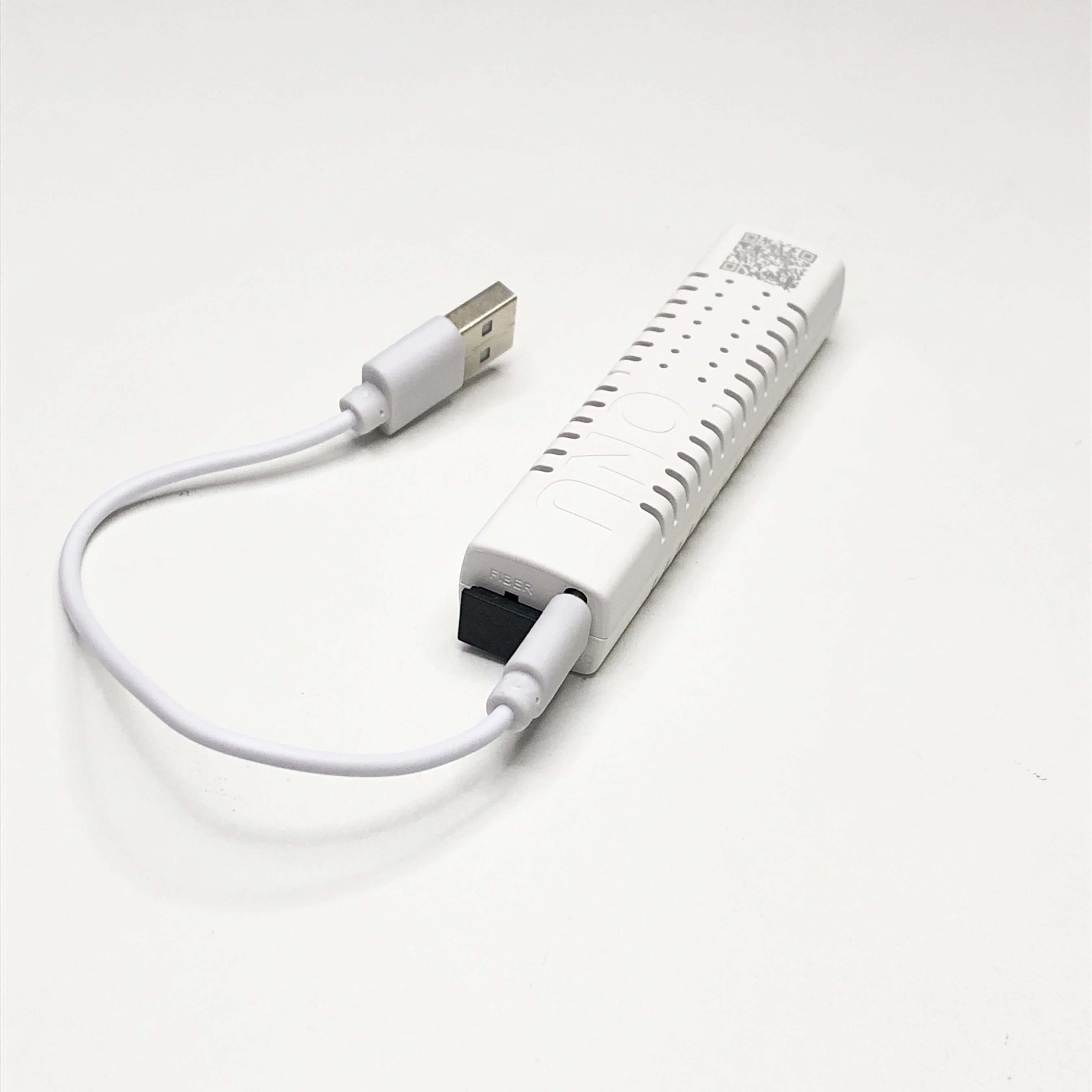

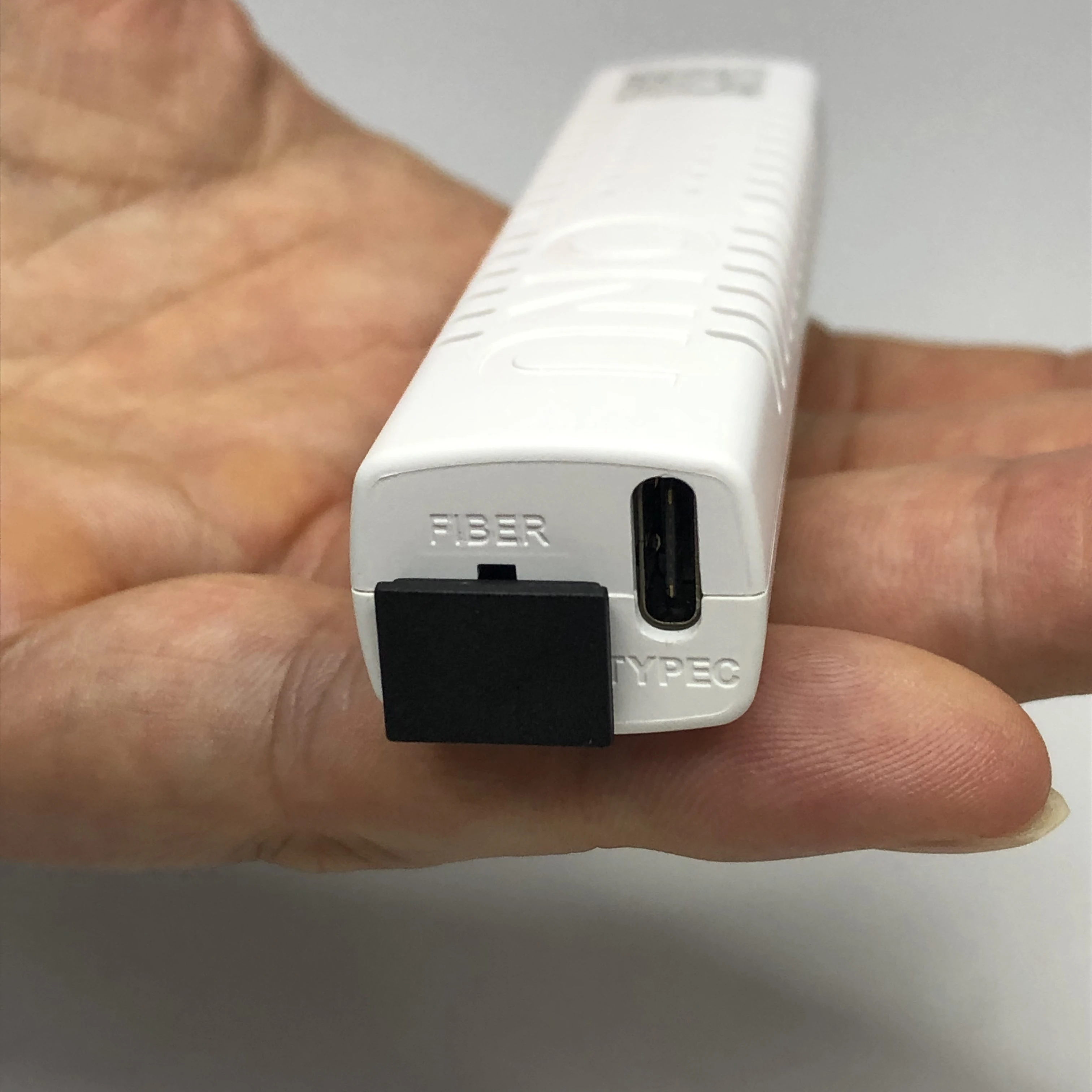

Power Interface | 5V Type-C Power supply | ||
Performance Parameters | PON Optical Parameter | Wavelength: Tx 1310nm, Rx1490nm Tx Optical Power:0.5～+5dBm Rx Sensitivity: -27dBm Saturation Optical Power: -8dBm Connector Type: SC-UPC Optical Fiber: 9/125um single-mode fiber | |
Data Transmission Parameter | Packet Loss Ratio:<1*10E-12 latency: <1.5ms | ||
Gateway | Router mode supports PPPoE / DHCP/ static IP WAN support Router and Bridge mode WAN support Internet LAN supports DHCP and static IP Support NAT and NAPT Layer 2 wire speed switching | ||
Business Capability | Support VLAN TAG/UNTAG, VLAN conversion Support Port-based speed limitation Support Priority classification Support storm control of broadcast | ||
Network Management | Management Mode | Support ITU-T G.984 OMCI, ONU can be remotely managed by OLT Support Remote management through Telnet or http Local management | |
Management Function | Status monitor, Configuration management, Alarm management, Log management | ||
Indicator | LED Indicator | PWR: Power up or down LOS: Optical Link Status PON：ONU Registered LINK/ACT: Link Status of Ethernet Interface | |
Shell | Plastic casing | ||
Power | External 5V 1A Type-C power supply Power consumption: <2W（FD101HC）,<2.3W(FD111HC) | ||
Physical Features | Physical Specifications | Item Dimension：92mm(L) x 21.5mm(W) x 17mm (H) Item weight：0.03kg | |
Environmental Specifications | Operating temperature: -20 to 70 ºC Storage temperature: -40 to 85 ºC Operating humidity: 10% to 90% (Non-condensing) Storage humidity: 10% to 90% (Non-condensing) | ||
Product Name | Product Model | Descriptions |
Mini Type XPON ONU | 3C-XM100DG | 1*10/100M /1000M Ethernet interface, 1 XPON interface, plastic casing, Type-C interface for power |

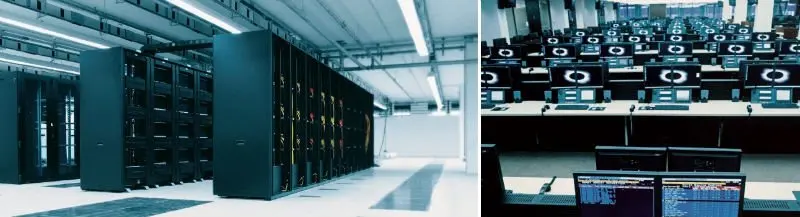

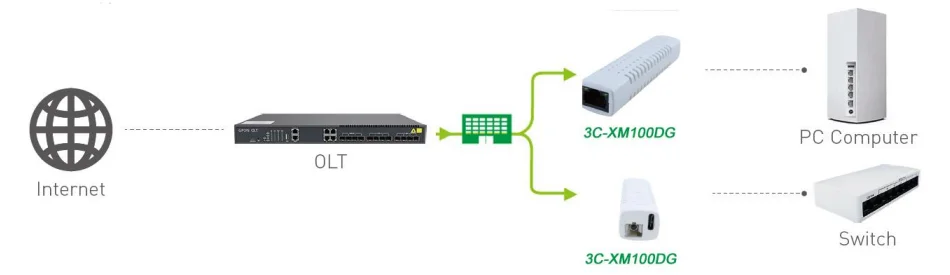

Application
Recommend Products
We also recommend this type, Click picture for details

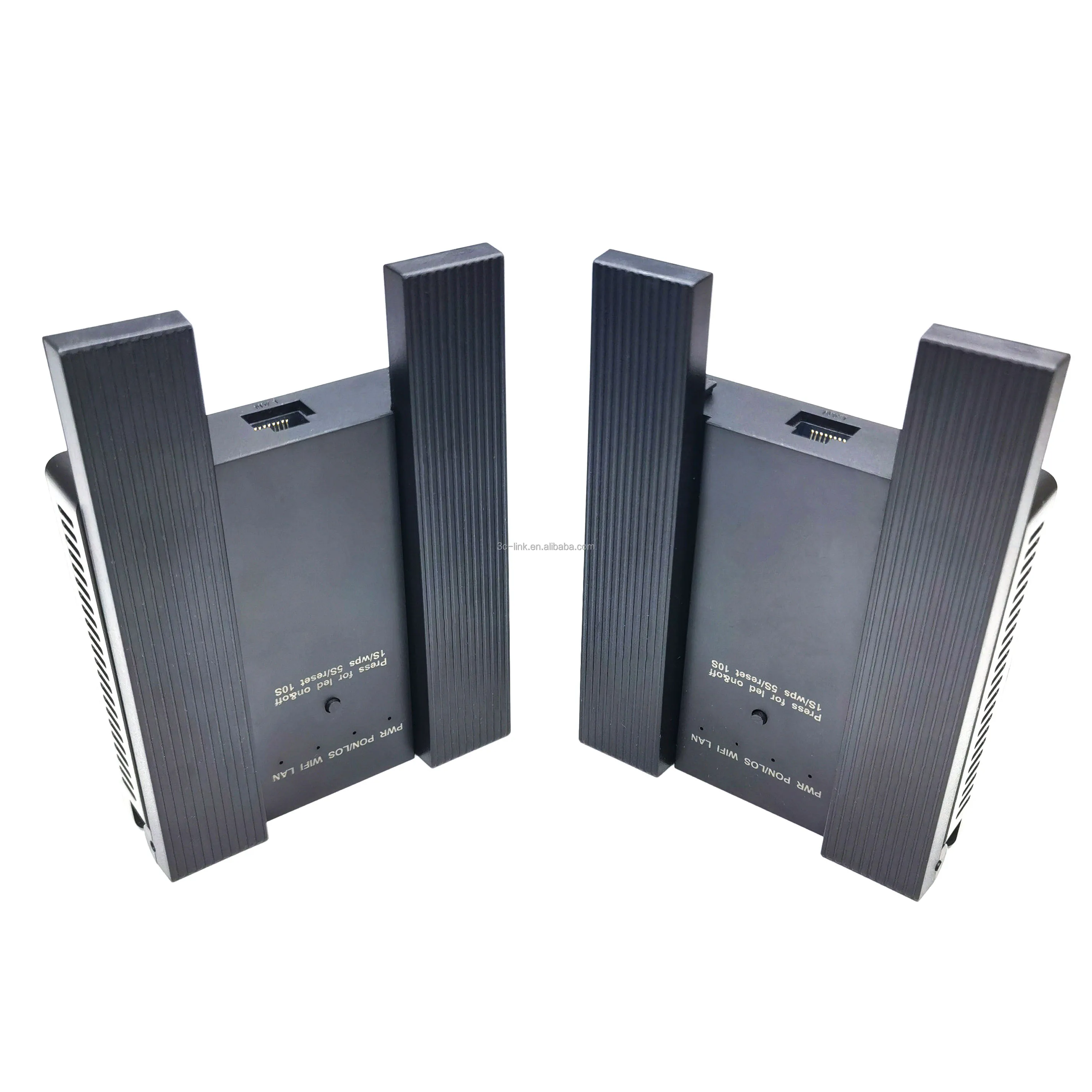

*1GE Ports *Dual Band WIFI *Support EPON/GPON *IPV4/IPV6 *Class B+ *20Km Max
Certifications

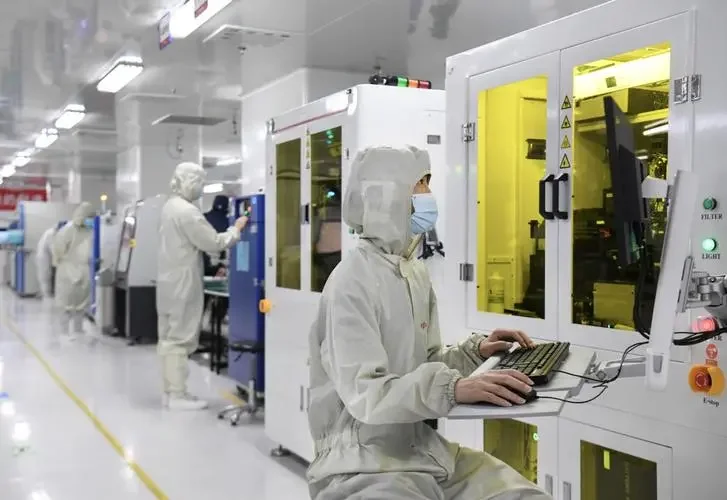

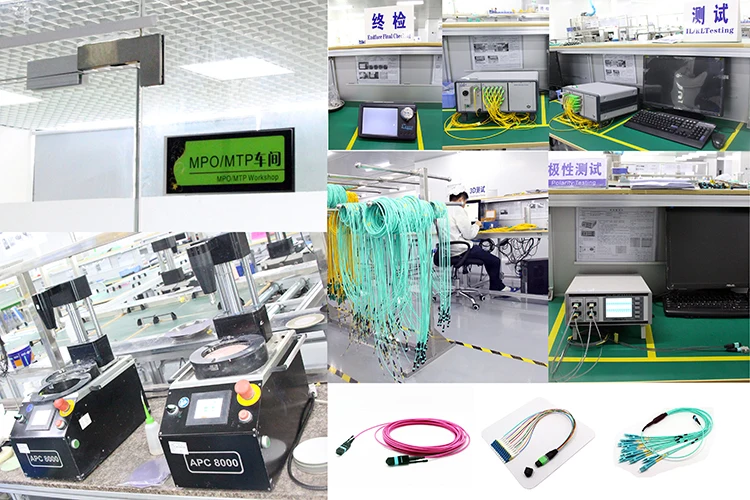

Company Profile
