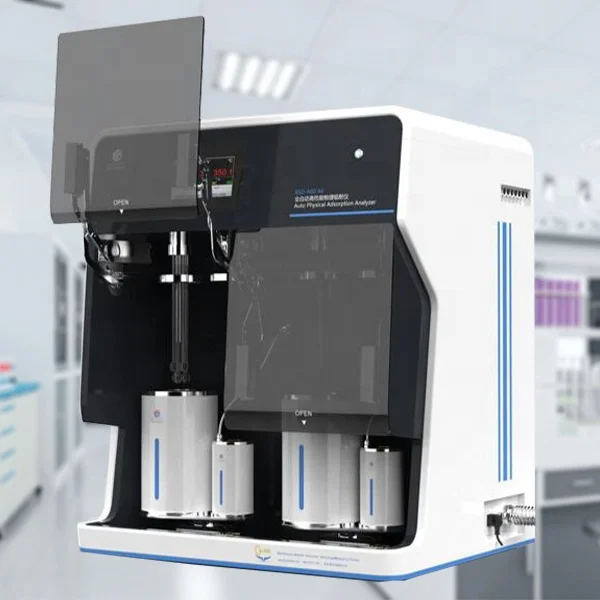

Surface Area and Pore Size Analyzer

Redefining “Fully Automatic”: Switching between Degassing and Testing Fully Automatic
Redefining “high throughput”:12 analysis bits,mesoporous + micropore
Eliminate helium pollution:helium gas test dead volume → vacuum heating degassing → adsorption test

Main Function

• High throughput rapid specific surface area analysis
  Pore volume and pore size distribution (mesopores, micropores, ultra micropores)
  Conventional gas adsorption, such as N2, O2, Ar, CO, CO2, etc
  Adsorption of flammable gases, such as H2, CH4, C2H6 and other alkylene alkynes


• 12 samples were analyzed simultaneously


• BET multi-point method test results


• Isotherm(P/P0<E-9)

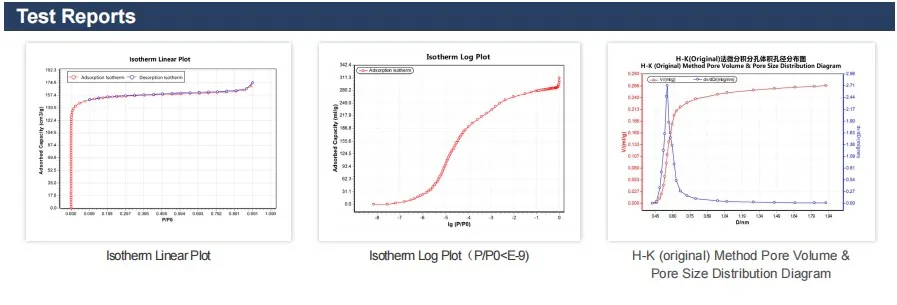

• Gas adsorption isotherm diagram

Technical Advantages

1. High throughput and efficiency: Support analysis of 3/6/9/12 samples at a time


2. Truly fully automated: the world's first degassing furnace and dewar cup automatically switch, no manual transfer of sample tube or degassing furnace
   Completely eliminate helium pollution:helium gas test dead volume → vacuum heating degassing → adsorption test,taking the lead in solving the problem of helium contamination in microporous analysis internationally and improving testing accuracy


3. High time utilization rate: solves the time waste of conventional instruments being degassed after work and unable to start testing, making it a reality to install samples after work and read data at work;


4. Program controlled pressure degassing: supports "program controlled pressure" and "program controlled temperature" degassing, automatically lifting and lowering the degassing furnace according to pressure changes to prevent sample flying;


5. Full constant temperature of the gas circuit system: The internal gas circuit system of the instrument is fully constant temperature to 40 ℃, with an accuracy better than 0.1 ℃;


6. Sample tube sealing: The one-time sealing technology for 6 sample tubes in a single analysis station eliminates the need for individual tube sealing, providing an ultimate efficiency experience;


7. Multiple intake: optional with 8 independent intake channels; It can support the adsorption of CO2, O2, Ar, CO, H2, CH4, C2H6 alkynes and other gases;


8. Upward moving door: user-friendly and easy to open and close, saving laboratory space;


9. Electric turbine liquid nitrogen pump: humanized liquid nitrogen addition, stepless speed regulation, random movement, safety and convenience, and no pollution of liquid nitrogen;


10. Scale communication: Connect the scale, voice broadcast the weight and automatically input it;


11. High reliability: an international supplier system, with core components imported with original packaging;

Technical Parameter

Wide testing range: specific surface area of 0.0005  or above, pore size of 0.35-500nm
High testing accuracy: specific surface area, pore size, pore volume, adsorption capacity ≤ 0.5% RSD (calculated based on the BET value of the standard sample)

Pressure sensor: The instrument is equipped with the original imported pressure sensor, the pressure sensing accuracy is 0.15%, each analysis station, P0 station and internal gas path are equipped with independent pressure sensors, pressure sensors are not shared
Vacuum degree: 10-2Pa, optional molecular pump, vacuum degree can reach 10-8Pa;

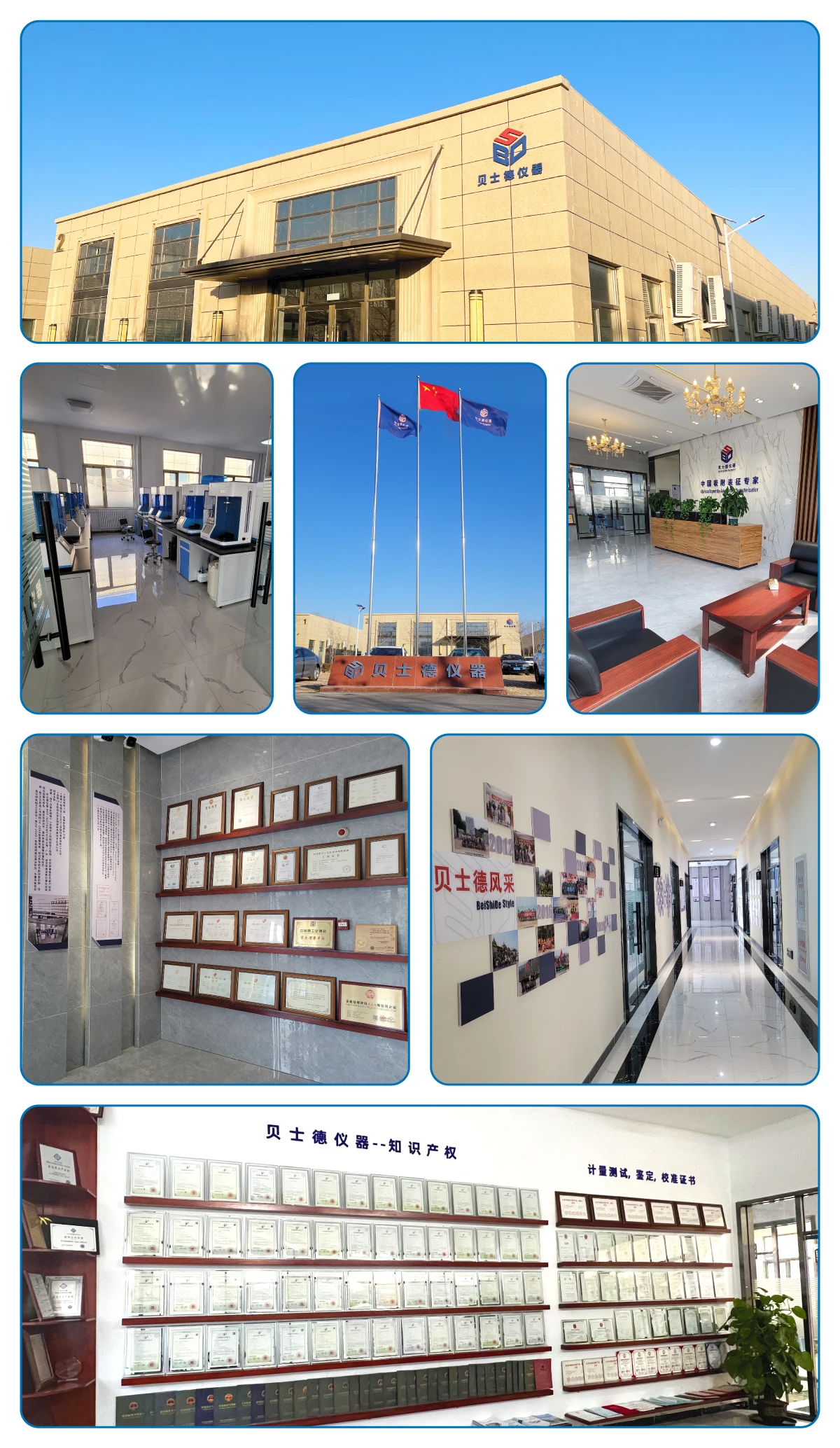

 Beishide Instrument, registered in Beijing, is a high-tech enterprise with independent intellectual property rights, with Beijing Beishide Analytical Instrument Research Institute and Beijing Beishide Measurement and Testing Center, headquartered in Zhongguancun Science Park, Haidian District, Beijing. Beishide Instrument, focusing on the field of adsorption characterization, engaged in the research and development, production and sales of low-temperature nitrogen adsorption BET specific surface area and micropore analysis, gravimetric vapor adsorption, high-pressure gas adsorption, multi-component selective competitive adsorption, corrosive gas adsorption, chemical adsorption, membrane pore size analysis, true density and porosity analysis and testing instruments. Business in more than 10 countries and regions around the world. After 17 years of development, it has become an international leader in the development and manufacturing of high-end adsorption characterization instruments. As a "specialized and special new" enterprise in Beijing, it has obtained the national high-tech enterprise certification for 13 consecutive years; We have obtained 15 national invention patents and more than 62 utility model patents. Passed ISO9001 quality standard system and CE certification for 9 consecutive years; Participated in drafting and formulating 6 national standards and industry standards; The test data of Beishide Instrument have been cited in more than 100 papers by internationally renowned journals such as Science, Nature Chemistry, Advance Materials, JACS, Angew, Nano Energy, ACS Nano, CEJ, etc.
