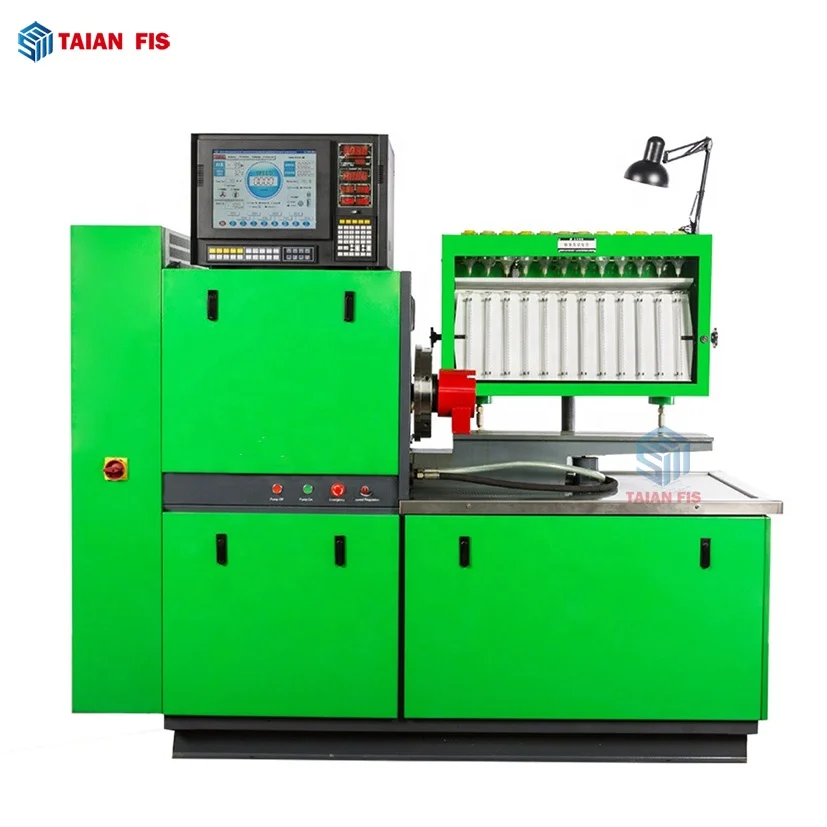

Newest Auto Repair Equipment Diesel Injector Calibration Machine 12PSB Diesel Fuel Injection Pump Test Bench
- Category: >>>
- Supplier: Taian Fis Machinery Equipment Co. Ltd.
Share on (1600890868069):
Product Overview
Description
Product Description
Feature
1.Three styles, two language screen interface for thee operator to choose.
2.The main motor frequency control, manual and automatic two modes of operation.
3.12V, 24V DC power supply for solenoid calve drive and detection.
4.The test oil temperature automatic control, can reduce the temperatire on the amount of oil precision.
5.Automatic mode can be multi-speed preset speed. Low noise,high pressure supply system.
2.The main motor frequency control, manual and automatic two modes of operation.
3.12V, 24V DC power supply for solenoid calve drive and detection.
4.The test oil temperature automatic control, can reduce the temperatire on the amount of oil precision.
5.Automatic mode can be multi-speed preset speed. Low noise,high pressure supply system.

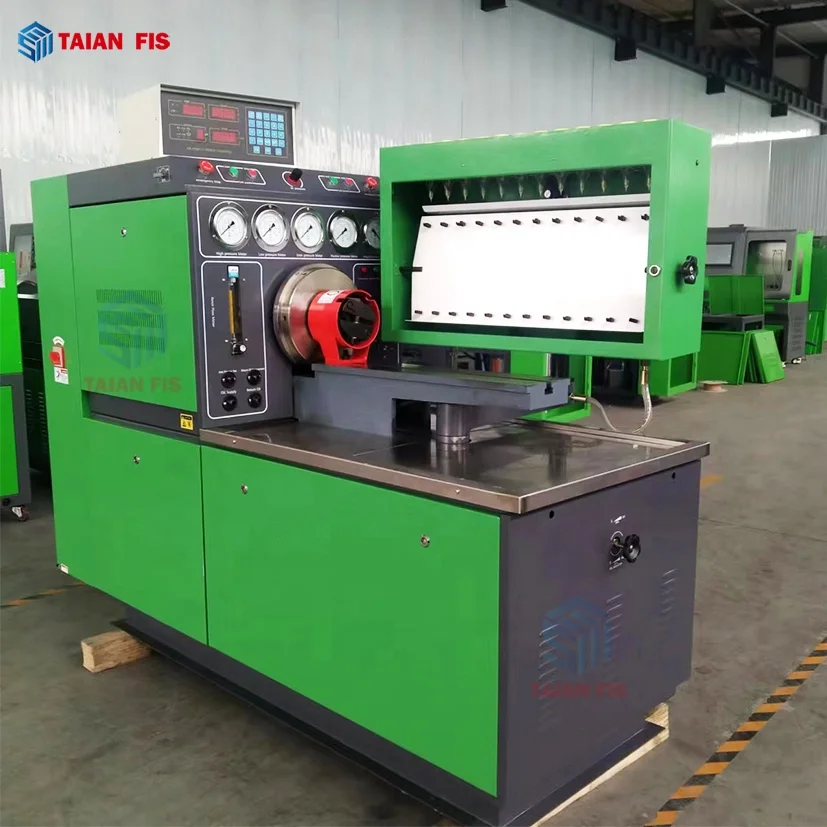

12PSB diesel fuel injection pump test bench
Function Components
1.Measurement of each cylinder delivery at any speed.
1.Measurement of each cylinder delivery at any speed.
2. Test point and interval angle of oil supply of injection pump.
3.Checking and adjust the mechanical governor.
4. Checking and adjusting the distributor pump.
5. Experiment and adjusting of behavior of supercharging and compensatory device.
6. Measurement of oil return of distributing pump
7. Testing of the electromagnetic valve of distributor pump.(12V/24V)
8. Measurement of the internal pressure of distributor pump.
9. Checking of the advance angle of advance device.(on request)
10. Checking the sealing of injection pump body.
11. Install tube of auto-sucking oil supply can check on oil supply pump(including VE pump.)
Hot sale auto service 12psb mechanical diesel fuel injection pump test bench injection pump calibration machine
12PSB Diesel fuel injection pump test bench is used to test mechanical pumps, like inline pumps, distributor pumps, for example: I II III A B P VE IW PL BQ Z P7 PW PN PB P2000 PS7100 EP9 PS8500 P8000 MW and etc...kinds of domestic and overseas pumpsir adopts CRT screen display and LED digital display two control system , can perform various function's adjusting and testing to the injection pump.
12PSB Diesel fuel injection pump test bench is used to test mechanical pumps, like inline pumps, distributor pumps, for example: I II III A B P VE IW PL BQ Z P7 PW PN PB P2000 PS7100 EP9 PS8500 P8000 MW and etc...kinds of domestic and overseas pumpsir adopts CRT screen display and LED digital display two control system , can perform various function's adjusting and testing to the injection pump.
OEM
Unique laser technology,if you want to print your comapny information on the injector body or Box,we can also help you.
Name | 12PSB diesel fuel injection pump test bench |
Main motor power | 11 , 15, 18.5kw |
Host machine source | 380V/50-60HZ 3Phase(220V/50-60HZ 1Phase,220V/50-60HZ 3Phase) |
Test bench rotated speed | 0-4000 rpm/min |
Oil supply | 10L/min , 20L/min |
Oil supply high pressure | 0-3.5Mpa |
Oil supply low pressure | 0-0.35Mpa |
Air supply pressure range | -0.03-0.3 |
DC power | 12V or 24V(Allow short circuit) |
Shaft centre height | 125 MM |
Test bench height from the ground | 830 MM |
Oil tank capacity | 50 L |
Fuel oil temperature | 40±2℃ |
Overall size(mm) | 2150*750*1850 |
Weight(kg) | 950 |
Specification

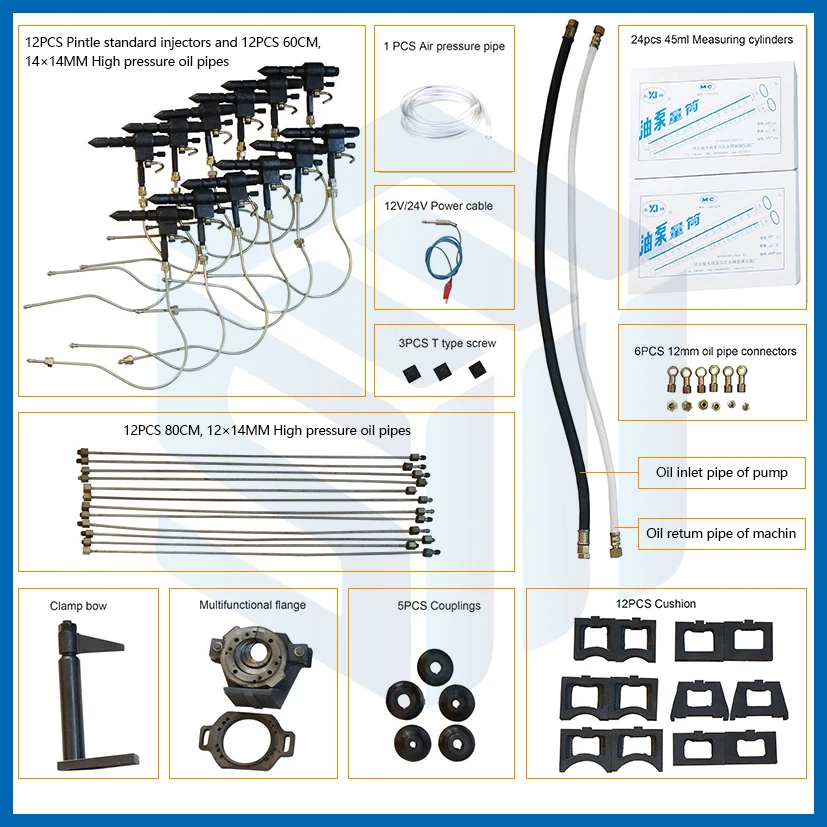

The accessories for 12PSB
YH-770 Multi-functioncontroler can detect and display the oil quantity and control the speed. measurement control and display, fuel injection frequency control, over-temperature indication, and adaptive funtion, can adapt to the control of different gear positions of different oil pump test rigs.
Equipped with 12 oil cups and 12 measuring cylinders, each measuring cylinder is 45ml, can accurately measure data, on the top of the oil collecting tank equipped light, help us to read the data.
The cam disc is marked with a scale, and the transparent positioning block can accurately locate the scale. the protective cover can protect our hands from accidental injury when working on the test bench.
Equipped with 6 pressure gauges, with hydraulic fluid in each gauge, which can effectively prevent vibration and avoid data inaccuracy caused by vibration.
12 Cylinders oil collection tank, it can be rotated 180°, which is convenient for us to operate in multiple directions, make us work more efficiently.
Company Profile
1. Diesel injection pump test bench
2. Common rail injector and pump test bench
3. Full function test bench
4. Common rail / HEUI / EUI / EUP / Mechanical pump tools
5. Head rotor: (Isuzu, Toyota, Mitsubishi, Iveco, Fiat, etc.)
6. Piston: (Type: A, AD, P, PS7100, P8500, MW, PW, PT, etc.)
7. Nozzle:(Type: DNSD, DNOPDN, S, SN, P, PN.etc.)
8. Repair kit (VE pump, Lucas, etc.)
9. Delivery valve: (type A, P, etc.)
10. Common rail control valve: (Bosch, Denso, Delphi)
11. Lucas head rotor. (DPA, DPS, DP200)
12. Diesel fuel injectors (Bosch, Denso, Delphi)
13. Turbocharger
14. Turbocharger cartridge dynamic balance machine.
Plese feel free to contact me if you have any needed.
Products Application Field
Packing & Delivery
FAQ
Q1: What is your Trade Terms?
A: FOB CFR CIF EXW DDP and DDU
Q2: What is your payment terms?
A: T/T,Western Union , PayPay, Escrow and L/C
Q3: What is your delivery time?
A: Test bench is 7-10 working days, tester, diagnostic tool and injectors, we have stock.
Q4: Why should I choose your product?
A: We can provide you the best quality and the most competitive price, and we have our own engineer, if you have any requirements you can contact us directly~
A: FOB CFR CIF EXW DDP and DDU
Q2: What is your payment terms?
A: T/T,Western Union , PayPay, Escrow and L/C
Q3: What is your delivery time?
A: Test bench is 7-10 working days, tester, diagnostic tool and injectors, we have stock.
Q4: Why should I choose your product?
A: We can provide you the best quality and the most competitive price, and we have our own engineer, if you have any requirements you can contact us directly~
