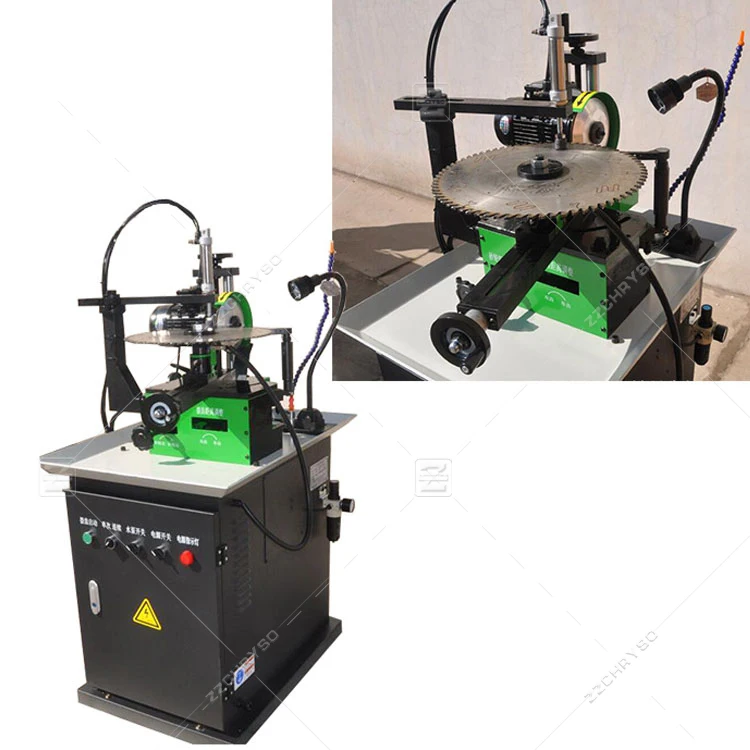

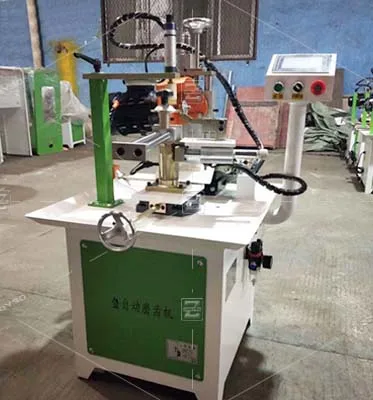

Small manual hand circular saw blade sharpener machine/small automatic saw blade sharpener
- Category: >>>
- Supplier: Zhengzhou Chryso Machinery Equipment Co. Ltd.
Share on (1600890899006):
Product Overview
Description
Small manual hand circular saw blade sharpener machine/small automatic saw blade sharpener
Product Description

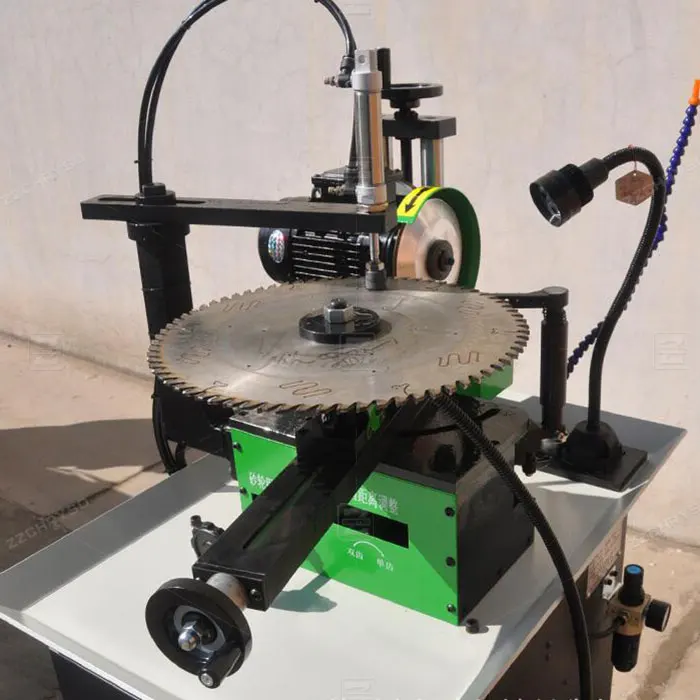

Automatic Saw Blade Sharpening Machine
1. Automatic saw blade grinding machine, with intuitive structure, simple operation, practical, precise, beautiful and so on.
2.According to different chip requirements to change the cutting angle of the sawtooth, tooth, tooth depth, can easily grind sharp blade.
3. Can be grinding blade material: high-speed steel (HSS) saw blade, flying saw (manganese steel) saw blade.
4. Can wear a variety of teeth. (Left and right teeth, arc teeth, triangular teeth, high and low teeth)
5. According to the different cutting requirements to quickly adjust the grinding time of the blade.
6. The handpiece can be tilted up or down, no need to change the grinding wheel can chamfer.
3. Can be grinding blade material: high-speed steel (HSS) saw blade, flying saw (manganese steel) saw blade.
4. Can wear a variety of teeth. (Left and right teeth, arc teeth, triangular teeth, high and low teeth)
5. According to the different cutting requirements to quickly adjust the grinding time of the blade.
6. The handpiece can be tilted up or down, no need to change the grinding wheel can chamfer.
Working principle of Automatic saw blade sharpening machine

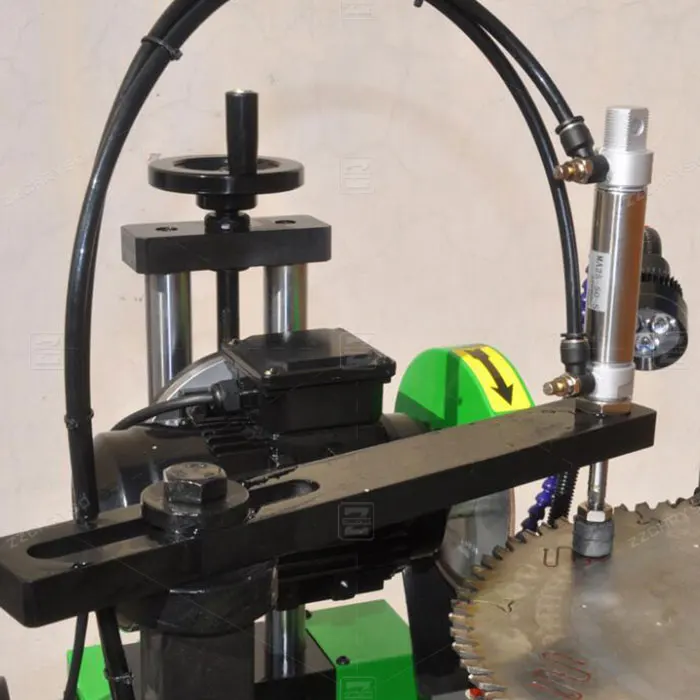

The machine is completely mechanical interlock linkage to complete the repair of the saw blade grinding: After the sawtooth feeding, the cylinder compression blade, dial needle returned, grinding wheel mechanical linkage feed grinding, and then return,the cylinder release, Tooth feed, automatic mechanical reciprocating motion, to achieve the saw blade grinding function.

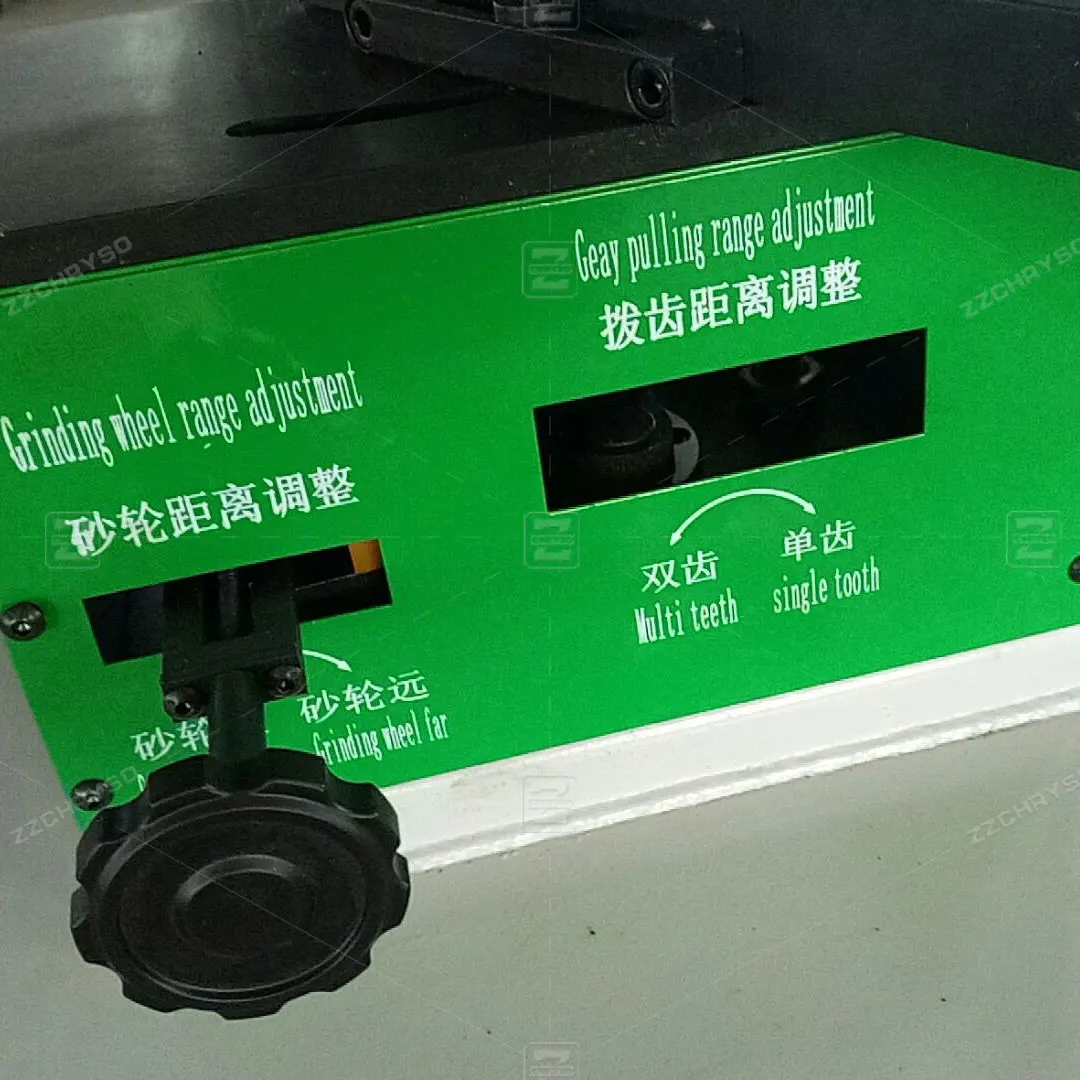

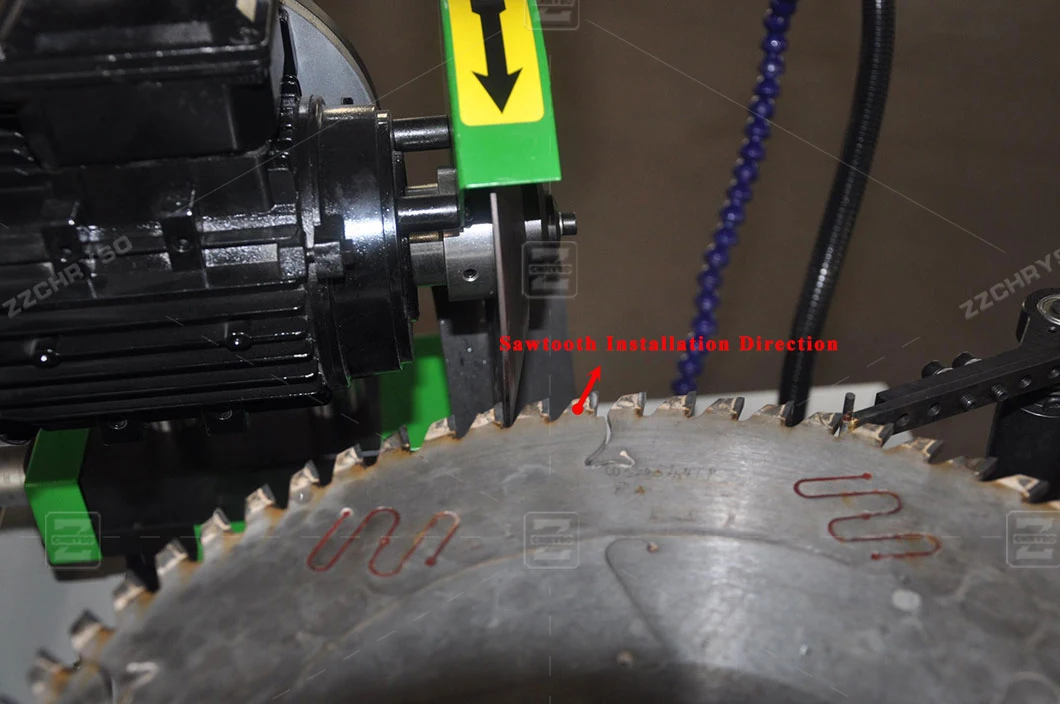

Technique: The grinding blade to be pressed on the saw blade fixed shaft, adjust the pitch of the dial teeth, adjust the grinding wheel grinding angle and feed distance, after starting the machine,adjus the grinding wheel feed and automatic finish saw blade grinding.
Technique: The grinding blade to be pressed on the saw blade fixed shaft, adjust the pitch of the dial teeth, adjust the grinding wheel grinding angle and feed distance, after starting the machine,adjus the grinding wheel feed and automatic finish saw blade grinding.

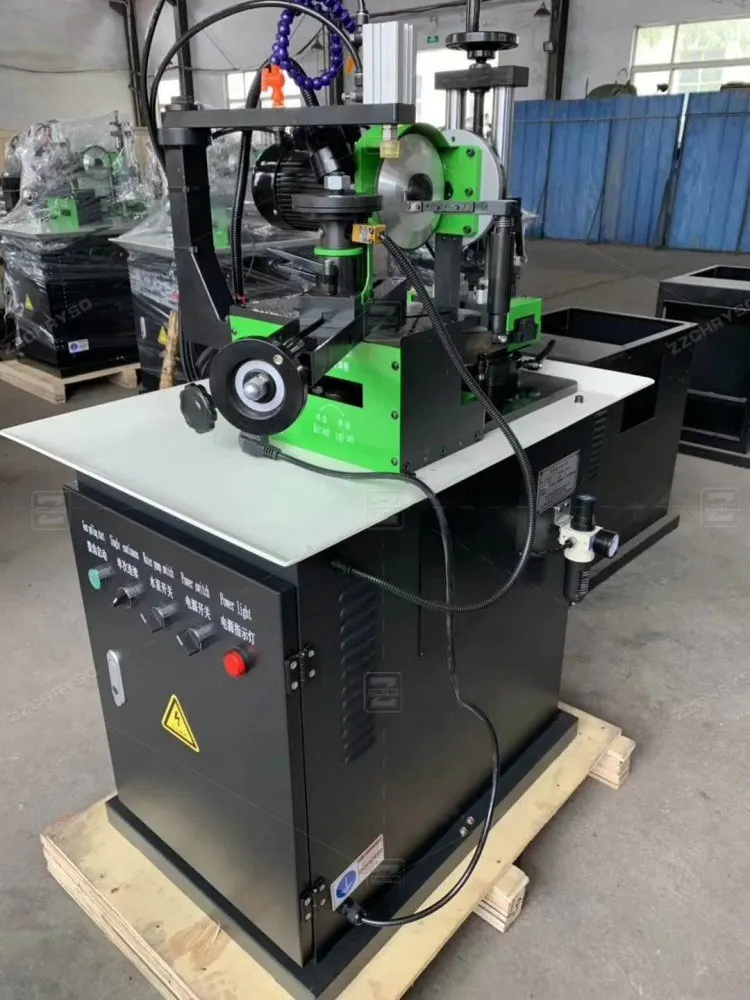

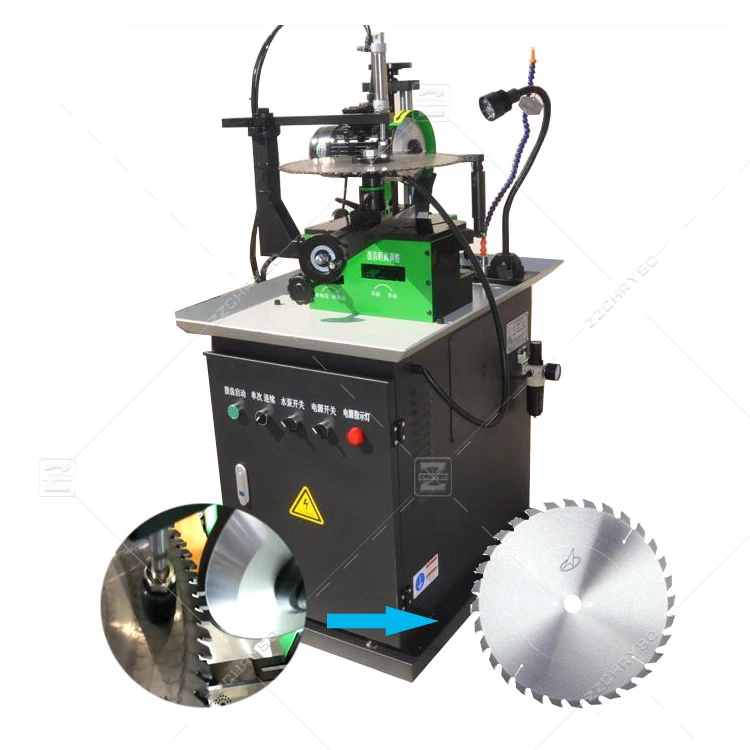

Small manual hand circular saw blade sharpener machine/small automatic saw blade sharpener
Small manual hand circular saw blade sharpener machine/small automatic saw blade sharpener
Small manual hand circular saw blade sharpener machine/small automatic saw blade sharpener
Specification
Product name | Saw blade sharpening machine |
Saw blade grinding machine | 120-800mm |
Total power | 543w |
Voltage | 380V |
Frequency | 50HZ |
Dial the tooth distance | 3-45mm |
Grinding speed | Stepless speed regulation |
Grinding wheel speed | 2800r/min |
Grinding wheel specifications | diameter 150*hole 32* thickness 10mm |
Dimensions | 850*615*1320mm |
Packing size | 900*665*1320mm |
Total weight | 157kg |
Product Features
Features of Automatic Saw Blade Sharpening Machine
1. Saw blade fixing mechanism
2. Automatic dialing sawtooth mechanism
3. Saw blade automatic compression mechanism

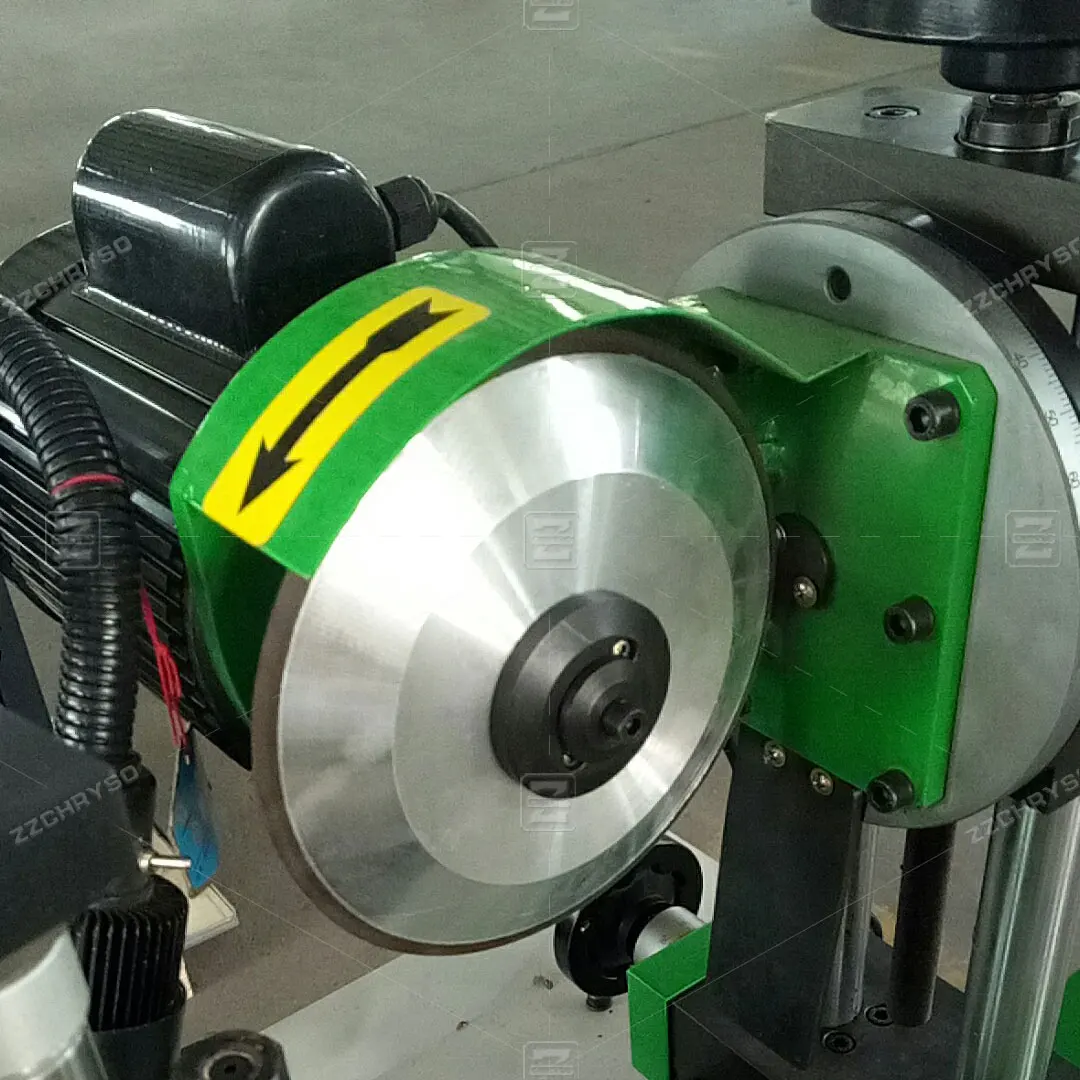

4. Grinding wheel grinding mechanism

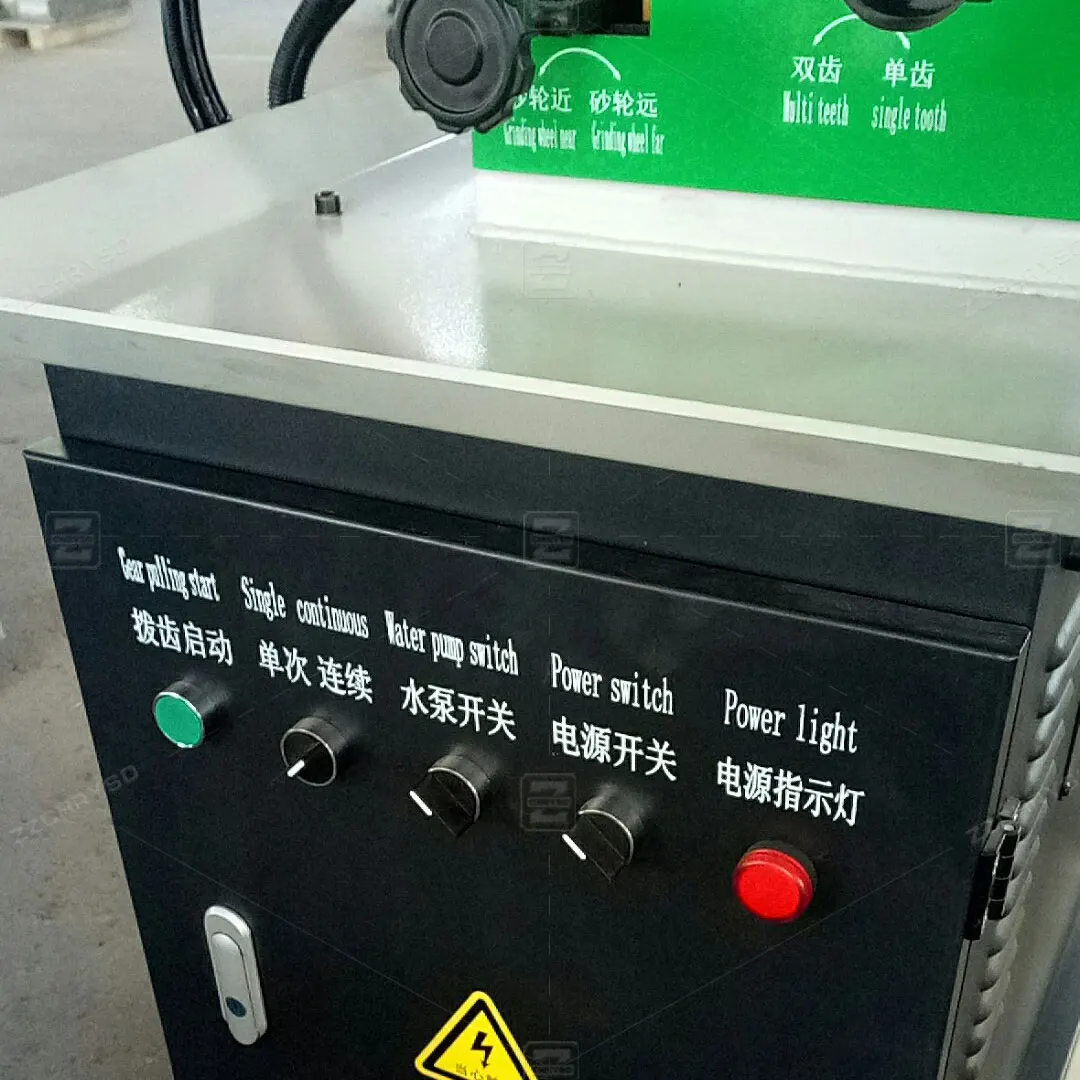

5. Electrical control mechanism
6. Cutting fluid cooling mechanism
3. Saw blade automatic compression mechanism
4. Grinding wheel grinding mechanism
5. Electrical control mechanism
6. Cutting fluid cooling mechanism

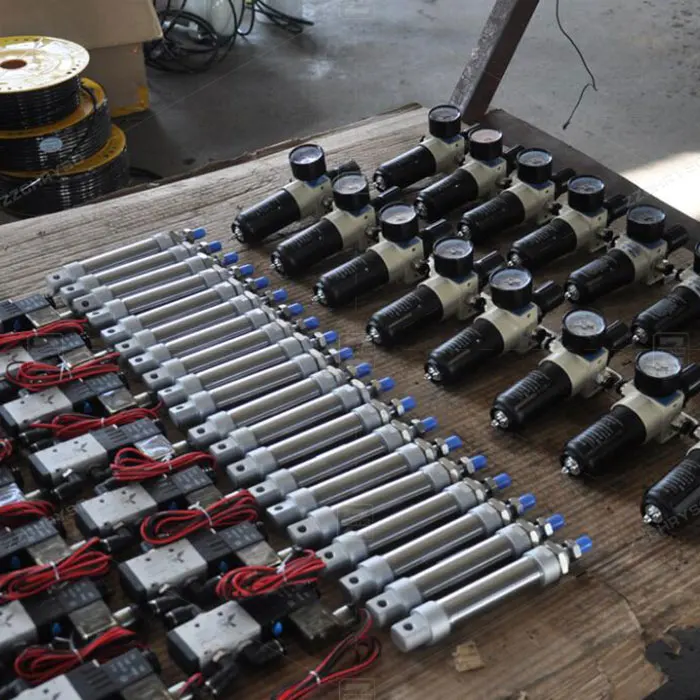

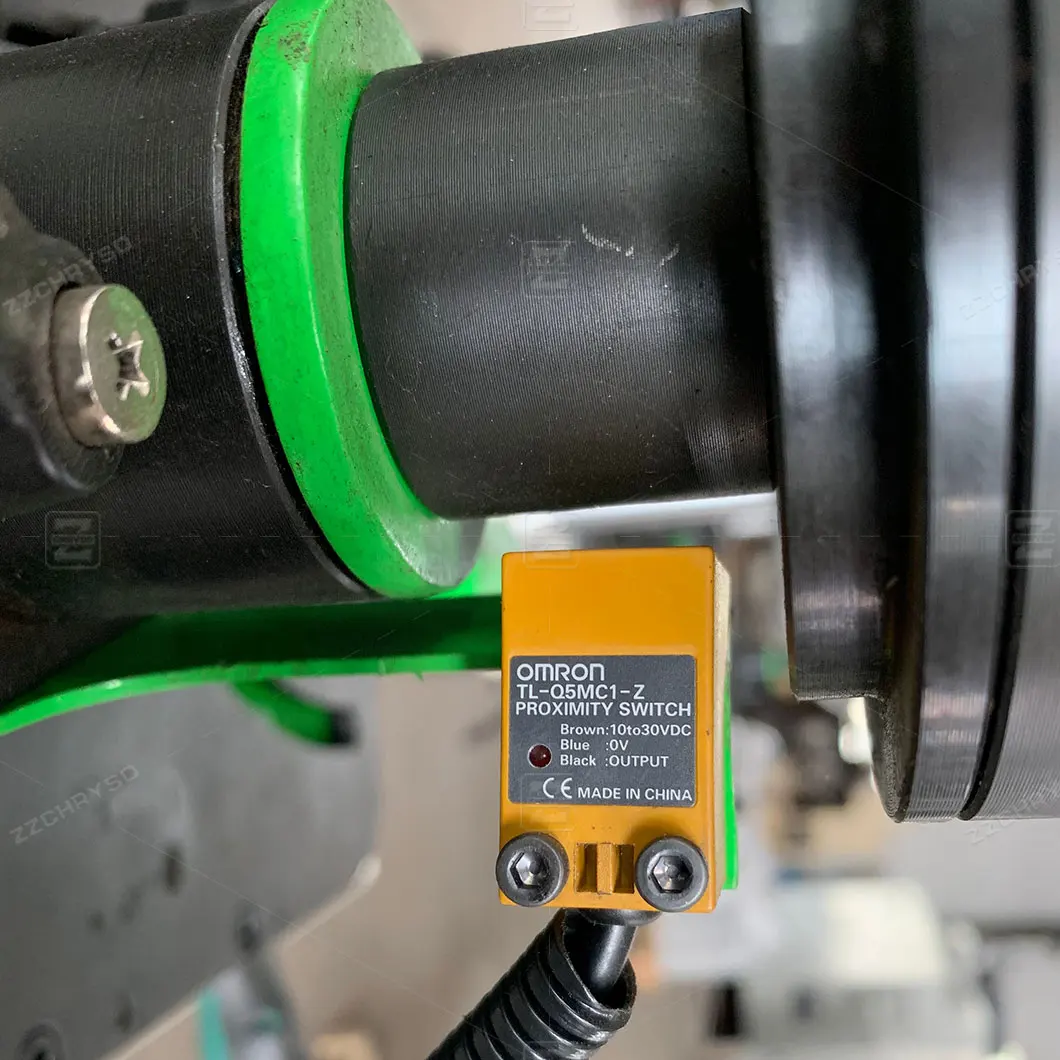

Details Images

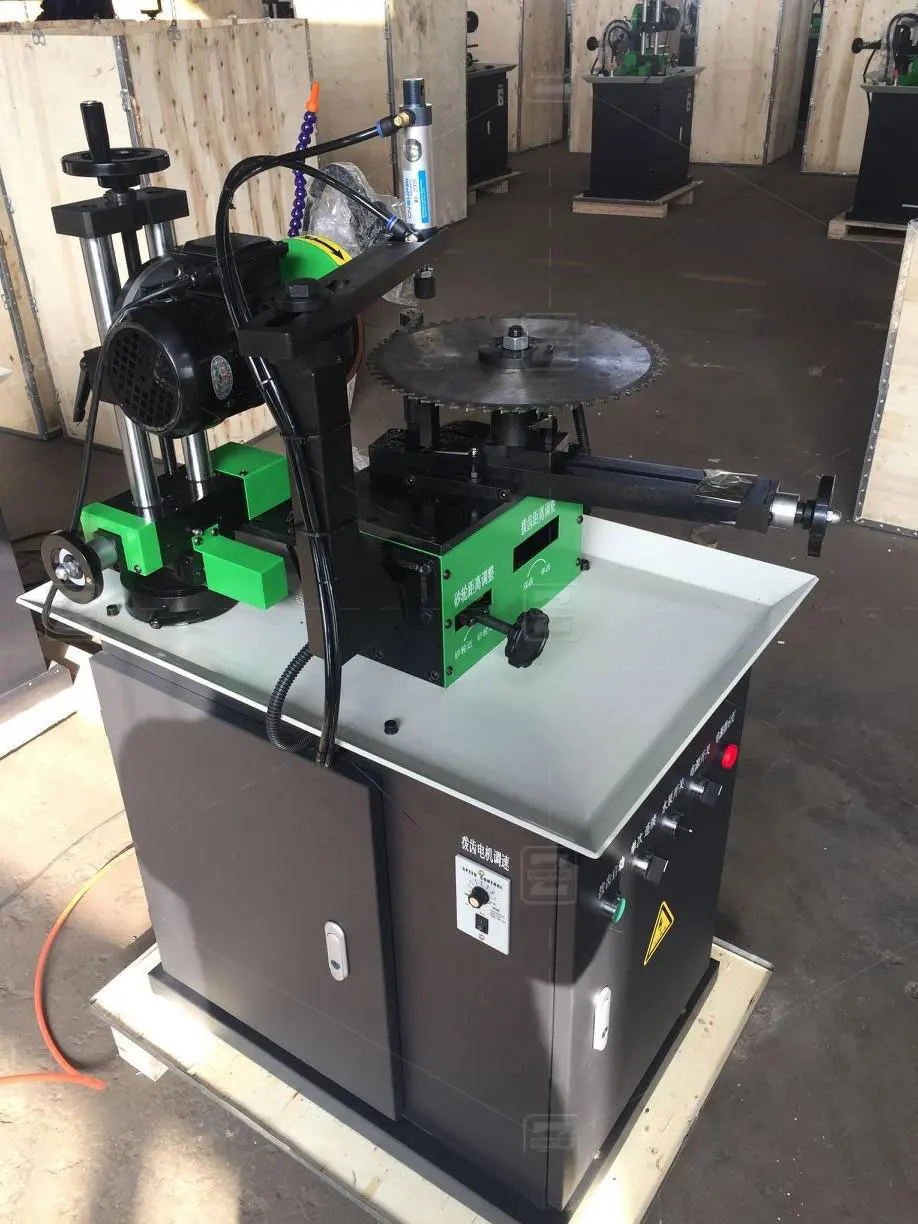

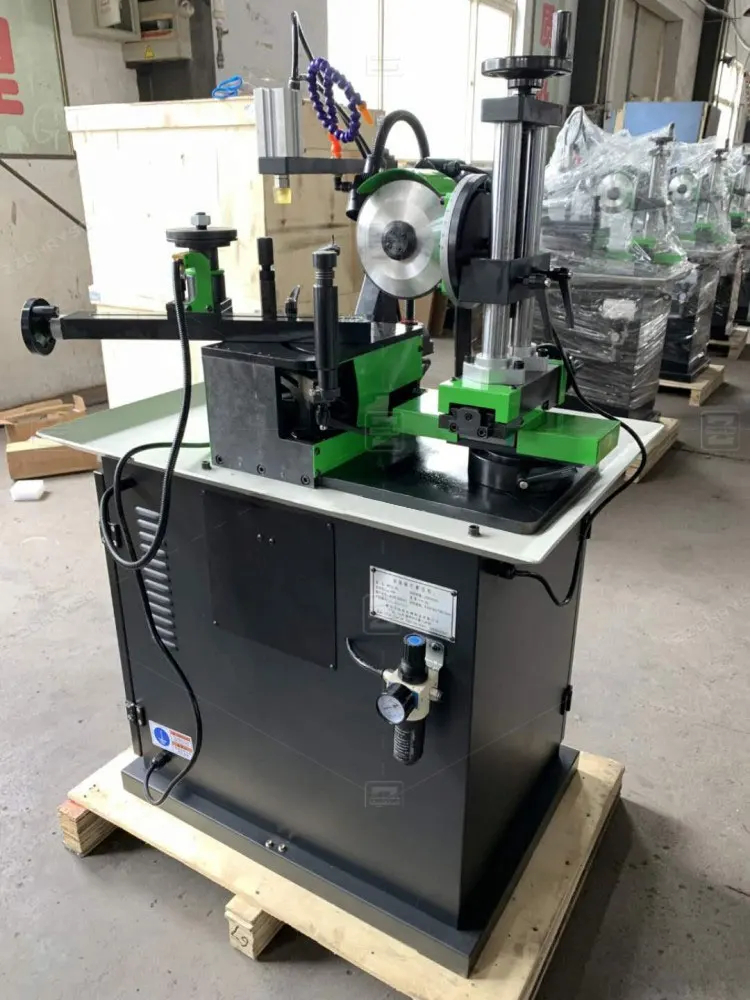

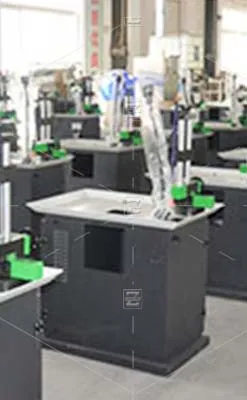

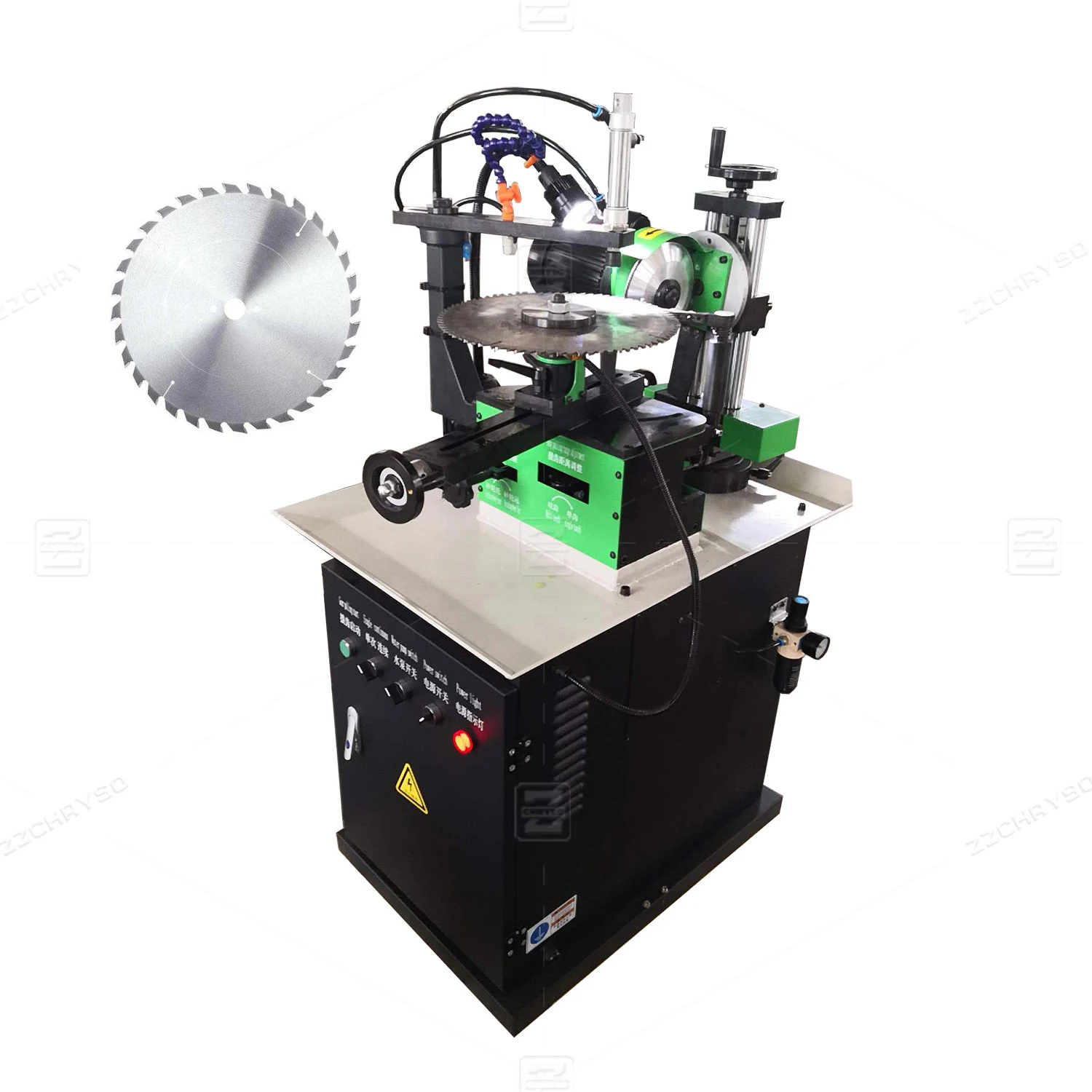

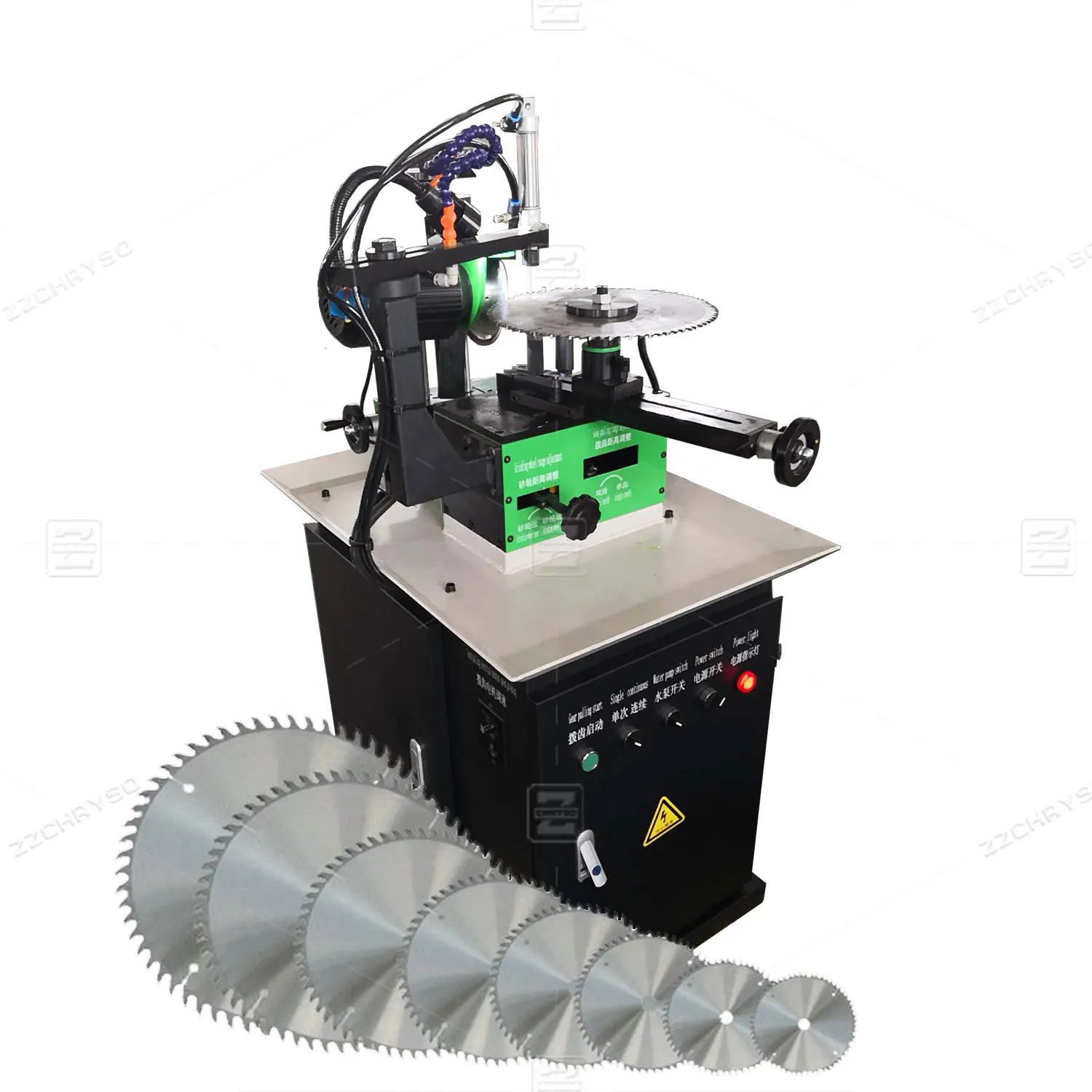

Product Display
Application

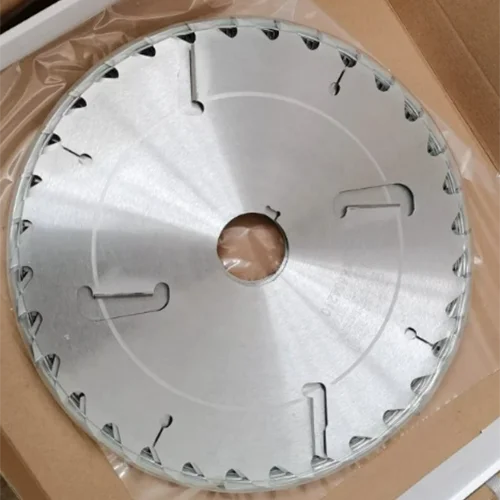

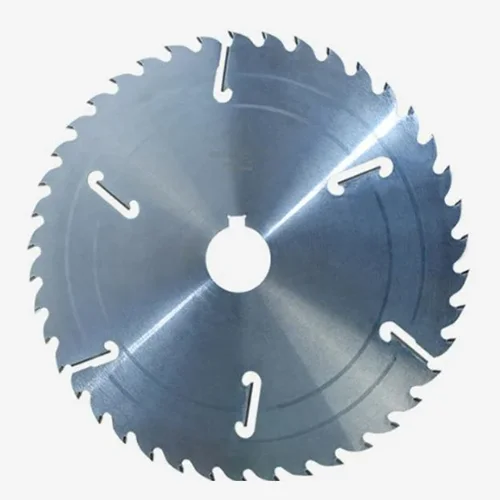

Automatic saw sharpening machine is suitable for circular saw blades.

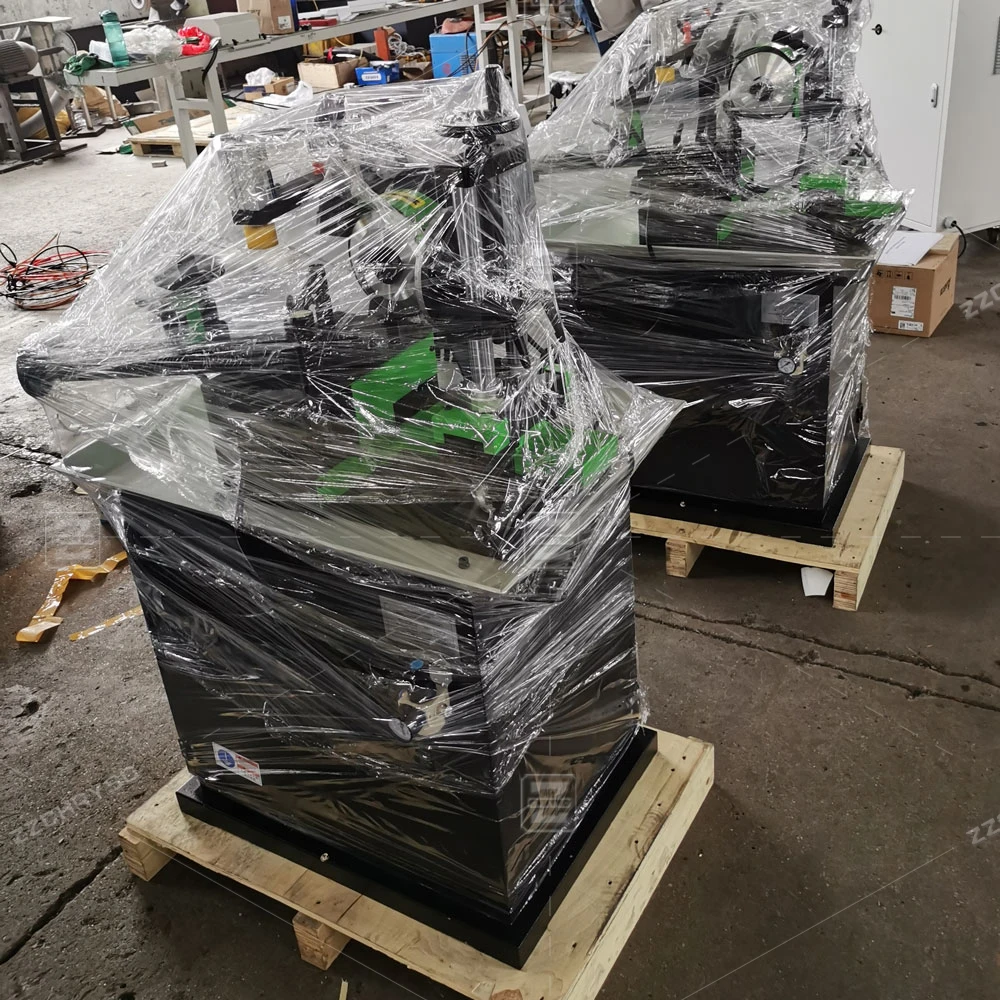

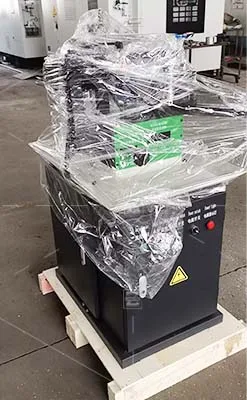

Packaging & Shipping

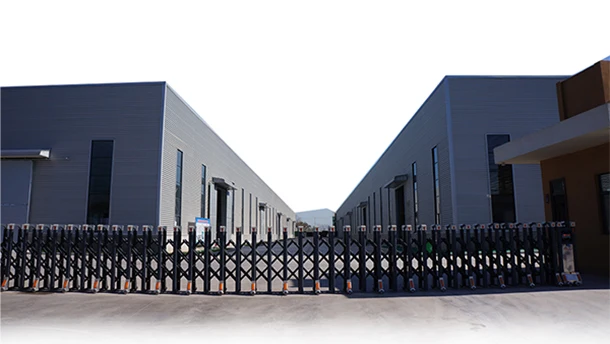

Company Profile
Zhengzhou CHRYSO is one leading manufacturing and exporting company of wood working machine in China. We are committed to provide one-stop service to our customers all over the world.
CHRYSO focus on Woodworking Machinery, Here we can provide a complete solution for your wood line processing. CHRYSO's products develop and increase not limit to wood working machinery, with main products of Wood pallet production line, wood press machine series,wood saw machine series,wood crusher and chip machine series ,etc.
Our company is equipped with a professional team of quality control and after-sales service members to keep track of each order scientifically, so as to provide high-speed services for customers. "To provide a design, production, quality control, inspection, testing, sales and logistics service to companies that need a reliable supply of wood machinery from China. "
All members of CHRYSO welcome new and regular customers to contact us to build long-term and friendly relation of cooperation! We will strive to produce more quality products for you!
CHRYSO focus on Woodworking Machinery, Here we can provide a complete solution for your wood line processing. CHRYSO's products develop and increase not limit to wood working machinery, with main products of Wood pallet production line, wood press machine series,wood saw machine series,wood crusher and chip machine series ,etc.
Our company is equipped with a professional team of quality control and after-sales service members to keep track of each order scientifically, so as to provide high-speed services for customers. "To provide a design, production, quality control, inspection, testing, sales and logistics service to companies that need a reliable supply of wood machinery from China. "
All members of CHRYSO welcome new and regular customers to contact us to build long-term and friendly relation of cooperation! We will strive to produce more quality products for you!
After Sales Service
-The main machine has 12 months guarantee and the electric elements have 6 months warranty.
- We respect any feedback from you after receiving the goods.
- We promise all spare parts available in lifetime use.
- We handle your grumble within 48 hours.
Technical Support
- We have sales teams, together with all technical support from our engineering team.
- Before sending machines, test and adjustment service are provided.
- Operating video & instruction will be sent to clients for better use of machines.
- Any problems occur while using, professional advice will be given by us.
-The main machine has 12 months guarantee and the electric elements have 6 months warranty.
- We respect any feedback from you after receiving the goods.
- We promise all spare parts available in lifetime use.
- We handle your grumble within 48 hours.
Technical Support
- We have sales teams, together with all technical support from our engineering team.
- Before sending machines, test and adjustment service are provided.
- Operating video & instruction will be sent to clients for better use of machines.
- Any problems occur while using, professional advice will be given by us.
