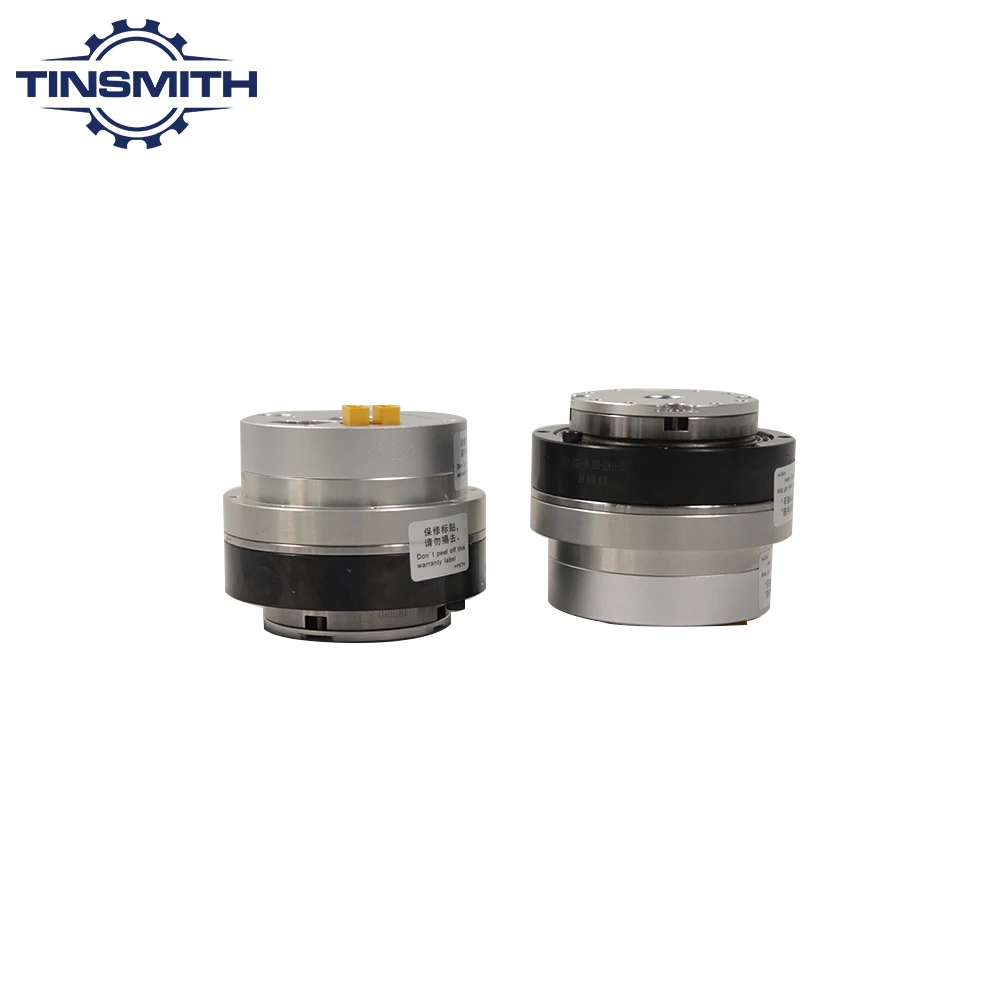

150W Hollow Robot Joint Modular Actuator Mini Brushless Frameless Motor for robot mechanical arm
Product Description

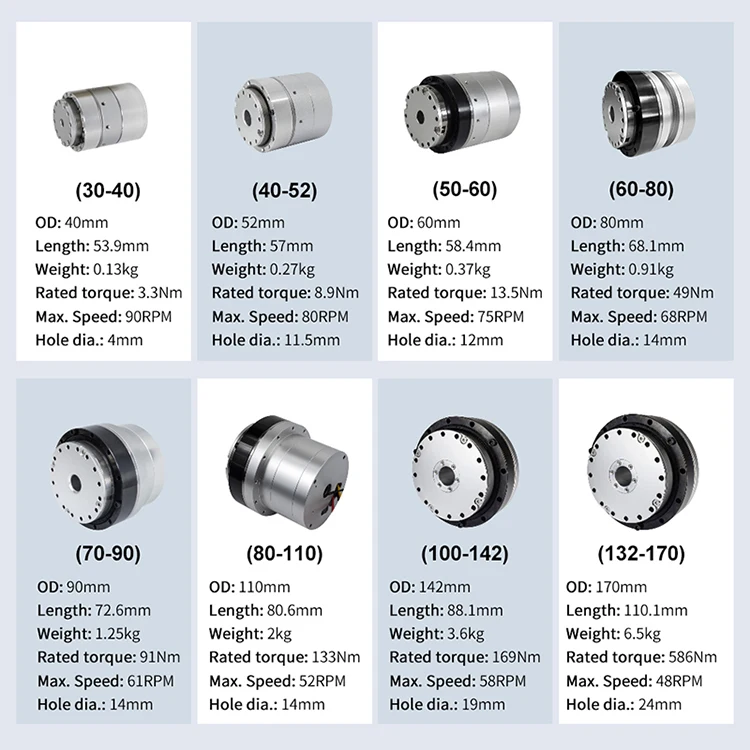

The outer diameter of this series of joint modules ranges from 40mm to 170mm, with exquisite design and compact structure. The small size includes FOC control board, high-precision multi-turn absolute encoder, frameless torque motor, precision harmonic reducer and other main components , saving customers the labor and time cost of selecting, designing, purchasing, and assembling hundreds of mechanical and electronic components.
Product Features
The smallest size is only 40mm, and the weight is 0.13kg
The compact size of this product includes FOC control board, high-precision multi-turn absolute encoder, frameless torque motor, precision harmonic reducer and other main components
Low-power encoder with only 46 μA standby current
Product Parameter

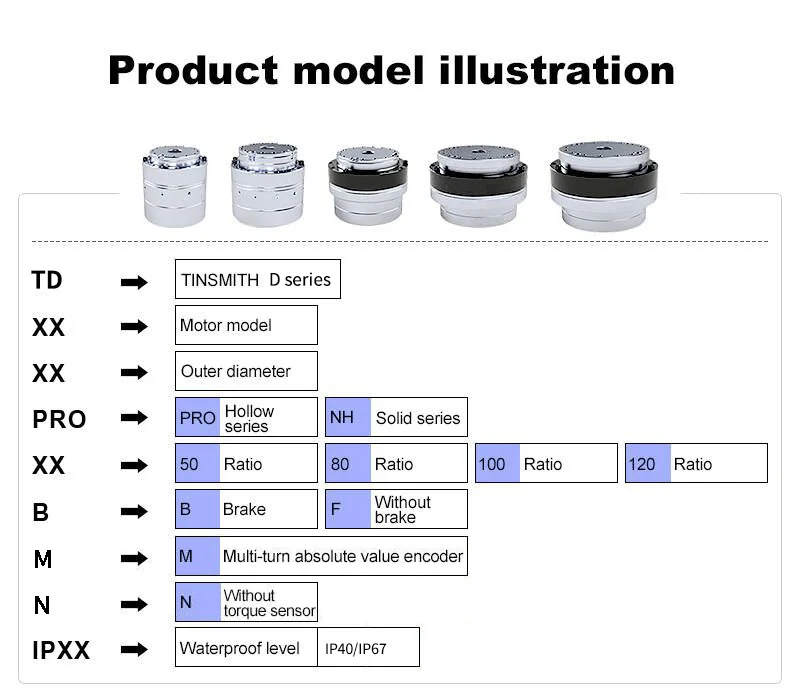

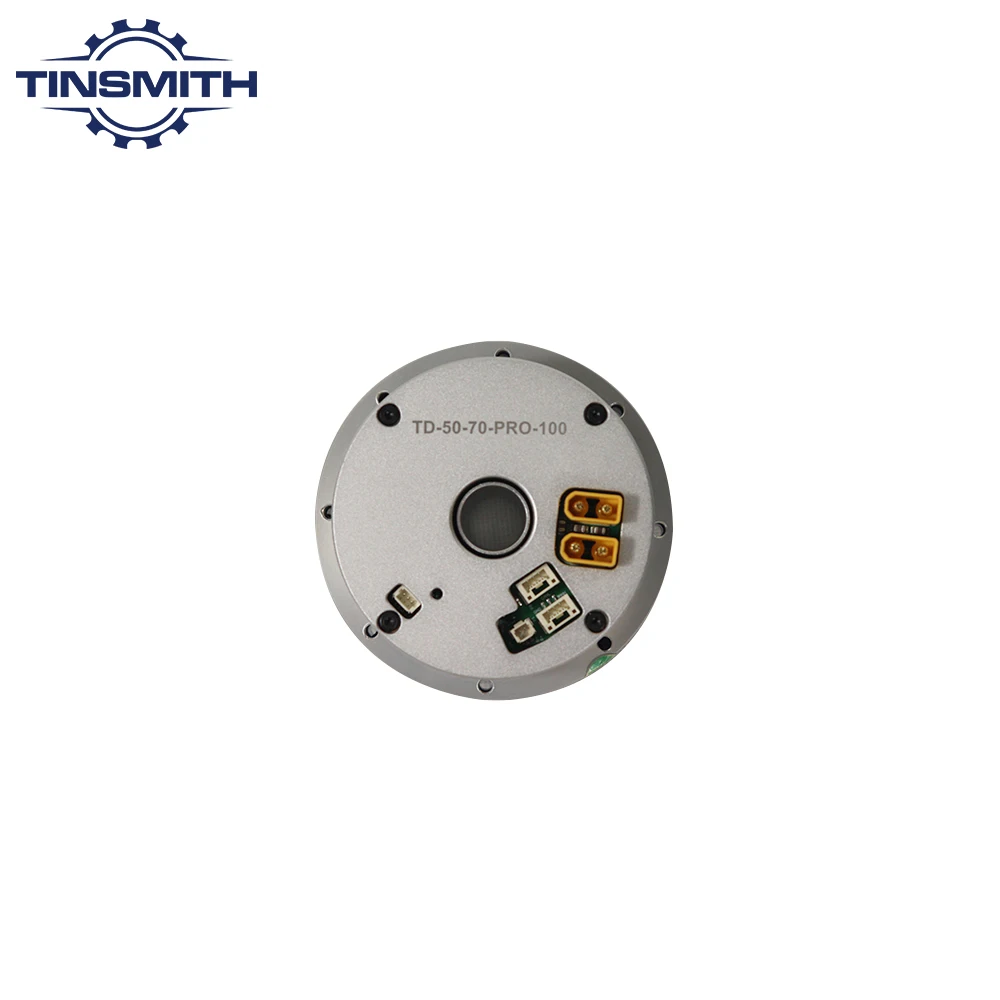

| Model | TD-50-70-PRO-XX | TD-50-70-PRO-XXB |
| Ratio | 50/80/100 | 50/80/100 |
| Start-stop peak torque (N.m) | 23/29/34 | 23/29/34 |
| Instantaneous maximum torque (N.m) | 43/59/71 | 43/59/71 |
| Rated torque (N.m) | 8.6/13.5/13.5 | 8.6/13.5/13.5 |
| Output Peak Speed (RPM) | 100/62/50 | 100/62/50 |
| Rated speed (RPM) | 75/46/37 | 75/46/37 |
| Motor power (W) | 150 | 150 |
| Supply voltage (V) | 24-48 | 24-48 |
| Rated current (A) | 3.6 | 3.6 |
| Peak current(A) | 10.8 | 10.8 |
| Encoder Resolution (Bit) | 17 | 17 |
| Backlash (arcsec) | 20/20/10 | 20/20/10 |
| communication bus | CAN | CAN |
| Length(mm) | 58.7 | 83.7 |
| Weight(kg) | 0.58 | 0.8 |
Application
This kind of robot joint modules can be used in robots, humanoid robots, and exoskeletons, helping us to quickly build robot arms and greatly shorten the development cycle.
Company Information
Zhengzhou Defy Mechanical&Electrical Equipment Co., Ltd is a professional manufacturer of Robotic Joint Module. Our factory dedicates to the research of robot joint motor since 2010s, more than 10 years’ experience makes our product quality rank in the leading position in China. Wth an annual output of 500,000 sets of various products for the market, with high precision and stable performance, our robotic joint modules are welcomed by customers from India, Thailand, Iran, South Korea, Russian Federation, Sweden, Ireland, Poland, USA, France and so on.
Our Services
1. We accept small order of Joint module;
2. Sample order of harmonic gear speed reducer delivery time is in 9 days, mass quantity order lead time is 9-15 days;
3. We can accept payment via alibaba trade assurance order, paypal, T/T and L/C;
4.Quality assurance of our harmonic reducer is 1 year, and we can provide you professional technical support;
5. We provide free software wand training how to use the products. Engineers are available for technical support.
