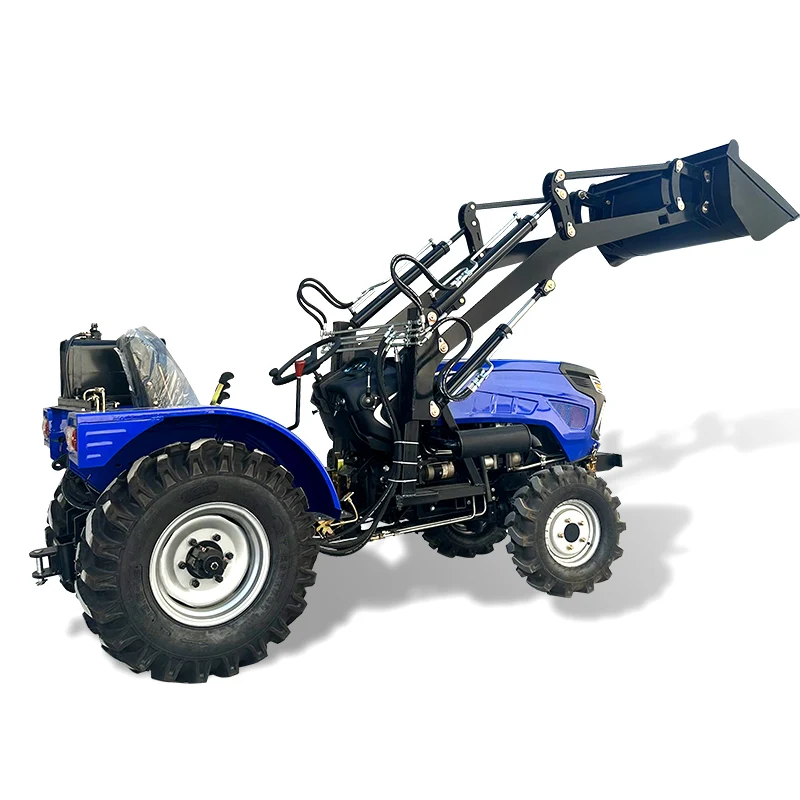

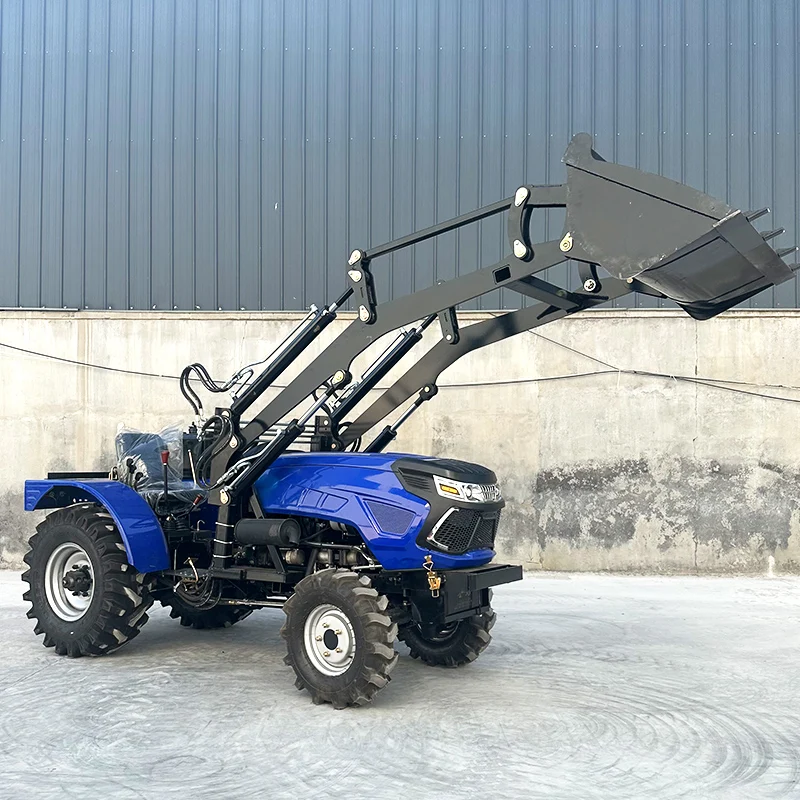

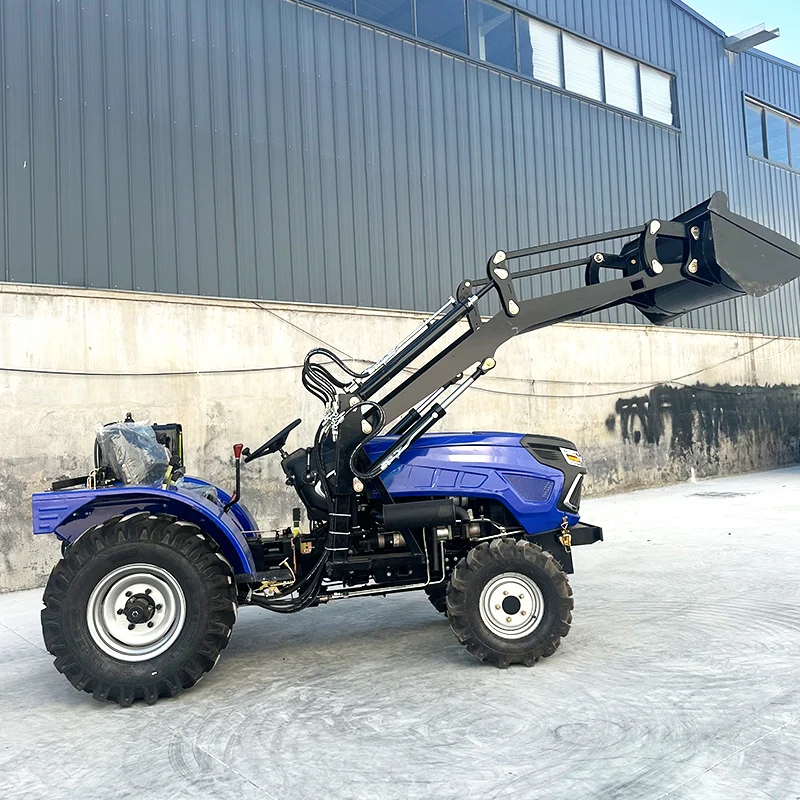

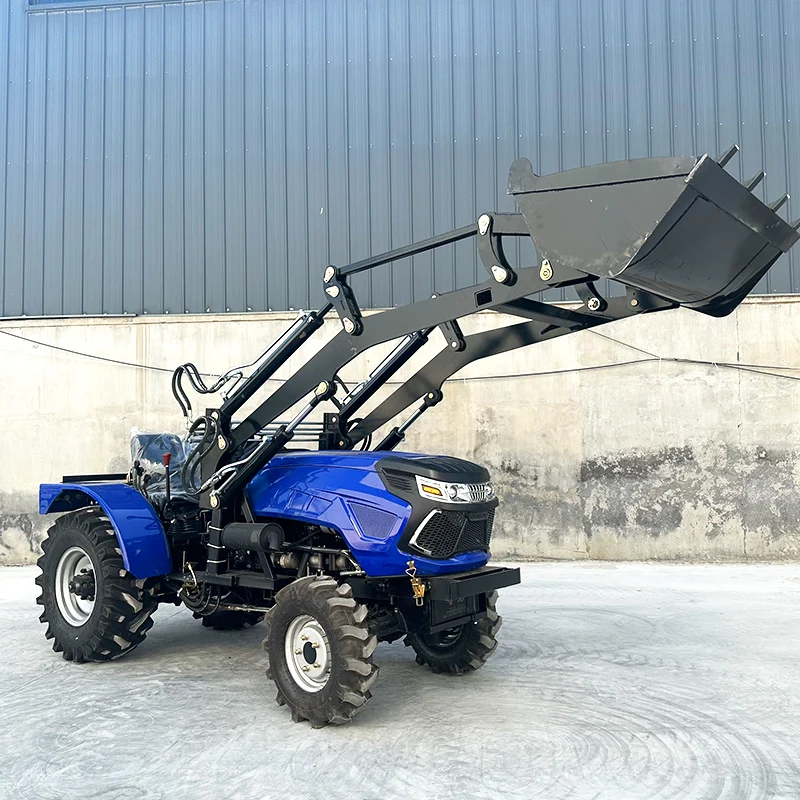

Agricultural Walking Power Tractor Trailer Four Wheel Tractor 60HP ripper for tractor farming
- Category: >>>
- Supplier: Shandong Aiweiya Machinery Co. Ltd.
Share on (1600890907784):
Product Overview
Description
Product Description
*The frame is designed to use the thickened steel plate, strong and durable, reduce the vibration generated by the engine, prolong the life of the machine.
*The machinery is used the customized all-gear transmission, with 3 forward gears, 1 back gear, and the rear working connection box, which can be equipped with a large number of agricultural tools such as rotary tiller and trencher etc.
*The driving wheel adopts steel through heat treatment, strong and wear-resistant.
*The 500W full copper generator can ensure that the machine will not be unable to start the battery due to lack of power, thus prolonging the battery life.
*25hp 35hp 50hp 60hp 70hp 80hp 90hp 100hp 120hp etc. suitable for greenhouse, orchard, planting, woods and other narrow space operation.
*The machinery is used the customized all-gear transmission, with 3 forward gears, 1 back gear, and the rear working connection box, which can be equipped with a large number of agricultural tools such as rotary tiller and trencher etc.
*The driving wheel adopts steel through heat treatment, strong and wear-resistant.
*The 500W full copper generator can ensure that the machine will not be unable to start the battery due to lack of power, thus prolonging the battery life.
*25hp 35hp 50hp 60hp 70hp 80hp 90hp 100hp 120hp etc. suitable for greenhouse, orchard, planting, woods and other narrow space operation.
Model | RLD-604 | RLD-604(Cab) | RLD-604(Small) | |||
Size(L*W*H)mm | 3100*1500*1970 | 3100*2500*1970 | 2400/2700*1200*1200 | |||
Diesel engine | Cater/Laidong | |||||
Engine horsepower | 60hp / 2400r/min / 44.1kw | |||||
Weight | 1386kg | 1636kg | 1266kg | |||
Fuel consumption | 6.5 liters / hour | |||||
Transmission mode | Direct link gear transmission | |||||
Tire model | 650-16/11.2-24 | 650-12/9.5-16 | ||||
Gear | 8+2/8+8, Side mounted gears | 8+2, mid-mounted gears | ||||
Ground clearance | 260mm | 210mm | ||||
Rear output power | Strong pressure all the way hydraulic output Dual PTO540/720 | |||||
Traveling speed | 2.2-32km/h | |||||
Working speed | 0.82~1.15ac/hr | |||||
Air filter | Three-stage wet type | Two-stage dry type | ||||
Wheelbase | 1800mm | 1500mm or 1800mm | ||||
Optional agricultural tools | Dozer, rototiller, trencher, straw return, engineering bucket, grain hopper, etc. | |||||
Suitable for tractor trailers of various terrains, cultivation, harvesting, field management, excavation, shovel load of various crops, etc. Optional: water field wheel, awning | ||||||
