600W MPPT Charge Controller Wind Solar Hybrid System Off Grid Controller Regulator For Dynamo Generator
- Category: >>>
- Supplier: ELEGE NEW ENERGY (ZHANGJIAGANG) CO. LTDELEGE LTD
Share on (1600890945263):
Product Overview
Description
600W MPPT Charge Controller Wind Solar Hybrid System Off Grid Controller Regulator For Dynamo Generator
Rated system voltage | 12V、24V、12/24 AUTO |
Rated wind power | 600W |
Rated PV power | 600W |
The above three parameters must satisfy the conditions on the right. | （wind rated power+PV rated power）/system voltage≤40A Wind rated power/system rated voltage≤25A PV rated power /system rated power ≤25A |
No-load Current (DC) | ≤0.05A |
Controller power mode | Battery or solar |
Control mode | Wind generator MPPT boost charge、PWM dump load、PWM Over current Limiting function |
Output working mode(Mode) | Mode 1: Light-control on. Light-control off (3 modes adjustable) |
Display content | LCD display,Voltage, Percentage of battery power, Current, working mode of load, etc |
Protection type | Solar Reversed Charging protection，Battery open circuit protection、battery anti-reverse connection protection protection、Over current and over voltage auto brake protection、Over load protection,etc. |

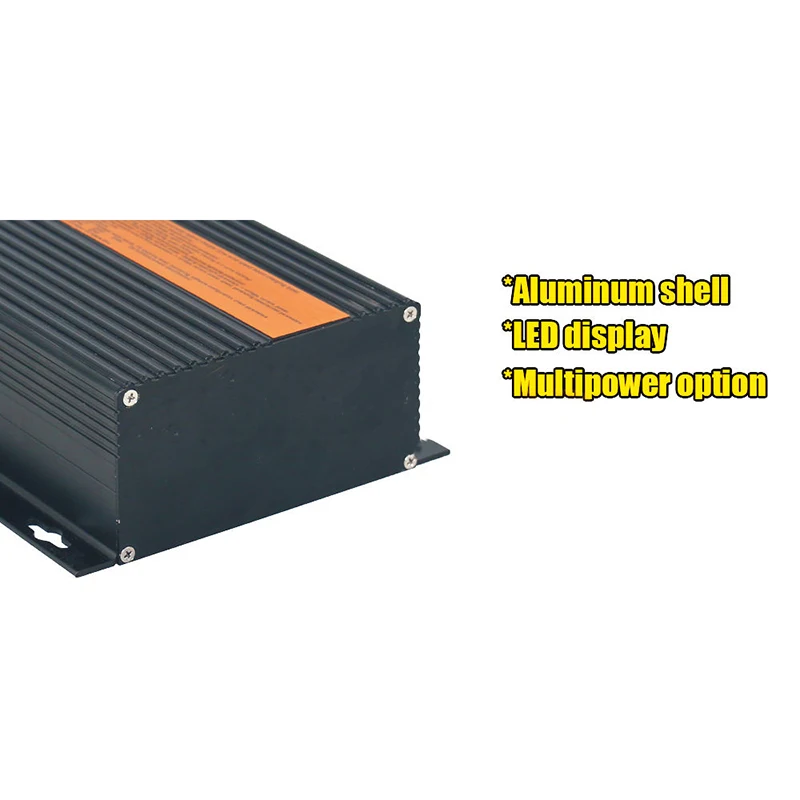

Cooling mode | aluminium profiles Heat dissipation and self-cooling |
Working temperature / Relative humidity | -25℃~+80℃ /0~90%，non-condensing |
Net weight / Gross weight | 2.35/2.85kg |

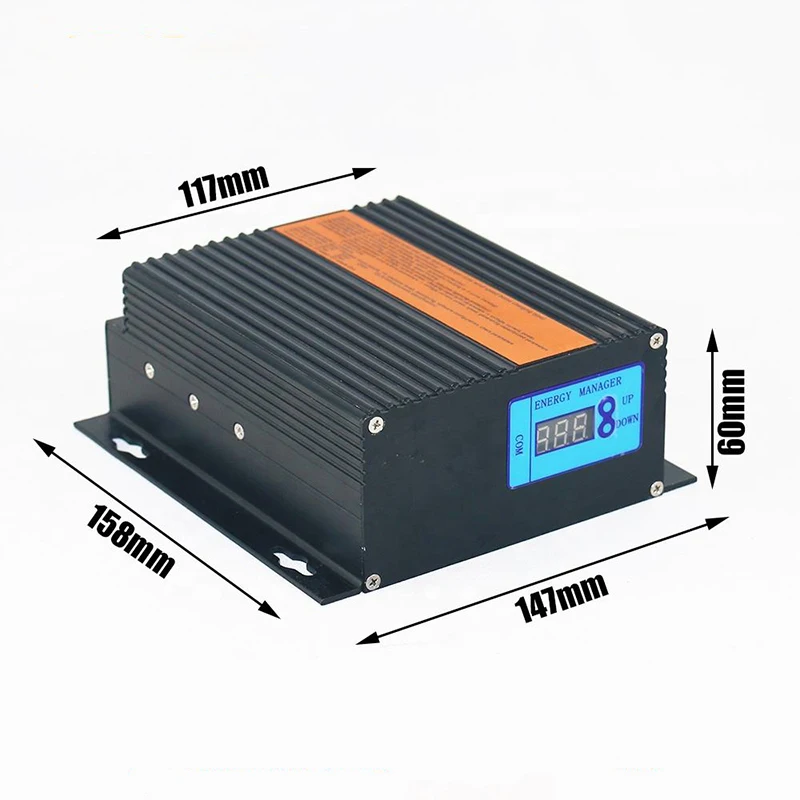

Controller size/Pack size | 167mm*145.5mm*61.8mm/360mm*250mm*120mm |
• Q: Are you a factory?
A: We have our own electronic equipment, antenna production factory.
• Q: Can I get some samples?
A: Yes, sample order is available for quality inspection and market testing, it will be freight collect.
• Q: What is the lead time?
A: It usually takes about 1-3 days to produce samples.
It usually takes about 3-7 days to produce the product.
• Q: What is your payment term?
A: We usually accept PAYPAL, T/T as the main payment method, other payment methods can also be negotiated.
• Q: Quality problem?
A: If there is any quality problem or question, we can provide technical support or return service.
• Q: How can I contact us?
A: Send your inquiry details below, click "Send"! ! ! Free samples and best answers are waiting for you.
A: We have our own electronic equipment, antenna production factory.
• Q: Can I get some samples?
A: Yes, sample order is available for quality inspection and market testing, it will be freight collect.
• Q: What is the lead time?
A: It usually takes about 1-3 days to produce samples.
It usually takes about 3-7 days to produce the product.
• Q: What is your payment term?
A: We usually accept PAYPAL, T/T as the main payment method, other payment methods can also be negotiated.
• Q: Quality problem?
A: If there is any quality problem or question, we can provide technical support or return service.
• Q: How can I contact us?
A: Send your inquiry details below, click "Send"! ! ! Free samples and best answers are waiting for you.
If you want to know more detailed information, please contact us
