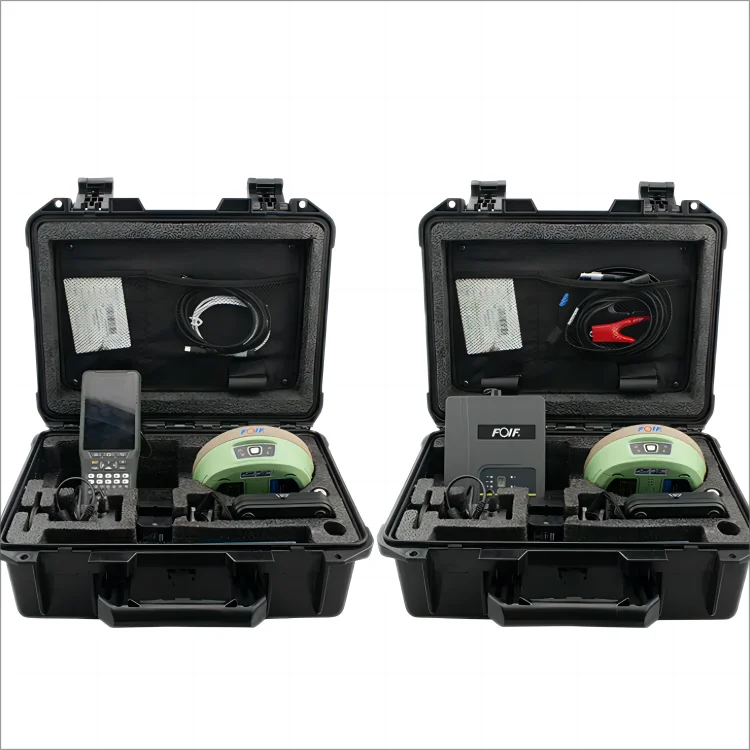

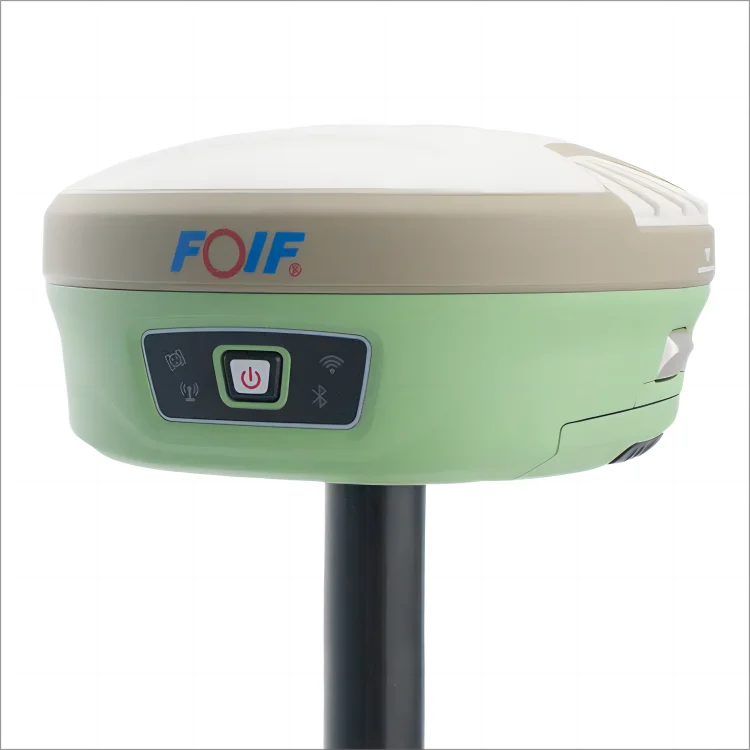

Высокоточный Foif GPS RTK GNSS Rover и базовая станция A90 Gnss приемник Rtk Gps
- Category: Other Test Instrument >>>
- Supplier: Shanghai Jice Instrument Co. Ltd.
Share on (1600890960333):
Product Overview
Description
Products Description

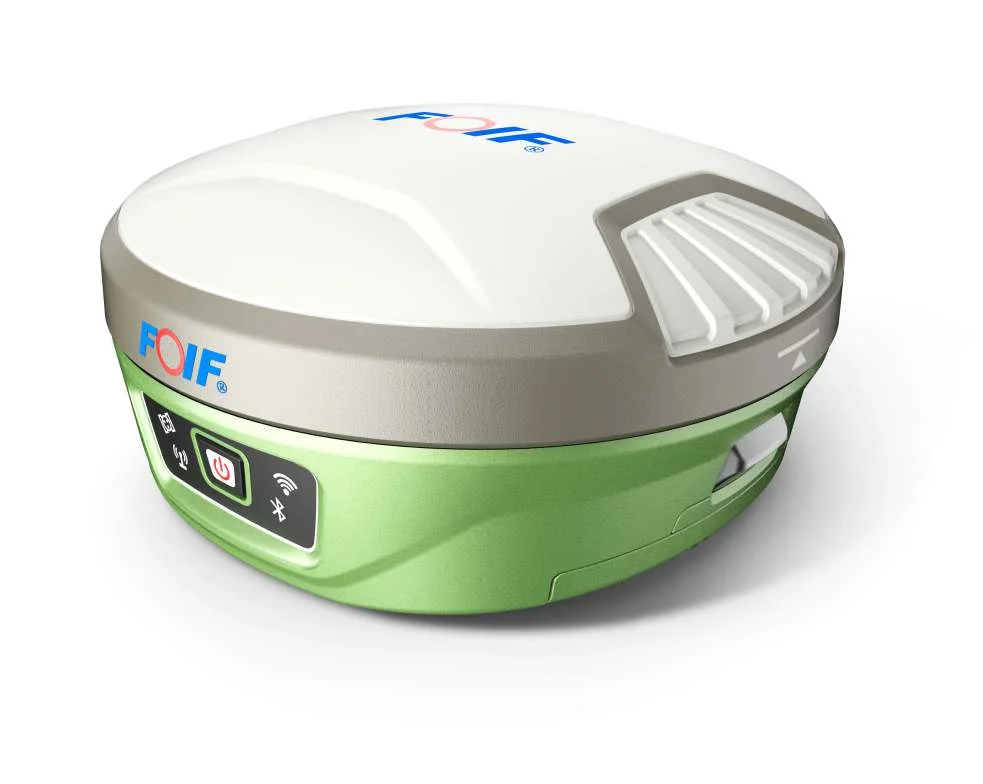

A90\u2029
A smart RTK that can let you save worry, save money, save effort and save time
New era full-functional RTK measurement system

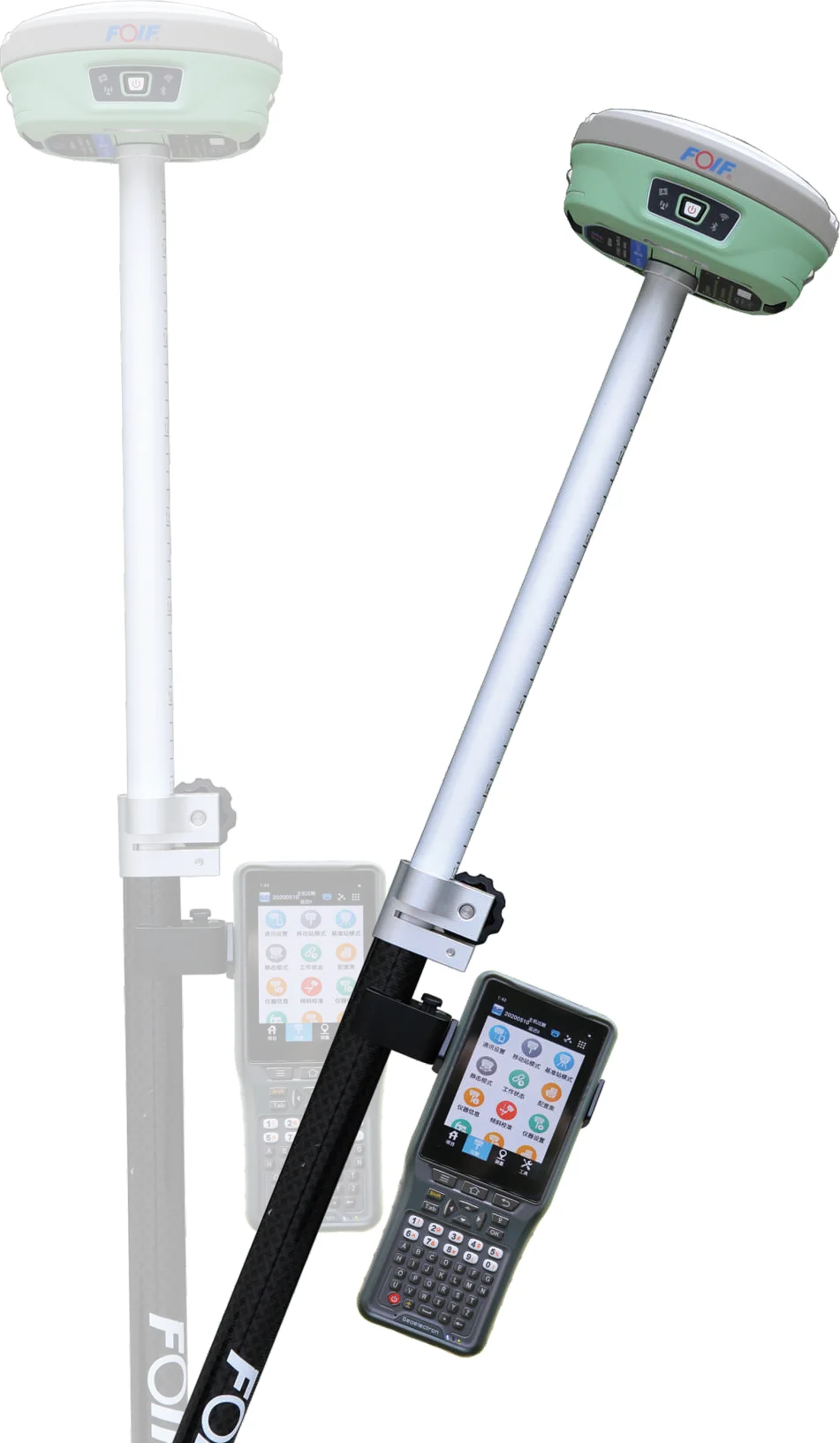

Not subject to electromagnetic interference and does not require calibration. 400Hz dynamic output for real-time correction of tilt angle of 60 °, with an accuracy of 2CM. It can be measured on the pole and arrived at the point
Both inside and outside\u2029Solid and lightweight golden ratio
Dimensions: 15.6cm×7.6cm
\u2029Weight: 1,000 g\u2029
Housing: the magnesium alloy is dust-proof
Waterproof: IP68\u2029
Product characteristics | ||
1. High-performance four-in-one antenna: GNSS antenna / Bluetooth / WiFi / 4G full netcom module is highly integrated | ||
2. Internal capsule structure design: RF and microwave form an independent circuit, perfectly solve the internal signal crosstalk,ensure that the receiver obtains the optimal data accuracy at all times, and maintain the strongest anti-interference performance. | ||
3. Top 800 channel motherboard: full galaxy tracking, support the Beidou 3 satellite, support the opening of starlink endurance and star station difference technology | ||
4. Linux + Cortex The second generation of intelligent system platform brings users with efficient computing and unlimited expansion of product functions. | ||
5, built-in integrated sending and receiving station: 0.5~2W adjustable, support all kinds of transmission protocols, operating distance up to 5 kilometers | ||
6, removable dual lithium battery design, battery capacity up to 6800 mAh, can be replaced in the host power of the battery. | ||
7, large capacity memory: built-in 8G, can be expanded to 32G; | ||
8. Data triple insurance: RTK collects data manual and host synchronously save the cloud server upload and backup, and measure the risk of accidental data loss and zero risk | ||
Data cloud services
Internal and field synchronization, real-time measurement track display, data backup, parameter sharing, remote debugging.
1. The measurement data is uploaded to the cloud server in real time
2. View the point distribution and action trajectory online
3. Real-time lock of the instrument location (Baidu map, Google map)
4. RTK remote debugging
2. View the point distribution and action trajectory online
3. Real-time lock of the instrument location (Baidu map, Google map)
4. RTK remote debugging

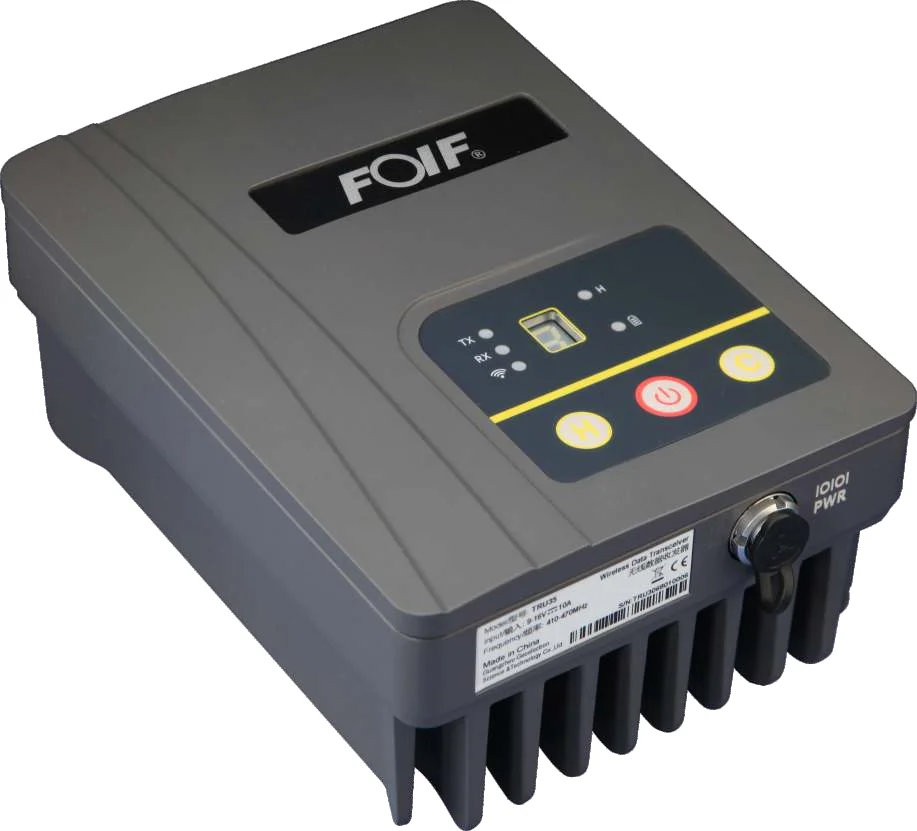

The TRU 35 plug-in radio station
Good heat dissipation and high temperature resistance
Ultra high power radio relay
Bluetooth data link function
410~470MHz Strong full band compatibility
Real time sensing of battery voltage
Ultra high power radio relay
Bluetooth data link function
410~470MHz Strong full band compatibility
Real time sensing of battery voltage
PRODUCT SPECIFICATIONS
Model | A90 | ||
GNSS | Channels | 800 | |
Signals | BDS: B1, B2, B3 | ||
GPS: L1CA, L1P. L1C, L2P, L2C, L5 | |||
GLOASS: G1,G2, P1, P2 | |||
GALILEO: E1BC, E5a. E5b | |||
QZSS: L1CA. L2C. L5, L1C | |||
SBAS: L1CA, L5; | |||
L-Band | |||
Accuracy | Static | H: 2.5 mm±1ppm , V: 5 mm±1ppm | |
RTK | H: 8 mm±1ppm, V:15 mm±1ppm | ||
DGNSS | <0.5m | ||
ATLAS | 8cm | ||
System | Initialization Time | 8s | |
Initialization Reliable | 99.90% | ||
Operating System | Linux | ||
Merrory | 8GB, support expanable MisroSD | ||
Wifi | 802.11 b/g/n | ||
V2.1+EDR/V4.1Dual,Class2 | |||
E-Bubble | support | ||
Tilt Survey | IMU Tilt Survey 60°,Fusion Positioning/400Hz refresh rate | ||
Datalink | Audio | support TTS audio broadcast | |
UHF | Tx/Rx Internal Radio, 1W/2W adjustable, radio support 410-470Mhz | ||
Protocol | support GeoTalk,SATEL,PCC-GMSK,TrimTalk,TrimMark,SOUTH,hi target | ||
Network | 4G-LTE, TE-SCDMA, CDMA(EVDO 2000), WCDMA, GSM(GPRS) | ||
Physical | Interface | 1*TNC Radio Antenna, 1*5Pin(Power & RS232),1*7Pin (USB 81 RS232) | |
Button | 1 Power Button | ||
Indication Light | 4 Indication Lights | ||
Size | Φ156mm * H 76mm | ||
Weight | 1.2kg | ||
Power supply | Battery capacity | 7.2V, 24.5Wh(standard two batteries) | |
battery Life Timer | Static Survey: 15 hours, Rover RTK survey: 12h | ||
External power source | DC 9-18V, with overvoltage protection | ||
Environment | Work Temporature | -35℃ ~ +65℃ | |
Storage Temporature | -55℃ ~ +80℃ | ||
waterproof&dustproof | IP68 | ||
Humidity | 100% anti-condensatio | ||

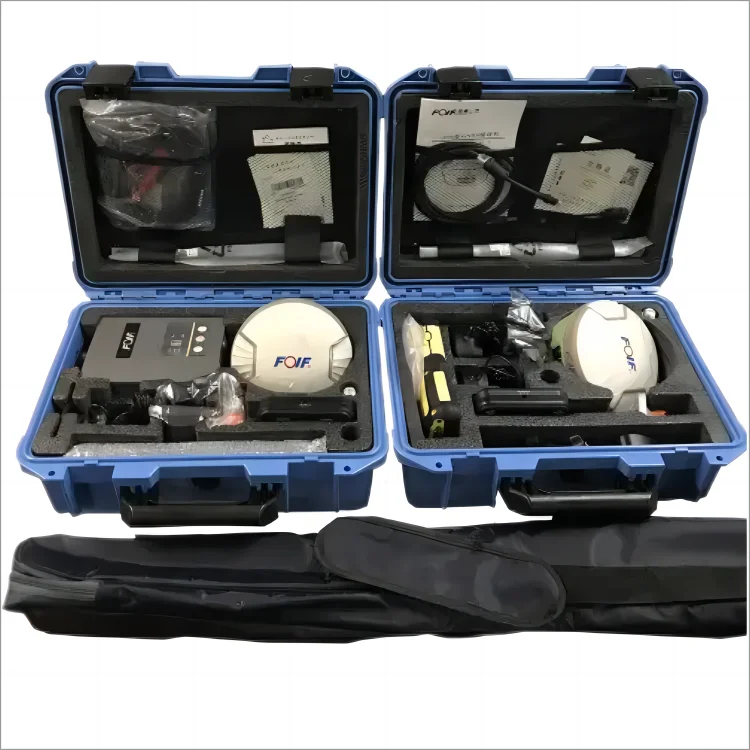

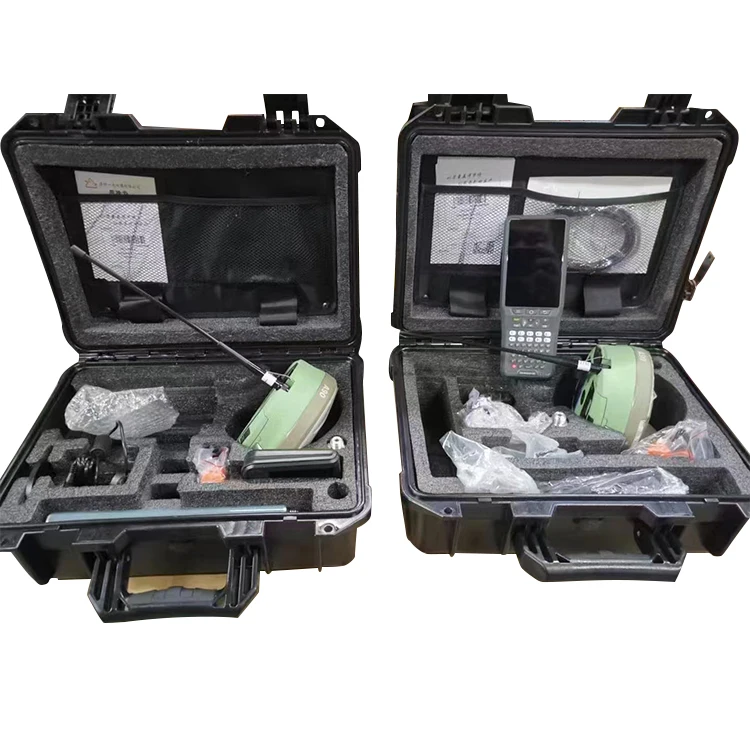

Packages
