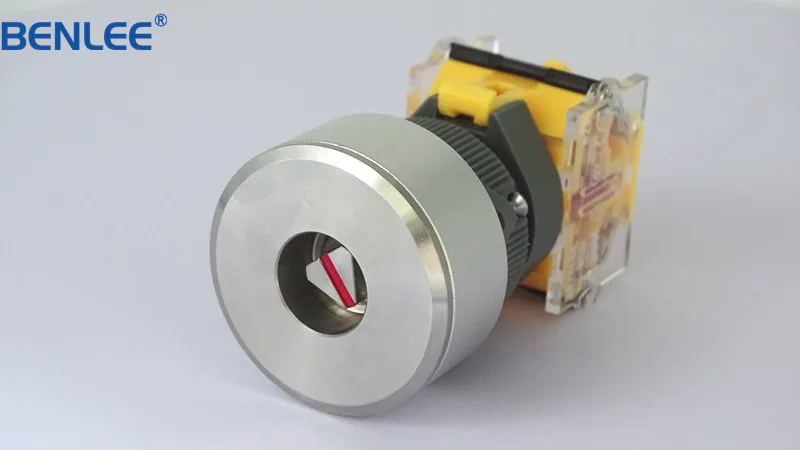

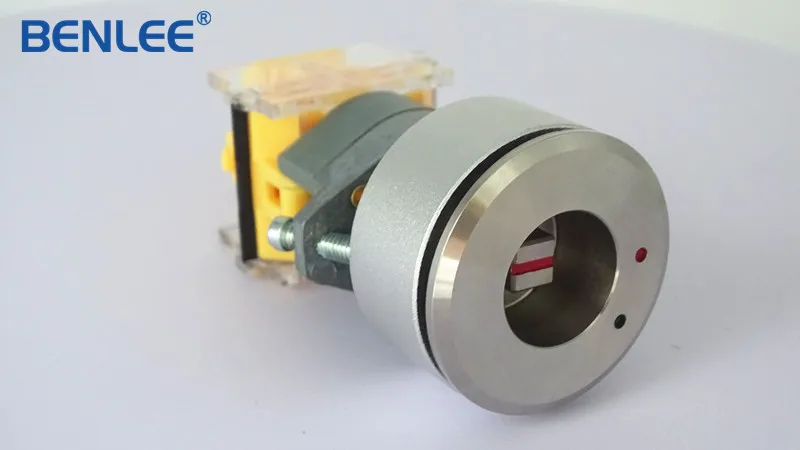

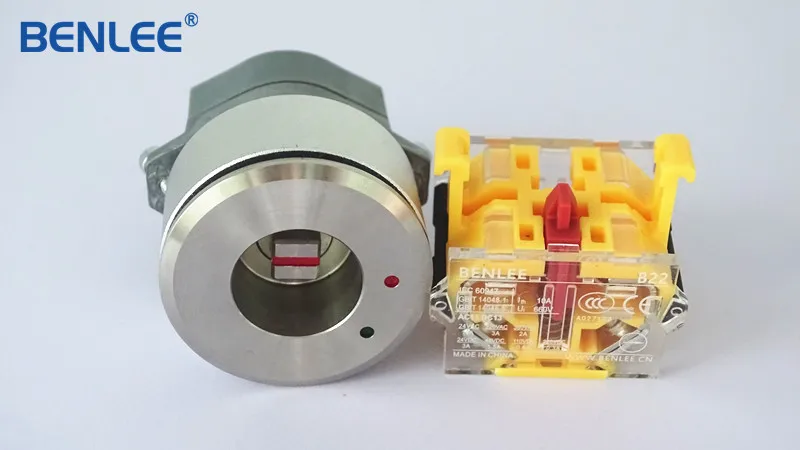

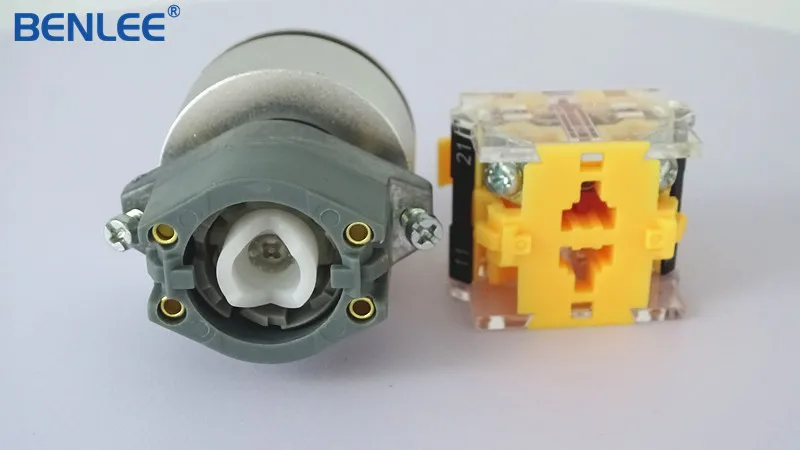

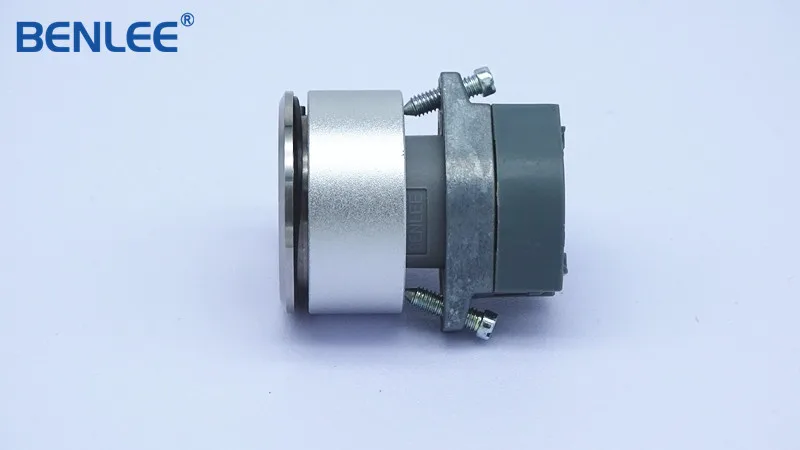

BENLEE 22mm white two position four corner selflocking button is embedded in the operation of the front ring elevator key switch
- Category: >>>
- Supplier: Guangzhou Benlee Industrial Switch Manufacture Co. Ltd
Share on (1600891219983):
Product Overview
Description
Product Paramenters
Head protection level | IP 65 |
Terminal screw tightening torque | ≤0.8N. m |
Flat button operating force | Operating force 7～15 N |
Operating torque | 0.2N. m |
Comparative tracking index | CTI≥ 200 V |
Electrical clearance | Snap-action contact module> 1. 62 mm |
Creepage distance | 9.2mm |
Impact resistance | 30G, impact time 11 ms, sine wave |
Vibration resistance | 10G, frequency 10 ~ 2000 Hz, amplitude 0.75 mm |
Maximum operating frequency | 2400 times/hour |
Mechanical life | Self-locking key button ≥ 25,000 times |
Wiring specifications | Plug-in terminal size: 6.3*0.8mm Hard wire maximum cross-sectional area: 2*2.5mm ² Flexible wire maximum cross-sectional area: 2*1.5mm² |
Contact material | Ag Ni 10 |
Contact resistance | ≤50mΩ |
Rated insulation resistance | ≥100MΩ |
Rated insulation voltage Ui | AC660V |
Power frequency withstand voltage | AC1890V 1min |
Conventional free air heating currentIth | 10A |
Rated shortest time withstand currentIcw | 1000A |
Product Description
Company Profile
Guangzhou Benlee Industrial Switch Manufacture Co., Ltd.
Guangzhou Benlee Industrial Switch Manufacture Co., Ltd was established in 2003,
Our company specialized in producing low-voltage electrial appliances for more than 20 years working experiences, such as indicator lamp,push button, unversial button ,metal buttons and so on .
At present,our enterprise managements are according to the standard of ISO9001:2000 quality system and the product has get ROHS,CE and CCC certifications.
Our target is to build up a double-win cooperation relationship with all of our foreign customers to provide a relaible and best quality industrial switches to protect human and machine safety.
We have cooperated with a lot of well known enterprises such as : SIEMENS , HITACHI , GUANGZHOU METRO ,CRRC and so on .
We welcome you any time to contac with us !!
Guangzhou Benlee Industrial Switch Manufacture Co., Ltd was established in 2003,
Our company specialized in producing low-voltage electrial appliances for more than 20 years working experiences, such as indicator lamp,push button, unversial button ,metal buttons and so on .
At present,our enterprise managements are according to the standard of ISO9001:2000 quality system and the product has get ROHS,CE and CCC certifications.
Our target is to build up a double-win cooperation relationship with all of our foreign customers to provide a relaible and best quality industrial switches to protect human and machine safety.
We have cooperated with a lot of well known enterprises such as : SIEMENS , HITACHI , GUANGZHOU METRO ,CRRC and so on .
We welcome you any time to contac with us !!

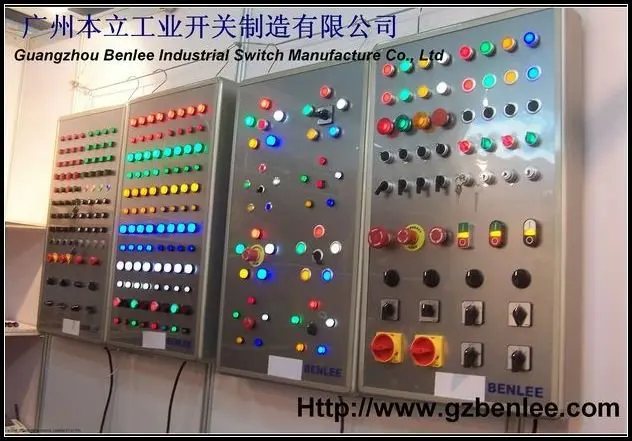

Exhibition
Parts of our Customers
Our Certifications
Packing & Delivery
FAQ
1. How to ship my order? Is it safe? A: For small packages, we will send them by Express, such as DHL, FedEx, UPS, TNT. That’s a Door to Door service. For big packages, we will send them by Air or by Sea. We will use good packaging and
ensure the safety.Wewill be responsible to any product damage caused on delivery.
2. Can you provide samples? Are the samples free? A: Yes, we can provide samples. We will collect samples fee (1 pcs) and you haveto pay for the shipping cost. When you place an official order, we will refund the sample fee to you.
3.: What kind of payment do you accept? Can I pay via RMB?
A: We accept T/T (Wire transfer), Western Union, PayPal and credit card ,RMB also.
4.: What about your delivery time?
A: We have alot of products in stock. We can send the inventory products in 3 working days. If we don't have them in stock, or our stock is not enough, we will check the delivery time for you.
5.: Do you have a catalog? Can you send me the catalog to check all your products?
A: Yes, we have a product catalog. Please contact us online or send an email so that we can offer you the catalog.
6.: Do you have a guarantee for your products' quality?
A: We have a guarantee for one year.
Any requirements or questions, please send us an email now!
It'll be our great honor to service you! We will reply you ASAP. If no response within 24 hours, please kindly
check the spam in your mail box. Thank you for your trust and support!
