Factory Custom ibp disposable pressure transducer Single Channel Utah IBP Transducer Disposable IBP Pressure Transducer
- Category: >>>
- Supplier: Shenzhen City Teveik Technology Co. Ltd.
Share on (1600891375422):
Product Overview
Description

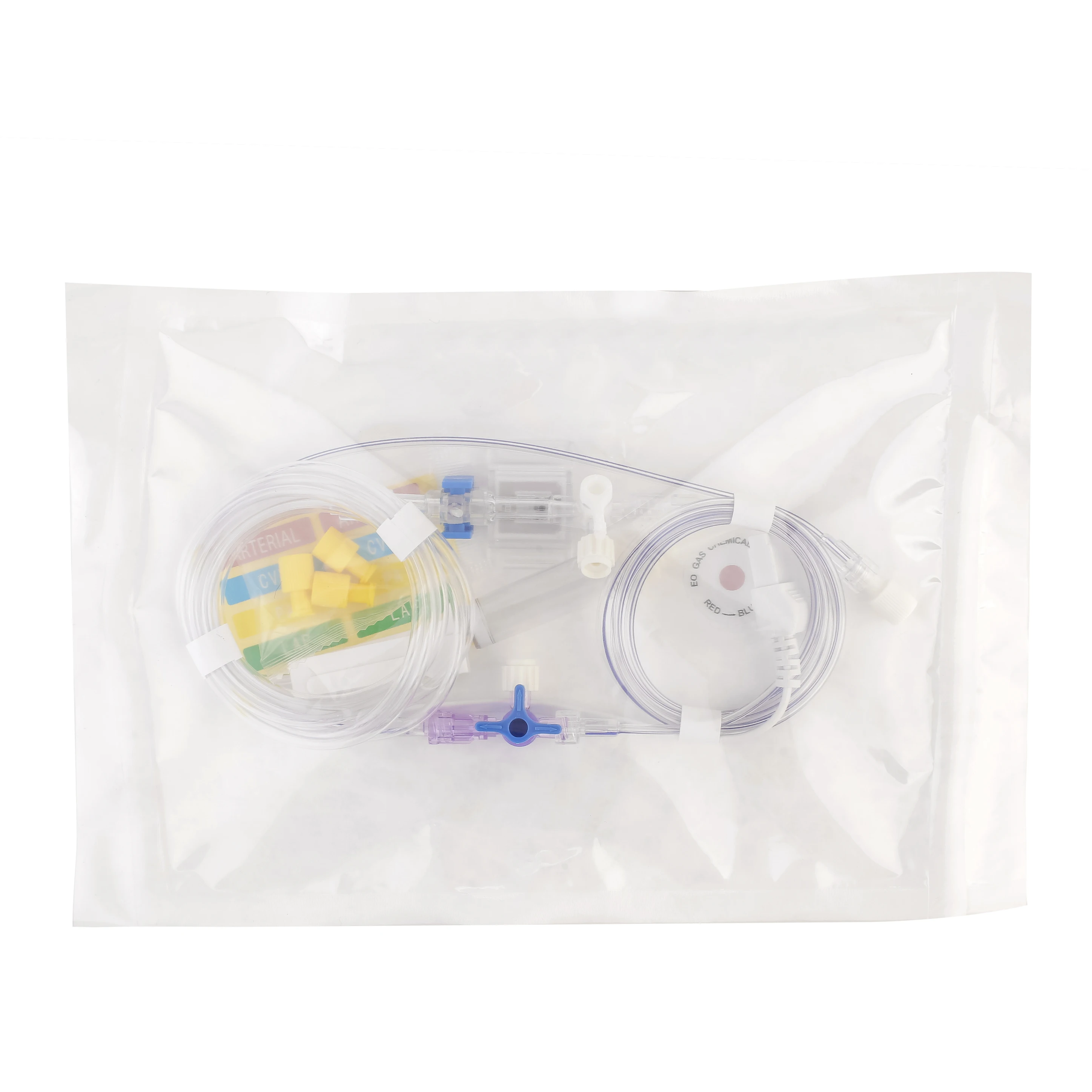

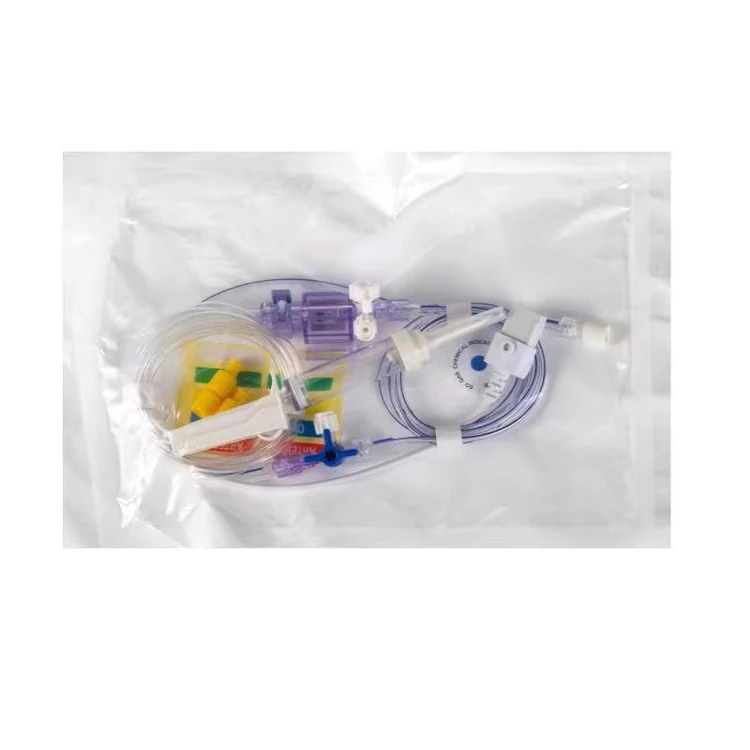

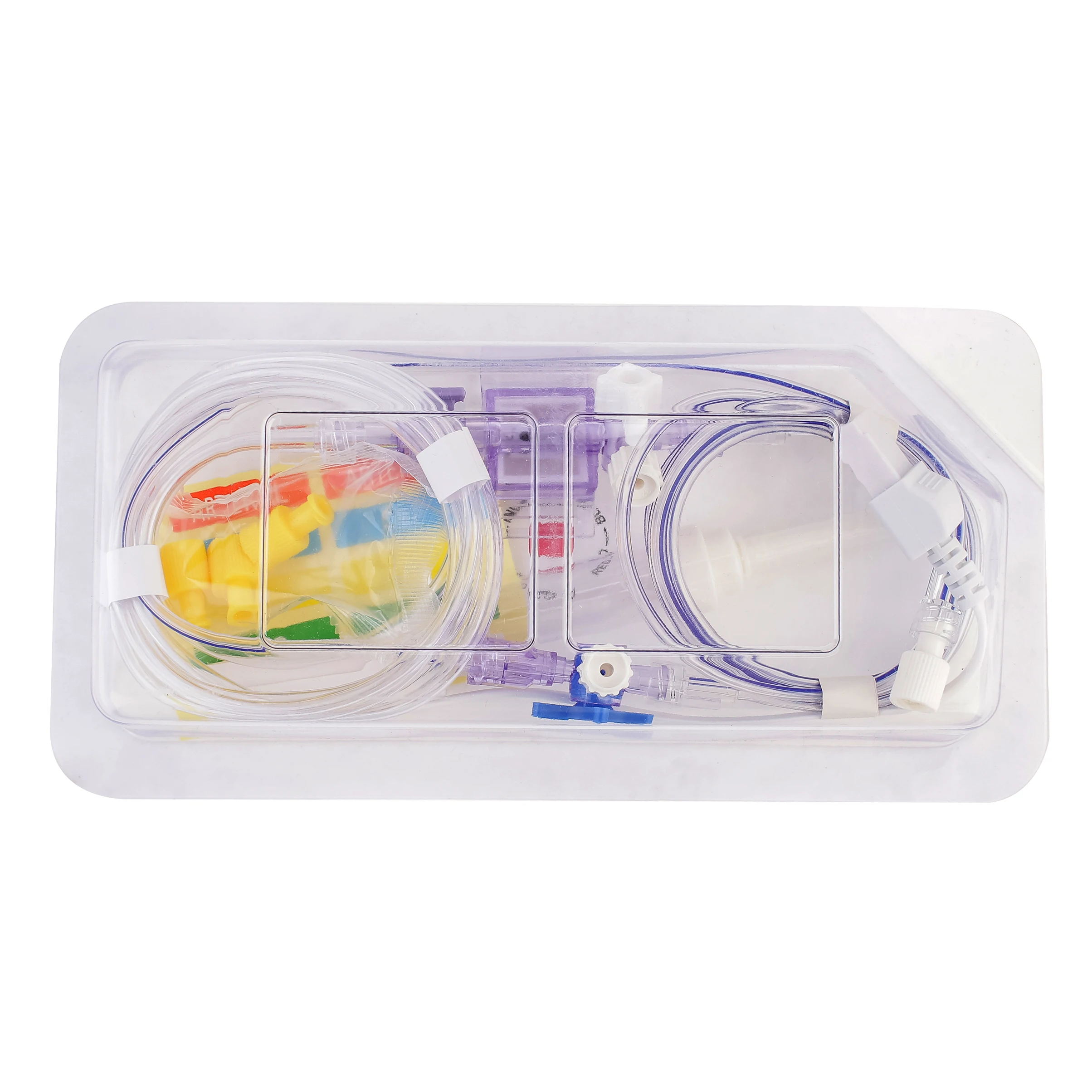

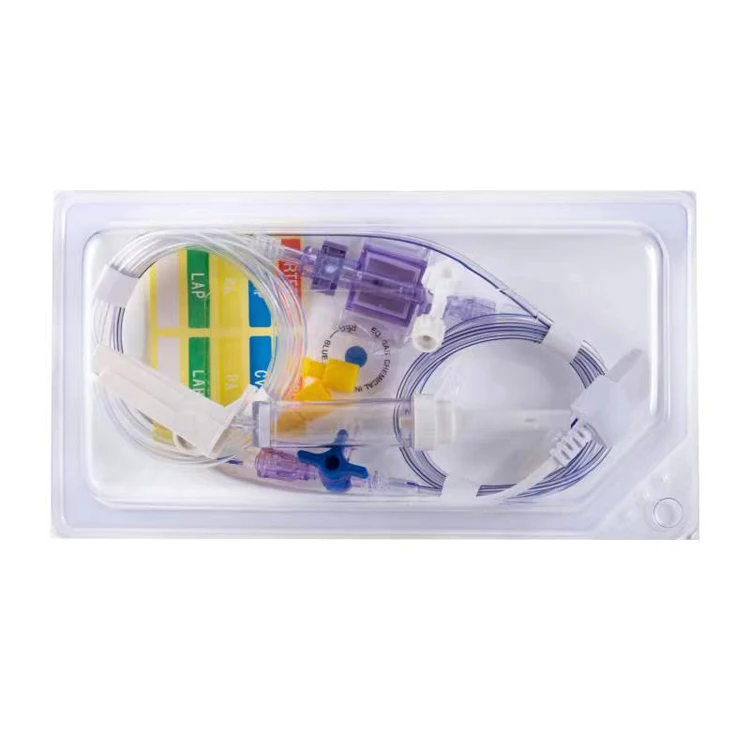

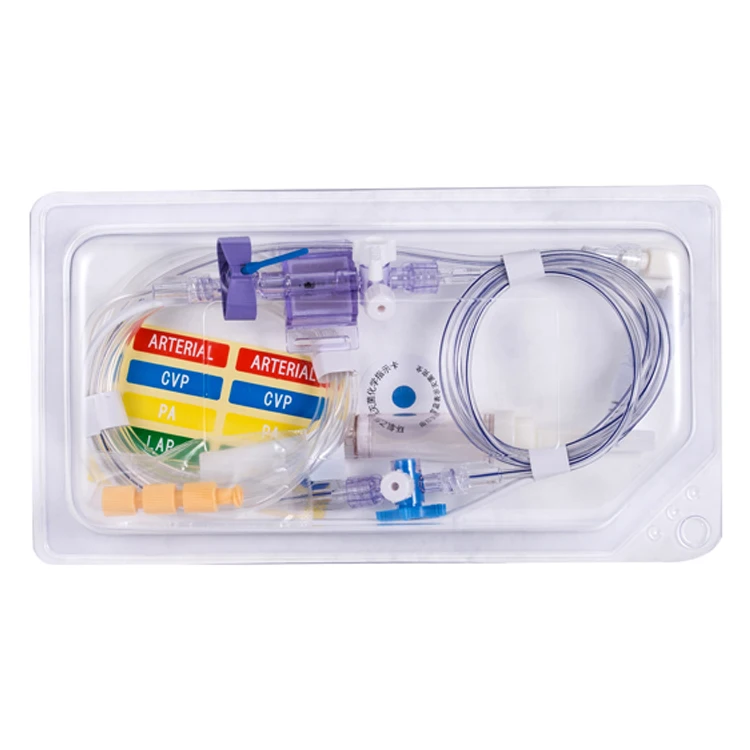

Single Channel Utah IBP Transducer Disposable IBP Pressure Transducer
Main technical parameters and working environment requirements:
| Product Name | Disposable IBP Transducer for Utah / Utah Blood Pressure Transducer |
| Barometric pressure | 70~106Kpa |
| Relative humidity | 10~90% (non-condensing) |
| Operating pressure range | -50 ~ + 300 mmHg |
| Sensitivity | 5.0μV/V/mmHg ±3% |
| Nonlinearity and hysteresis | full-scale reading±1.5% |
| Input impedance | 1200Ω ~3200Ω |
| Output impedance | 300±5% |
| Zero pressure offset | -20mmHg~+20mmHg |
| Thermal offset shift | ≤±0.3mmHg/°C |
| Offset drift | After warm-up for 20 seconds, drift within 2 mmHg within 8 hours |
| Thermal span shift | ≤±0.1%/°C |
| Frequency response | Standard pressure set (48 "/ 12") is 40 Hz; Separate sensor > 200 Hz |
| Defibrillator withstand | Defibrillation depends on the final connection of the equipment |
| Leakage current | Leakage current is dependent on the final connection of the equipment |
| Overpressure load | -400~+4000mmHg |
| Shock resistance | Shock resistance With stand falling from one meter for three times |
| Light sensitivity | When exposed to a 3400°K tungsten light, candle light at 3000 feet, it's less than 1 mmHg under rated voltage |
| Contact with the human body | ≤168h |
| Storage and transport environment requirements | - 20 ° C~ + 60 ° C, <90%(non-condensing), no corrosive gas and indoor ventilation, and to avoid high temperature and cold. |
Intra-system velocity Flow 2-5mL/h Intra-system velocity refers to the velocity under 6.00 VDC and 25°C, unless there are additional instructions | |
| Product shelf-life | 3 years |
After sales service
2. all Models available in TEVEIK
TEVEIK Company Vedio

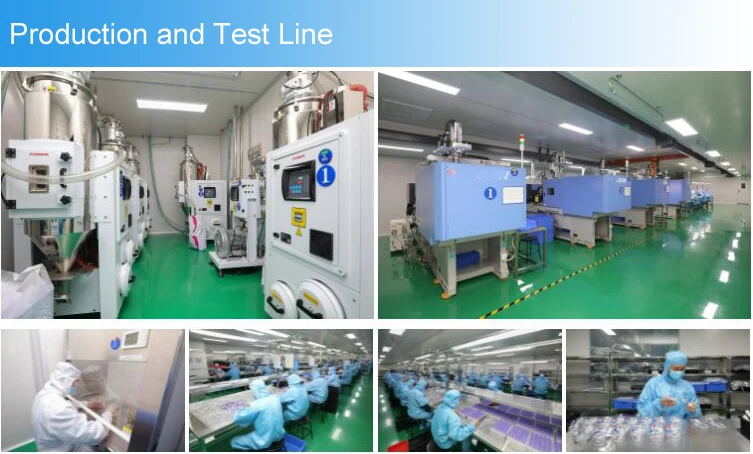

TEVEIK,a professional manufacturer of Medical accessories, which has complete
systems of Production, R&D and Sales with 11 years development. More than 100 skilled and experienced employees are innovative and fulfill our responsibility to supply better products and services.
We have a variety of high-quality:
We have a variety of high-quality:
1. Patient Monitor accessories:
1) SpO2 sensor (Reusable/disposable) 2) ECG Cable
1) SpO2 sensor (Reusable/disposable) 2) ECG Cable
3) ECG /EKG Electrodes and cables 4) IBP Transducer and cables
5) CTG Fetal Belt for Pregnants 6) NIBP Cuff
7) Pulse Oximeter
2. Ultrasound Scanners
1) Ultrasound transducer probe 2) wireless ultrasound Doppler scanners
3) Repair Ultrasound transducer 4) Biopsy Needle guide
3. EEG serials
1) EEG cap 2) neuro EEG electrodes cables
4. Other First Aids accessories
1) medical Bandge 2.) medical tourniquets
All those products with ISO13485 2003 quality management and CE CFDA certificates.
Welcome to your enquiry and visit!
Welcome to your enquiry and visit!
