RC08 Thumb wheel Potentiometer B103 Carbon Film Soundwell Potentiometer

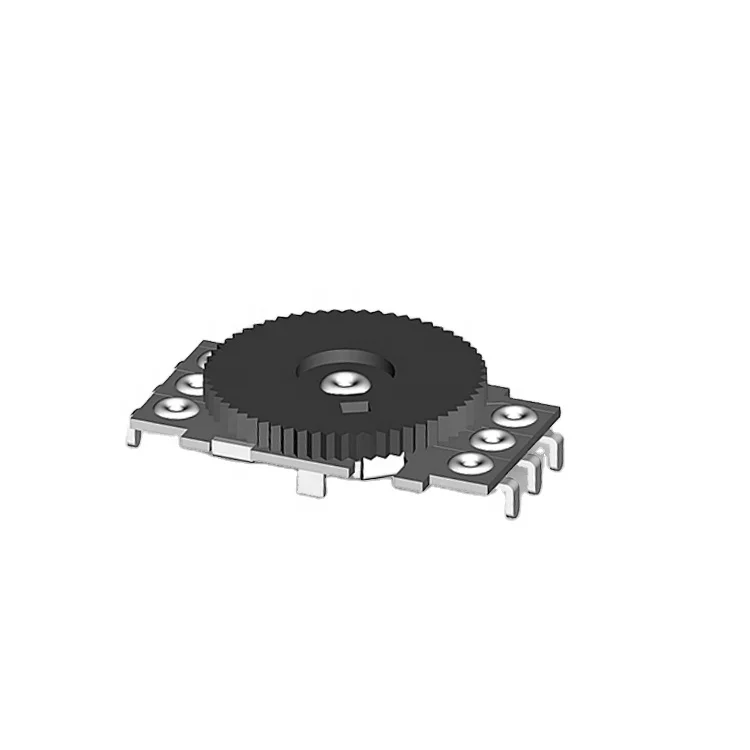

RC08 Thumb-wheel Potentiometer B103 Carbon Film Soundwell Potentiometer

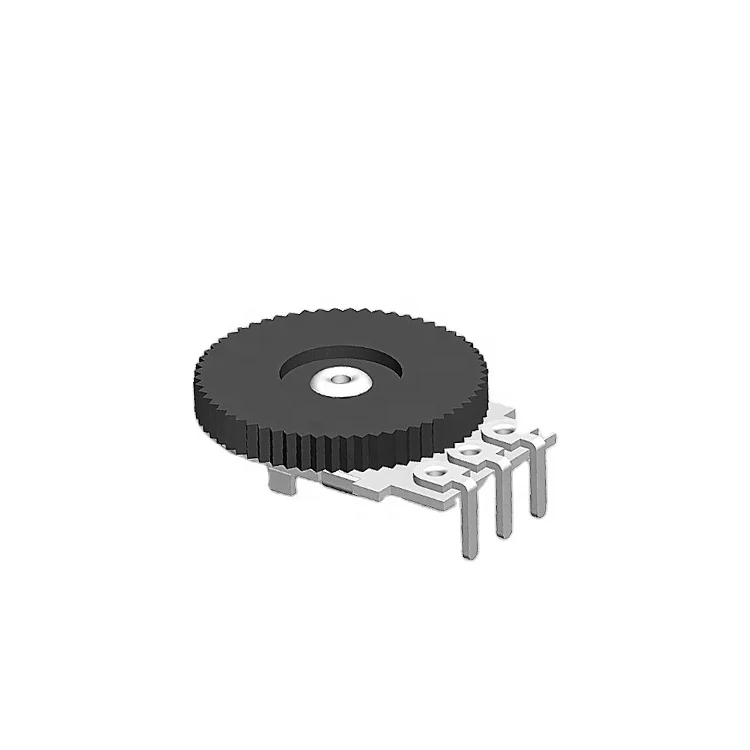

RC08 Thumb-wheel Potentiometer B103 Carbon Film Soundwell Potentiometer
RC08 Thumb-wheel Potentiometer B103 Carbon Film Soundwell Potentiometer

RC08 Thumb wheel Potentiometer B103 Carbon Film Soundwell Potentiometer

Share on (1600891400976):


Price:

Quantity:


Product Overview

Description



Potentiometer Knobs Model
RC08 series
Total rotational angle
120°±10°/270°±10°
Rotational torque
10~70gf.cm
Working temperature
-20℃ ～70℃
Resistance Taper
A/B/C
Rotational life
10,000 cycles Min



RC08 Potentiometer Knobs Main Specifications



Total rotational angle
120°±10°/270°±10°
Rated power
0.02W
Maximum operating voltage
DC 12V
Operating temperature
-20℃ ～70℃
Rotational life
10,000 cycles Min
Applications
Radios, headphones and other related electronic devices.
Product features
Thumb wheel potentiometer with small size;
Available in many different options.
Functions
Mainly used to adjust the volume.



RC08 Potentiometer Knobs Specifications



One、MECHANICAL CHARACTERISTIC

1、Rotational Torque: 10~70gf.cm
2、Total Rotational Angle: 270°±10°/120°±10°
3、Shaft Stop Strength: ≥0.8Kgf.cm

Two、ELECTRICAL CHARACTERISTIC
1、Total Resistance Range: 1KΩ＜R＜1MΩ，±20%；1KΩ≥R or R≥1MΩ，±30%
2、Resistance Taper: A/B/C
3、Rated Power: 0.02W
4、Maximum operating voltage: 50V AC/20V DC
5、Residual Resistance: R1,2≤10Ω; R2,3≤20Ω
6、Insulation Resistance: 100MΩ 1 Minute at DC 100V
7、Dielectric Voltage: 1 Minute at AC 250V


Three、ENDURANCE CHARACTERISTIC

1、Rotational life: 10,000 cycles Min

Note: In this catalog, if some parameters or drawings are different from the "Approval sheet", it's subject to the "Approval sheet".
