WINTAI DC Power Plug

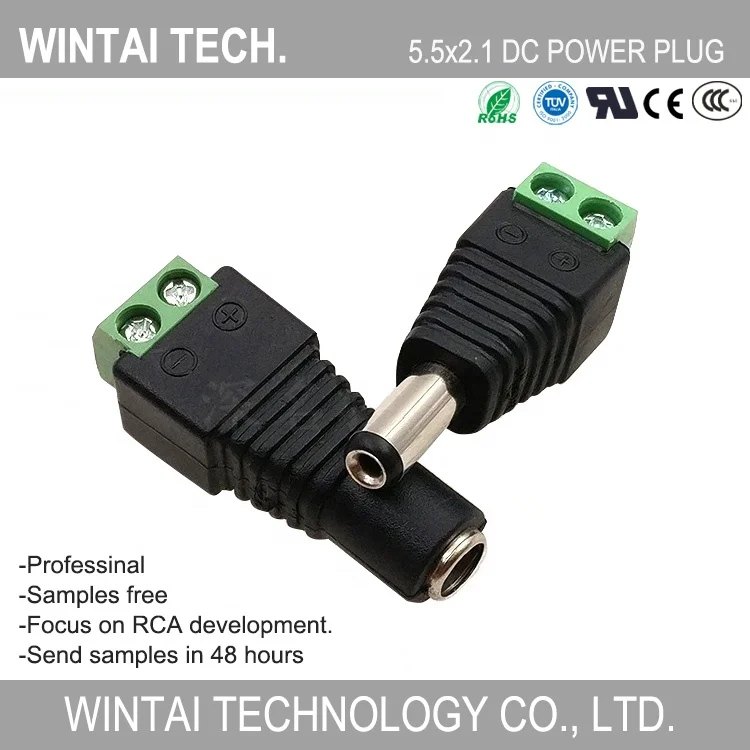

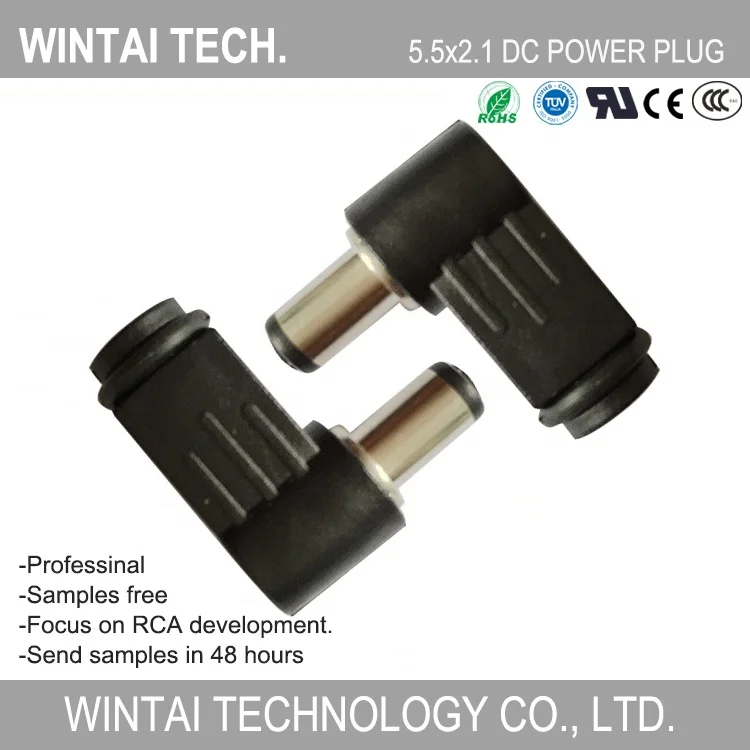

The DC power connector is designed to provide DC current to devices from the main power supply, and is commonly used to provide power for small and medium-sized appliances. DC plugs and sockets are mainly standard tools for small electrical appliances, such as laptops, electronic instruments, and audio devices. There are various types of DC plugs and sockets.According to structural characteristics, it can be roughly divided into conversion power plugs, injection molding power plugs, and assembly power plugs
Details Images
Performance Specification
In general, the center pin diameter range is from 0.5 to 5.5mm. We commonly use 0.65mm, 1.0mm, 1.3mm, 2.1mm and 2.5mm. And the DC plug out diameter is from 2.0mm to 7.9mm.
Normally, the current rating is 1.5A, 20 VDC. But some metal shell DC power connectors are rated up to 10A 30VDC, which is suitable for some special electrical equipments. Wentai Tech. DC jack has a wide range of products to suit different design needs.
Product Paramenters
Product Name | DC Power Jack |
Current Rating | 3A, 30VDC |
Withstand Voltag | 500 VAC |
Operating Force | 160gf, 250gf |
Operating Temperature | -25oC ～ +80oC |
Terminals | Brass |
Center pin | Copper |
Life Time | 10,000 Cycles |
Products Description
Product Structure Description

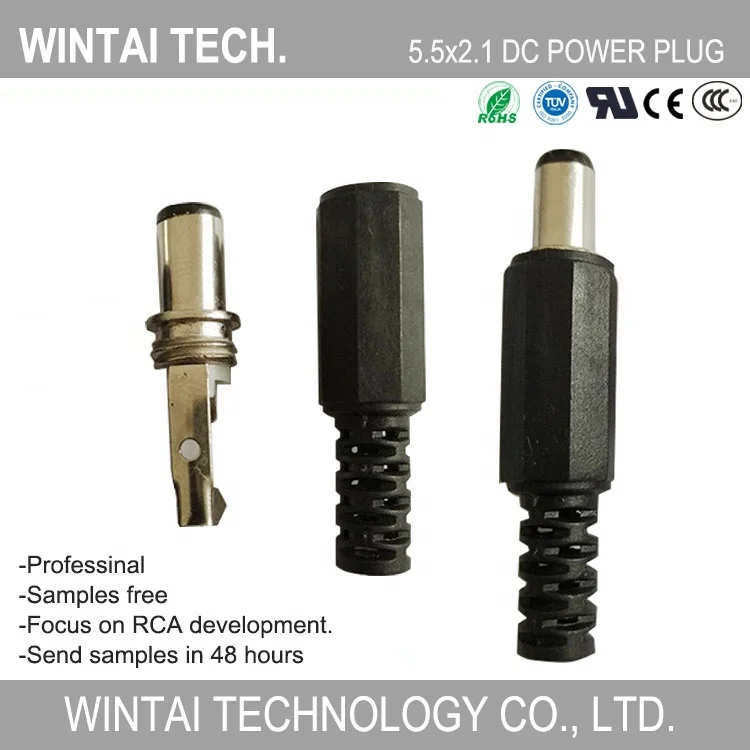

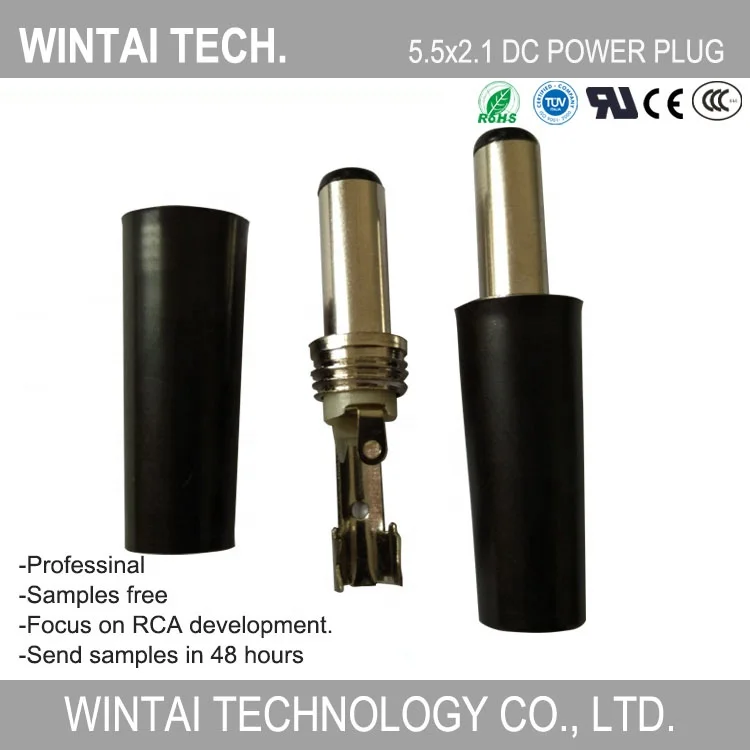

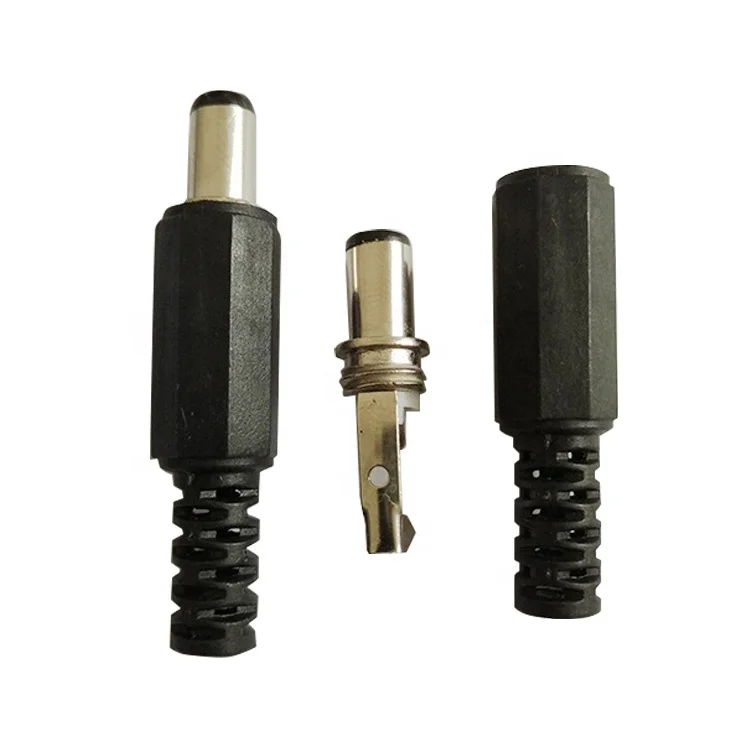

In general, the DC power female jack connector is composed of 6 parts, such as shunt terminal, tip spring, center pin terminal, center pin, cover, housing. as shown on the right. (1) Shunt terminal, is made of tin plated brass. (2) The cover, is made of nylon. (3) Tip spring, is made of phosphor brass. (4) Center pin terminal, is made of tin plated brass. (5) Housing, is made of PBT. (6) Center pin , is made of Ni plated coper alloy.
