Ready Stock Growatt Spf 6000es Plus 6000w Off Grid Inversor 6kw Single Phase Solar Hybrid Inverter 48v with Parallel Function
- Category: >>>
- Supplier: Xiamen Kseng New Energy Tech Co. Ltd.Xiamen Ltd.
Share on (1600891613706):
Product Overview
Description
Ready Stock Growatt Spf 6000es Plus 6000w Off Grid Inversor 6kw Single Phase Solar Hybrid Inverter 48v with Parallel Function
*After-sales stations are located in more than 20 countries around the world.
Products Description

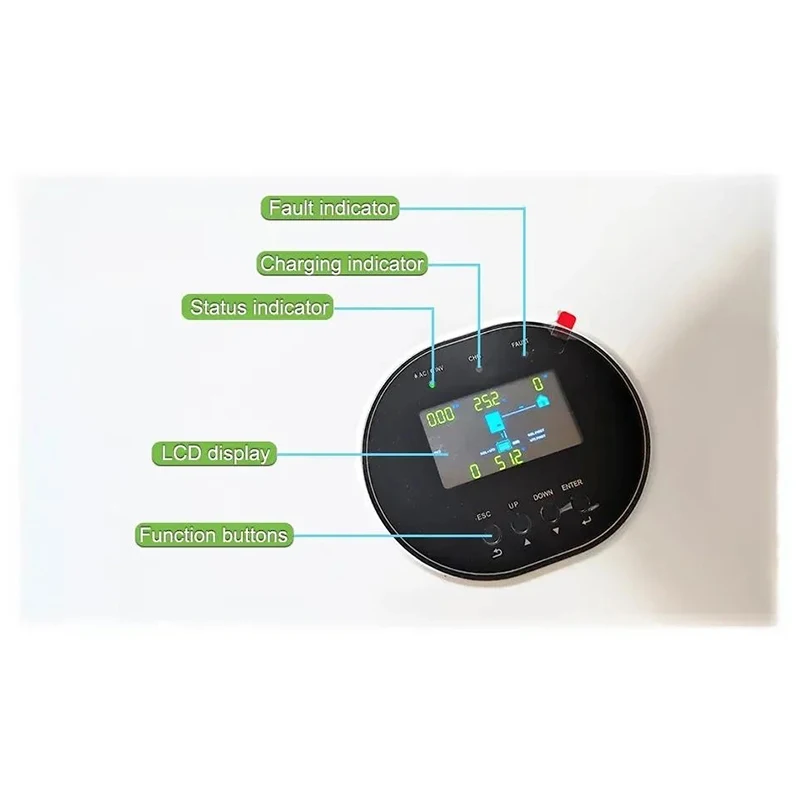

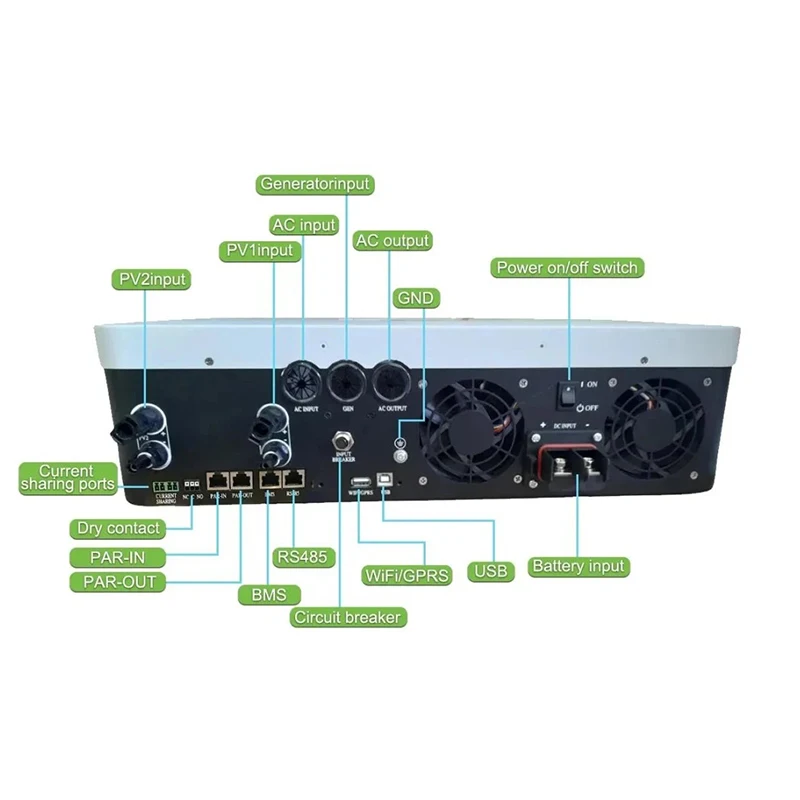

1.LCD display 3.Charging indicator 5.Function buttons 7. PV1input 9. Generatorinput 11.GND 13. Battery input 15. WiFi/GPRS communication port 17. RS485 communication port (for expansion) 19. Parallel communication ports (PAR-OUT) 21. Dry contact | 2.Status indicator 4.Fault indicator 6. PV2input 8. ACinput 10. AC output 12.Power on/off switch 14. USB communication port 16. Circuit breaker 18. BMS communication port(supportCAN/RS485 protocol) 20. Parallel communication ports ((PAR-IN) 22.Current sharing ports |
Datasheet | SPF 6000 ES Plus | |
Battery Voltage | 48VDC | |
Battery Type | Lithium/Lead-acid | |
Inverter Output | ||
Rated Power | 6000VA/6000W | |
Parallel Capability | Yes, 6 units maximum | |
AC Voltage Regulation (Battery Mode) | 230VAC ± 5% @ 50/60Hz | |
Surge Power | 12000VA | |
Efficiency (Peak) | 93% | |
Waveform | Pure sine wave | |
Transfer Time | 10ms typical，20ms Max | |
Solar Charger | ||
Maximum PV Array Power | 8000W | |
MPPT Range @ Operating Voltage | 120VDC ~ 450VDC | |
Number of Independent MPP Trackers/ Strings Per MPP Tracker | 2/1 | |
Max. input current per MPP tracker | 16A | |
Maximum PV Array Open Circuit Voltage | 500VDC | |
Maximum Solar Charge Current | 100A | |
AC Charger | ||
Charge Current | 80A | |
AC Input Voltage | 230VAC | |
Selectable Voltage Range | 170-280 VAC (For Personal Computers) ; 90-280 VAC (For Home Appliances) | |
Frequency Range | 50Hz/60Hz (Auto sensing) | |
Physical | ||
Protection Degree | IP20 | |
Dimension (W/H/D) | 460/395/132mm | |
Net Weight (kgs) | 13.5 | |
Operating Environment | ||
Humidity | 5% to 95% Relative Humidity(Non-condensing) | |
Altitude | <2000m | |
Operating Temperature | 0°C - 55°C | |
Storage Temperature | -15°C - 60°C | |

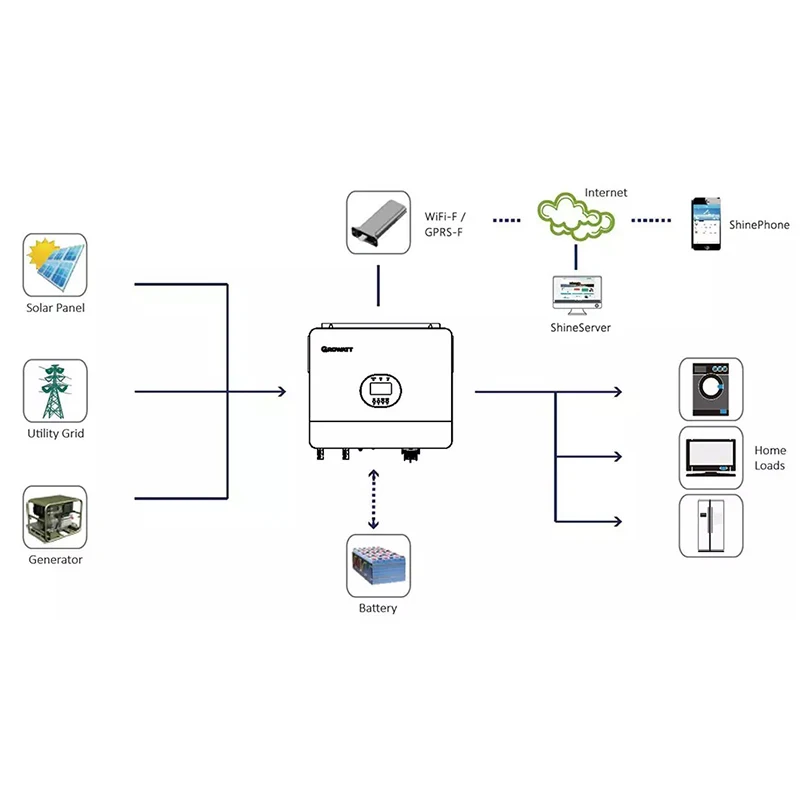

Product Application

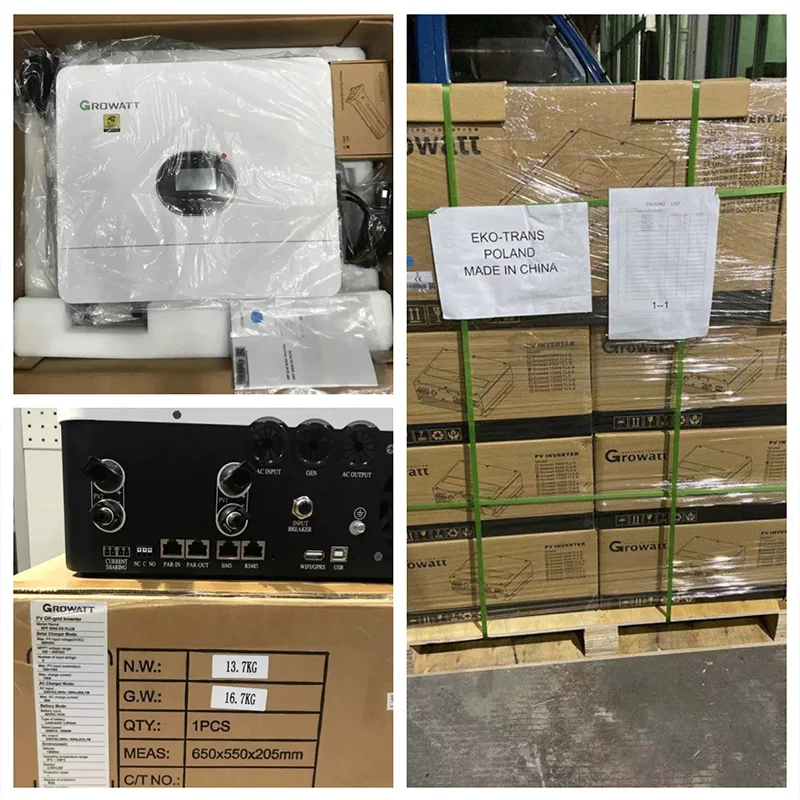

Product packaging
Production Process
Xiamen Kseng Metal Tech Co., Ltd is a national high-tech enterprise with independent intellectual property rights. Annual production capacity can reach 3GW. Headquartered in beautiful coastal city Xiamen, China, the company has branches and offices in Hong Kong S.A.R, Australia, Malaysia, Japan, South Korea, Vietnam and other countries and regions.With support of a professional team, the company provides its clients with safe, reliable,stable and efficient solutions for the solar photovoltaic power station. It focuses on core businesses like solar system,solar Inverter and cleaning equipment, PV mounting and related accessories, PV power plant construction business and so on.
