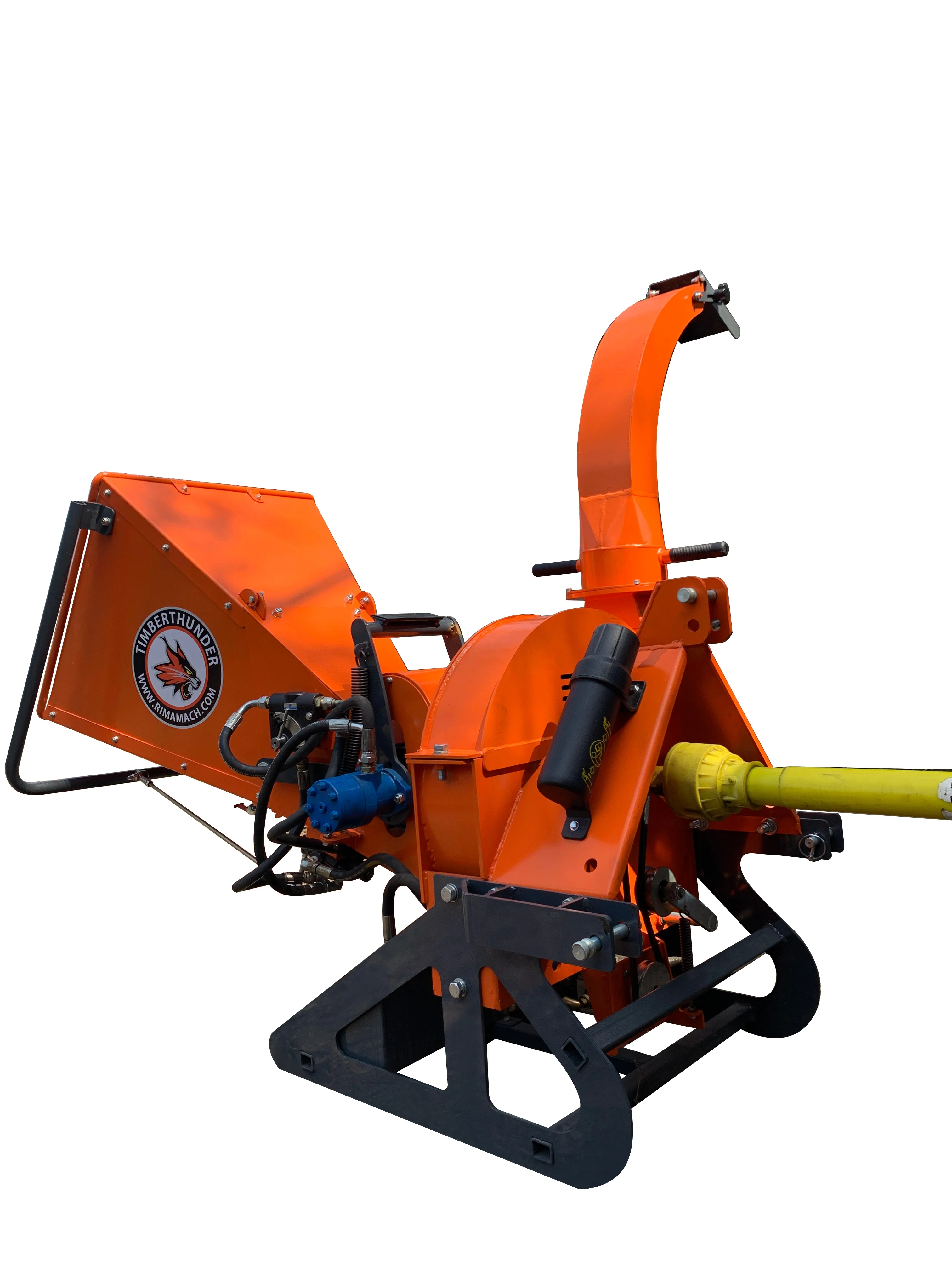

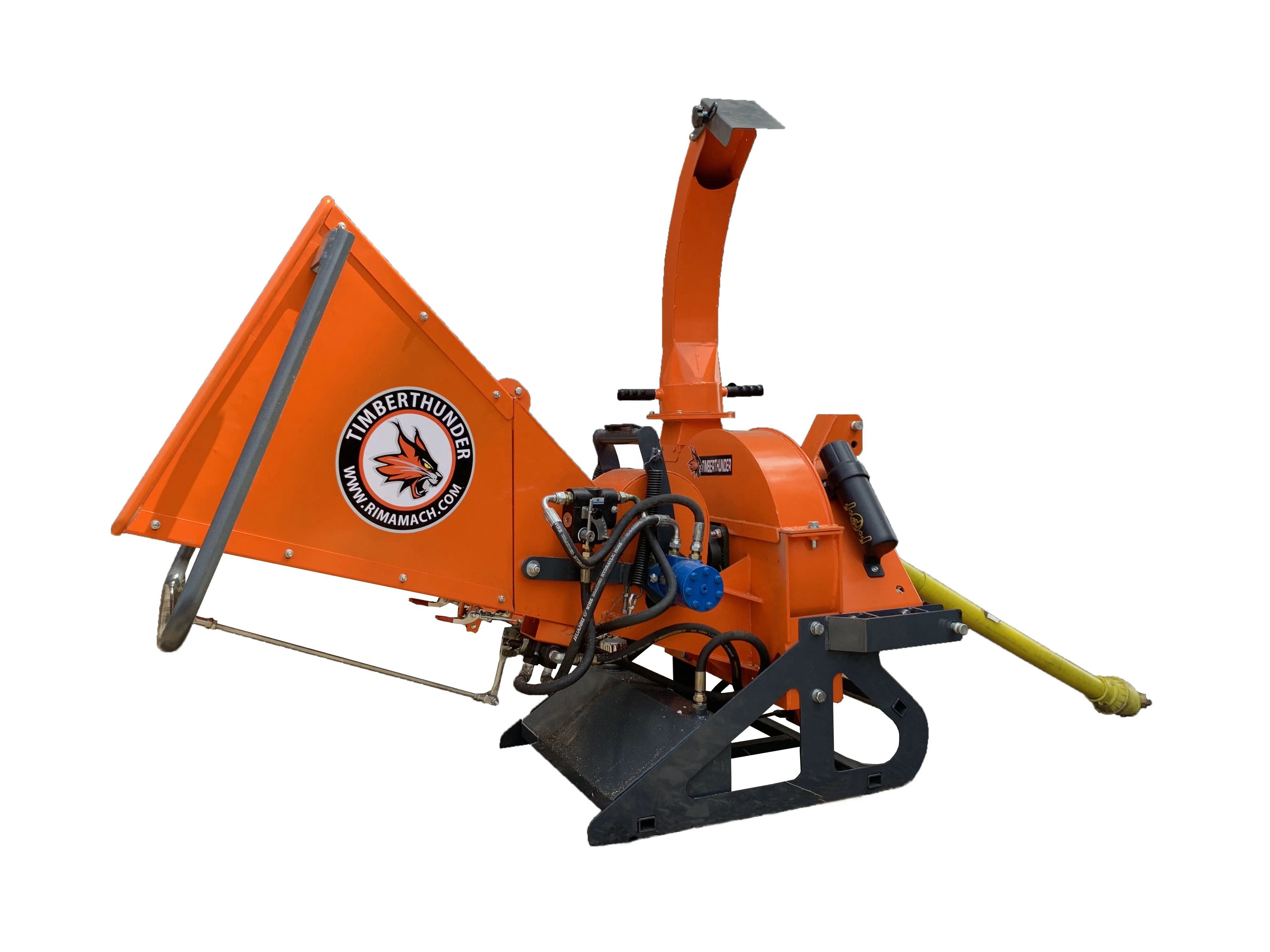

hydraulic pto wood crusher , cheap wood chipper shredder for branches
- Category: >>>
- Supplier: Yantai Wemax Machinery Co. Ltd.
Share on (1600891705924):
Product Overview
Description
Product Description
Specification
Model | WC68 |
Drive System | Tractor PTO |
Max. Chipping Diameter | 150mm/ 6'' |
Tractor Required (at the PTO) | 20-50HP |
Hydraulic Oil | 19 L / 5 gallons of ISO 32 or ISO 46 |
Hydraulic Pump | Belt driven |
Flywheel Diameter/Thickness | 24" x 3/4" thick (61cm x 2.0 cm thick) |
Flywheel Speed | 540 RPM |
Flywheel Drive System | Direct drive |
Flywheel Housing Design | Easy To open clamshell (for easy clean out and blade changes) |
Flywheel Housing Thickness | 5/16" (8mm) Thick |
Flywheel Shaft | 2" (50mm) Diameter |
Number of Blades | 4 Reversible blades |
In-feed System | Self-contained hydraulic system |
In-feed Drive | Forward/Neutral/Reverse with variable speed (0-75 ft-min) / (23 m/min) |
In-feed Roller Size | 8.25" (21cm) Chisel tooth |
In-feed Opening | 6" tall x 8" wide (15cm x 20cm) |
In-feed Roller Pressure | Adjustable via spring tension |
Quick Hitch Compatible | Yes |
Discharge Chute | 360 Degree swivel |
Packing size | 1120x870x1120mm |
Weight | 322/374 kg |
40” Container | 52pcs |

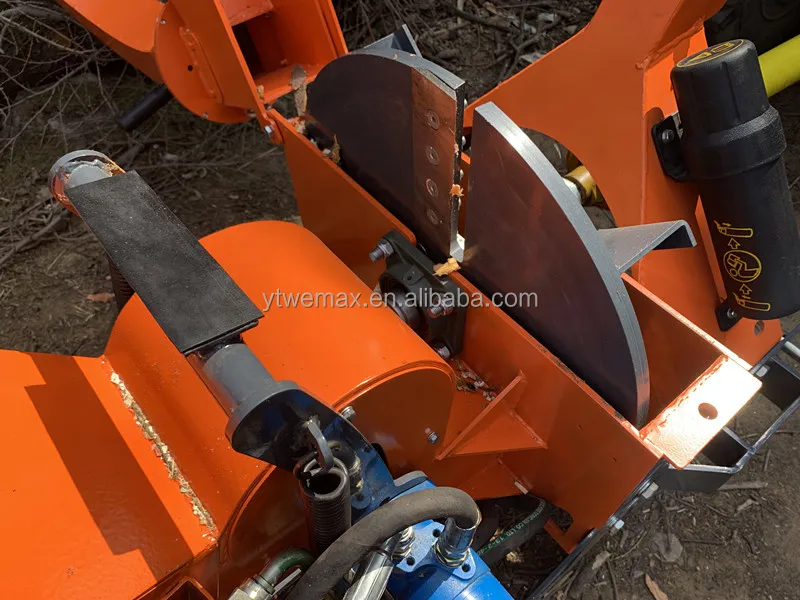

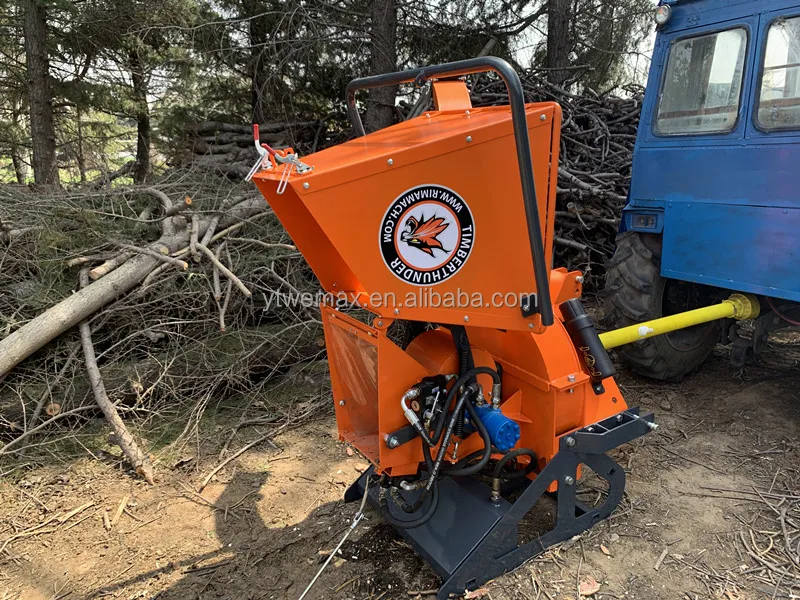

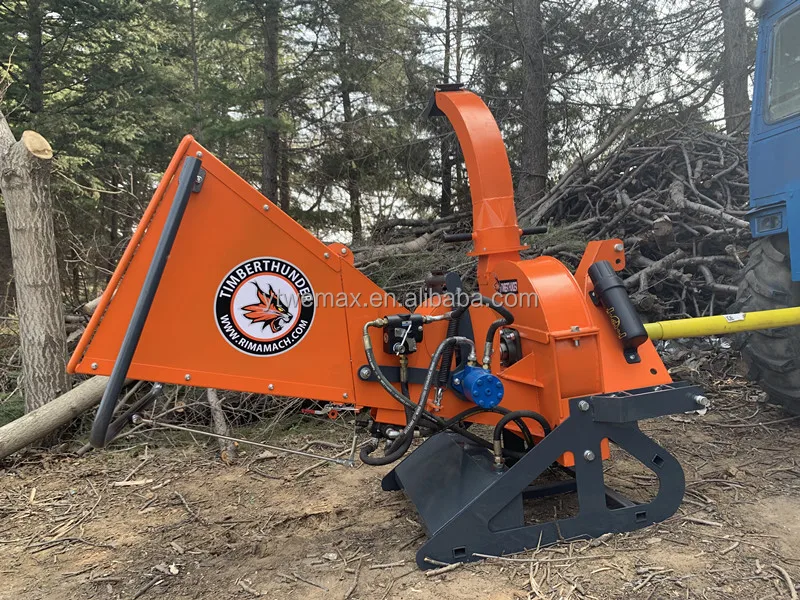

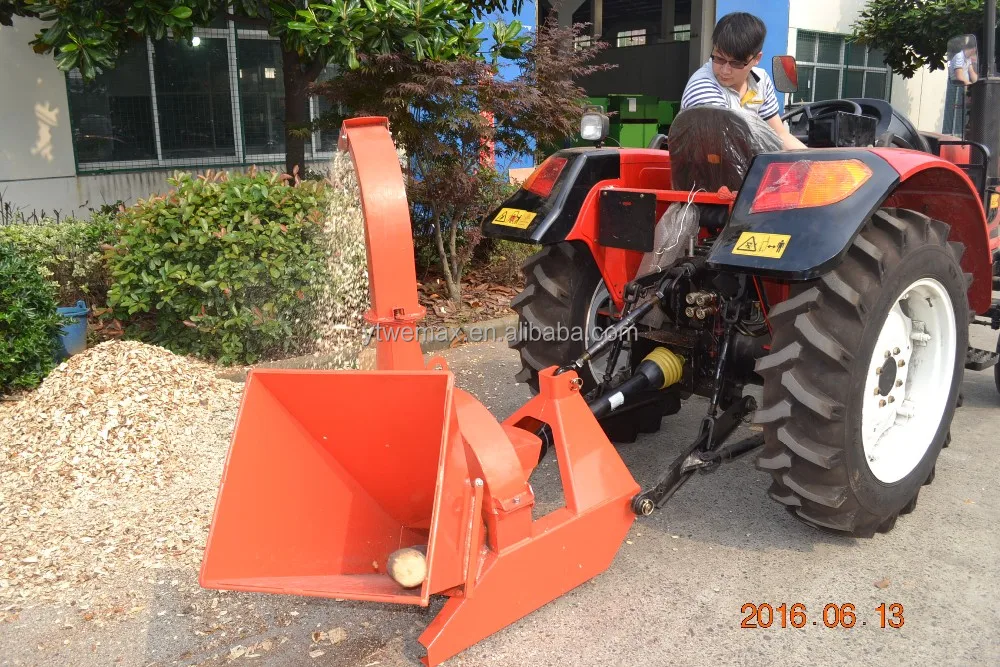

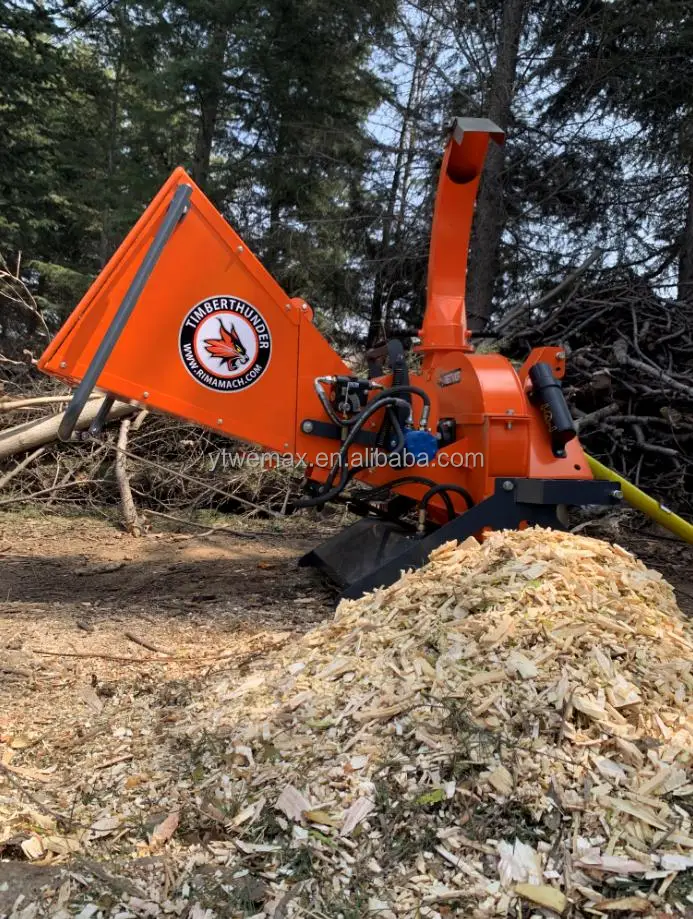

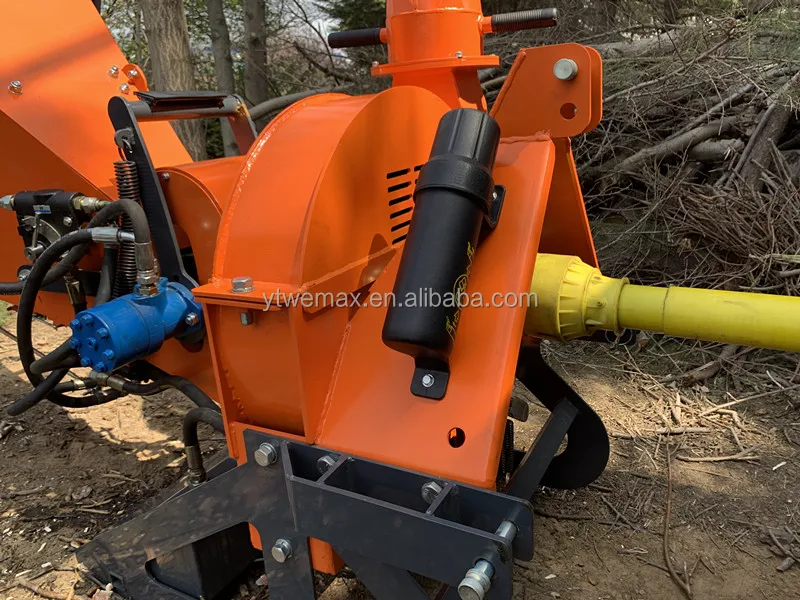

Details Images

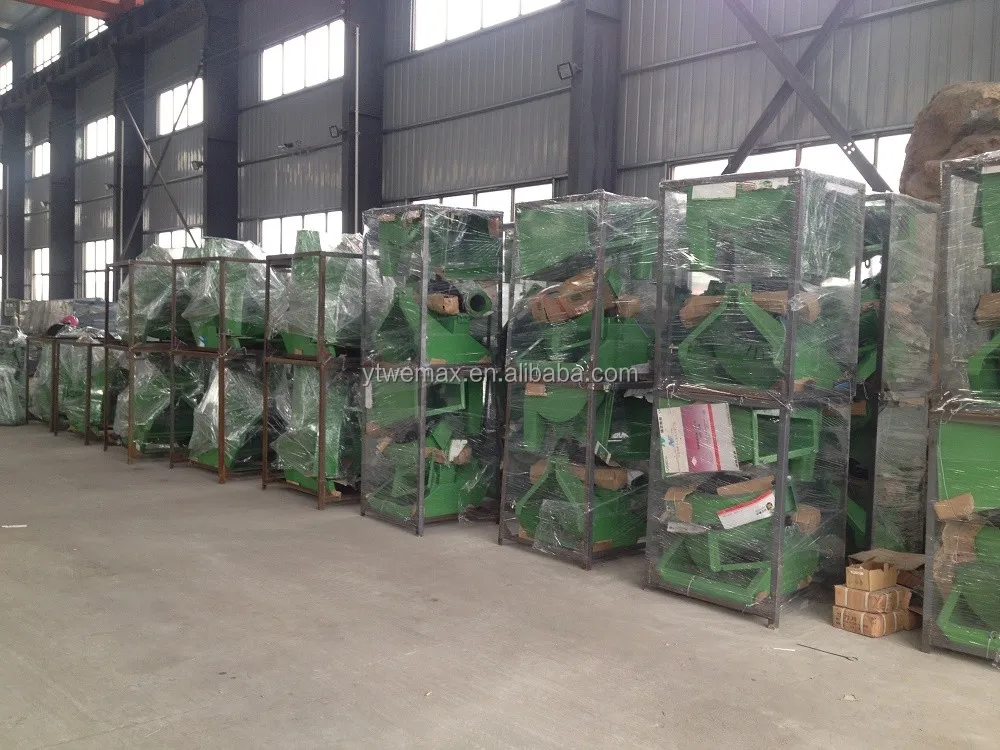

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

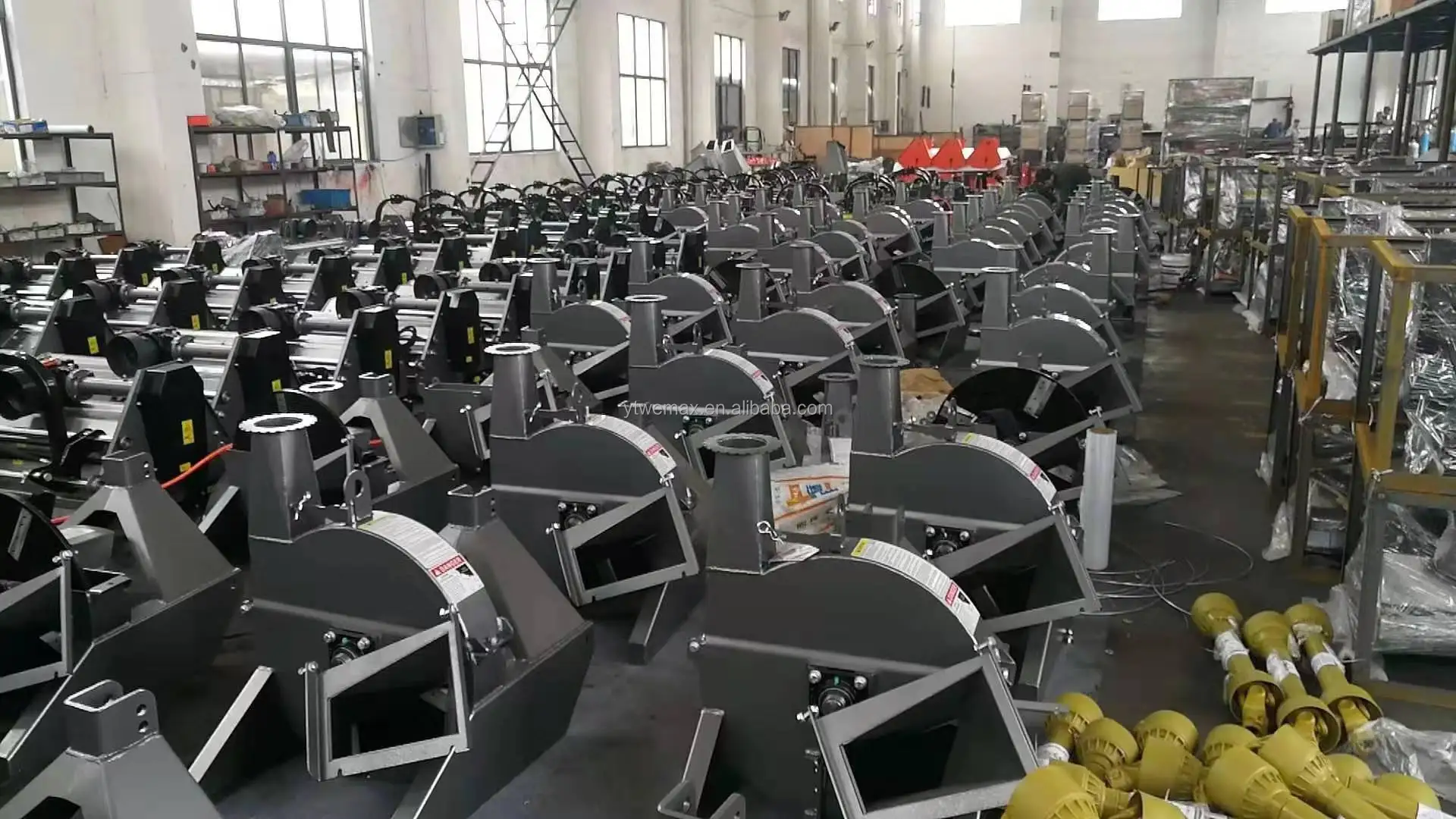

Company Profile

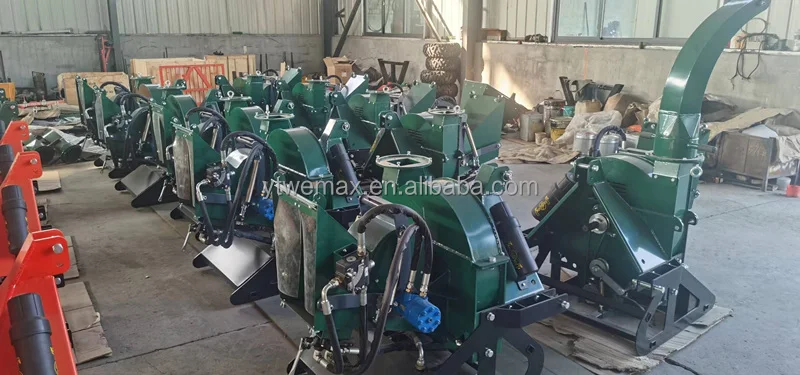

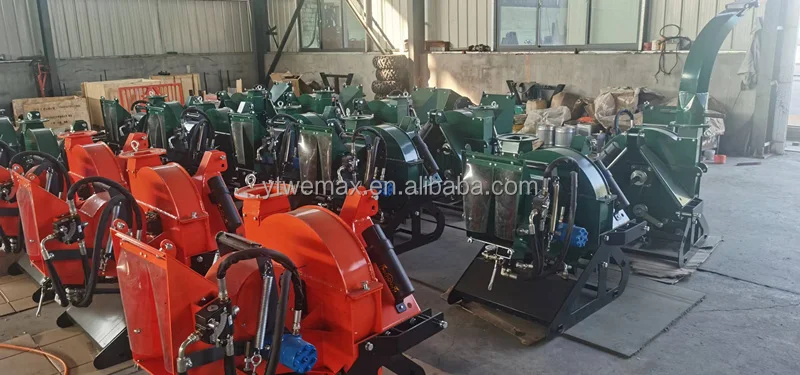

We have different models for small size , middle size and big size wood chipper ,suitable to fit your skid steer loader , tractor .
FAQ
1: What is your delivery ?
45~60 days
2: Could we customize the logo and color ?
Yes , MOQ 5 pcs
