High Quality Poultry Farms Ventilation Air Fans Cooling Chicken House Livestock Piggery Ventilation Fan
- Category: >>>
- Supplier: Qingzhou Boost Temperature Control Equipment Co. Ltd.
Share on (1600891713588):
Product Overview
Description
Products Description

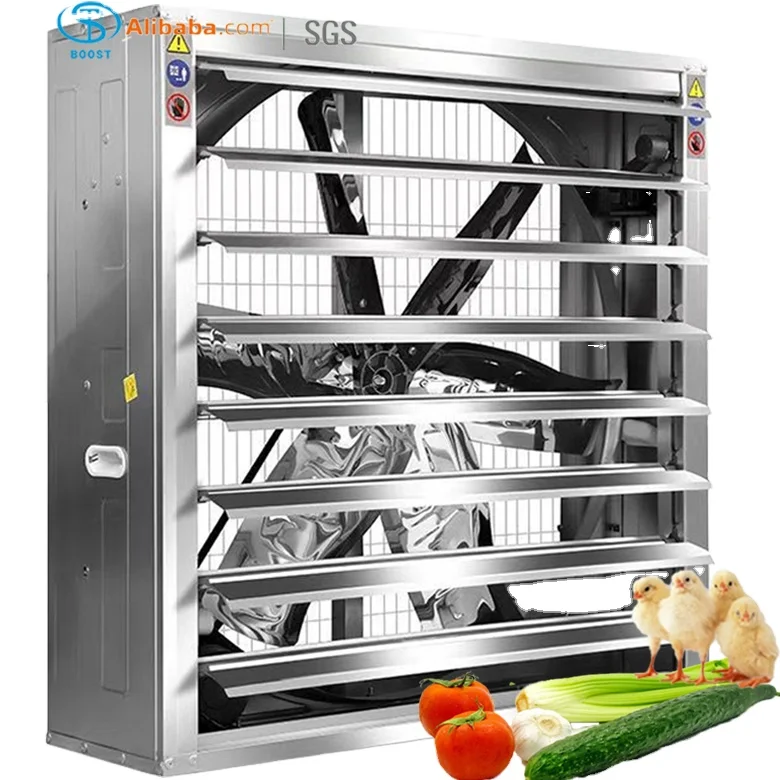

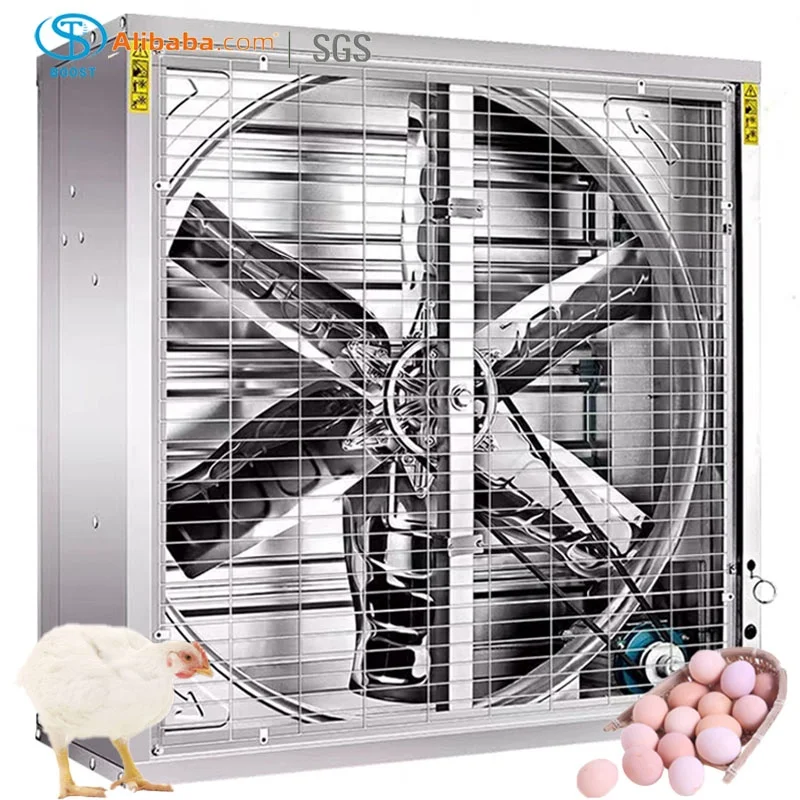

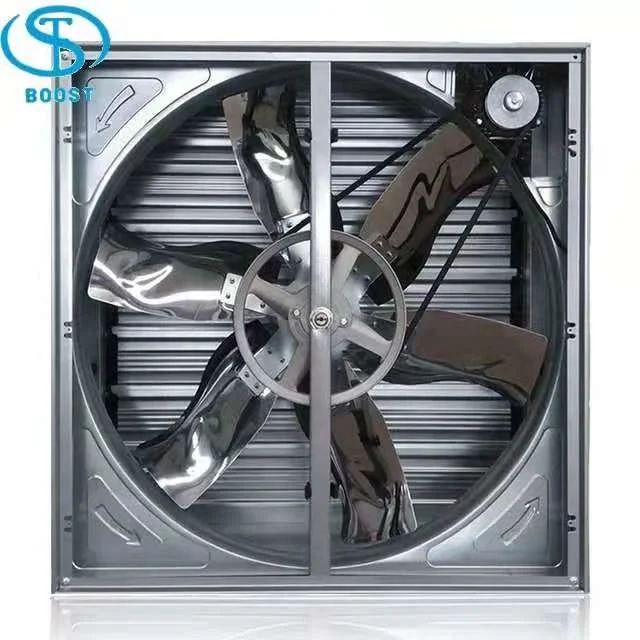

The BOOST Hammer Exhaust fan is a 380 volt industrial livestock greenhouse ventilation fan with high air volume and loss resistance characteristics.
The product is widely used for ventilation and cooling in agricultural and industrial fields. It is mainly used in animal feeding,poultry house, livestock farm, greenhouse, factory workshop, textile and other industries.
Model | Blades Diameter(mm) | Blades Rotational Speed (rpm) | Motor Rotational Speed (rpm) | Air flow (m³/hr) | Total pressure(Pa) | Noise (db) | Input power (KW) | Dimension(mm) |
BST400 | 300 | 1400 | 1400 | 4000 | 50 | ≤50 | 180 | 400*400*320 |
BST480 | 380 | 1400 | 1400 | 6000 | 55 | ≤55 | 180 | 480*480*320 |
BST600 | 500 | 1400 | 1400 | 12000 | 55 | ≤55 | 370 | 600*600*320 |
BST800 | 710 | 560 | 1400 | 18000 | 60 | ≤55 | 370 | 800*800*400 |
BST900 | 750 | 550 | 1400 | 26000 | 65 | ≤55 | 370 | 900*900*400 |
BST1000 | 900 | 550 | 1400 | 28000 | 70 | ≤55 | 550 | 1000*1000*400 |
BST1100 | 1000 | 550 | 1400 | 30000 | 70 | ≤55 | 750 | 1100*1100*400 |
BST1220 | 1100 | 460 | 1400 | 38000 | 73 | ≤55 | 750 | 1220*1220*400 |
BST1380 | 1250 | 430 | 1400 | 44000 | 56 | ≤55 | 1100 | 1380*1380*400 |
BST1530 | 1400 | 325 | 1400 | 55000 | 60 | ≤55 | 1500 | 1530*1530*400 |
Six reasons to choose BOOST Hammer Exhaust Fan

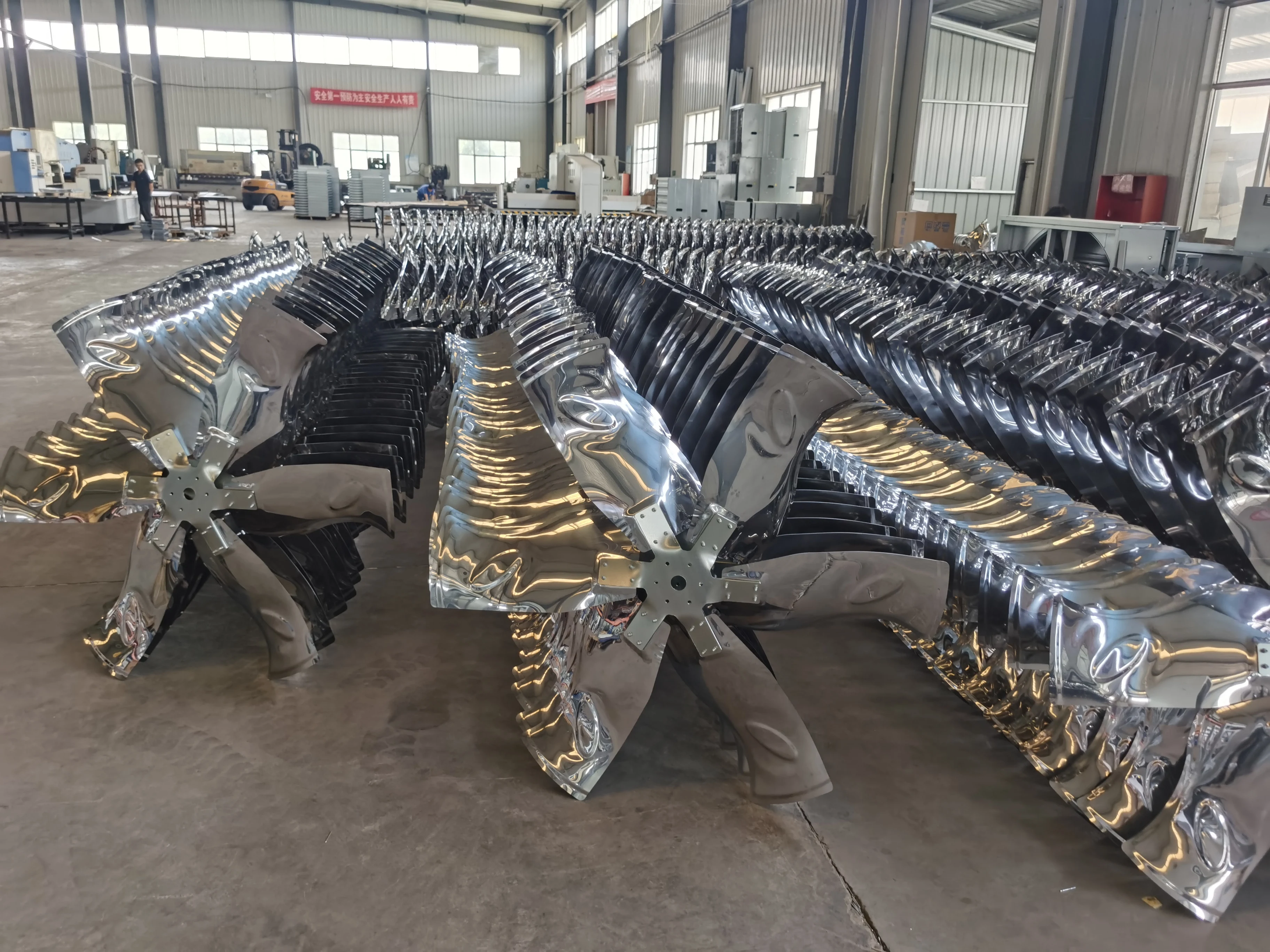

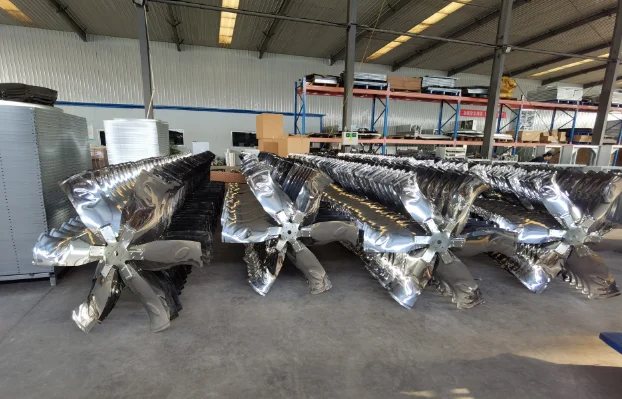

Fan blade
The fan blades are made of Krupp stainless steel stamping, dust-free, beautiful and durable.
The special blade shape design ensures large air volume, no deformation, no rupture, so that the air volume is the same in all ways.

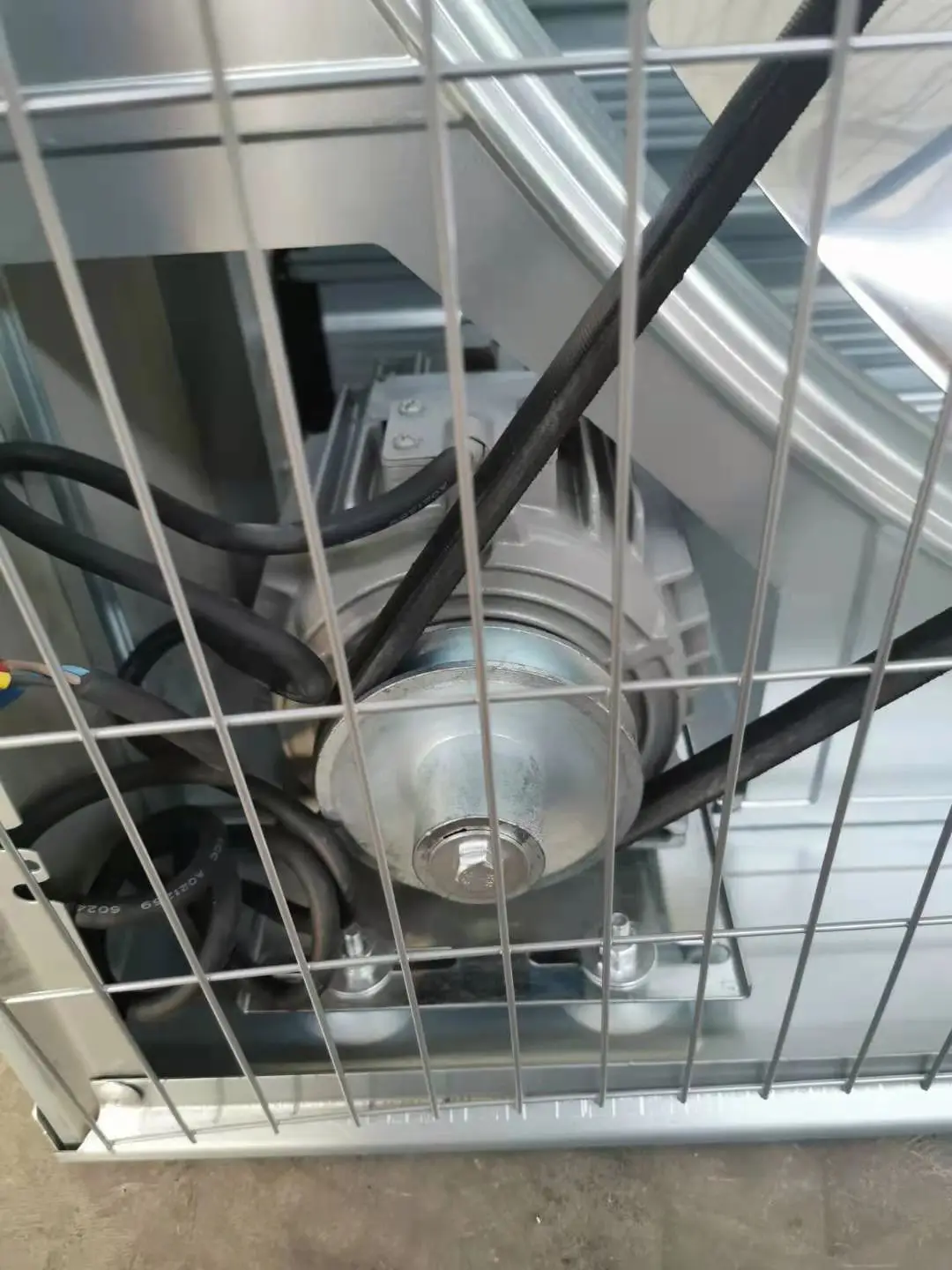

Fan motor
Famous Chinese motors are available with Siemens motors. The voltage and frequency of the motor can be customized. Chinese famous motor with a specially designed fan, when the power shortage, can be self-powered off. Motor protection class IP 55, insulation class F.
Belt
The belt adopts imported belt to ensure service life and maintenance free.

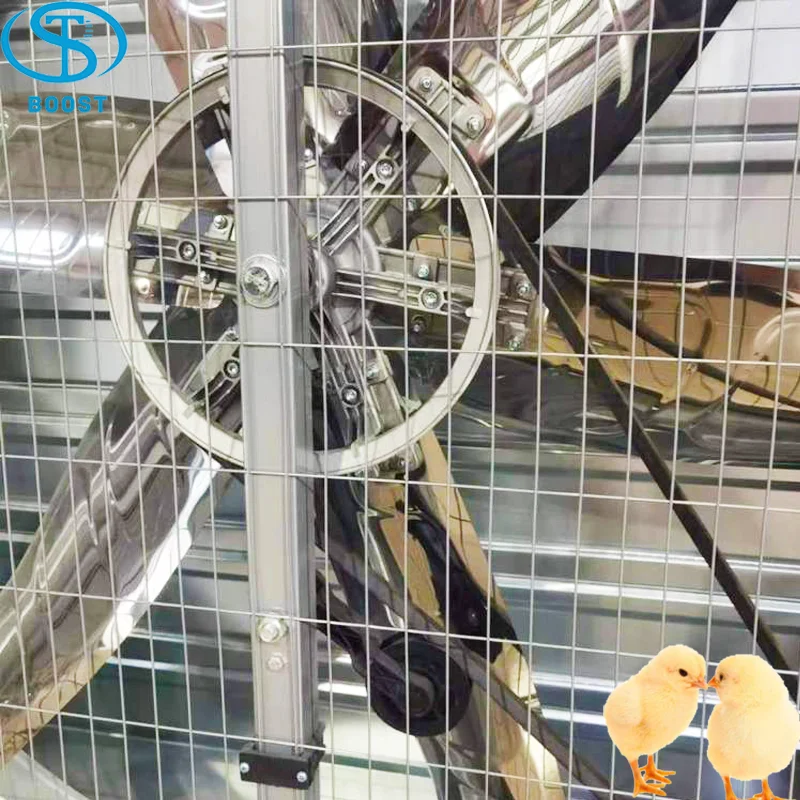

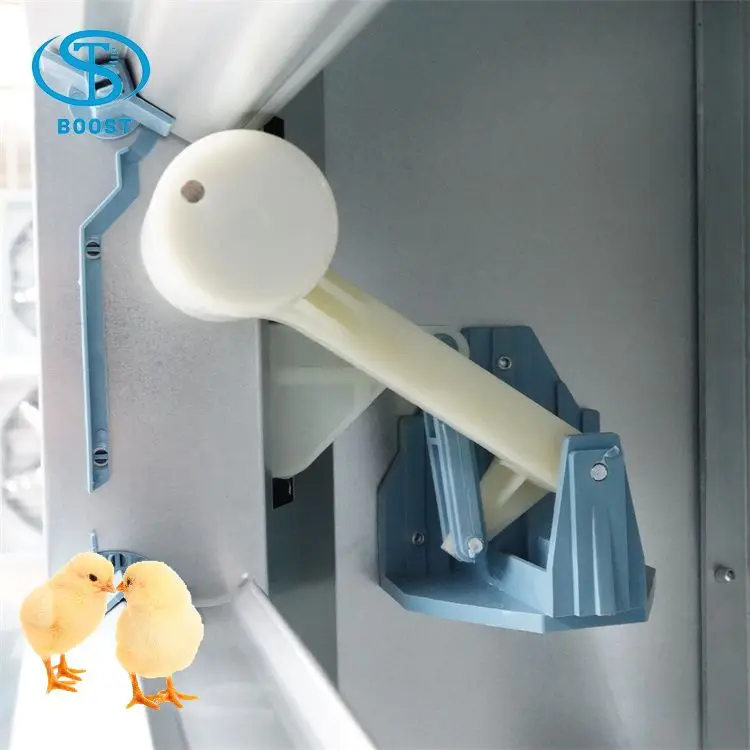

Hammer open mechanism
High strength nylon 100 turn weight hammer opening mechanism, ensure the shutter open and close flexible.

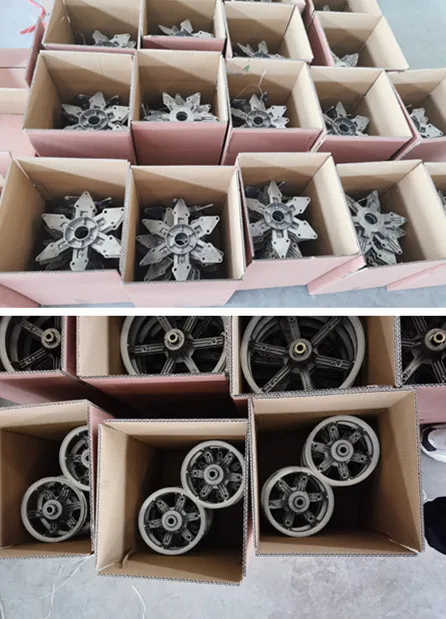

Belt pulley
The fan pulley is made of high strength aluminum-magnesium alloy die-casting, reducing weight, complete impeller blade and high corrosion resistance. Eliminate internal stress, improve their own stiffness and stability, will not break.

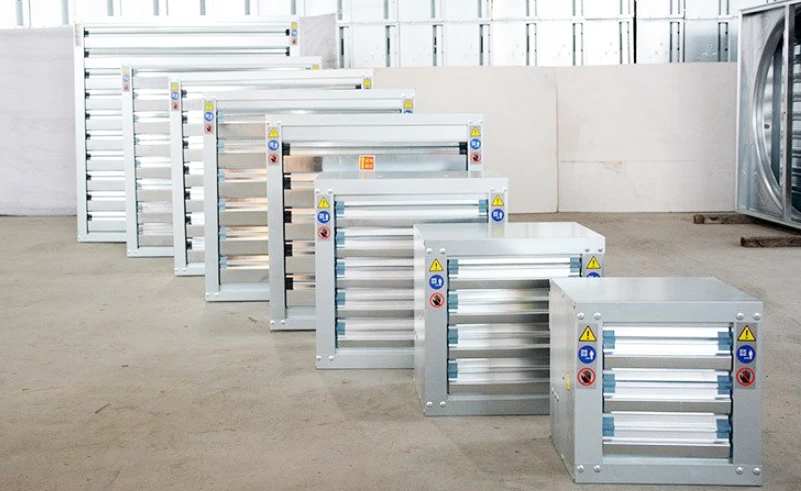

Many specifications
BOOST Hammer exhaust fans are available in many commercial specifications. You can choose more suitable products according to your needs and preferences.
Details of Hammer Exhaust Fan
Large air flow
No deformation
No fracture
No dust
Attractive
Durable
Blade optional material Galvanized sheet
Aluminum alloy
Multiple quality assurance
Pure copper wire
Customizable
High efficiency
Energy saving
Energy saving
Multiple authentication assurance
CCC certification
IP55 protection grade
F insulation grade
Service life is 3 times longer than type A
Long service life
No maintenance required
High strength nylon
Weight opening mechanism
The shutters open and close flexibly
Good appearance
Light weight
Long service life
Meet all circumstances
Custom model

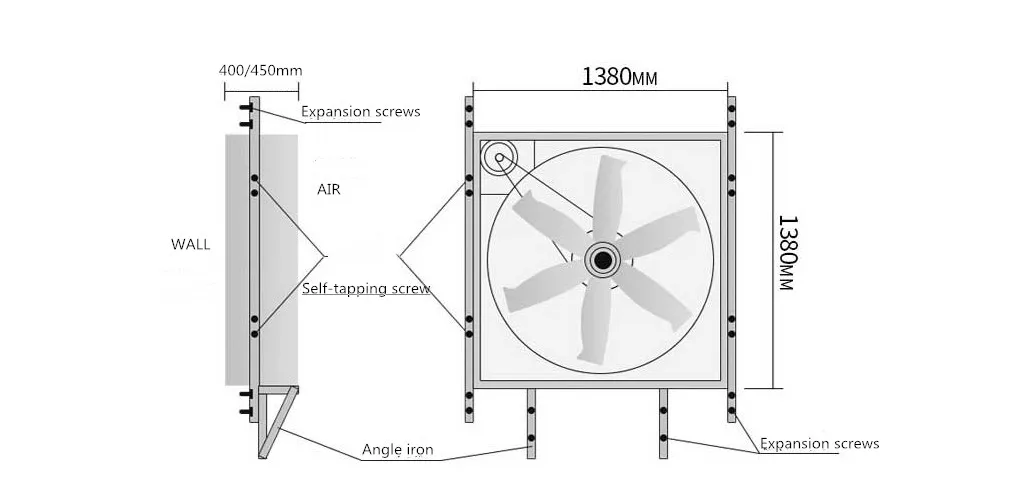

Installation Instructions
Installation of fan
1. Adjust the horizontal and vertical , keeping the fan blade running smoothly.
2. After fixing the fan, the remaining gap need to be sealed.
3. The Expansion screws and Self tapping screw can be used to fix.
3. The Expansion screws and Self tapping screw can be used to fix.

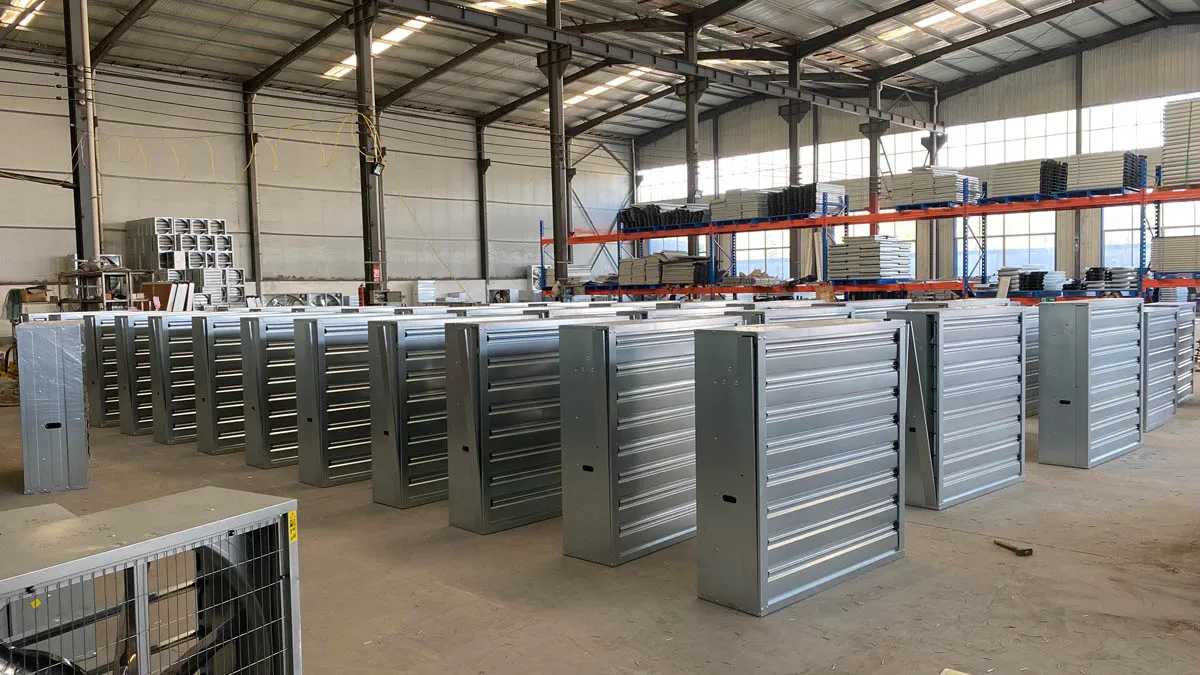

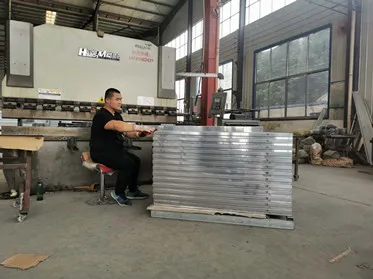

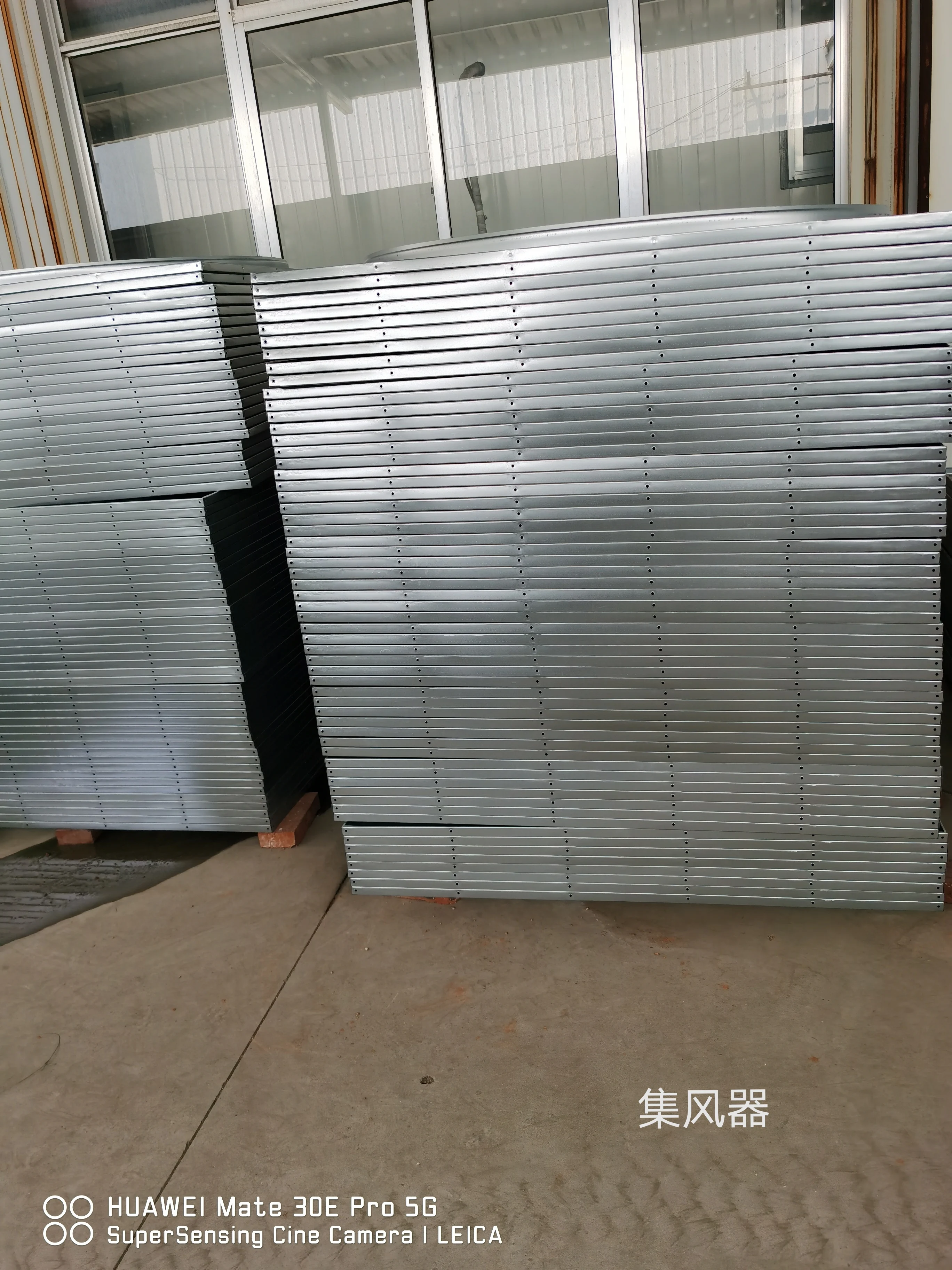

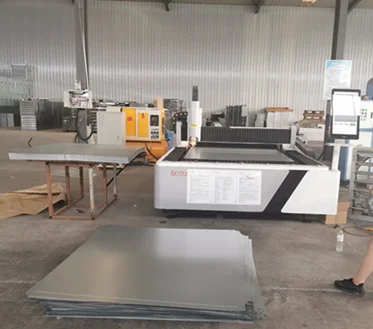

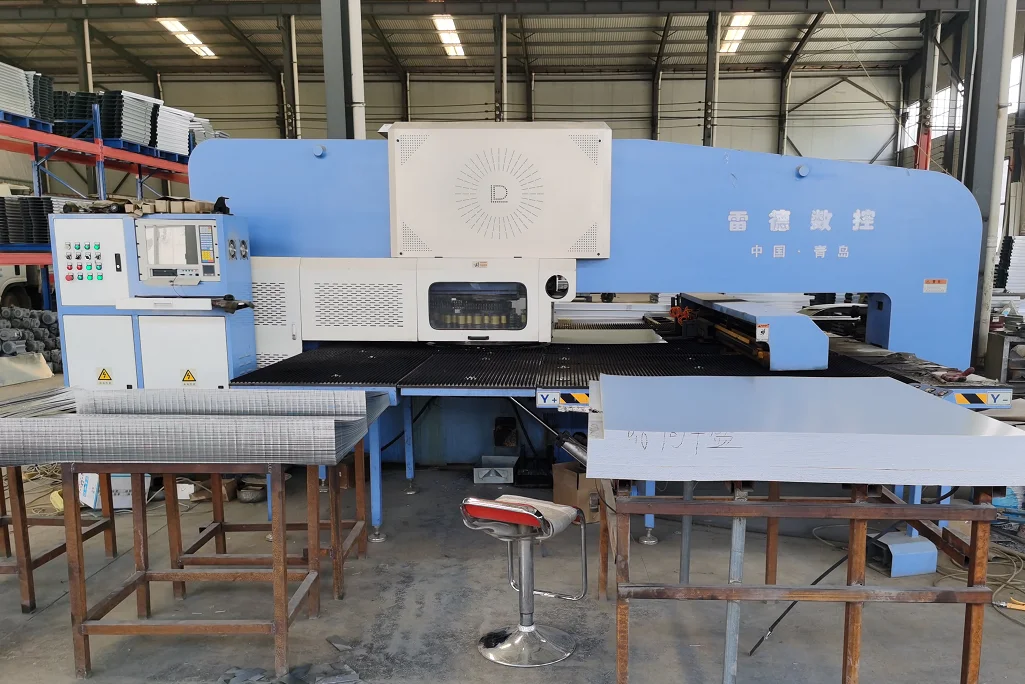

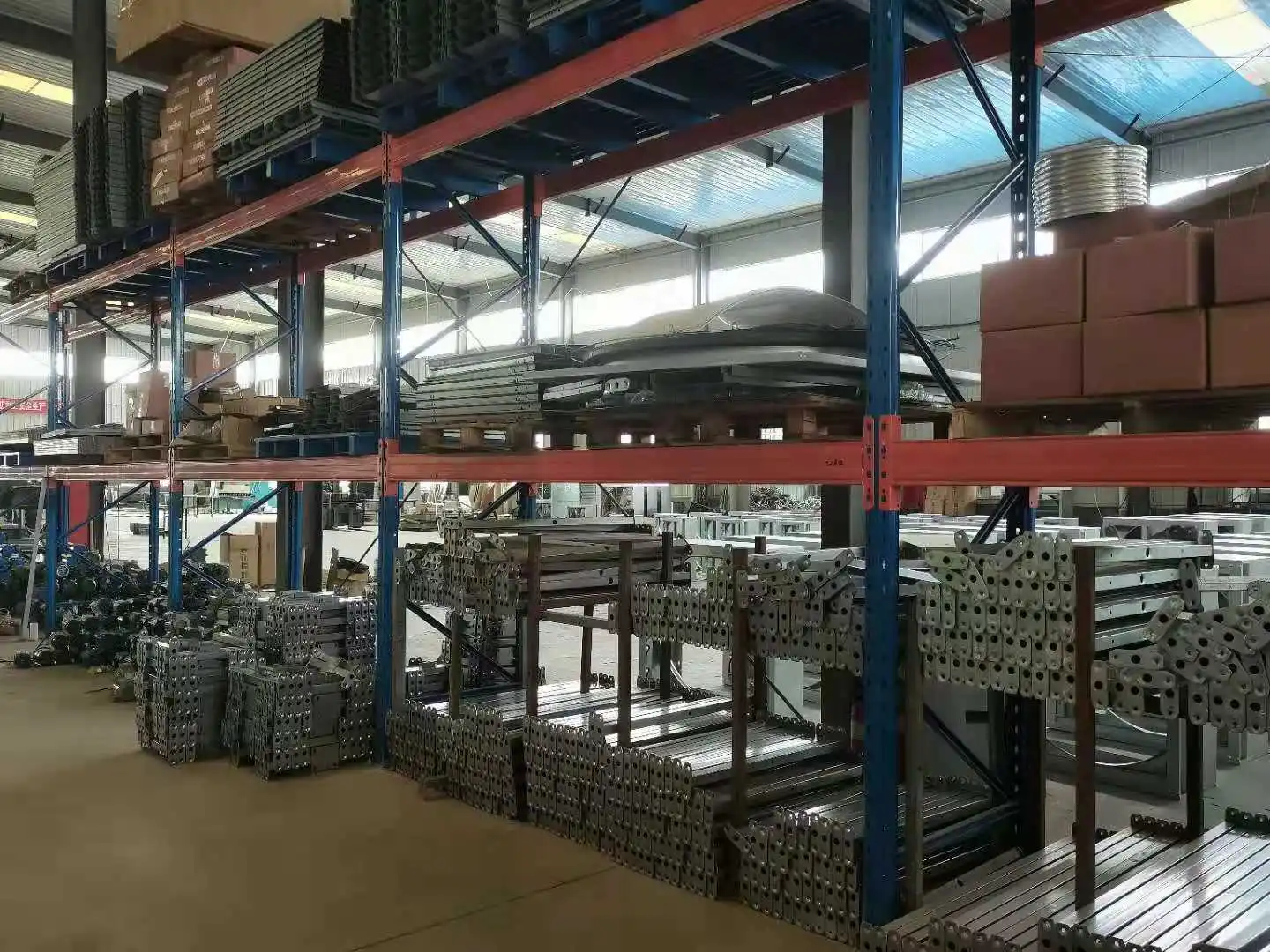

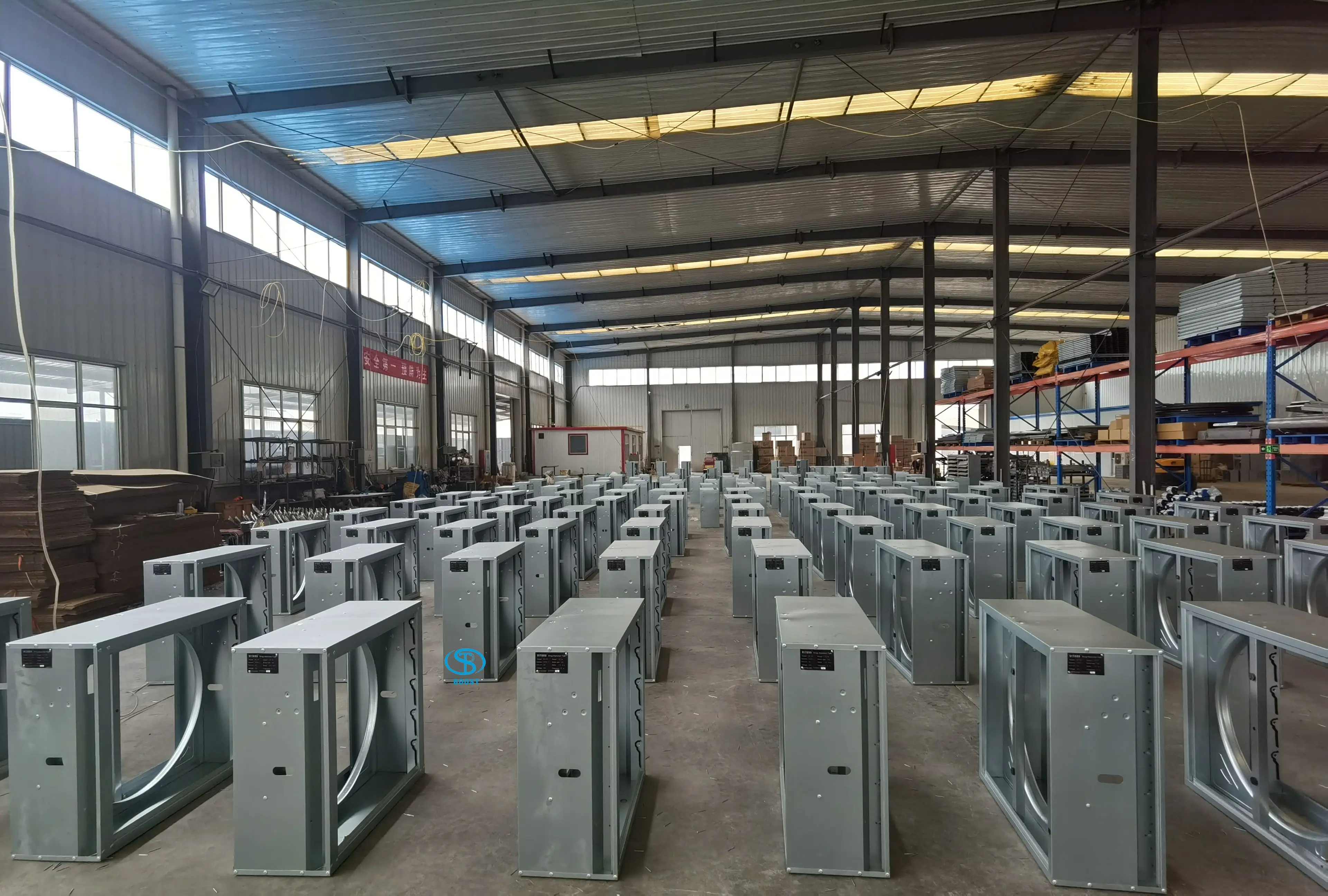

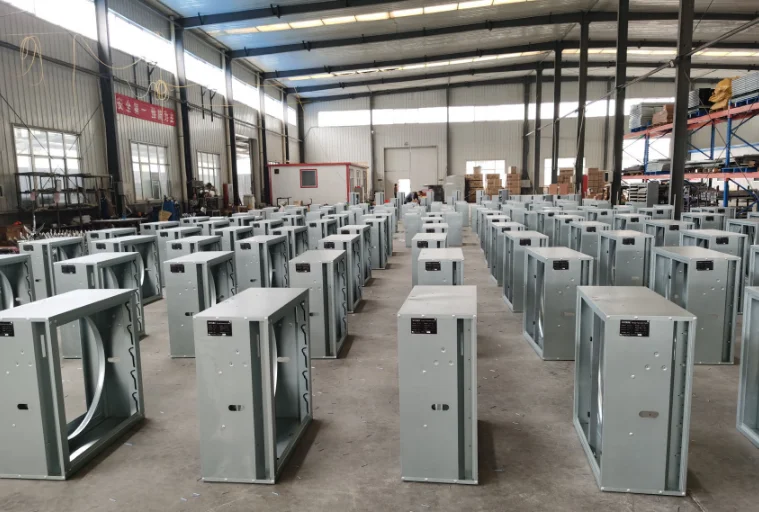

Factory&Workshop

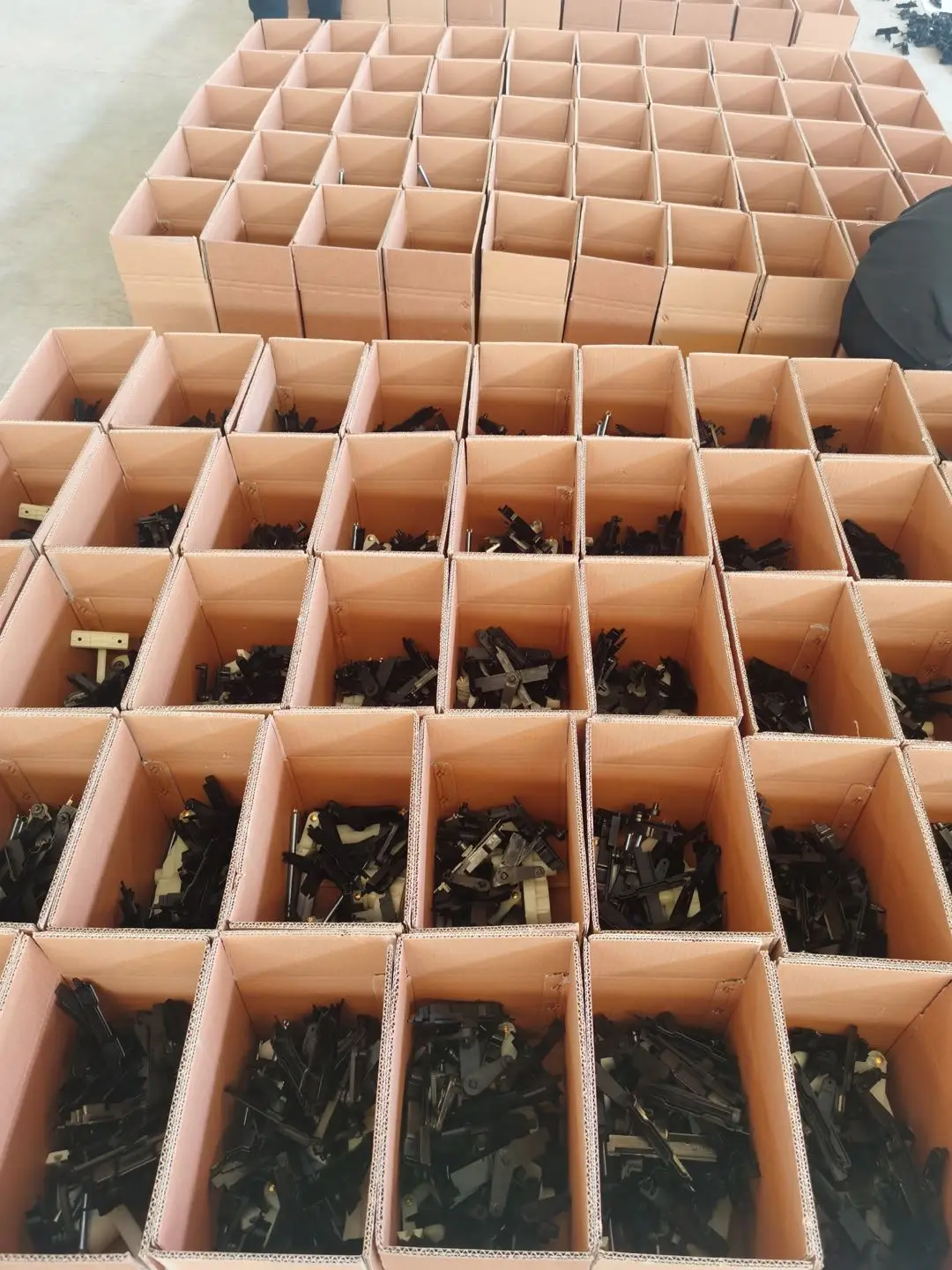

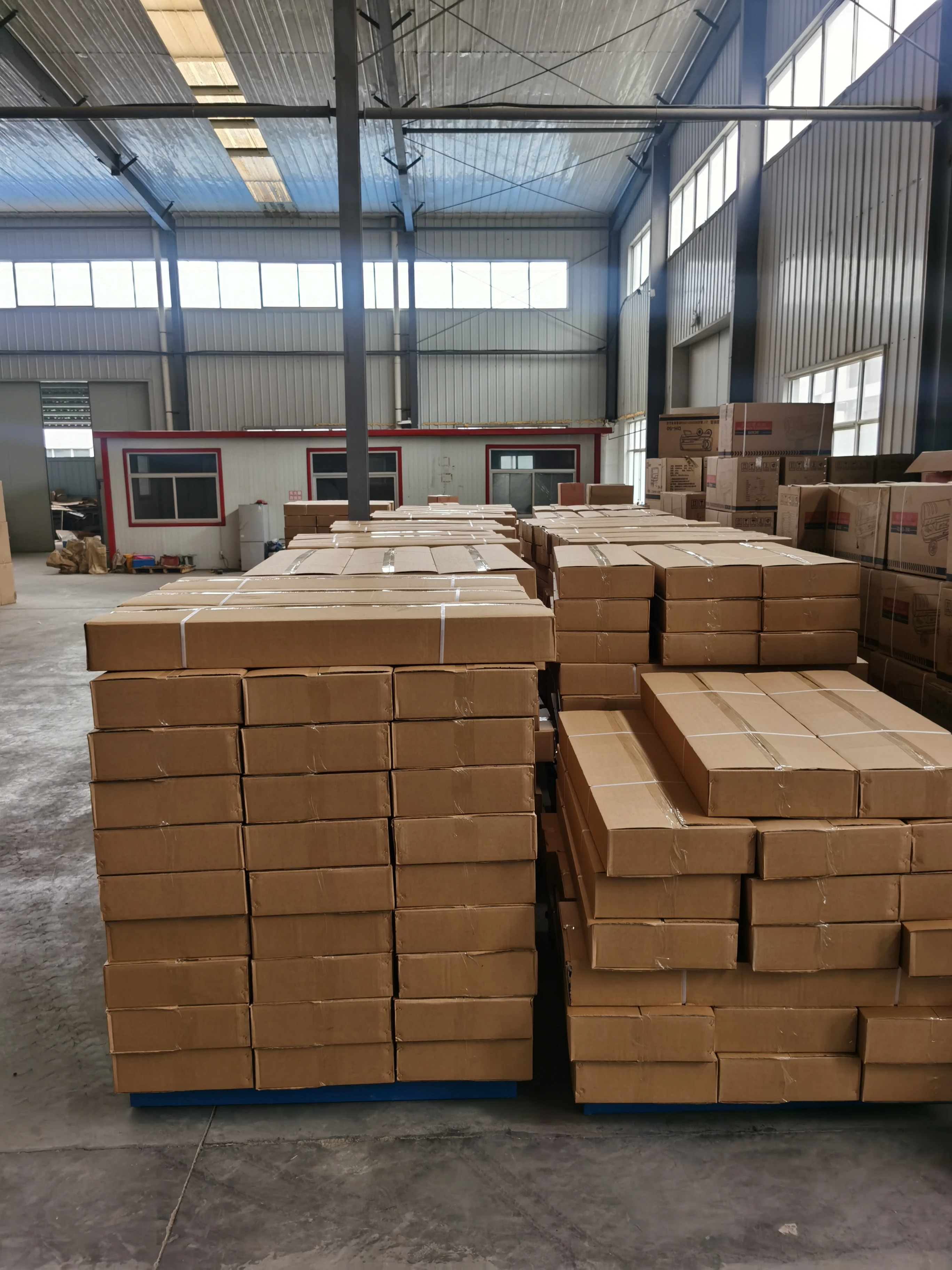

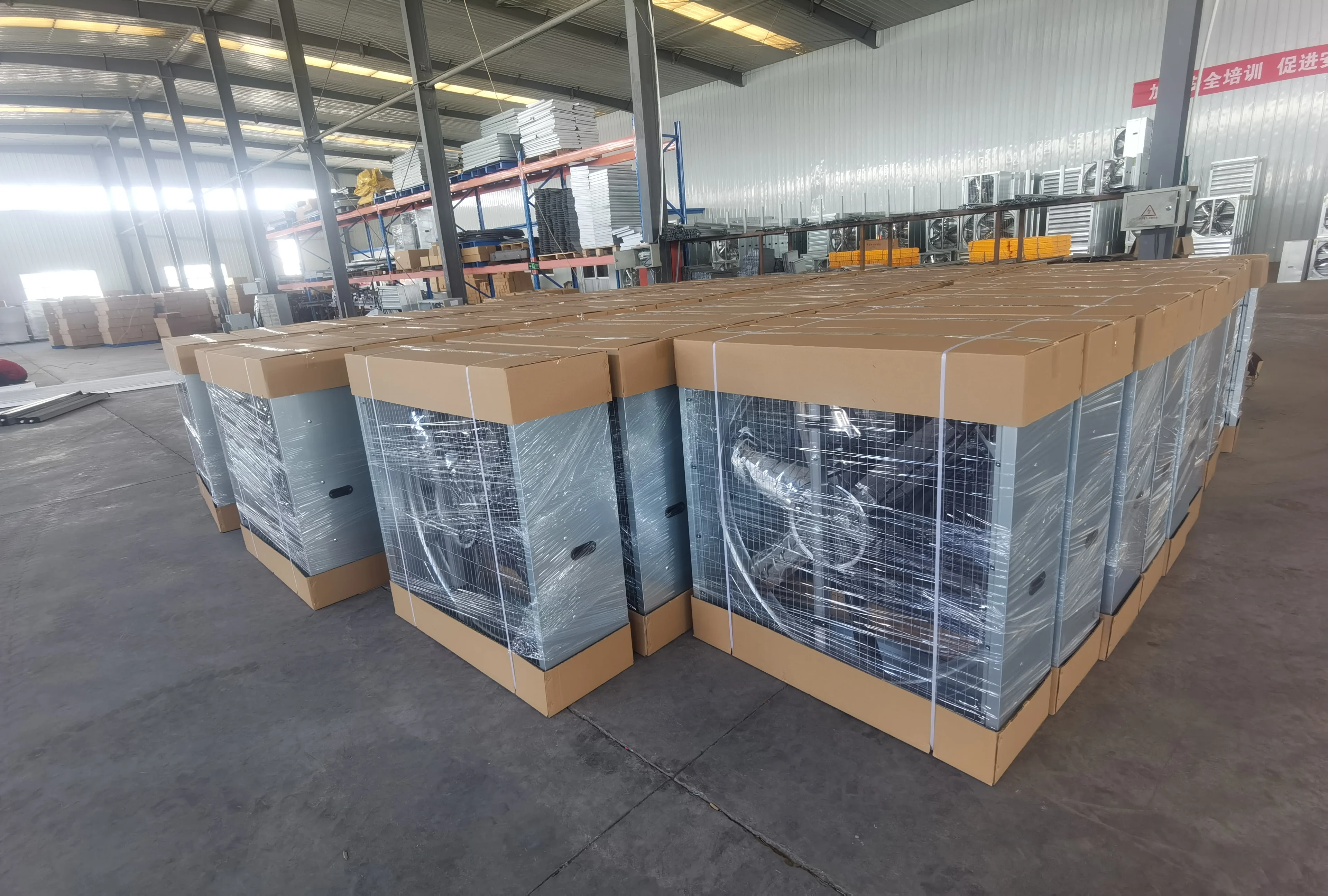

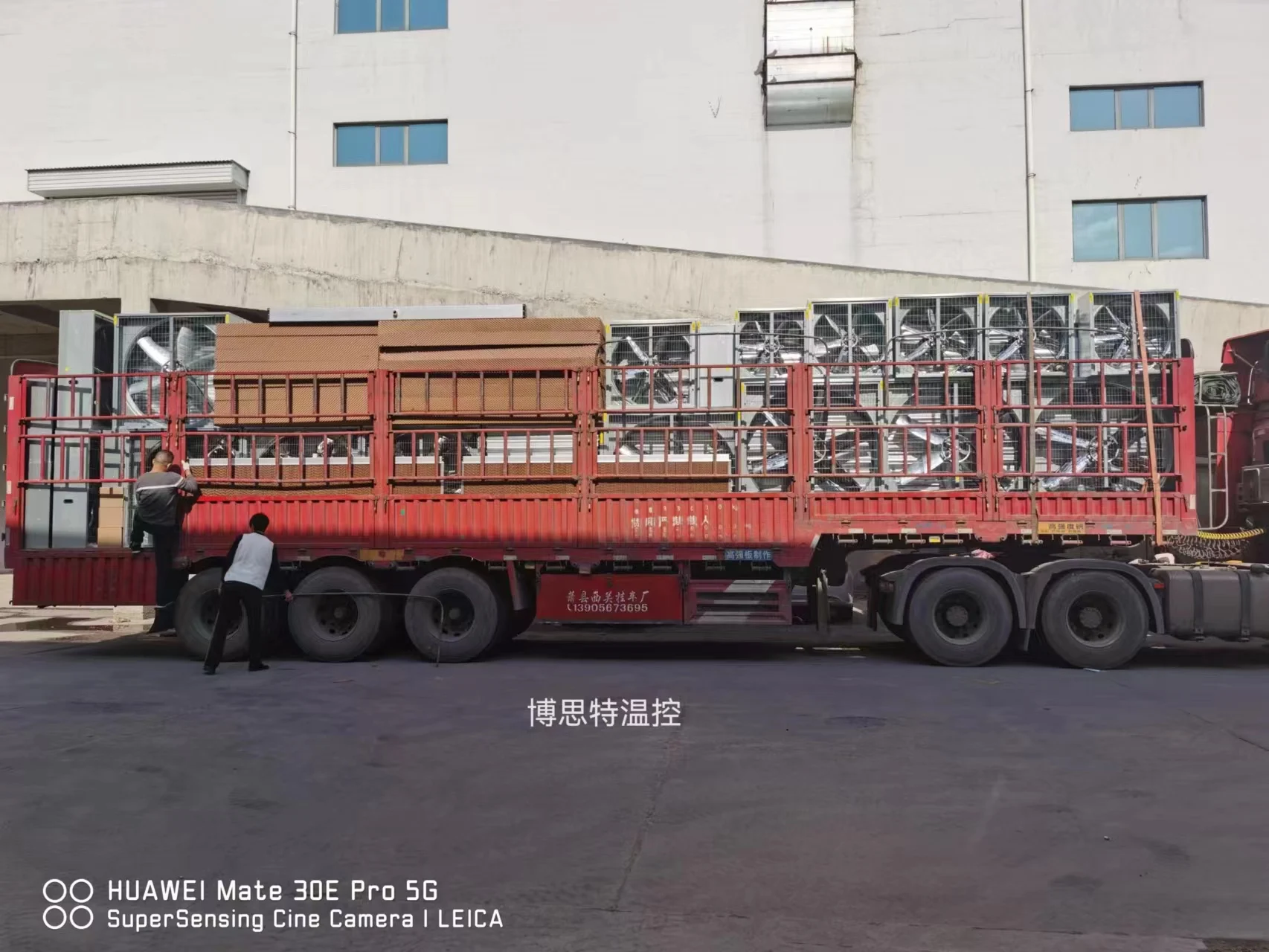

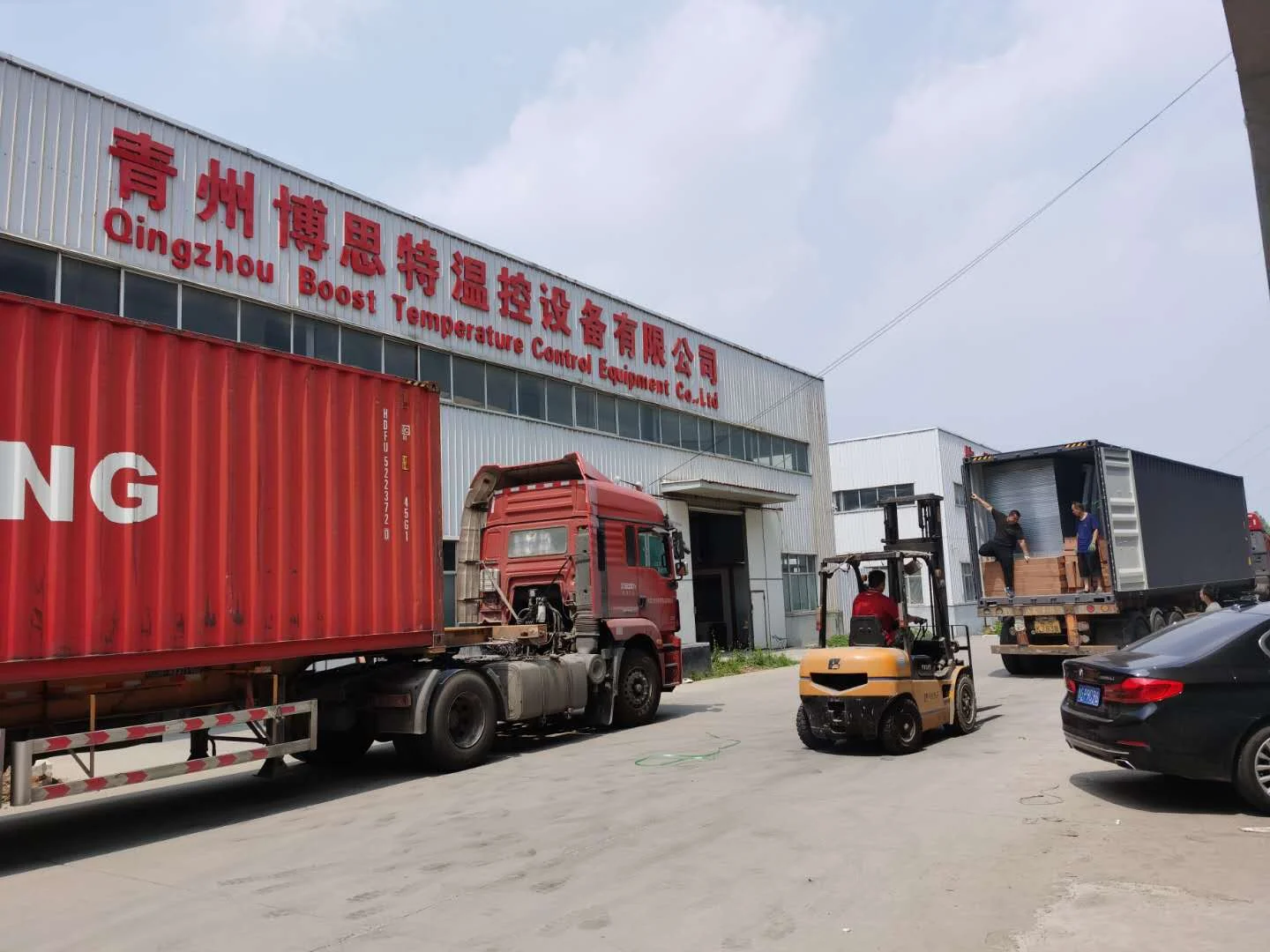

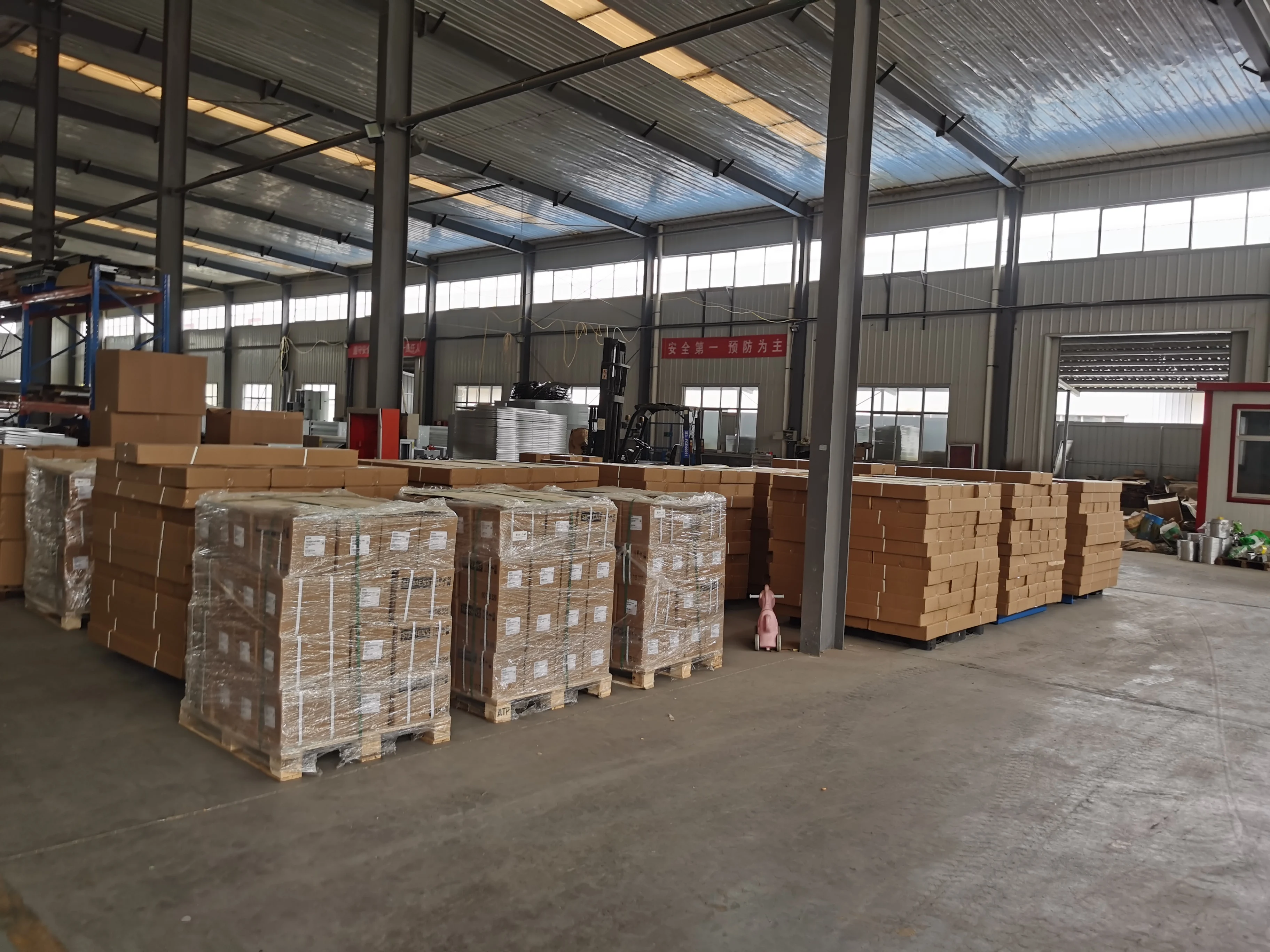

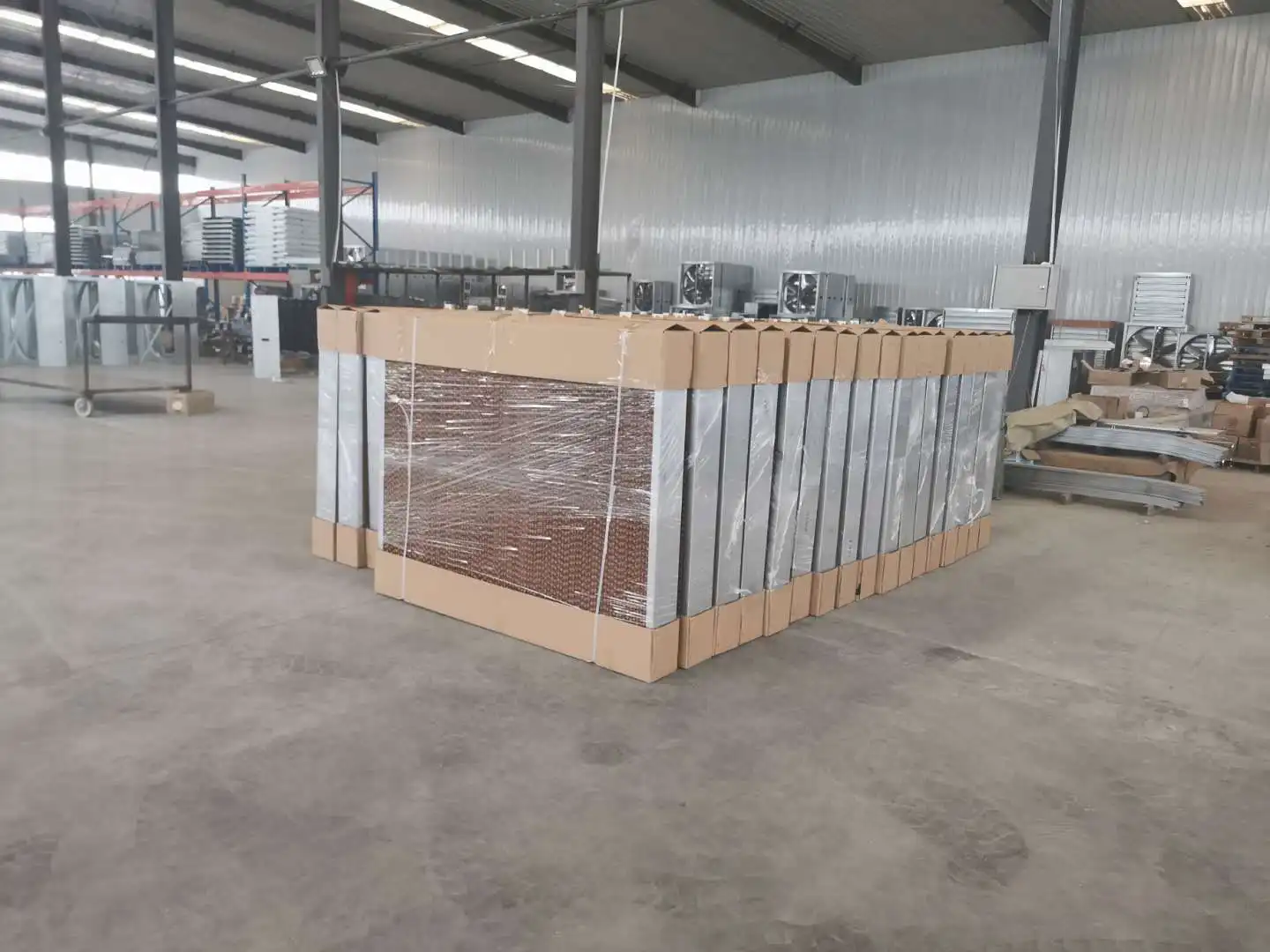

Packing&Shipping
FAQ
Q: Is your company a manufacture or Trading company?
Q: Can you open our own brand?
A: Yes,we can offer OEM/ODM service,put your logo for the produce.
Q: What is your minimum oreder quantity?
A: We accept small order quantity, but the freight cost will be very high.
Q: Voltage your can offer?
A: Normal voltage will be 380V-50HZ-3Phase, And it can be customized based on your request.
Q: How about the quality of your product?

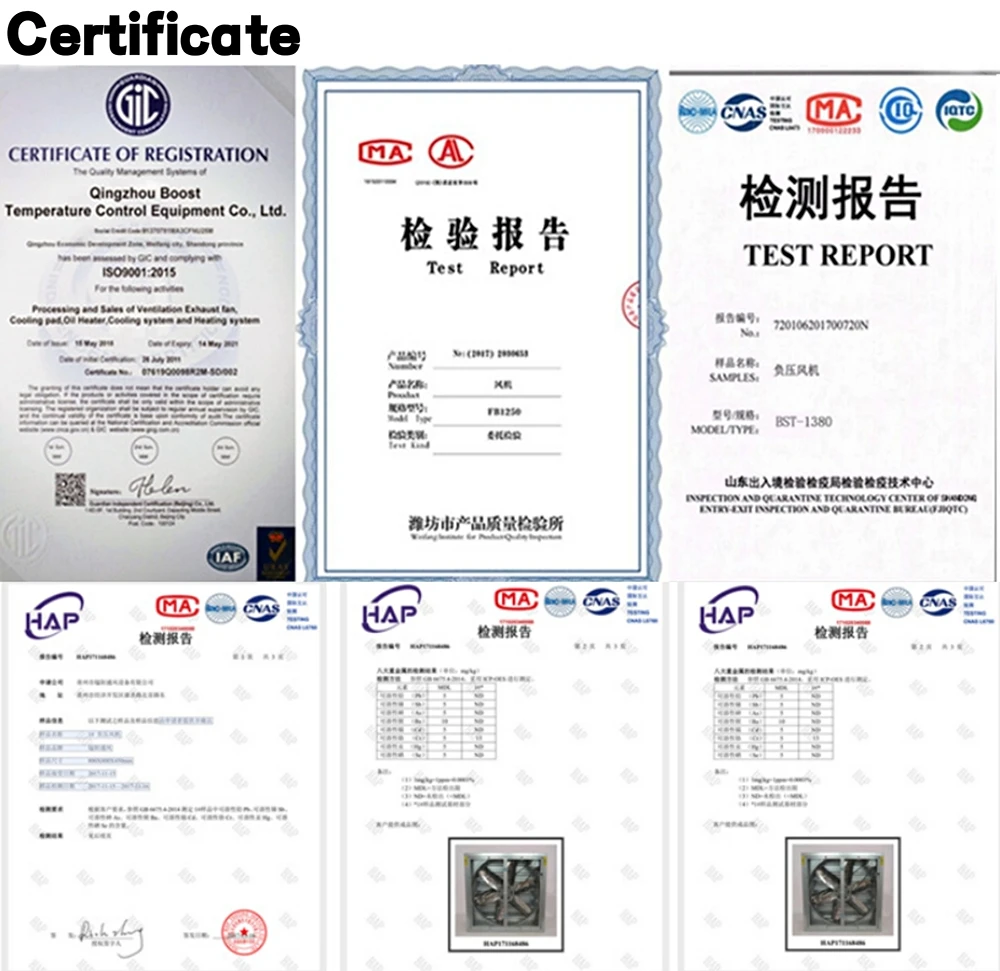

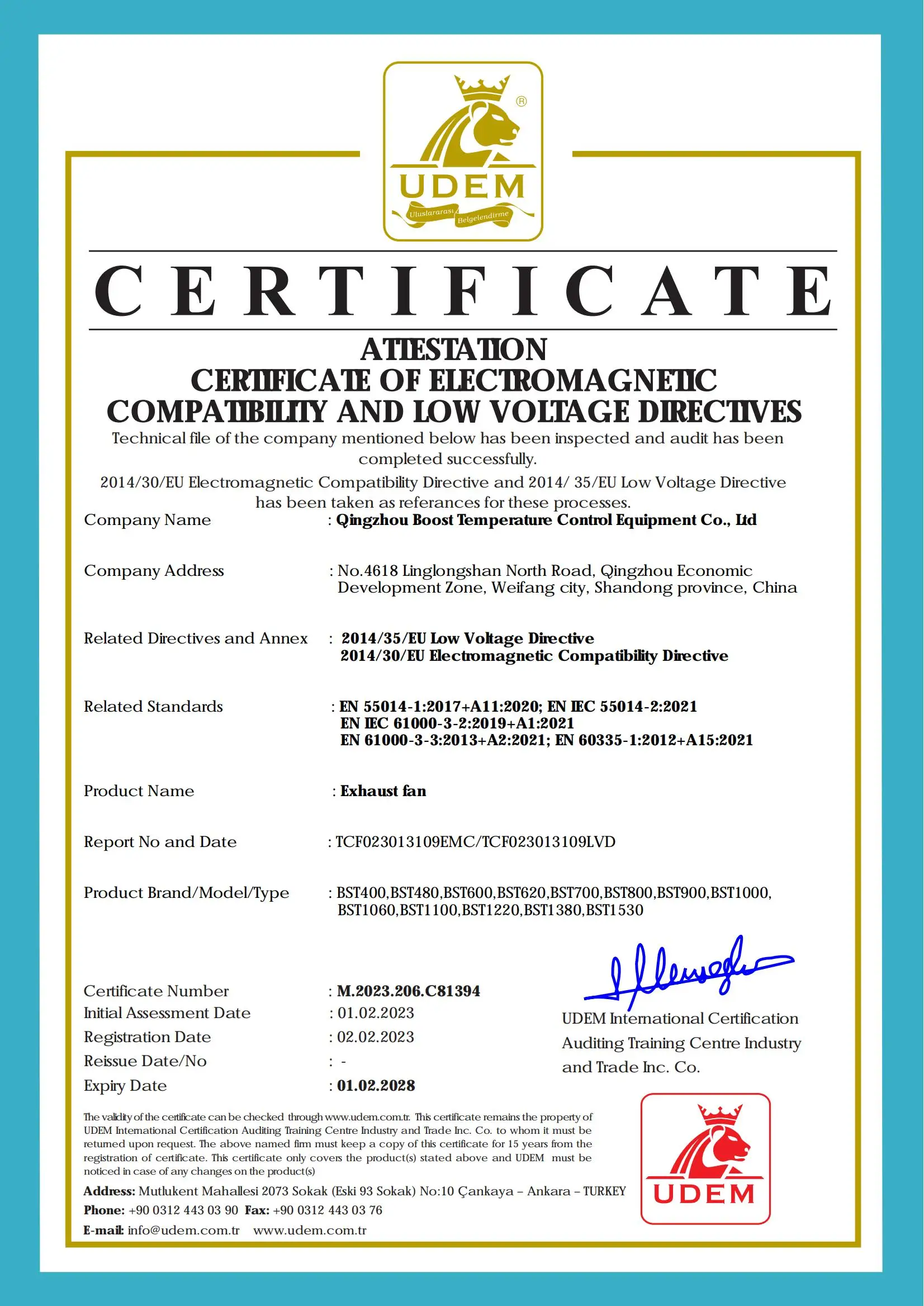

A: All the products are produced strictly according to the international standard,which has been passed CE certification,CCC certificated and ISO9001:2008 international quality management system.
Q: Can you accept an inspection of a Third-party detection instituation?
A: Yes,sure. Our products have been inspected by some third-party detection institutions authorized by customs before,and have got perfect inspection report.
A: We are professional manufacture of Ventilation equipment,Cooling equipment and Heating equipment for poultry,workshop and greenhouse in China.
Q: Can you open our own brand?
A: Yes,we can offer OEM/ODM service,put your logo for the produce.
Q: What is your minimum oreder quantity?
A: We accept small order quantity, but the freight cost will be very high.
Q: Voltage your can offer?
A: Normal voltage will be 380V-50HZ-3Phase, And it can be customized based on your request.
Q: How about the quality of your product?
A: All the products are produced strictly according to the international standard,which has been passed CE certification,CCC certificated and ISO9001:2008 international quality management system.
Q: Can you accept an inspection of a Third-party detection instituation?
A: Yes,sure. Our products have been inspected by some third-party detection institutions authorized by customs before,and have got perfect inspection report.
