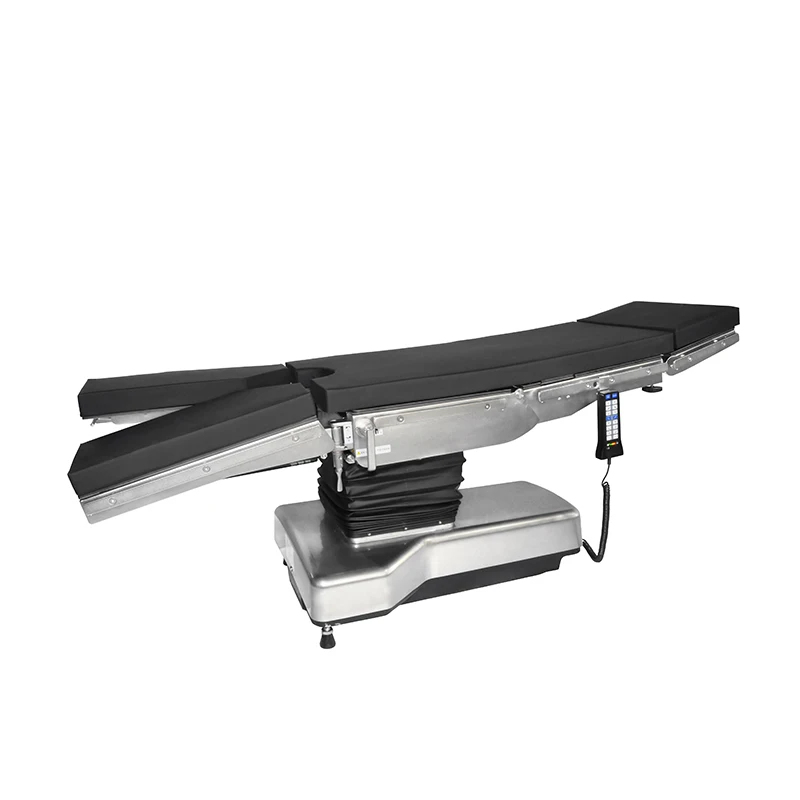

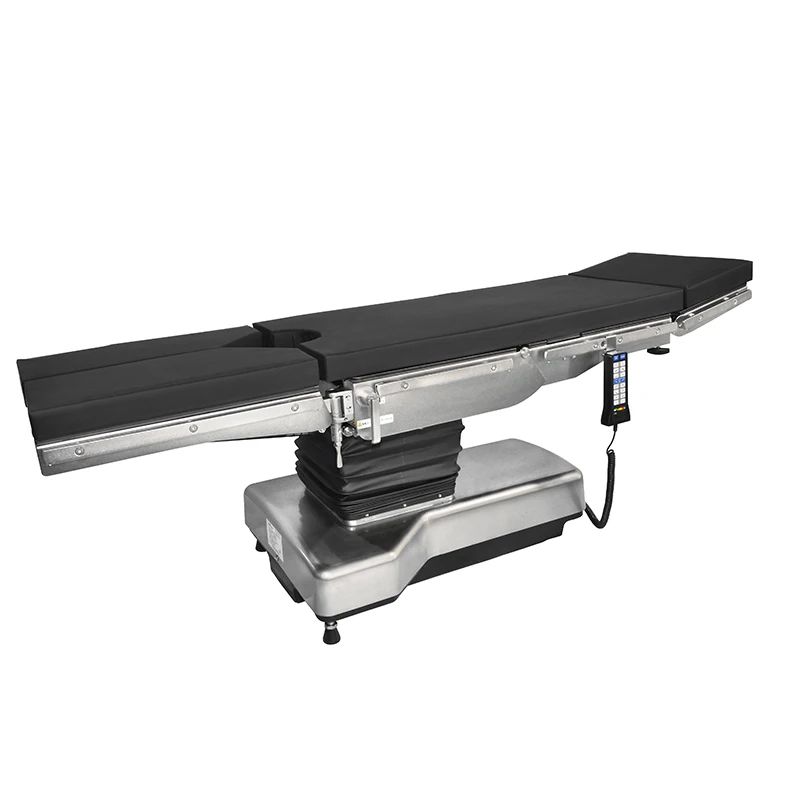

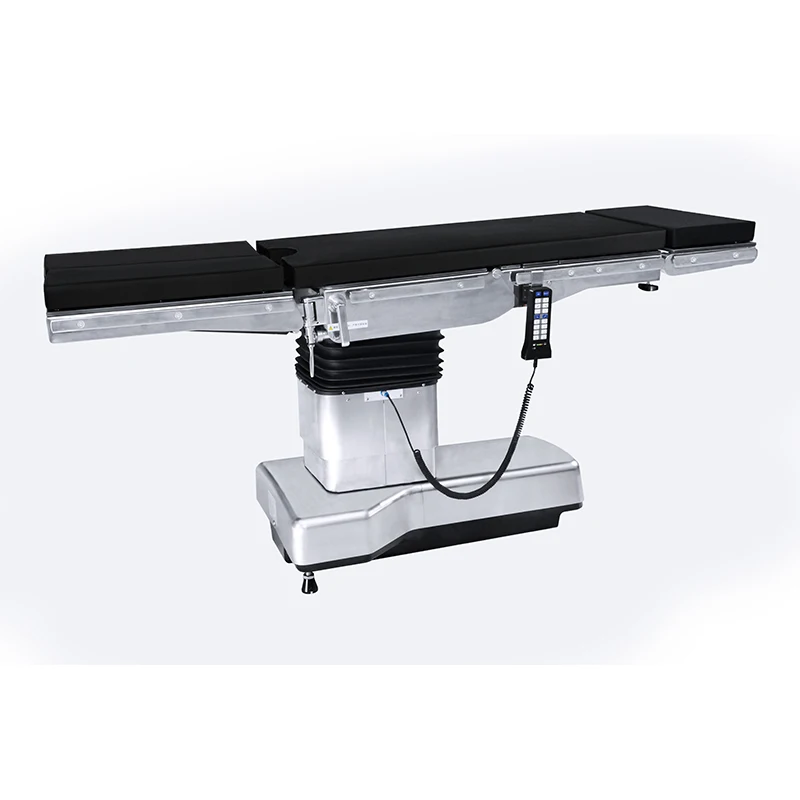

Hospital equipment multi purpose electrical medical surgical operating table
- Category: >>>
- Supplier: Hangzhou Boyn Instrument Co. Ltd.
Share on (1600891715481):
Product Overview
Description
Products Description
Product features:
\tThe tabletop adopts high quality of carbon plastic plate, and it can slide, which is convenient for C arm exam and X-ray photography.
\tThe mattress is wrapped with imported artificial leather. High-density memory sponge 1s formed in one piece, with no seam.

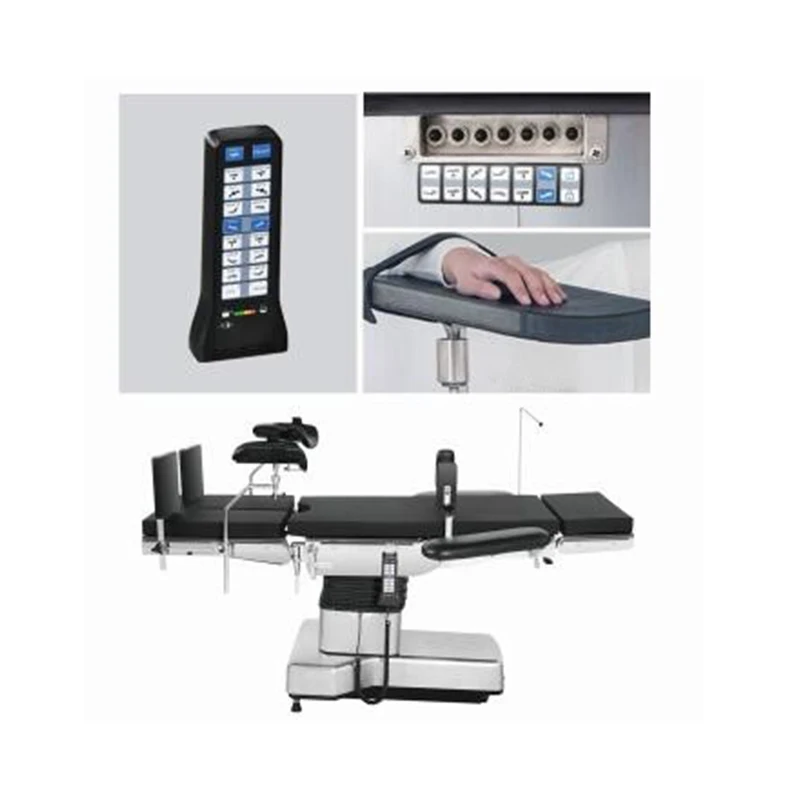

\tHand held controller and panel controller are available to control various movements. Self-locking function is provided to avoid false triggering.
\t One press to"/\\ "or" V ".
\t All system from HOERBIGER.
\t AC and DC can use at the same time. It has the function of auto-restoration.
\tQuality stainless steel 304 is used for table support, base plate, column shield and rails on both sides of the table and other accessories.
\t Electric braking device, convenient for shifting the table.
\tThe mattress is wrapped with imported artificial leather. High-density memory sponge 1s formed in one piece, with no seam.
\tHand held controller and panel controller are available to control various movements. Self-locking function is provided to avoid false triggering.
\t One press to"/\\ "or" V ".
\t All system from HOERBIGER.
\t AC and DC can use at the same time. It has the function of auto-restoration.
\tQuality stainless steel 304 is used for table support, base plate, column shield and rails on both sides of the table and other accessories.
\t Electric braking device, convenient for shifting the table.
Product Paramenters
Mode | BN-D.III-I | BN-D.III-II | BN-D.III |
Length | 2000±10 0 m m | 2 0 0 0 ±10 0 m m | 2 0 0 0 ±10 0 m m |
Width | 5 2 0 ±2 0 m m | 5 2 0 ±2 0 m m | 5 2 0 ±2 0 m m |
Height Adjustment | ( 7 5 0 - 1 10 0 ) ±5 0 m m | (6 5 0 - 1 10 0 ) ±5 0 m m | (7 0 0 - 1 10 0 ) ±5 0 m m |

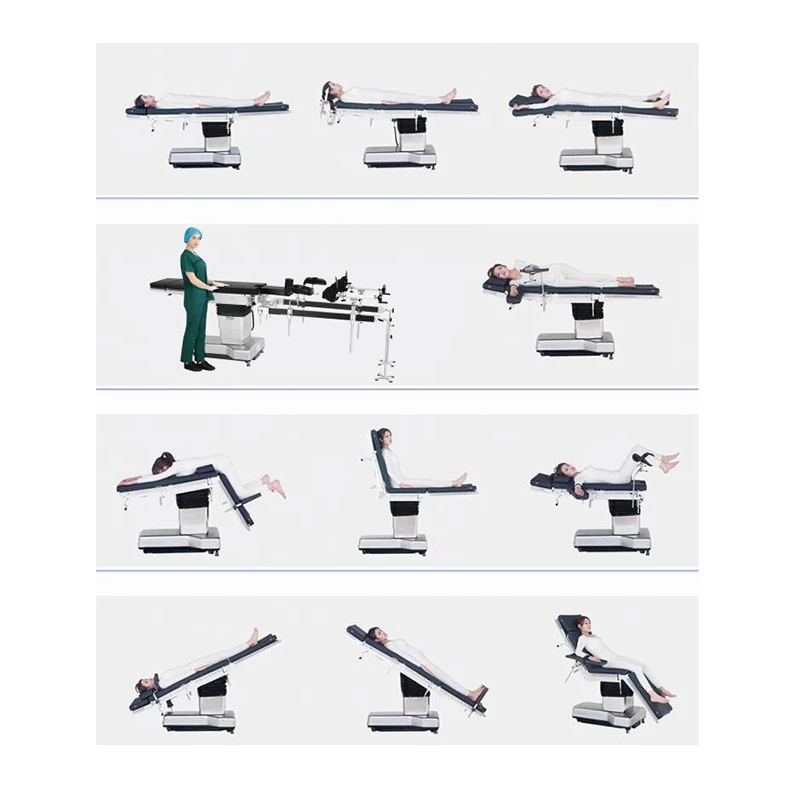

Tilt(left) / Tilt(right) | ≥15°/≥15° | ≥20°/≥20 ° | ≥1 8° / ≥18 ° |
Trendelenburg / Rev-Trend | ≥2 0° /≥20 ° | ≥30° / ≥3 0 ° | ≥25 °/ ≥3 5 ° |
Head board upwards | ≥5 0 ° | ≥5 0 ° | ≥5 0 ° |
Head board downwards | ≥90 ° | ≥90 ° | ≥90 ° |
Back board upwards | ≥7 0 ° | ≥7 0 ° | ≥7 0 ° |
Backboard downwards | ≥4 0 ° | ≥4 0 ° | ≥40 ° |
Waist board lifting | 100±2 0 m m | 10 0 ±2 0 m m | 1 0 0 ±2 0 m m |
Leg board Upwards | ≥1 5 ° | ≥2 0 ° | ≥10 ° |
Leg board Downwards | ≥90 ° | ≥90 ° | ≥90 ° |
Leg board Outwards | ≥18 0 ° | ≥18 0 ° | ≥18 0 ° |
Lumbar upper corner " A " | ≤15 0 ° | ≤15 0 ° | ≤15 0 ° |
Lumbar lower corner " V" | ≤11 0 ° | ≤11 0 ° | ≤1 10° |
Horizontal and longitudinal movement | 400±30mm | 400±30mm | 300±30mm |
Main Voltage AC | 220V±2 2 V , 5 0 ±1 H z | 220V±22V , 50 ±1 H z | 220V±22V , 50±1Hz |
Input power VA | 400 ±10 % | 400 ±10 % | 400 ±10 % |
