Ethernet switch 48 x GE SFP ports, 4 x 10 GE SFP ports 48 port network switch S5736 S48S4X A enterprise campuses Aggregation s
- Category: >>>
- Supplier: Beijing Huayu Tiancheng Technology Co. Ltd.
Share on (1600891745929):
Product Overview
Description
Specification
CloudEngine S5736-S series switches are next-generation standard all-optical GE access switches that provide 24-port and 48-port models, and provide four 10GE ports and one slot(optional).Flexible Port Access On-demand CloudEngine S5736-S series switches provide 48 downlink optical ports and four 10GE uplink optical ports. Based on the
innovative RTU mode(only S5736-S48S4X-A/D support), the downlink port rate can be increased on demand. With the rapid growth of services, the rate can be smoothly upgraded from 1 Gbit/s to 10 Gbit/s, maximizing the investment on the existing network.Powerful Service Processing Capability.CloudEngine S5736-S supports a broad set of Layer 2/Layer 3 multicast protocols, such as PIM SM, PIM DM, PIM SSM, MLD, and IGMP snooping. This capability is ideal for high-definition video backhaul and video conferencing access.Flexible Ethernet Networking.The CloudEngine S5736-S supports Smart Link and Virtual Router Redundancy Protocol (VRRP), which implement backup of uplinks. One CloudEngine S5736-S switch can connect to multiple aggregation switches through multiple links, significantly improving reliability of access devices.Various Security Control Methods.The CloudEngine S5736-S supports 802.1x authentication, MAC address authentication, Portal authentication, and hybrid authentication, and can dynamically delivery user policies such as VLANs, QoS policies, and access control lists (ACL). It also supports user management based on user groups.Easy Network deployment,Mature IPv6 Features.Intelligent Stack (iStack).Intelligent O&M.VXLAN Features.Intelligent Upgrade.Cloud Management,Open Programmability System(OPS),Licensing IDN One Software CloudEngine S5736-S supports both the traditional feature-based licensing mode and the latest Huawei IDN One Software (N1 mode for short) licensing mode. The N1 mode is ideal for deploying Huawei CloudCampus Solution in the on-premises scenario,
as it greatly enhances the customer experiences in purchasing and upgrading software services with simplicity.
innovative RTU mode(only S5736-S48S4X-A/D support), the downlink port rate can be increased on demand. With the rapid growth of services, the rate can be smoothly upgraded from 1 Gbit/s to 10 Gbit/s, maximizing the investment on the existing network.Powerful Service Processing Capability.CloudEngine S5736-S supports a broad set of Layer 2/Layer 3 multicast protocols, such as PIM SM, PIM DM, PIM SSM, MLD, and IGMP snooping. This capability is ideal for high-definition video backhaul and video conferencing access.Flexible Ethernet Networking.The CloudEngine S5736-S supports Smart Link and Virtual Router Redundancy Protocol (VRRP), which implement backup of uplinks. One CloudEngine S5736-S switch can connect to multiple aggregation switches through multiple links, significantly improving reliability of access devices.Various Security Control Methods.The CloudEngine S5736-S supports 802.1x authentication, MAC address authentication, Portal authentication, and hybrid authentication, and can dynamically delivery user policies such as VLANs, QoS policies, and access control lists (ACL). It also supports user management based on user groups.Easy Network deployment,Mature IPv6 Features.Intelligent Stack (iStack).Intelligent O&M.VXLAN Features.Intelligent Upgrade.Cloud Management,Open Programmability System(OPS),Licensing IDN One Software CloudEngine S5736-S supports both the traditional feature-based licensing mode and the latest Huawei IDN One Software (N1 mode for short) licensing mode. The N1 mode is ideal for deploying Huawei CloudCampus Solution in the on-premises scenario,
as it greatly enhances the customer experiences in purchasing and upgrading software services with simplicity.
Product Description
Product name | 48 Gigabit SFPs, 4 10 Gigabit SFP all-optical Gigabit switches S5736-S48S4X-A |

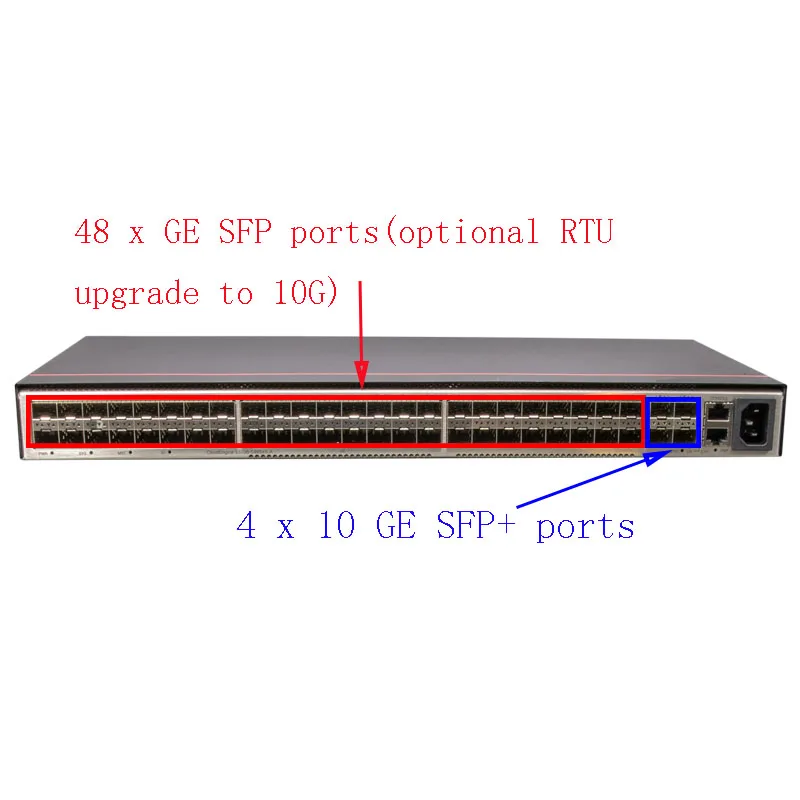

Port + Power supply | 48 x GE SFP ports 4 x 10 GE SFP+ports Built-in AC power supply |
Exchange capacity | 2.72Tbps/27.2Tbps |
Packet forwarding rate | 810 Mpps |
Warranty | 1 year |
Weight | 4.7kg(including packaging materials) |

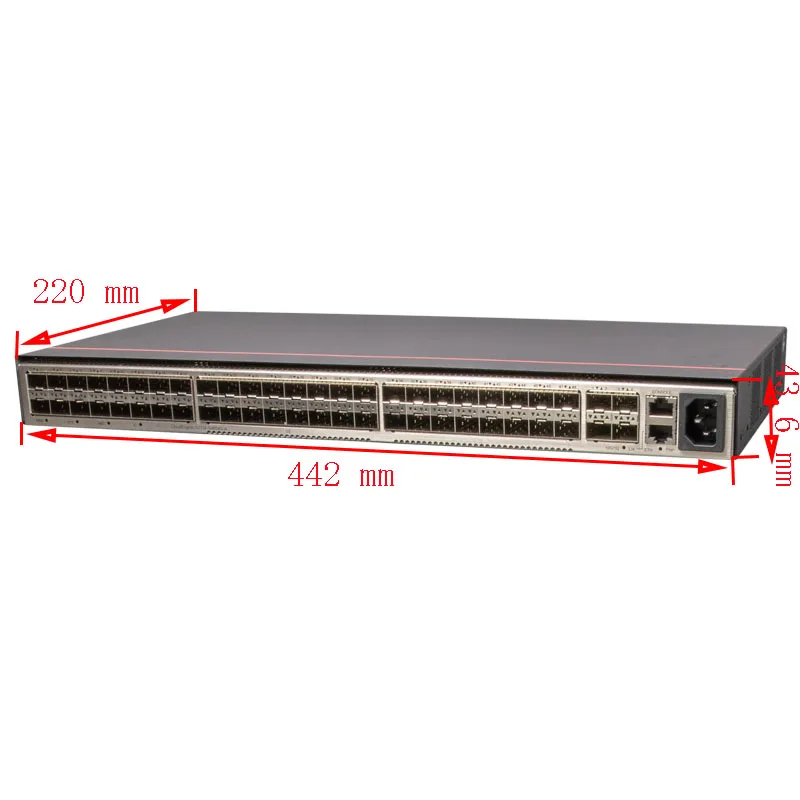

Size | 442*220*43.6mm |
Connect | Ethernet switch |
Product Description | Network Switch |
Chassis height | 1U |
Power supply type | Built-in AC power supply |
Maximum voltage range | Ac input: 90 v AC ~ 290 v AC; 45Hz～65Hz High voltage DC input: 190 v DC ~ 290 v DC |
Operating temperature | - 5°C to 45°C/40°C |
Storage temperature | -40°C to +70°C |
VLAN | 4094 VLAN specification 1024 VLANIF interface specification Access mode Trunk mode Hybrid mode QinQ mode Default VLAN VLAN assignment based on interfaces VLAN assignment based on protocols VLAN assignment based on IP subnets VLAN assignment based on MAC addresses VLAN assignment based on MAC address + IP address VLAN assignment based on MAC address + IP address + interface number Adding double VLAN tags to packets based on interfaces Super-VLAN 256 Super-VLAN specification Sub-VLAN 3k Sub-VLAN specification VLAN mapping Selective QinQ MUX VLAN Voice VLAN Guest VLAN |
MPLS | assignment based on MAC |
